Manufacturer:
(Category: 104)
max. grinding diameter:50 mmgrinding length:250 mmworkpiece length:300 mmtotal power requirement:0,7 kWweight of the machine ca.:330 kgdimensions of the machine ca.:1000 x 1000 x 1400 mm
grinding length:600 mmgrinding width:250 mmworkpiece height:380 mm:Sinumerik max. dia. of grinding wheel:300 mmweight:4000 kgtotal power requirement:12,5 kWgrinding wheels:Ø 400 mmmax. width of grinding wheel:100 mmgrinding wheel hole diameter:127 mmturning speeds:470 - 12030 1/minx-axis:600 mmy-axis:300 mmz-axis:250 mmgrinding range:450 x 200 mmdistance spindle nose and table:500 mmtable load:250 kgdimensions of the machine ca.:2600 x 2100 x 2400 mmswitchgear cabinet:1300 x 800 x 2000 mmhydraulical unit::450 x 350 x 500 mmDocuments:vorhanden
grinding length:1250 mmgrinding width:400 mmworkpiece height:550 mmworkpiece weight:750 kgtable-size:1720 x 400 mmmagnetic clamping plate:1250 x 400 mmdist. center of grinding spindle - table:750 mmturning speed range - grinding wheel:3000 U/minLength movement of the table:1300 mmgrinding wheel size:Ø 400 x 50 x 127 mmswitchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 Vtable load:max. 1100 total power requirement:13,8 kWweight of the machine ca.:6000 kgdimensions of the machine ca.:5000 x 3400 x 2400 mmDocuments:inkl.
internal diameter:315 mmgrinding depth:315 mmswing diameter:420 mmnumber of spindle speeds:32 - 360 U-minwheel box:-drehzahl 100 - 8000 U/minface diameter:500 mmtotal power requirement:12 kWweight of the machine ca.:5900 kgdimensions of the machine ca.:3400 x 1750 x 2000 mm

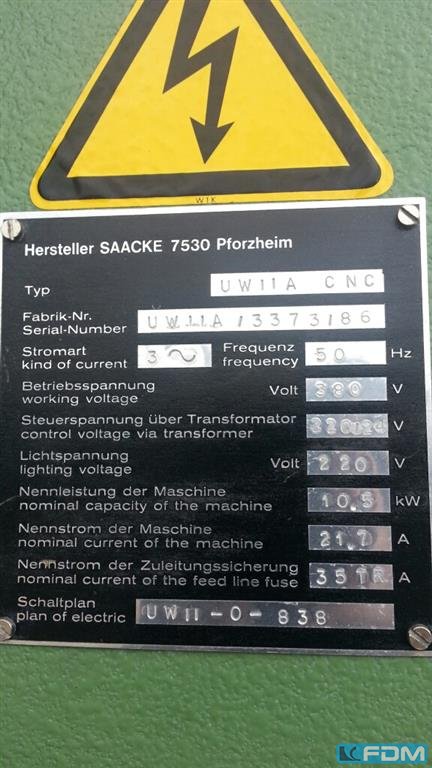

total power requirement:10,5 kWweight of the machine ca.:4800 kgdimensions of the machine ca.:3000 x 2100 x 2000 mmcentre distance:1200 mmHeight of centres:200 mmgrinding-table stroke max.:X -Achse 1000 mmtable-size:2060 x350 mmz-axis:Querhub 250 mmFeed speed:0,005 - 5 m/min.grinding head - swivable:360 °taper ISO:50 control:Sinumerik System 8 Documents:vorhanden
grinding length:1000 mmgrinding width:250 mmworkpiece height:400 mmtotal power requirement:12 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3.300 x 1.800 x 2.300 mmhydraulic power unit:400 x1000 x 1500 mmcontrol cabinet:2 Stück, 1000 x 1400 x 1500 mm
grinding length:150 mmtotal power requirement:3 x 380 /220 Vweight of the machine ca.:2100 kgdimensions of the machine ca.:1200 x 1700 x 2000 mmgrinding wheel diameter:280 - 350 mmgrinding wheel width max.:20 mmworkpiece diameter:65 - 120 mmworkpiece turning speeds:1,5 -20 U/minDocuments:vorhanden

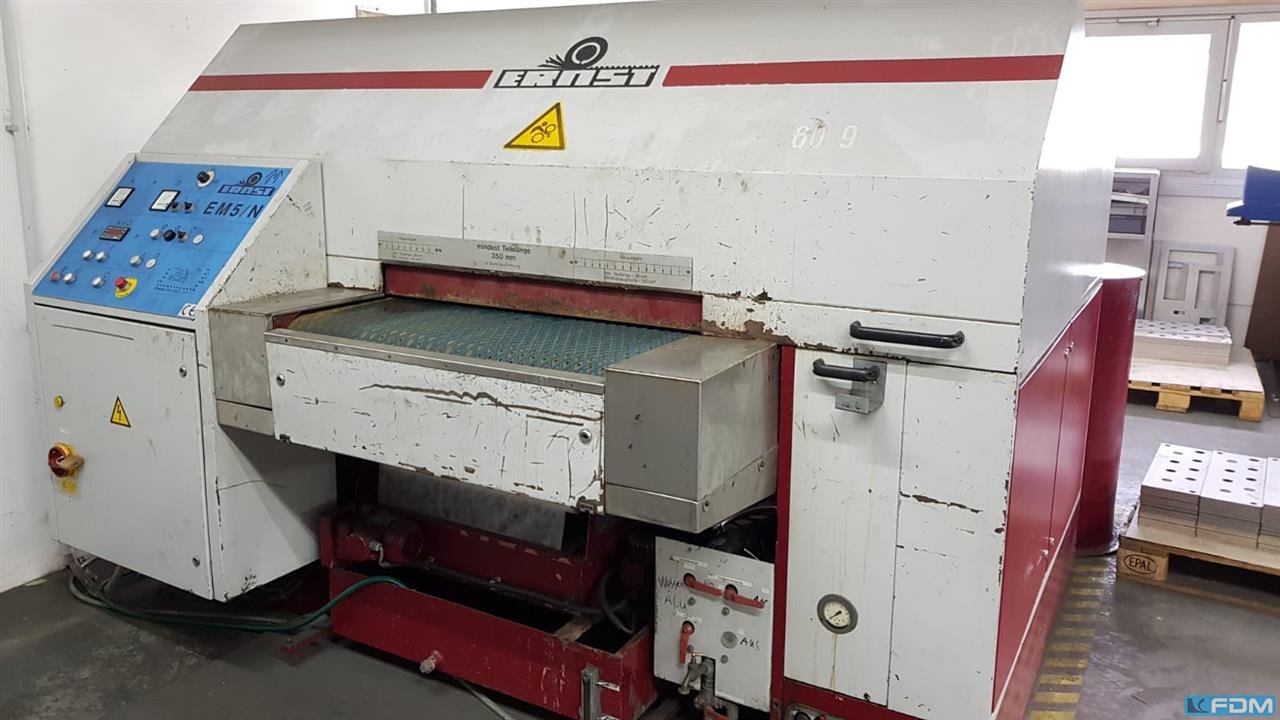

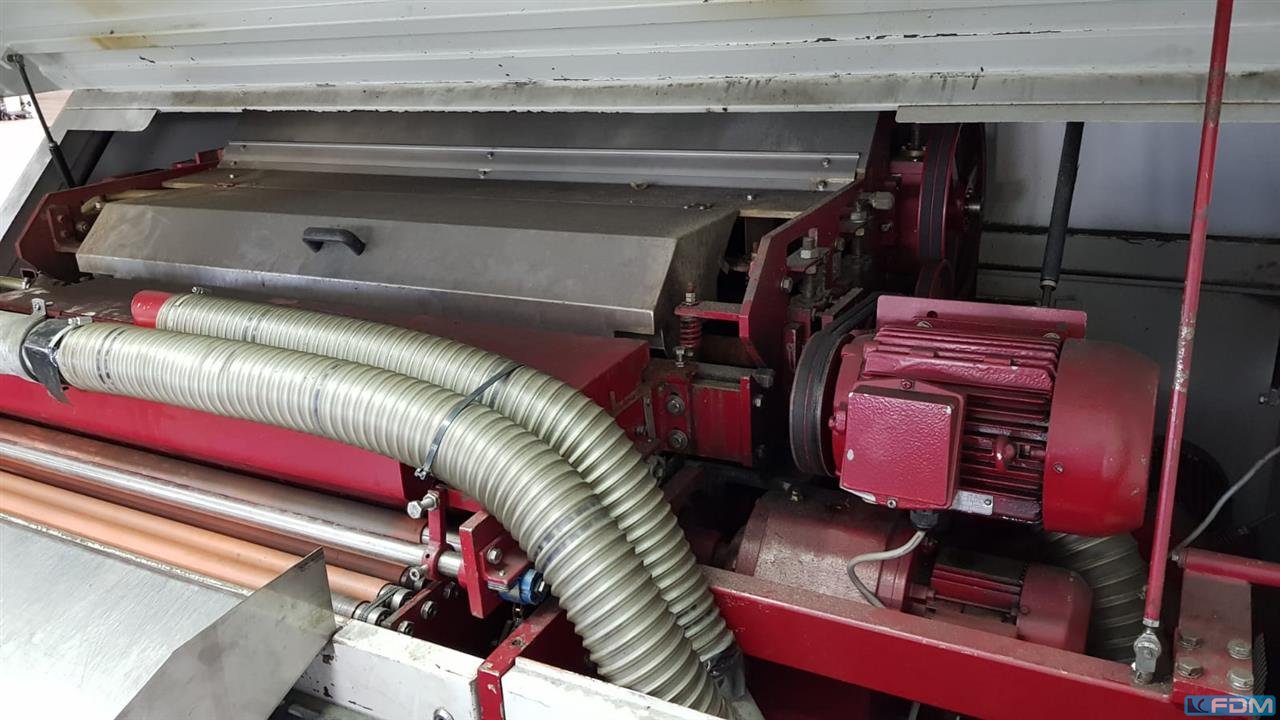

working width:880 mmworkpiece height:1- 70 mmwork height max.:1000 mmFeed speed:4- 8 m/min.voltage:50 Hz, 400 Vweight of the machine ca.:2.800 kgdimensions of the machine ca.:2500 x 1715 x1675 mmwidth:min. 350 mmSanding cylinder diameter:420 mmelectr. connected load:20 KWRequired air-pressure:1 x R3/ 8 " pressure:5 bartank:des Bandfilter ca.200 lautomatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mmaccessories::9 Bänder Documents:vorhanden
total power requirement:16,5 kWweight of the machine ca.:3,8 t
total power requirement:380V, 50Hz, 7,9A kWweight of the machine ca.:1 tdimensions of the machine ca.:4 x 3 m

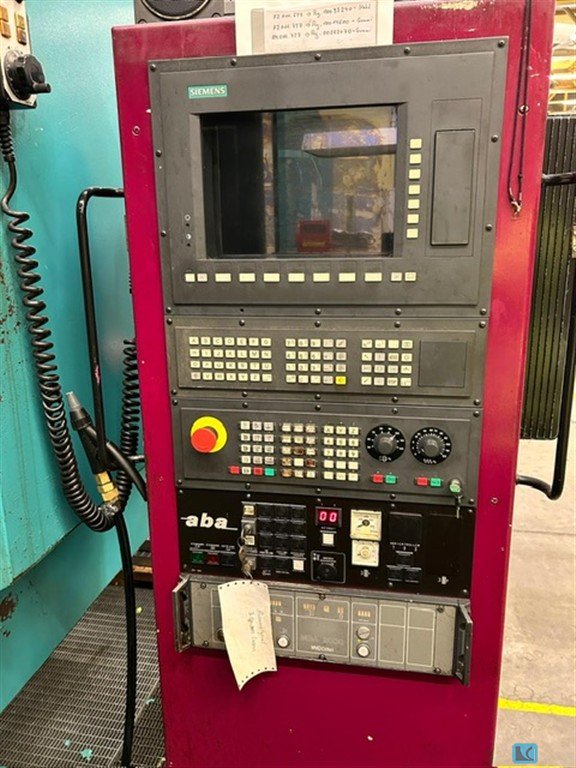

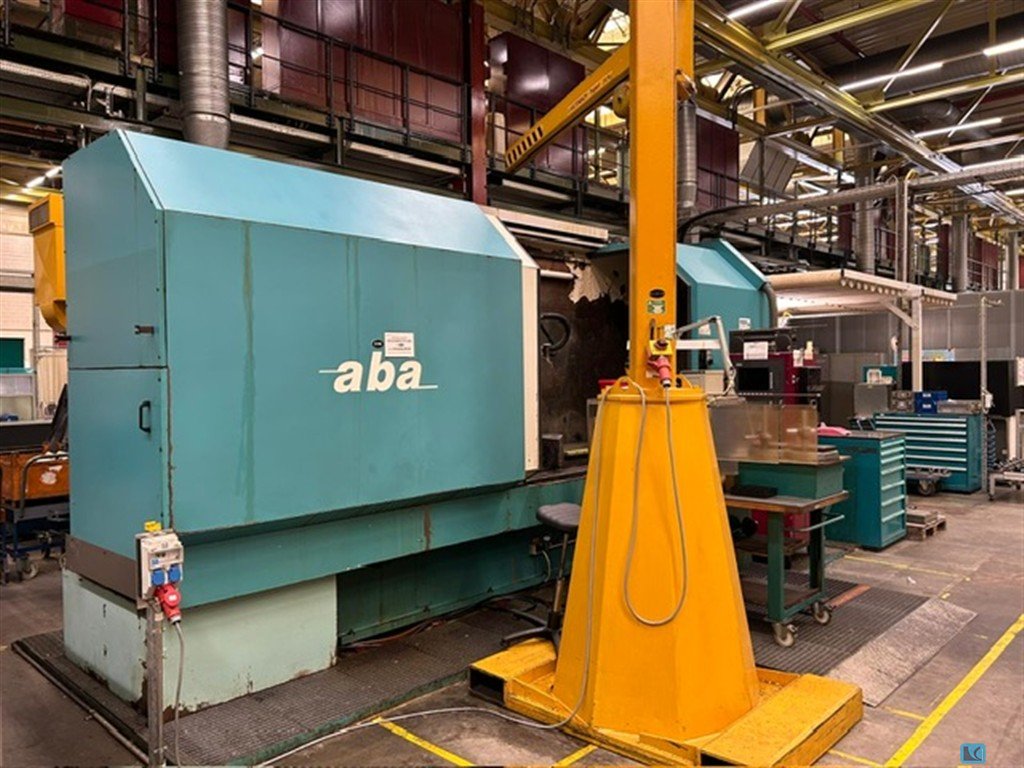

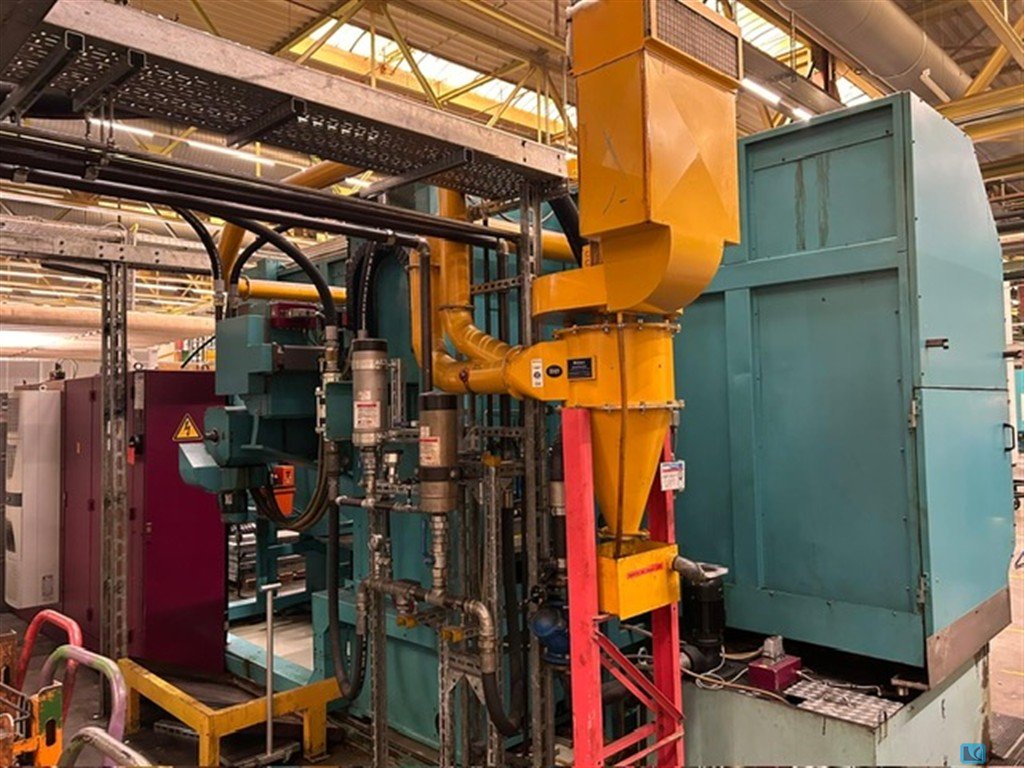

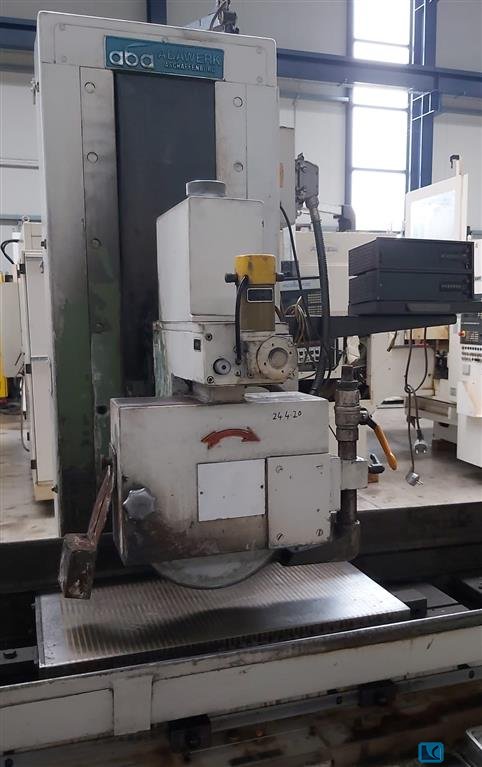

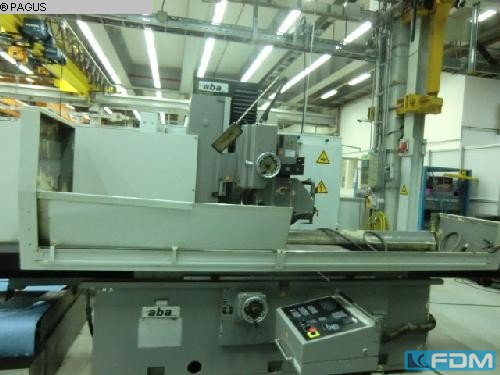

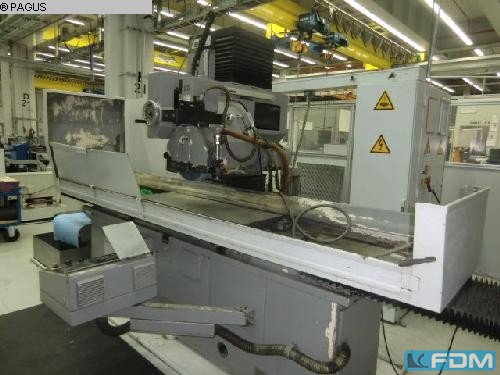

grinding length:1370 mmgrinding width:560 mmworkpiece height:800 mmtotal power requirement:50 kWdimensions of the machine ca.:9 mABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head
grinding length:600 mmgrinding width:200 mmtotal power requirement:5 kWweight of the machine ca.:1,4 tdimensions of the machine ca.:3 x 3 m
grinding diameter:4000 mmcentre height:310 mmweight of the machine ca.:17 tdimensions of the machine ca.:10.5 x 3.6 x 1,9 m

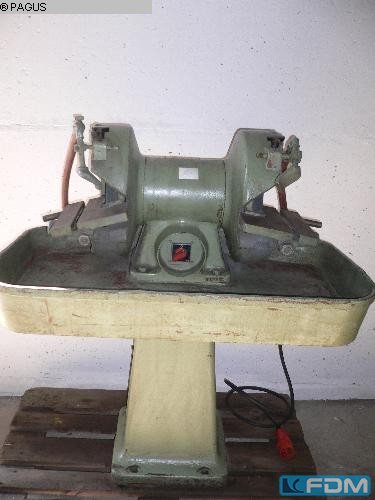

grinding wheel diameter:300 mmvoltage:380 Vtotal power requirement:1,5 kWweight of the machine ca.:310 kgdimensions of the machine ca.:1100x900x1250 mm
grinding length:1500 mmcentre height:325 mmweight of the machine ca.:12 tKarstens EMAG H310 Universal Grinding MachineYear of manufacture: 2004Center distance: 1500 mmCenter height: 325 mmReinforced workpiece spindle, load capacity up to 250 kgDriven C-axis for polygon, thread, and eccentric grinding.3 individually mounted grinding spindles.Siemens 840D control system
grinding diameter max.:400 mmmax. width of grinding wheel:180 mmgrinding range:2-100 mmtotal power requirement:24 kWweight of the machine ca.:3,2 tOut of valve production
x-travel:400 mmy-travel:250 mmworkpiece height:500 mmgrinding diameter:220 mmtable surface area:600 x 320 mmthroat:310 mmrange of angles:12 °grinding wheel stroke - vertical:110 mmstroke speeds:0 - 6 m/mingrinding spindle speed:bis 50000 U/minperipheral speed:max. 35 m/seccapacity:ca. 7 kVApower capacity:6 kWweight of the machine ca.:2 tdimensions of the machine ca.:3 x 3 x 3 mrotary table d = 300 mmfrequency changerTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
grinding diameter:600 mmgrinding length:3000 mmcentre height:315 mmworkpiece weight max.:3000 kgwork piece spindle speed:8 - 120 U/mingrinding wheel motor:25 kWgrinding wheel speed:45 m/secgrinding wheel width x diameter:750 x 80 mmtable speeds:30 - 4500 mm/minfeeds of grinding head:0 - 5 mm/mintable swivelabel +/-:7,5 °total power requirement:55 kVAweight of the machine ca.:18 tdimensions of the machine ca.:11,5 x 4 x 2,2 m- Internal grinding device- taper grinding up to 10,1° based on diameter- automatic grinding cycle- grinding wheels and flanges- dressing device- coolant attachment- dust exhauster, various steady rests
grinding length:600 mmgrinding width:300 mmworkpiece height:450 mmtotal power requirement:8 kWweight of the machine ca.:2,2 tdimensions of the machine ca.:2,8 x 3,0 x 2,0 mgrinding spindle speed:1440 / 2905 U/minwith magnetic plate 600 x 200 mmautom. vertical feed coolant attachmentTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
grinding diameter:380 mmgrinding length:1000 mmcentre height:180 mmgrinding wheel diameter:400 mmmax. workpiece weight between centres:250 kgtotal power requirement:10 kWweight of the machine ca.:4,1 tdimensions of the machine ca.:3 x 2 x 1,6 mwith internal grinding attachmentwith fixed and swivelling headstockwith coolant tank

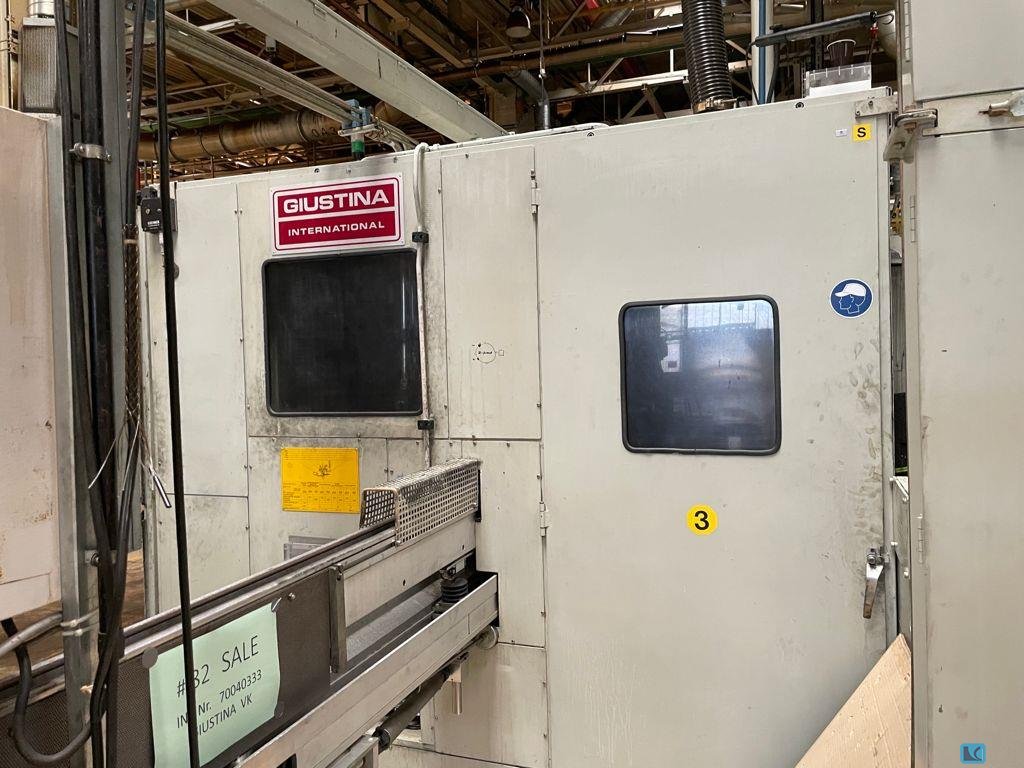

grinding height:-- mmgrinding width:220 mmgrinding wheel diameter:762 mmtotal power requirement:90 kWweight of the machine ca.:13 tgrinding spindle 1 drive::37 kWgrinding spindle 2 drive::37 kWGrinding machine for pre-grinding the connecting rodWith 2 replacement spindle motors

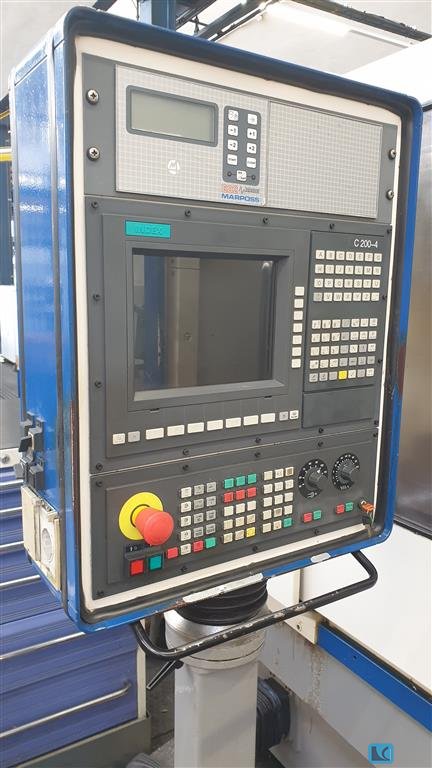

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device
grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser
grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

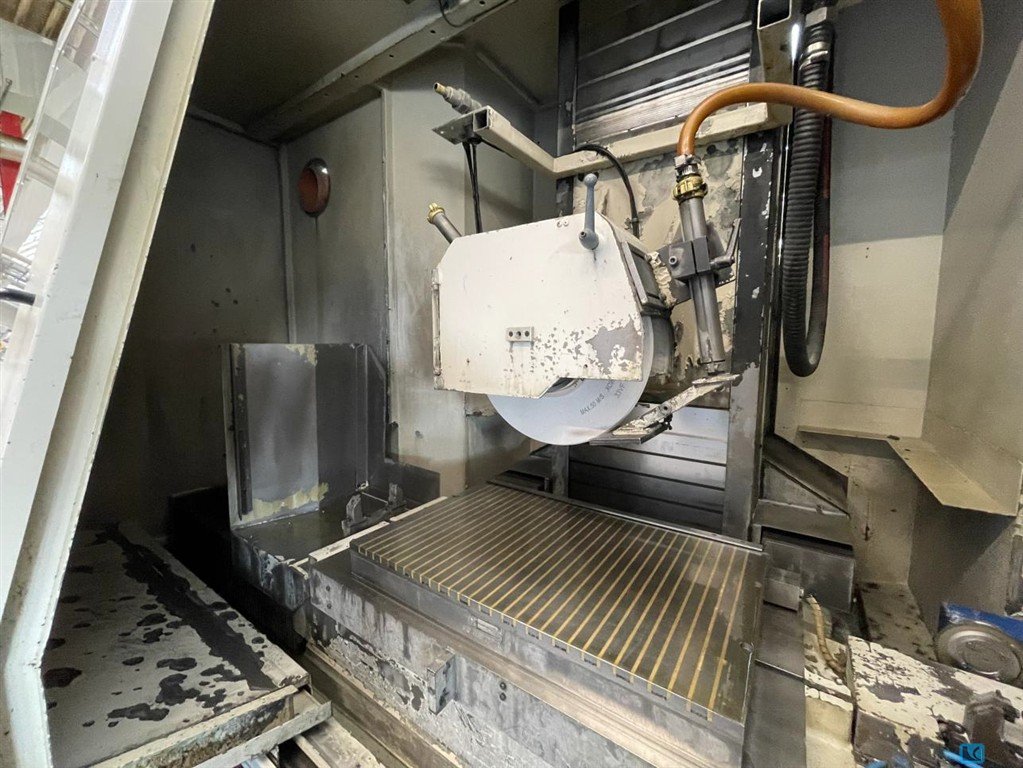

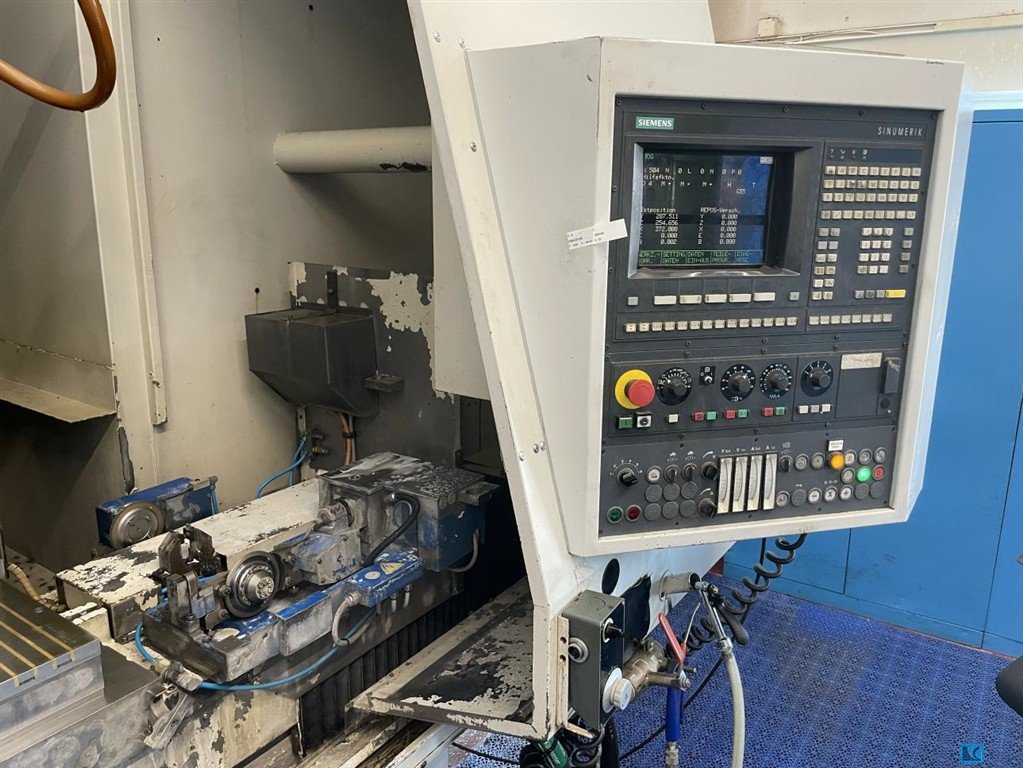

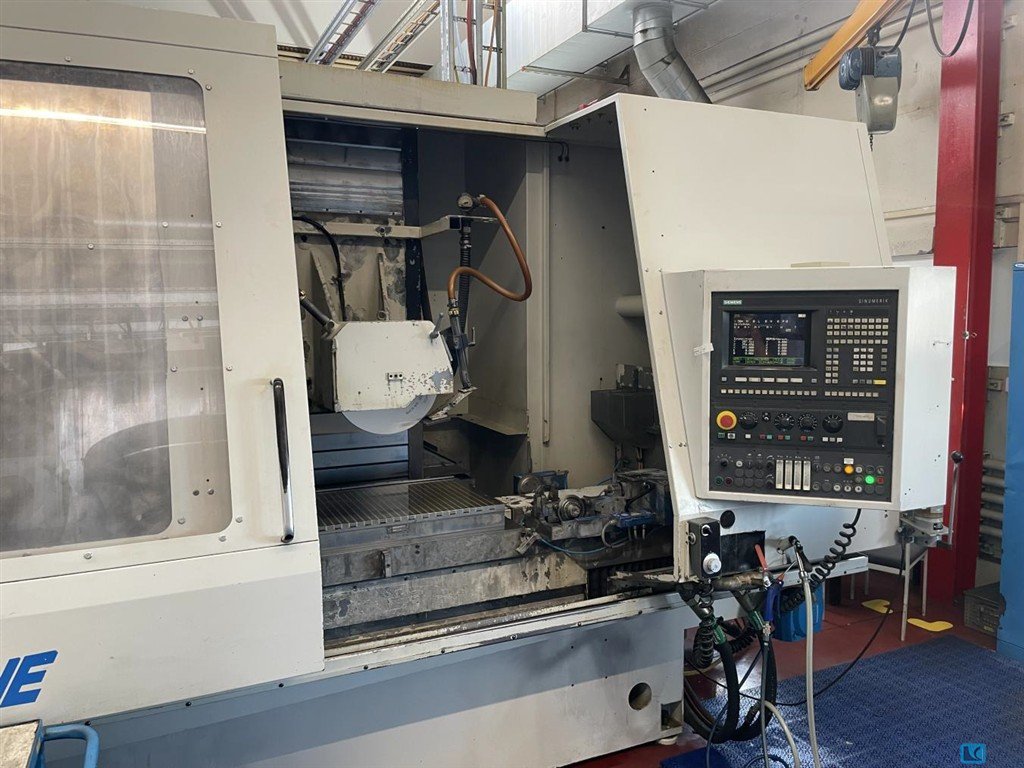

grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

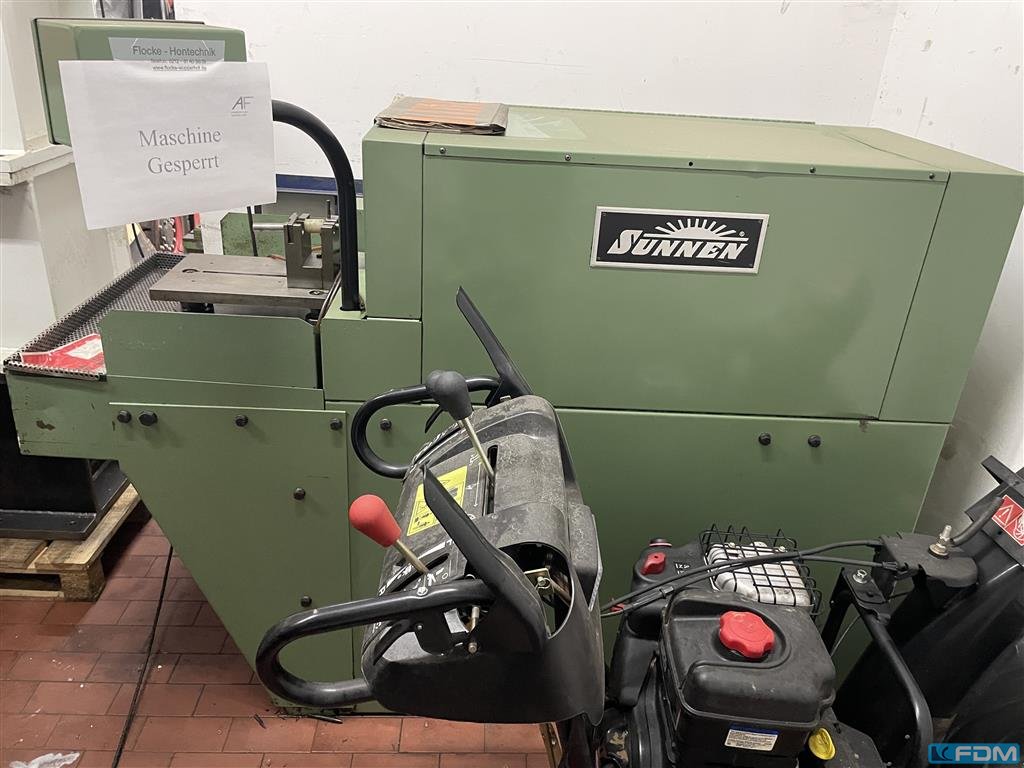

honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m

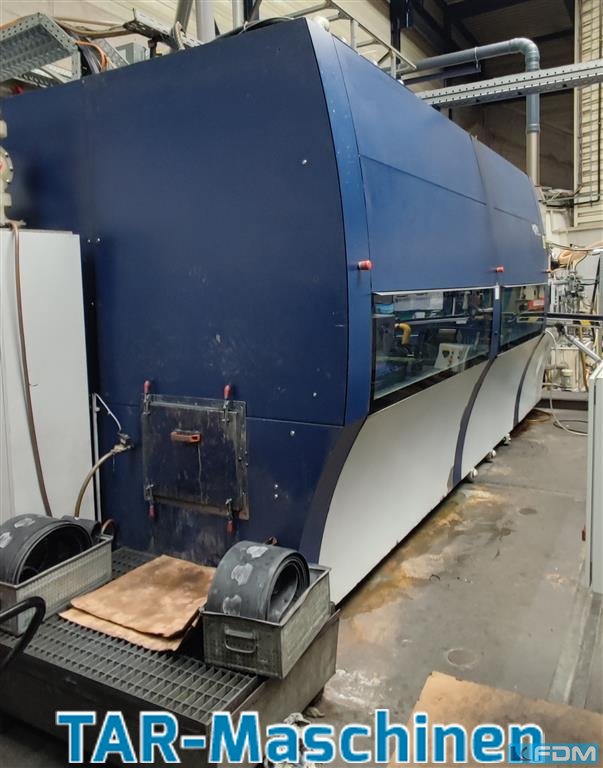

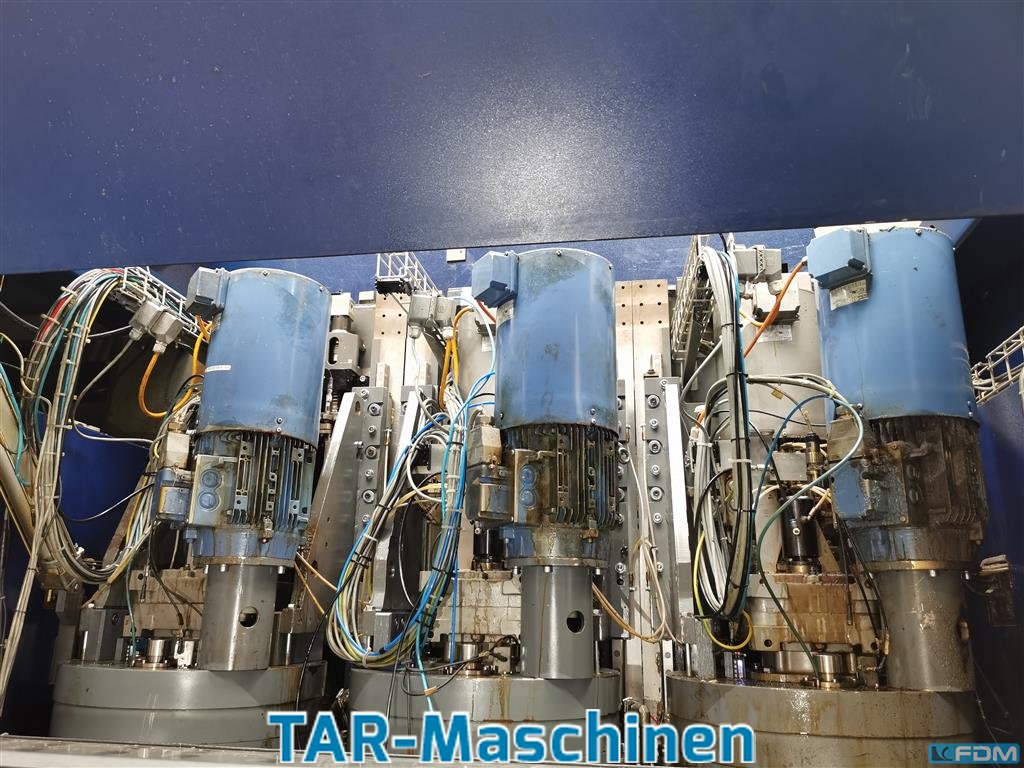

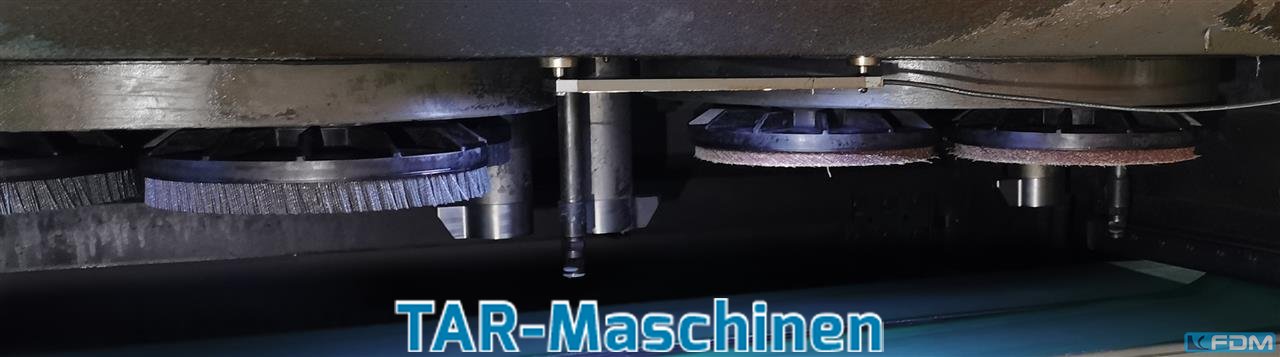

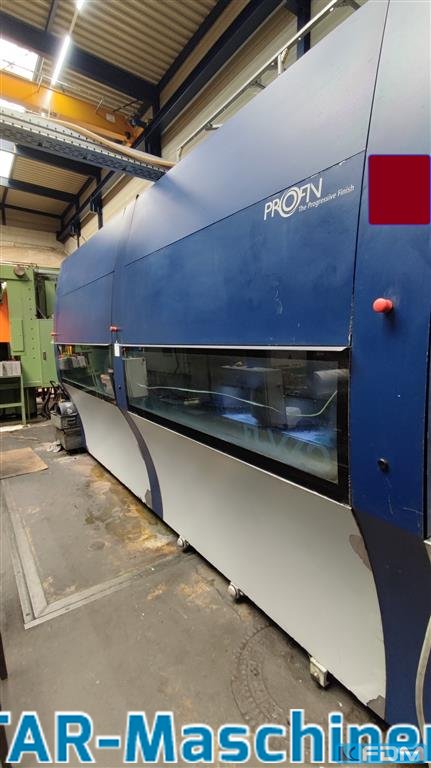

Finishing machine single-sided machining or double-sided machining, second-hand3 FLAKKO units with 4 disc tools each:Drive power 7.5kWSpindle speed 300 - 2500 rpmFeed speed 2-20 m/minWet machiningTool diameter 230mmWorking width 400mm for single-sided machiningWorking width 200mm for double-sided machining with turning deviceSpecial magnetic insertsdesigned for hot machiningIPC control with PLCConnected load 3x 400V 50HzConnected load approx. 52 kWOverhaul of all units with conversion to new 4-point bearing between 2021 and 2023.Special-price 25.000 EURO, net -free loaded truck- Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
