Packer for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Bottle holders: 5x20, 7x9 or 10x6 bottles., Additional title: Packing machine for bottle crates, Output according to design: 4000 crates/h, Current output approx.: 3000 crates/h , Air consumption: 0 Nm³/1000 bottles, Current: 17,59 A, Voltage: 220/400 V, Frequency: 50 Hz, Compressed air: 4 - 5 bar, Length: 3680 mm, Width: 2940 mm, Height: 2610 mm, Weight: 4200 kg, Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: converted to manual / PLC defective, Material: stainless steel / painted black steel, Position: free standing, Base construction: rectangular cycle packer machine on four columns with spherical feet, Features: Plexiglas safety screen opening upwards, safety grid, infeed and outfeed conveyors, packing head equipment for 0.5 l, 1.0 l and 1.5 l bottles, control panel conver ...
Combined rinser and filler for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Output: 24,000 bottles/h A chlorine dioxide dosing unit and a sterile water supply are connected to the rinser. The filler is equipped with a screw capper. The filling quantity is controlled via flow measurement. Liquid nitrogen dosing is possible via a mobile system., Additional title: PET bottle sanitising and filling system, Capacity: 24000 b/h , Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: Touch-Panel / Simatic S 7, Material: mainly stainless steel, Position: free standing, Features: Stainless steel enclosure, plexiglass protective screen opening upwards; 70 rinsing valves on the rinser; 80 filling valves; filling quantity recording via IDM; Alcoa capper 28 mm Bericap; Prominent chlorine dioxide dosing; filtration system for sterile water, mobile liqu ...

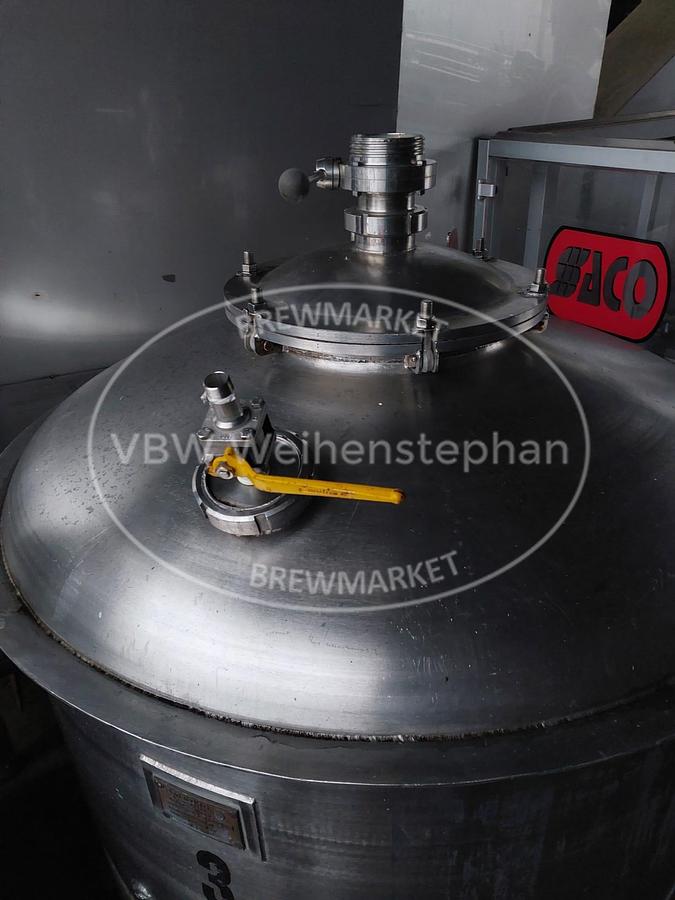

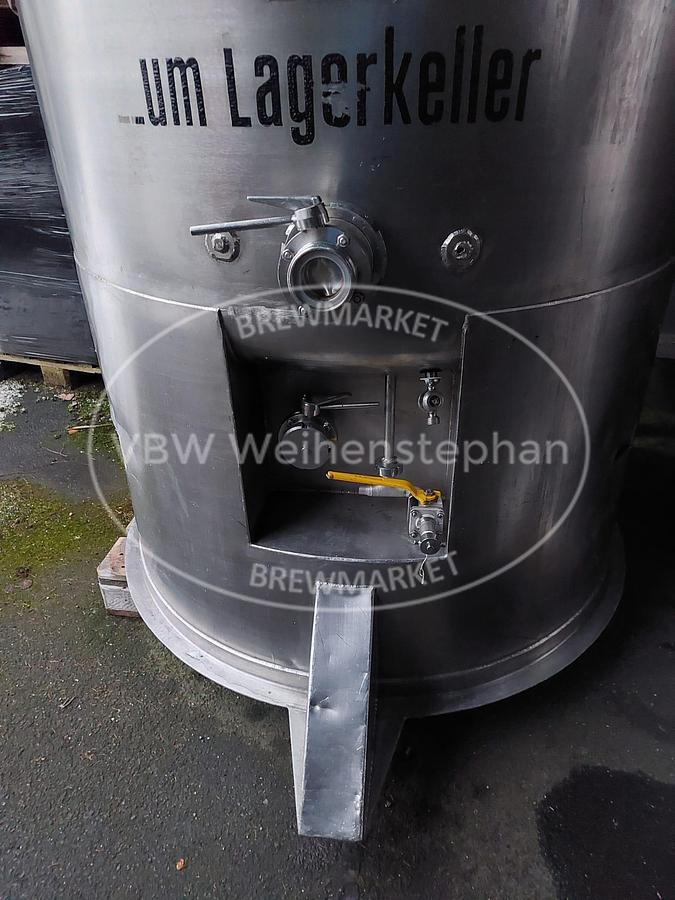

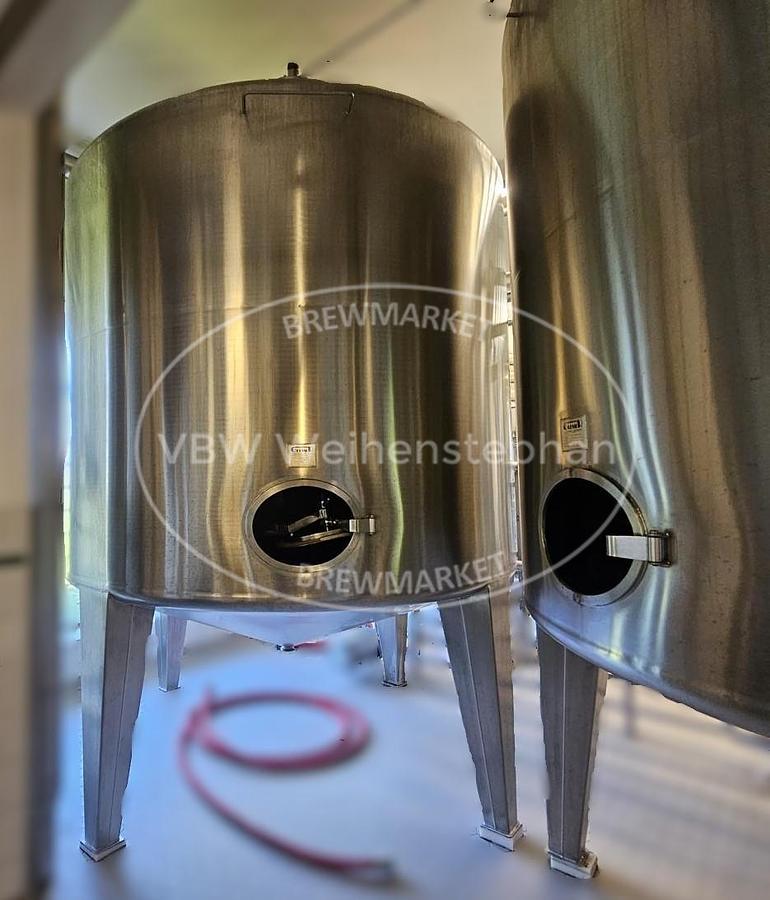

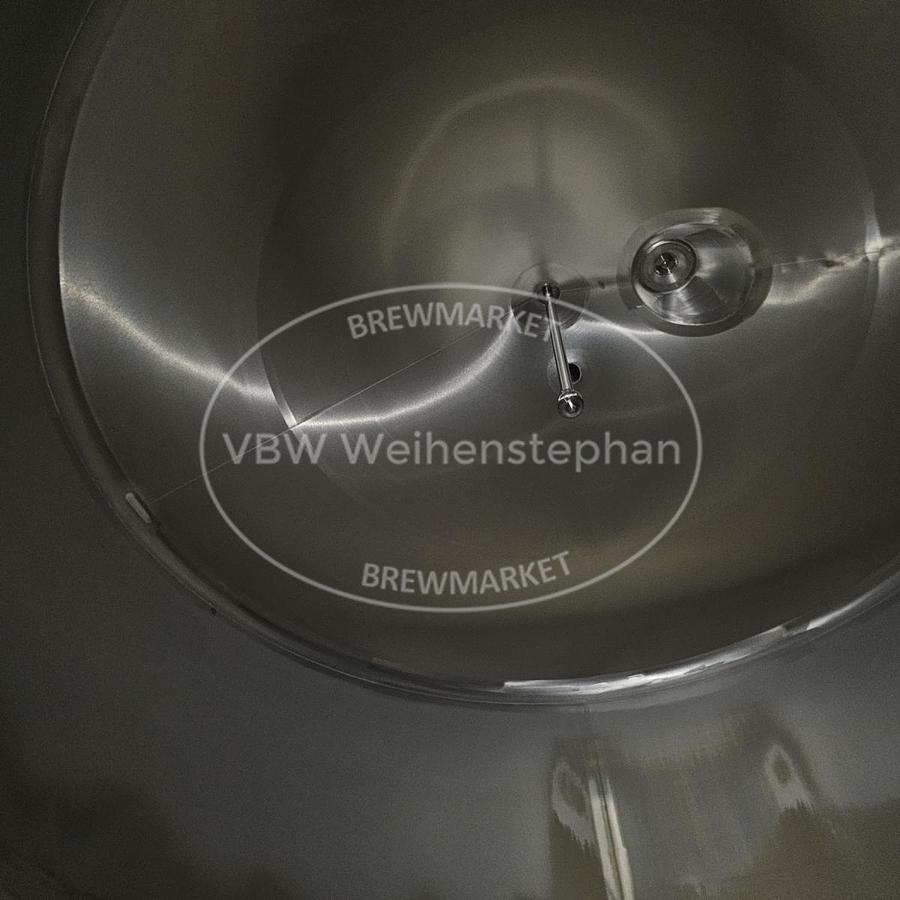

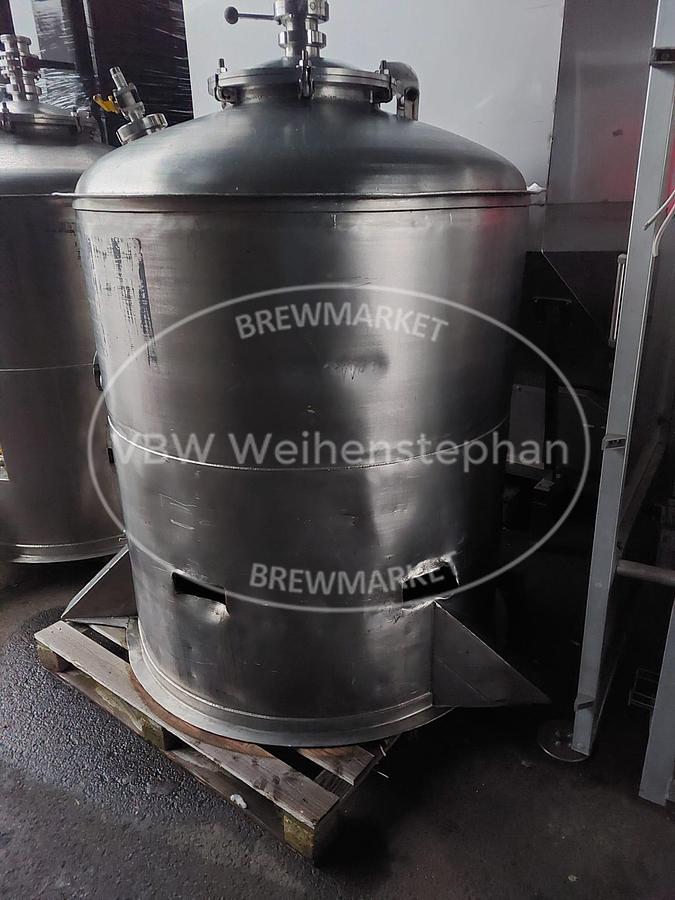

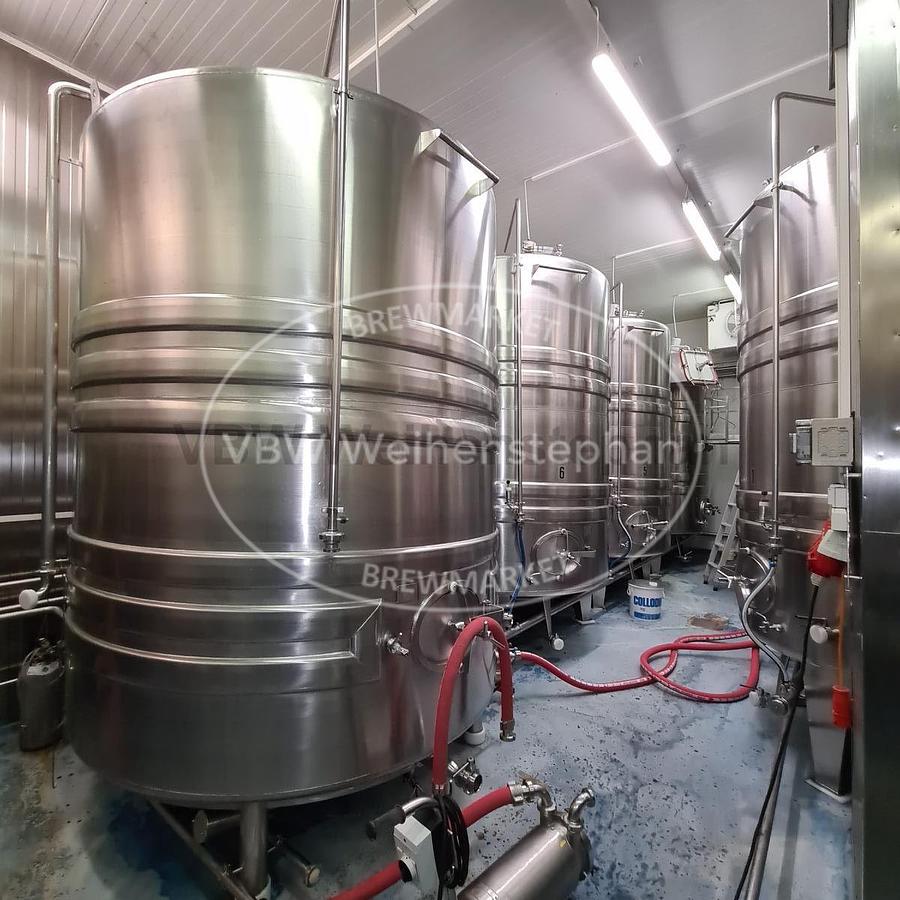

5 vertical stainless steel tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks; year of manufacture 1999-2001, Content: 4400 l, Max. pressure: 0 bar, Length: 1600 mm, Width: 1600 mm, Height: 2920 mm, Operation / Control: manual, Material: stainless steel 1.4301, Position: free-standing, Base construction: cylindrical tank with curved bottoms and square tube feet on domes, Features: sprayball, bunging apparatus, pressure gauge, 1 shell cooling zone, standhose for content display, manhole, thermometer and sampler in the shell, manual valve for cooling control, central bottom outlet

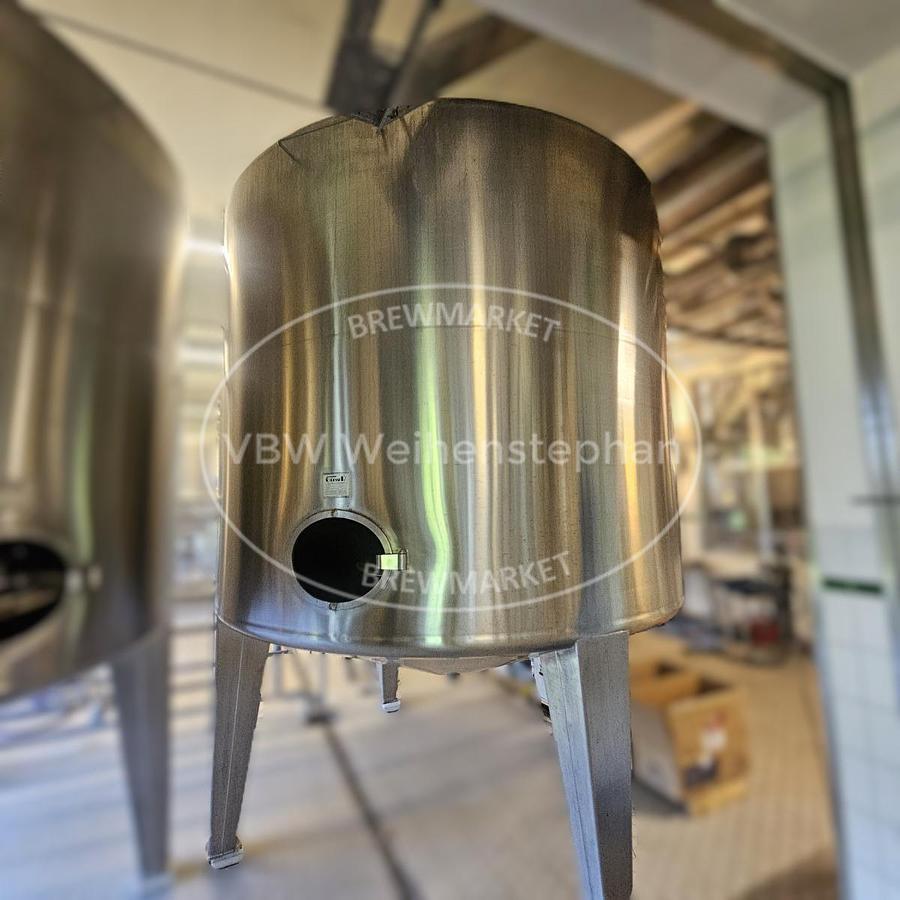

6 vertical stainless steel tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks, Content: 2200 l, Max. pressure: 0,99 bar, Length: 1000 mm, Width: 1000 mm, Height: 1965 mm, Operation / Control: manual, Material: stainless steel 1.4301, Position: free-standing, Base construction: cylindrical tank with curved bottoms and square tube feet on domes, Features: sprayball, bunging apparatus, pressure gauge, 1 shell cooling zone, standhose for content display, manhole, thermometer and sampler in the shell, manual valve for cooling control, central bottom outlet
Schenk ZHF Kieselguhrfilter, Additional title: Kieselguhr filter, Capacity: 3000 l/h, Max. pressure: 6 bar, Max. temp.: 20 °C, Vessel content: 680 l, Operation / Control: manual operation, with buttons / switches on the control box, Material: stainless steel, Position: Fixed to the floor on a frame, Features: CIP heat exchanger with fittings, dosing vessel, dosing pump, control cabinet, electric motor for shaft drive

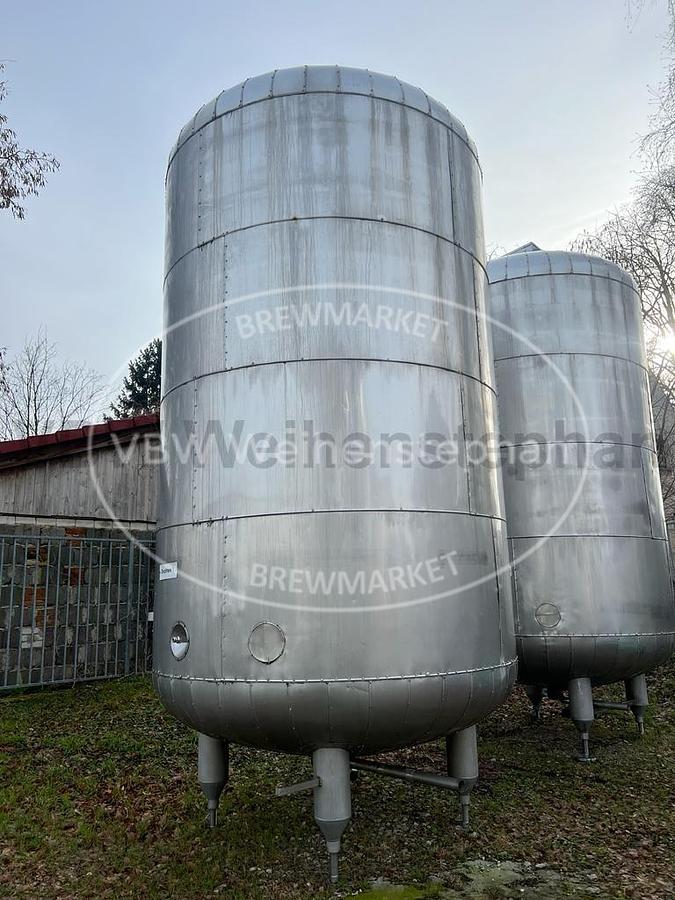

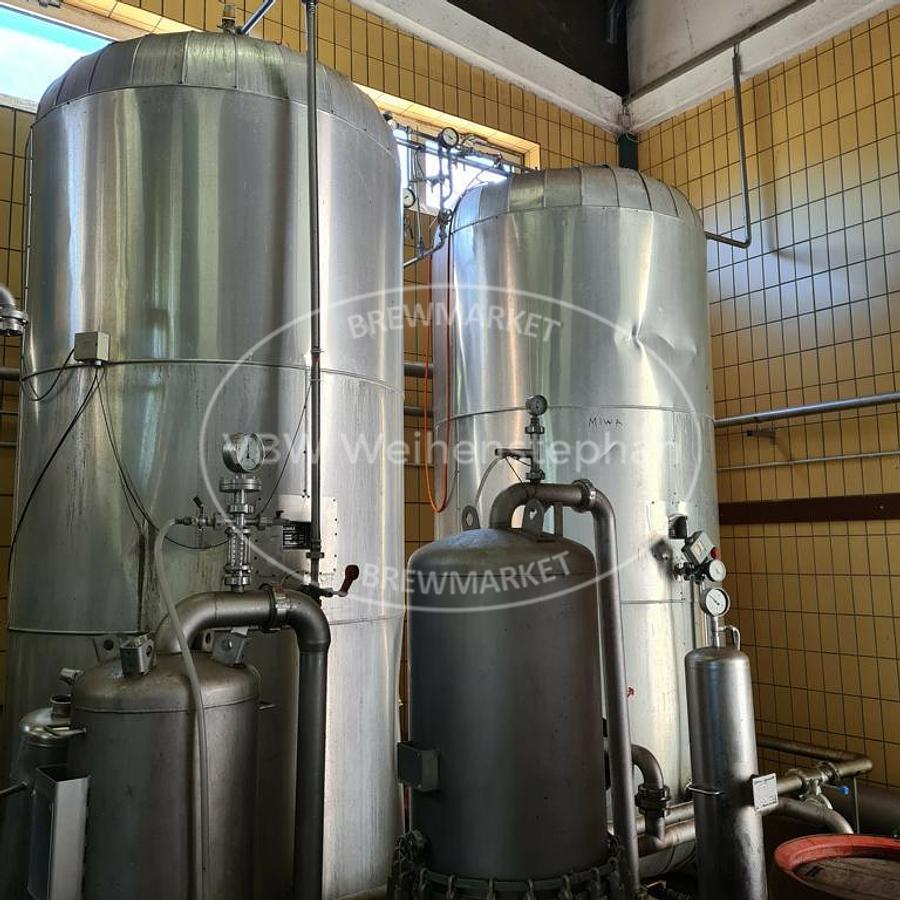

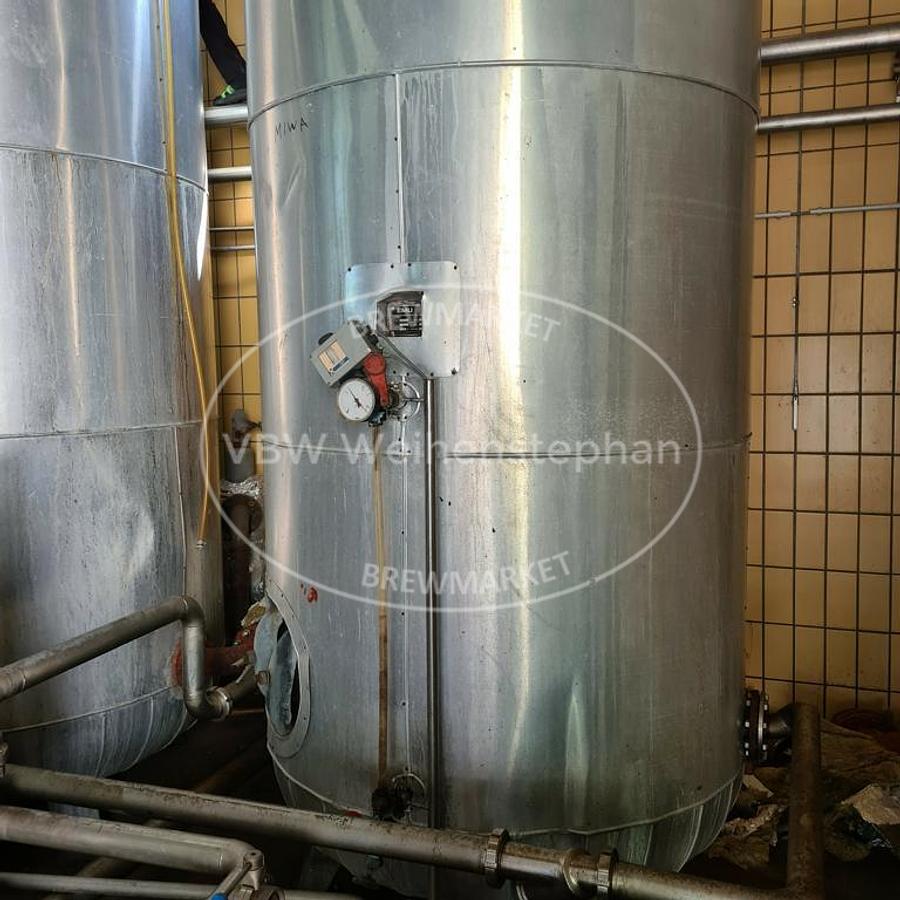

Two vertical, partially insulated stainless steel pressure tanks., Additional title: vertical stainless steel tanks, Volume: 5000 l, Operating pressure: 12 bar, Operating temperature: 20 °C

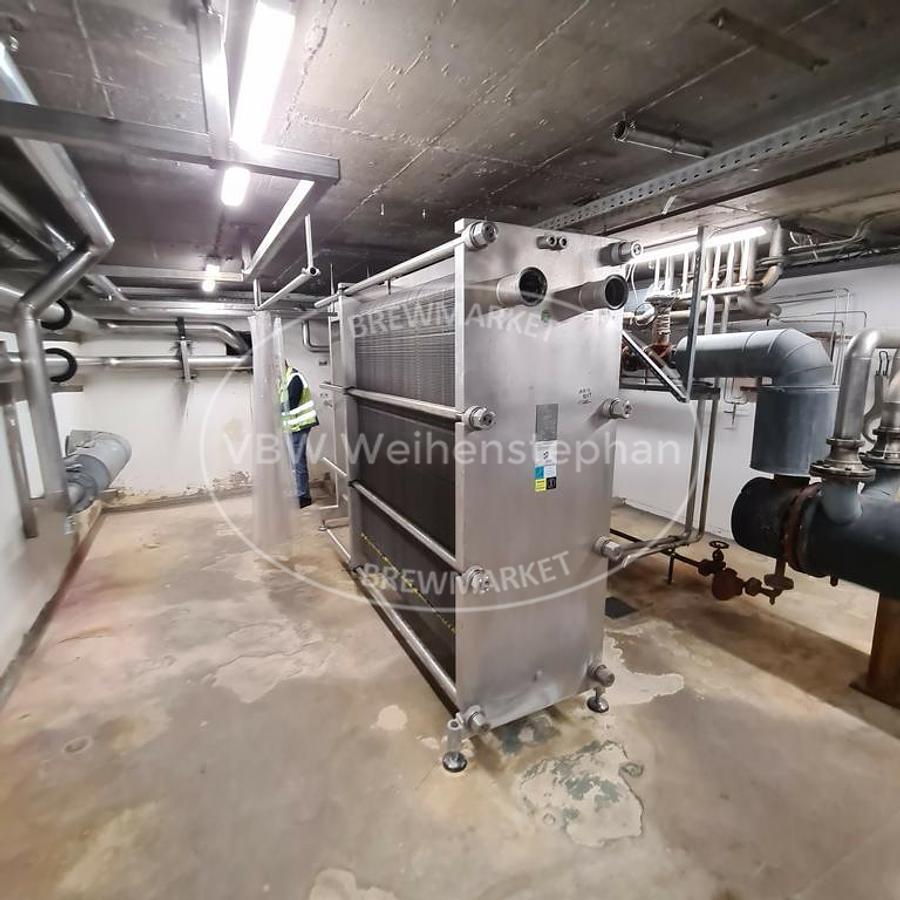

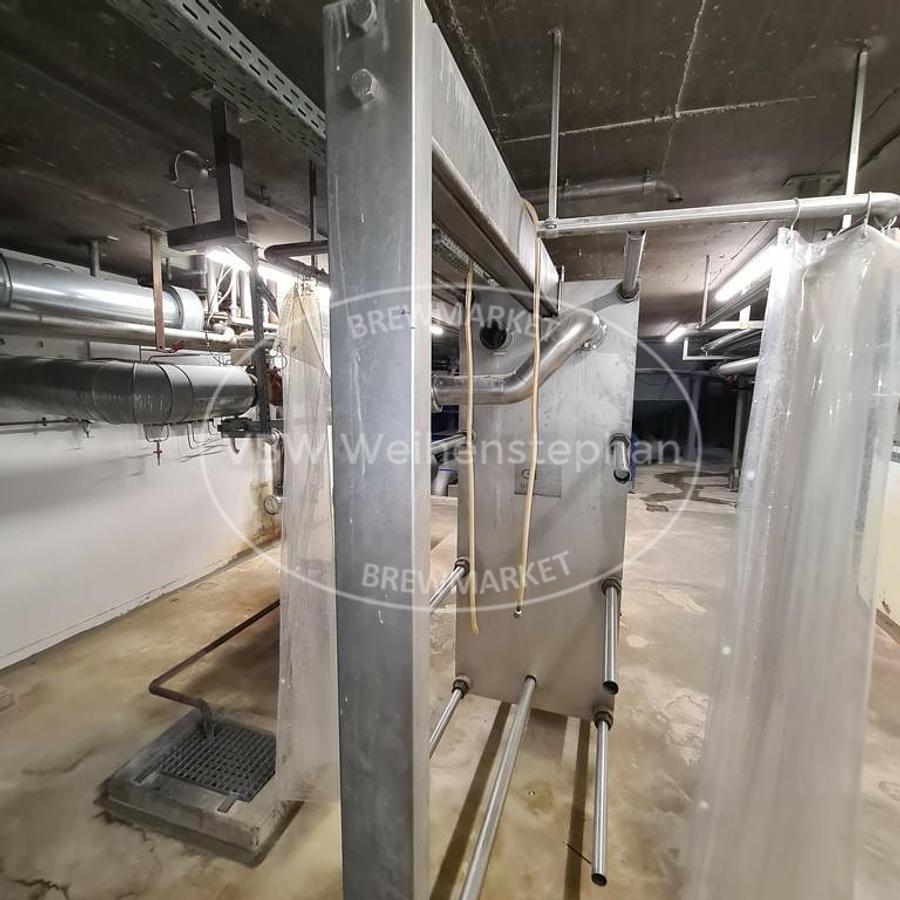

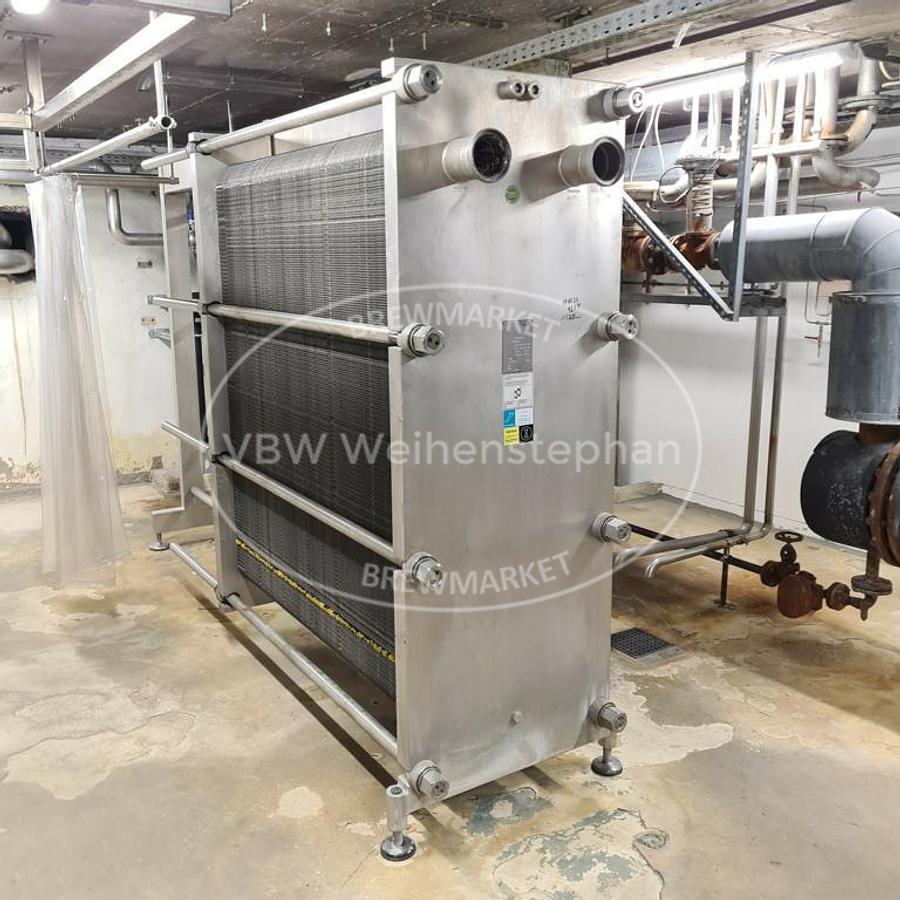

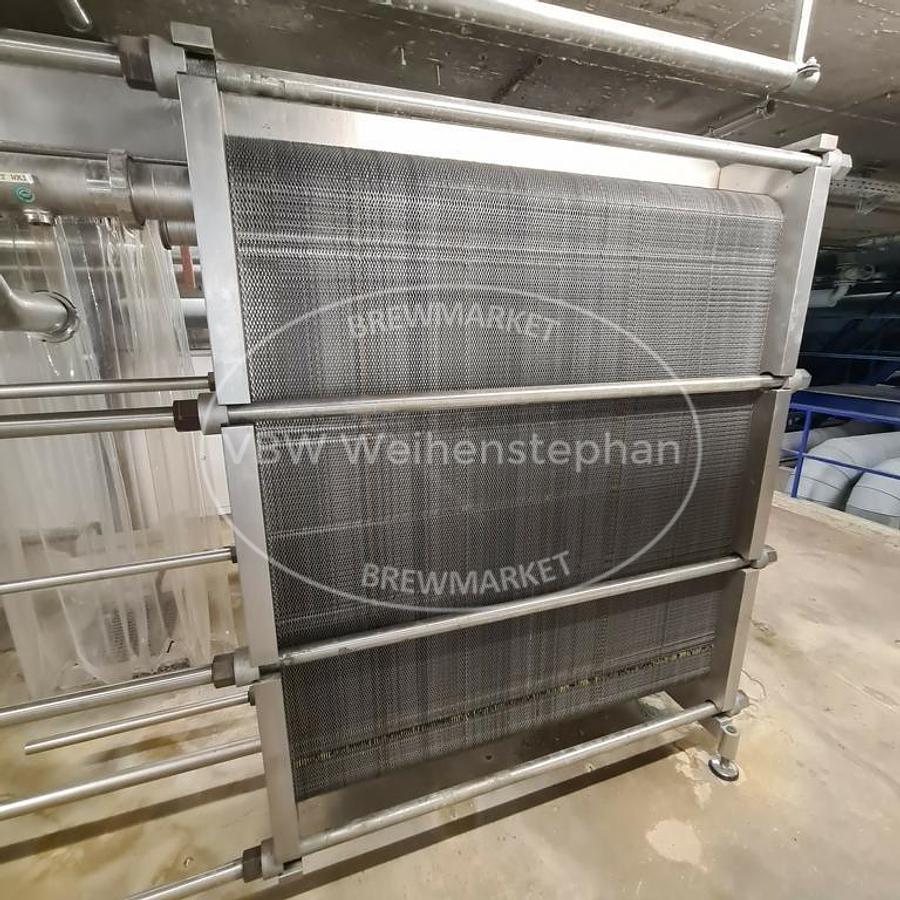

Additional title: one-stage, Allowable pressure (wort & water): 10 bar, Allowable temperature (wort & water): 120 °C, Test pressure: 13 bar, Volume: 572 l, Length: 1,537 m, Weight: 3898 kg, Features: DN80 dairy coupling; 421 plates; fluid group 1

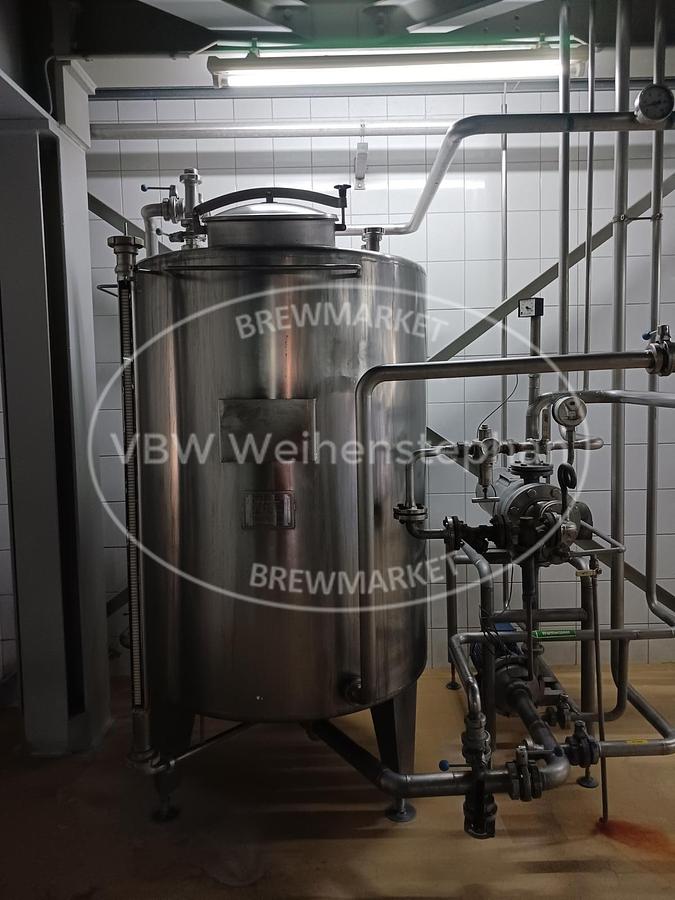

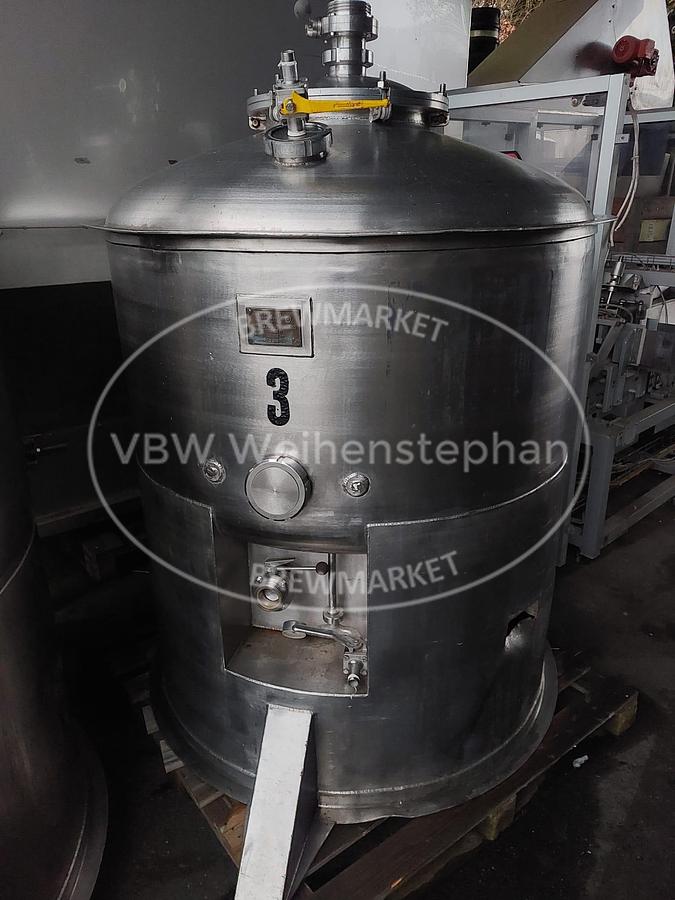

2 vertical stainless steel pressure tanks with various fittings. Each mounted on a base frame., Additional title: 2 x tanks, Volume: 1050 l, Max pressure: 3 bar, Temperature: 10 °C, Width: 1,2 m, Height: 1,9 m, Material: stainless steel, Position: horizontal, Base construction: on skirt, Features: 1 manhole and 2 connections on top, 1 side- and 1 bottom-outlet, 1 gas piping, 1 sampling point, All connections with fitting.
Two horizontal stainless steel tanks with various fittings., Volume: 20800 l, Operating pressure: 1 bar, Operating temperature: 20 °C, Material: Stainless steel, Position: horizontal

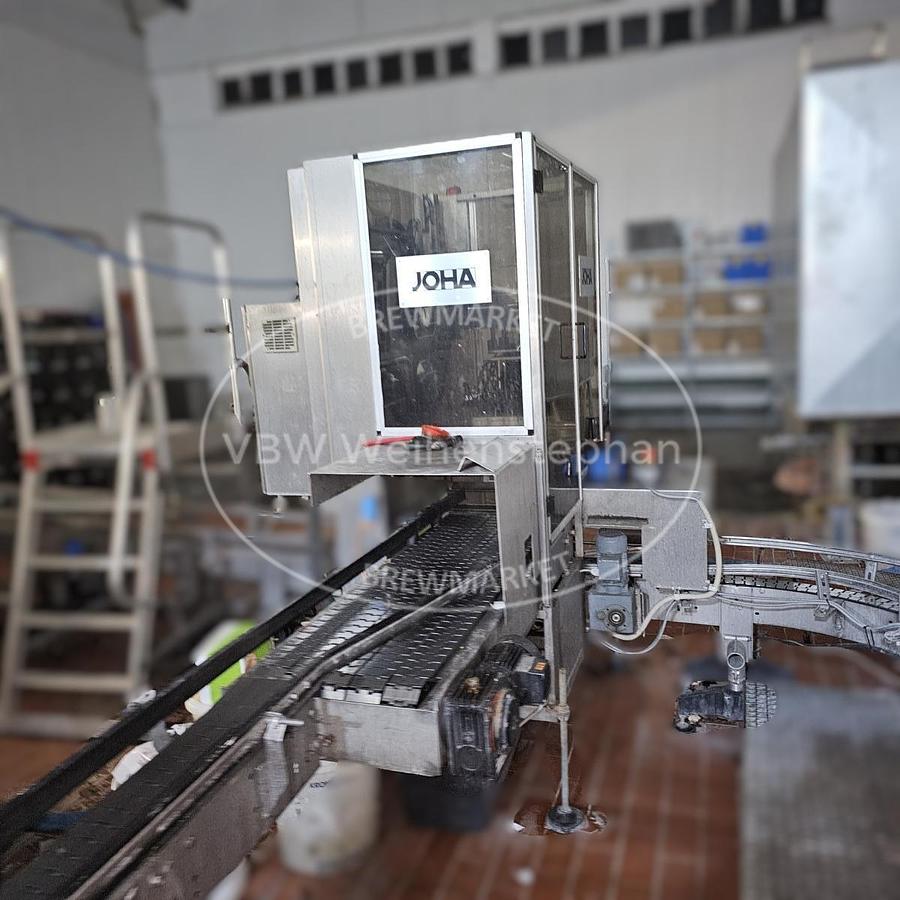

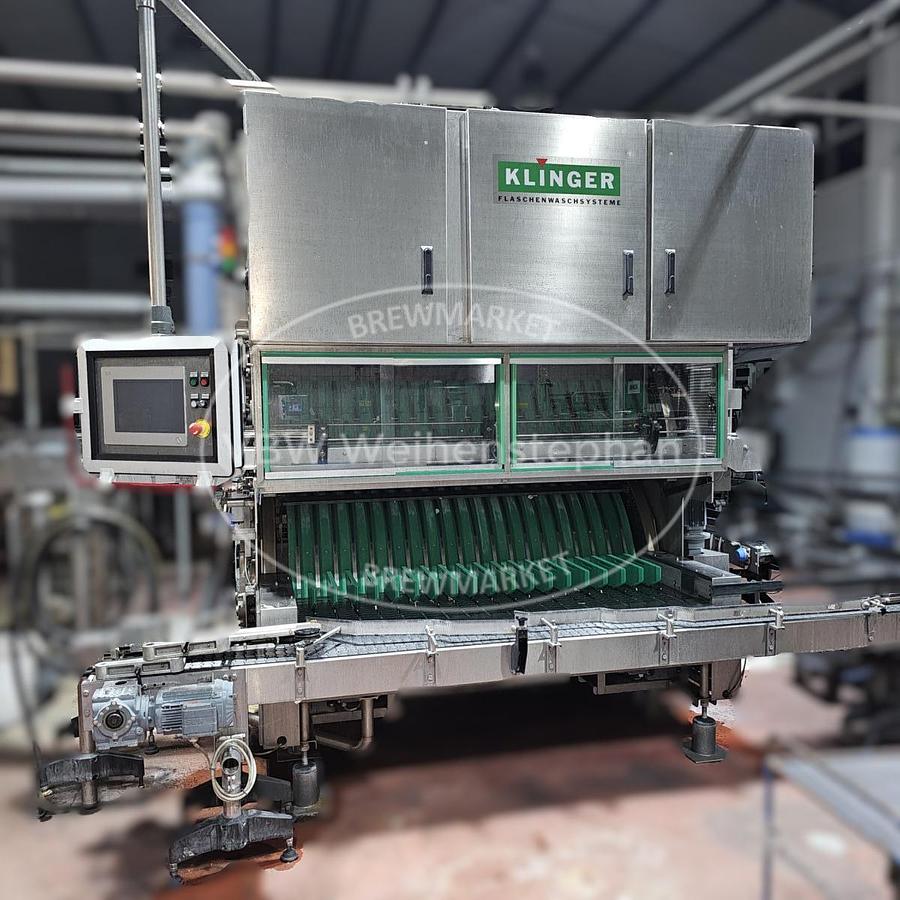

Bottling line for approx. 5000 bottles/h, Additional title: returnable glass bottle filling, years of construction 1990 - 2016, Capacity: 5000 bo/h, Formats: Eurobottle 0,5 l, Longneck 0,33 l , swing top 0,5 l, Position: free standing, Features: Unpacker (JOHA Diamant M1), bottle washer (Klinger, 2016, 7,000 bph, empty bottle inspector (Heuft Reflexx InLine IR, 2016, 8,000 bph) bottle filler and capper (Hormes), swing-top capper (AMS, 1997, 15 capping units, 6,000 bph) Labelling machine (Gernep, 2014, 9000 bph), packer (JOHA Diamant M1), crate washer, caustic settling tank
Two upright stainless steel tanks with flat cone., Additional title: vertical flatconical stainless steel tanks, Volume: 18140 l, Operating pressure: 0,5 bar, Operating temperature: 20 °C, Width: 2,9 m, Height: 4,15 m, Material: Stainless steel, Position: Vertical, Base construction: 4 support legs, cylindroconical, Features: CIP-noozle

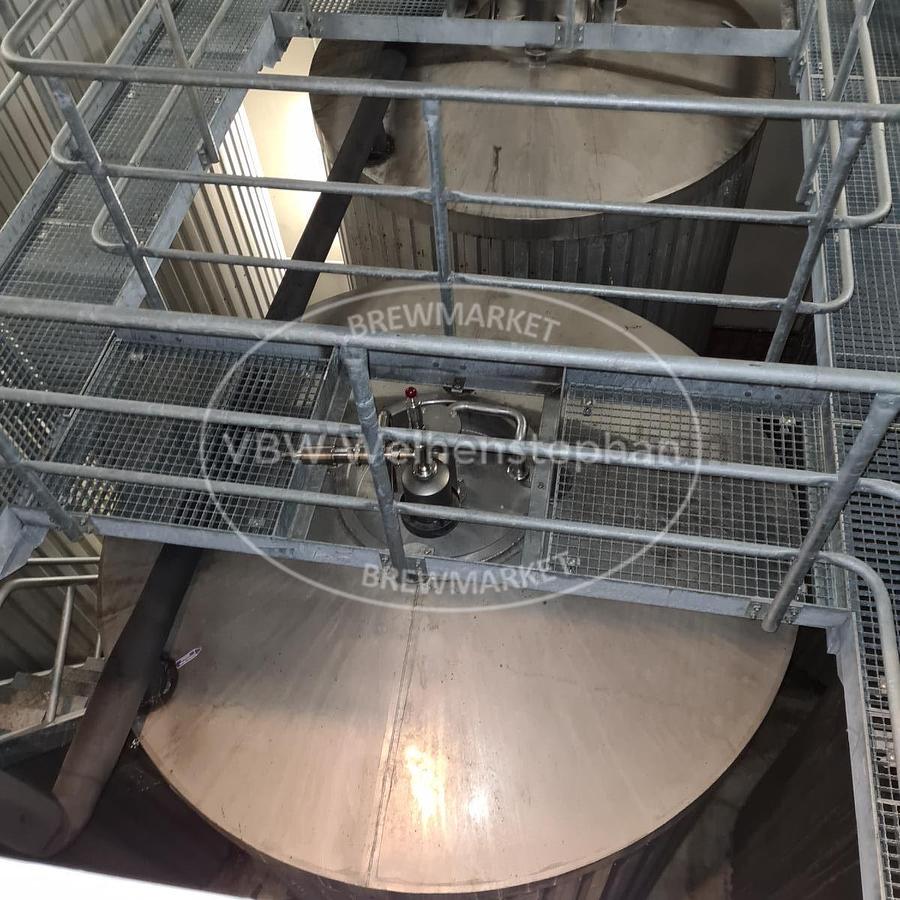

Insulated and clad stainless steel tanks standing on upright frames, each with three frame cooling zones and one cone cooling zone., Additional title: outdoor tanks, Volume: 1700 hl, Operating pressure tank: 1 bar, Operating pressure cooling: 4 bar, Test pressure: 1 bar, Width: 3,8 m, Height: 18,1 m, Weight: 13 t, Material: Stainless steel 1.4301, Position: Vertical, Base construction: Skirt, Features: PT100, full and empty detection probe, 4 cooling zones (3 frames, 1 cone, 42 l, 42 l, 126 l, 35 l), safety valve
Concentrating plant for the juice industry. The plant dates back to 1977 and was rebuilt in 1992. It was extended and equipped with a new cooling tower circuit. The plant is designed for 6600 kg/h of cloudy apple juice. With a single-stage concentration, the juice is thickened from 12° to 25°Brix. Up to 71°Brix can be achieved in the second pass., Additional title: with aroma recovery, Input quantity apple juice: 6600 kg/h, Water evaporation: 4840 kg/h, Discharge quantity concentrated juice: 1760 kg/h, Steam consumption: 1685 kg/h, Length: 7,70 m, Width: 6,70 m

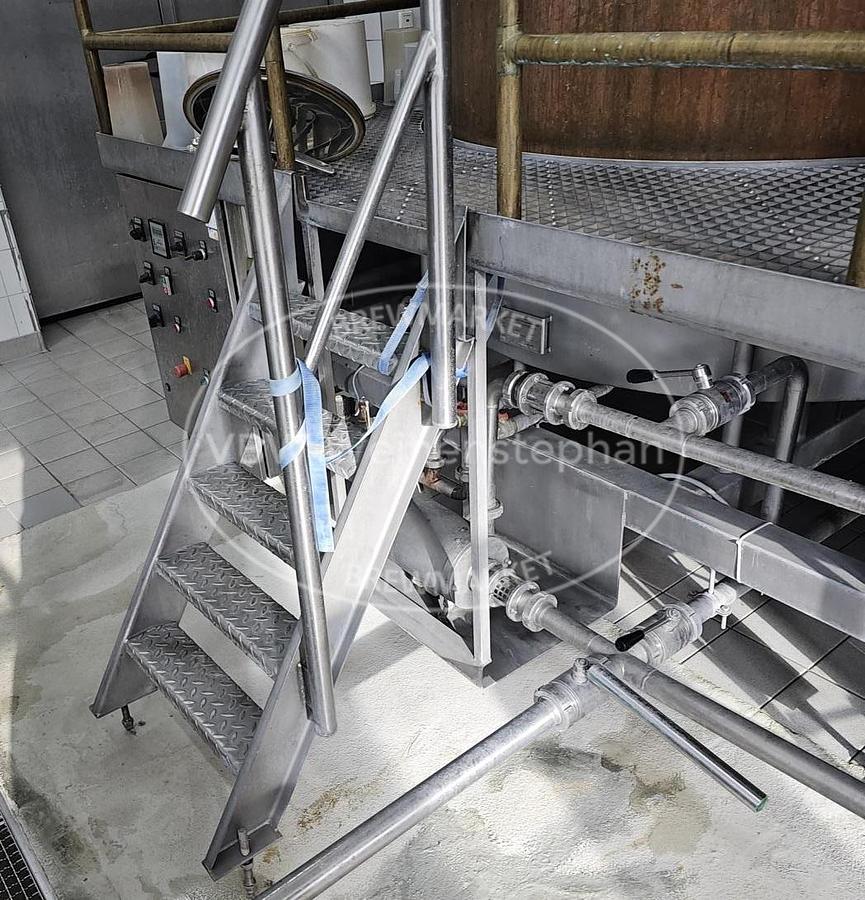

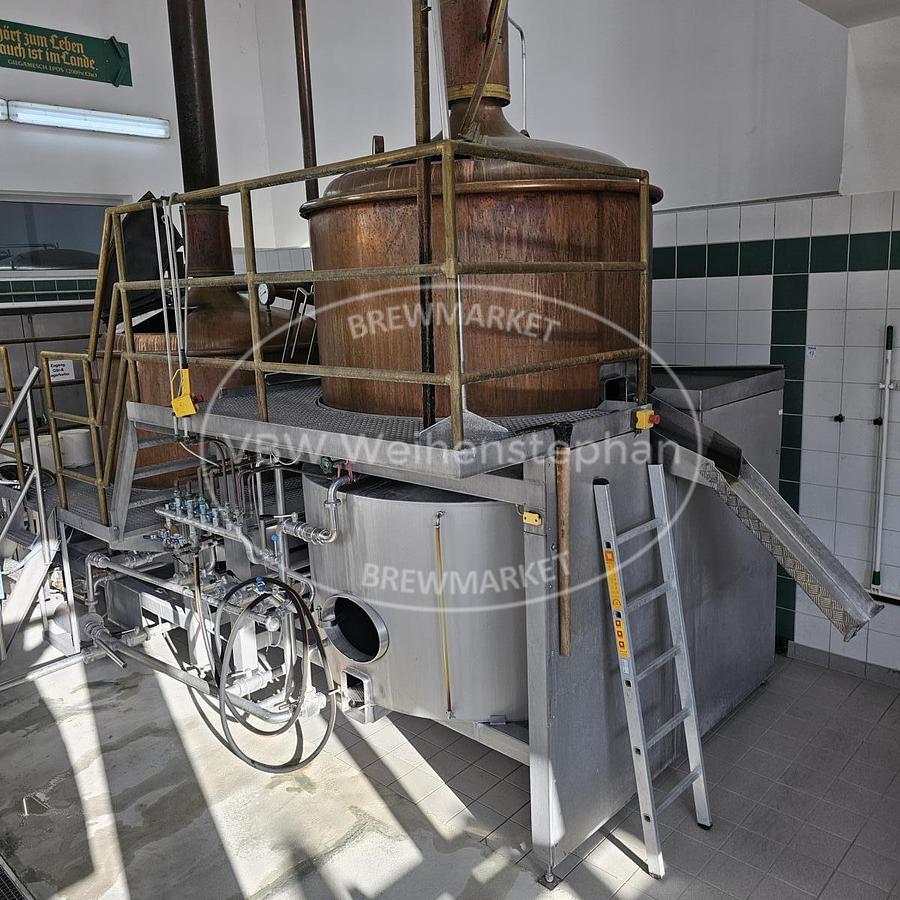

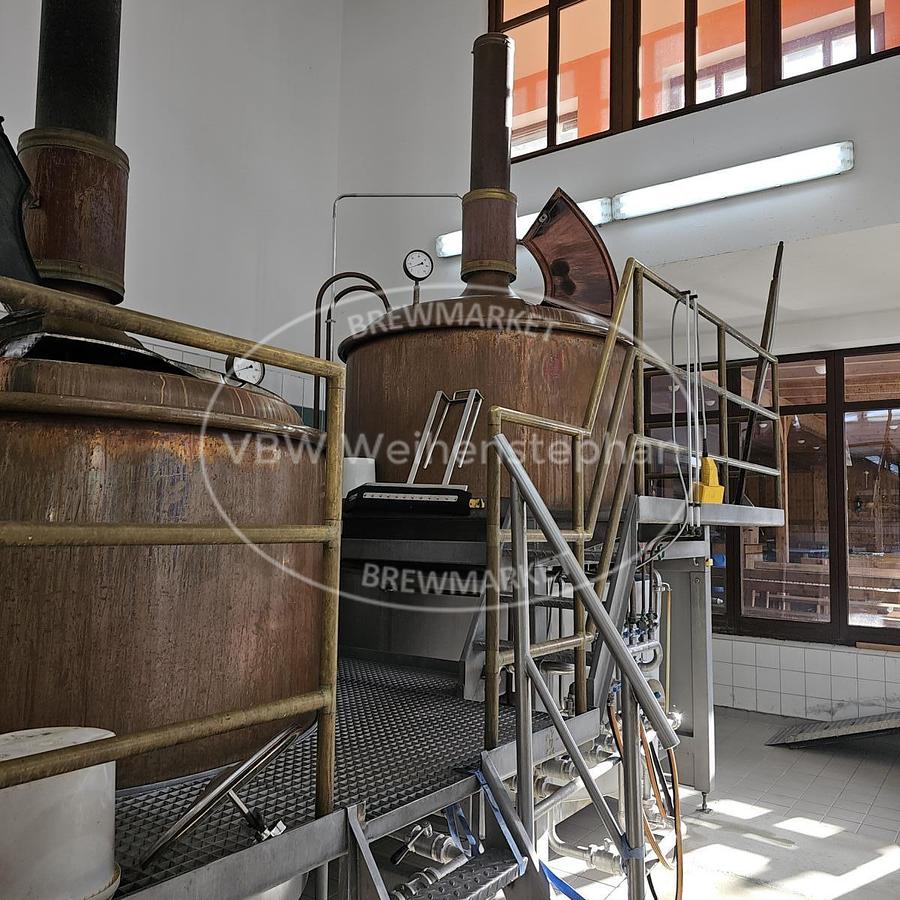

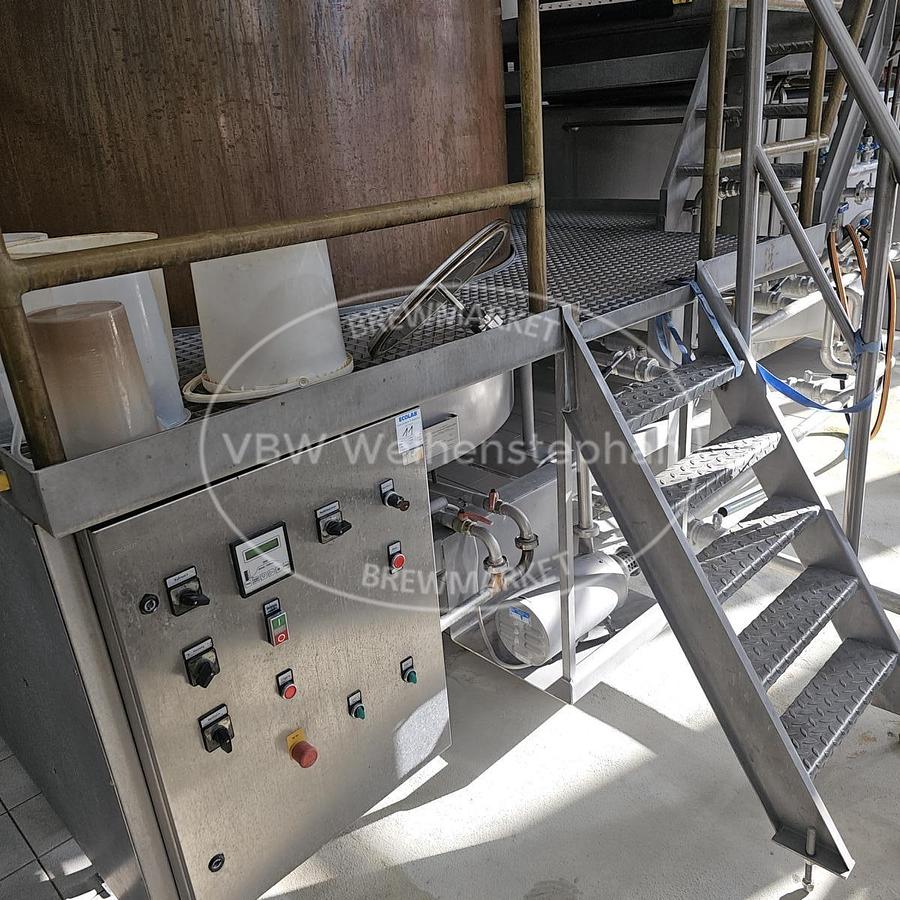

3-device compact brewhouse for 20 hl output, Additional title: 20 hl compact brewing system, Brew size: 2000 l, Length: 2600 mm, Width: 5000 mm, Height: 4500 mm, Operation / Control: Manual control with heating programme controller ‘Barbie and Kühner 7600’ l, Material: stainless steel / copper, Base construction: Brewing vessels mounted on frame construction, Features: Mash/wort kettle, lauter tun, pre-run vessel/whirlpool, spindle station, stainless steel control cabinet with control, stainless steel frame with operating platform, stairs, piping, pumps and fittings

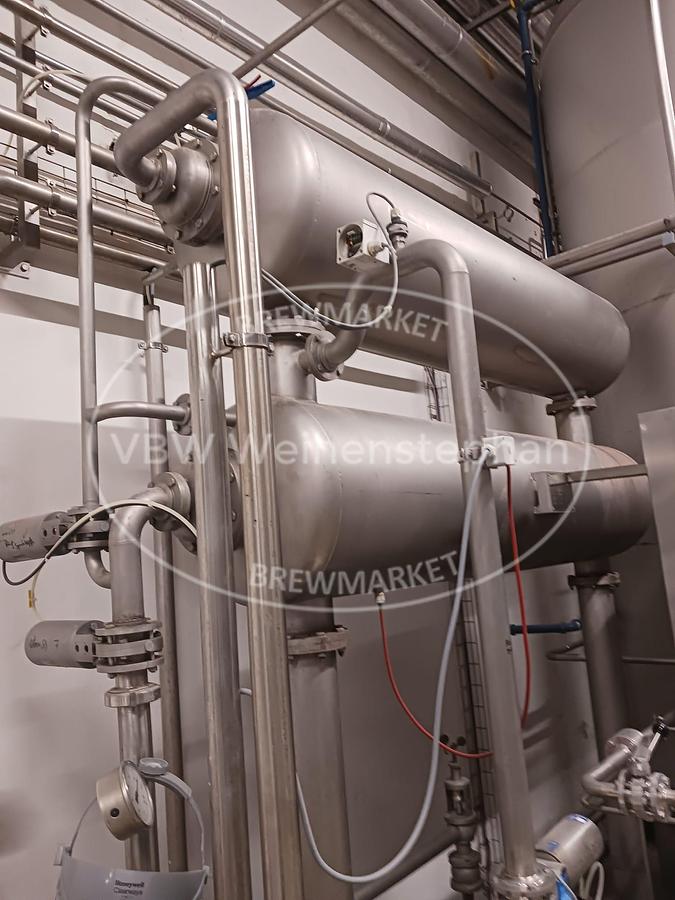

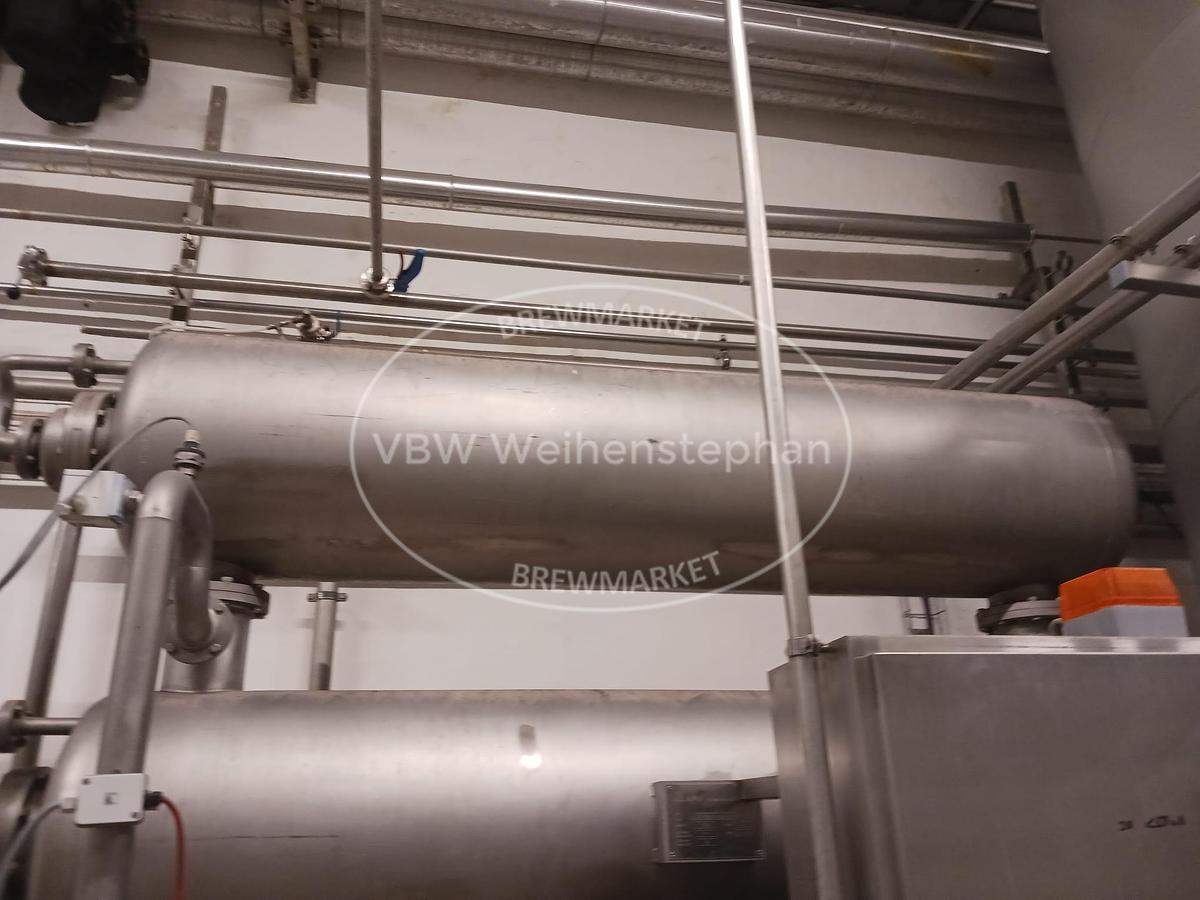

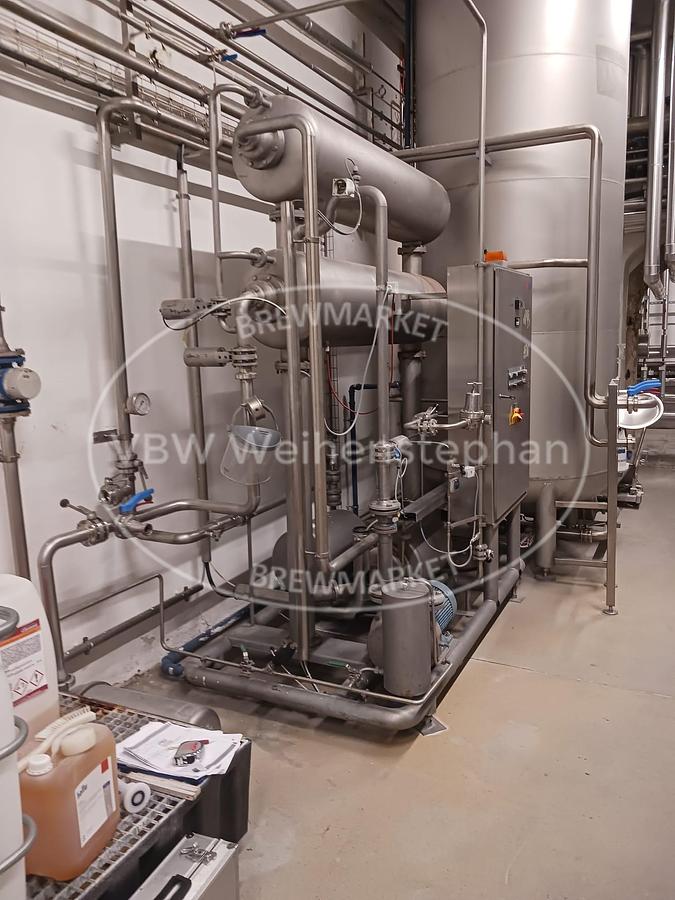

Water degassing (deareation) system for removing oxygen from drinking water, mainly built in 1995. The system operates using a two-stage cold degassing process involving counter-current stripping with CO₂ and consists of the following components: - 2 degassing vessels connected in series - Vacuum pump with separator - 70 hl holding tank (Gross, 2018) for storing degassed water at up to 4 bar overpressure. - Centrifugal pumps - CO2 dosing via needle valve - Pipe panel, various pipework, valves, fittings, measurement and control technology - Control cabinet with Simatic S5 control system, Additional title: cold degassing via CO2-Stripping, Capacity: 20000 l/h, Gross volume deareation vessels each: 285 l ; overpressure up to 1 bar, Gross volume buffer tank: 7060 l ; overpressure up to 4 bar, Residual oxygen content appr.: 0,010 - 0,015 mg/l, Operation / Control: Simatic S5, Material: stai ...

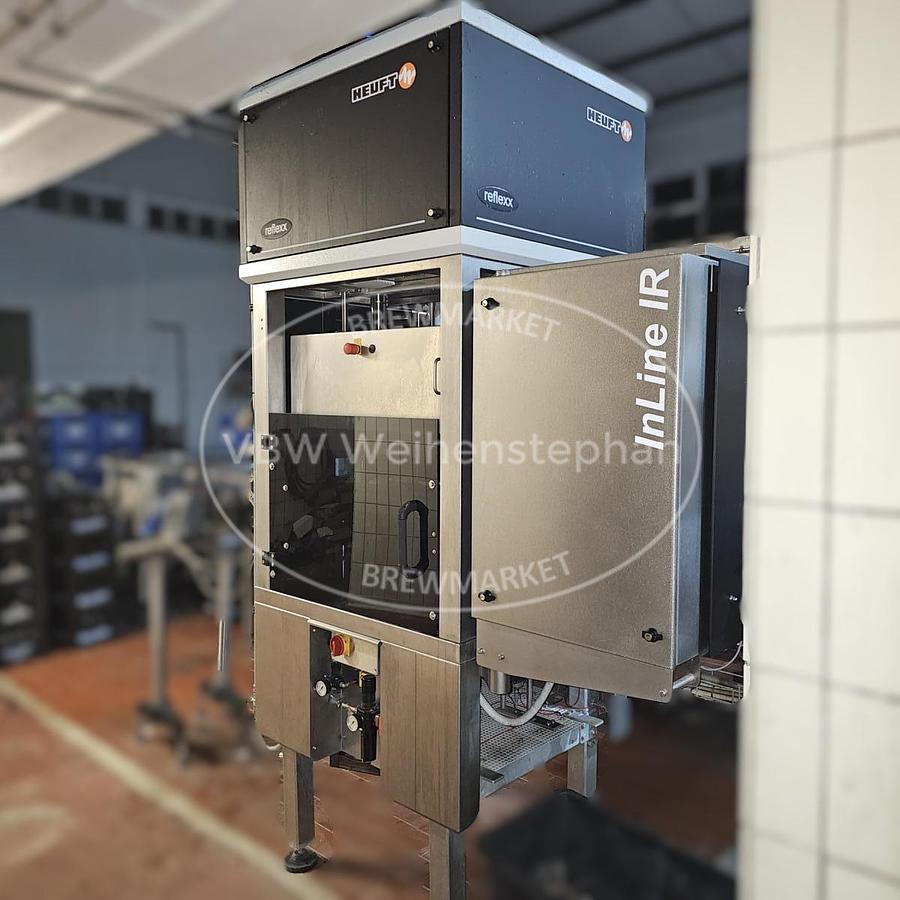

Heuft empty bottle inspector with: - Infeed inspection with belt stop - Bottom inspection - Mouth inspection - IR residual liquid detection - HF residual liquid detection - Simple lateral migration detection in the outlet - Single-segment rejection with rejection control, Additional title: Bottle inspection machine, Capacity: 8000 bottles/h, Voltage: 400 Volt, Frequency: 50/60 Hertz, Compressed air: min. 5 bar, Length: 2030 cm, Width: 950 cm, Height: 1830+conveyor height cm, Weight: 1600 kg, Running direction: from right to left, Operation / Control: Heuft Spectrum reflexx, Heuft speedy environment control for controlling the motors, Position: free standing, Periphery: Synchronised container transport segments after the inspector

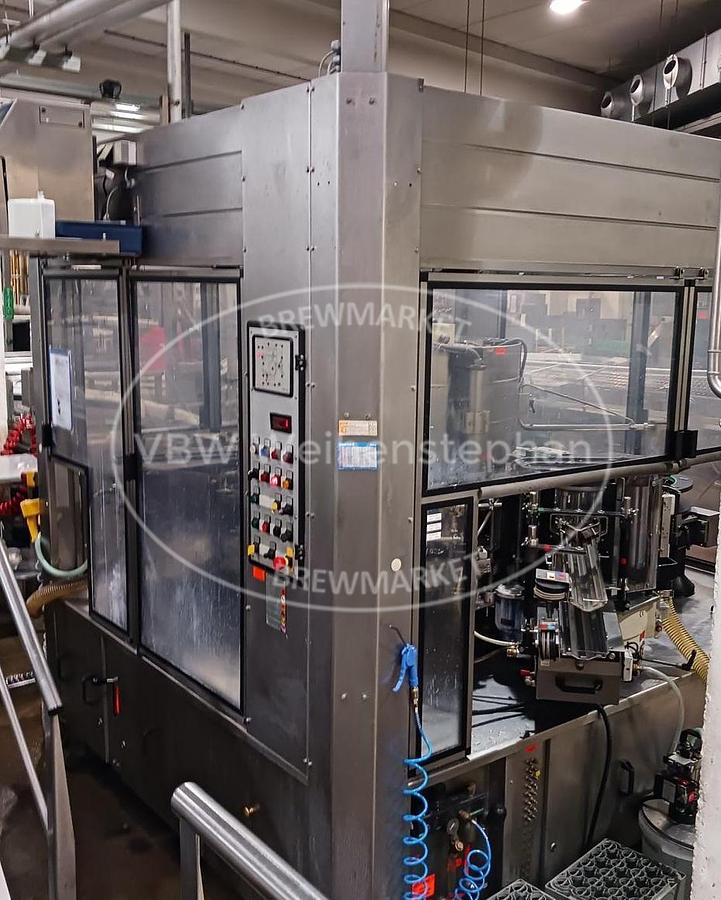

Labelling machine for neck, body and back labelling of glass bottles., Additional title: neck-, body- and back labeling, Capacity: 40000 Fl/h, Length: 2600 mm, Width: 2800 mm, Height: 2700 mm, Formats: various label tables 0.5L NRW, 0.33L Vichy, 0.33L Euro, Running direction: left -> right, Operation / Control: Simatic OP7-Panel, Krones KES 5, Position: free standing

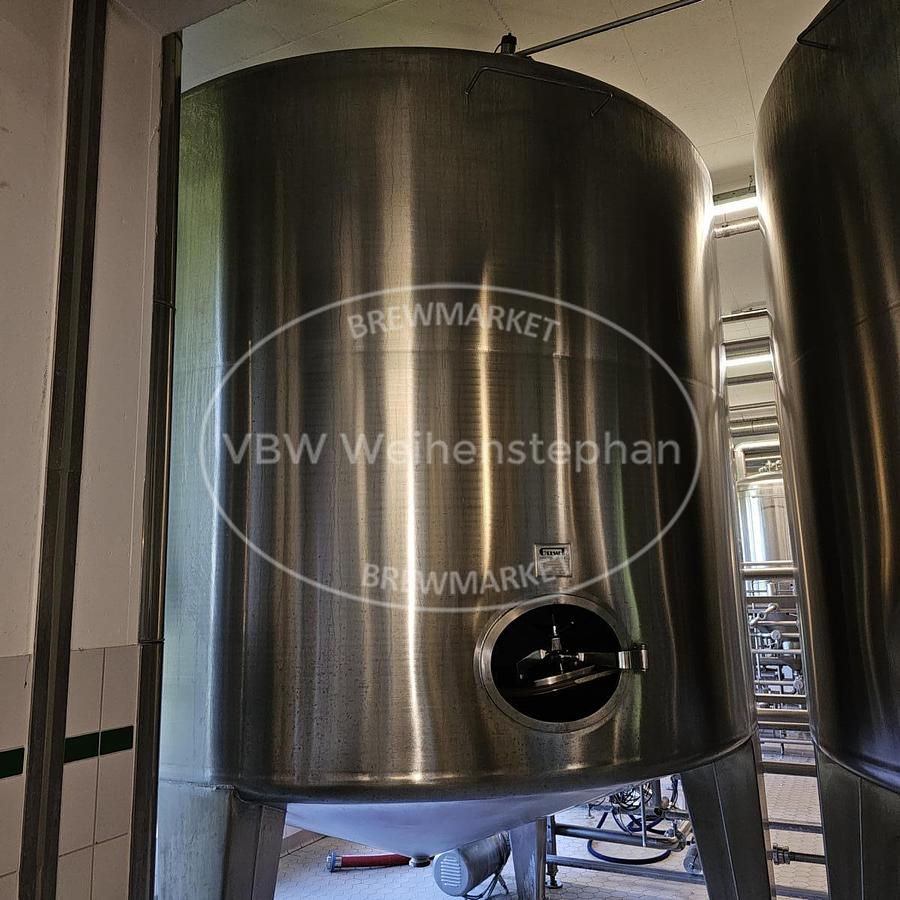

Insulated, cylindroconical stainless steel tanks with three shell cooling zones and one cone cooling zone. Previously used as beer storage tanks., Additional title: vertical, coolable, insulated stainless steel tanks, Gross volume: 30200 l , Pressure capacity: 0,99 bar, Max. operating temperature: 40 °C, Cooling area: 14,45 m², Length: 2,83 m, Width: 2,83 m, Height: 7,86 m, Weight: 3150 kg, Material: stainless steel, Position: standing frame, Features: insulation, tank fittings

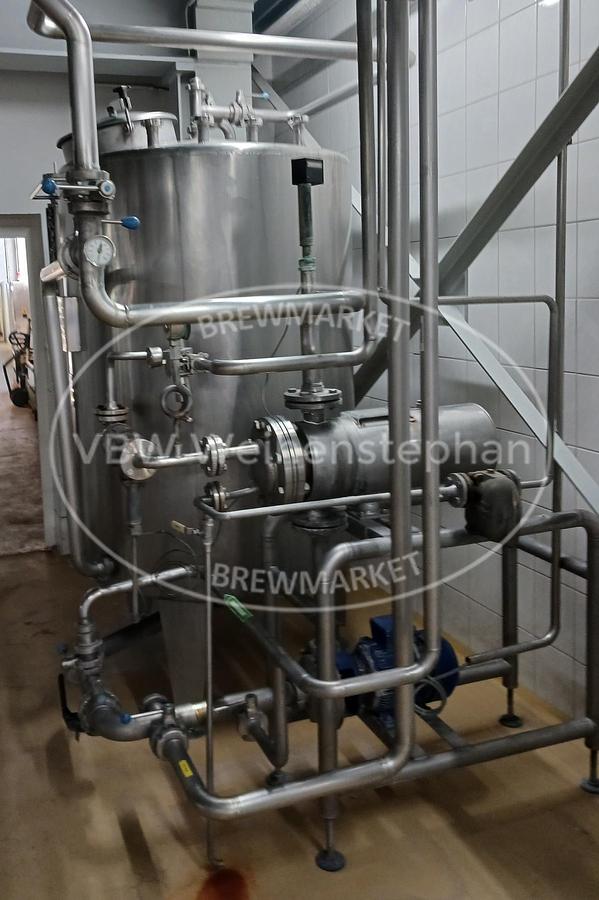

CIP plant for Seitz combifilter Year of construction: 1990 The manual system consists of caustic tank, heat exchanger and circulation pump., Additional title: Cleaning system with a heated CIP tank, CIP-Tank: 1500 l, Features: CIP tank, tube bundle heat exchanger, pump, piping

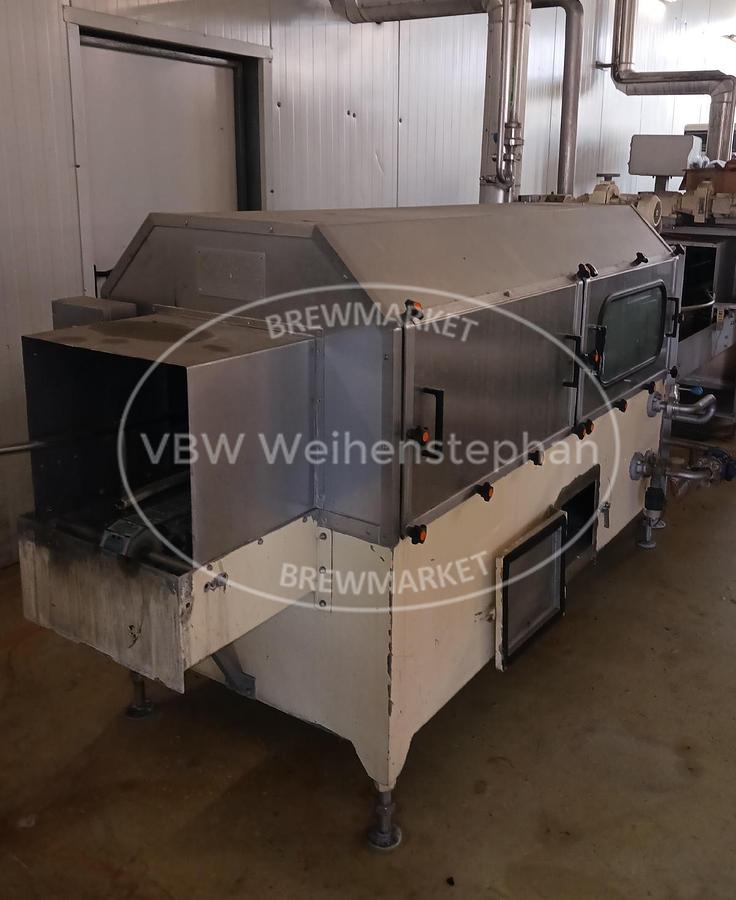

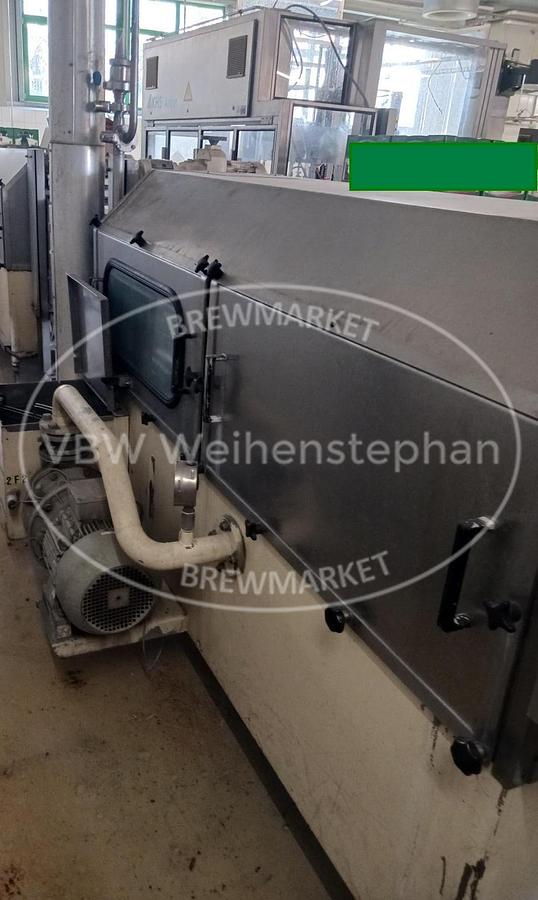

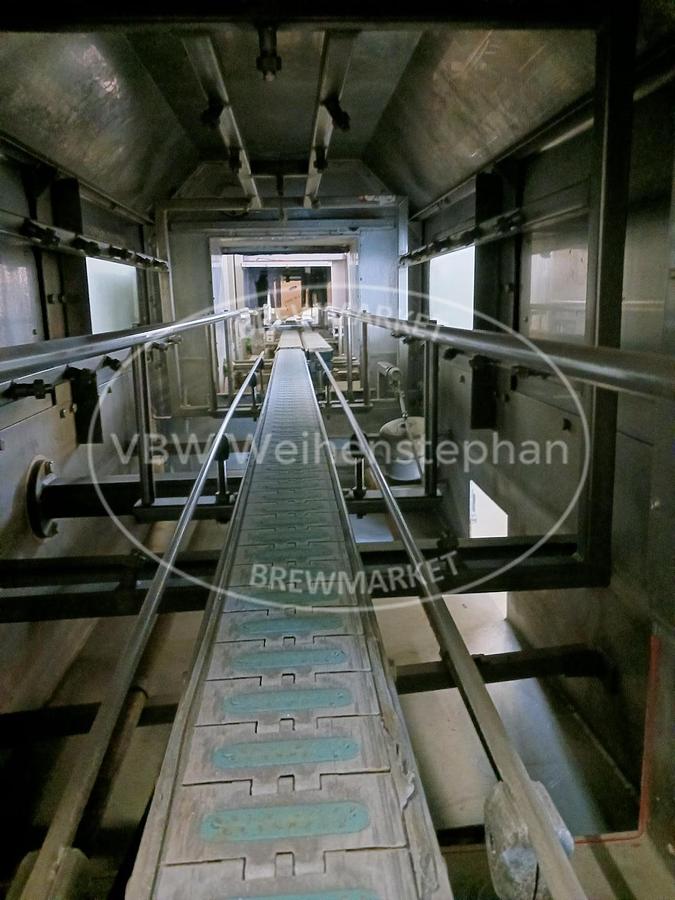

Crate washer for cleaning beverage crates using spray nozzles. Dimensions of the crate inlet: 31 x 37 cm (width x height), Capacity: 600 crates / h, Power: 8 kW, Length: 2,93 m, Width: 1,70 m, Height: 1,60 m, Formats: crate-formate 400 x 300 x 300, Running direction: from left to the right

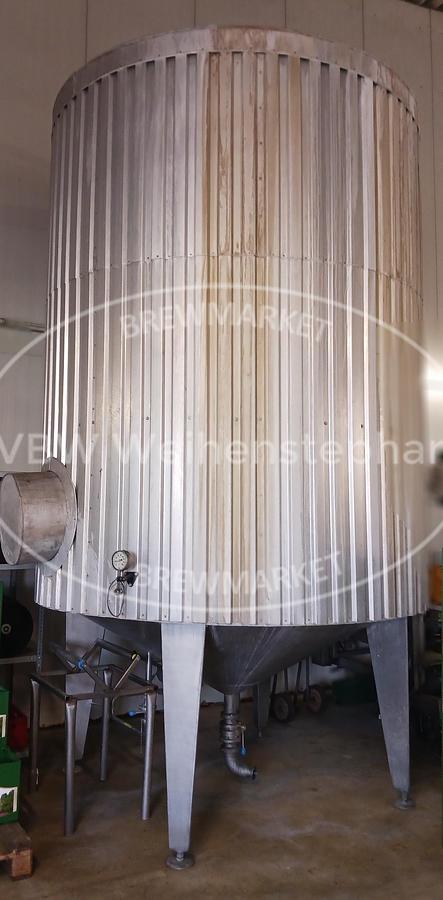

Vertical cylindrical-conical tank with insulation and aluminium trapezoidal sheet metal cladding., Additional title: vertical insulated tank, Total content: 13600 l, Position: standing on 4 feet, Base construction: cylindrical tank with conical bottom, Features: Insulation

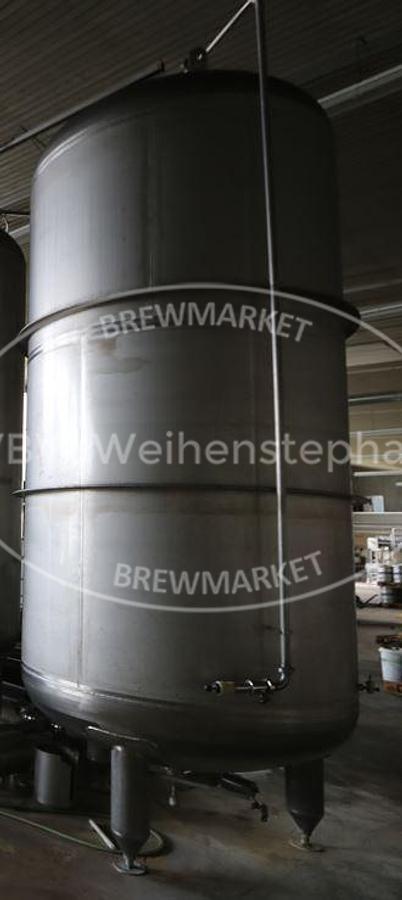

Vertical 6 bar stainless steel pressure tank with dished ends and various fittings and equipment., Additional title: vertical stainless steel tank, Volume: 10560 l, Max. pressure: 6 bar test pressure 7,8 bar, Max. temp.: 10 °C, Length: 1900 mm, Width: 1900 mm, Height: 4770 mm, Material: stainless steel 1.4301 (AISI 304), Base construction: vertical tank with dished bottom and pipe feet, Features: Shell-manhole, level-display-hose, tank fittings: sampler, spray ball, bunging device, pressure gauge, safety valve, vacuum flap

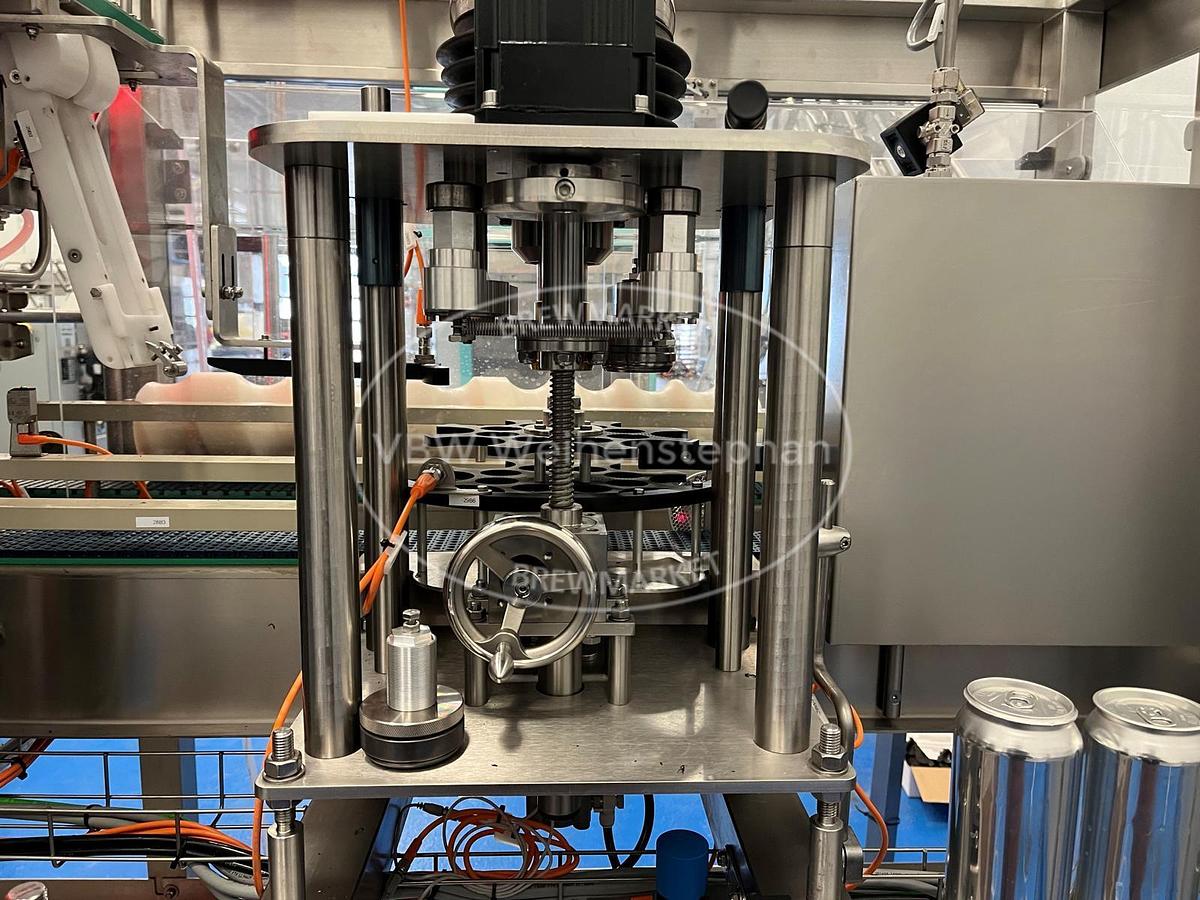

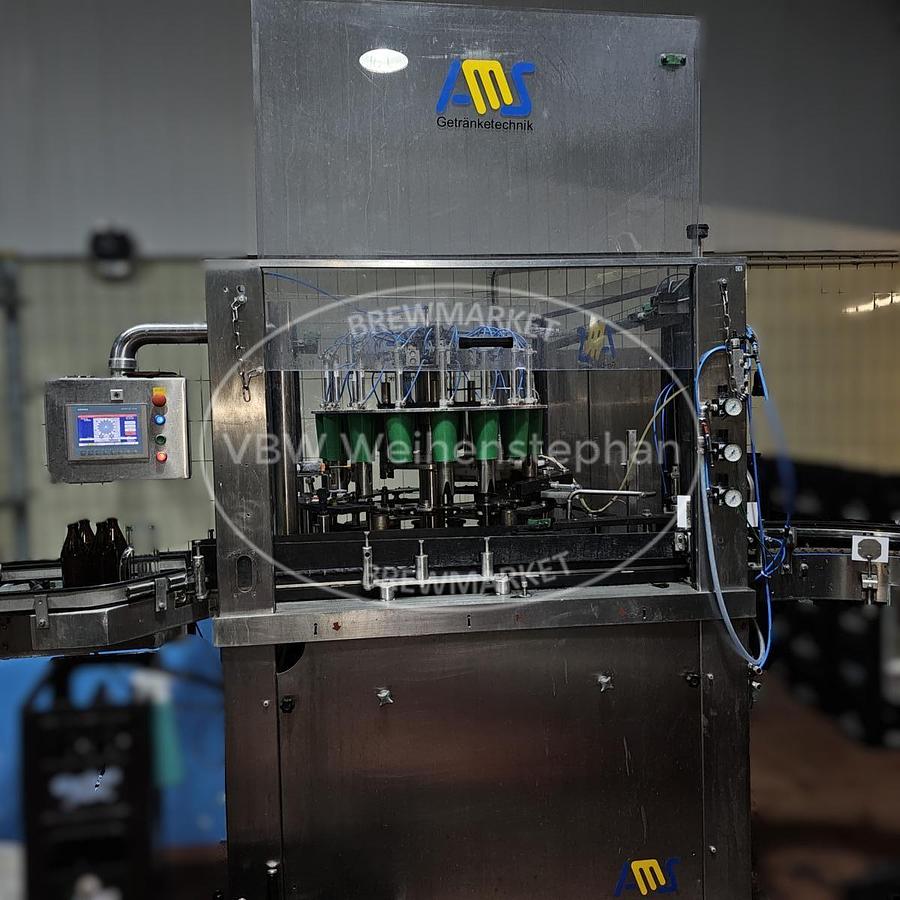

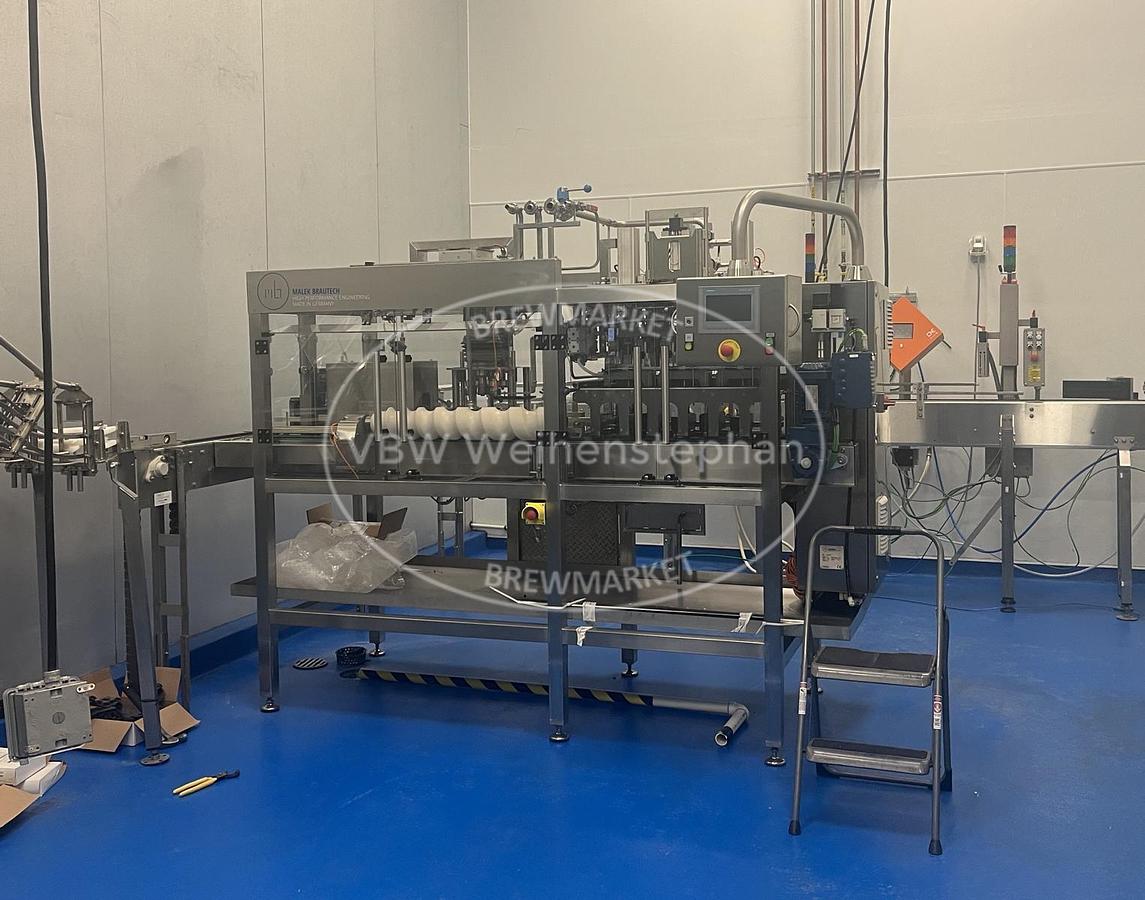

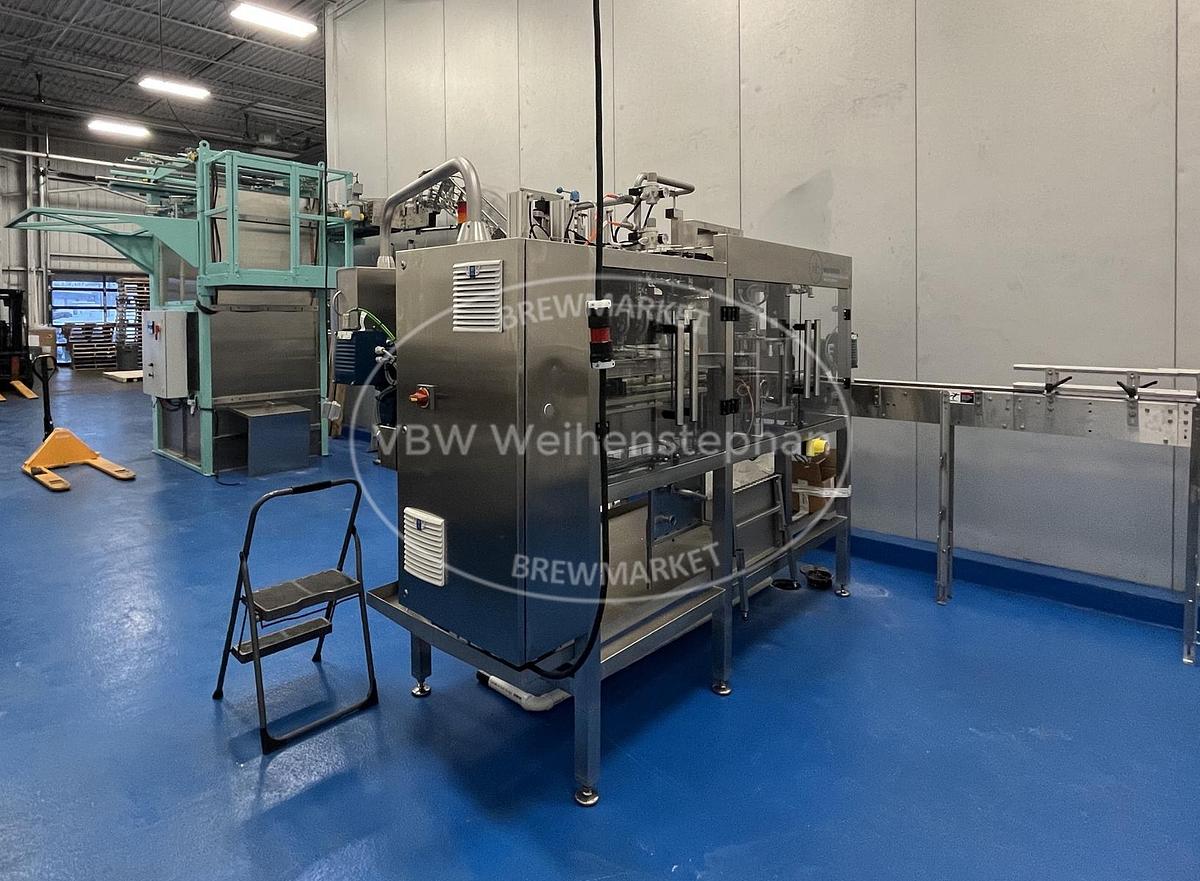

Linear can filler with a rinser, filler, cap placer and sealer integrated into a single unit. Back-pressure filling is volumetrically controlled. Format adapters are available for all standard can sizes., Additional title: with 6 filling stations, Capacity: 2000 cans/h for carbonated drinks, Max. oxygen pickup on the filler: 25 ppb, Compressed air: IG 1/2, 6-10 bar, Length: 2774 mm, Width: 1100 mm, Height: 2000 mm, Formats: 12 oz and 16 oz cans, lid type 202 B64, conversion to other formats possible, Operation / Control: Siemens Simatic S7, Features: 6 filling stations, 7 inch touchscreen with swivel arm, infeed screw, product buffer tank (3 bar), servo driven seamer, tunnel for can rinsing after filling, motors by SEW

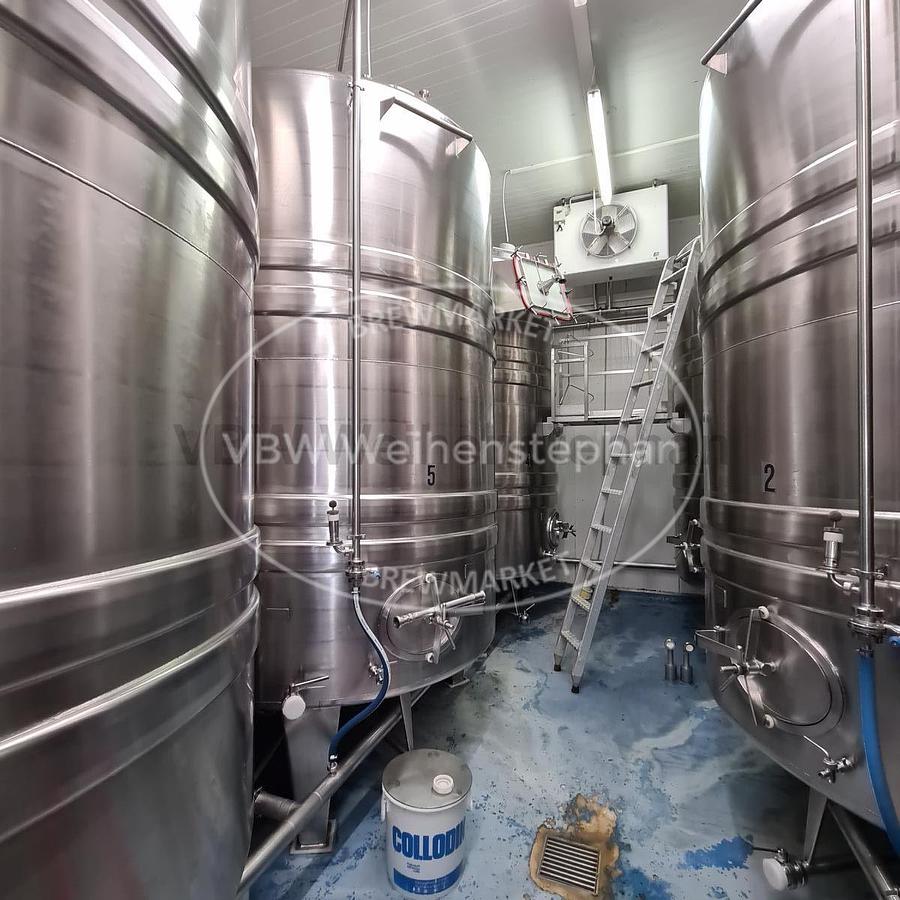

5 fermentation and storage tanks (104 hl) with flat conical bottom, frame and cone cooling zone, manhole, sampling tap and central outlet. 1 white beer fermentation tank (81 hl) with flat conical bottom, frame and cone cooling zone, manhole, sampling tap, yeast chute and central outlet. 1 batching/flotation tank (122 hl) with flat conical base, frame and cone cooling zone, manhole, sampling tap and central outlet. The tanks are also available individually or in partial quantities., Additional title: 7 pcs. of vertical, coolable stainless steel tanks, Volume fermentation and storage tanks: 10474 l per piece, Volume wheat beer tank: 8071 l, Volume flotation tank: 12242 l, Material: stainless steel 1.4301, Position: standing on feet, Features: Flat conical bottom, frame and cone cooling zone, manhole, sampling tap, central spout, yeast chute

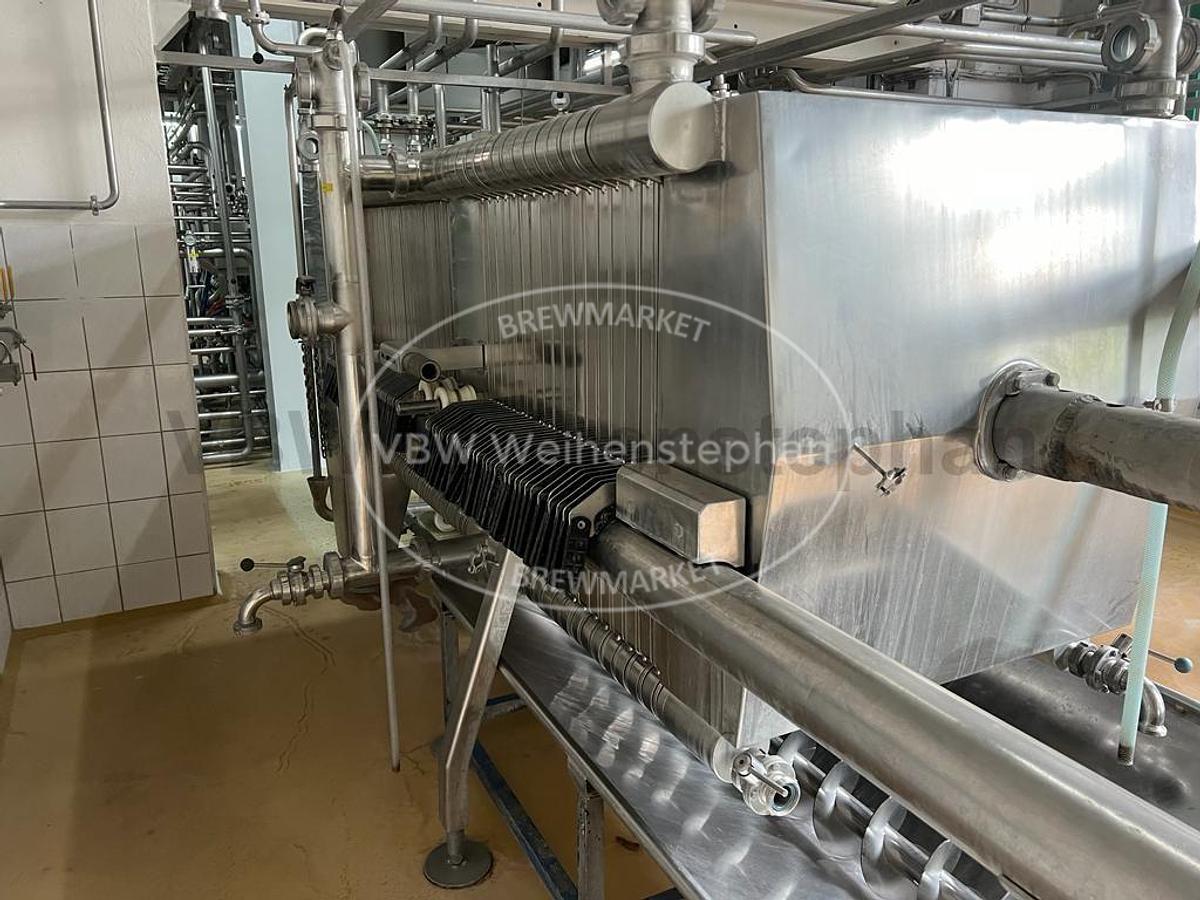

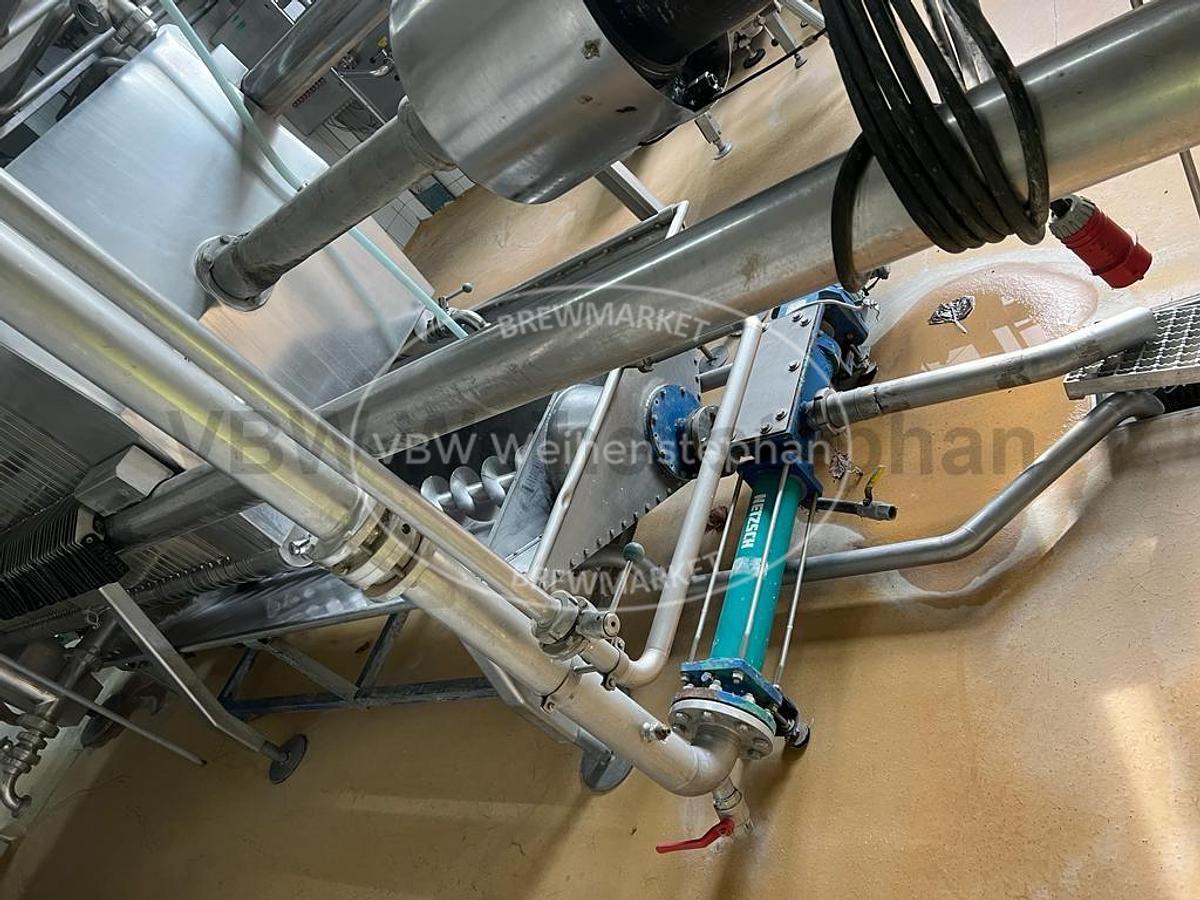

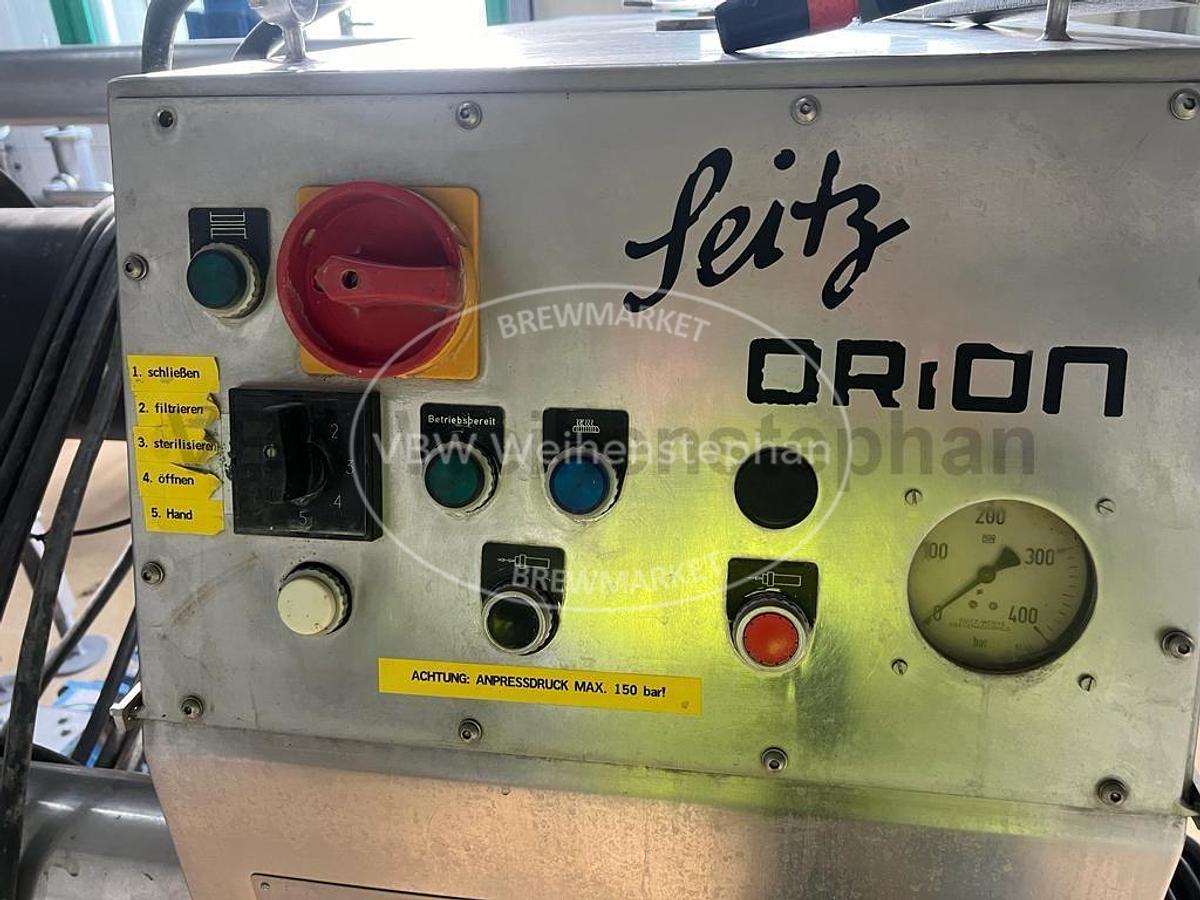

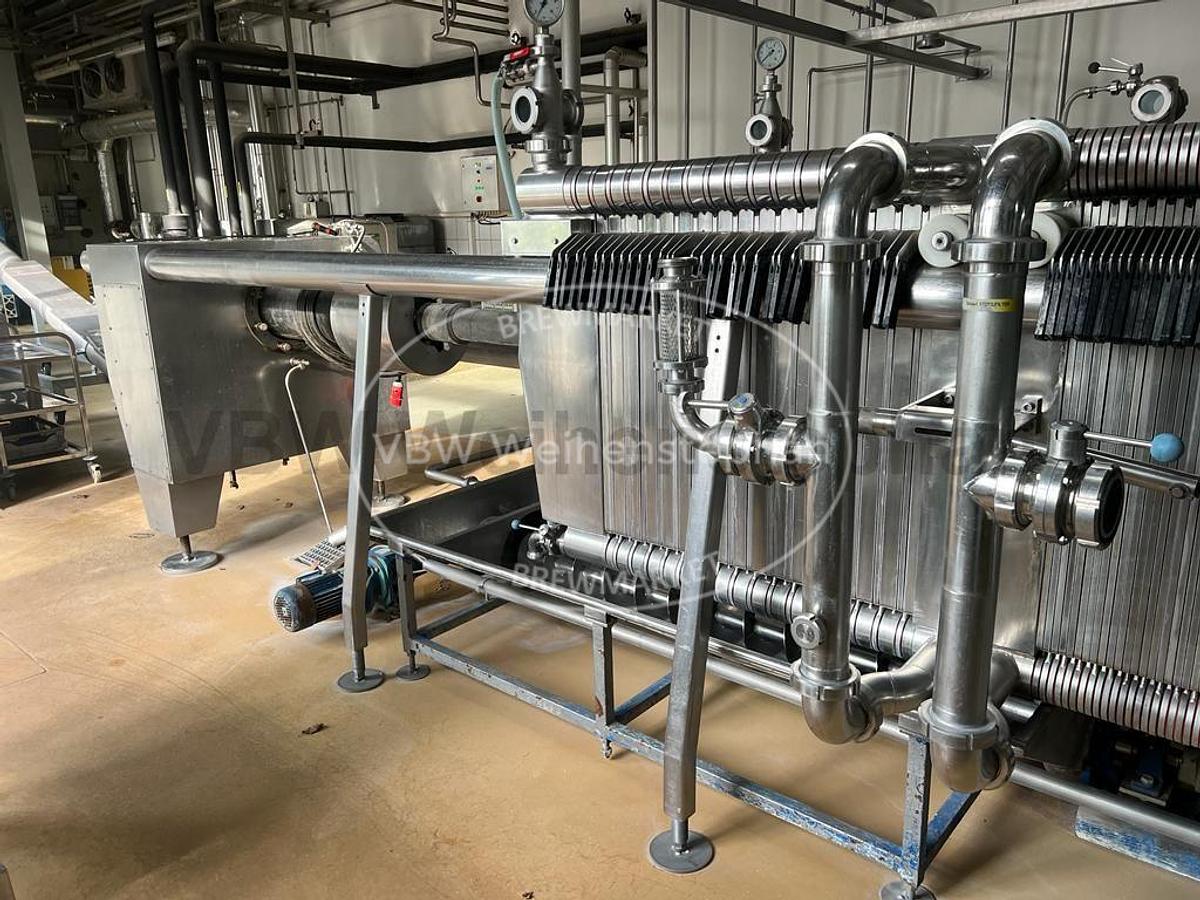

1 Combi-Filter Seitz, type Orion 100 Year of construction: 1982 Output: 100 hl/h complete with beer pump, conductivity measurement, dosing vessel, Control cabinet, switching panel, KG collecting pan with conveyor and disposal pump., Additional title: Kieselguhr and sheet filter, Filtration capacity: 10000 l/h, Filterarea kieselguhr appr.: 35 m², Length: 5200 mm, Width: 1320 mm, Height: 2250 mm, Formats: 1 m x 1 m filter plates, Material: Stainless steel, Position: Horizontal, Base construction: Frame filter, Features: Hydraulic filter compression; altguhr conveyer: up to 200 Filter sheets or 55 kieselguhr plates and 56 filter sheets

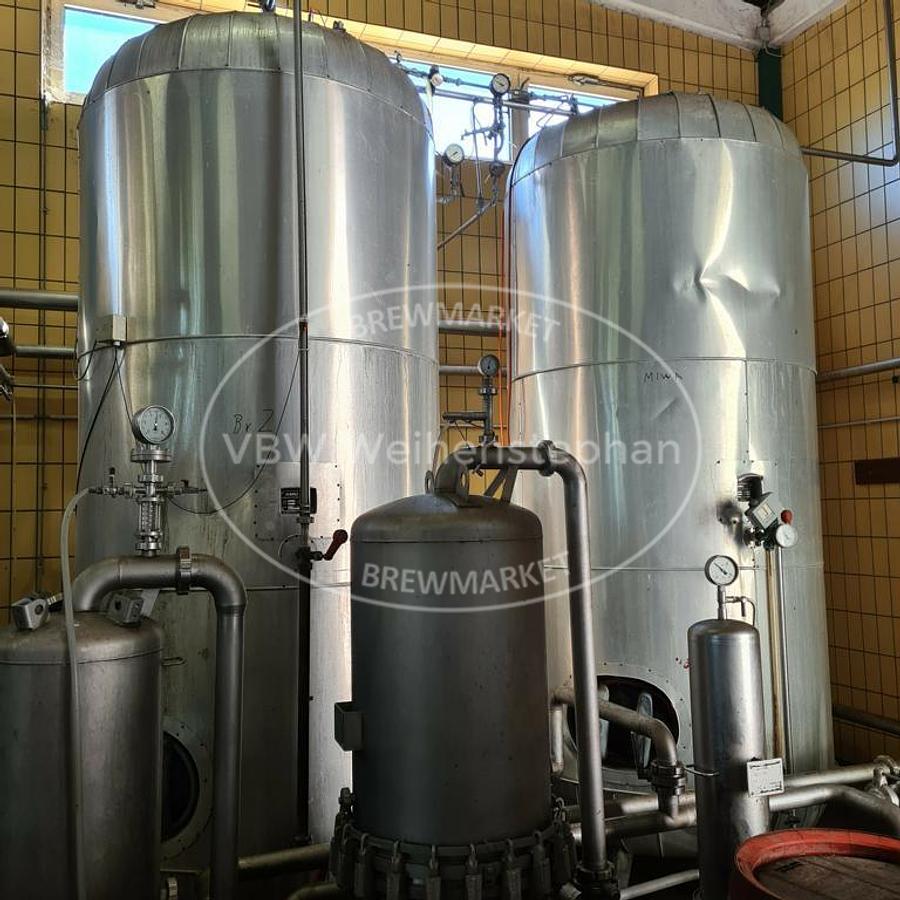

Two vertical stainless steel pressure tanks with insulation and sheet metal cladding., Additional title: Vertical, insulated pressure tanks from stainless steel, Volume: 18000 l, Allowed pressure: 4 bar, Allowed temperature: 25 °C, Test pressure: 4 bar, Weight: 2220 kg, Material: stainless steel, Base construction: with vertical tank with dished bottoms and pipe feet, insulation and sheet metal cladding, Features: shell-manhole, nozzle for sampling

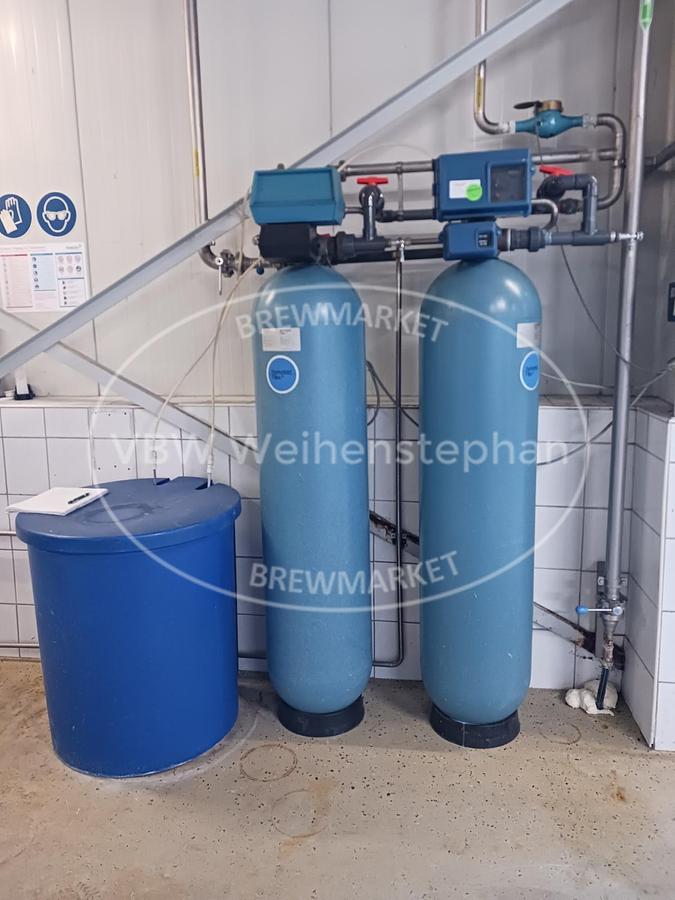

Water softening system from Berkefeld: Ion exchanger for reducing calcium and magnesium hardness with 2 filter tanks and brine tank. Suitable for continuous operation. Year of manufacture: 1993 Capacity: 6000 l/h, Additional title: ion exchanger

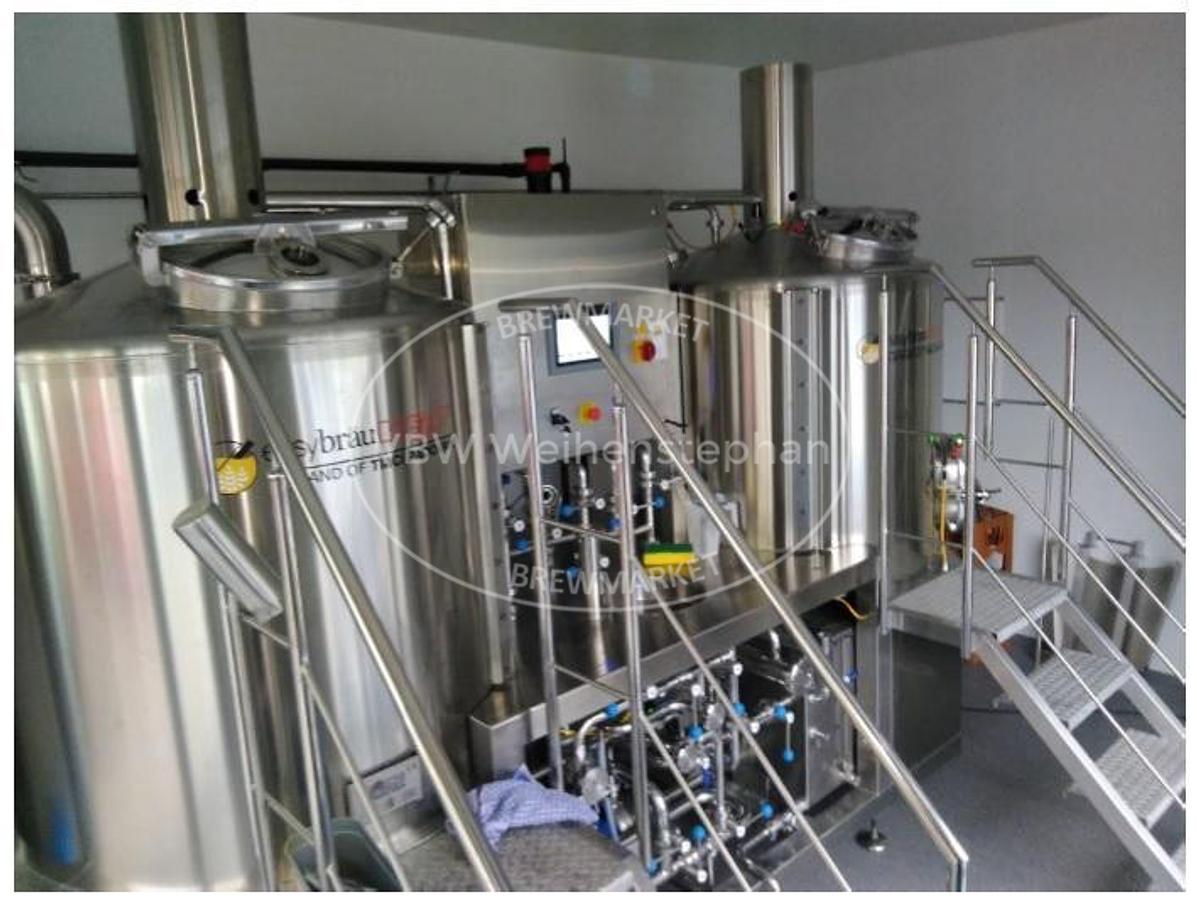

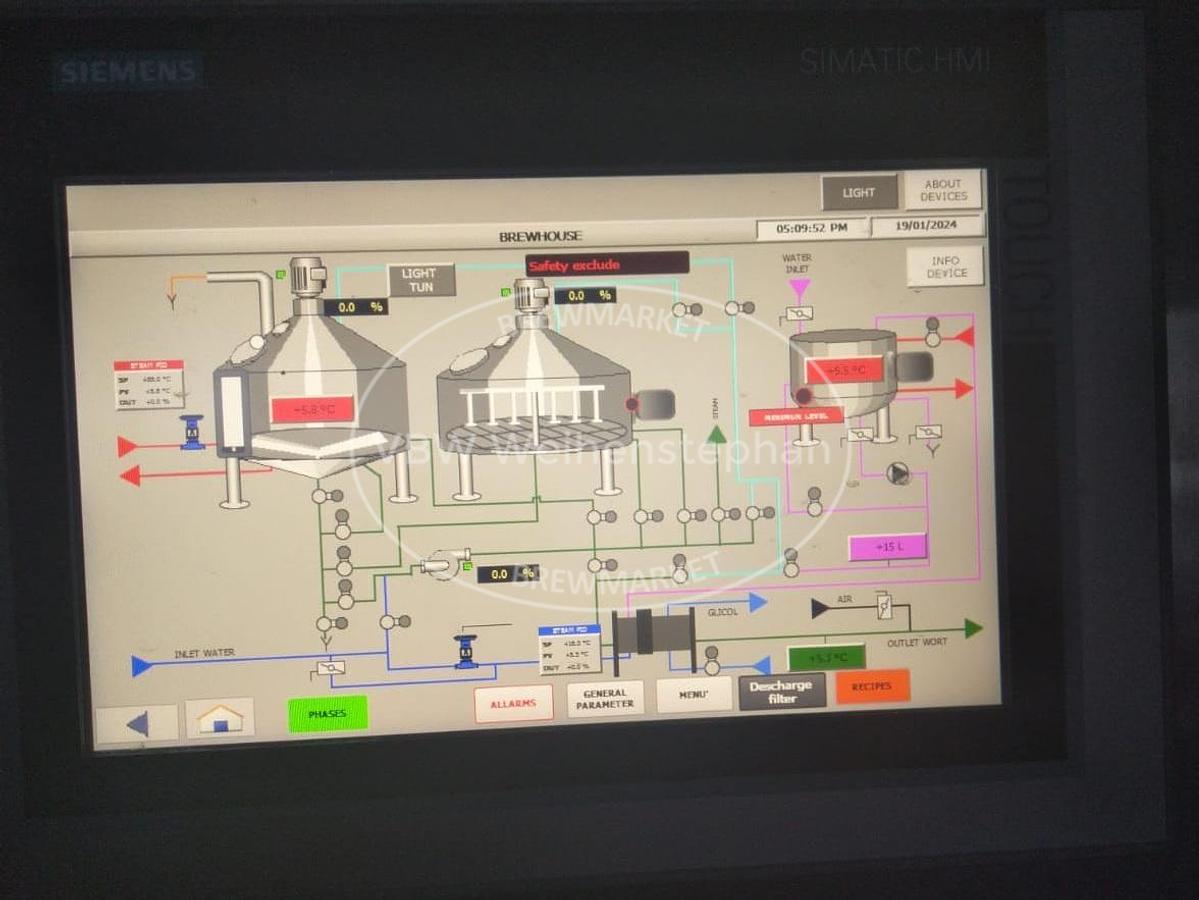

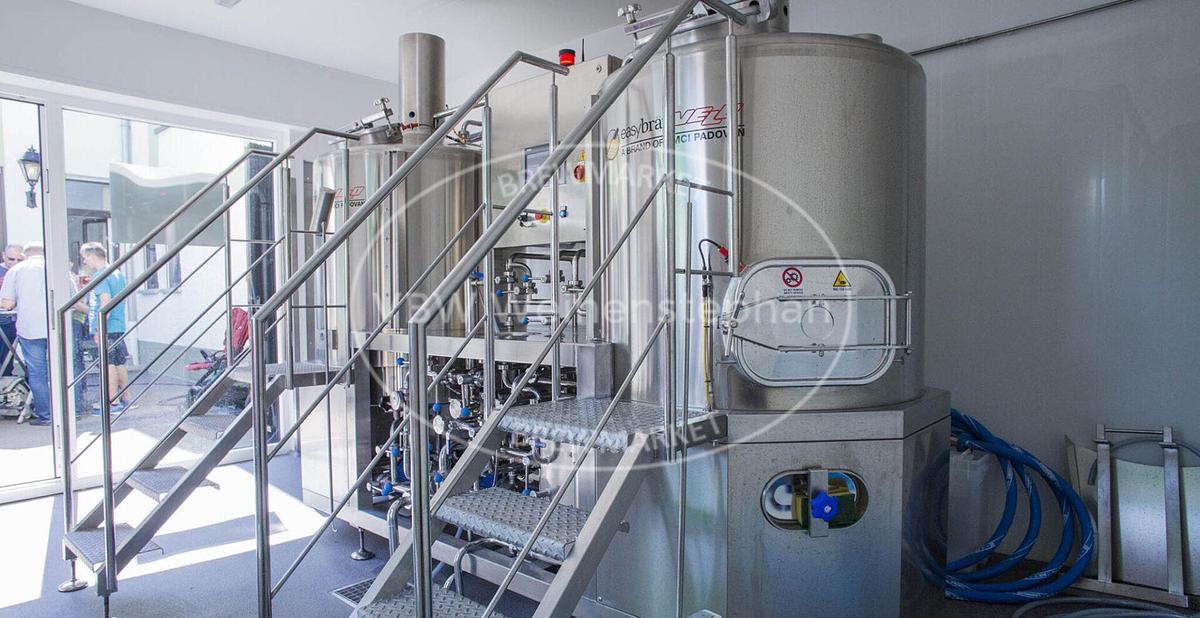

consisting of: - Malt milll - Mash-/Wortkettle/Whirlpool - Lauter tun - Warmwater vessel - Wort cooler - Wort aeration - Siemens touch screen - 4 x Fermenting vessel - 8 x Storage tanks with shell cooling surface - Icewater vessel - mobile beer pump - Steam boiler - 2 Bottle-filler + 1 Can-filler by Fillmatic - bottle filler A. Gruber, Additional title: 5 hl-Brewery, with Grist Mill, Compact-Brewhouse, Fermenting vats, Storage tanks, Cast out wort: 500 l, Capacity wort cooler: 750 l/h, Wort cooling time: 40 min., Material: Brewing vessel, hotwater tank, fermenting and storage tanks in stainless steel, 1.4301, Base construction: Brewhouse compact unit on stainless steel frame, vertical Fermenting vats on feet, horizontal storage tanks on two layer in a stainless steel frame., Features: mobile grist mill, mash-/wortkettle, lauter tun, warm water tank, wort-cooling and aeration, 4 fermentin ...
PVPP filter - Filtrox CHF with: - Filter vessel - PVPP batch dosing vessel - CIP station for regeneration - Swing bend panel for system integration - all pumps, fittings and field instruments - Control cabinet with control panel, Additional title: Centrifugal horizontal filter, Filter capacity: 20000 l/h, Volume: 1620 l, Operating pressure: 6 bar, Operating temperature: 100 °C, Systemic volume: 1620 Liter, Width: 1,2 m, Height: 2,85 m, Weight: 2500 kg, Operation / Control: Manual system, mainly with pneumatic valves, operation take splace on the control cabinet panel, Material: stainless steel, Features: Filter vessel with horizontal filter elements, stack dosing container with agitator, CIP system for regeneration, control cabinet with control panel, pumps, fittings and sensors
