Hen-Mar 1000 Litre Mixers

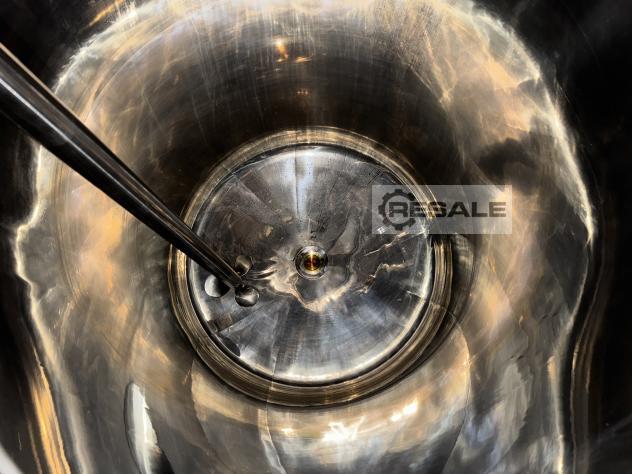

The vessel is purposed for the mixing of liquids, it is cylindrical shape with dish type top and bottom. All product contact parts are manufactured from stainless steel AISI 316L or AISI 316Ti. Internal surfaces have finish of 320 grit, polished, with Ra = 0,4 µm, welds are ground down smooth and buffed. External surfaces have finish of 120 grit, Ra = 1,6 µm, welds are ground down. The vessel is fitted with 3pcs stainless steel legs made from AISI 304 .

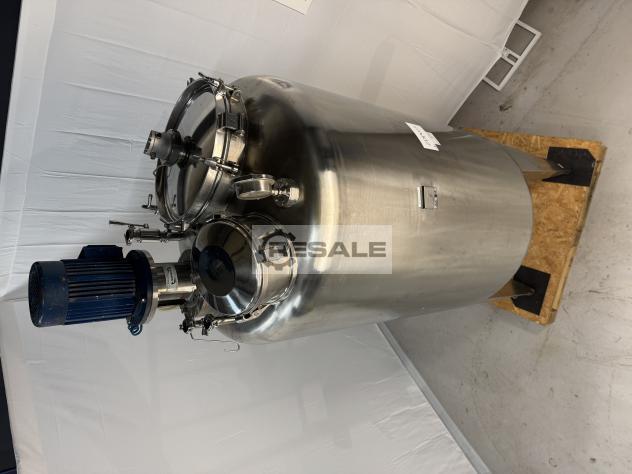

Comes equipped with top mounted motor and three-bladed propeller agitator for even mix and for keeping products homogenous - agitator propeller mixing element type with shaft and drive.

Mixer is in overall excellent condition – little use, serviced and well looked after.

Technical characteristics:

· Net capacity: 1000 litre

· Total volume: 1200 litre

· Working volume: 1000 litre

· Working temperature: 20 C

· Sterilisation temperature: 100 C

· Outside diameter of shell: 1000 mm

· Total height of vessel: 2650 mm

· Total weight : 450 kg

· Working pressure: atmospheric/slight vacuum

· Max. allowed pressure: 2 BAR

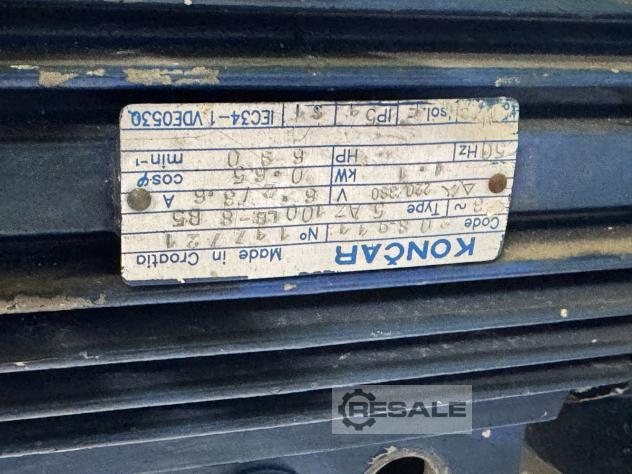

· Electric: 220/380V, 50Hz, 1,1 kW

· Electric protection: IP 54

· Number of revolutions of agitator max: 690 rpm

· Type of agitator: 3-way propeller

· Diameter of agitator: ø 180 mm
