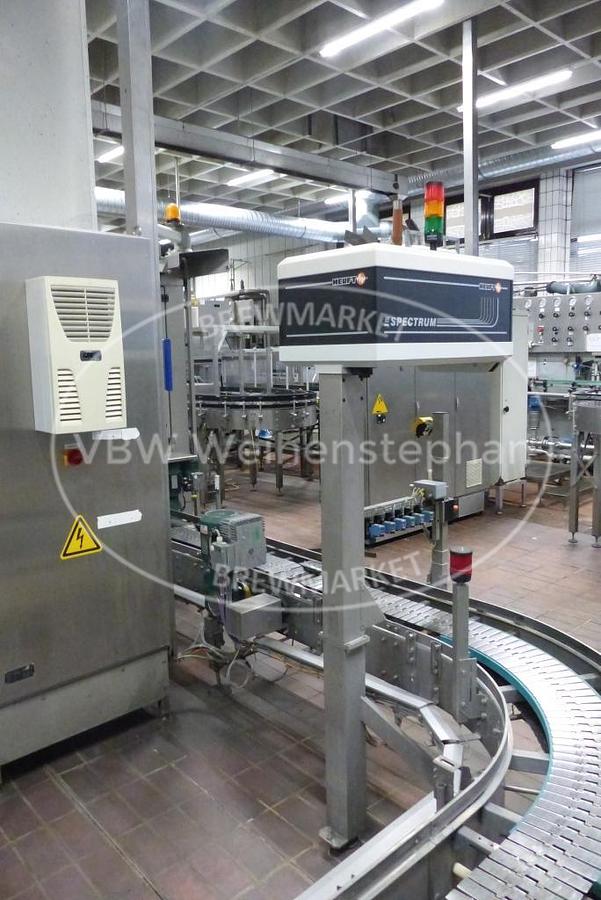

Control unit for checking beer crates for completeness. Also checks the bottle caps, including a conveyor stop in the event of problems., Additional title: with cap detection, Current: 4 A, Voltage: 230 V, Frequency: 50/60 Hz, Compressed air: min. 6 - max. 10 bar, Length: 0,7 m, Width: 0,74 m, Height: 2,1 m, Running direction: Crosswise, Features: inspection over closure detection, with integrated conveyor stopp

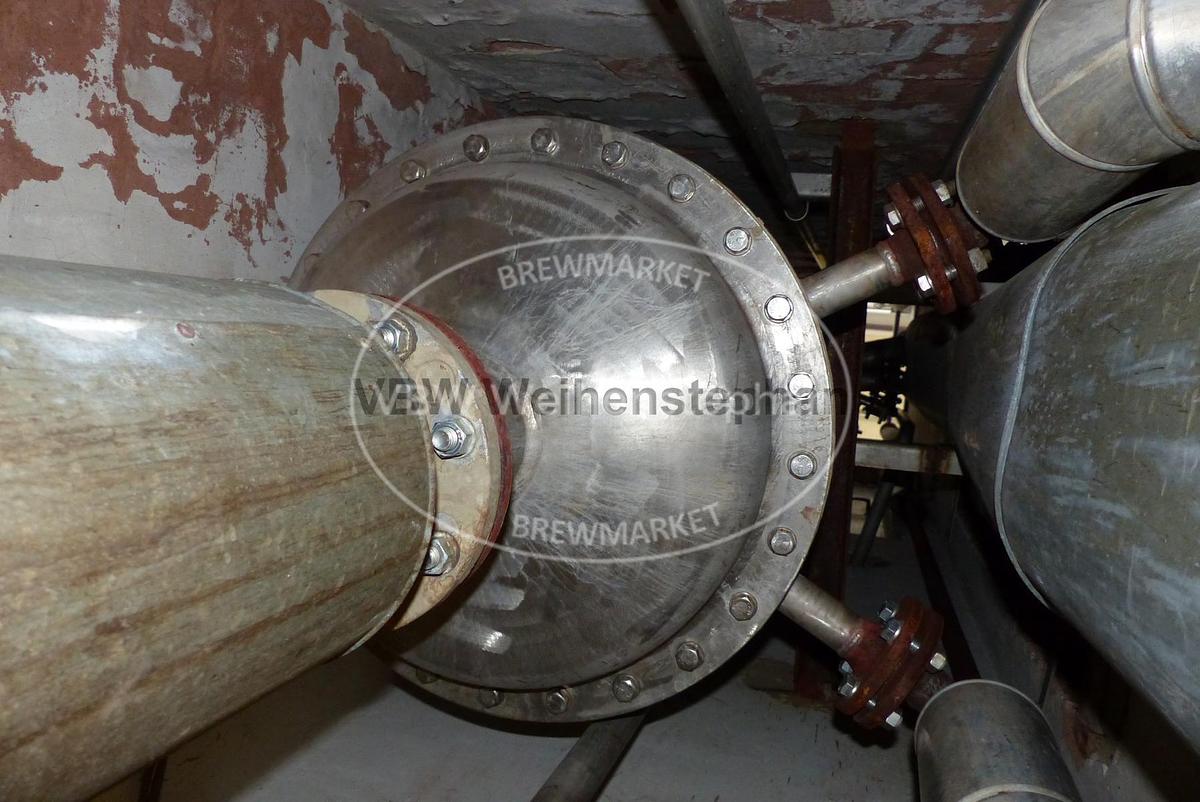

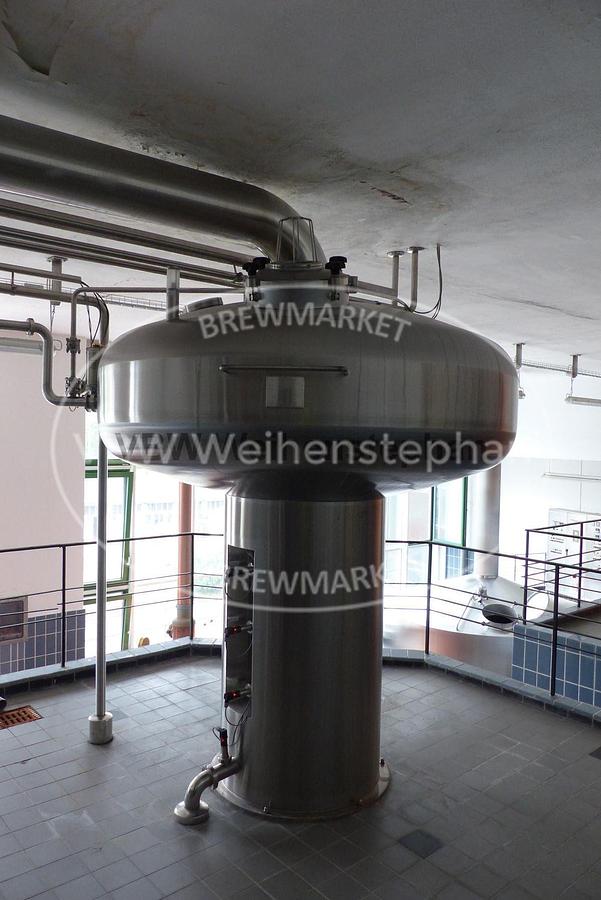

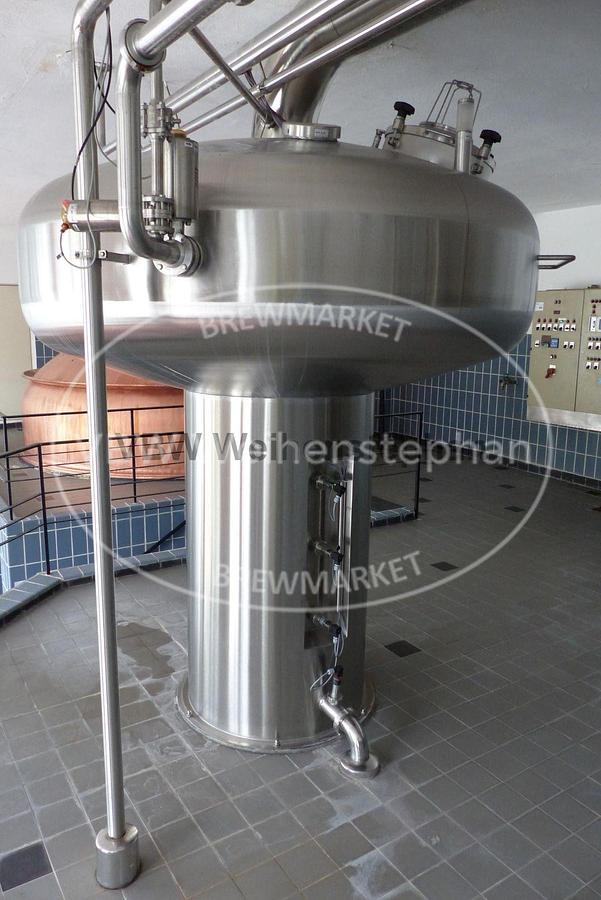

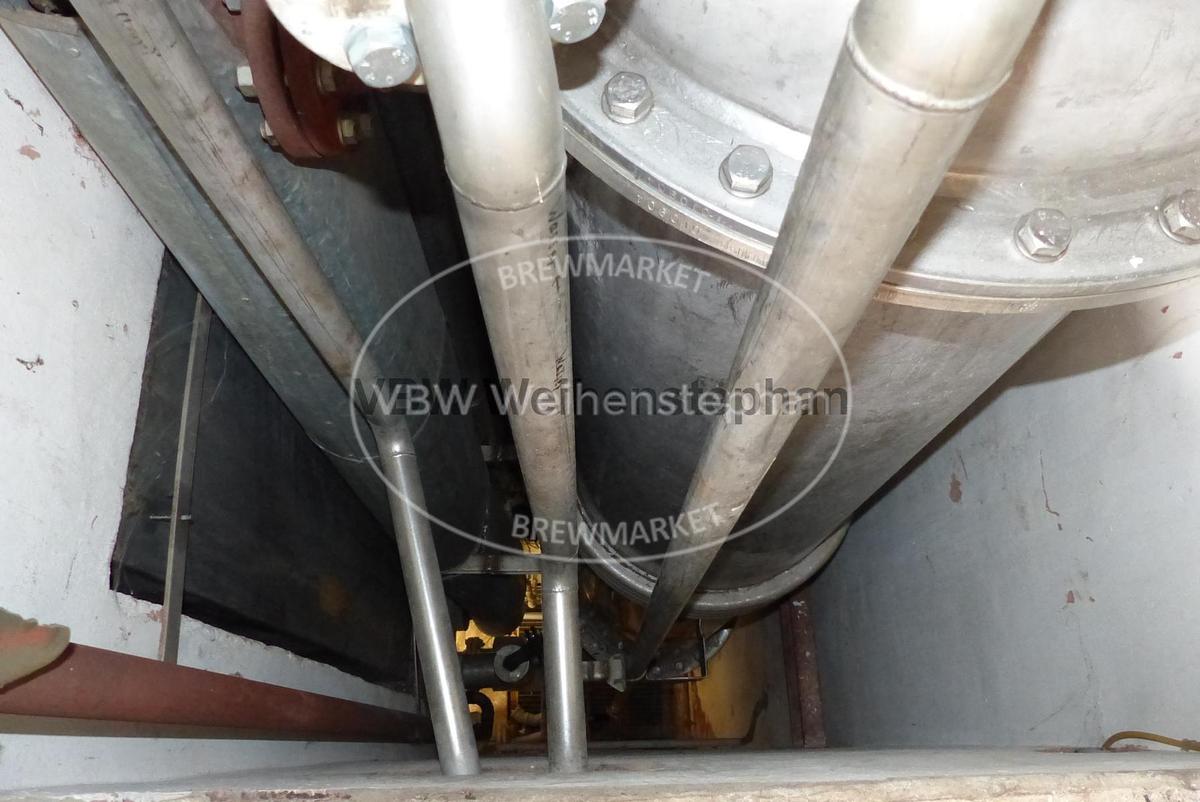

external wort boiler for brewhouse 130 hl knockout capacity;, Additional title: tube and shell heat exchanger, Pressure shell/tube: 2 bar, Volumke shell/tube: 200 l, Material: stainless steel 1.4541 (AISI 321), Base construction: vertical tube and shell heat exchanger with compensator and with support, Features: Steam- and condensate fittings; safety valvel

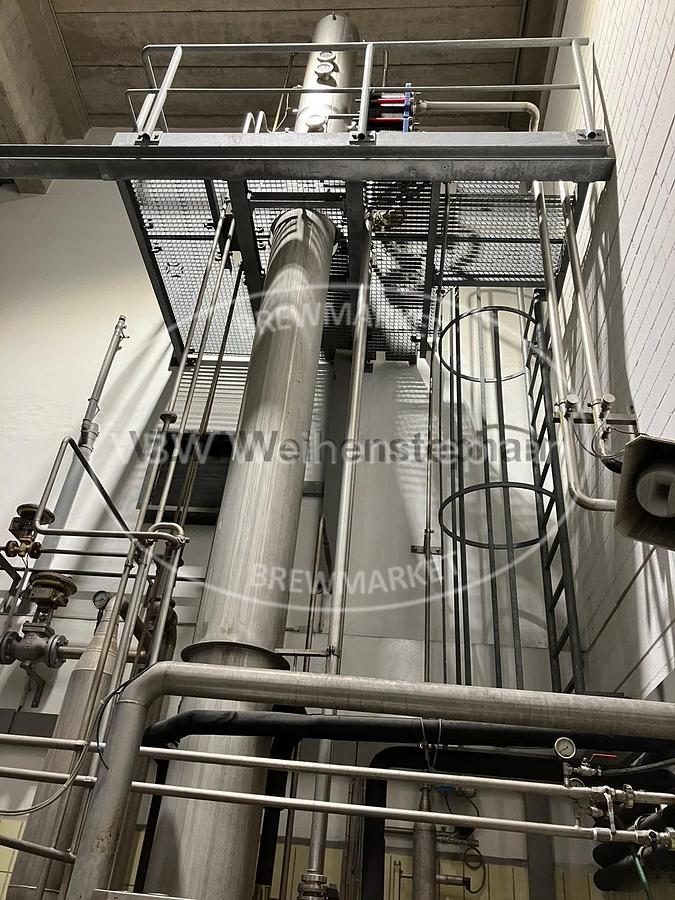

Complete vacuum evaporation system type SchoKo, with: -Expansion evaporater/vacuum tank -steam condensator -different pumps and fittings, Additional title: vacuum evaporation system, Knockout capacity: 13000 l, Volume of vacuum tank: 1471 l, Length: 2006 mm, Width: 2006 mm, Height: 2503 mm

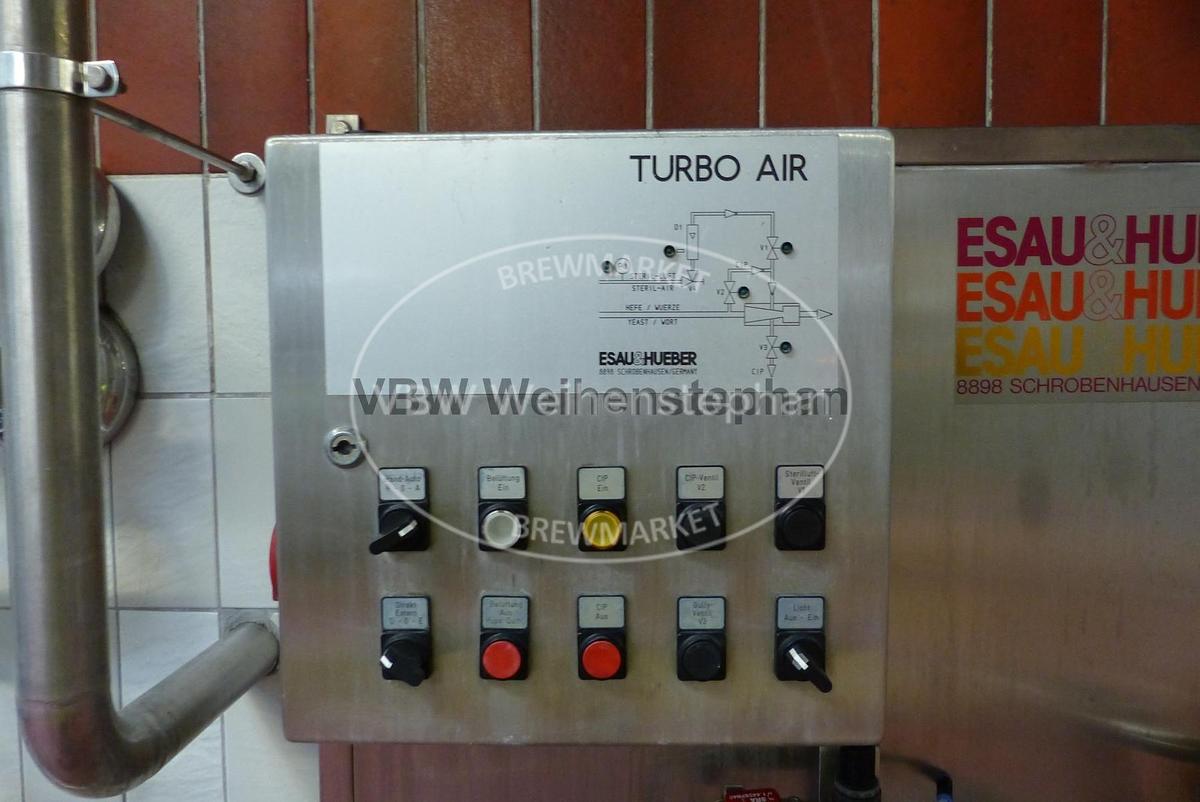

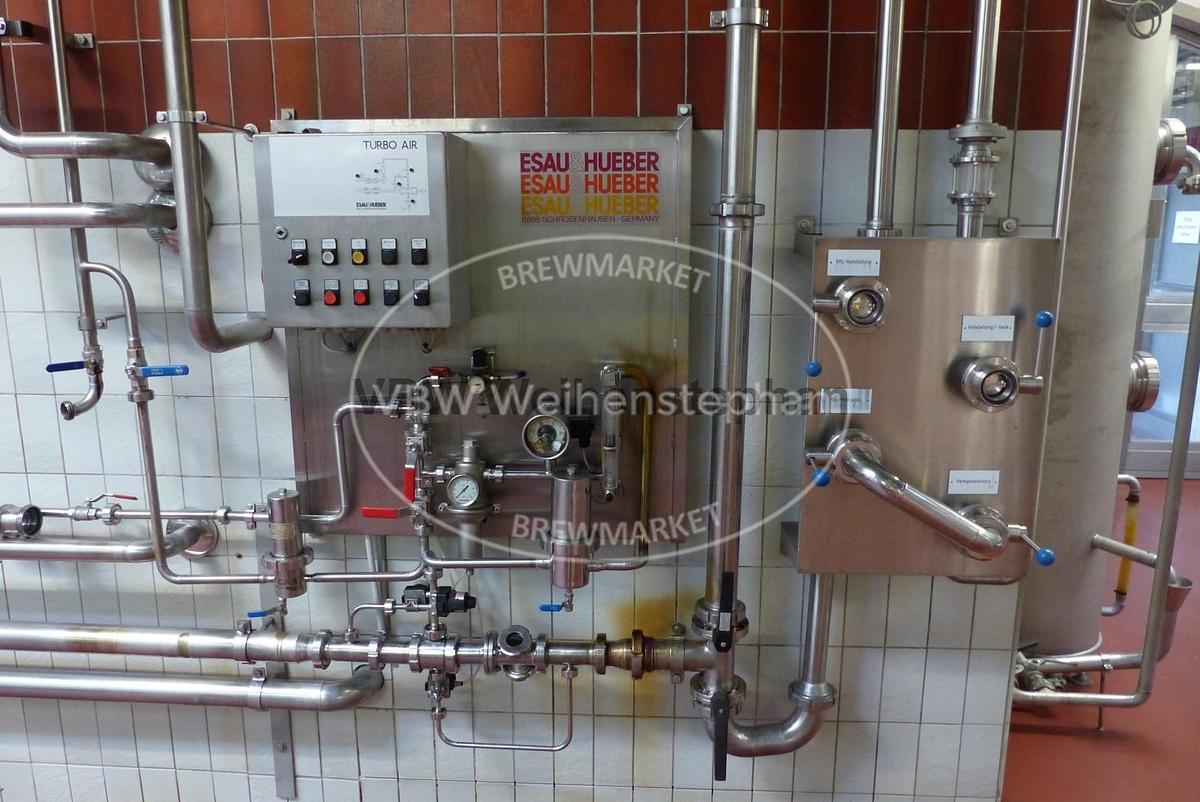

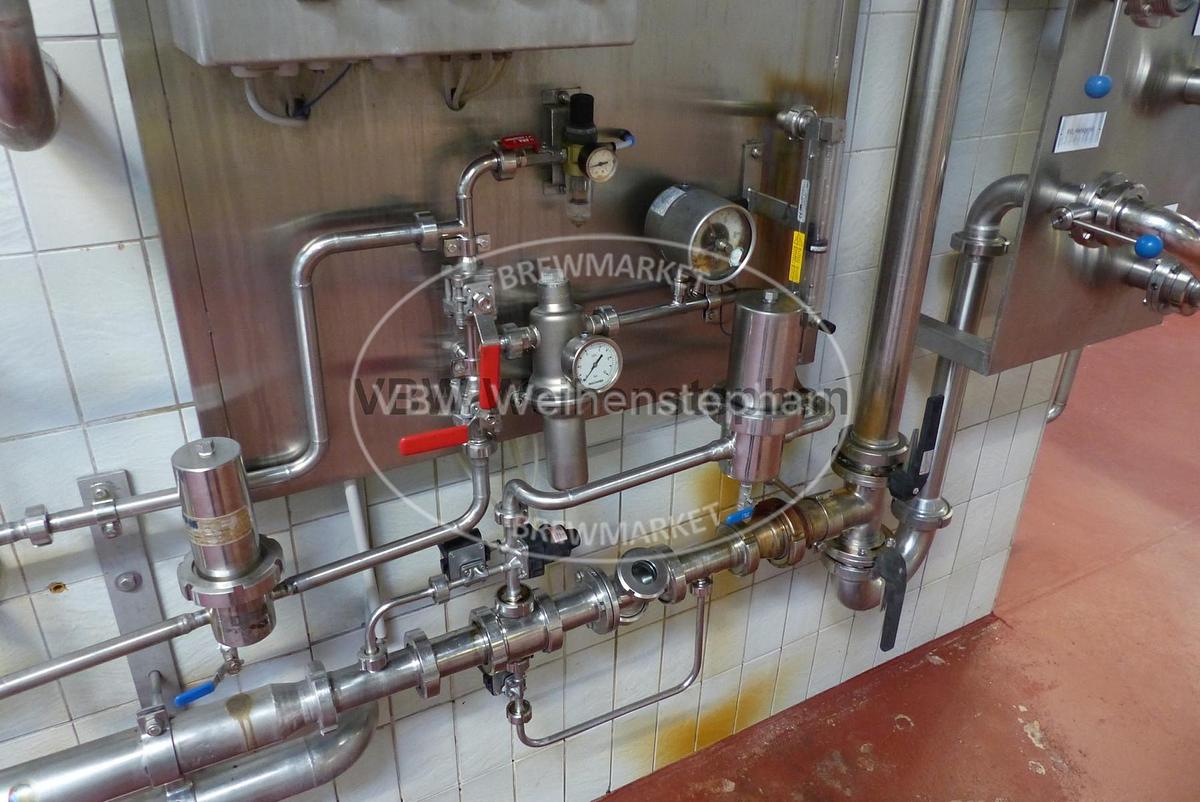

two-component nozzle with sight glass for a wort cooling capacity of approx.130 hl/h completely assembled on stainless steel panel, Additional title: Dual-fluid nozzle for oxygenation of wort, Aeration at a wort cooling capacity of: 13000 l/h, Base construction: mounted on stainless steel panel, Features: air vent DN50, sterile air filter, air flow meter, pressure reducer, membrane valves, control cabinet

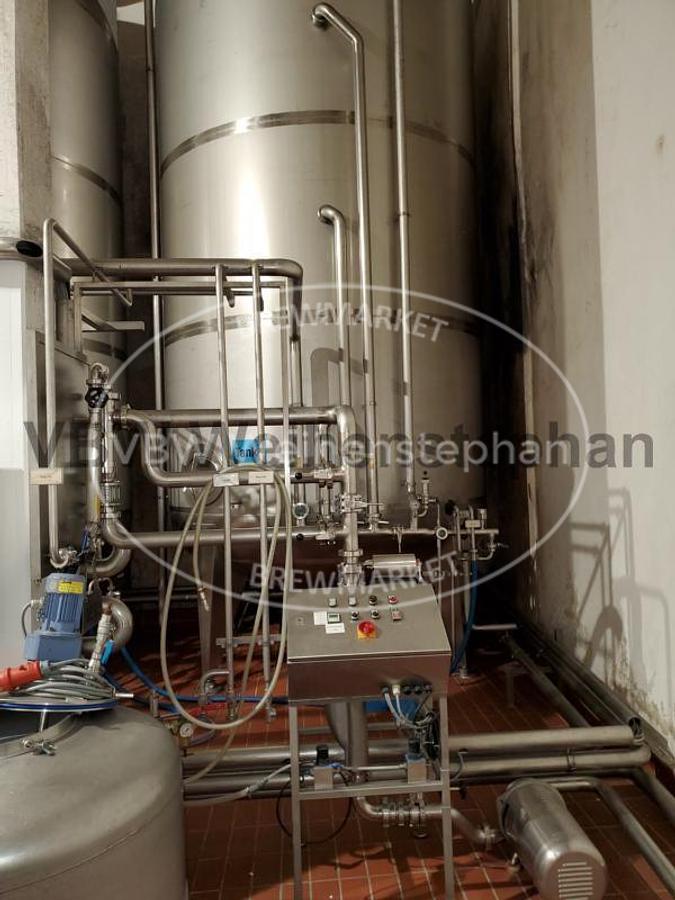

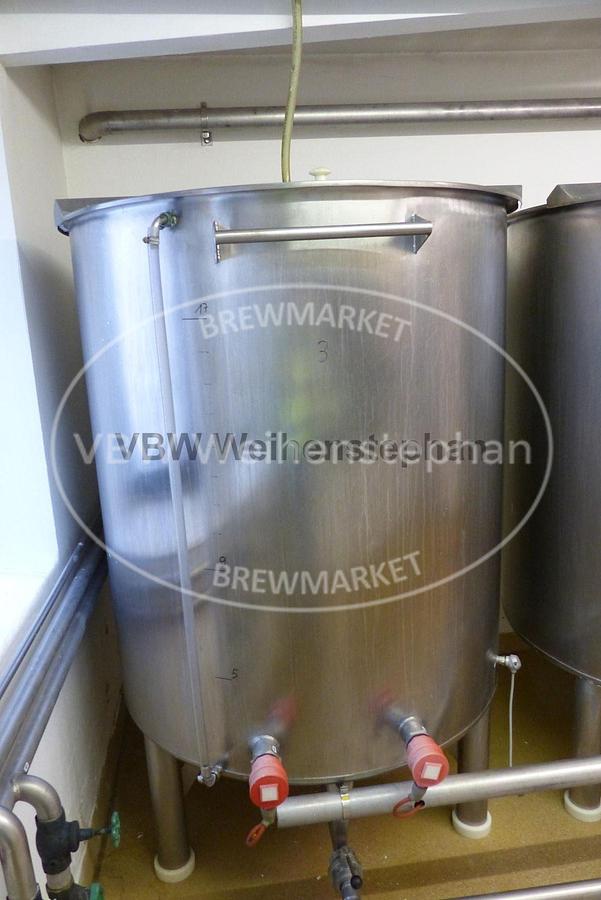

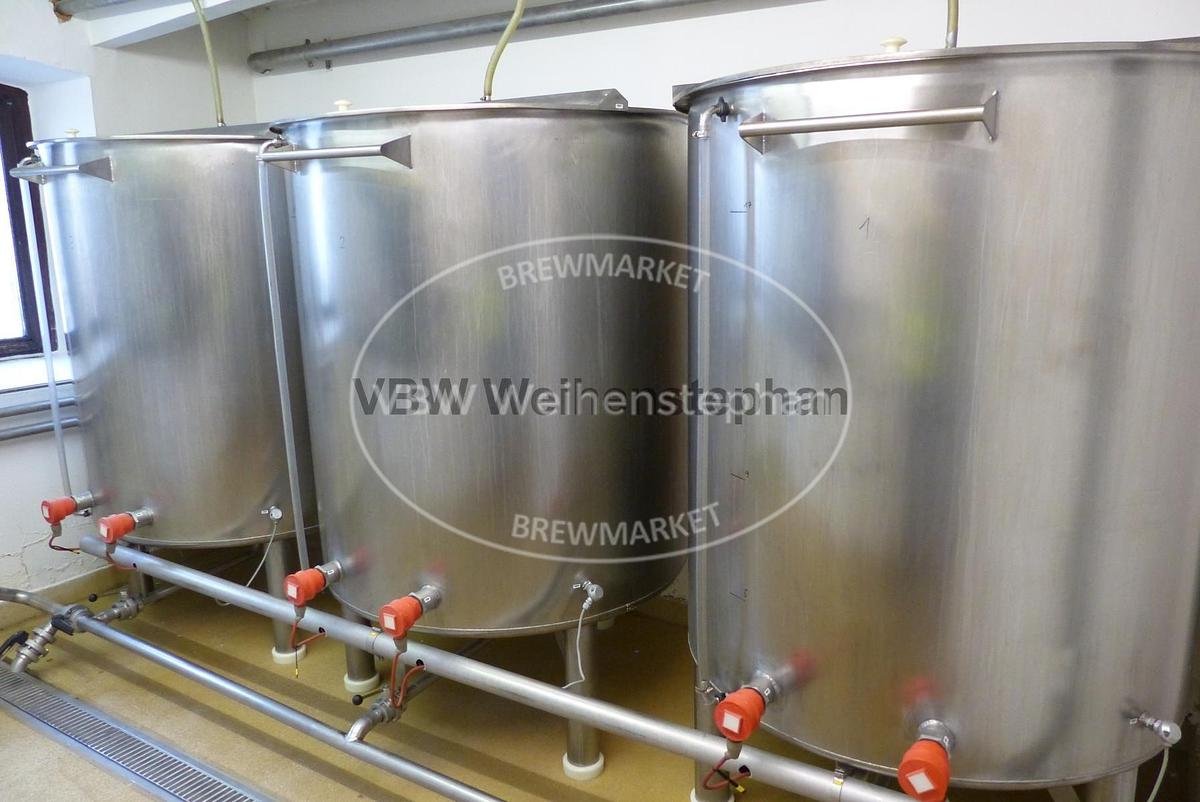

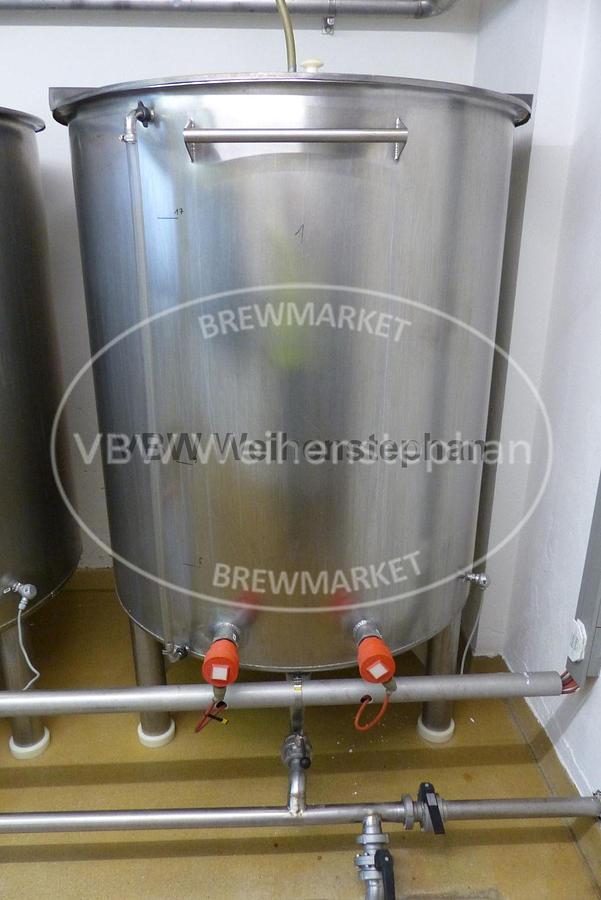

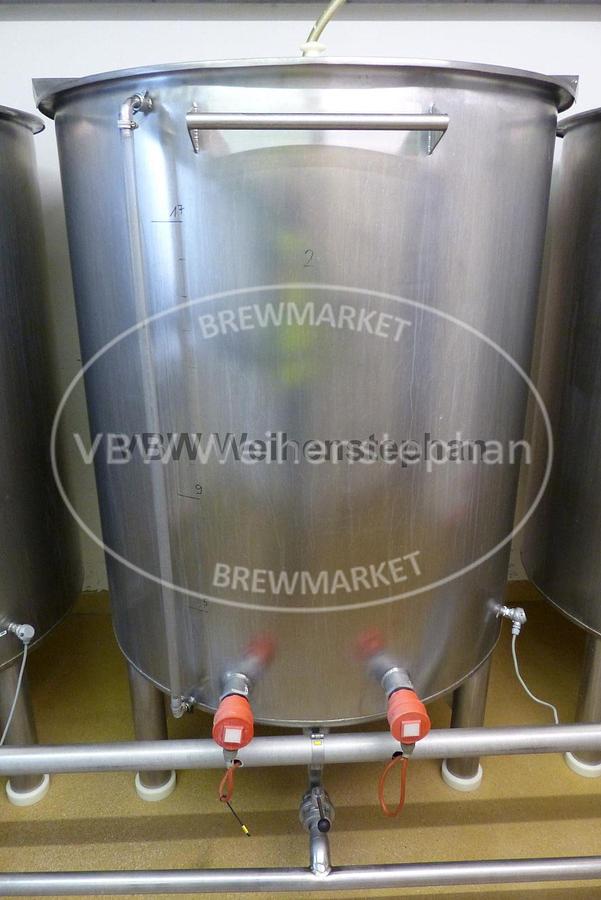

Manual operating biological lactic acid plant with 3 tanks in stainless steel as storage and dosing tanks, with all fittings, Additional title: 3-tank system with heating elements, aeration devices and temperature control, Volume and dimension per tank: 2000 l Diameter 1300 mm, cylindrical height 1500 mm, total height 2100 mm, Length: 4500 mm, Width: 1700 mm, Height: 2100 mm, Operation / Control: electrical box with buttons, switches and temperature controls, Material: stainless steel, Position: free standing, Base construction: standing tanks with lids, on pipe feet, Features: electric heating rods, temperature sensor, stand hose for content display, automatic gassing, ladder bracket, internal piping, control box

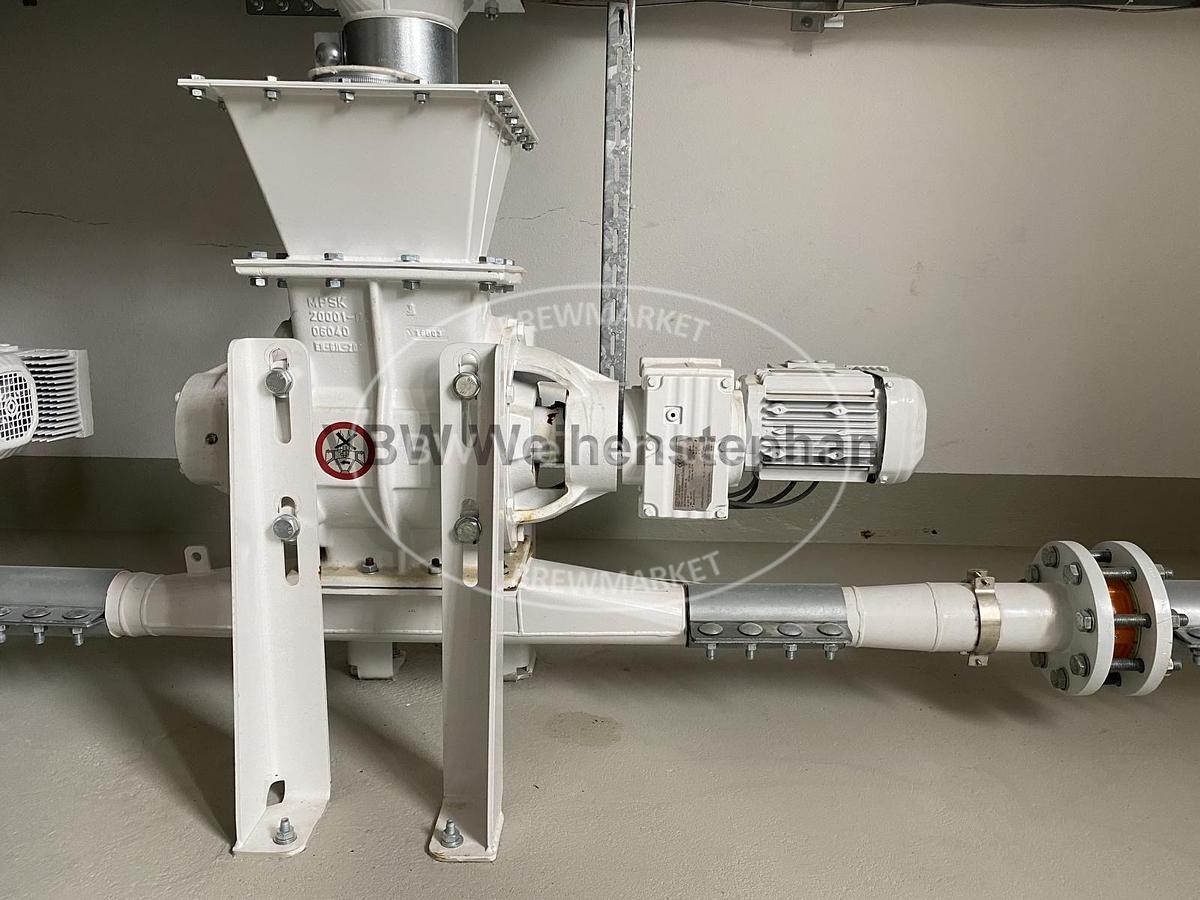

Wet spent grain conveyor - Housing with rectangular inlet chute - Wet spent grain bunker mounted at the inlet - Flushing water discharge connection - Mounted gear motor - Non-return flap with air connection, pressure gauge and ball access hatch., Additional title: Wet spent grain conveyor, Capacity approx.: 200 kg/min, Power: 4 kW, Current: 6,98 A, Voltage: 400 V, Frequency: 50 Hz, Material: Stainless steel 1.4301, Features: Spent grain bunker; non-return valve with compressed air connection, manometer and ball access hatch

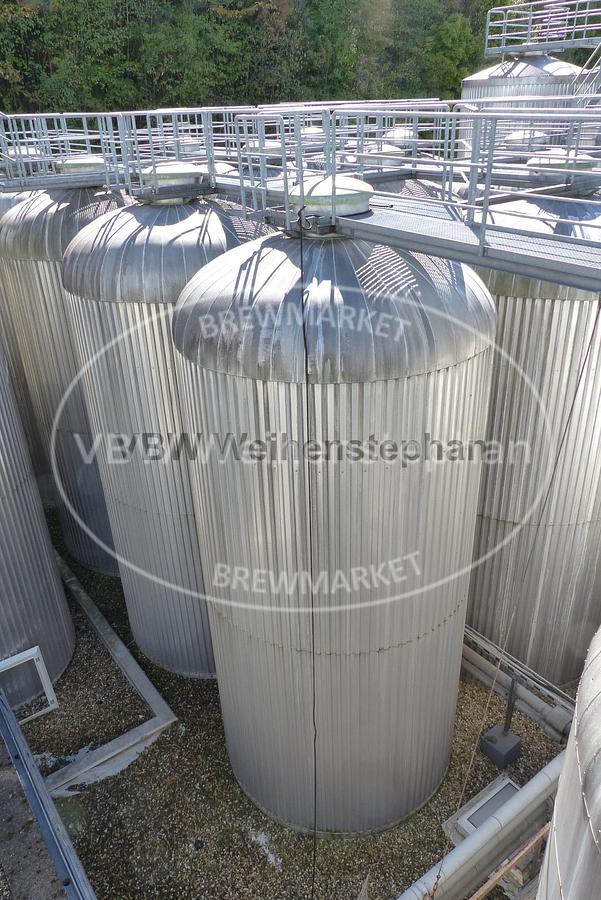

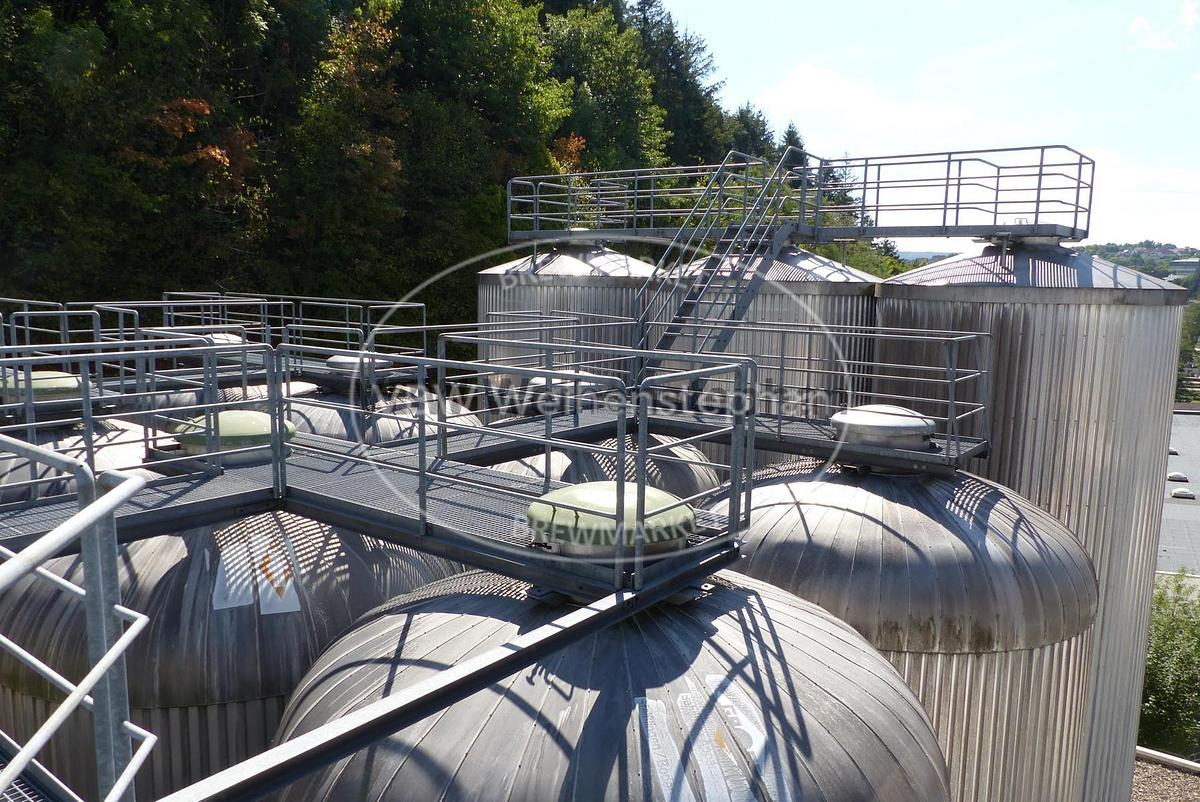

Flotation tank. - Designed for cooling with ammonia (can also be cooled with glycol), 1 x frame cooling. - Stainless steel - Insulated and clad - Stand frame, short - Cleaning air fitting with safety valve, Additional title: Refrigerated stainless steel tanks for outdoor installation, Capacity: 74480 l, Operating pressure: 0,9 bar, Width: 12,55 m, Height: 3,27 m, Material: Stainless steel, Position: vertical, Base construction: short supporting skirt, Features: Cooling: 1 x side wall cooling jacket; insulation; dearation and cleaning combination with safety valve; temperature measurement

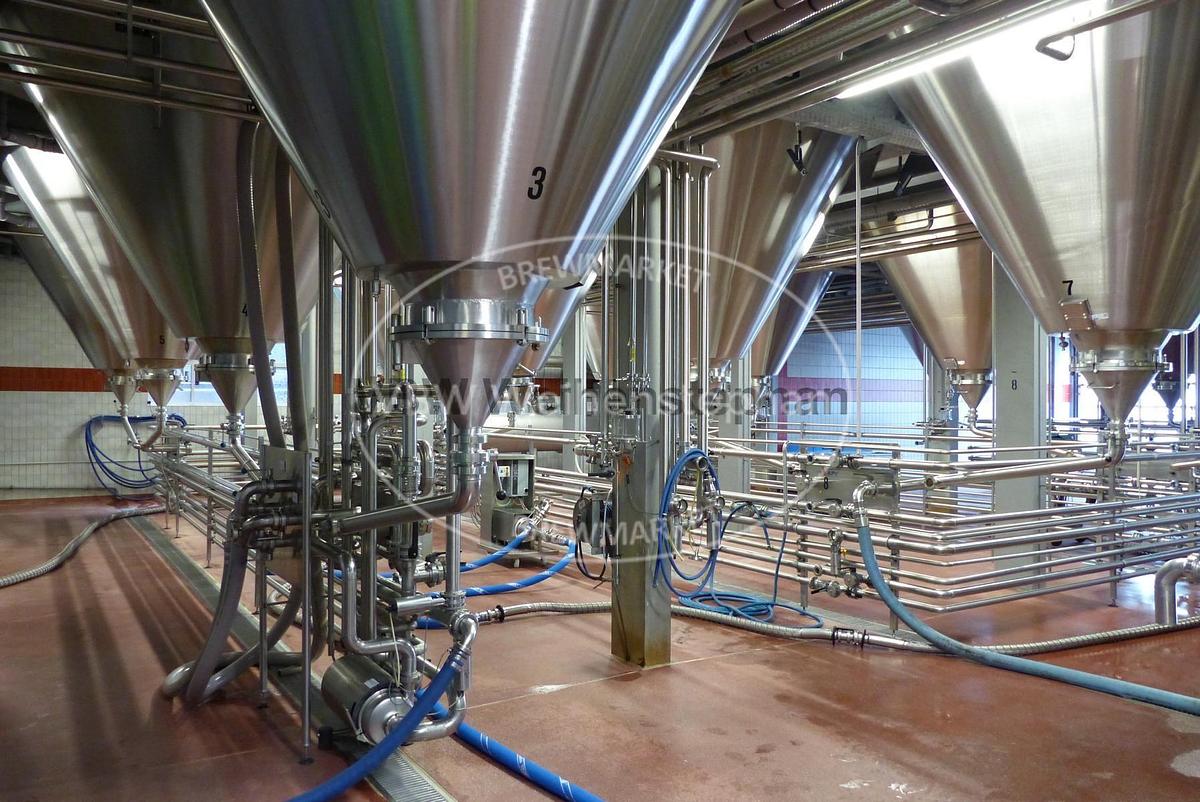

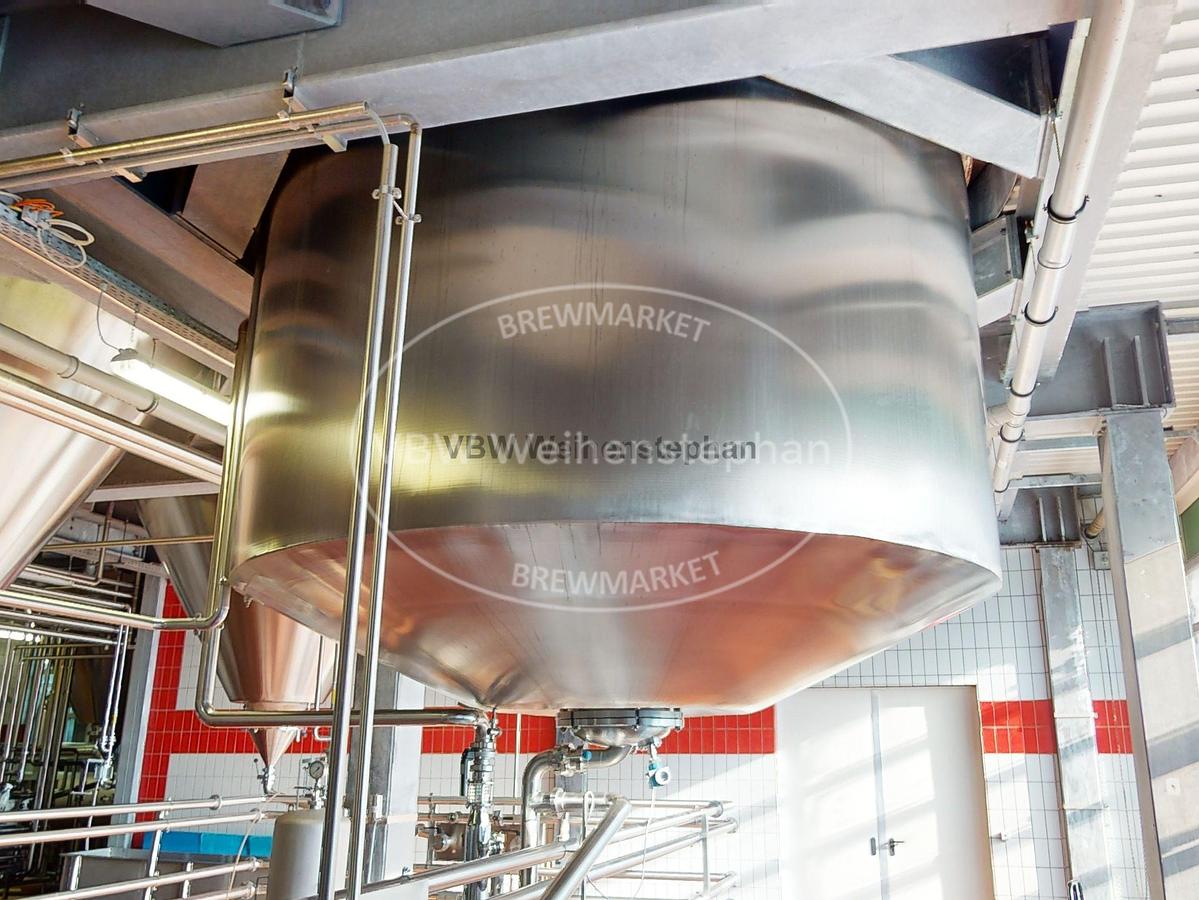

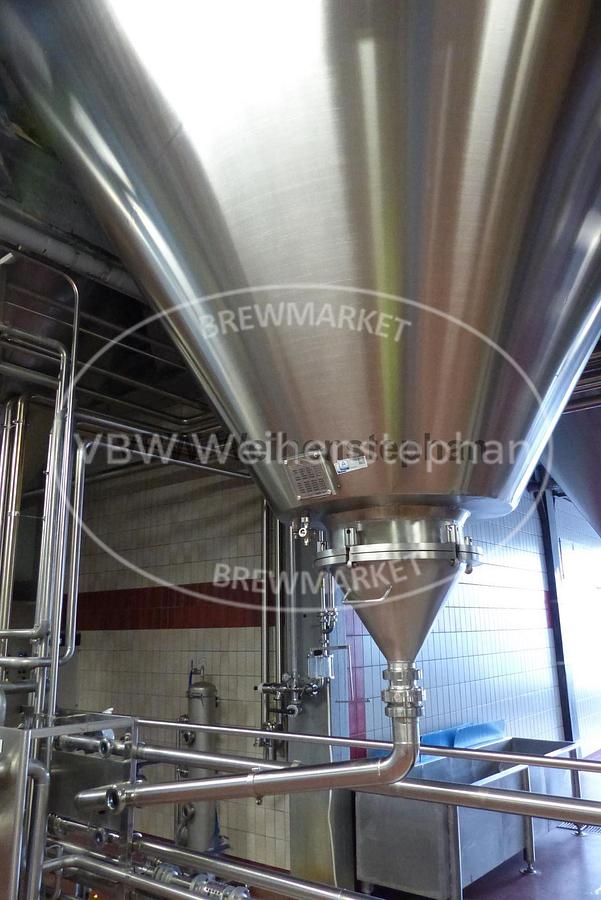

Cylindroconical fermentation and storage tank - Ammonia or glycol cooled, 1 x cone cooling, 3 x frame cooling. - Swivelling cone - Stainless steel - insulated - Standing frame, short - Cleaning air fitting with safety valve - Vacuum valve, Additional title: Refrigerated stainless steel pressure tank for outdoor installation, Capacity: 96450 l, Operating pressure: 2 bar, Length: approx. 12400 mm, Width: approx. 3950 mm, Height: approx. 3950 mm, Weight: 6220 kg, Material: Stainless steel 1.4301, Position: vertical, Base construction: short supporting skirt, Features: Cooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination with safety valve; vacuum valve; temperature measurement

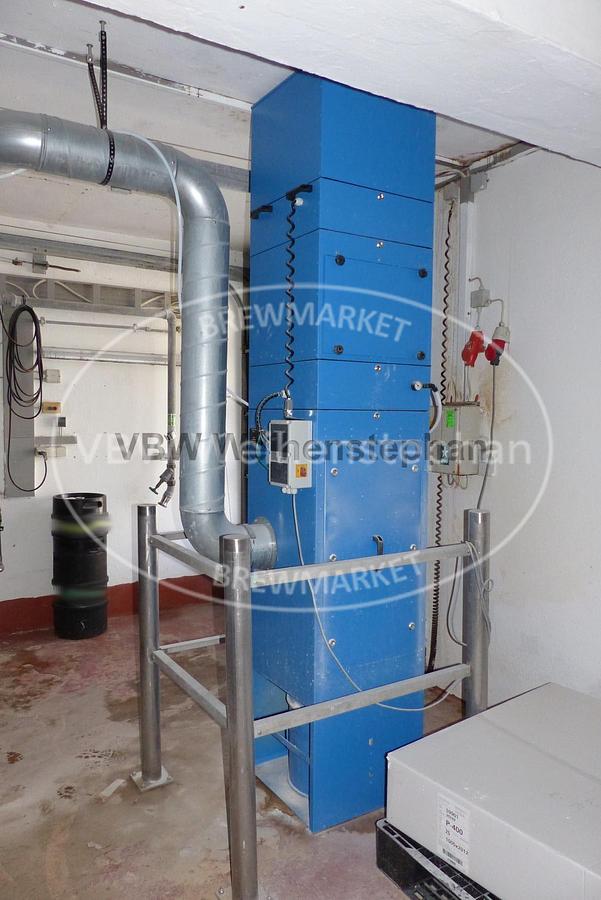

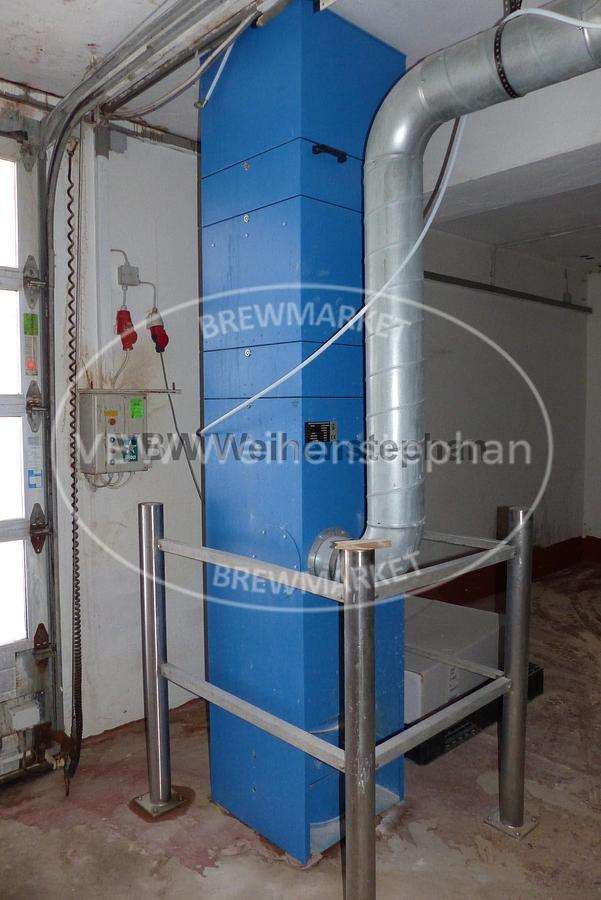

Universal compact dust extraction system with compressed air cleaning. The sound-insulated hood ensures quiet operation whilst protecting the suction unit from contamination. Motor housing with integrated tank or shaft cleaning unit, direct-drive fan with three-phase motor, aluminium turbine impeller, pressure gauge with pressure reducer and quick-connect nipple for connecting the compressed air supply. Control box with motor protection switch or automatic control for fully automatic compressed air cleaning during operation. Filter housing made of galvanised, powder-coated sheet steel with replaceable filter cartridges and built-in pre-separator including baffle plate. A bucket frame with a release mechanism is provided for waste disposal., Additional title: for kieselguhr dust, Capacity: 1800000 l/h, Filtration area: 15 m2, Power: 3 kW, Current: 6,3 A, Voltage: 400 V, Frequency: 50 Hz, ...
Flotation tank. - Designed for cooling with ammonia (can also be cooled with glycol), 1 x frame cooling. - Stainless steel - insulated - Stand frame, short -Cleaning air fitting with vacuum valve and safety valve, Additional title: Insulated stainless steel pressure tank for outdoor installation with a cooling , Capacity: 43100 l, Operating pressure: 4 bar, Material: Stainless steel 1.4301, Position: vertical, Base construction: short supporting skirt, Features: Cooling: 1 x side wall cooling jacket; swivel opening with outlet; sampling valve; insulation; dearation and cleaning combination with 2 safety valves; temperature measurement; volume measuerment

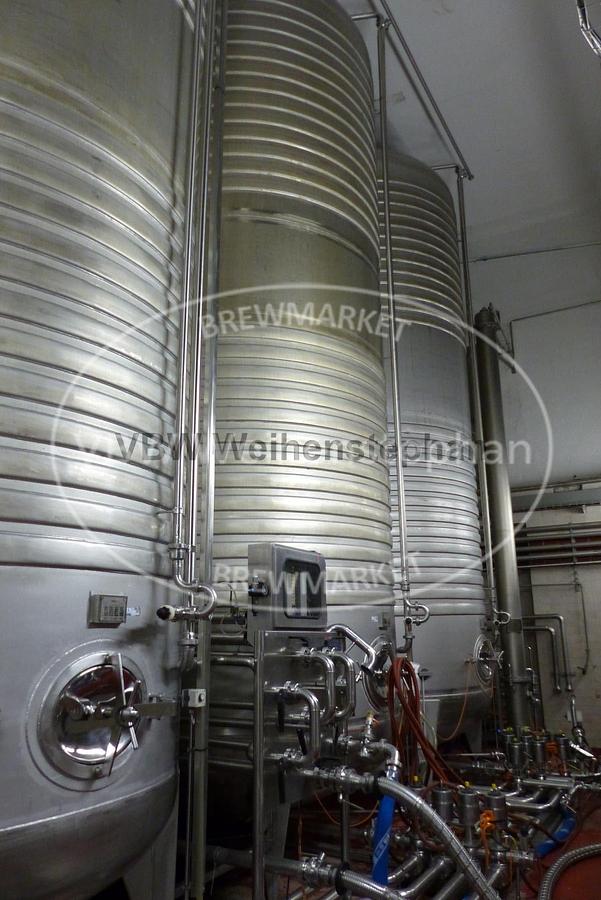

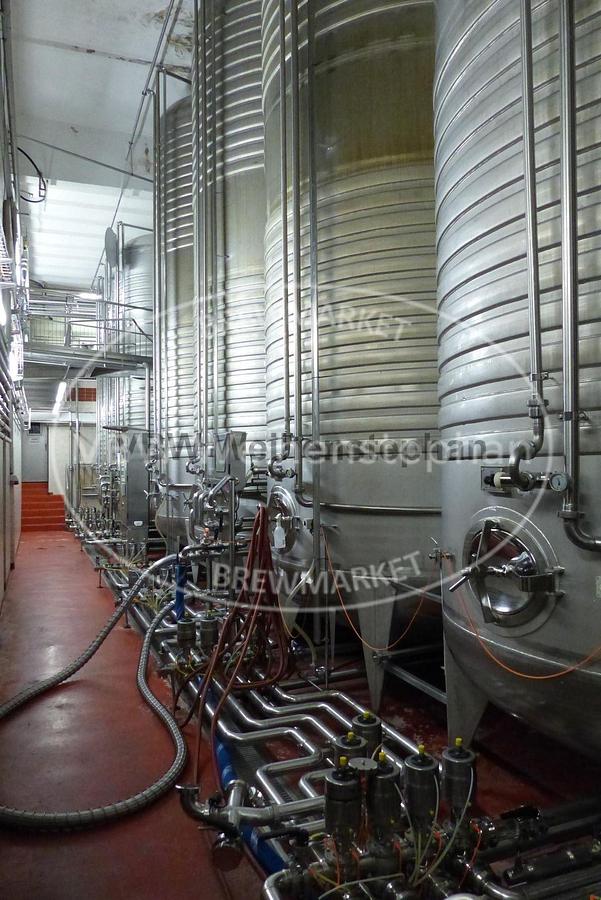

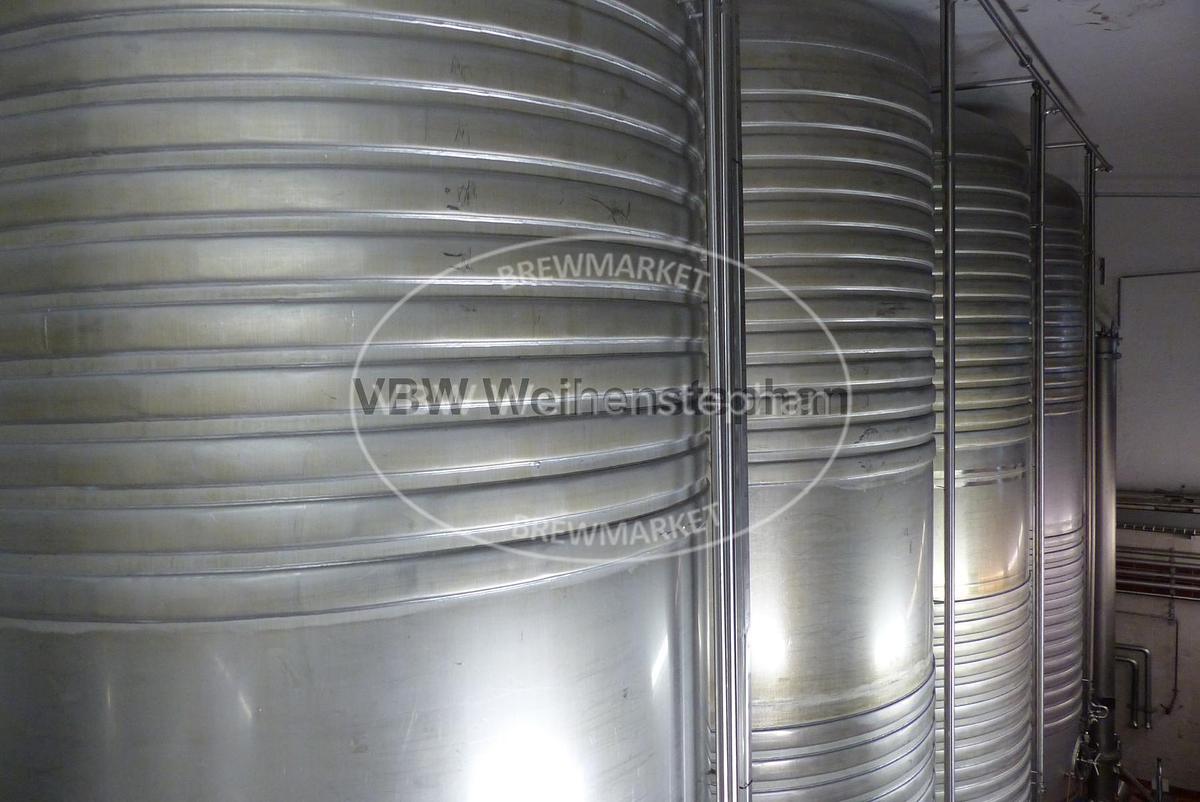

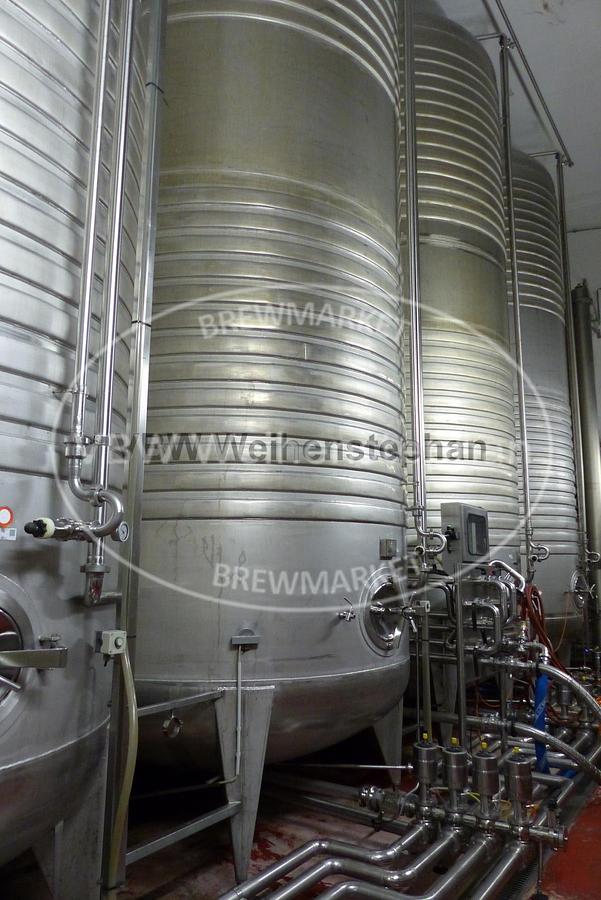

Pressurised tank cellar with 4 upright 324 hl stainless steel pressure tanks and with double-seat valve solution on the operating level. The tanks are cooled using ice water., Additional title: coolable stainless steel pressure tanks, Volume per tank: 32400 l, Cooling surface/tank: 25 m², Perm. working overpressure: 3 bar, Systemic volume: 324 hl, Length: 2,5 m, Width: 2,5 m, Height: 7,4 m, Weight: 2585 kg, Material: stainless steel AISI 304, Features: Tank cleaning equipment with spray head, safety valve, pressure gauge, air valve combination; sampler, level indicator with valves, outlet valve , Periphery: Inlet and outlet pipework via double-seat valves

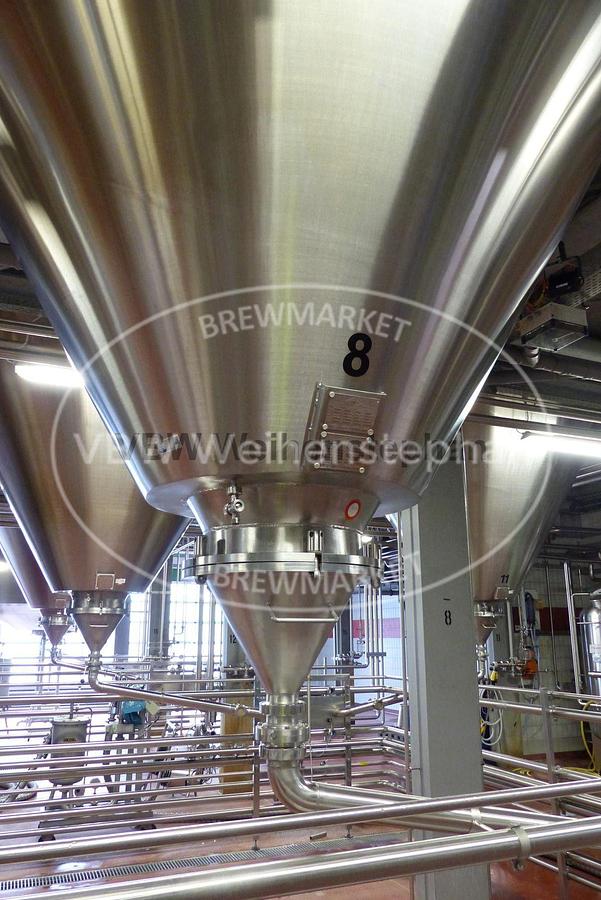

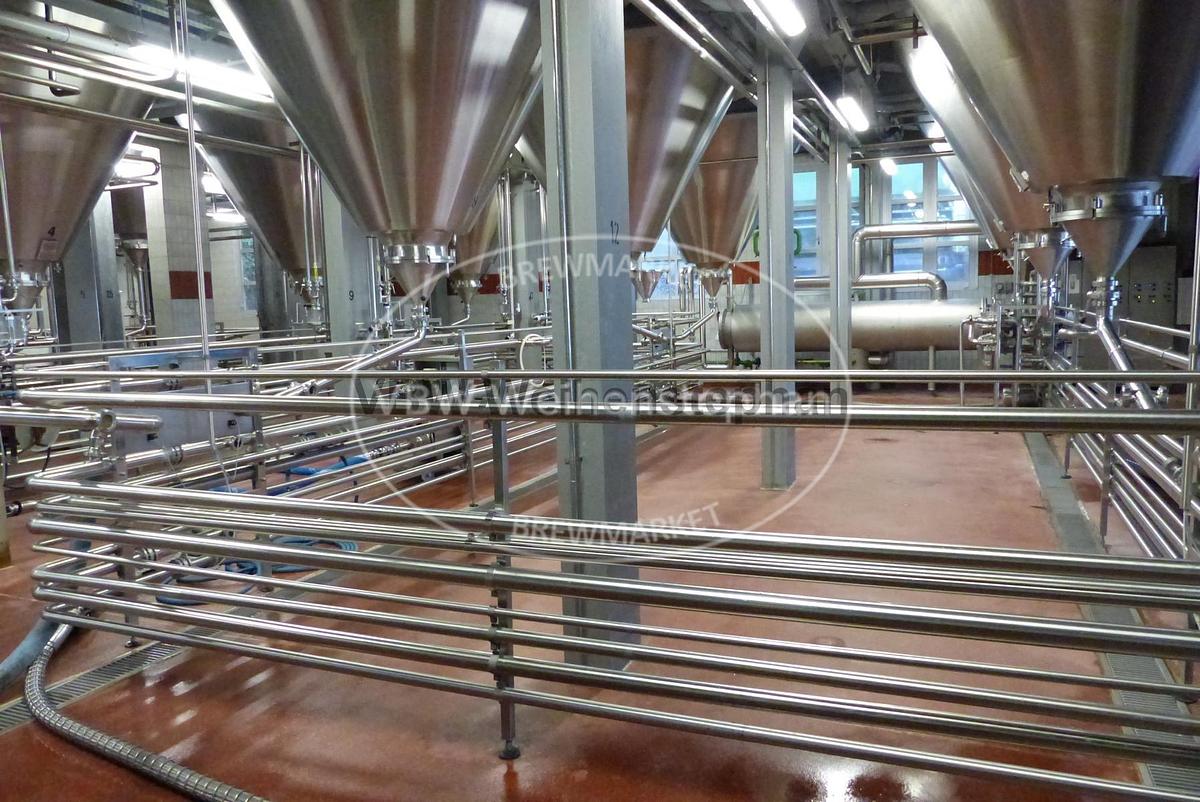

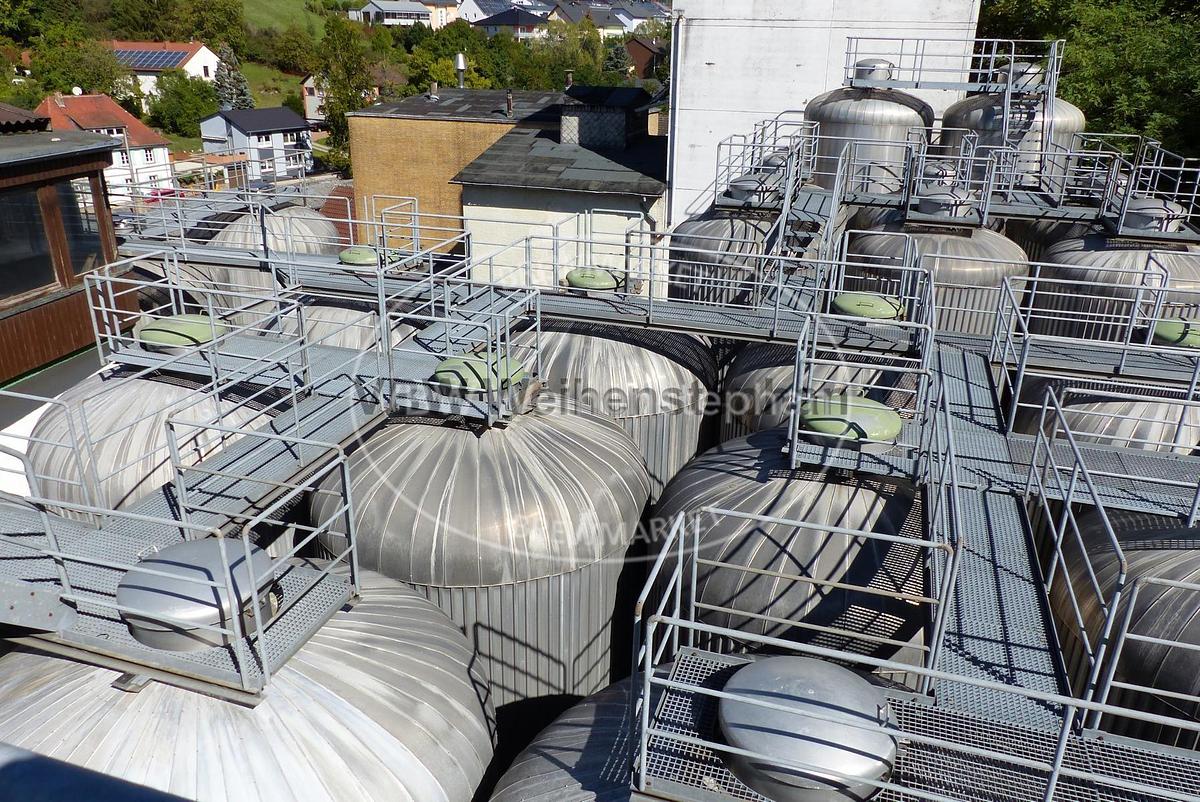

Cylindroconical 965 hl fermentation and storage tank - designed for cooling with ammonia (can also be cooled with glycol), 1 x cone cooling, 3 x frame cooling - Swivel cone - stainless steel - insulated - Stand frame, short - Cleaning air fitting with safety valve - Vacuum valve 7 tanks, also available individually or in partial quantities., Additional title: Outdoor tanks for storing fluids; years of manufacture 1988 - 1991, Capacity: 96450 l, Operating pressure: 2 bar, Length: approx. 12400 mm, Width: approx. 3950 mm, Height: approx. 3950 mm, Weight: 6220 kg, Material: Stainless steel 1.4301, Position: vertical, Base construction: short supporting skirt, Features: 7 tanks; Cooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination; safety valve; vacuum valve; temperature measurement
Crate washer for longitudinal plastic crates with 3 cleaning levels on top of each other and dirt discharge with collection vessel. 1st level: Soaking basin with pump suction channels. 2nd level: Main spraying with upward turner and conveyor. 3rd level: Final spraying with upward turner and conveyor with water collection pool., Additional title: 2500 crates per hour, Capacity: 2500 crates/h, Volume of soaking bath: 2 m3, Power: 24,6 kW, Voltage: 380 V, Frequency: 50 Hz, Length: 6,5 m, Width: 1,4 m, Height: 3,0 m, Weight: 4300 kg, Formats: NRW crates (400x300x290 mm), NRW handy crates (400x300x300 mm), Pinolen crates (395x300x270 mm), Running direction: crates longitudinal, Material: stainless steel cladding, Base construction: standing on 4 feet, Features: 2 x crate turner, soaking basin, main spray jets, second spray jets, dirt expulsion with collection vessel, caustic dosing system

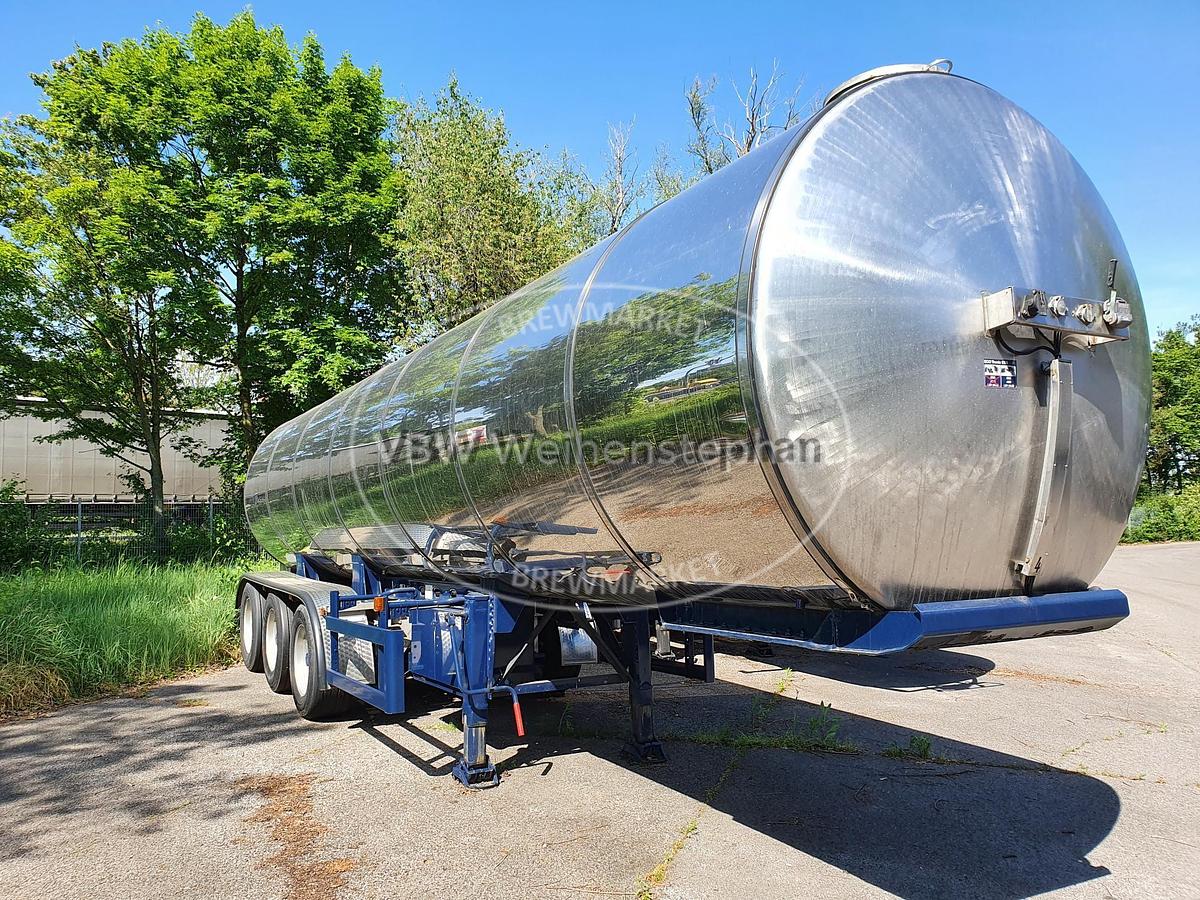

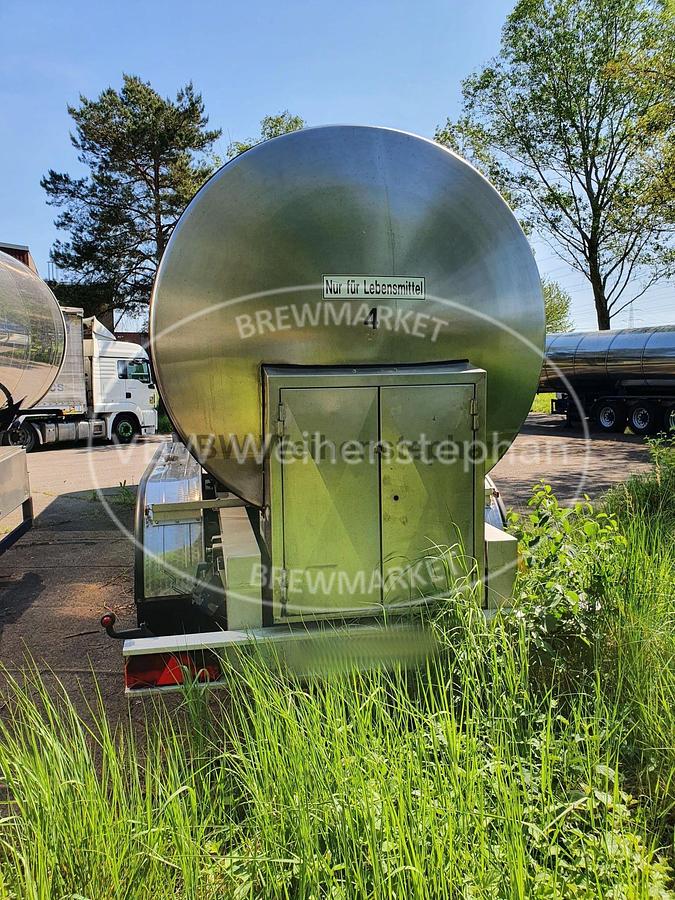

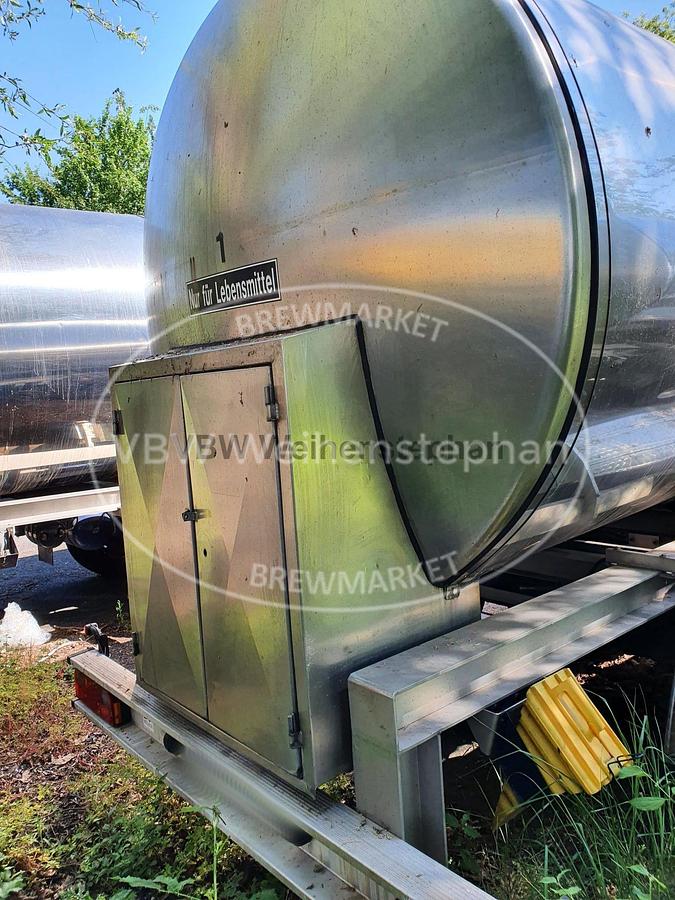

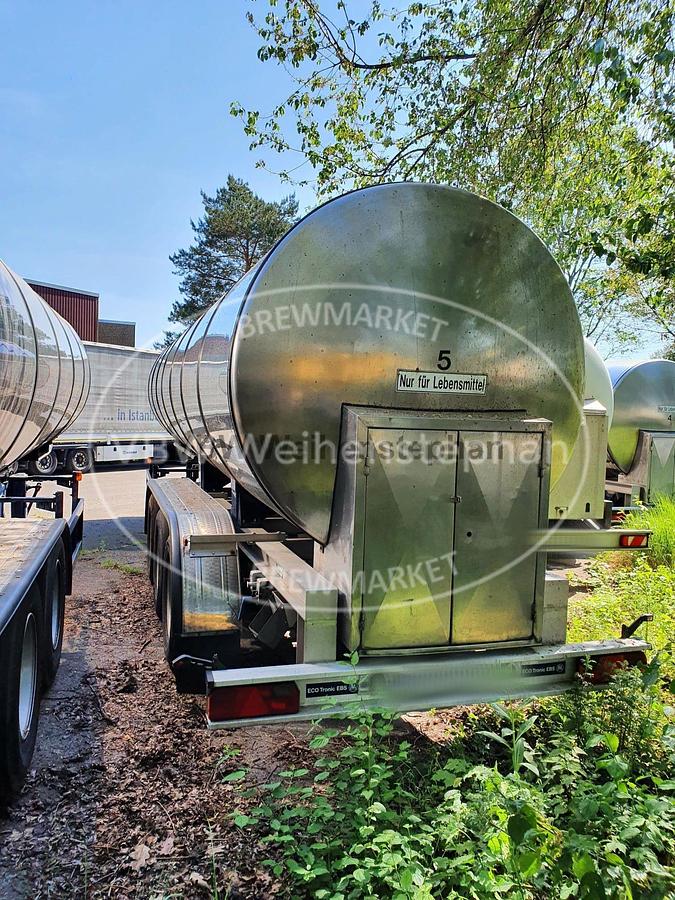

Tank trailer - semi-trailer with bright beer tank for beer transport; the construction year of the trailer is 2012., Additional title: Horizontal stainless steel pressure tank on a mobile trailer, Volume: 25250 Liter , Operating pressure: 3 bar , Systemic volume: 25250 Liter, Material: Stainless steel, Position: lying on a semi trailer

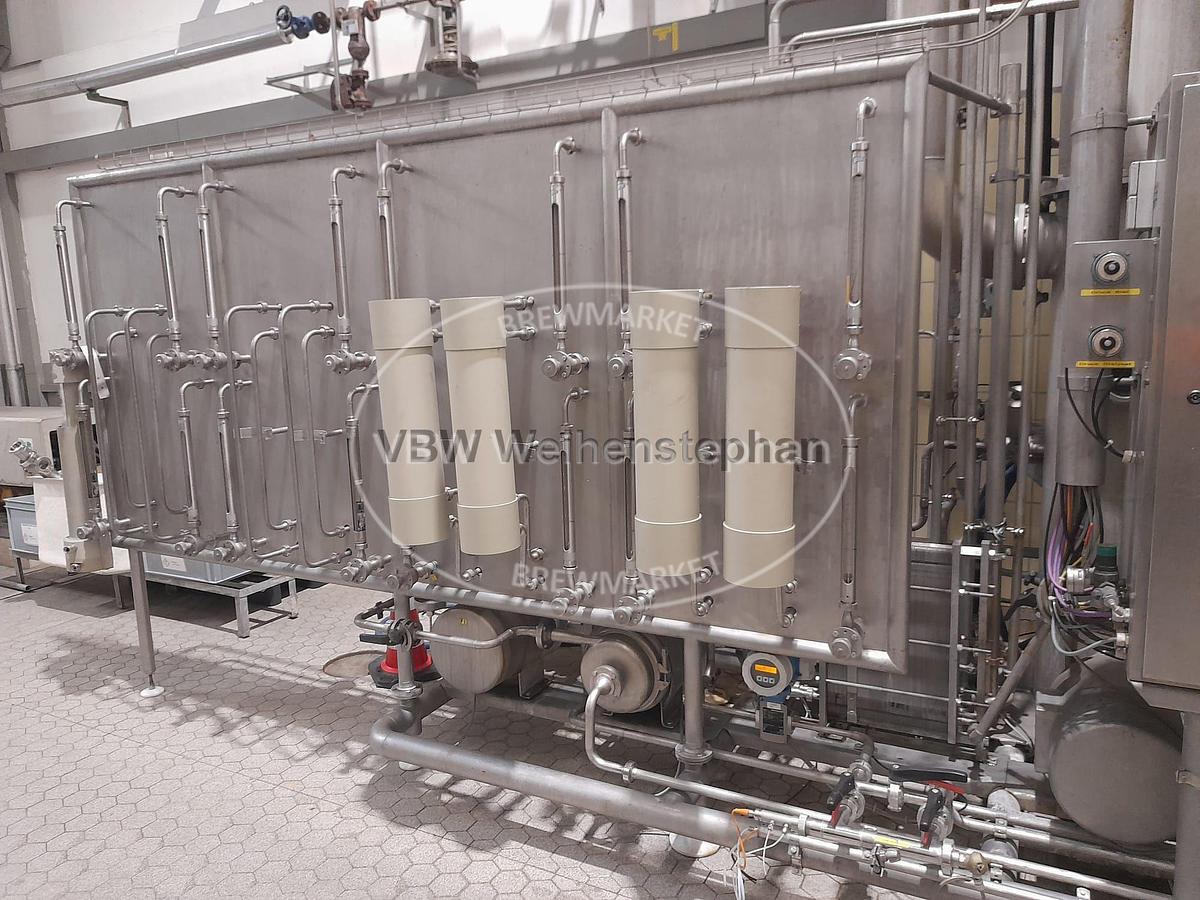

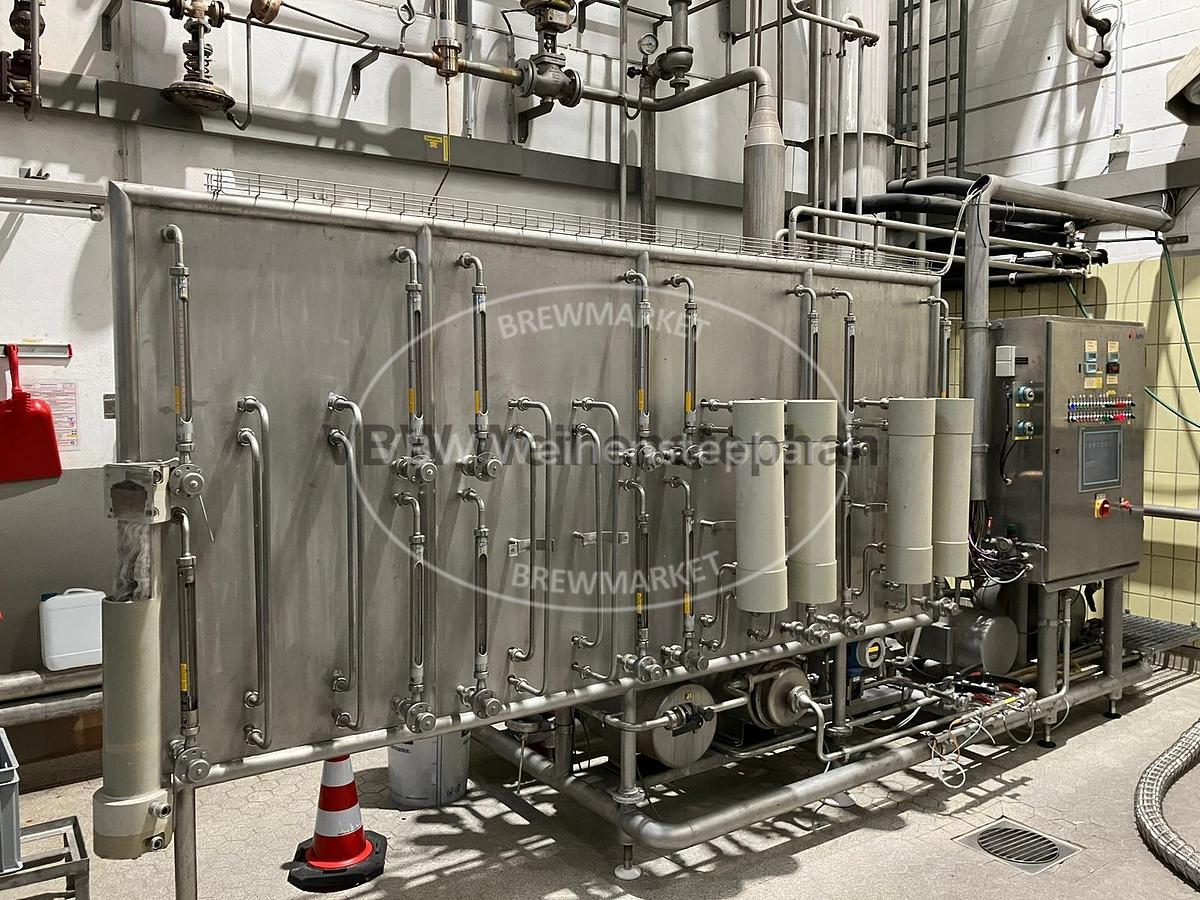

The dealcoholisation is carried out by a dialysis membrane module consisting of up to 8 modules connected in parallel. The mass transfer is driven by the concentration gradient between beer and dialysate (water or dealcoholised beer)., Additional title: dialysis, Capacity: 350 l/h remaining alcohol content: approx. 0,45 %; original alcohol content: approx. 5 %, Length: 3,6 m, Width: 1,7 m, Height: ca. 8,4 m, Weight: 900 kg, Operation / Control: Control cabinet with operating buttons and touch display, Features: 6 membrane modules, column DN400; plate heat exchanger TS6-MFG, Alfa Laval, year of manufacture 2006

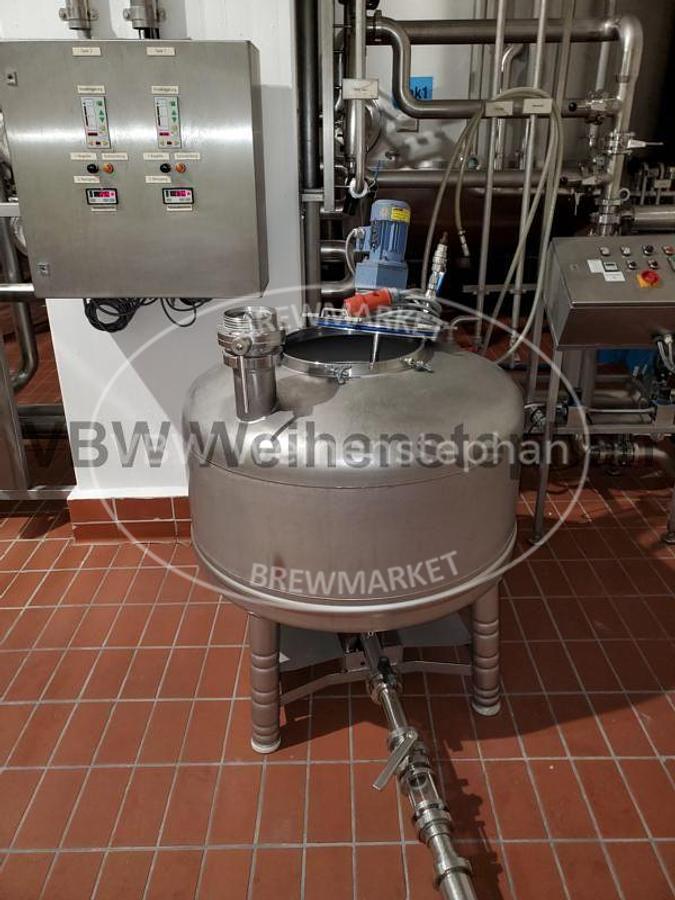

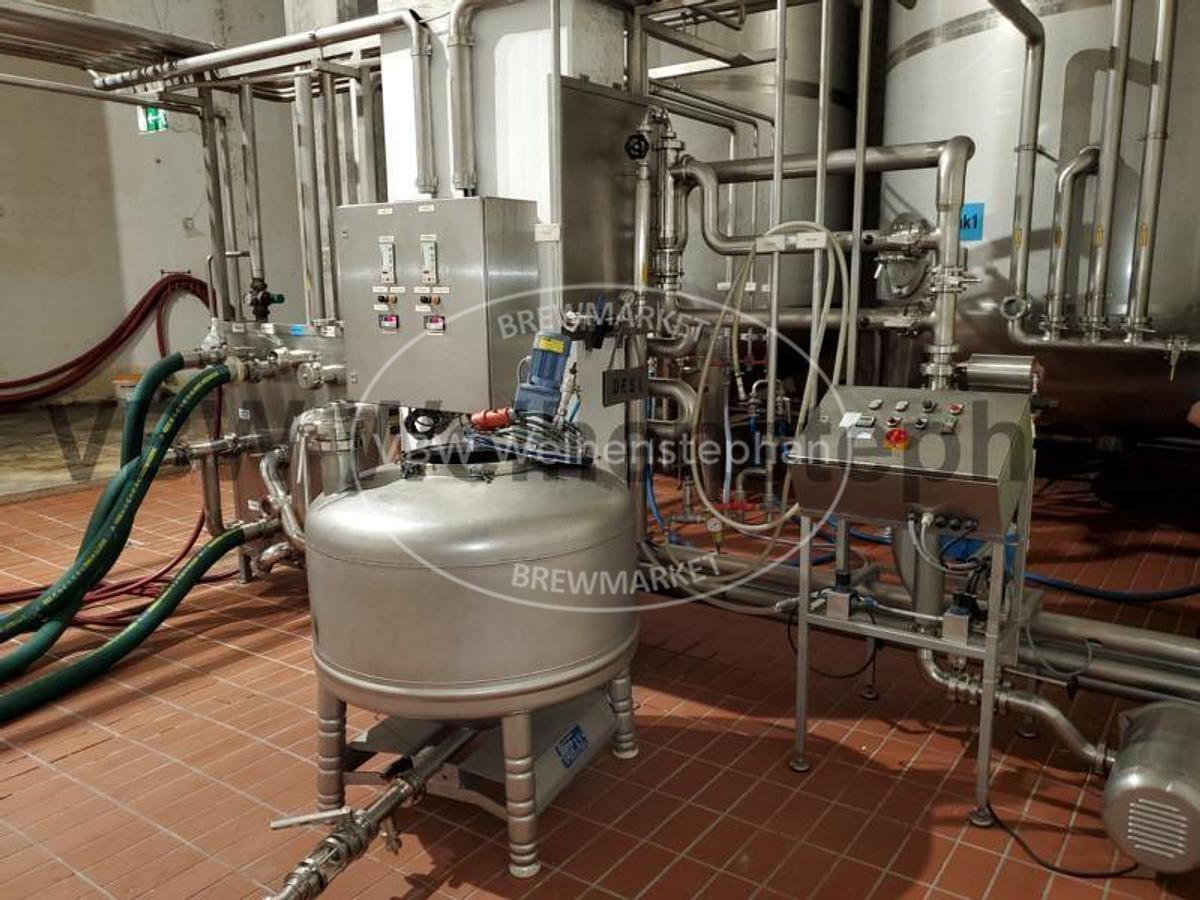

Additional title: with carbonization, Vessel volume: 500 l, Vessel operating pressure: 1 to -0,15 bar, Vessel operating temperature: 130 °C, Features: flow meter (E+H), blending vessel with stirring unit (5 hl), control panel with push-buttons, carbonization with subsequent calming section, no pressure tanks, no panel

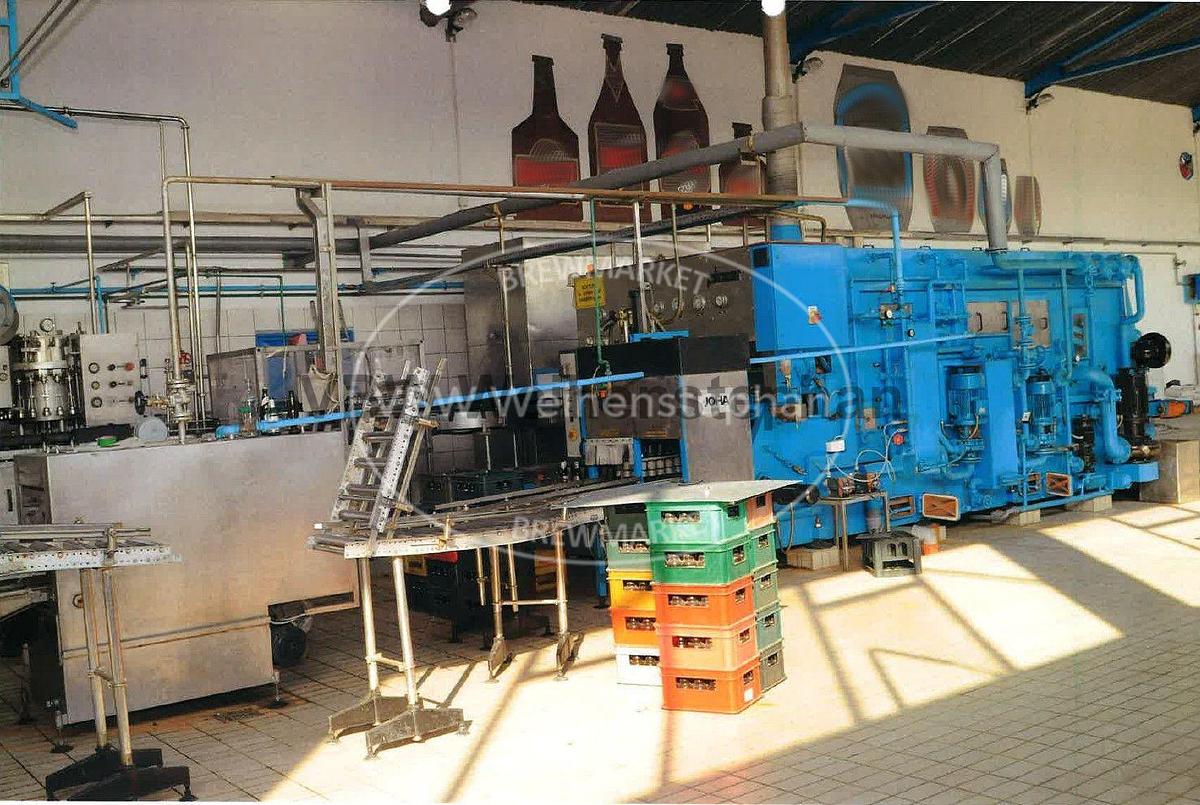

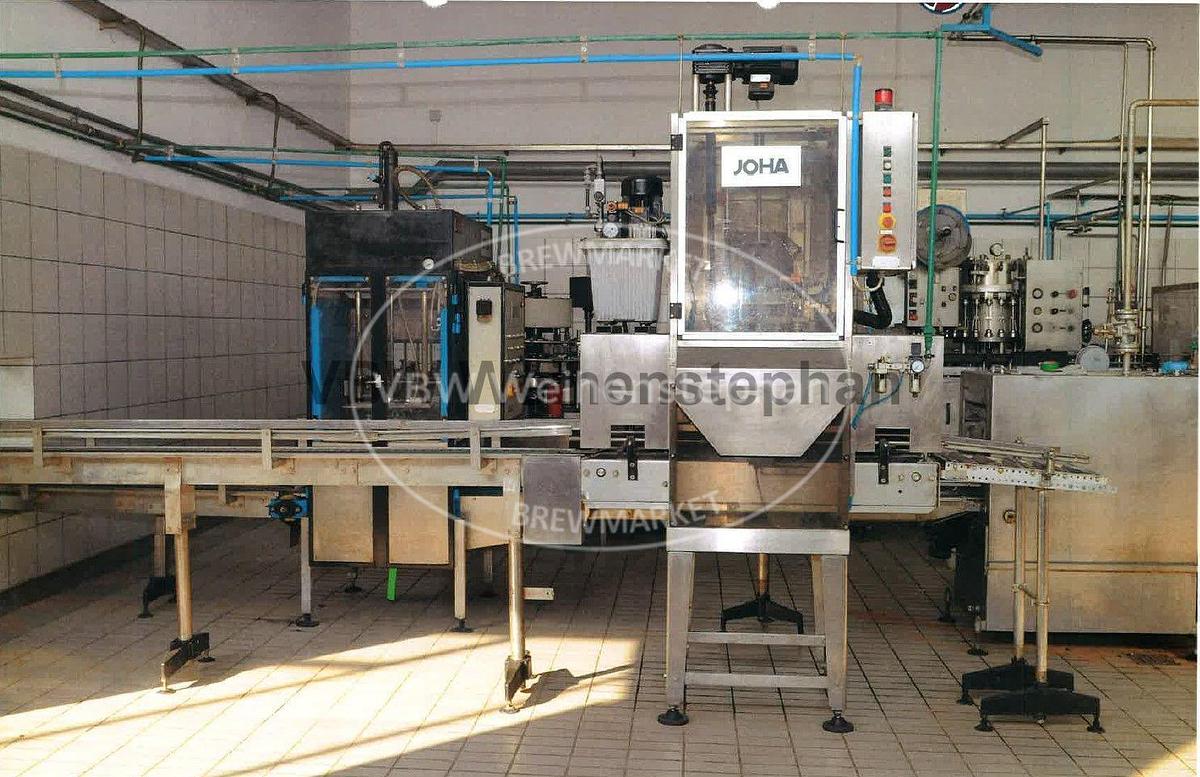

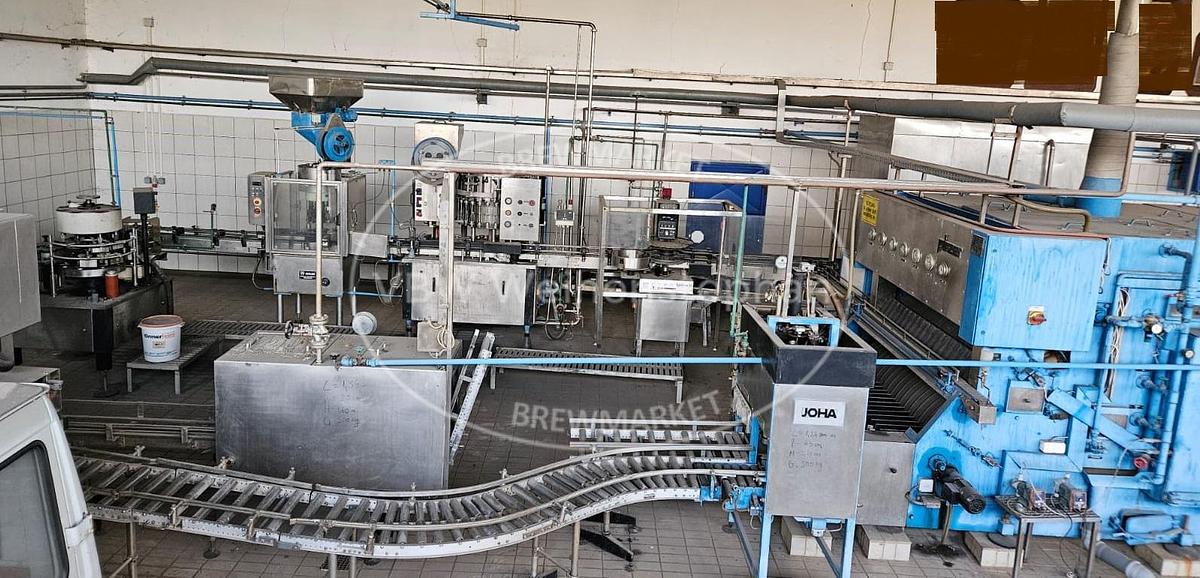

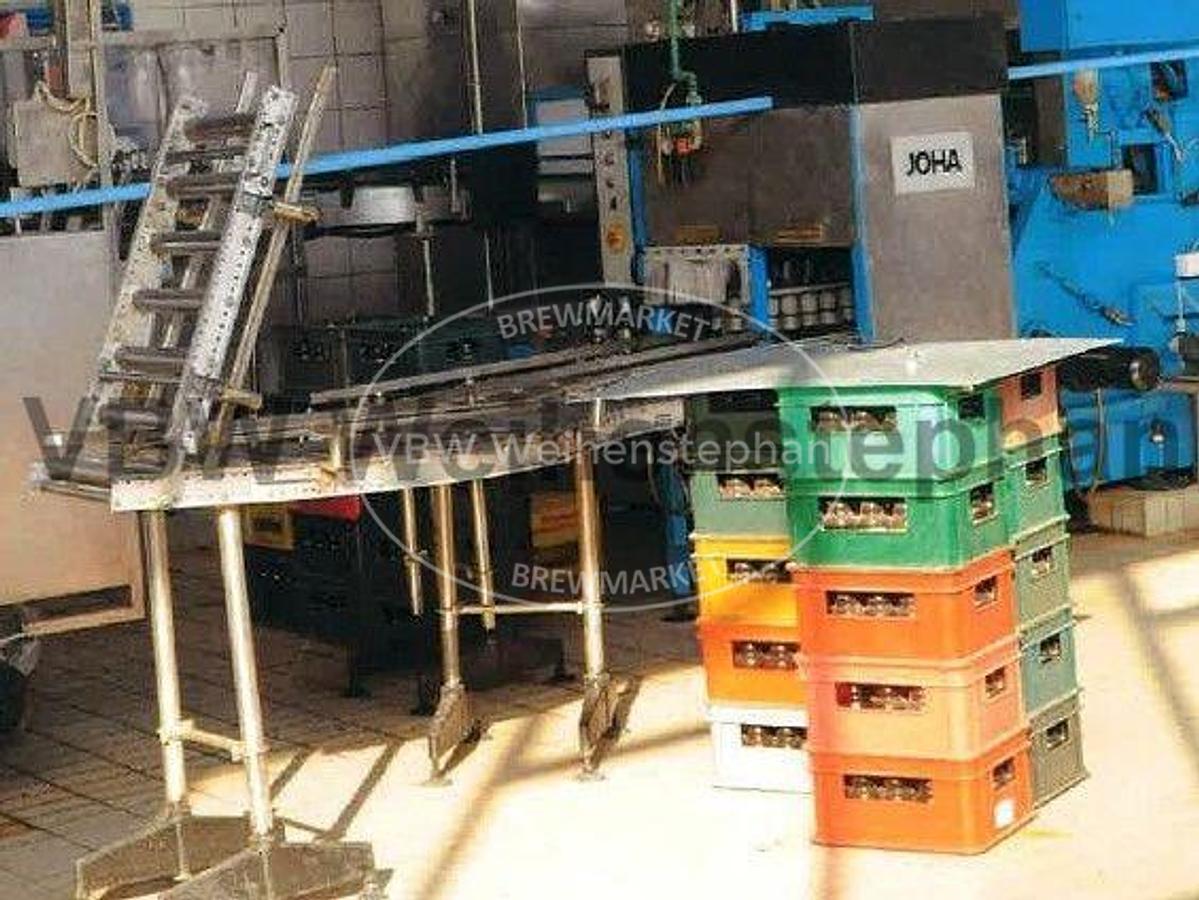

Glass bottle filling line for beer and non-alcoholic beverages for filling 9000 bph. Includes: - De-capper: JOHA type Smaragt, built in 1990, with one unscrewing head - Bottle unpacker: JOHA type E100, built in 1978, with one packing head - Crate washer: JOHA type KA2N, built in 1983 - Bottle washer Pirzer, built in 1983, with 19 bottle racks per row - Empty bottle inspector: Inex type Optiscan 4s - Bottle filler and capper: Krones type 28/7, built in 1975, with 28 filling valves and 7 capping stations - Capper: Adelski, with 4 capping stations - Labelling machine: Pirzer, built in 1979, for belly and neck labels, with 8 labelling stations - Bottle packer: JOHA type A400 Q, built in 1977, with one packing head, Additional title: Years of manufacture: 1975 - 1990, Capacity: 9000 bottles/h, Formats: 0,5 l Euro bottle; crown cap; screw cap; 20x0,5 l beverage crate, Features: De-capper; de-c ...
Vertical stainless steel pressure tank with a cooling jacket., Additional title: vertical stainless steel tank, Capacity approx.: 4100 l, Operating pressure: 3 bar, Operating temperature: 50 °C, Length: 1,55 m, Width: 1,55 m, Height: 3,40 m, Weight: 900 kg, Material: stainless steel, Position: vertical, Base construction: 4 x height-adjustable feet, Features: Cooling jacket; resistance thermometer (E+H); radar level measurement (E+H); safety valve; vacuum valve; manway in side wall; sampling valve

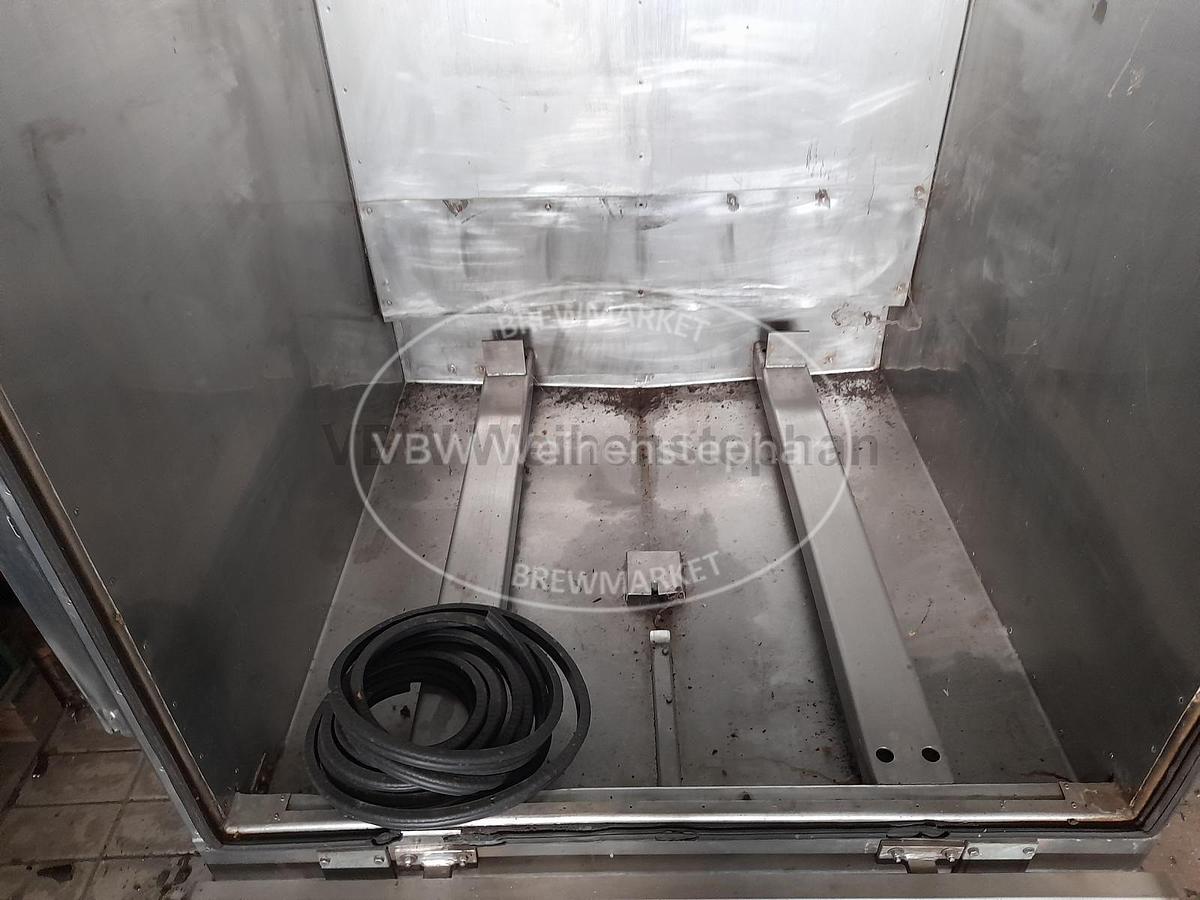

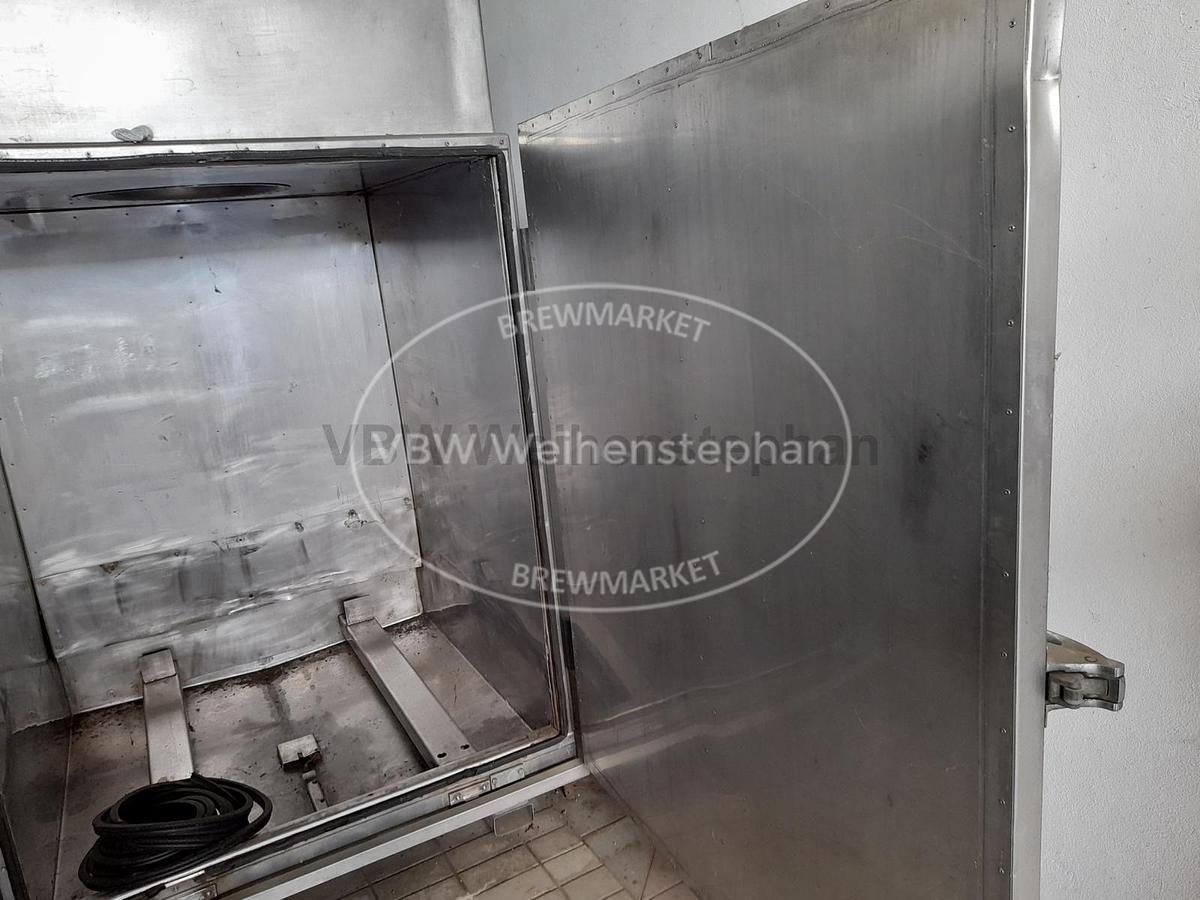

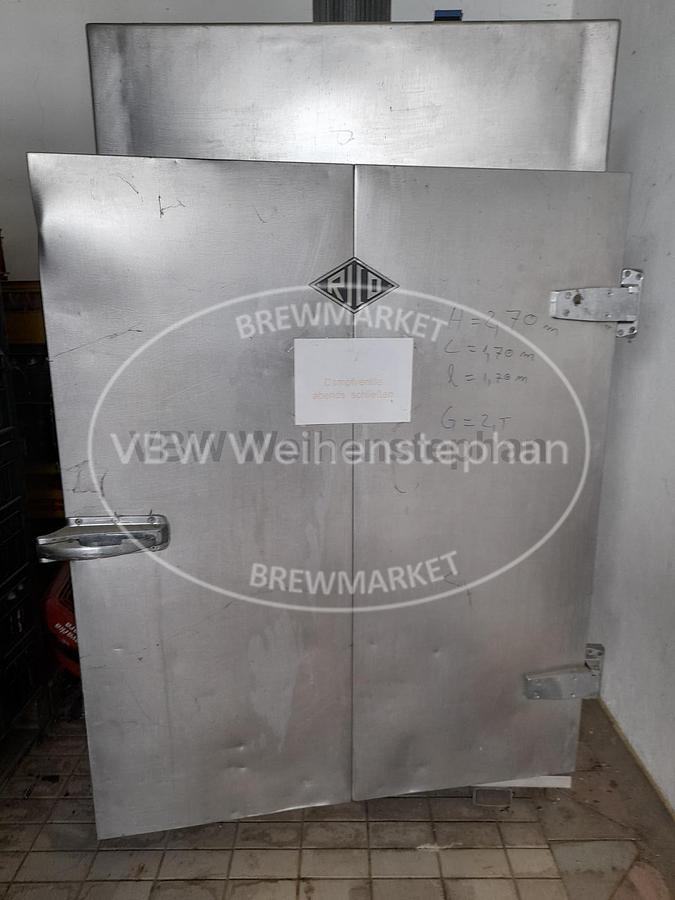

Chamber pasteuriser for extending the shelf life of bottled drinks. Steam is supplied externally and fed into the pasteurisation chamber for heating., Additional title: with one pallet bay, Length: 1,7 m, Width: 1,7 m, Height: 2,7 m, Weight: 2 t, Material: stainless steel

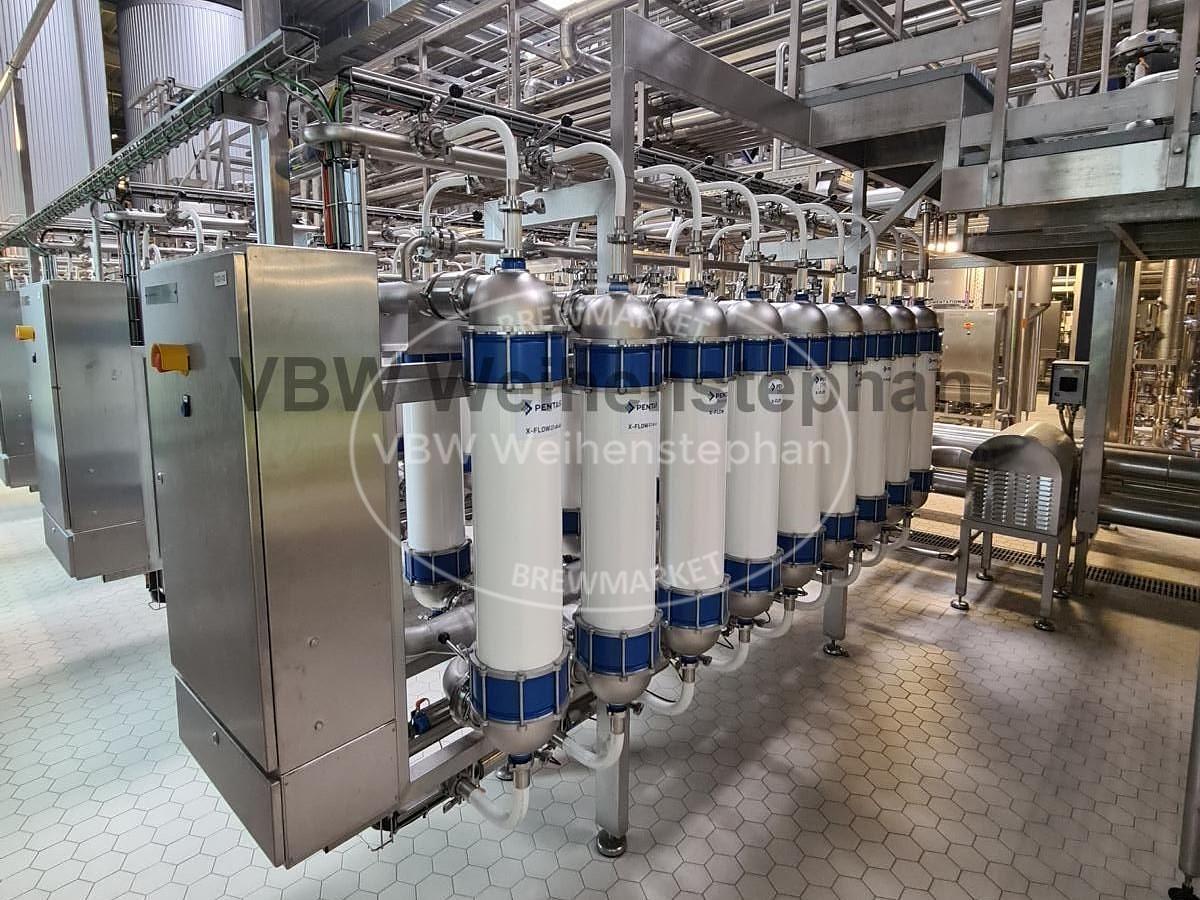

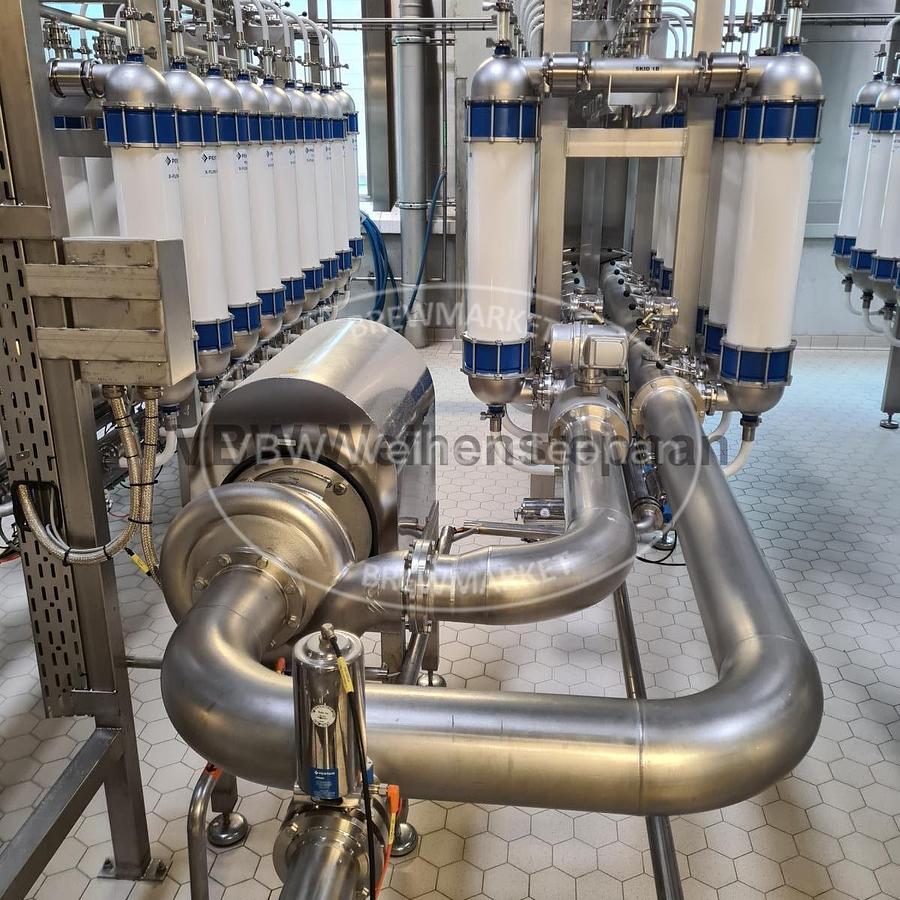

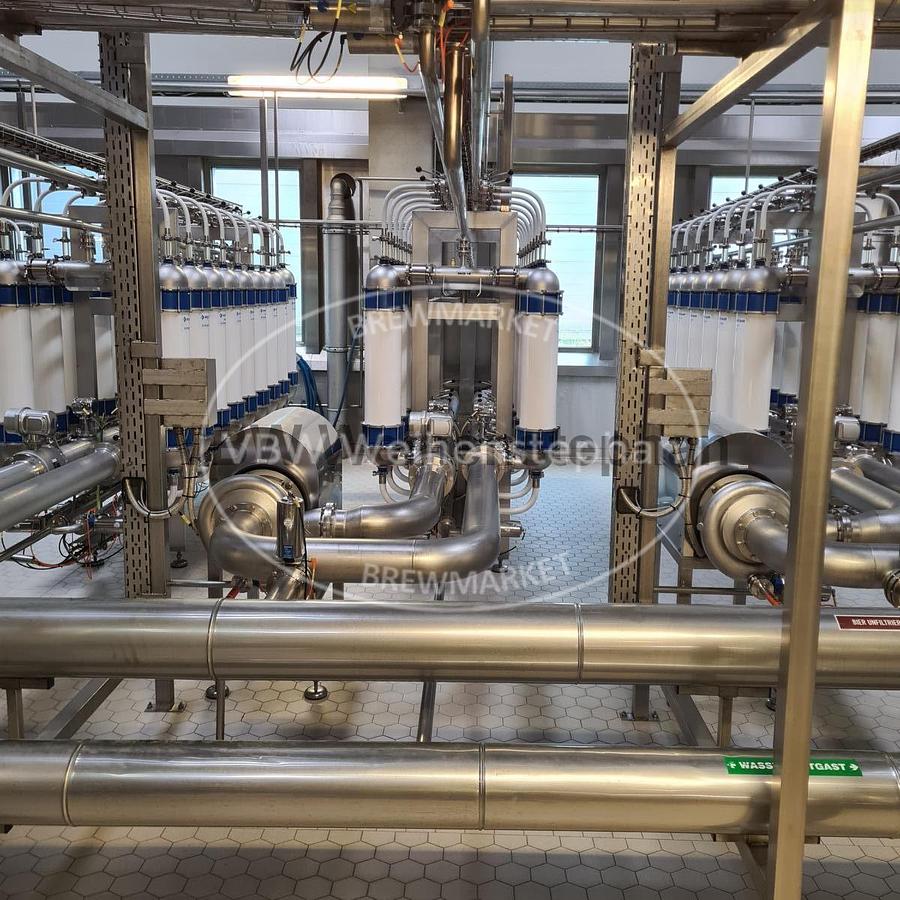

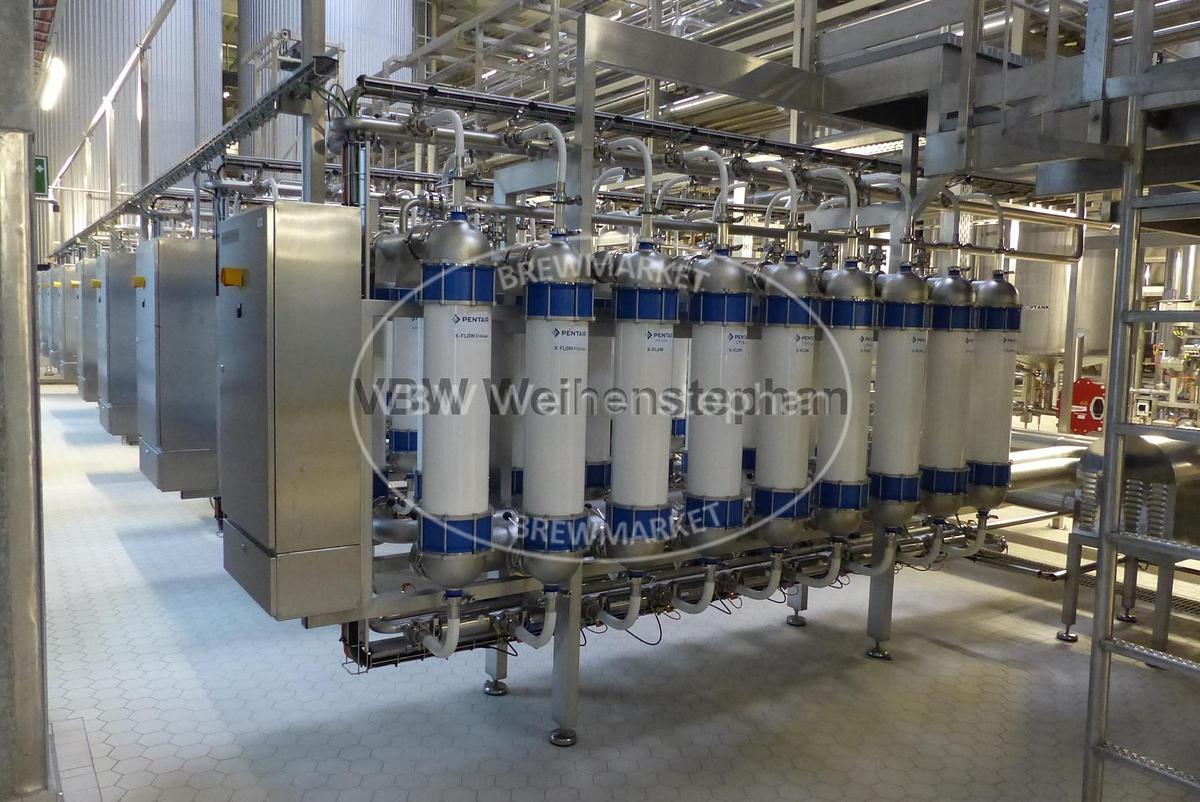

Pentair BMF-Skid (with 18 modules) for beer filtration. Ideal for expanding existing systems or setting up a new filtration system. The capacity of a single skid at the start of filtration is 80 - 120 hl/h, depending on the filterability of the beer. The skids are also available for sale individually., Additional title: Beer Membrane Filtration (BMF), Max. capacity: 480 hl/h filtered beer, at start of filtration (depending on beer quality); 80-120 hl/h per skid, Flow rate: 330 m3/h un-filtrate pump per skid, Flow pressure: 1 bar un-filtrate pump, Number of modules: 72 pieces total 18 pcs. per Skid, Length: approx. 5500 mm, Width: approx. 1500 mm, Operation / Control: ProfiBus connection to a central PLC, Base construction: Module frame-mounted, Features: 4 x BMF Skid, with 18 membrane modules each; one un-filtrate pump per skid

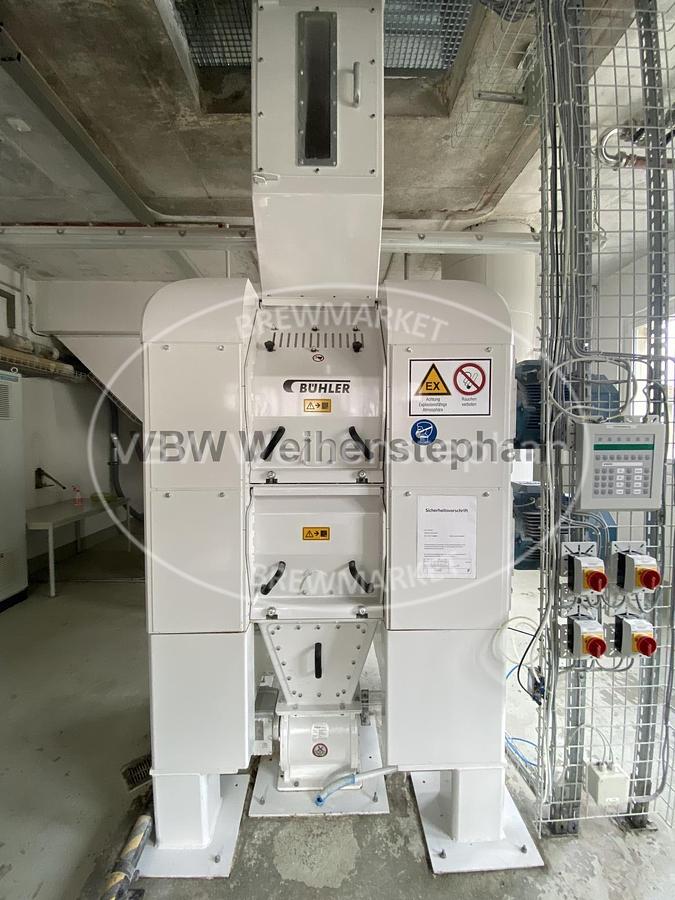

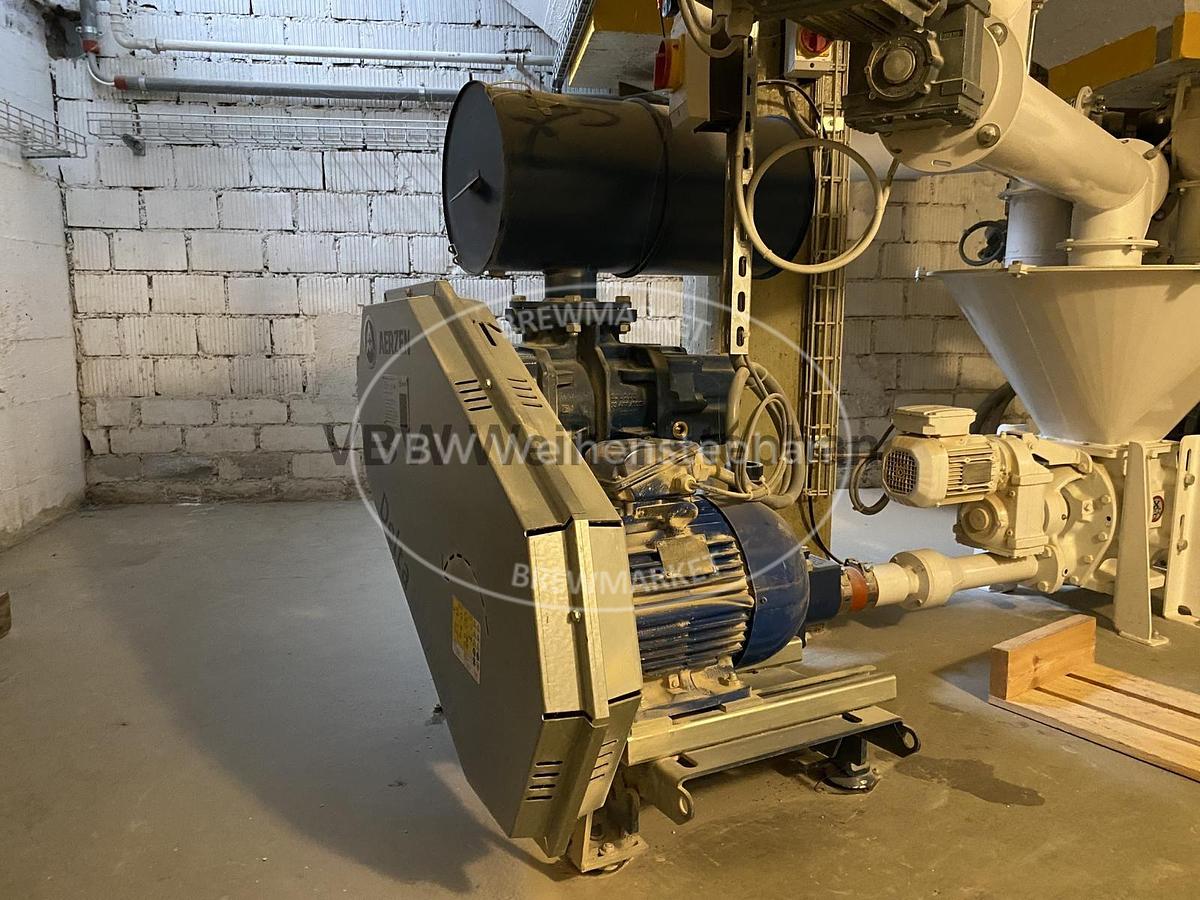

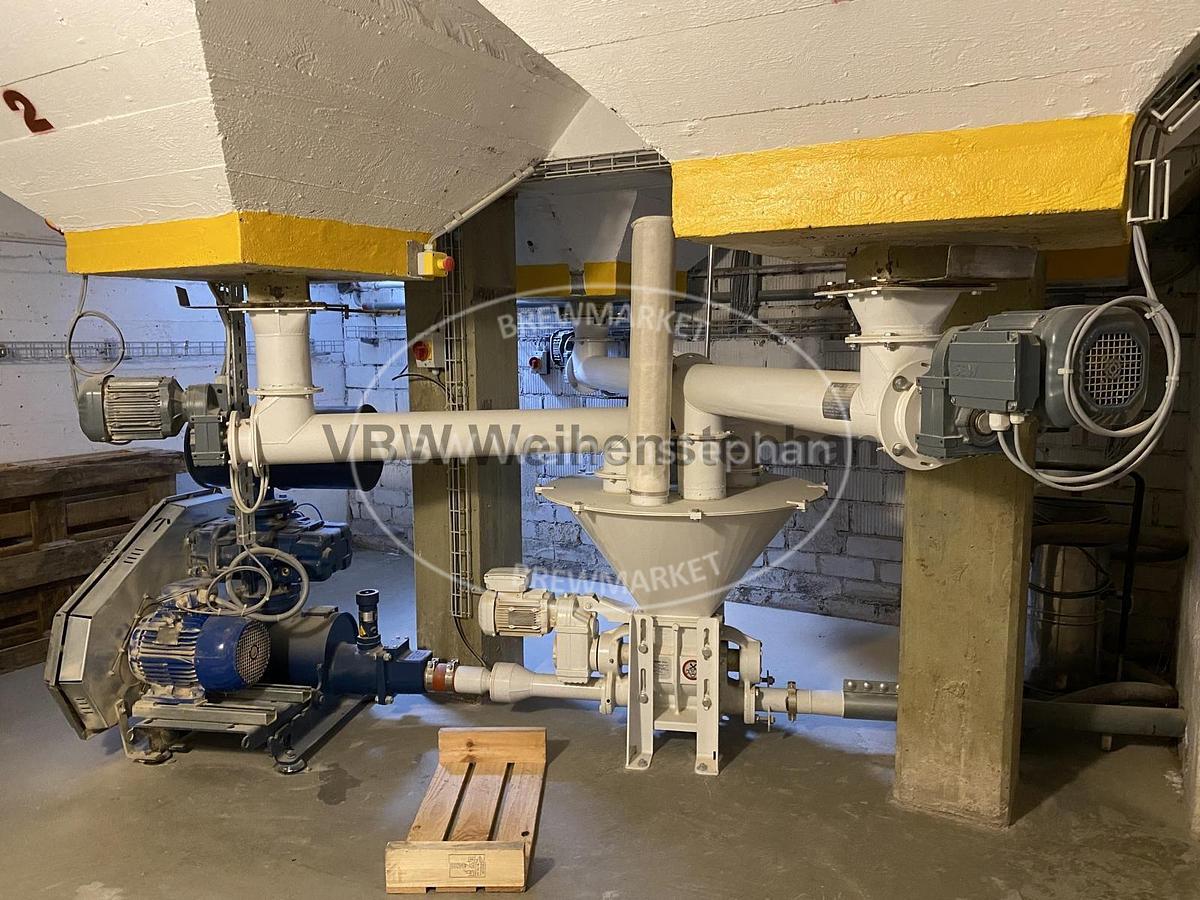

Malt milling with 4-roller grist mill, Additional title: 4-roller mill with conditioning and malt transport, Capacity: 4 t/h, Operation / Control: Siemens Simatic S7-300, Features: 3 x silo discharge, small; 4 x silo discharge, large; malt transport; blower; malt scales; malt conditioning; malt mill, 4-roller; control cabinet and control system

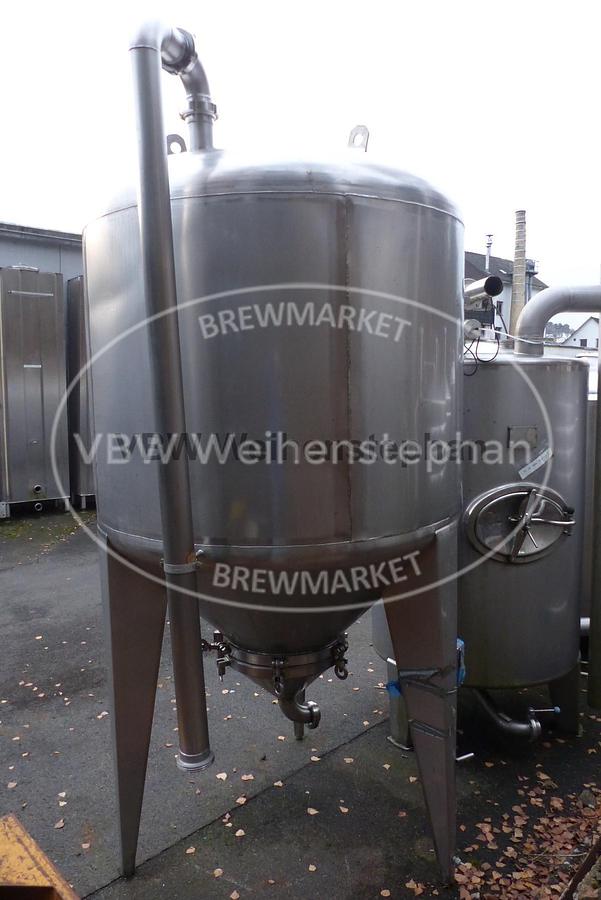

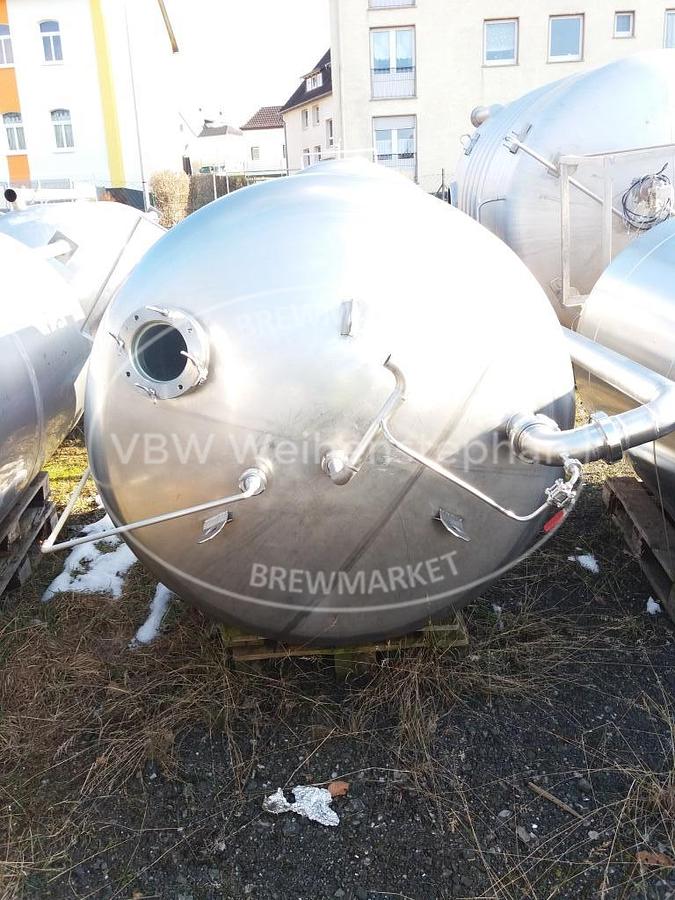

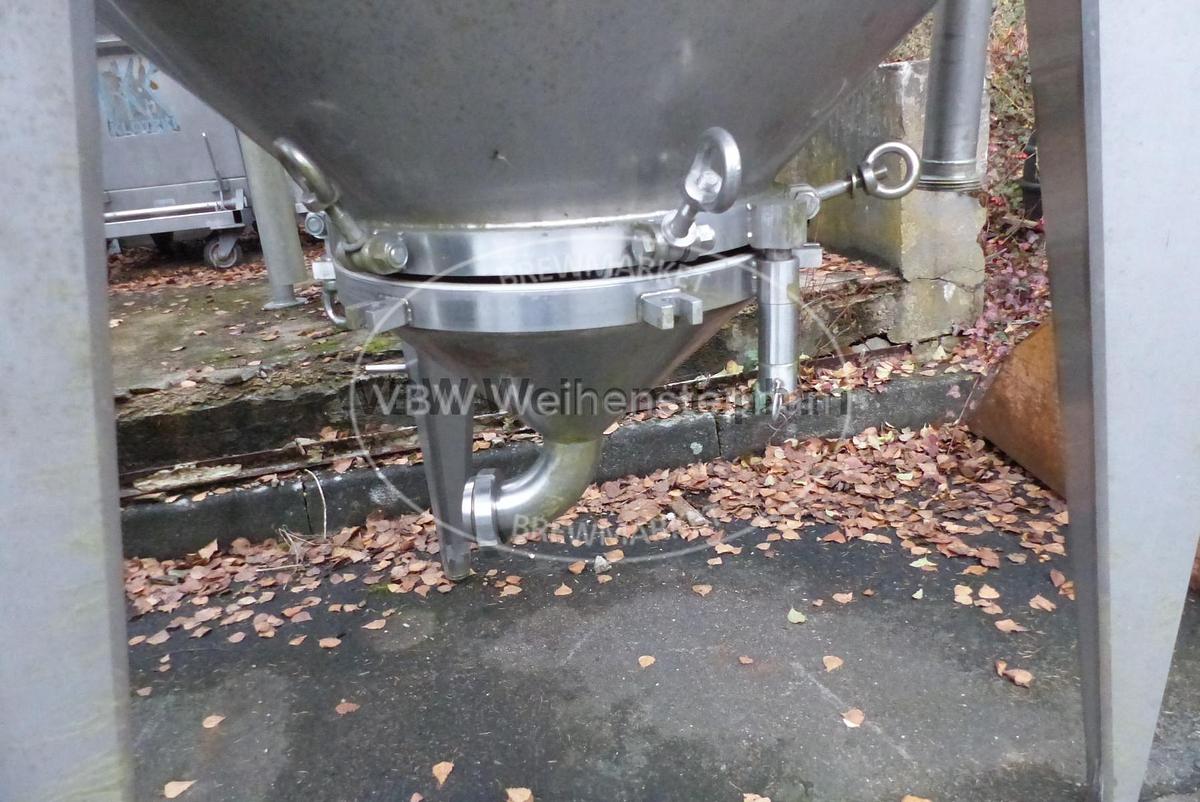

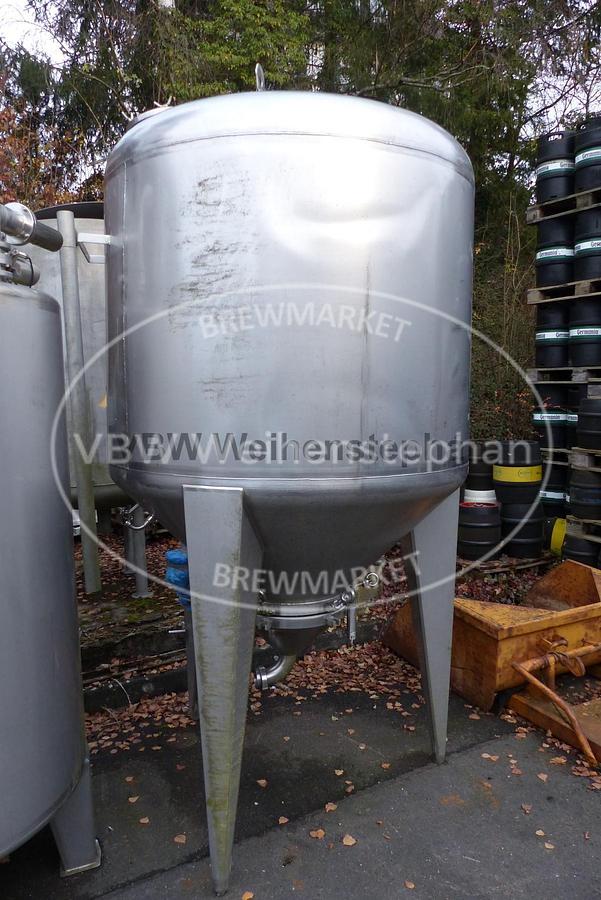

Volume approx.: 4000 l, Width: 1,6 m, Height: 2,8 m, Material: stainless steel , Position: vertical, Base construction: conical, Features: Swivel cone, inlet DN65, outlet DN80

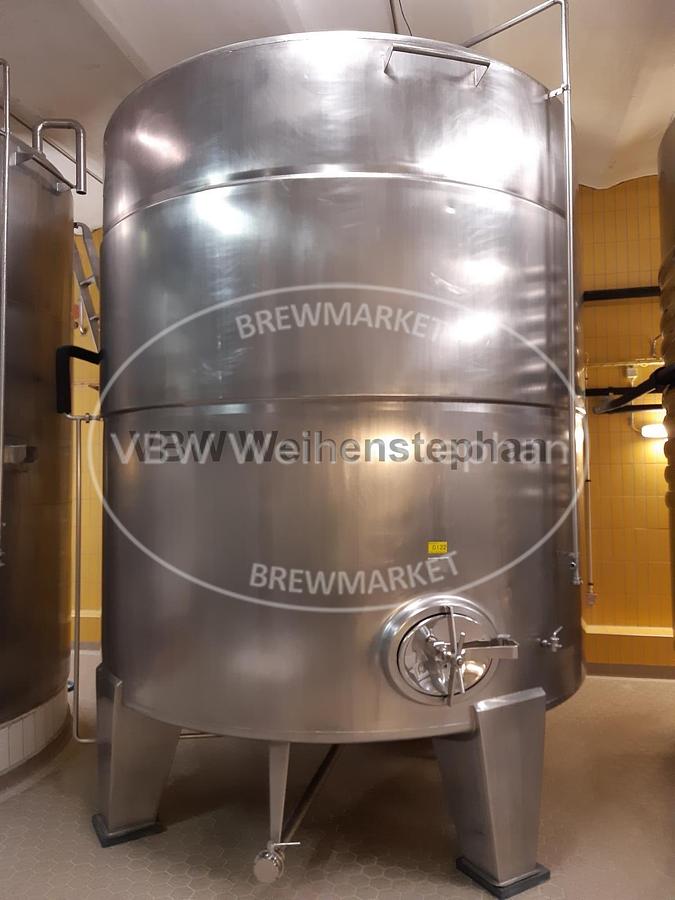

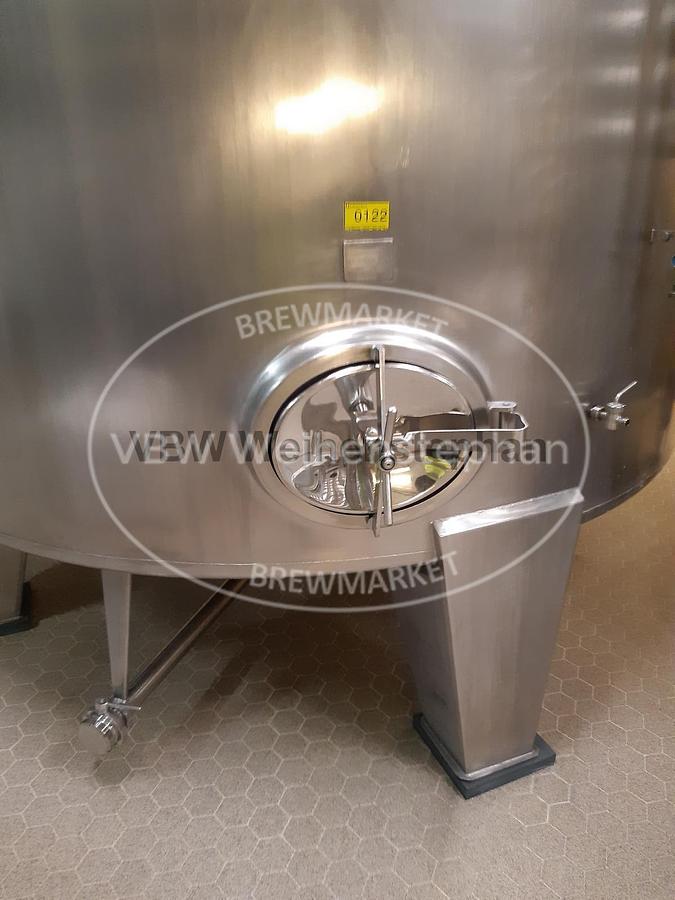

Fermentation tank on feet, uninsulated, with flat conical bottom, side wall and cone cooling zone, central outlet and manhole., Additional title: Coolable tank, Volume: 21797 l, Width: 2,95 m, Height: 4,1 m, Weight: 2000 kg, Material: stainless steel, uninsulated, Position: vertical, Features: flat conical bottom, side wall and cone cooling zone, central outlet, manhole, DN50
miho fill level detector for detecting underfilled or overfilled bottles, as well as for cap detection. The device works with a high-frequency alternating voltage., Additional title: Fill level inspection system, Capacity: 24000 b/h, Operation / Control: at control box, Material: Painted steel / stainless steel, Position: free-standing / mounted on bottle transport, Base construction: Housing with evaluation electronics with tubular frame on spherical feet, Features: Measuring device, control electronics, bottle ejector

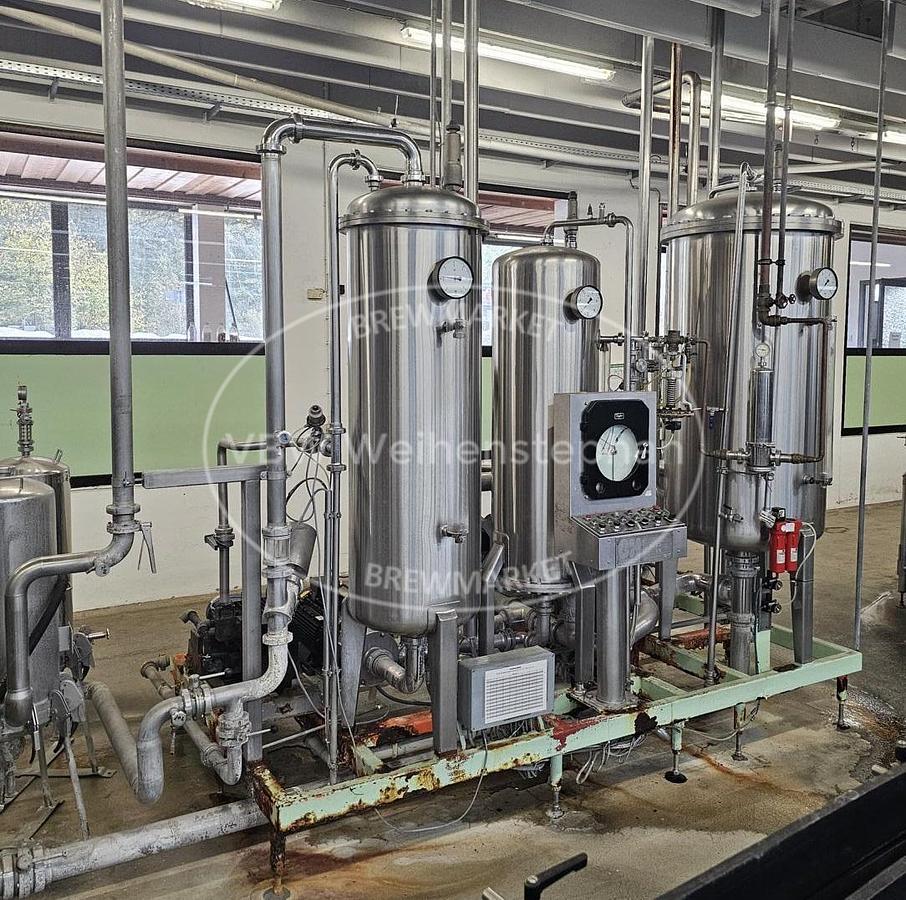

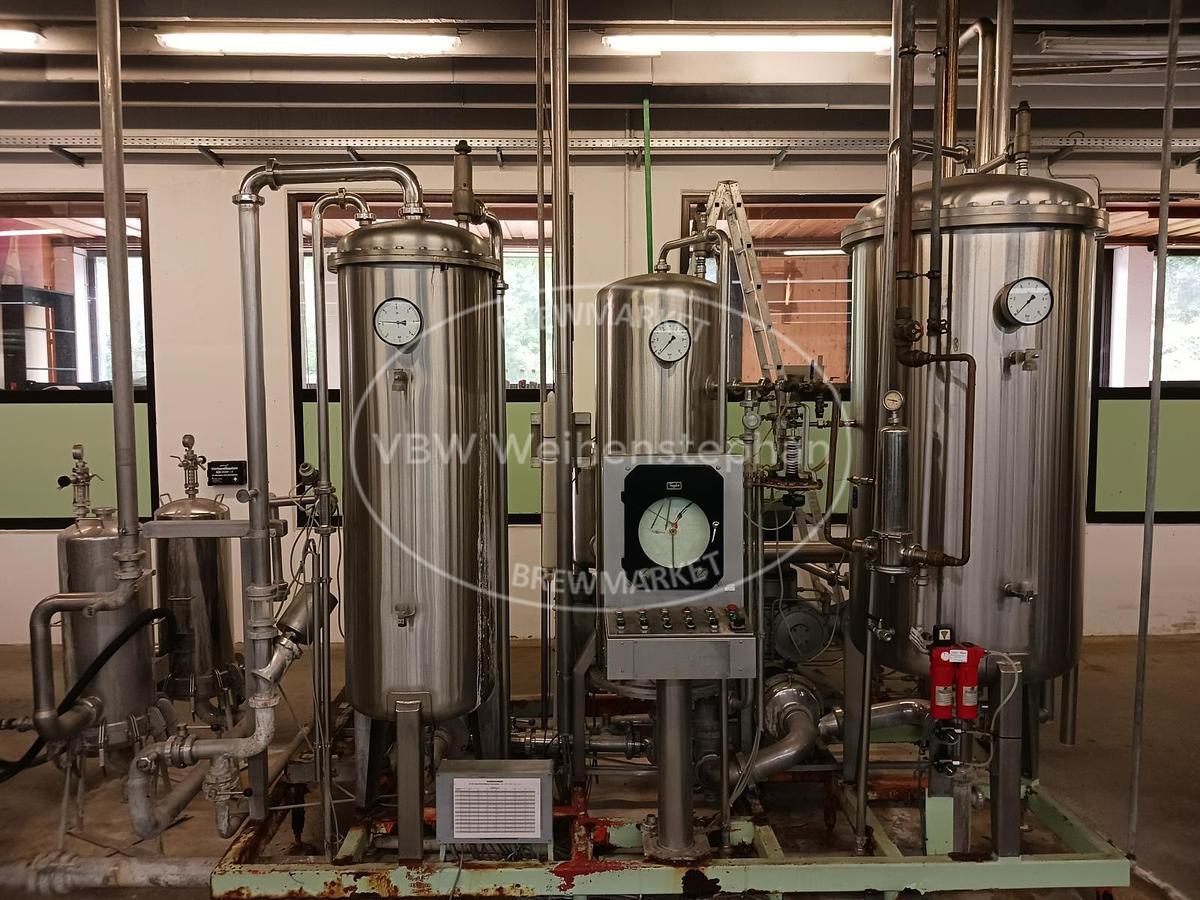

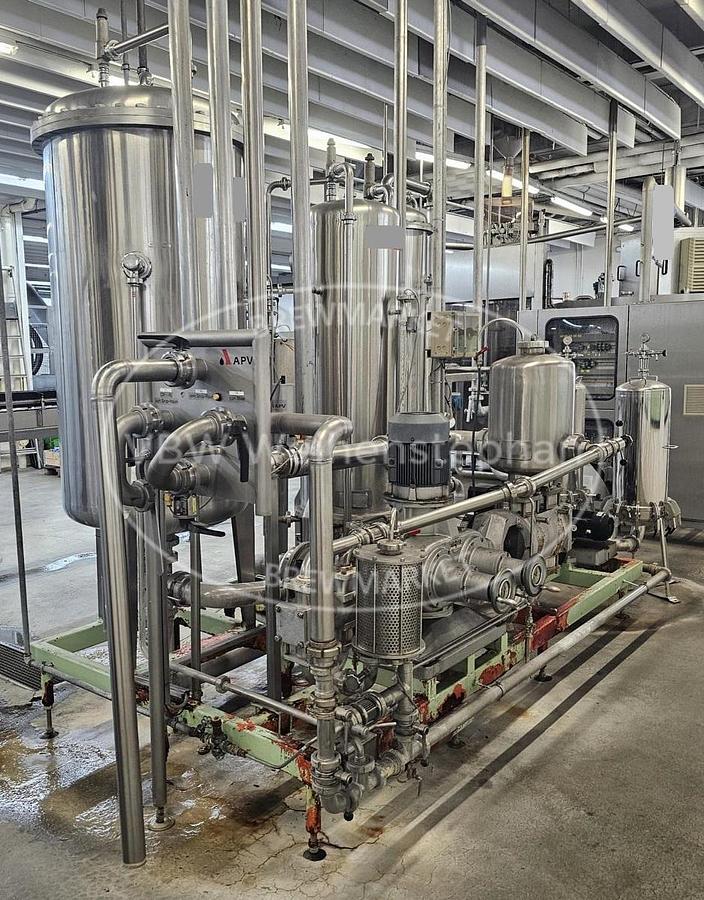

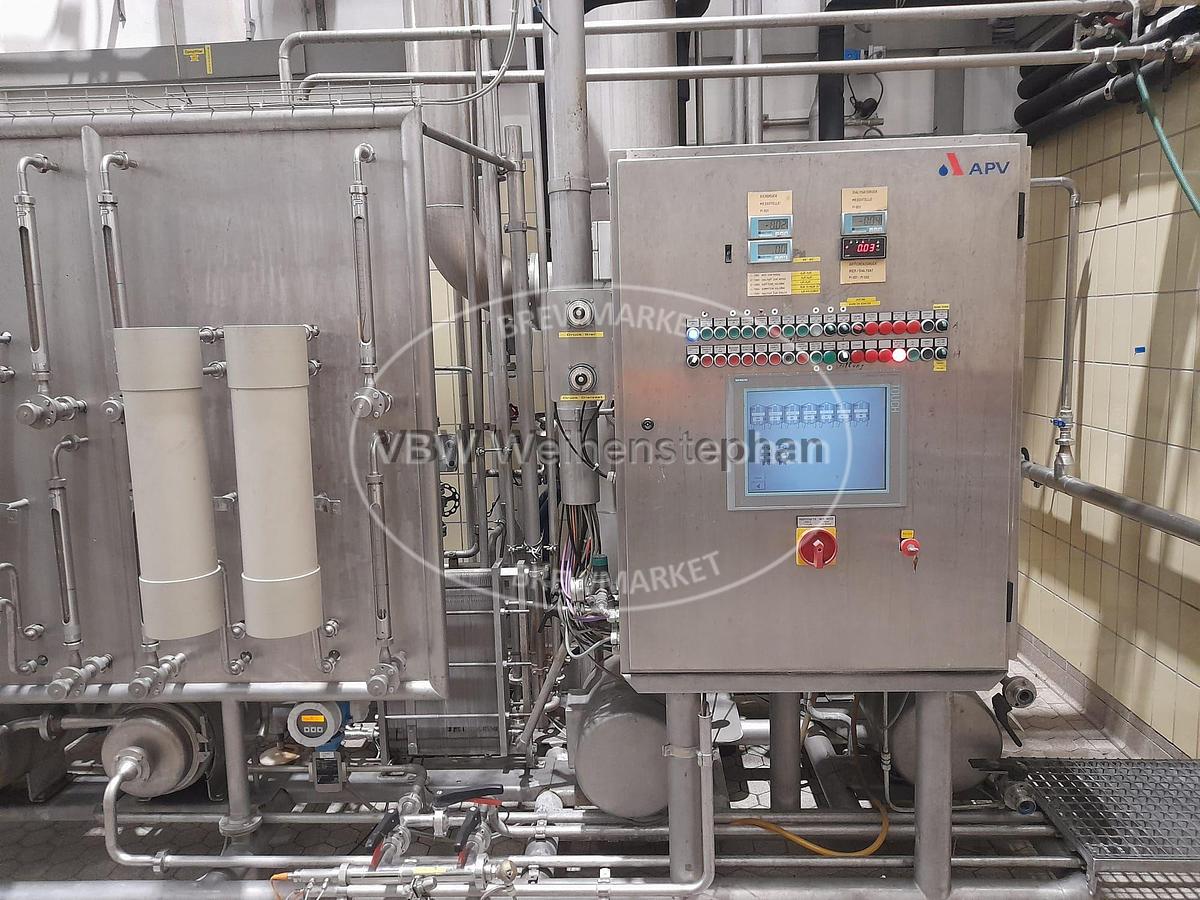

Premix plant for the production of highly and low carbonated beverages. The technical process steps are: degassing of water, carbonation of water, dosing of fruit juice in a partial stream into the carbonated water. Mixing takes place in the mixing section to the equalising tank. The water used is sterile-filtered in the inlet via two particle filters., Additional title: Intermix system with carbonisation unit, Water output: 22575 l/h, Fruit juice output: 4907 l/h, Operation / Control: Control panel, manual, Material: Lacquered mild steel frame, stainless steel product contacts, Position: Free standing, Base construction: Open frame construction with spherical feet, Features: Deaeration tank, impregnation tank, equalisation tank, CO2 dosage control, internal piping, pumps and fittings, control cabinet 2 trap filters for fine filtration of water in the inlet

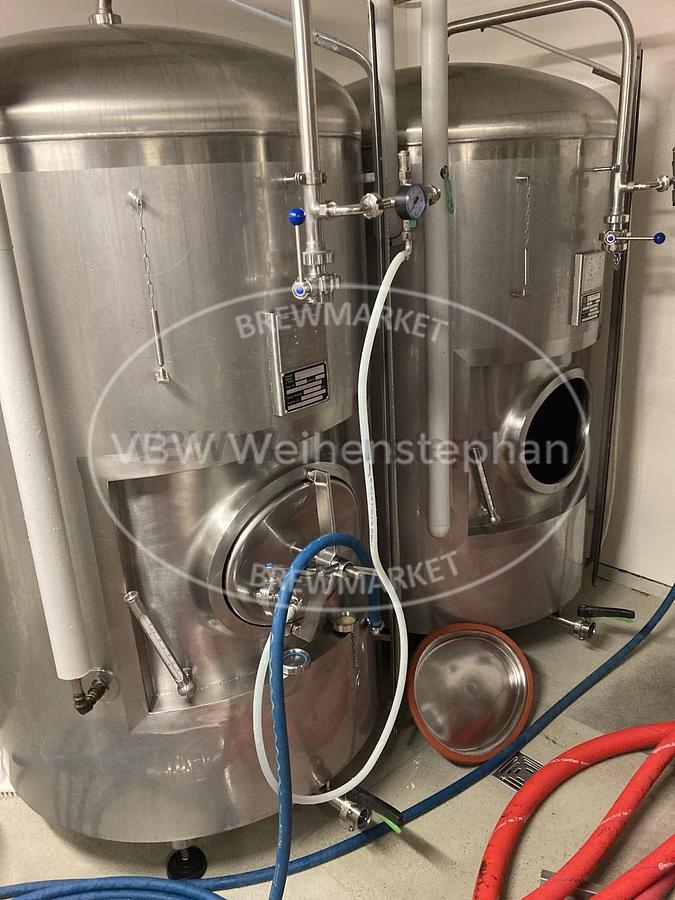

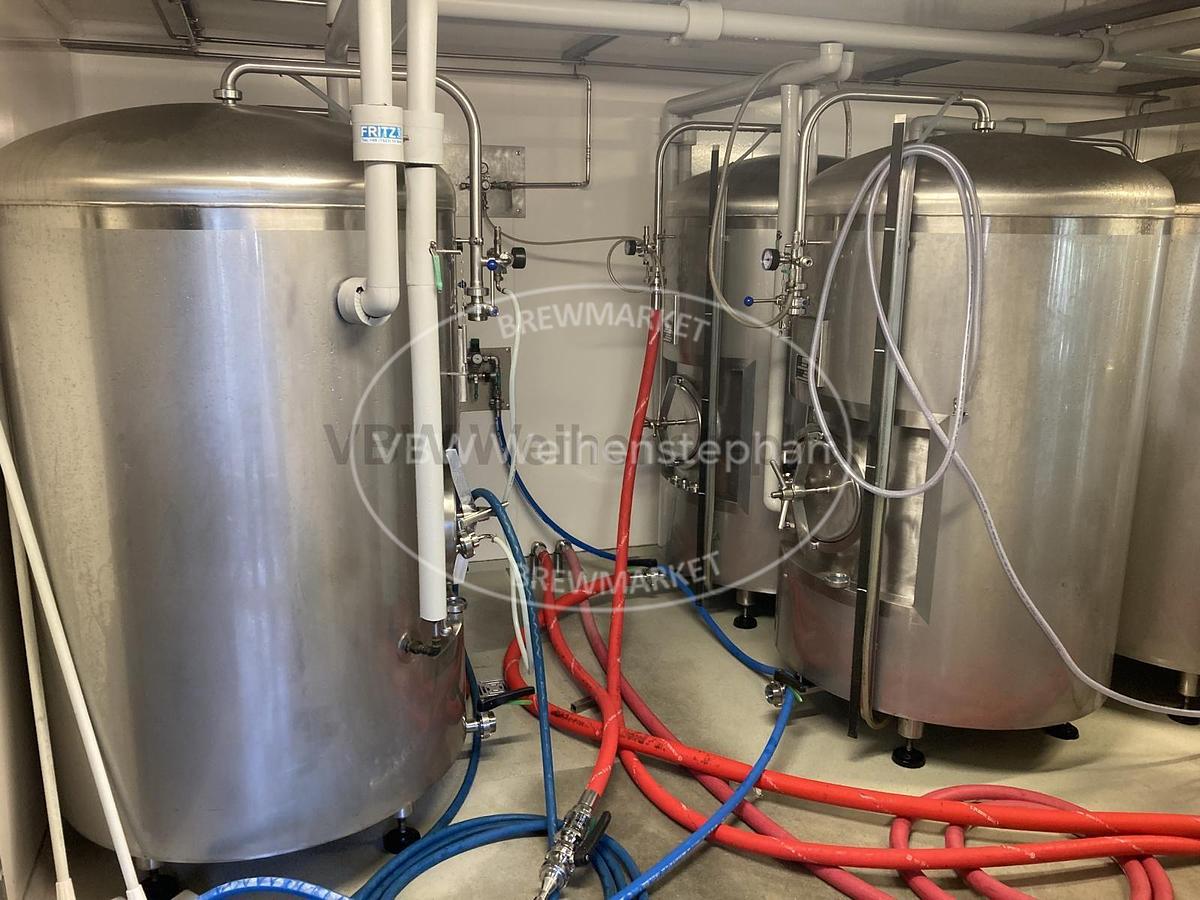

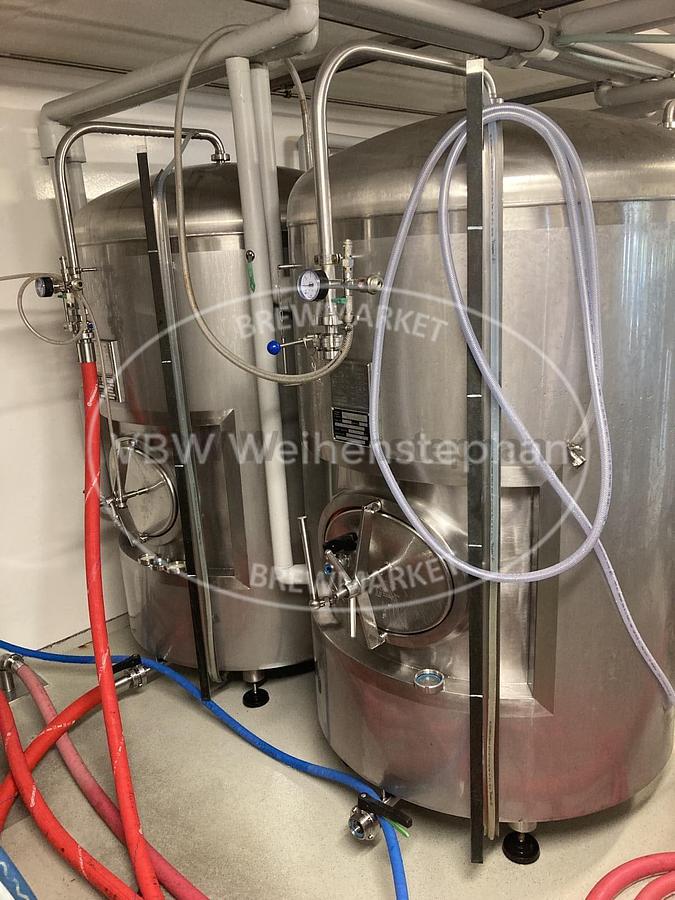

Stainless steel pressure tank for approx. 10 hl net capacity; cooled by means of double jacket on the frame and firmly welded insulated., Additional title: coolable, insulated, clad, Gross content: 1122 l, Perm. working overpressure: 3 bar, Perm. working temperature: 20 °C, Content cooling zone: 5 l, Length: 1000 mm, Width: 1000 mm, Height: 1700 mm, Material: stainless steel, Features: Manhole in the frame, spraying head with spraying head line and shut-off flap DN 25, safety valve and manometer, outlet flap, thermometer Height-adjustable tube feet
KEG Filling Plant, Additional title: Semi-automatic keg filling system, Performance approx.: 50 KEG/h, Power: 2,5 kW, Voltage: 230 V, Frequency: 50 - 60 Hz, Heating / Cooling: steam 1.5 - 2 bar, < 125°C, Water: 2 - 3 bar, 80°C, Compressed air: 5 - 6 bar, Length: 860 mm, Width: 760 mm, Height: 2530 mm, Weight: 130 kg, Formats: Combi fitting Ø 75 mm, World KEG fitting, Operation / Control: Control cabinet, Siemens 1200, Touch panel, Material: stainless steel, Position: free standing , Features: 1 filling station with elevating protective housing, Gravity roller conveyors in the inlet and outlet, control cabinet with control unit, switch panel for CIP or product inlet
Brewing plant with a mash-out wort volume of 20 hl, comprising the following components: 1. Malting plant (Joh. Albrecht, 2000, 500 kg/h) with mill, malt hopper, floor scale, malt conveyor and control cabinet 2. 3-vessel compact brewhouse with insulated stainless steel vessels with copper lids, spindle station and control cabinet 3. Fermentation and storage cellar with 4 x fermentation vats (Joh. Albrecht, 1999, 25 hl), 1 x fermentation tank (Nerb, 2002, 50 hl, 0.99 bar), 5 x storage tanks (Joh. Albrecht, 1999, 44 hl, 0.99 bar) and 6 x storage tanks (Joh. Albrecht, 1999, 22 hl, 0.99 bar). All tanks with jacket cooling. 4. Pressure tank cellar with 2 x pressure tanks (Speidel, 2021, 86 hl, 3 bar) and 1 x pressure tank (INOX, 2018, 67 hl, 3 bar). All tanks with jacket cooling. 5. Keg cleaning and filling system (BTB. Multimat MT/2, 1997, 17–20 kegs/h) 6. Refrigeration system acting as an ...

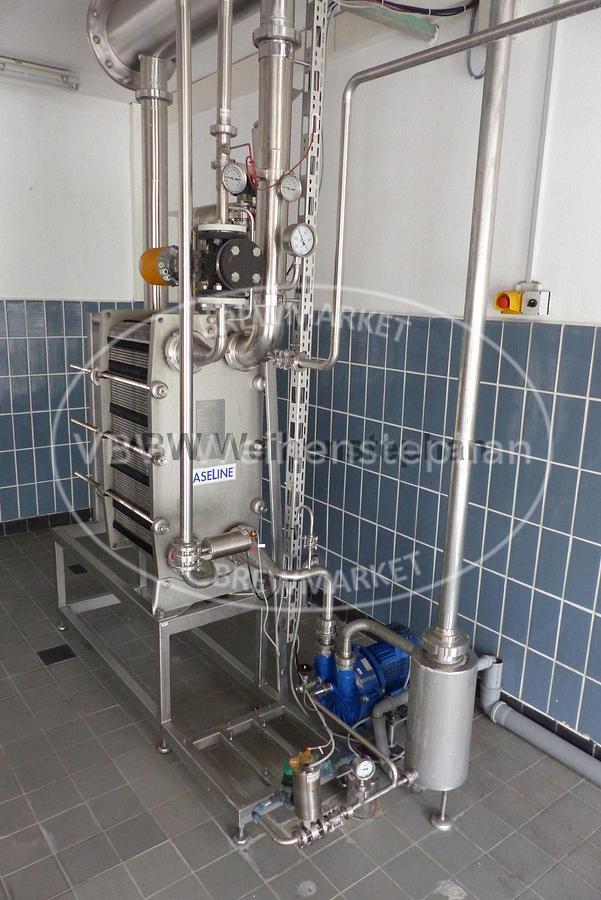

Flash pasteurizer for pasteurizing liquid food products. With pumps, preheater and control unit mounted on a common frame. Designed for a capacity of 1000 liters/hour., Additional title: Pasteurisation, Capacity: 1000 l/h, Compressed air: 6 bar for control air, Length: 1,7 m, Width: 1,2 m, Height: 2,5 m, Operation / Control: HMI on switch cabinet, Base construction: mounted on frame, Features: 2 x Alfa Laval plate heat exchangers, 2 x centrifugal pumps, pressure compensation tank, sight glass, temperature and pressure sensors, various other fittings and valves, HMI
Crate washer for PETCYCLE plastic crates, Additional title: Crate cleaning system, Capacity: 2950 crates/h, Power: 18 kW, Current: 38 A, Voltage: 230/400 V, Frequency: 50 Hz, Length: 7300 mm, Width: 1570 mm, Height: 1710 mm, Weight: 1900 kg, Formats: plastic crate: 20 x 0,5 l, 9 x 1,0 l, 6 x 1,0 l, 6 x 1,5 l , Running direction: transverse, Material: stainless steel, Position: free standing, Base construction: Self-supporting machine housing in block construction on spherical feet, Features: Caustic, hot water and fresh water spraying, inspection window, platform with staircase and railing, crate turner,
