Complete line for the production of pasteurized products (using it for ice tea bottles). The line is installed in 2005, has been operating since 2006 and will run till Q3 of 2026. The line includes processing area (mixer, pasteurizer and sterile buffer tank) APA platform (solution for sterilizing the PET bottles and caps), filler, CIP modules for processing and filler, 4 cameras full bottles inspector (360 degrees), accumulation table, labeling machines (roll on and sleever) packer, palletizer and stretch wrapper., General:, Size of the bottles: 400 ml / 500 ml / 1,5 liter bottle with stopper (cap), Material of the bottle / Compesition: PET, Bottle closed with a snap cap, Capacity of the line: depending on the bottle size: 18.000 l/h and 27.000 l/h, Product: Ice tea (softdrink), Scope of Supply:, 1. Mixing plant, Manufacturer: Tetra Pak, Model/type: Alblend 10 2S FB, Year of manufactu ...
Complete bottle forming, filling and packing line for 1,5 liter sterilized milk with blowers, filler, capper, sterilization towers, palletizers etc. The line is already dismantled and boxed in crates., General:, Size of the bottles: 1,5 liter milk bottle with stopper (cap), Bottle dimensions: width 93,9 mm, height 282 mm, Weight bottle: 44 gram, weight aluminium 0,4 gram and weight cap 4 gram, Material of the bottle / Compesition: PE (Polyethylene), Neck diameter of the bottle: 46,7 mm, Bottle closed with a aluminum and easy peelable cover, Capacity of the line: 7.000 bottles per hour, Product: Whole cow’s milk, which has been treated with a heating process in such conditions of temperature and time able to ensure the destruction of microorganisms and the inactivity of their resistance forms., Closed bottle shelf life: 6 months since the date of manufacture, Opened bottle: maximum thre ...
53,700 liter brewing water tank with insulation, built in 2022 Material No. V2A Total height 10500 mm Height 9700 mm diameter 2800 mm Outer diameter 3230 mm Interior surface 2B=IIIC ground Exterior surface 2B=IIIC ground Year of construction 2022
65,900 liter ZKG tank/ pressure tank/ storage tank LARGE with cooling jacket and insulation Material No. V2A Total height 12400 mm diameter 3000 mm Outer diameter 3480 mm Exterior surface 2B=IIIC ground Interior surface 2B=IIIC ground
1,000 liter insulated beer tank/storage tank with insert heater Material No. V2A Year of construction 1998 Total height 2060 mm diameter 1000 mm Outer diameter 1150 mm execution isolated Topsoil: downward-facing filling pipe DN25 Threaded fitting 1 1/4" Ventilation nozzle DN80 Cylinder: 50 mm insulation Weld-on fitting DN40 tangential (lateral) Insert heater Threaded weld-on fitting DN15 Underbody: dished end/curved end Forward-extended residual drain pipe with DN40 threaded connection, centrally located 3 profile feet with adjustable height caps
51,570 liter ice water tank/pressure tank with insulation Material No. V2A Total height 10200 mm diameter 2900 mm Outer diameter 3480 mm Interior surface 2B=IIIC ground Exterior surface 2B=IIIC ground Minimum/maximum operating pressure (HP) 0.4 bar Operating temperature 90 °C Cylinder length 6500 mm Year of construction 1994 dished end/ domed end Cylinder: 15cm insulation 4 x sensors Manhole 440 x 340 oval Underbody: Dished end/domed end with foot ring and crane eye
68,150 liter ZKG tank/ pressure tank/ storage tank LARGE, with cooling jacket and insulation Material No. V2A Year of construction 1995 Total height 10870 mm diameter 3400 mm Outer diameter 3870 mm Cylinder length 6000 mm Interior surface 2B=IIIC ground Exterior surface 2B=IIIC ground
68,150 liter ZKG tank/ pressure tank/ storage tank LARGE with cooling jacket and insulation Material No. V2A Year of construction 1996 Total height 10870 mm diameter 3400 mm Outer diameter 3870 mm Cylinder length 6000 mm Interior surface 2B=IIIC ground Exterior surface 2B=IIIC ground
65,700 liter ZKG tank/ pressure tank/ storage tank with cooling jacket and insulation Material No. V2A Year of construction 1990 Total height 10580 mm Cylinder length 5750 mm diameter 3400 mm Outer diameter 3870 mm Interior surface 2B=IIIC ground Exterior surface 2B=IIIC ground
60,000 litre service water tank UTH made of V2A insulated horizontal Properties: Volume 60000 L Overall length 6100 mm Cylinder length 4500 mm Total height 4300 mm Diameter 4200 mm Material V2A (AISI 304) 1.4301 Insulation 150 mm Surface outside 2B=IIIC ground Surface inside 2B=IIIC ground Horizontal design Number of feet 4 Description: Tank crest: CIP Ball Ventilation nozzle In front: Level indicator with scale Manhole 440 x 340 mm Ladder hooks Residual drain with disc valve Thermometry Subsoil: 4 trumpet feet with domes - height adjustable with bearing cup stiffener Thermometry Behind: Connection Thermometry
Washing tunnel for cleaning the outside of kegs. Cleaning is carried out with water heated to 60 °C. A steam or hot water-heated bath is located in the lower part of the external washer for this purpose. Equipped with adjustable spray nozzles and a brush station. To prevent excessive water carry-over, the flap doors at the inlet and outlet close under their own weight. With device for discharging of washed-off labels., Additional title: Keg spraying and keg brushing, Max. capacity: 300 Kegs/h, Capacity keg filling plant: 110 Kegs/h, Voltage: 220/380 V, Frequency: 50 Hz, Length: ca. 2200 mm, Width: ca. 1500 mm, Formats: 30-litre and 50-litre kegs, EU format, with PU jacket, Features: Spray jets, high-pressure pump, brush station, label discharge

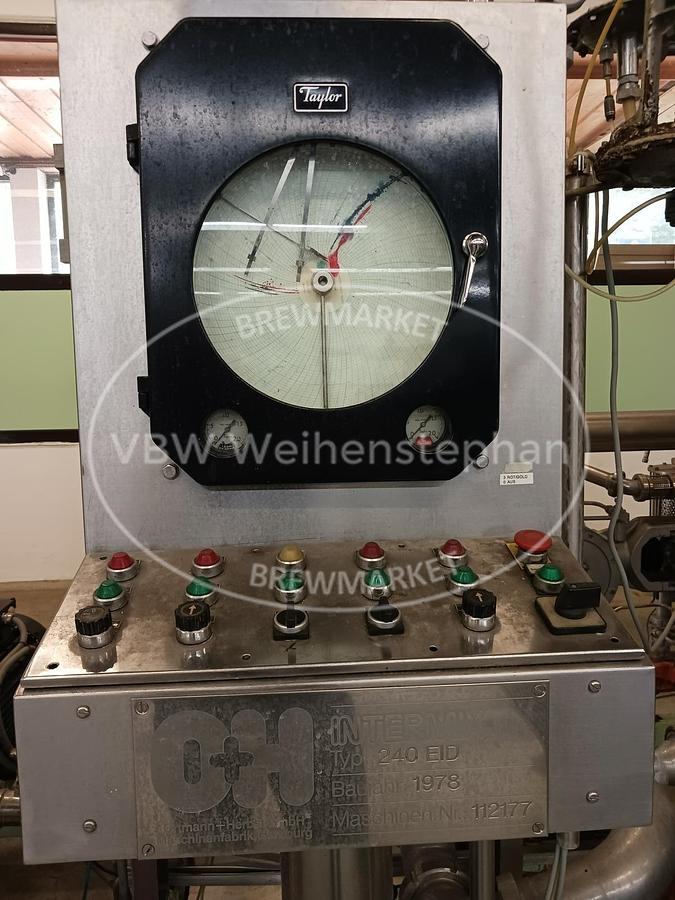

Flash pasteurizer for pasteurizing liquid food products. With pumps, preheater and control unit mounted on a common frame. Designed for a capacity of 1000 liters/hour., Additional title: Pasteurisation, Capacity: 1000 l/h, Compressed air: 6 bar for control air, Length: 1,7 m, Width: 1,2 m, Height: 2,5 m, Operation / Control: HMI on switch cabinet, Base construction: mounted on frame, Features: 2 x Alfa Laval plate heat exchangers, 2 x centrifugal pumps, pressure compensation tank, sight glass, temperature and pressure sensors, various other fittings and valves, HMI
Brewing plant with a mash-out wort volume of 20 hl, comprising the following components: 1. Malting plant (Joh. Albrecht, 2000, 500 kg/h) with mill, malt hopper, floor scale, malt conveyor and control cabinet 2. 3-vessel compact brewhouse with insulated stainless steel vessels with copper lids, spindle station and control cabinet 3. Fermentation and storage cellar with 4 x fermentation vats (Joh. Albrecht, 1999, 25 hl), 1 x fermentation tank (Nerb, 2002, 50 hl, 0.99 bar), 5 x storage tanks (Joh. Albrecht, 1999, 44 hl, 0.99 bar) and 6 x storage tanks (Joh. Albrecht, 1999, 22 hl, 0.99 bar). All tanks with jacket cooling. 4. Pressure tank cellar with 2 x pressure tanks (Speidel, 2021, 86 hl, 3 bar) and 1 x pressure tank (INOX, 2018, 67 hl, 3 bar). All tanks with jacket cooling. 5. Keg cleaning and filling system (BTB. Multimat MT/2, 1997, 17–20 kegs/h) 6. Refrigeration system acting as an ...

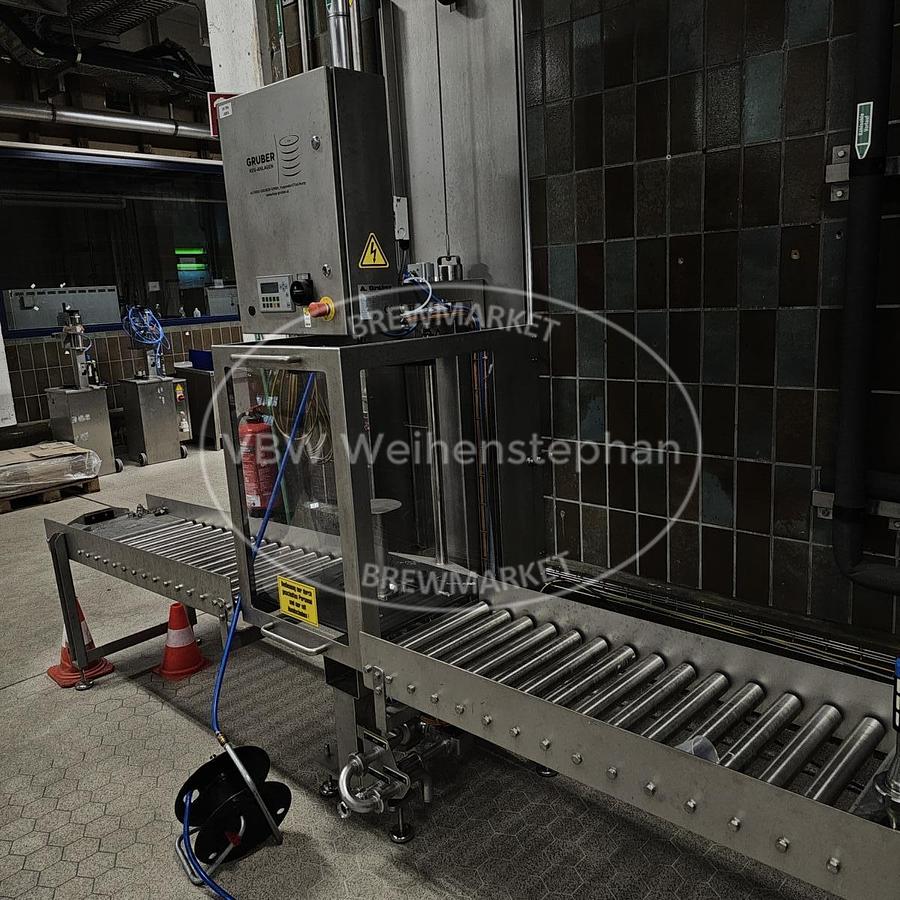

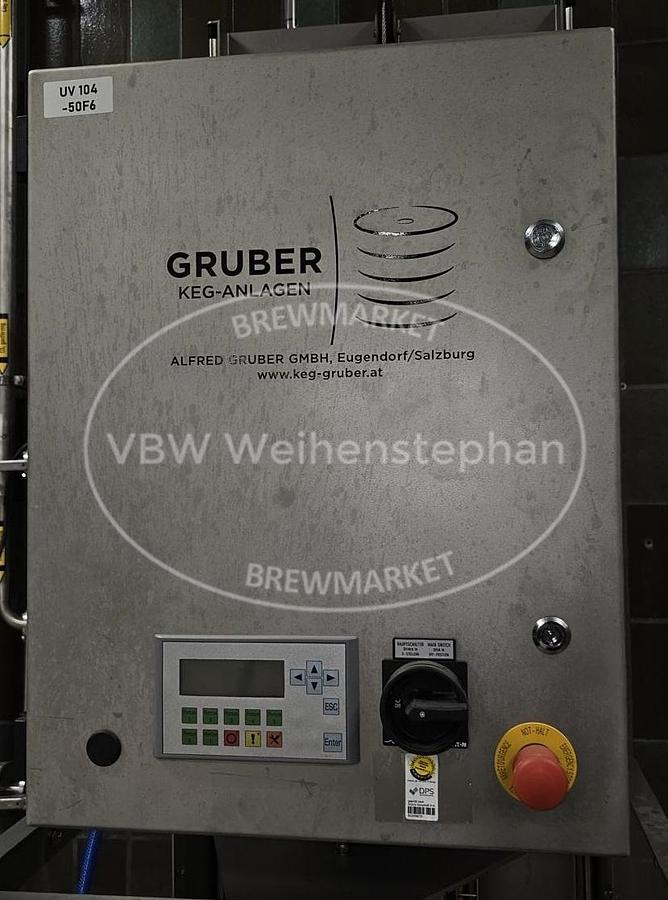

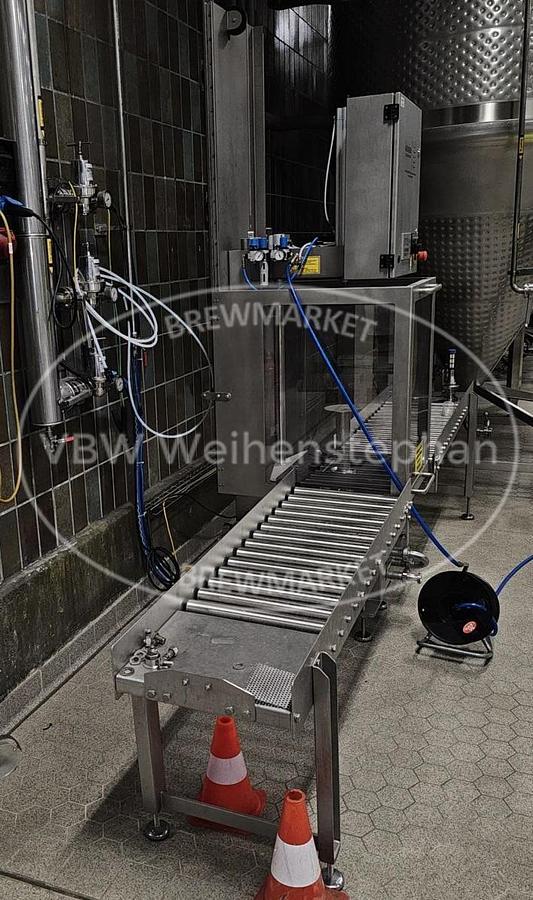

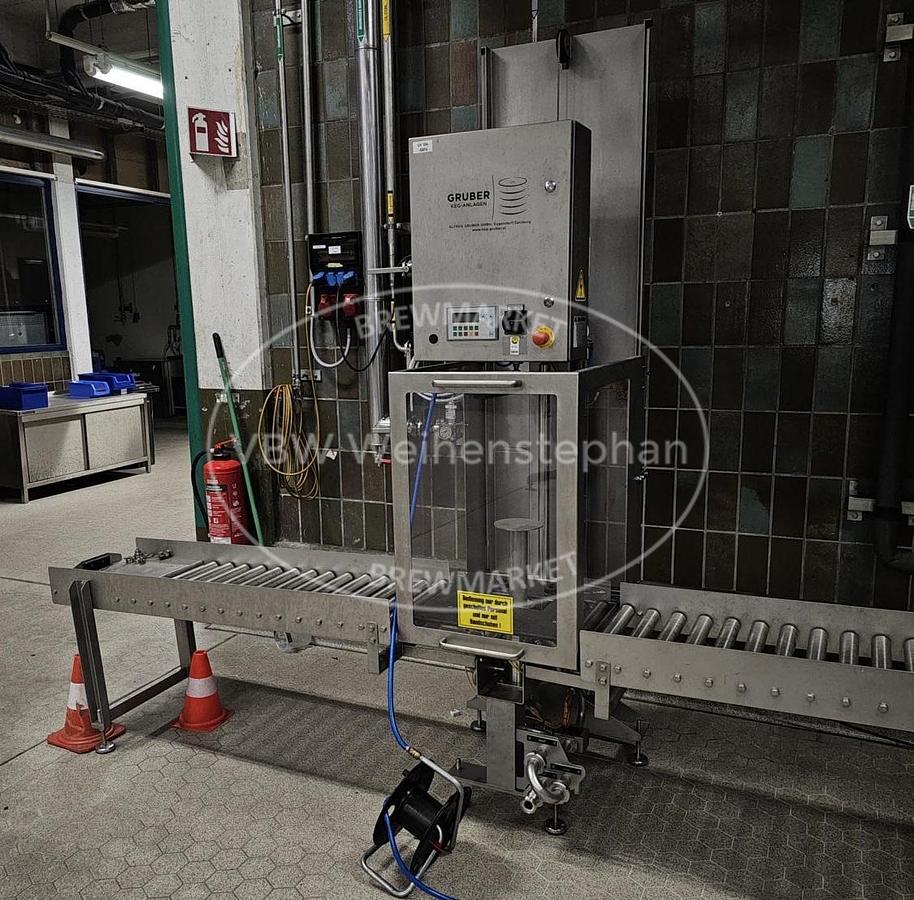

KEG Filling Plant, Additional title: Semi-automatic keg filling system, Performance approx.: 50 KEG/h, Power: 2,5 kW, Voltage: 230 V, Frequency: 50 - 60 Hz, Heating / Cooling: steam 1.5 - 2 bar, < 125°C, Water: 2 - 3 bar, 80°C, Compressed air: 5 - 6 bar, Length: 860 mm, Width: 760 mm, Height: 2530 mm, Weight: 130 kg, Formats: Combi fitting Ø 75 mm, World KEG fitting, Operation / Control: Control cabinet, Siemens 1200, Touch panel, Material: stainless steel, Position: free standing , Features: 1 filling station with elevating protective housing, Gravity roller conveyors in the inlet and outlet, control cabinet with control unit, switch panel for CIP or product inlet

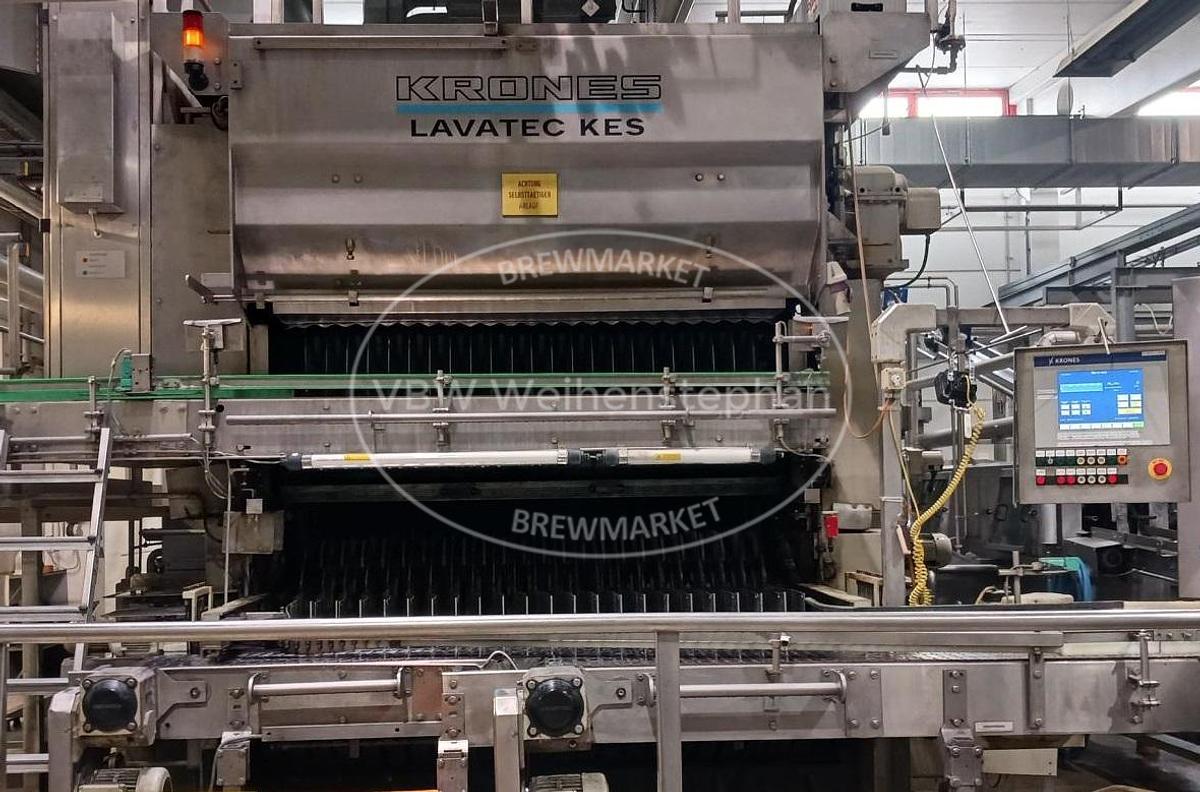

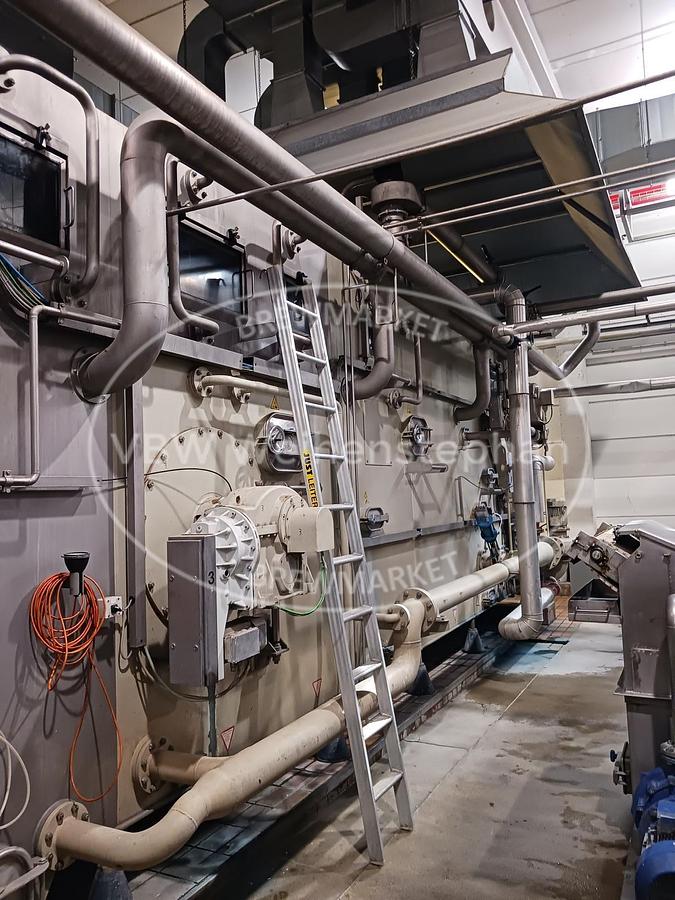

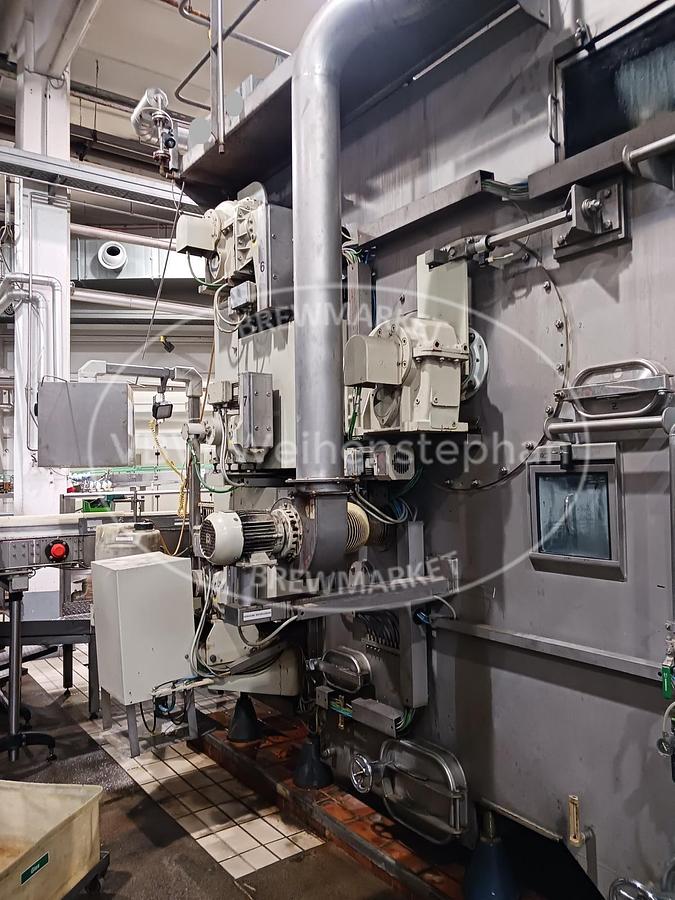

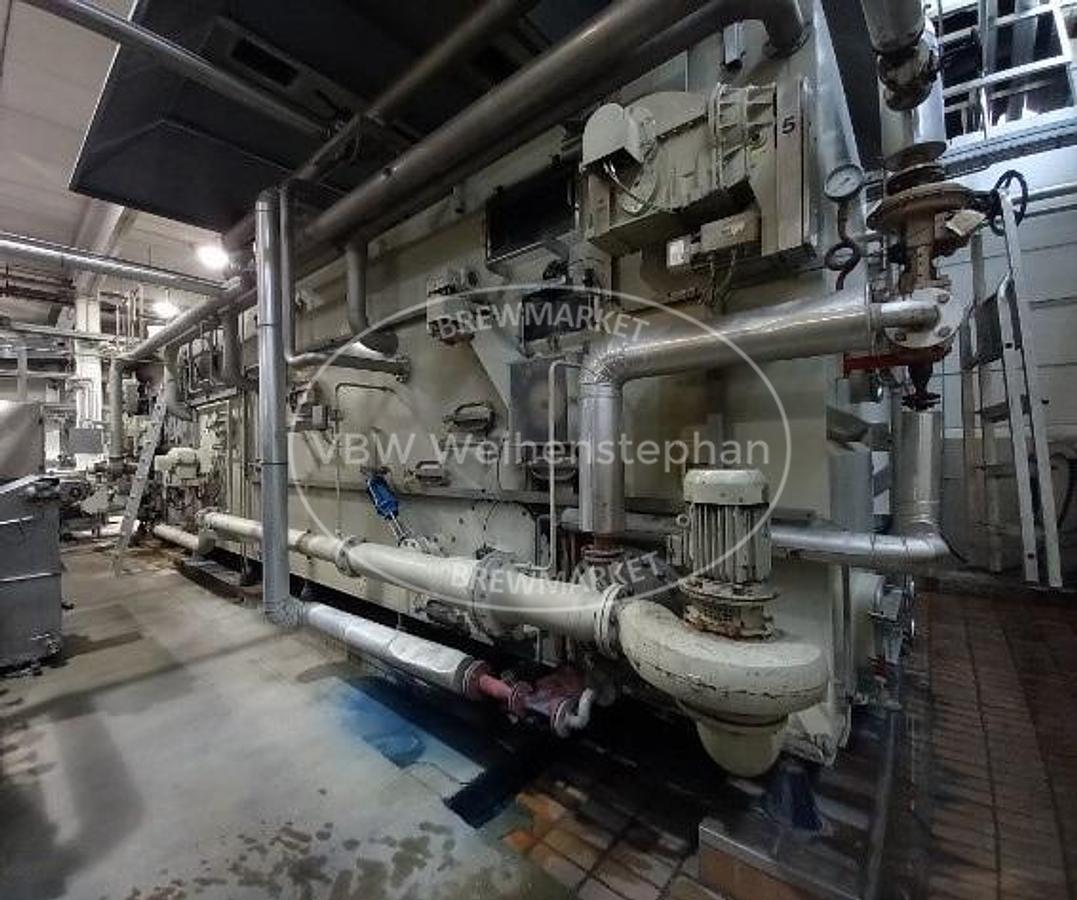

Bottle washing machine (with chemical dosing) Manufacturer: Krones Model: Lavatec Kes Year of manufacture: 2000 Performance: 39,000 bottles/h, Additional title: Bottle washing machine, Capacity: 39000 Bottles/h, Length: 12700 mm, Width: 4700 mm, Height: 3500 mm, Formats: 0,33 l Vichy, 0,33 l Euro, 0,35 l Lemonade, and 0,5 l NRW, Operation / Control: Simatic S7-300, Position: free standing, Base construction: Single-end machine, self-supporting housing on dome feet, Features: H2 extraction, label press, bottle tables, ladders, walk-on platforms, various spare parts, another 400 baskets of 22 bottles each Concentrate dosing station, Layer patterns: 22 bottles per basket row
Packer for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Bottle holders: 5x20, 7x9 or 10x6 bottles., Additional title: Packing machine for bottle crates, Output according to design: 4000 crates/h, Current output approx.: 3000 crates/h , Air consumption: 0 Nm³/1000 bottles, Current: 17,59 A, Voltage: 220/400 V, Frequency: 50 Hz, Compressed air: 4 - 5 bar, Length: 3680 mm, Width: 2940 mm, Height: 2610 mm, Weight: 4200 kg, Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: converted to manual / PLC defective, Material: stainless steel / painted black steel, Position: free standing, Base construction: rectangular cycle packer machine on four columns with spherical feet, Features: Plexiglas safety screen opening upwards, safety grid, infeed and outfeed conveyors, packing head equipment for 0.5 l, 1.0 l and 1.5 l bottles, control panel conver ...
Crate washer for PETCYCLE plastic crates, Additional title: Crate cleaning system, Capacity: 2950 crates/h, Power: 18 kW, Current: 38 A, Voltage: 230/400 V, Frequency: 50 Hz, Length: 7300 mm, Width: 1570 mm, Height: 1710 mm, Weight: 1900 kg, Formats: plastic crate: 20 x 0,5 l, 9 x 1,0 l, 6 x 1,0 l, 6 x 1,5 l , Running direction: transverse, Material: stainless steel, Position: free standing, Base construction: Self-supporting machine housing in block construction on spherical feet, Features: Caustic, hot water and fresh water spraying, inspection window, platform with staircase and railing, crate turner,

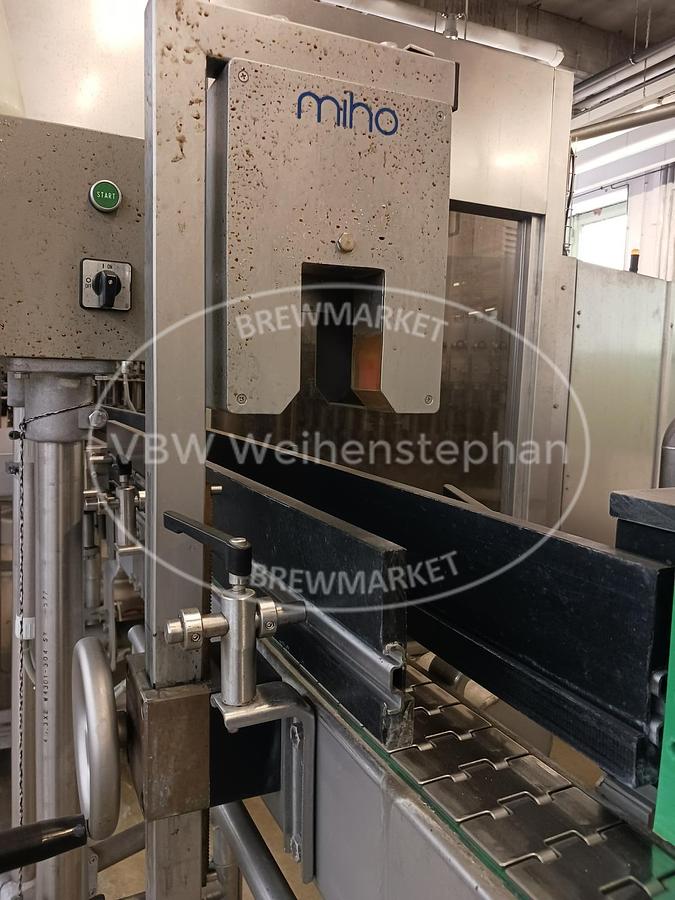

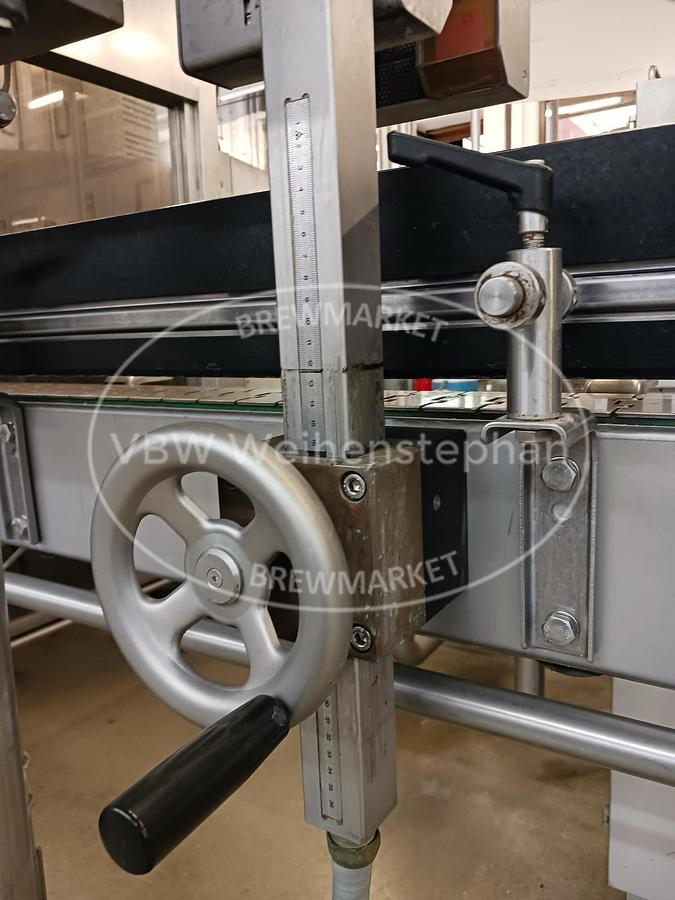

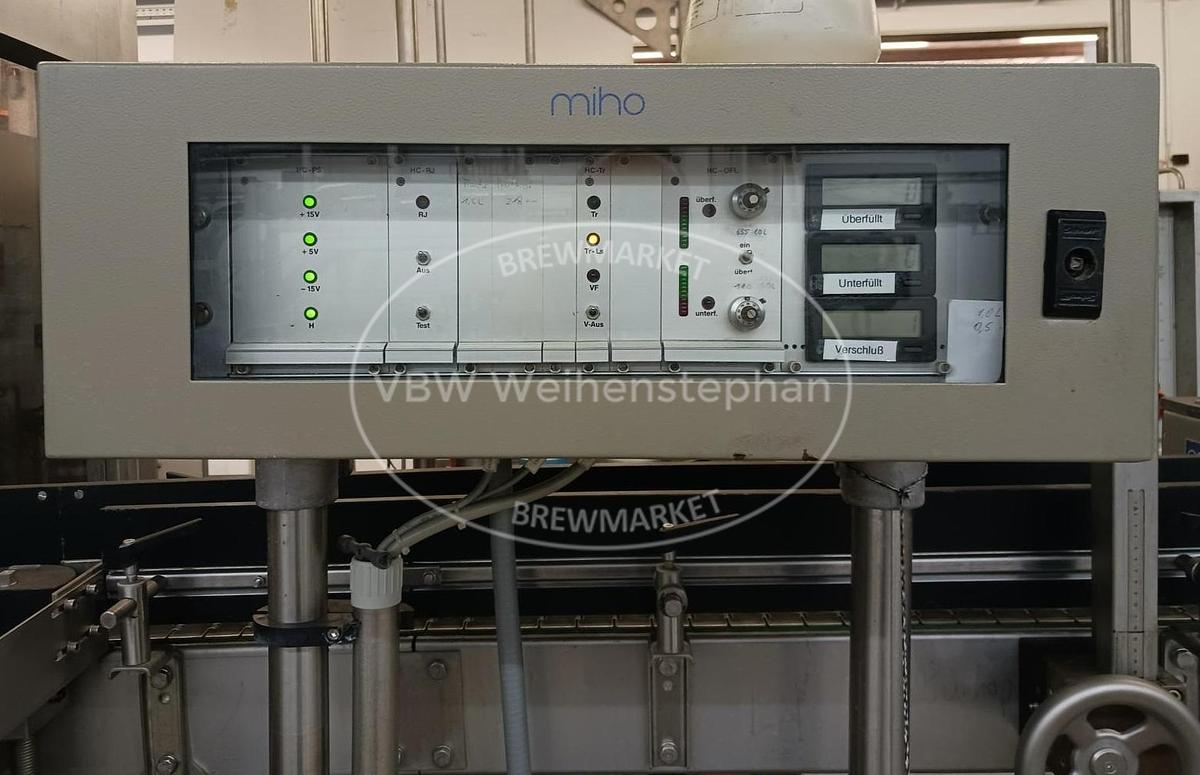

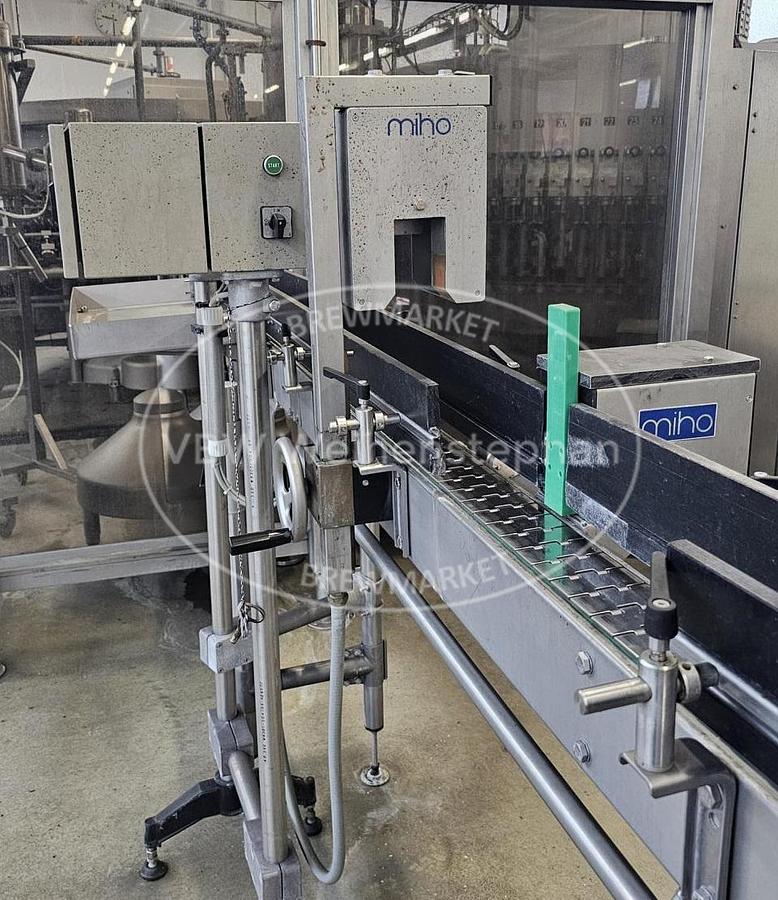

miho fill level detector for detecting underfilled or overfilled bottles, as well as for cap detection. The device works with a high-frequency alternating voltage., Additional title: Fill level inspection system, Capacity: 24000 b/h, Operation / Control: at control box, Material: Painted steel / stainless steel, Position: free-standing / mounted on bottle transport, Base construction: Housing with evaluation electronics with tubular frame on spherical feet, Features: Measuring device, control electronics, bottle ejector

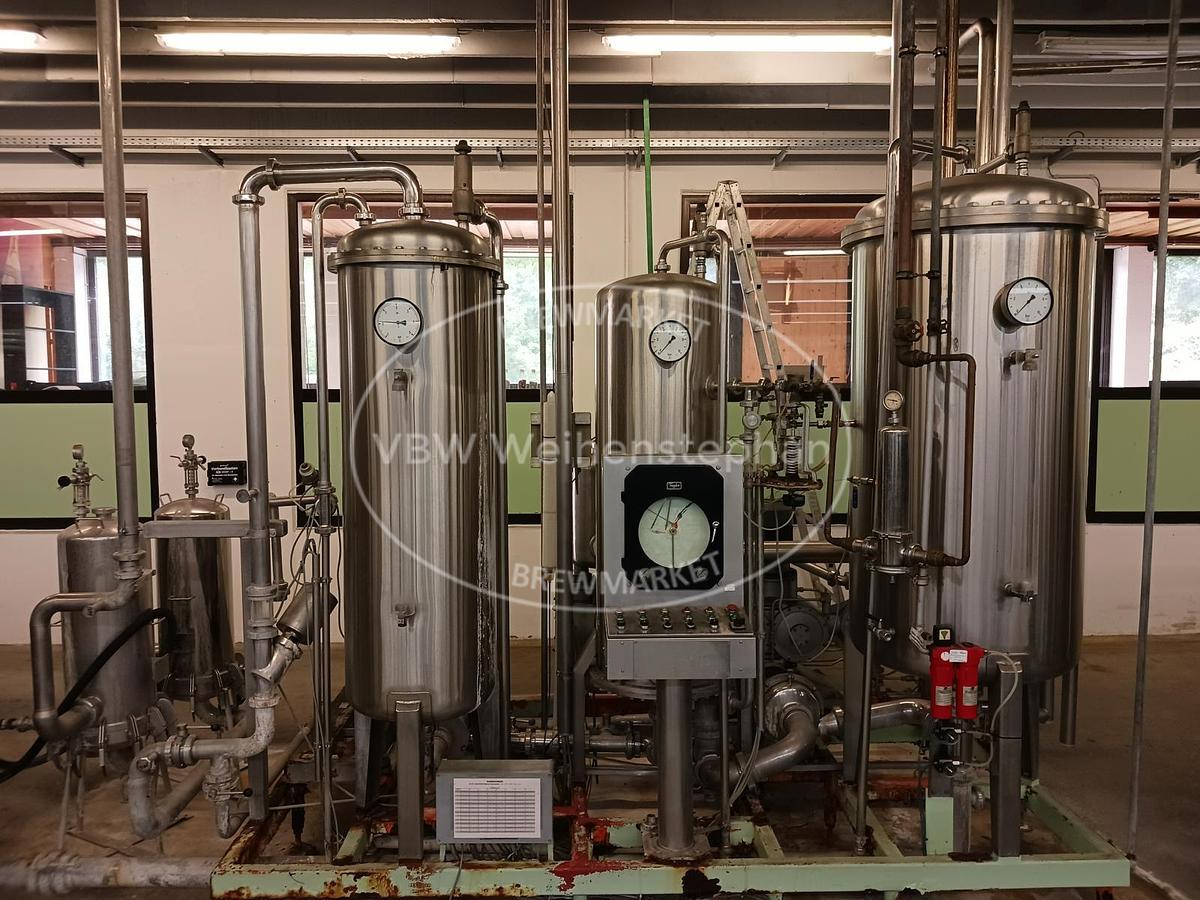

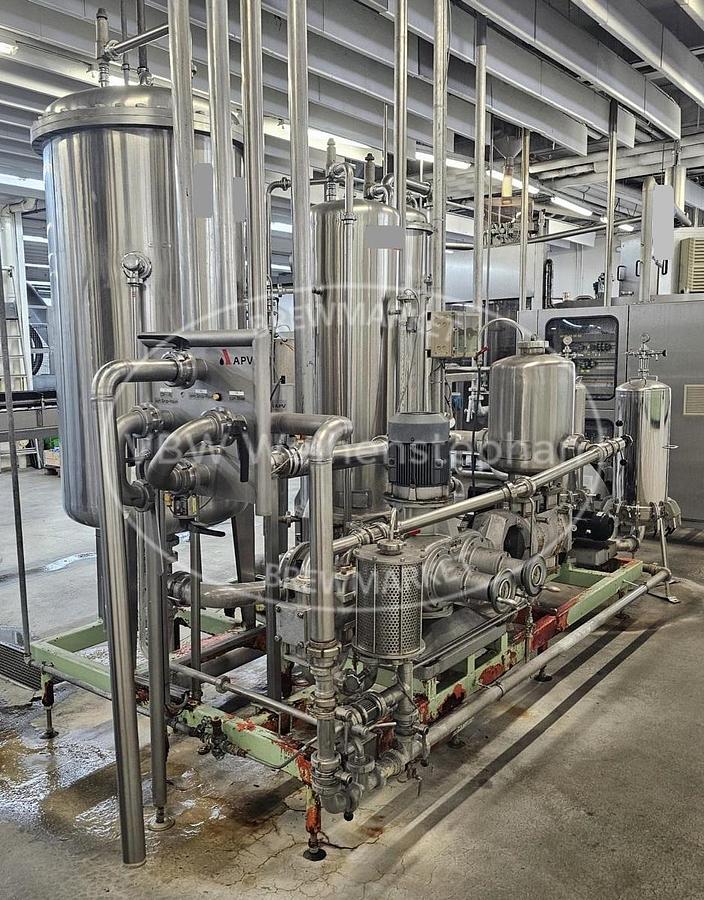

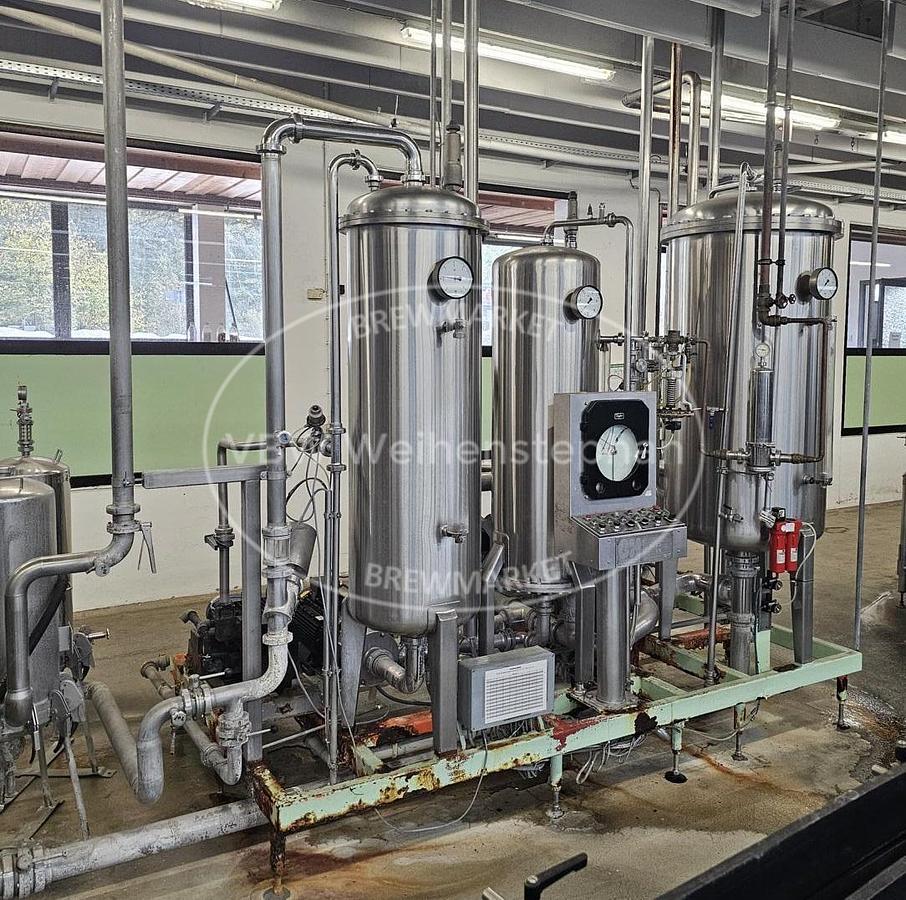

Premix plant for the production of highly and low carbonated beverages. The technical process steps are: degassing of water, carbonation of water, dosing of fruit juice in a partial stream into the carbonated water. Mixing takes place in the mixing section to the equalising tank. The water used is sterile-filtered in the inlet via two particle filters., Additional title: Intermix system with carbonisation unit, Water output: 22575 l/h, Fruit juice output: 4907 l/h, Operation / Control: Control panel, manual, Material: Lacquered mild steel frame, stainless steel product contacts, Position: Free standing, Base construction: Open frame construction with spherical feet, Features: Deaeration tank, impregnation tank, equalisation tank, CO2 dosage control, internal piping, pumps and fittings, control cabinet 2 trap filters for fine filtration of water in the inlet

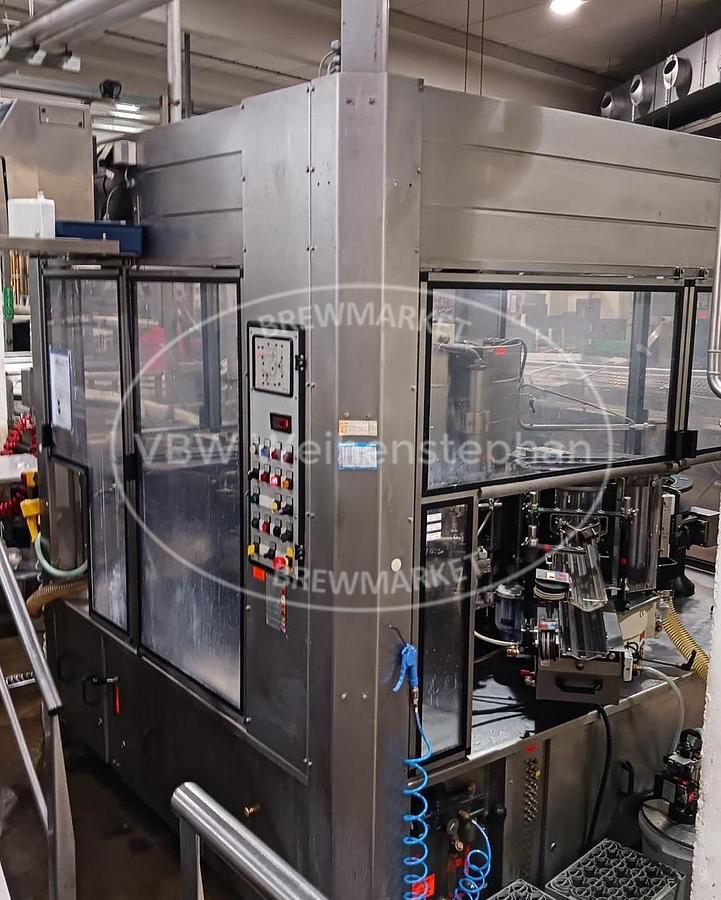

Combined rinser and filler for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Output: 24,000 bottles/h A chlorine dioxide dosing unit and a sterile water supply are connected to the rinser. The filler is equipped with a screw capper. The filling quantity is controlled via flow measurement. Liquid nitrogen dosing is possible via a mobile system., Additional title: PET bottle sanitising and filling system, Capacity: 24000 b/h , Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: Touch-Panel / Simatic S 7, Material: mainly stainless steel, Position: free standing, Features: Stainless steel enclosure, plexiglass protective screen opening upwards; 70 rinsing valves on the rinser; 80 filling valves; filling quantity recording via IDM; Alcoa capper 28 mm Bericap; Prominent chlorine dioxide dosing; filtration system for sterile water, mobile liqu ...
Two vertical stainless steel pressure tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks, Max. content: 8578 l, Max. pressure: 3 bar, Width: approx. 1.9 m, Height: approx. 4.3 m, Material: stainless steel, Position: free-standing, Base construction: cylindrical tank with dished bottoms and square tube feet on domes, Features: Bunging apparatus, pressure gauge, 2 shell cooling zones, standpipe for content display, manhole, sampler and side inlet in the frame, automatic valve with temperature-control, central bottom outlet with shutting flap

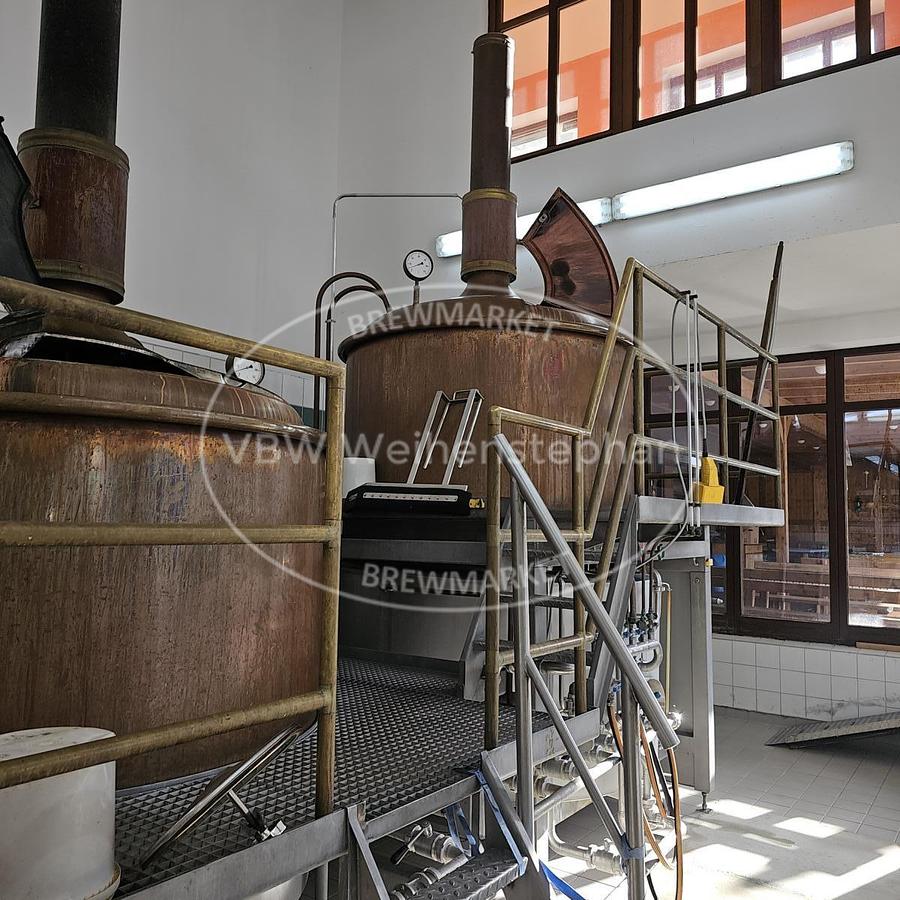

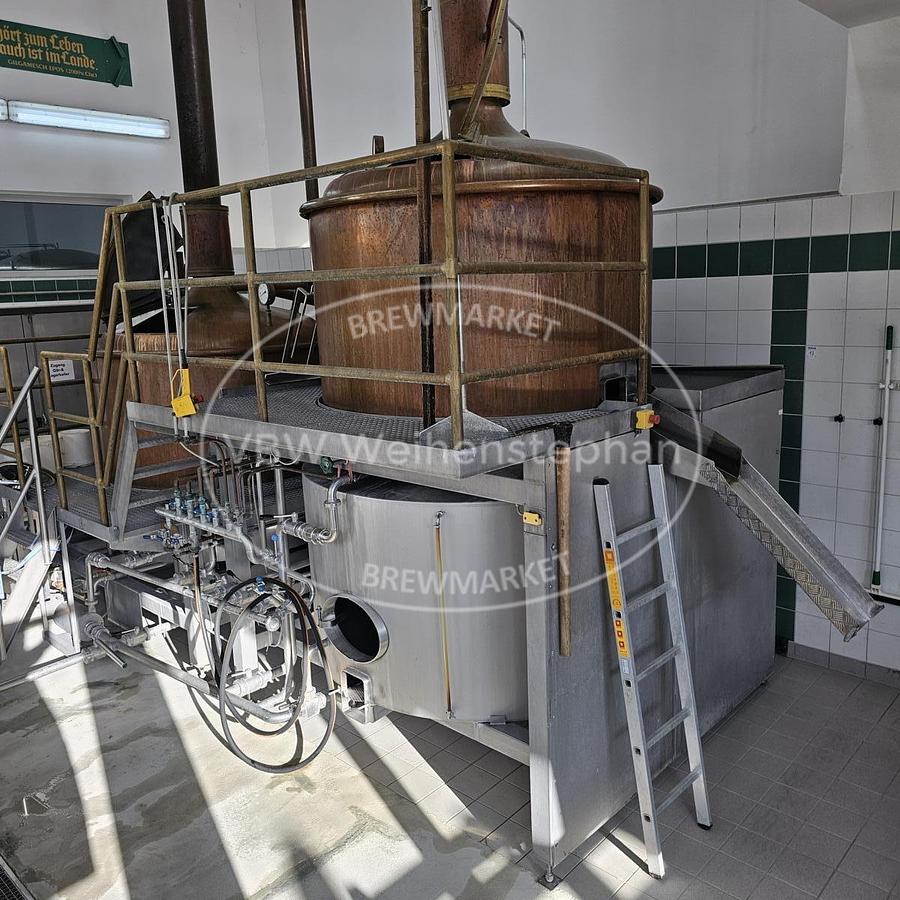

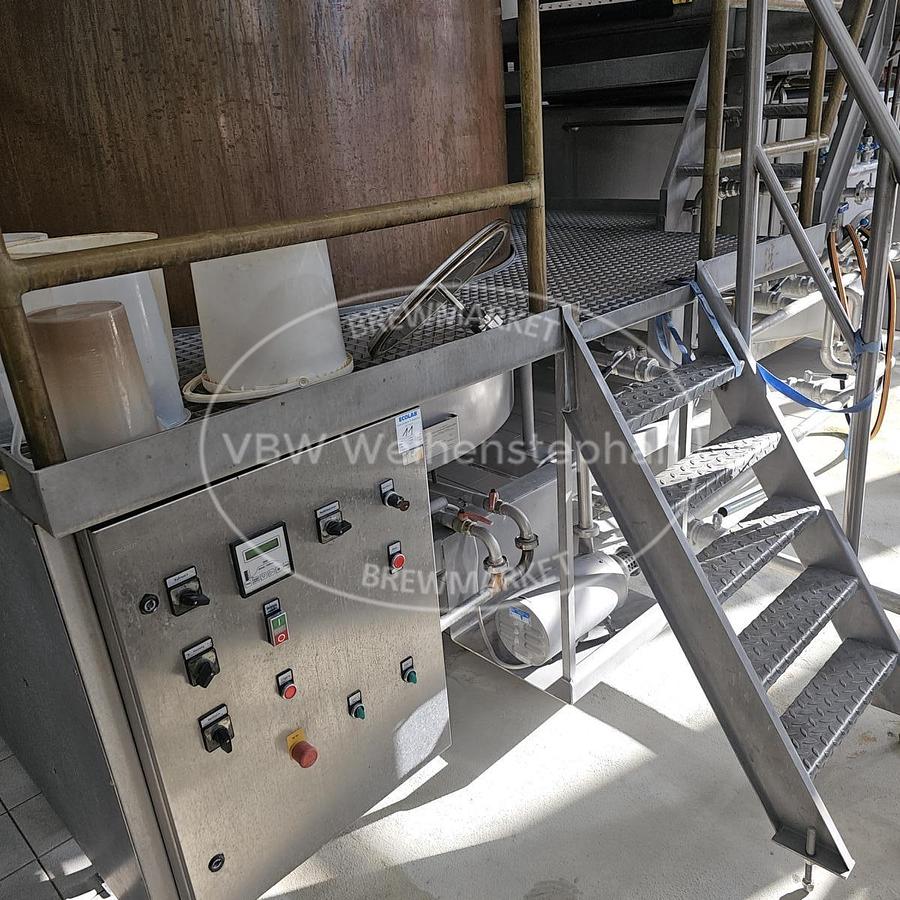

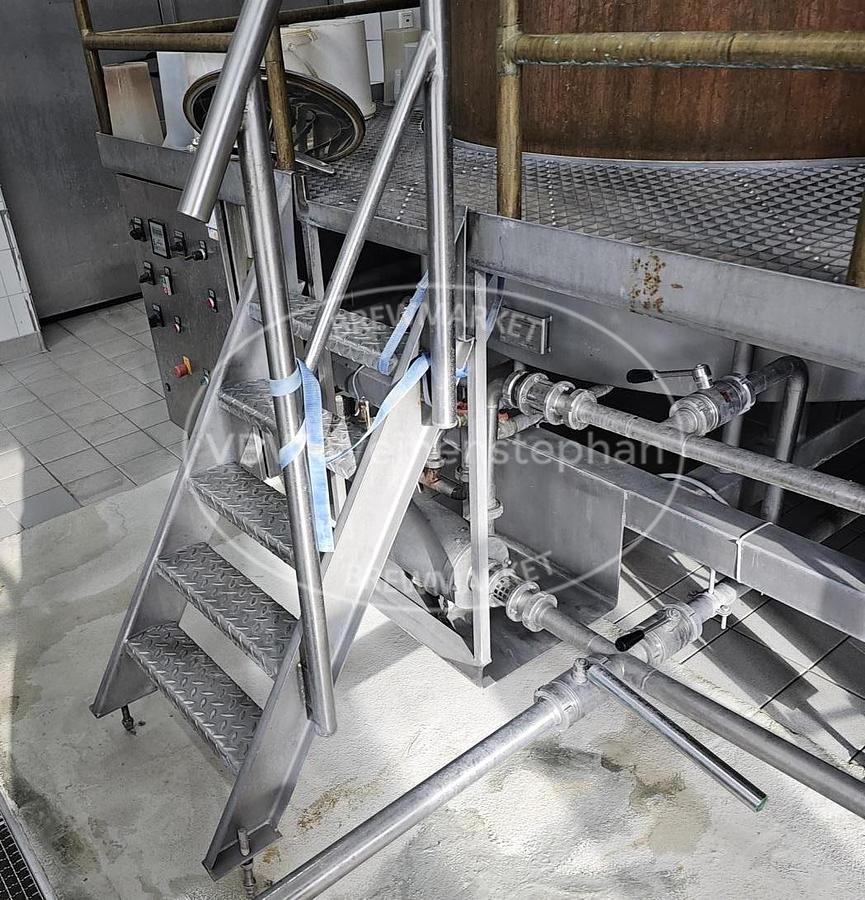

3-device compact brewhouse for 20 hl output, Additional title: 20 hl compact brewing system, Brew size: 2000 l, Length: 2600 mm, Width: 5000 mm, Height: 4500 mm, Operation / Control: Manual control with heating programme controller ‘Barbie and Kühner 7600’ l, Material: stainless steel / copper, Base construction: Brewing vessels mounted on frame construction, Features: Mash/wort kettle, lauter tun, pre-run vessel/whirlpool, spindle station, stainless steel control cabinet with control, stainless steel frame with operating platform, stairs, piping, pumps and fittings

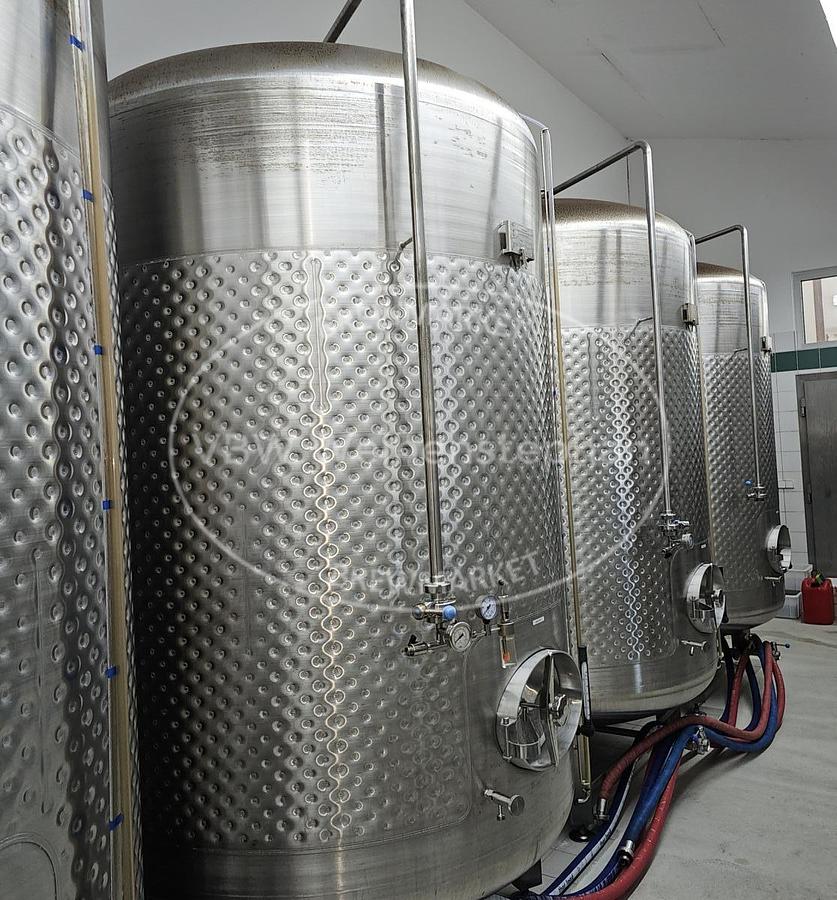

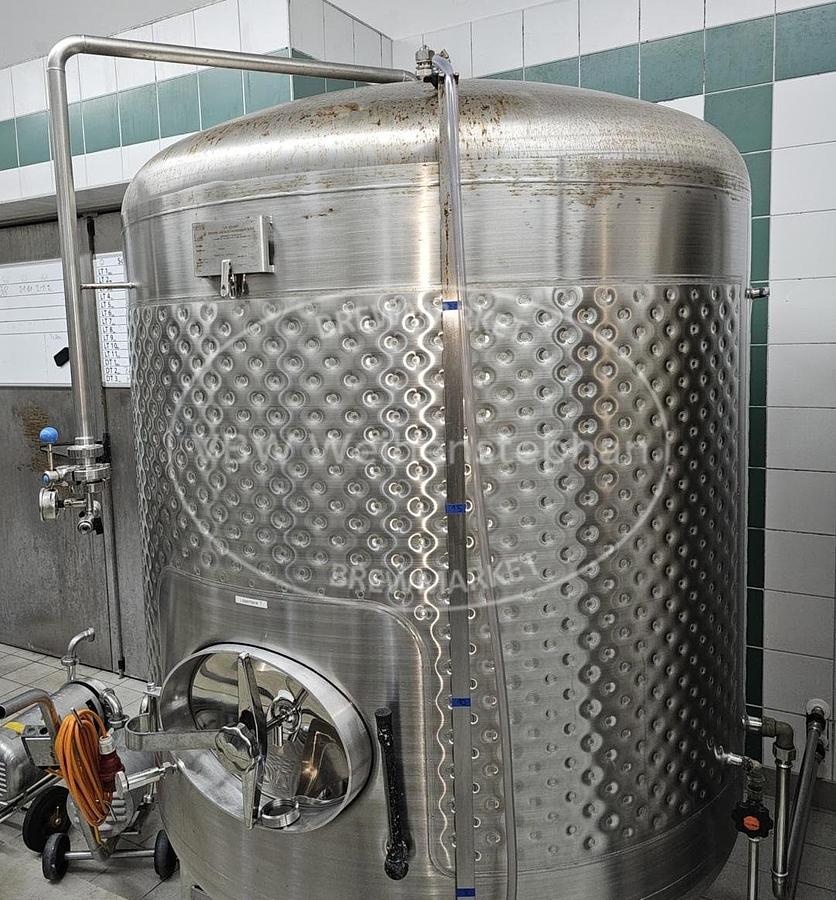

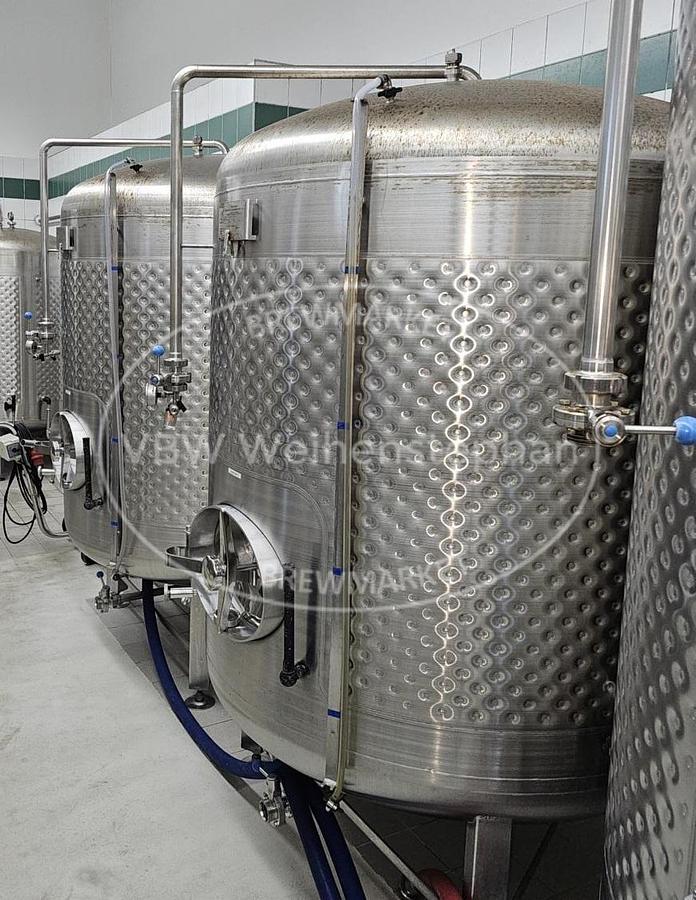

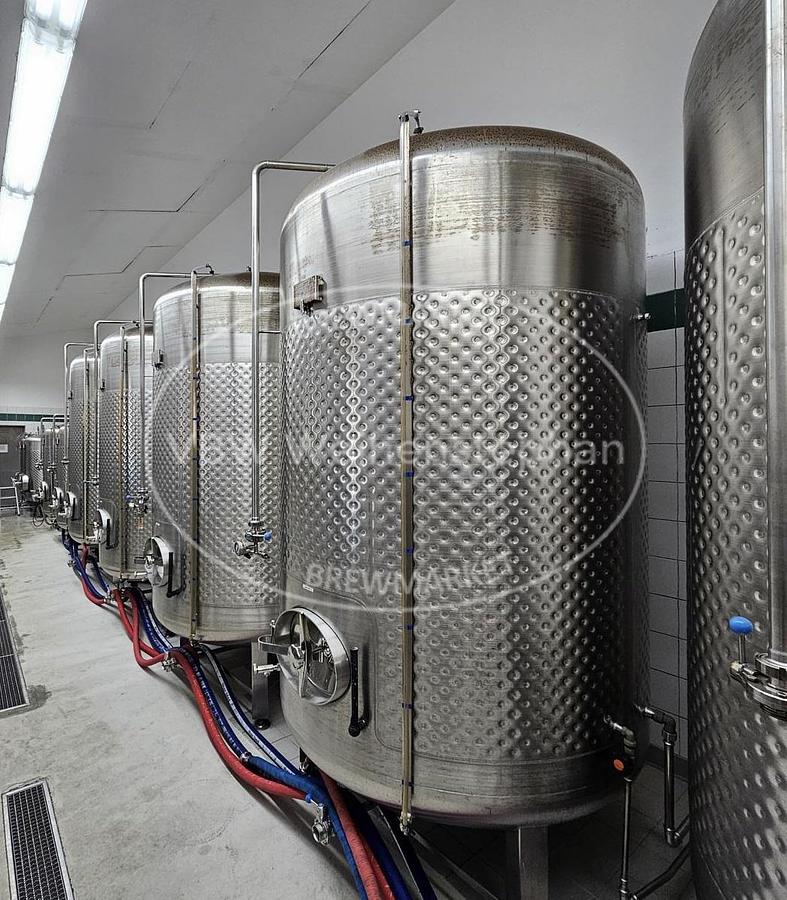

5 vertical stainless steel tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks; year of manufacture 1999-2001, Content: 4400 l, Max. pressure: 0 bar, Length: 1600 mm, Width: 1600 mm, Height: 2920 mm, Operation / Control: manual, Material: stainless steel 1.4301, Position: free-standing, Base construction: cylindrical tank with curved bottoms and square tube feet on domes, Features: sprayball, bunging apparatus, pressure gauge, 1 shell cooling zone, standhose for content display, manhole, thermometer and sampler in the shell, manual valve for cooling control, central bottom outlet

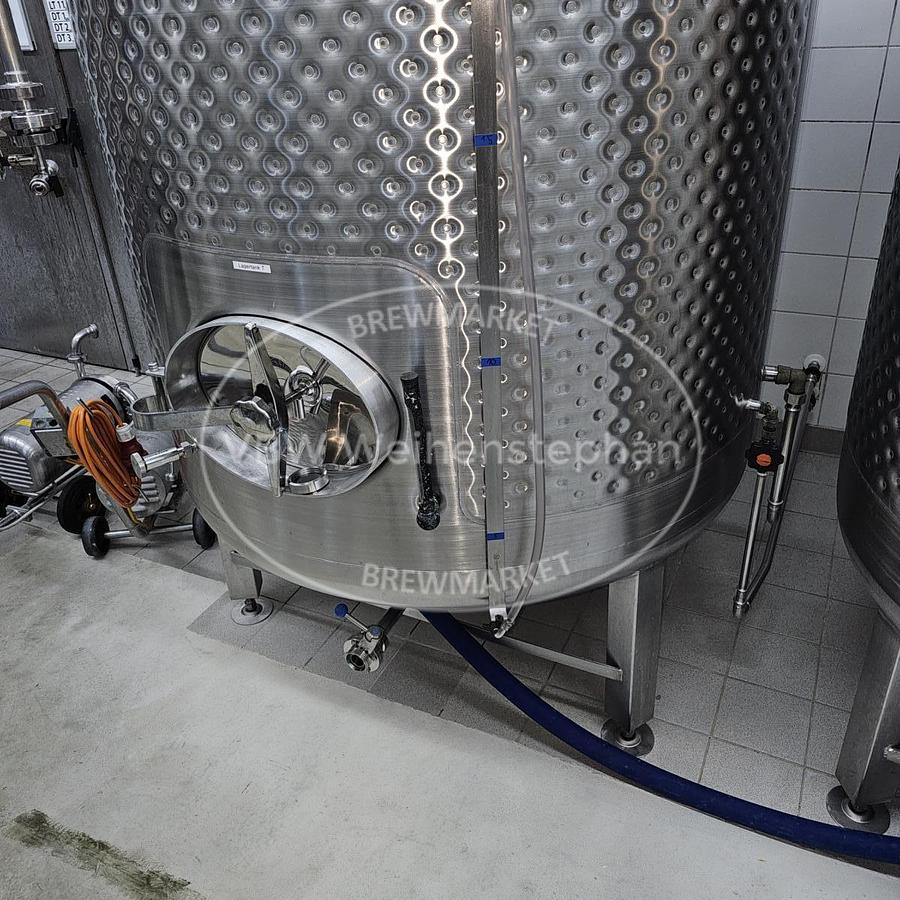

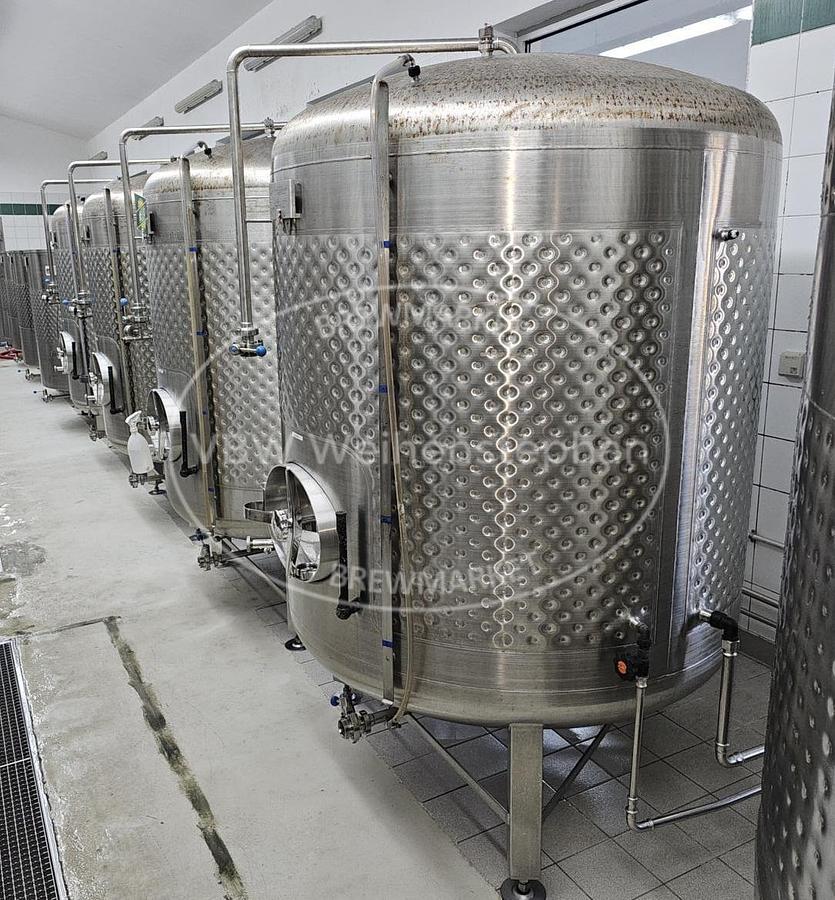

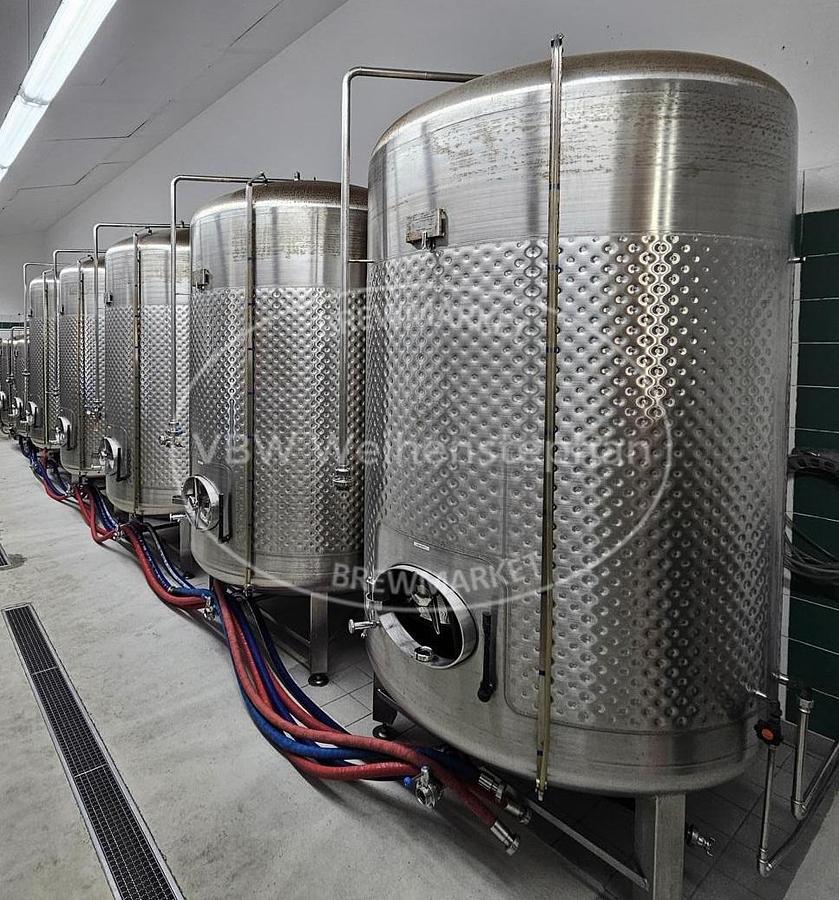

6 vertical stainless steel tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks, Content: 2200 l, Max. pressure: 0,99 bar, Length: 1000 mm, Width: 1000 mm, Height: 1965 mm, Operation / Control: manual, Material: stainless steel 1.4301, Position: free-standing, Base construction: cylindrical tank with curved bottoms and square tube feet on domes, Features: sprayball, bunging apparatus, pressure gauge, 1 shell cooling zone, standhose for content display, manhole, thermometer and sampler in the shell, manual valve for cooling control, central bottom outlet
Insulated, cylindroconical stainless steel tanks with three shell cooling zones and one cone cooling zone. Previously used as beer storage tanks., Additional title: vertical, coolable, insulated stainless steel tanks, Gross volume: 30200 l , Pressure capacity: 0,99 bar, Max. operating temperature: 40 °C, Cooling area: 14,45 m², Length: 2,83 m, Width: 2,83 m, Height: 7,86 m, Weight: 3150 kg, Material: stainless steel, Position: standing frame, Features: insulation, tank fittings
Labelling machine for neck, body and back labelling of glass bottles., Additional title: neck-, body- and back labeling, Capacity: 40000 Fl/h, Length: 2600 mm, Width: 2800 mm, Height: 2700 mm, Formats: various label tables 0.5L NRW, 0.33L Vichy, 0.33L Euro, Running direction: left -> right, Operation / Control: Simatic OP7-Panel, Krones KES 5, Position: free standing
Schenk ZHF Kieselguhrfilter, Additional title: Kieselguhr filter, Capacity: 3000 l/h, Max. pressure: 6 bar, Max. temp.: 20 °C, Vessel content: 680 l, Operation / Control: manual operation, with buttons / switches on the control box, Material: stainless steel, Position: Fixed to the floor on a frame, Features: CIP heat exchanger with fittings, dosing vessel, dosing pump, control cabinet, electric motor for shaft drive

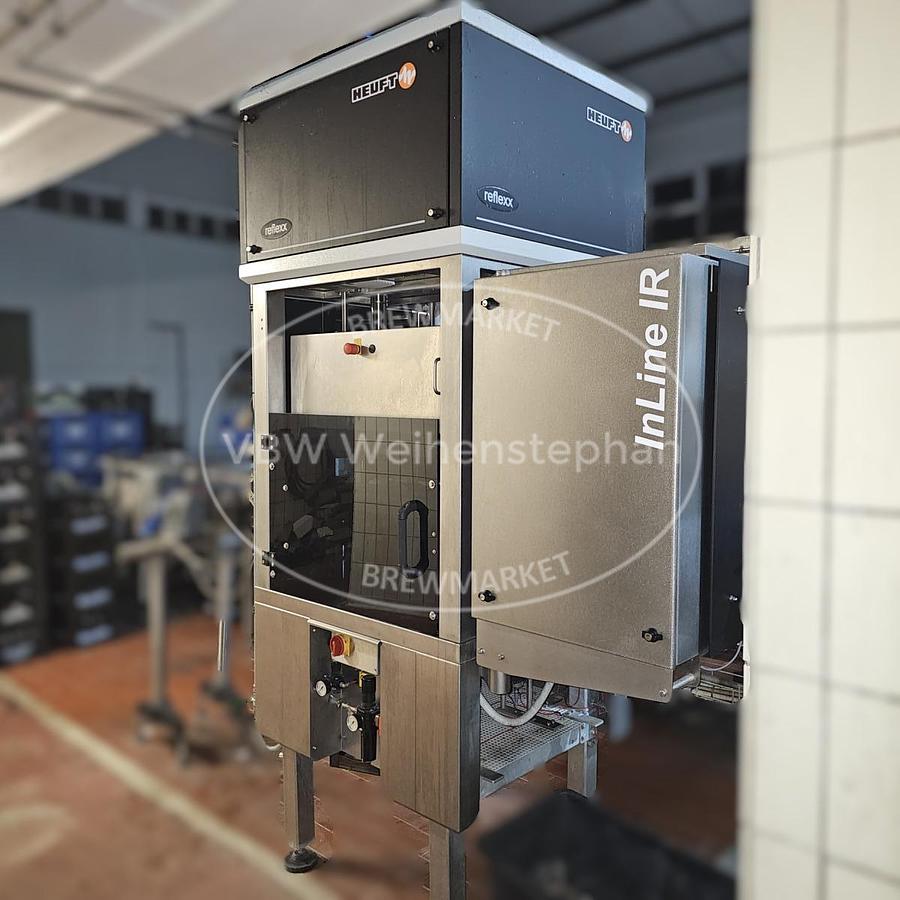

Heuft empty bottle inspector with: - Infeed inspection with belt stop - Bottom inspection - Mouth inspection - IR residual liquid detection - HF residual liquid detection - Simple lateral migration detection in the outlet - Single-segment rejection with rejection control, Additional title: Bottle inspection machine, Capacity: 8000 bottles/h, Voltage: 400 Volt, Frequency: 50/60 Hertz, Compressed air: min. 5 bar, Length: 2030 cm, Width: 950 cm, Height: 1830+conveyor height cm, Weight: 1600 kg, Running direction: from right to left, Operation / Control: Heuft Spectrum reflexx, Heuft speedy environment control for controlling the motors, Position: free standing, Periphery: Synchronised container transport segments after the inspector

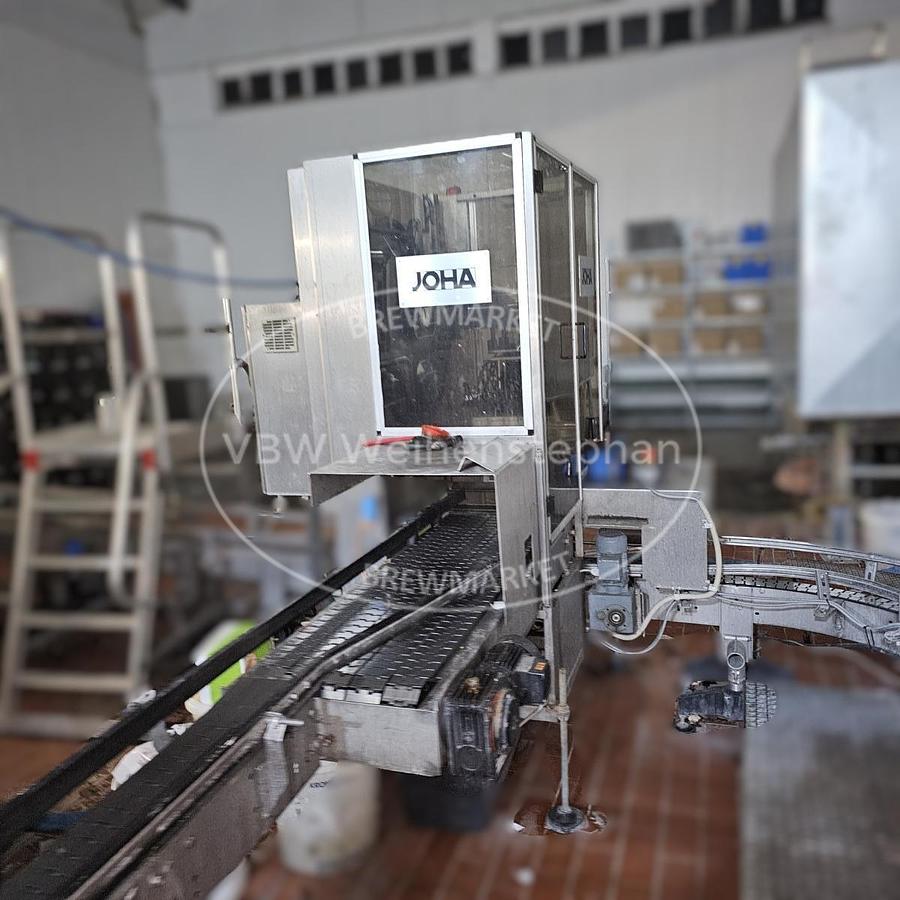

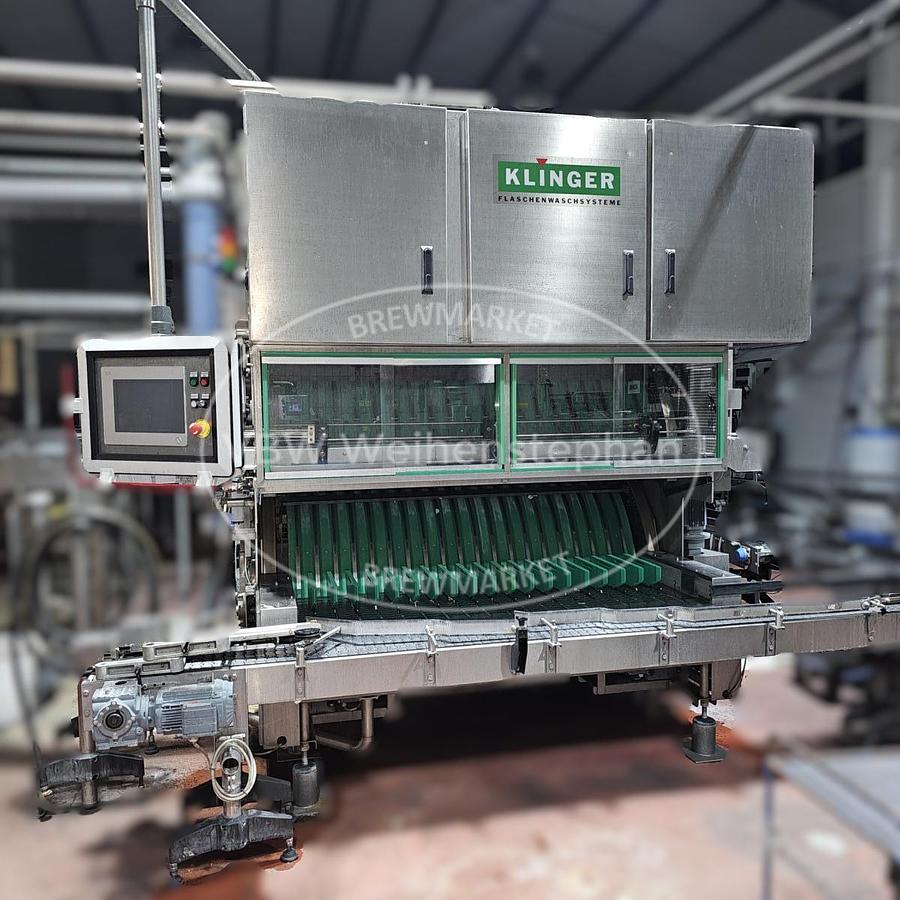

Bottling line for approx. 5000 bottles/h, Additional title: returnable glass bottle filling, years of construction 1990 - 2016, Capacity: 5000 bo/h, Formats: Eurobottle 0,5 l, Longneck 0,33 l , swing top 0,5 l, Position: free standing, Features: Unpacker (JOHA Diamant M1), bottle washer (Klinger, 2016, 7,000 bph, empty bottle inspector (Heuft Reflexx InLine IR, 2016, 8,000 bph) bottle filler and capper (Hormes), swing-top capper (AMS, 1997, 15 capping units, 6,000 bph) Labelling machine (Gernep, 2014, 9000 bph), packer (JOHA Diamant M1), crate washer, caustic settling tank
Two upright stainless steel tanks with flat cone., Additional title: vertical flatconical stainless steel tanks, Volume: 18140 l, Operating pressure: 0,5 bar, Operating temperature: 20 °C, Width: 2,9 m, Height: 4,15 m, Material: Stainless steel, Position: Vertical, Base construction: 4 support legs, cylindroconical, Features: CIP-noozle
