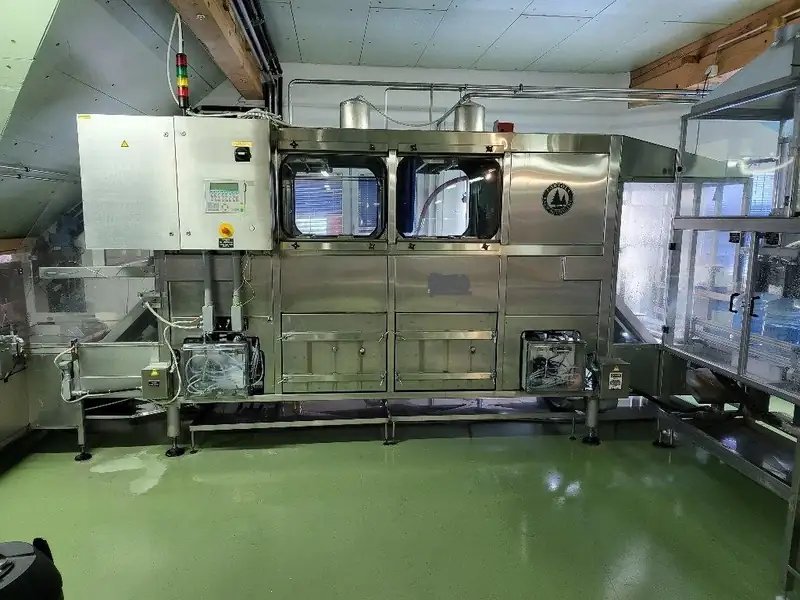

Used Water Complete Bottling Line Flat Drinks 300 bph 18.9L CapSnap
The CapSnap Adapta Series is a modular integrated bottle washing,
filling, and capping system. It is the perfect solution for
medium-sized HOD water bottling operations. Designed for adaptability
– these machines can be configured to handle both 3-Gallon and
5-Gallon bottles. This complete system effectively handles 300 – 600
BPH. Manufacturer: CAP SNAP – Portola – USA Year of production:
1999 (completely refurbished in 2015 and since then it has worked only
500 hours) Capacity: 300 bph Required energy sources: air 6 bar, power
40 kW, cleaning water supply 2 bar and filling water supply Line
composition: Semi-automatic cap removal device: This device is used to
remove caps from bottles. Entrance conveyor: On this conveyor belt,
the bottles are manually placed. Prewash with cold water through
nozzles: This is the first stage of washing, using cold water. Wash
with warm water and detergent through nozzles: This is the second
stage of washing, which uses warm water at 50°C with detergent. Rinse
with cold water and disinfectant through nozzles: This is the last
washing stage, which uses cold water and disinfectant. Bottle filling
outlet conveyor: The bottles are filled here, two at a time. UV
Filter: The water is filled through a UV filter, which is built into
the water inlet of the bottle. Transport of filled bottles to the
capper: Here, the bottles are transported from the filler to the
capper. Dosage caps through disinfectant on the bottle: Here, the caps
are disinfected and ready to be put on the bottles. Bottle cap
cylinder: Here the bottle cap is applied. Output conveyor: From here,
the bottles are manually loaded onto pallets. Each part of this system
has a specific role in the process of bottle filling, and all together
they form a functional production Used Water Complete Bottling Line.
