Manufacturer:
(Category: 102)
Technical data: The machine is completely overhauled in 2011 with new electrics, new wiring, including new control SIEMENS Sinumerik 840D max. circulating and turning diameter: 2,000 mm max. turning height: 1,500 mm Sheet disc diameter: 1,600 mm max. table load: 11.20 to. Cross-beam adjustment: 1,170 mm
Technical data: Diameter over bed: 625 mm Turning length: 1500 mm Diameter via slide: 325 mm Spindle head shape: Cam-Lock Spindle drilling diameter: 105 mm
Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm
Technical data: Turning diameter over bed: 1260 mm Turning diameter at opening: 2700 mm Turning diameter at the pit: 3800 mm Turning diameter via slide: 900 mm Turning length: 4000/5000 mm
with accessories, brake drum lathe with different Attachments for trucks Y.O.M. 1982

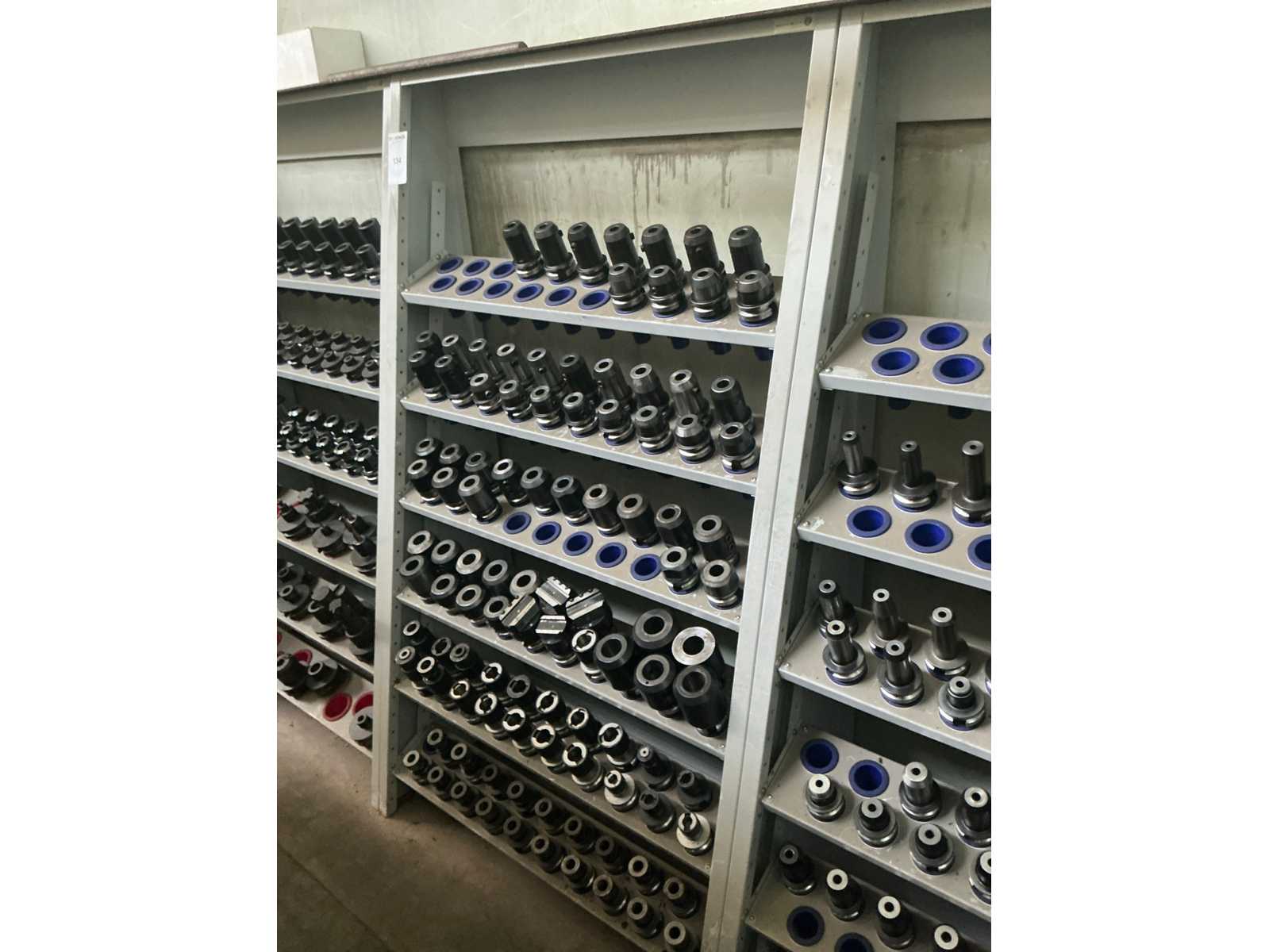

On rack Hahn & Kolb. Equipped for 120 tools. Auction-ID: A1-46783-134
Equipped with FMB Mini Turbo feed device Auction-ID: A1-46783-42
Capacity: Swing over bed: 720mm Swing over saddle: 590mm Max. turning diameter: 481mm Max. turning length: 755mm Bar working diameter: 102mm Spindle: Chuck: Sam Chully MH-212 (305mm) Spindle speed: 2800rpm (belt type) Spindle nose: ASA A2#11 Spindle bearing diameter: 160mm Spindle through hole diameter: 115mm Turret: No. of tool stations: 12 OD tool size: 25mm Boring bar diameter: 50mm Indexing time: 0.15 sec Carriage: X-axis: 260mm Z-axis: 830mm Rapid traverse X-axis: 25m/min Rapid traverse Z-axis: 30m/min Tailstock: Quill diameter: 100mm Quill bore taper: MT#5 Quill travel: 100mm Machine is equipped with: - 2800rpm 35/22kW 1600Nm - Sam Chully MH-212 (305mm) - Live center MT-5 - Part catcher - Axis-Tool Number display - Bar feeder interface - Doosan Tool Load Monitoring - Manuals - Programmable tailstock - Tool setter - 128 Pairs of tool offsets - Part program storage 1 ...
Voltage: 3 phase 220v Auction-ID: A1-46783-22
Equipped with feeder FMB type Mini Turbo S Auction-ID: A1-46783-46
Machine is equipped with: - chip conveyor - part catcher - part conveyor - Powergrip H-08 chuck Auction-ID: A1-47218-13

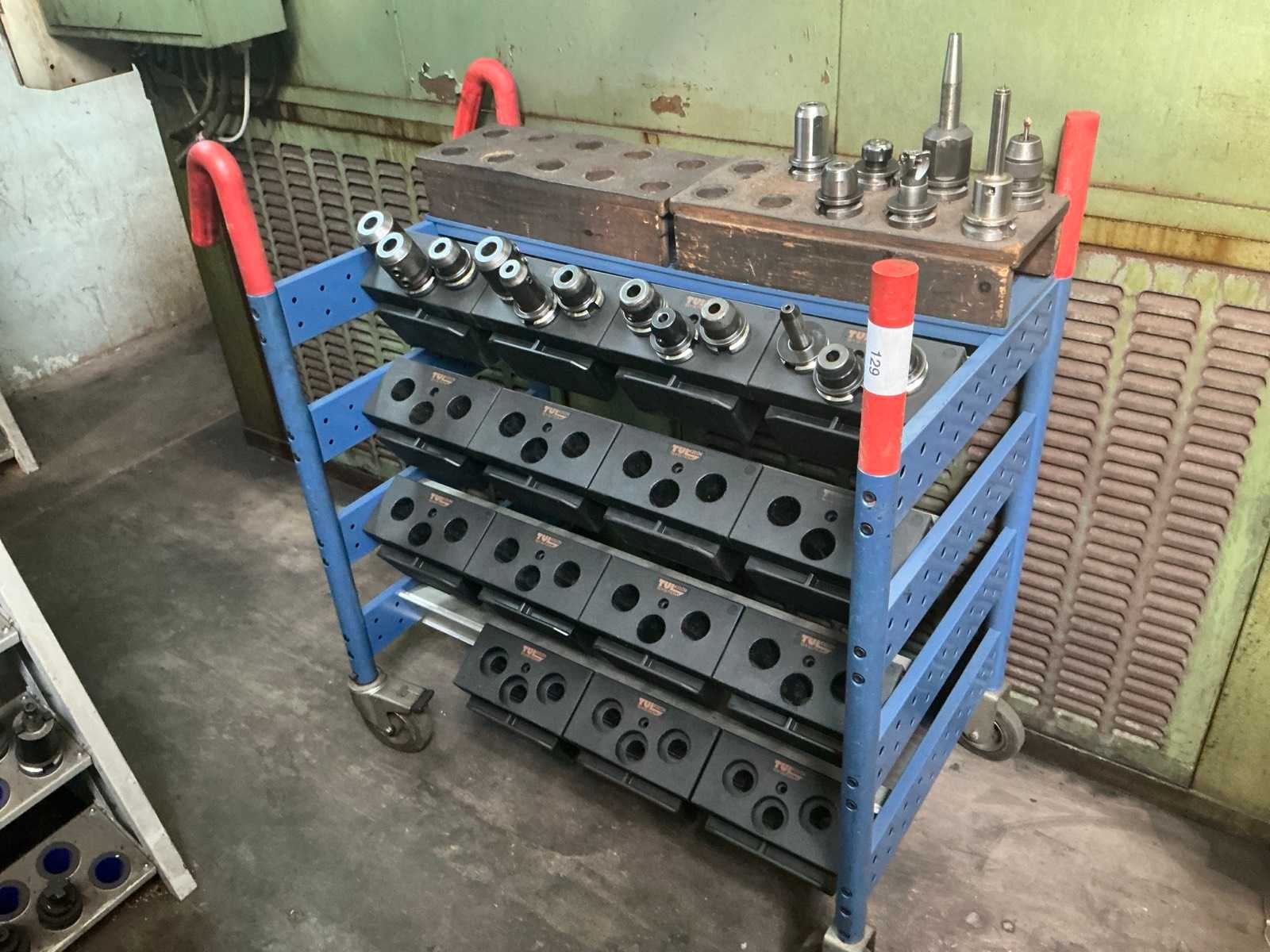

Approx. 19x holder. Equipped with 15x 3-fold plastic tool holders TulKech Systems Auction-ID: A1-46783-129
Operation unknown/ Equipped with LNS type Quick load servo III Auction-ID: A1-46783-6
Lathe Schaerer, model UD632 Working shöhe über Flur : 1120 mm Spitzenhöhe über Flachbahn : 320 mm Diameter over Bett : Ø 660 mm Diameter over shelf slits: Ø 450 mm Diameter over shelf length : Ø 420 mm Extension via extension: Ø 710 mm Antriebsleistung : 15 – 22 kW Max. working support weight between the Spitzen without Setzstock: 1500 kg Max. working support weight between the S. with a set stock: 2200 kg Width : 460 mm Arbeitsspindle Spindle head with Zentrier cone: 55022 , gr. 8 Spindle in advance bearing : Ø 120 mm Spindle bohrung, continuous : Ø 72 mm Vorn Cone 1:20 : 80 mm Inner cone : Morse 5 Drehzahlen : 1,8 – 2240 rpm Details: Machine is in very neat condition Double prism underlying bed, so very accurate Digital readout HEIDENHAIN , model ND 780 Infinitely adjustable speed! Forkardt chuck Ø 400 mm Automatic lubrication system Automatic chisel support R ...
Chuck diameter: 360mm Tooling in turret not included! Auction-ID: A1-47218-11
Equipped with gantry loader Mazak type flex-GL200N Auction-ID: A1-46783-24
Robot, tooling in turret and oilmist filter not included! Auction-ID: A1-47218-18
Equipped with feeder FMB type turbo 5-55 Auction-ID: A1-46783-36

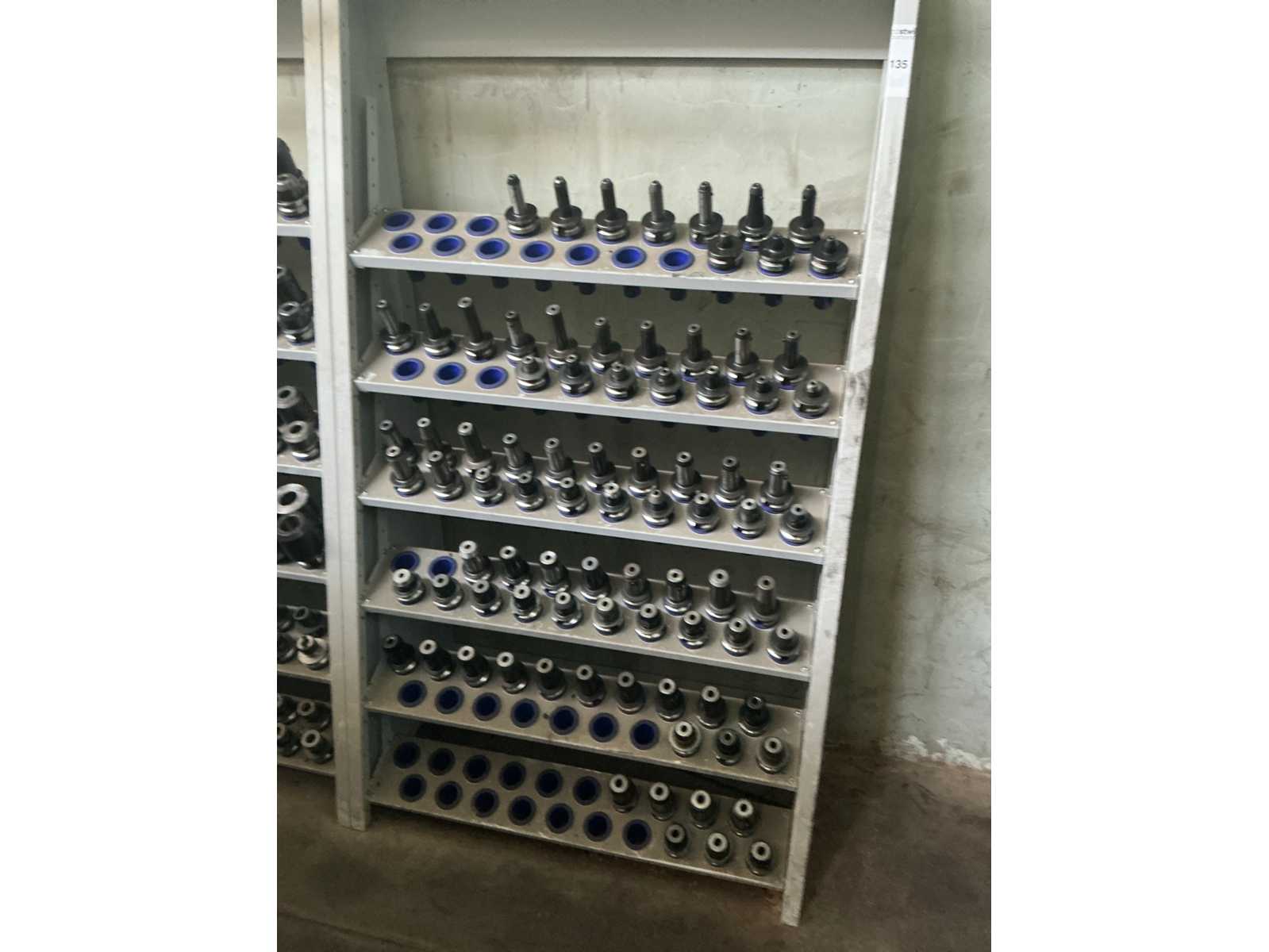

On rack Hahn & Kolb. Equipped for 120 tools. Auction-ID: A1-46783-135
OKUMA CNC Lathe Serial Number: 131693 Power: 45 kW Control: OKUMA OSP-P200L 2 axes + C Diameter on bed: 620 mm Diameter on trolley: 420 mm Distance between points: 1270 mm Chainring: 400 mm Bar capacity: 80 mm Spindle speed: 35–3500 rpm 12-position motorized turret type VDI Fast feeds: X 20 m/min, Z 25 m/min MT5 tailstock Includes chip extractor and presetting Untested operation This item is delivered loaded by truck. The costs of dismantling and loading are borne by the buyer. Auction-ID: A7-47344-11

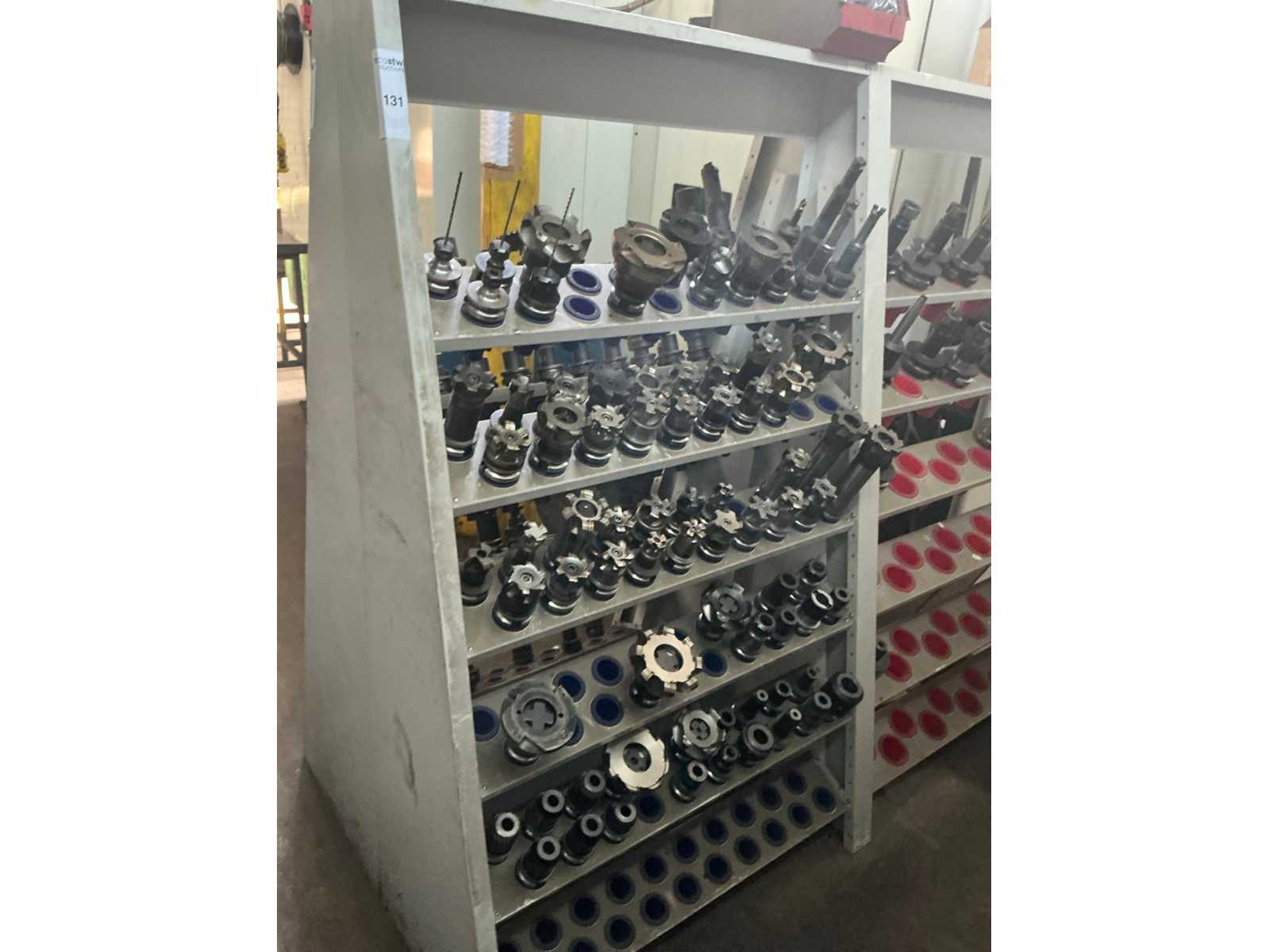

On rack Hahn & Kolb. Equipped for 120 tools. Auction-ID: A1-46783-131
Brand IDIMA S.A. Model SN 500 SAConventional parallel latheEquipped with 3-jaw self-centering plateIncludes tailstock includesdigital dimension display (DRO) Quick change tool holder installedIntegrated lubrication and coolingLong prismatic bedUsed condition with visible wear and dirtMachining chips presentYear of manufacture not identified in the imagesTechnical inspection is recommended prior to commissioning Auction-ID: A7-47333-45
FANUC CNC Lathe Serial Number: S2-1342 Power: 13 kW CNC Control: FANUC 0i-TA Spindle speed: up to 4500 rpm (max. 6000 rpm) 12-position turret Turning diameter: 180 mm Z-axis travel: 300 mm 160 mm hydraulic plate Bar pitch: 52 mm Coolant capacity: 40 L Suitable for the production of small and medium-sized parts Untested operation This item is delivered loaded by truck. The costs of dismantling and loading are borne by the buyer. Auction-ID: A7-47344-12
.JPG)
.JPG)
.JPG)
.JPG)
.jpg)
.jpg)
400 €
