Micro Brewery 10HL for Kombucha and Beer with Tank Farm
This brewery was installed in 2022 and it has been brewing various
types of kombucha, but it is also suitable for beer brewing. Complete
brewhouse was made by Premium Machinery Group (PMG), Hangzhou, China
in year 2022
1. Brewhouse

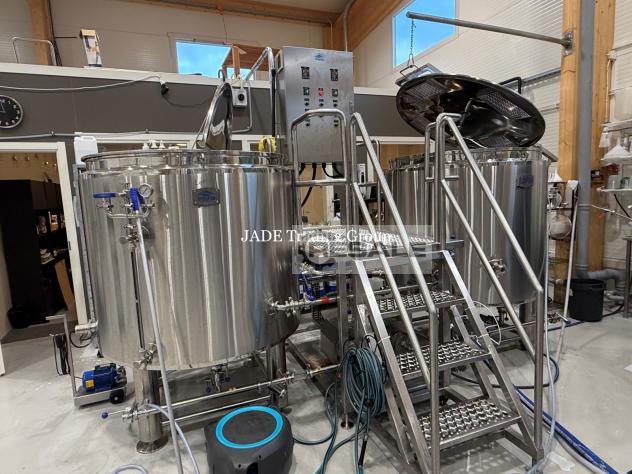

This is 2-vessel brewhouse with combined Brew Kettle / Whirlpool and
Kettle / Whirlpool (Mixing Tank). Both vessels have net volume of 1000
litres and they are made of SUS304 food grade, stainless steel,
outside passivated and inside polished. Vessels are electrically
heated with heating coils. All equipment is built on one stainless
steel platform and they consist of button control system cabinet, two
centrifugal pumps, piping and manual valves.
Content of Brewhouse
Brewhouse Platform
• Constructed from 304 Stainless Steel
• Stainless steel handrail surrounding perimeter of work area
• Platform to interconnect all brewhouse vessels for easy
operation.
• FRP grating on deck
• Optional skid for ease of installation
Process Piping
• Interconnects all tanks and devices with accurate flow diverter
panel control
• Material: 304 Stainless Steel
• Wort grant to create an air break between tanks
• All fittings and components for operation

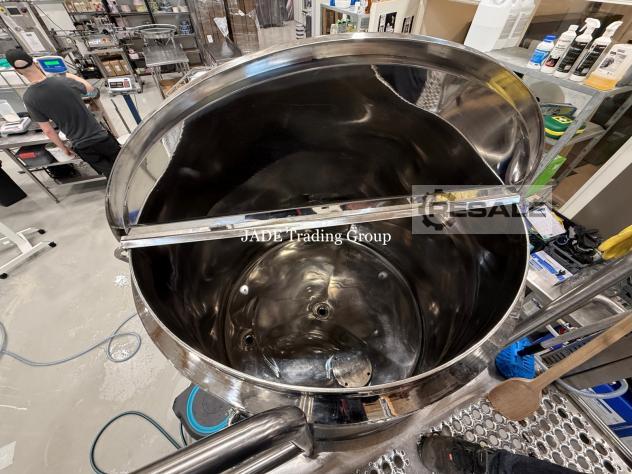

Mash/Lauter Tun
• ~40% head space
• Equipped with agitator and hydrator
• Equipped with 46KW electric heating elements
• 50mm thick PU insulation layer
• Side spent grain outdoor
• 360° coverage CIP spraying ball
• PT100 temperature sensor
• 4pcs completely SS304 legs with leveling pads

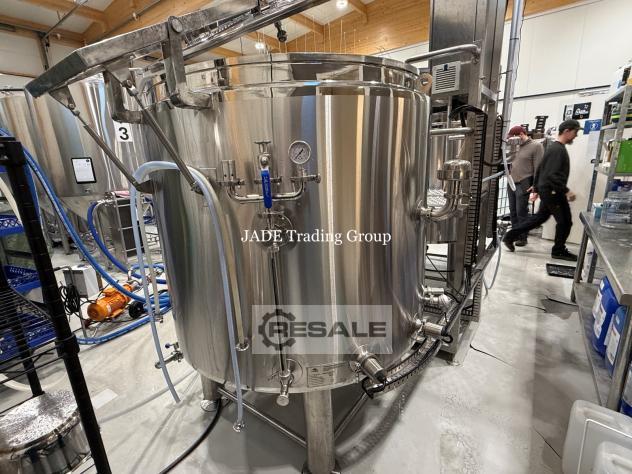

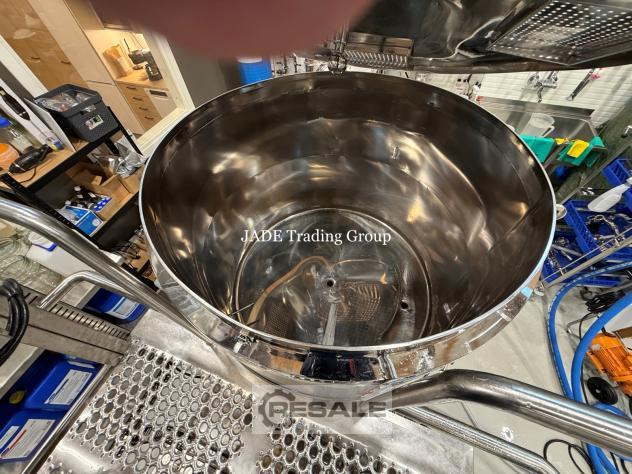

Kettle/Whirlpool Tun
• ~40% head space
• 80mm rockwool insulation
• Top full glass manway φ400mm
• Tangential inlet on side
• 24V LED light

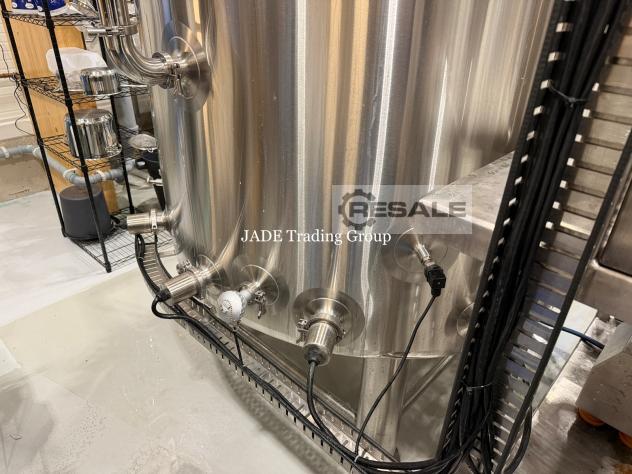

• Equipped with 58KW electric heating elements
• 360° coverage CIP spraying ball
• PT100 temperature sensor
• Vent port on dish top with a chimney or condenser
• With lifting lug on top of tank
• 4pcs completely SS304 legs with levelling pads
Wort Pump
• Flow 3m³/h, lift 24m
• Sanitary SS304
• Danfoss VFD controlled on control panel, open impeller
• Tri-clamp connection
• Complete valves and fittings

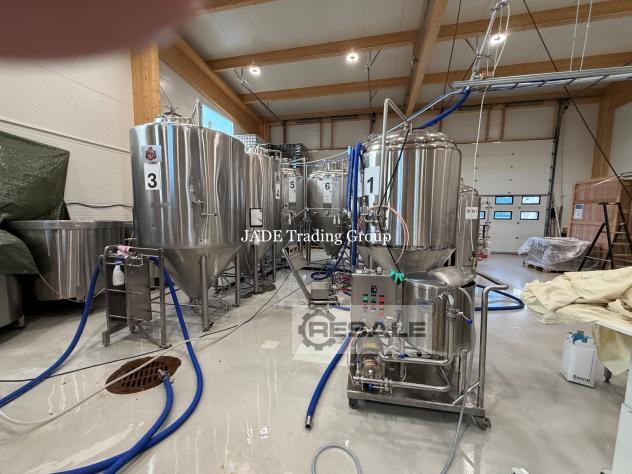

2. Tank Farm:
• 2 pcs CCT Fermenters 1000l, made in year 2022 by PMG, with cooling
jacket, max pressure 2 bar
• 2 pc BBT Unitanks 1000l Brite, made in year 2022 by PMG, with
cooling jacket, max pressure 3 bar
• 2 pcs CCT Fermenters 2000l, made in year 2017 by Schulz S-Brewery
Sp.z.o.o, with cooling jacket, max pressure 1,6 bar
• 1 pc CCT Fermenter 2000l, made in 2022 by Shandong Tonsen
Equipment, with cooling jacket, max pressure 2 bar

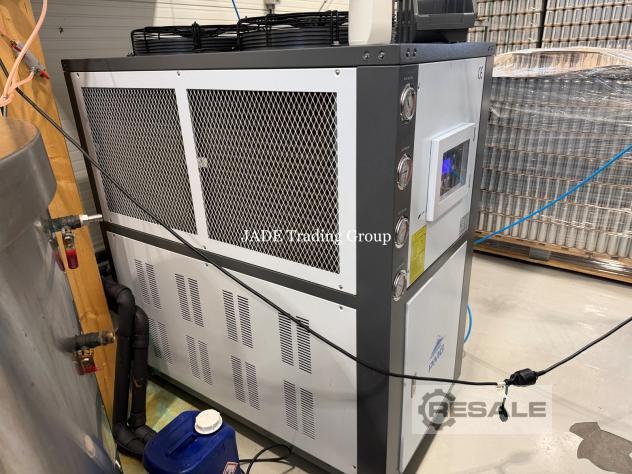

3. Water – Glycol Chiller, made by PMG, 400V 50HZ 3 Phase, Nominal
cooling capacity 11.96 kW, refrigerant R407C

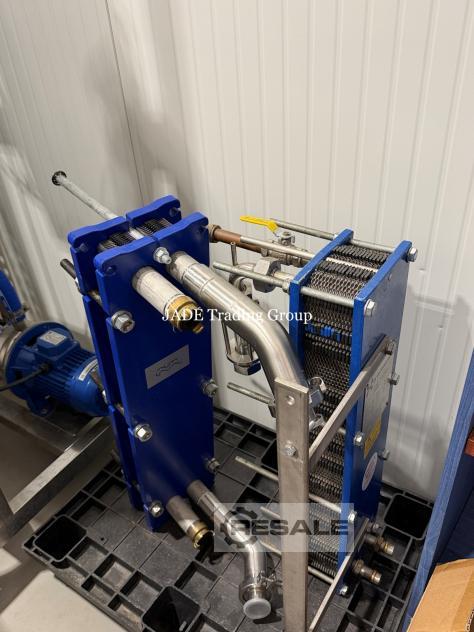

4. Wort cooler - Plate Heat Exchanger, 2017, made by UK Exchangers
LTD, type UKE-2A-3
Finland
