Manufacturer:
(Category: 108)
Set 1 - 33 pieces, 28mm system, consisting of: 12x quick-release bolts with twist lock short, without O-rings 4x Universal Stop 150 L - Nitrided 4x Universal Stop 225 L - Nitrided 2x Stop and Clamping Angle 175 L - Cast Iron 2x Stop and clamping bracket 300 G left - Nitrided 2x Prism Ø60-135° burnished - with collar Complete with shovel and countersunk head 4x Professional Screw Clamp - Nitrided 2x Professional Screw Clamp 45°/90° - Nitrided 1x accessory set consisting of: Eccentric, Allen Wrench, Brush, Whetstone, Sample CleanBasic, Sample non-stick and burner holder. Condition: never used / new (5) Auction-ID: A7-46642-128
Basic Set 1 37 pieces, 28mm system, consisting of: Clamps: 4 x 280604 Bolts: 8 x 280511 Stop: 6 x 280420.N Angle: 2 x 280110.G Threaded bolt 8 x 280543 Stop 8 x 160415 Accessory set. 1 x 163999 Hole diameter 28 mm Condition new Weight 29 kg Condition: never used / new (5) Auction-ID: A7-46642-135
Welding table / hole table with accessories: Hole diameter: 28mm The table is made of 15mm thick, high-alloy steel S355 JR T=15 The surface is untreated. Sidewalls 165mm Height adjustable from approx. 880 - 980mm Ribbed underside for reinforcement. incl. floor storage Pictured accessories included! Surface flatness 0.2 - 0.4mm to 1000mm. Very stable base, so the table with pallet truck. Table length 2400 mm Table width 1200 mm Table height 850 - 900 mm Machine weight approx. 0.65 t without pallet truck Condition: never used / new (5) Auction-ID: A7-46642-114
Welding table on lift table: Hole diameter: 28mm The table is made of 15mm thick steel S355 The surface is stained and oiled. Tolerance: +/- 1 mm at the top and +/- 1 degree at the sides. Sidewalls 150 x 10mm Ribbed underside for reinforcement. Table length 2000 mm Table width 1000 mm Load capacity 2000 kg Lifting height max. 1525 mm Total connected load 1.5 kW Connection voltage 400 V Condition: never used / new (5) Auction-ID: A7-46642-2
Welding Table / Perforated Table incl. accessory set WMT Basic-Set 2.0 The table is made of 25mm high-alloy, plasma-nitrided steel S355J2+N (St 52/3) Surface hardness 850 Vickers Sanded surfaces, ground flat. Hole diameter: 28mm, holes lowered 3mm. Grid 100 x 100mm Sidewalls 200mm Bore spacing in the sidewalls 50mm, diagonal grid. Height adjustable from approx. 830 - 890mm Substructure reinforced with flat steel 140 x 15mm incl. bottom bearing diameter 110mm Table length 2000 mm Table width 1000 mm Table height 900 mm Table load 3000 kg Machine weight approx. 0.45 t Dimensions L x W x H 2.0 x 1.0 x 0.9 m Auction-ID: A7-46642-78
Set 5: 125 pieces, 28mm system, consisting of: Ferrules: 14 x 280610.N Ferrules: 10 x 280630.N Prism: 6 x 280648.1.N Bolts: 36 x 160511 Magnetic Bolt 8 x 280740 Stop: 12 x 280410.N Stop: 12 x 280420.N Stop: 4 x 280430.N Angle: 12 x 160110.N Angle: 2 x 280152.N Angle: 2 x 280162.N Angle: 1 x 280164.N Angle: 1 x 280165.N Angle: 1 x 280166.N Angle: 1 x 280167.N Angle: 1 x 280144.N Angle: 1 x 280146.N Trolley: 1 x 280910 Accessory set. 1 x 283999 Number of 106 Lots Weight 283 kg Condition new Hole diameter 28 mm Auction-ID: A7-46642-235
Special set 31 pieces, 28mm system, consisting of: 1x Tool Trolley 10x Staking Bolts 10x Ball Lock Pin 3x Professional Screw Clamp, 300 x 150mm 3x Professional Screw Clamp, 300 x 200mm 2x Professional Pipe Screw Clamp 180° 2x Professional Pipe Screw Clamp 45° Material: Burnished quality steel ATTENTION Tool is designed for 25mm table top thickness. Number of 96 Lots Weight 600 kg Condition new Hole diameter 28 mm Auction-ID: A7-46642-132
Roller trestle - Burner tripod - Continuous number - Footswitch - Instruction manual in English Load capacity 1000 kg Workpiece diameter 20 - 800 mm Drum diameter 200 x 50 mm Feed rate 50 - 2000 mm/min Weight 65 kg Total power requirement 0.6 kW Space requirement approx. 0.8 x 0.6 x 0.6 m Condition: never used / new (5) Auction-ID: A7-46642-28

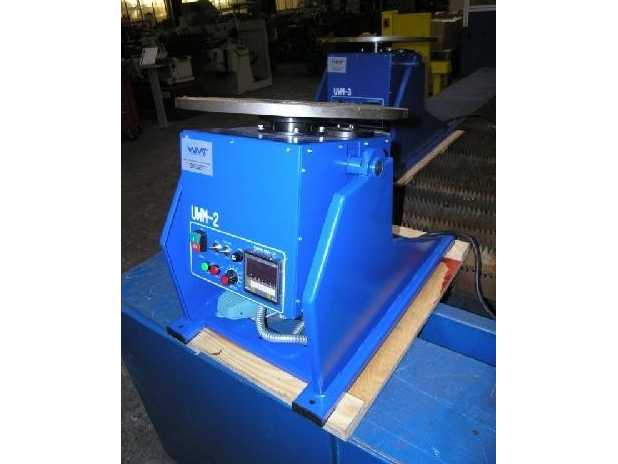

Welding turntable with - Footswitch - Tilting/swivelling by hand - Speed infinitely adjustable - 400 amp welding current transmission Table length 400 mm Table width 400 mm Table load 0.2 t Table diameter 400 mm Swivel range 90 degrees Speed 0.2 - 2 infinitely variable rpm Table load 100 kg. vertical Total power requirement 220 kW Machine weight approx. 0.065 t Space requirement approx. 0.56 x 0.42 x 0.46 m Condition: never used / new (5) Auction-ID: A7-46642-55

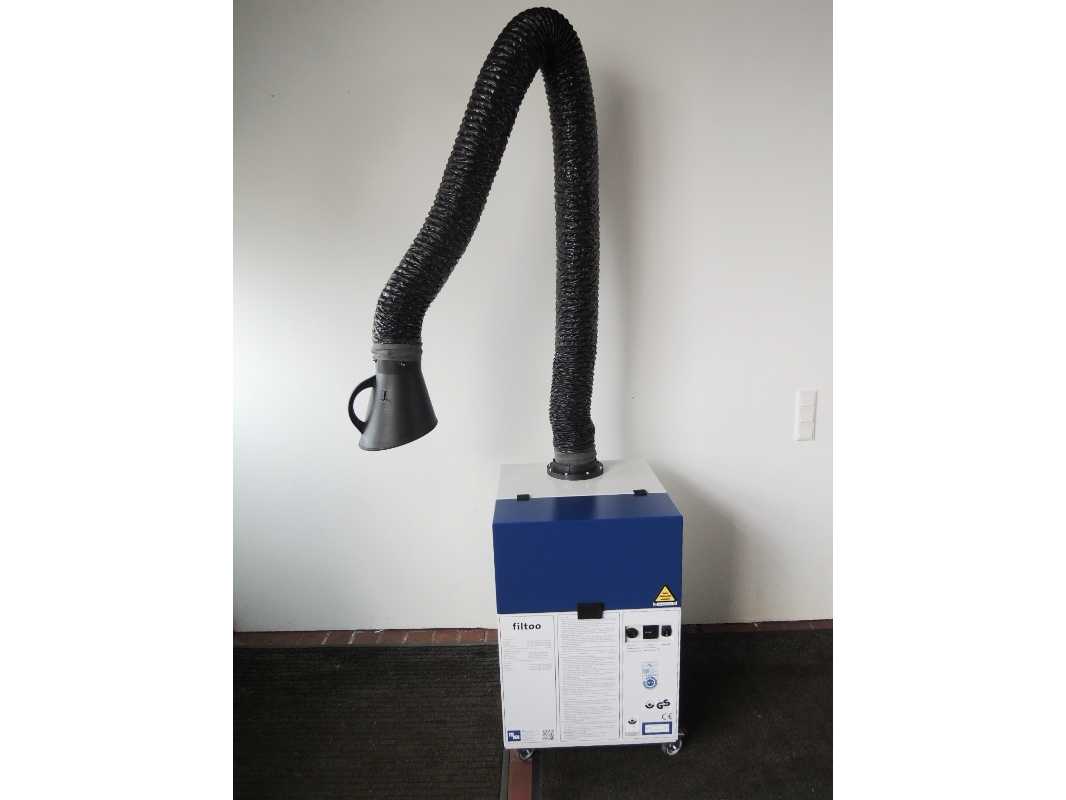

TEKA filter device filtoo , Volume flow 2500 m3/h Total power requirement 1.1 kW Machine weight approx. 80 kg Space requirement approx. 0.58x0.58x0.58 m Condition: never used / new (5) Auction-ID: A7-46642-157
Marking table with groove 22 x 22mm Table area 1600 x 800mm Table height 890mm Weight 800Kg see pictures Auction-ID: A7-46642-253
Auction-ID: A1-46686-76
Features • Self-aligning for multiple diameters • Infinitely adjustable speed of the drive unit • Polyurethane coating of the rollers • Optimal load distribution (4 rollers/unit), particularly gentle for workpieces with low wall thickness and sensitive surfaces • High stability due to solid construction of the machine • CE certificate • Very good value for money • Remote control on the cable • Documentation in English Load capacity 5 t Workpiece diameter 300 - 2500 mm Drum diameter 250 x 100 mm Feed rate 100 - 1000 mm/min Total power requirement 0.75 kW Weight 0.6 t Dimensions L x W x H 1.5 x 1.0 x 0.6 m Condition: never used / new (5) Auction-ID: A7-46642-200

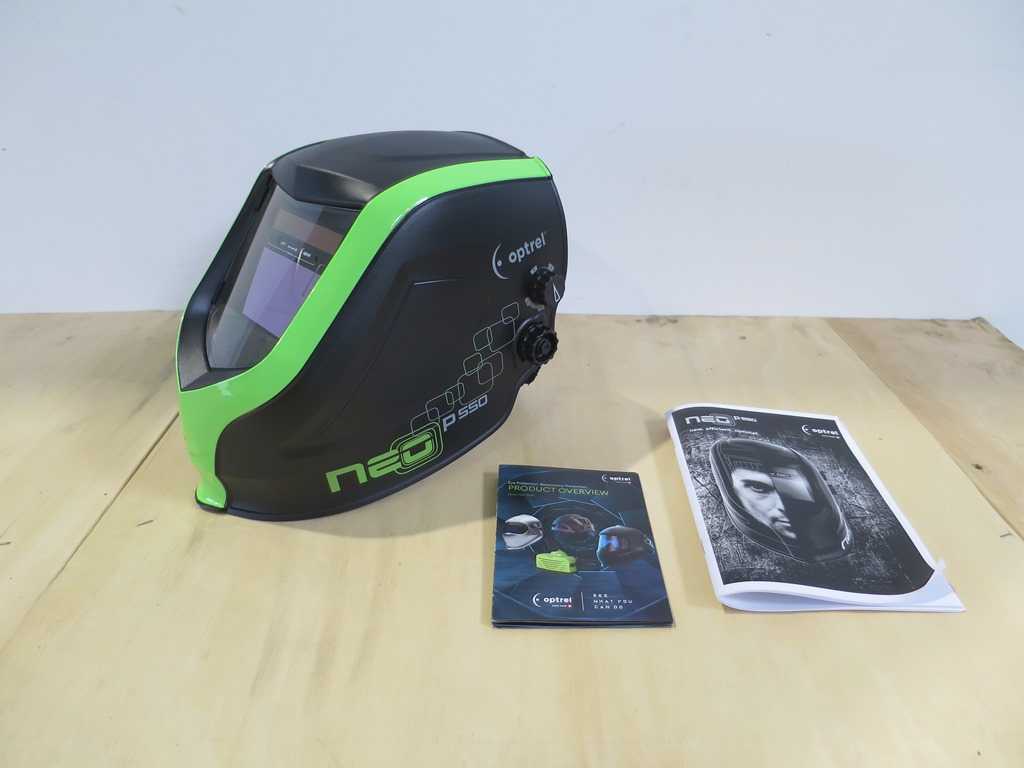

Welding helmet Protection level 9 -13 m Power supply 2 x CR2032 Weight 460 grams Dimensions 250 x 270 x 230 mm Condition: never used / new (5) Auction-ID: A7-46642-167

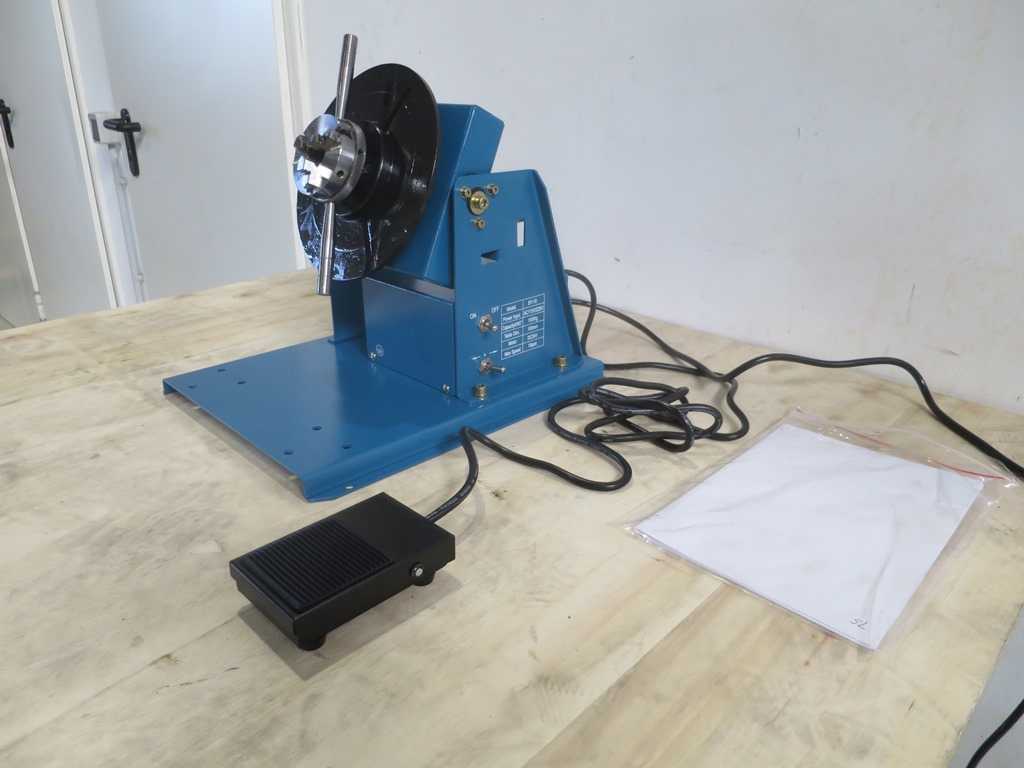

Welding turntable with - Quick-release chuck 65mm - Footswitch - Tilting/swivelling by hand - Speed infinitely adjustable Table diameter 180 mm Table load horizontal 10 Kg Table load vertical 5 Kg Chuck diameter 65 mm Speed 2 - 20 infinitely variable Swivel range 90 degrees Tilt adjustment: manual/mechanical manual Connection voltage 230 V Machine weight approx. 18 kg Space requirements approx. 300 x 300 x 300 m Condition: never used / new (5) Auction-ID: A7-46642-53

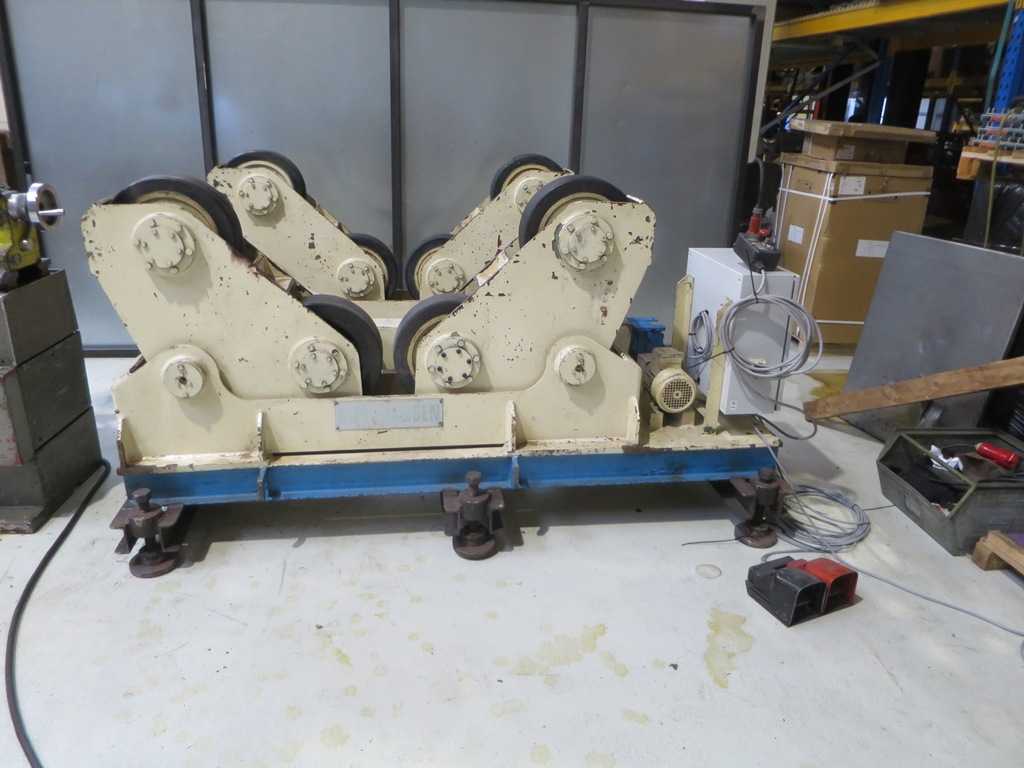

Roller trestle - Self-aligning - Left/right rotation - New control system - Foot pedal - Emergency stop facility Lifting capacity 20 t Workpiece diameter 1500 - 3500 mm Drum diameter 250 x 100 mm Feed rate 100 - 1400 mm/min Total power requirement 0.75 kW Machine weight approx. 2.5 t Dimensions LxWxH 2.5 x 1.5 x 1.5 m Auction-ID: A7-46642-5

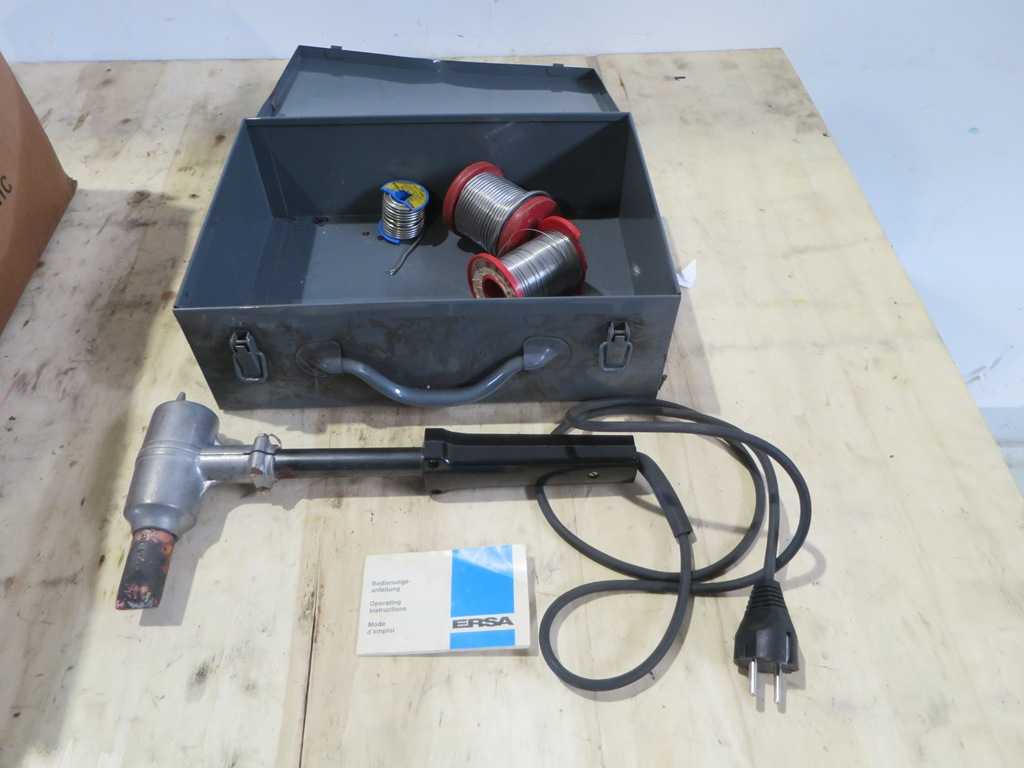

Soldering iron in metal case see pictures Auction-ID: A7-46642-20

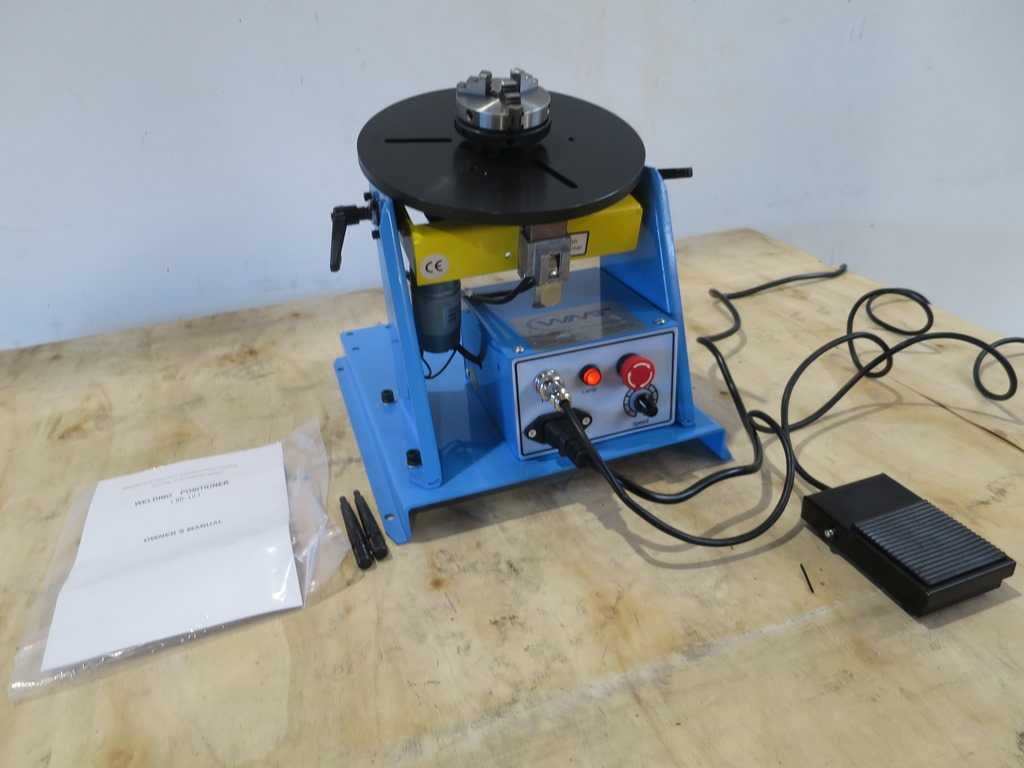

Welding turntable with - Quick-release chuck 65mm - Footswitch - Tilting/swivelling by hand - Speed infinitely adjustable Table diameter 180 mm Table load horizontal 10 Kg Table load vertical 5 Kg Chuck diameter 65 mm Speed 2 - 10 rpm Swivel range 90 degrees Tilt adjustment: manual Connection voltage 230 V Machine weight approx. 15 kg Space requirement approx. 400 x 400 x 400 mm Condition: never used / new (5) Auction-ID: A7-46642-82
Welding table \"SIGMUND Professional 750 + plasma nitrided\" is made of high-quality steel S355J2+N and is plasma nitrided. Surface hardness max. 750 Vickers. The table has a material thickness of approx. 24.5-27mm. The holes have a diameter of 28mm. Hole arrangement in 100 mm increments on the table top, parallel hole arrangement in 50 mm increments on the sides. Incl. basic foot equipment. Without accessories shown. Table length 2000 mm Table width 1000 mm Table height 850 mm Height adjustment 50 mm Machine weight approx. 0.75 t Dimensions L x W x H 2.0 x 1.0 x 0.9 m Condition: never used / new (5) Auction-ID: A7-46642-17
Special set 96 pieces consisting of: 1x Tool Trolley 30x quick-release bolts with twist lock short, without O-rings 8x Universal Stop 150 L - Nitrided 4x Universal Stop 225 L - Nitrided 8x Stop and clamping angle 175 L - cast iron 2x Stop and clamping angle 500 G left - Nitrided 1x Stop and clamping bracket 750 G left - Nitrided 1x Stop and clamping bracket 750 G right - Nitrided 1x Stop and clamping angle 500 G left - Nitrided 1x Stop and clamping angle 500 G right - Nitrided 4x Stop and clamping angle 300 G left - Nitrided 8x Prism Ø60-135° burnished - with collar Complete with shovel and countersunk head 16x Professional Screw Clamp - Nitrided 6x Professional Screw Clamp 45°/90° - Nitrided 4x Universal Stop 300 - Nitrided 1x accessory set consisting of: Eccentric, Allen Wrench, Brush, Whetstone, Sample CleanBasic, Sample Non-stick and burner holder. Condition: never used / new (5 ...
Welding turntable with - Footswitch - Tilting/swivelling by hand - Speed infinitely adjustable - 250 amp welding current transmission - Hole in face plate 40mm. Table diameter 350 mm Table load 100 kg Swivel range 90 degrees Speed 0.2 - 2 infinitely variable rpm Table load 50 kg. vertical Machine weight approx. 0.055 t Space requirement approx. 0.46 x 0.4 x 0.42 m Condition: never used / new (5) Auction-ID: A7-46642-101
Welding table / hole table: with milled and deburred holes Hole diameter: 28mm The table is made of 15mm thick, high-alloy steel S355 JR T=15 The surface is untreated. Sidewalls 165mm Height adjustable from approx. 880 - 980mm Ribbed underside for reinforcement. incl. floor storage Accessories optional Surface flatness 0.2 - 0.5mm to 1000mm. Technical data: Table length 2400 mm Table width 1200 mm Table height 850 - 900 mm Machine weight approx. 0.65 t Auction-ID: A7-46642-129
Electrode furnace: Capacity 5 Kg Inner dimensions (LxWxD) 100 x 75 x 450 mm Power 0.4 kw Connection voltage 220 - 240 V Adjustment device 30 - 180 degrees Weight 10 kg Dimensions L x W x H 570 x 200 x 150 mm Condition: never used / new (5) Auction-ID: A7-46642-158
Welding table / hole table: Hole diameter: 28mm The table is made of 15mm thick, high-alloy steel S355 JR T=15 The surface is untreated. Sidewalls 165mm Ribbed underside for reinforcement. incl. floor storage Accessories optional Surface flatness 0.2 - 0.4mm to 1000mm. - With drawer unit - Grid shelf - Heavy-duty castors steerable Worn welding accessories not included Table length 2400 mm Table width 1200 mm Table height 850 - 900 mm Machine weight approx. 0.65 t Dimensions L x W x H 2.4 x 1.2 x 0.95 m Condition: never used / new (5) Auction-ID: A7-46642-131
Set 3: 77-piece, 28mm system, consisting of: Ferrules: 10 x 280610.N Ferrules: 6 x 280630.N Prism: 4 x 280648.1.N Bolt: 24 x 160511 Magnetic Bolt 4 x 280740 Stop: 8 x 280410.N Stop: 8 x 280420.N Angle: 6 x 160110.N Angle: 2 x 280152.N Angle: 2 x 280162.N Angle: 1 x 280166.N Angle: 1 x 280167.N Accessory set. 1 x 283999 Number 77 Lots Weight 146 kg Condition new Hole diameter 28 mm Auction-ID: A7-46642-204
Container Rotating Device Load capacity 2.2 t Workpiece diameter 101 - 1524 mm Feed speeds infinitely variable 0 - 3600 mm/min Wheel diameter 254 mm Wheel width 76 mm Total power requirement 0.5 kW Machine weight approx. 0.245 t Space requirements approx. 1.02 x 0.82 x 0.5 m Condition: never used / new (5) Auction-ID: A7-46642-169

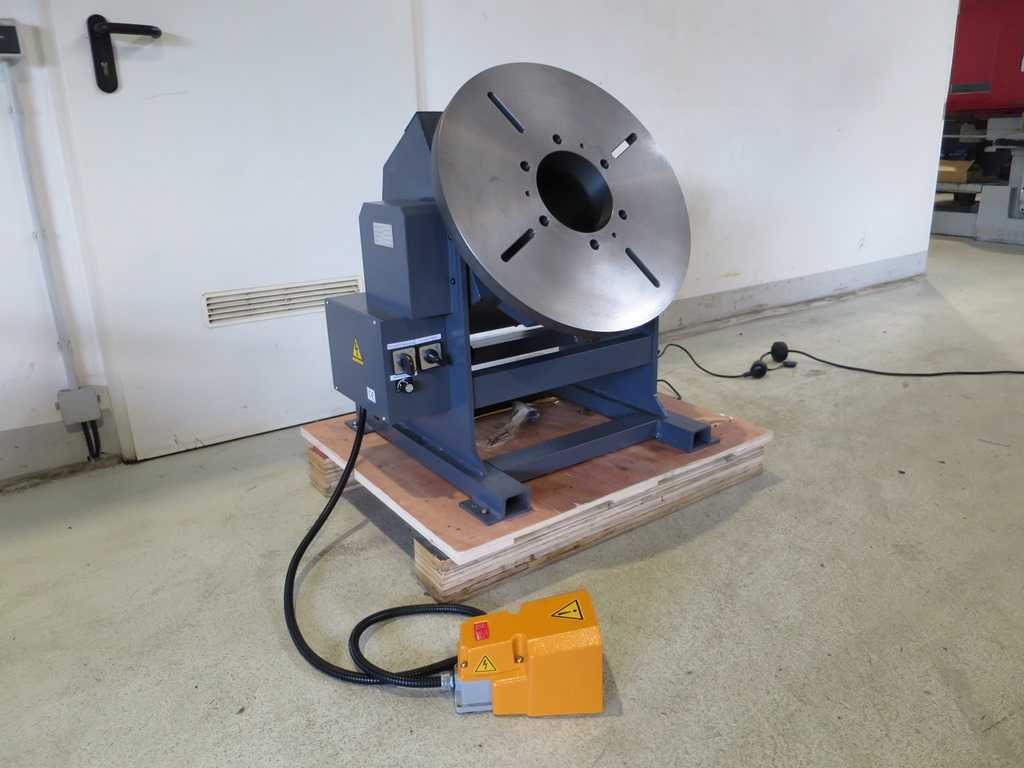

Welding turntable with - Large passage 165mm - Footswitch - Tilting motorically - Speed infinitely adjustable - 250 amp welding current transmission documentation in English. Table load 500 kg Table load 250 kg. vertical Table diameter 550 mm Swivel range 135 (-45 - +90) degrees Speed 0 - 5 infinitely variable rpm Connection voltage 230 V Total power requirement 0.8 KW Machine weight approx. 0.255 t Dimensions approx. 0.82 x 0.73 x 0.71 m Condition: never used / new (5) Auction-ID: A7-46642-122
Welding table / straightening table - Panel thickness 80mm - Panel thickness incl. frame 360mm Table length 4900 mm Table width 1300 mm Table height 980 mm Machine weight approx. 5.6 t Dimensions L x W x H 5.0 x 1.3 x 0.6 m Auction-ID: A7-46642-34
Welding table / hole table: Hole diameter: 28mm The table is made of 15mm thick, high-alloy steel S355 JR T=15 The surface is untreated. Sidewalls 165mm Height adjustable from approx. 880 - 980mm Ribbed underside for reinforcement. incl. floor storage Pictured accessories are not included! Surface flatness 0.2 - 0.4mm to 1000mm. Very stable base, so the table with pallet truck. Table length 2400 mm Table width 1200 mm Table height 850 - 900 mm Machine weight approx. 0.65 t Accessories on the table and pallet truck are not included Condition: never used / new (5) Auction-ID: A7-46642-43
1.200 €
