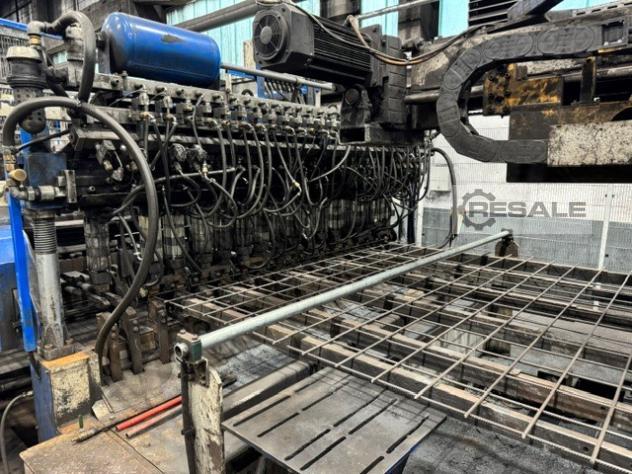

This used SCHLATTER MG line was specially developed for the economical production of light and heavy standard bearing mats in medium and large series. The line wires are drawn directly from spools, while the cross wires are precisely straightened, cut to length and fed into the welding system from a large magazine. This concept enables fast changeover times and ensures maximum flexibility – a clear advantage when tapping into new markets. On request, and for an additional charge, the relevant straightening machines for the cross wires are available, as well as a comprehensive range of accessories, spare parts and a wear parts pack.
5.000 € add to watchlist

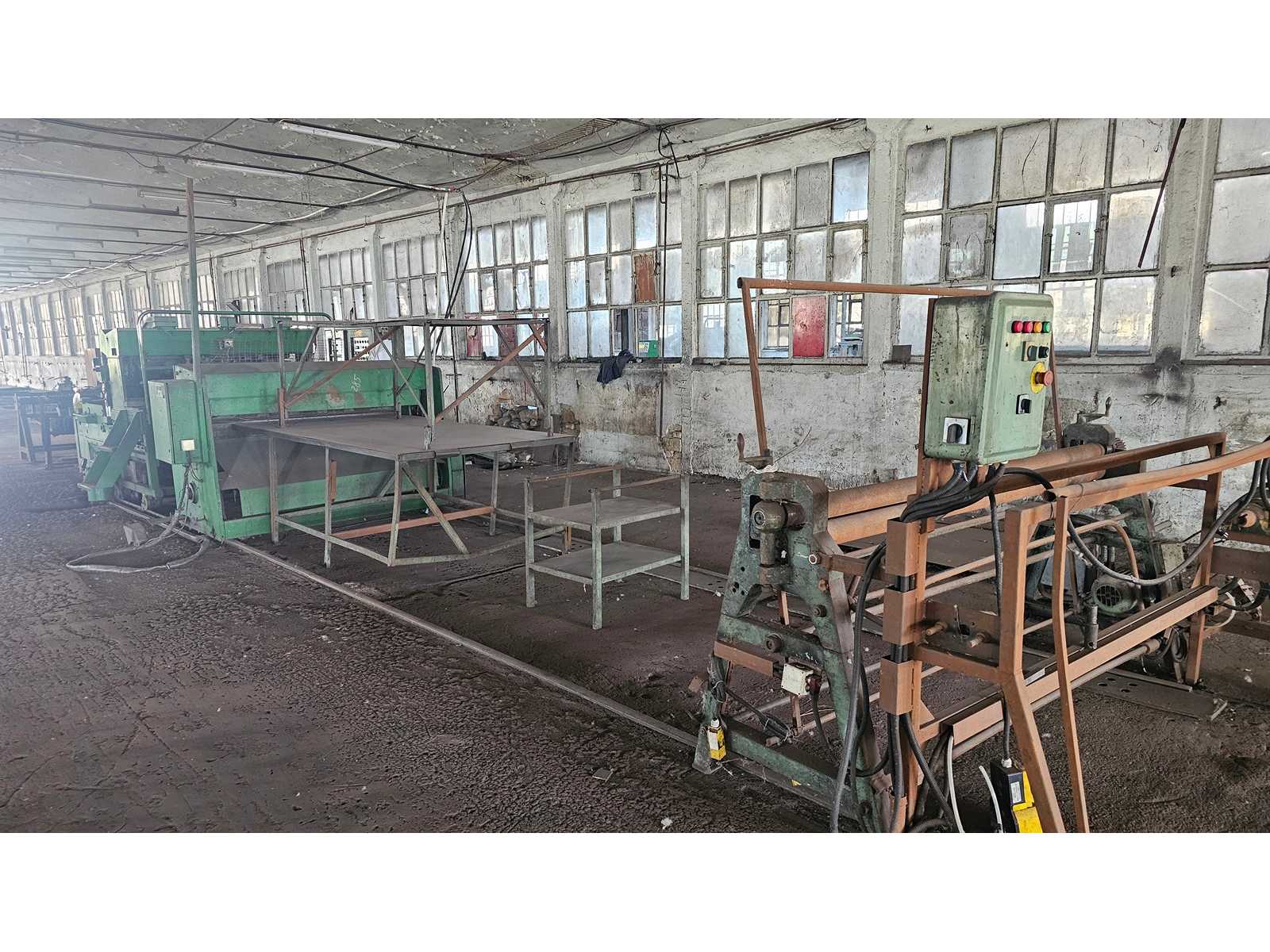

\"Technical details Manufacturer: Adda Fer Meccanica Type: Multi-wire straightening, feeding and cutting line Function: Preparation of wire for mesh production Build year: Estimated 1985–2000 Automation: Relay-controlled industrial system Quantity: 1 complete machine Configuration: - Multiple wire coil pay-off stations - Wire straightening assemblies - Wire guide rollers - Driven feed roller units - Gear reduction drive systems - Vertical processing tower - Electric drive motors - Control cabinets - Automated wire handling system Application: - Reinforcement wire processing - Welded mesh production - Steel wire straightening - Wire cutting operations - Construction mesh manufacturing - Industrial wire preparation Process function: - Wire decoiling from multiple coils - Wire straightening and conditioning - Automatic wire feeding - Wire length preparation for downstream production - Sup ...
Working range Mesh width (cross-wire length) max. 1,500 – 3,080 mm Distance between the outermost longitudinal wires max. 2,750 mm Number of longitudinal wires, depending on configuration max. 64 Longitudinal wire spacing, fixed 50 mm with single bars and 100, 150, 200mm with double wire Longitudinal wire diameter: a. 4.0 – 12.0 mm single wire and B. 4.0 – 9.0 mm Double Wire Cross-wire spacing min. 40 mm, freely programmable in increments of 0.1 mm above this range Cross-wire diameter 4.0–12.0 mm Mesh length: up to 14.000mm
7.500 € add to watchlist
Technical details Manufacturer: Schlatter AG Type: Automatic resistance wire mesh welding and production line Configuration: Wire coil pay-off stations, longitudinal wire feeding system, wire straightening units, cross-wire positioning mechanism, multi-electrode resistance welding section, welding transformers, mesh transport system, output stacking section, auxiliary roller handling and tensioning station, relay-based electrical control cabinets, pneumatic and electromechanical actuation systems. Application: Production of welded wire mesh, reinforcement mesh, fence panels, industrial mesh and construction wire products. Function: Automatic feeding of longitudinal and cross wires, resistance welding of wire intersections, mesh transport, tensioning, flattening and stacking of finished panels. Electrical system: Relay logic control architecture with contactors, transformers and terminal- ...
Working range Mesh width (cross-wire length) max. 1,600 – 2,500 mm Distance between the outermost longitudinal wires max. 2,400 mm Number of longitudinal wires, depending on configuration max. 26 Longitudinal wire spacing: 150 mm Longitudinal wire diameter 4.0 – 8.5 mm Cross-wire spacing min. 50 mm, freely programmable in increments of 0.1 mm above this range Cross-wire diameter 4.0 – 8.5 mm Working speed: max 150 cross wires/min Scope of supply: line wire spool pay off to mesh paket stacking system
2.500 € add to watchlist

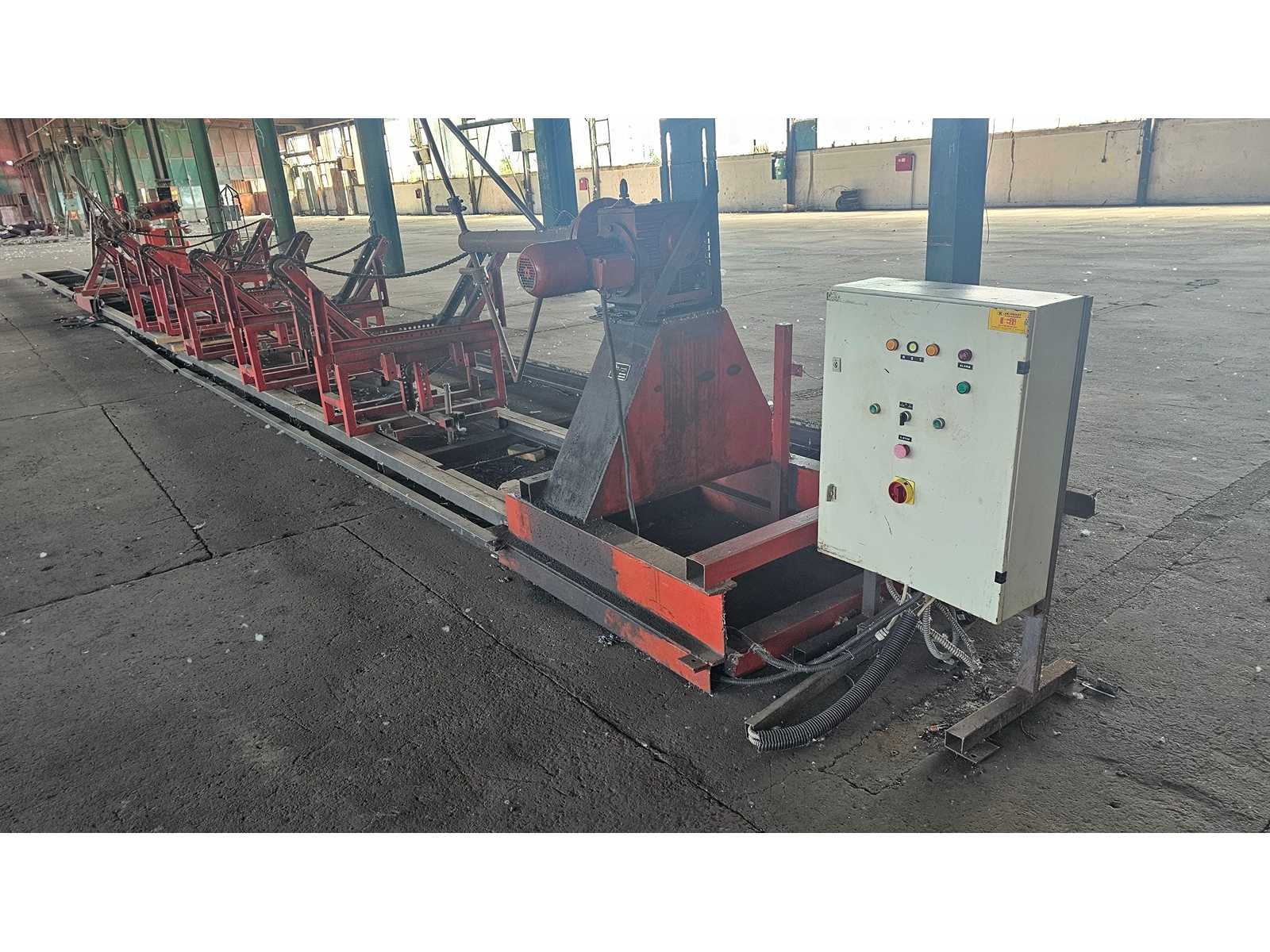

\"Technical details Manufacturer: ALMAR Model: GAL-002 (model designation appears from nameplate) Type: Rail-mounted wire feeding and positioning machine Configuration: - Motorized positioning carriage - Rack-and-pinion rail drive system - Linear guide rails - Wire feeding rollers - Guide roller assemblies - Multiple articulated support arms - Wire support and positioning cradles - Wire coil pay-off station - Electrical control cabinet - Automated wire transport system Application: - Wire mesh production - Cross-wire feeding and positioning - Reinforcement mesh manufacturing - Automated wire handling - Wire transport to welding stations - Industrial mesh production systems Function: - Automatic wire positioning - Controlled wire feeding - Rail-guided transport of wire handling assemblies - Integration with mesh welding production lines Construction: - Heavy-duty welded steel structure - ...
300 € add to watchlist

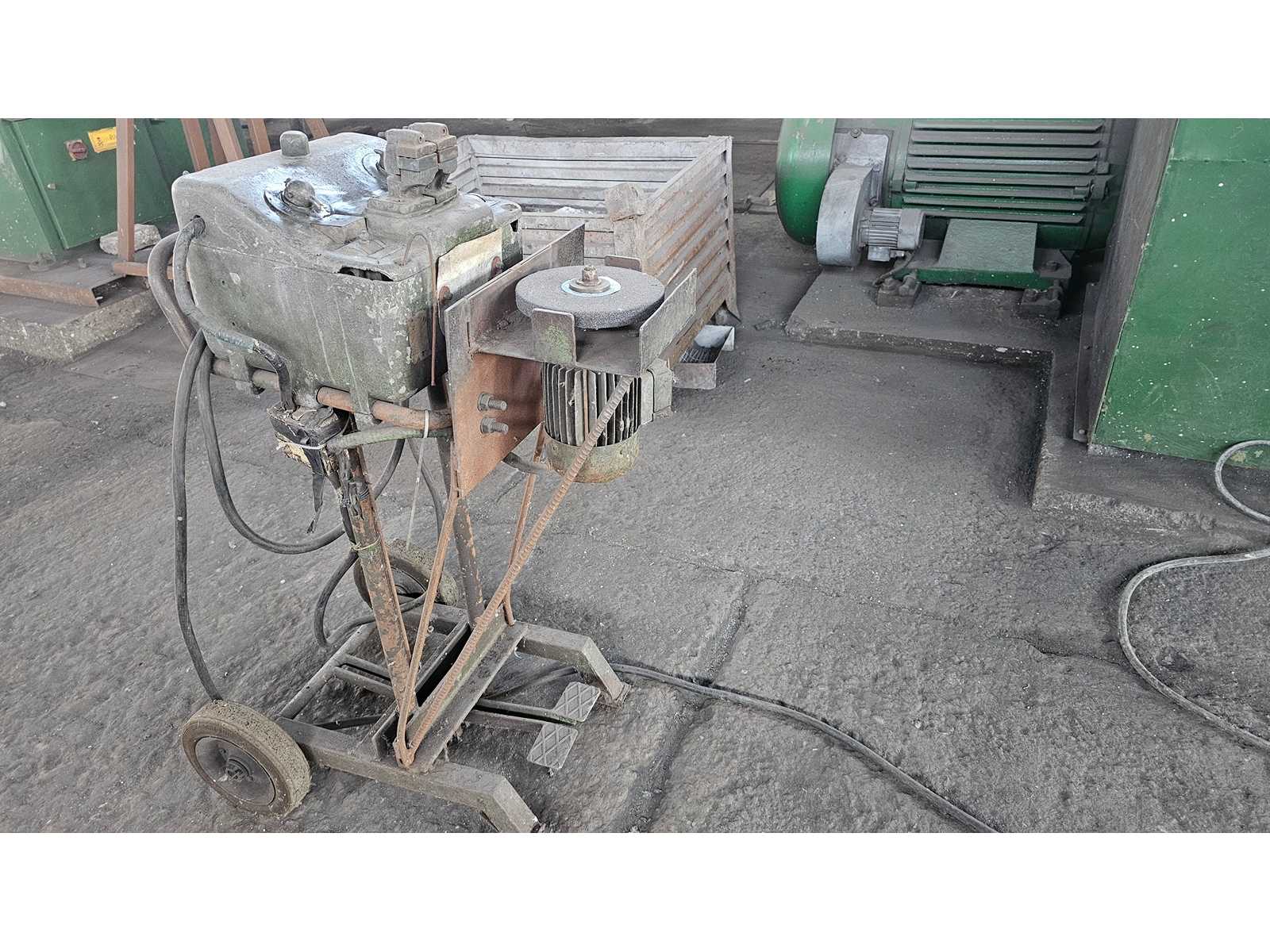

\"Technical details Type: Portable resistance wire butt welding and grinding machine Additional function: Weld flash grinding and joint finishing Build year: Estimated 1960–1985 Configuration: - Resistance butt welding unit - Adjustable wire clamping jaws - Wire alignment mechanism - Pressure adjustment controls - Integrated grinding wheel assembly - Foot-operated controls - Wheeled mobile stand - Electrical welding transformer system Application: - Wire coil joining - Steel wire processing - Reinforcement wire production - Wire mesh manufacturing - Continuous wire feeding operations - Weld joint finishing and deburring Function: - End-to-end wire welding - Joining depleted wire coils to new coils - Grinding and smoothing welded joints - Preparation of welded joints for passage through rollers and guides Construction: - Heavy-duty industrial frame - Portable workshop design - Combined ...
One used mesh turning and stacking unit from EVG T6 D
5.500 € add to watchlist
\"Technical details Manufacturer: Schnell S.p.A. Model: BAT 1000/1320 Type: Automatic rebar stirrup bending machine Serial number: 21113773 Power: Approx. 15 kW Voltage: 400 V Frequency: 50 Hz Certification: CE marked Configuration: - CNC-controlled bending system - Servo-driven feed and positioning axes - Automatic wire/bar feeding rollers - Multi-roller bending head - Programmable bending assembly - Automatic length measuring system - Product discharge and collection table - Hydraulic and pneumatic systems - Siemens drive technology - Industrial operator interface (HMI) - Electrical control cabinets - Safety systems and foot controls Application: - Reinforcement stirrup production - Closed reinforcement hoops - Bent reinforcement elements - Structural steel reinforcement shapes - Construction and precast concrete industries Function: - Automatic feeding - Measuring - Cutting - CNC-cont ...
One used SCHLATTER automatic binding unit for welded mesh stacks. Comprising a left and right unit; automatically binds the mesh stack
7.500 € add to watchlist
\"Technical details Manufacturer: EVG Entwicklungs- und Verwertungsgesellschaft m.b.H. Model: PBE 2-16-C Type: Automatic wire straightening, feeding and bending machine Year: 2011 Serial number: K027770 Project reference: T227920 Connected load: 40 kW Configuration: - Multi-roll wire straightening units - Adjustable straightening roller banks - Motorized wire feeding system - Automatic wire bending head - Rotating bending disc - Interchangeable bending pins and tooling - Wire coil storage and feeding stations - Automated handling tables - Siemens-based control hardware - Industrial operator interface - Servo drive systems - Electrical control cabinets Application: - Reinforcement steel processing - Straight wire production - Bent reinforcement elements - Mesh production components - Construction steel fabrication - Industrial wire forming operations Function: - Wire decoiling from coils ...
300 € add to watchlist

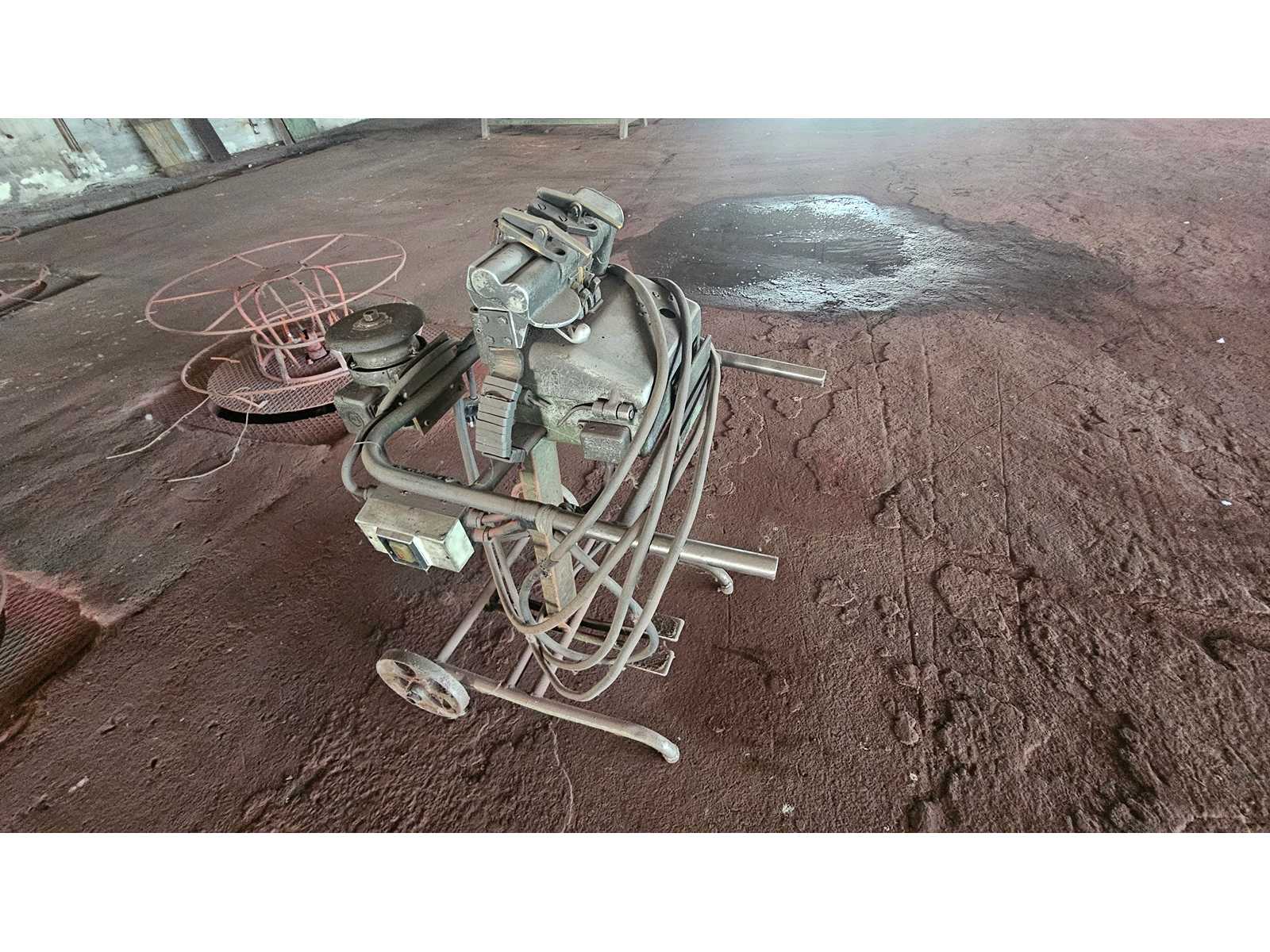

\"Technical details Type: Portable wire butt welding machine Configuration: - Opposing wire clamping jaws - Wire alignment mechanism - Adjustable alignment scale - Integrated welding transformer body - Foot-operated control pedal - Portable wheeled stand - Mechanical clamping system Application: - Steel wire butt welding - Wire coil joining - Reinforcement wire joining - Wire mesh production support - Continuous wire feeding operations - Industrial wire processing Function: - End-to-end welding of steel wire - Joining depleted wire coils to new coils - Minimising production interruptions - Maintaining continuous mesh production Construction: - Heavy cast-metal frame - Resistance welding technology - Industrial workshop design Estimated period of manufacture: - Approx. 1955–1980 Dimensions: - Length: Approx. 900 mm - Width: Approx. 700 mm - Height: Approx. 1300 mm Weight: Approx. 180 kg ...
12.000 € add to watchlist
\"Technical details Manufacturer: MEP S.p.A. Model: SYNTAX LINE 25 Type: Automatic reinforcement mesh processing system Serial number: 730061 Certification: CE marked Automation: PLC/CNC controlled Configuration: - Automated mesh assembly table - Reinforcement bar positioning system - Multiple wire and bar feeding heads - Feed rollers and transport mechanisms - Pneumatic and hydraulic positioning frames - Automated handling system - PLC-controlled electrical cabinets - Industrial HMI operator interface - Hydraulic power unit and valve manifolds - Safety guarding system - Mesh support and transfer stations Application: - Reinforcement mesh production - Welded mesh assembly - Construction reinforcement elements - Reinforcing mat production - Rebar processing operations - Automated steel reinforcement fabrication Function: - Automatic feeding of reinforcement bars - Positioning and assembly ...
