Manufacturer:
(Category: 108)
Important note: the yellow bars shown in the pictures, as well as all welding accessories (trolleys with welding hoses and torches etc.) are not included in the sales and scope of deliveryMobile table with perforated plate (was used for welding)incl. clamping accessories for the perforated plateincl. a mobile table with wooden plateDimensions of the perforated plate: 2000 x 1200 mmReference: Schiller - Lot 18 Weight: approx. 1200 Auction-ID: A7-46763-189
Serial number: 1920Connected load: 24 kVAControl voltage: 220 V Auction-ID: A7-46287-7
Serial number: 10480407Attention: for all other welding technical data see photographed nameplateReference: Forster - Lot 6 Auction-ID: A7-46763-386

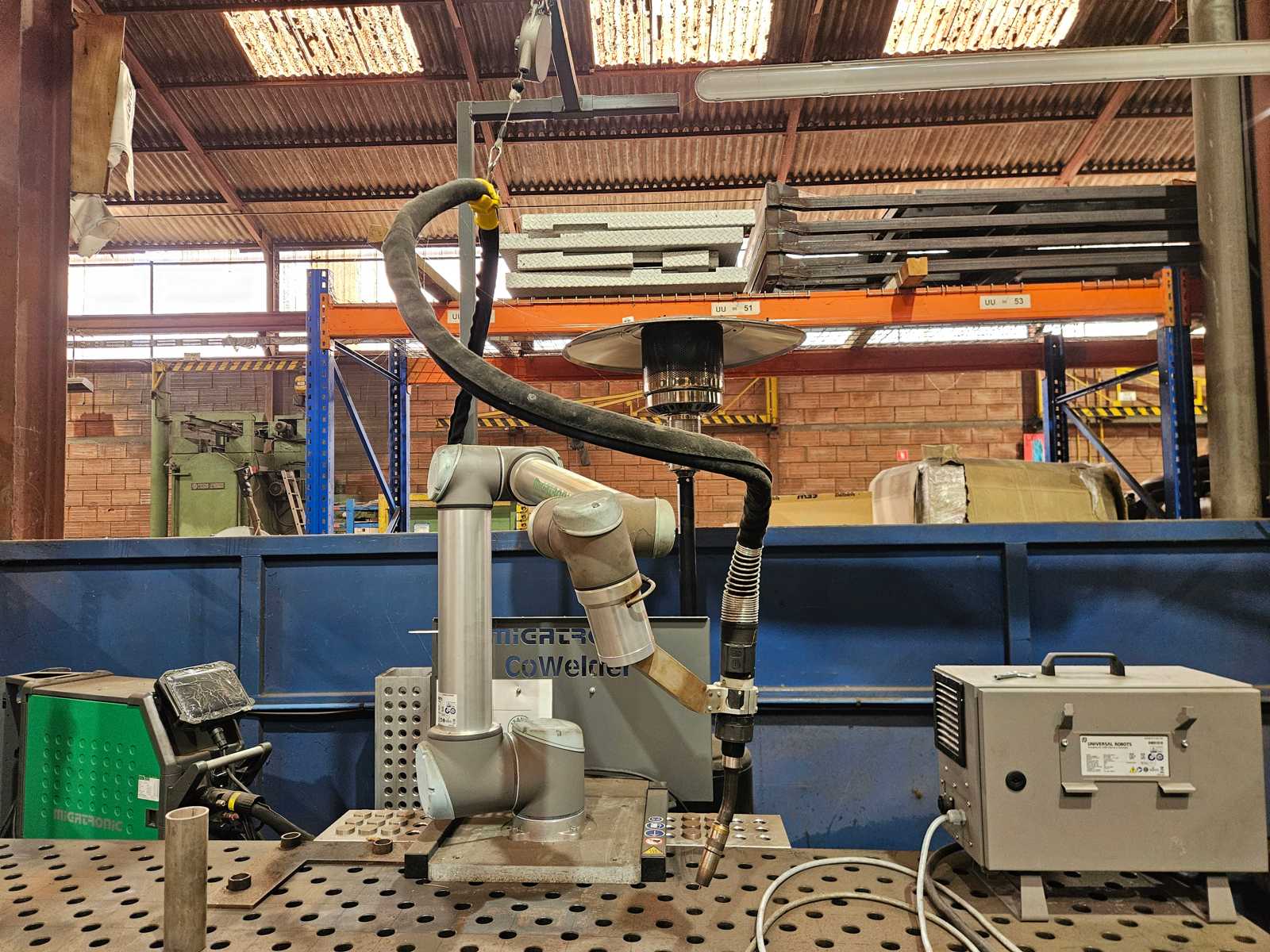

Mechanical data EquipmentTypeValue UR10 robot (incl. stand)Dimensions750×600×2500 mm Welding MachineDimensions700×260×735 mm CoolingDimensions207×260×680 mm UR10 RobotWeight125 kg MachineWeight53 kg CoolingWeight20 kg Electrical data EquipmentSpecificationValue RobotVoltage230V+N+PE, 50Hz 24 VDC Control Robot 16 Amp Fuse Robot WeldingVoltage3×400+N, 50–60Hz WeldingFuse20 A Safety Defect C203A0 Auction-ID: A1-46647-3
Attention: for all other welding data, see photographed nameplate Auction-ID: A7-46287-55
Manufacturing number: 95258IP 23VDE 0554Important note: without welding hose and earthingReference: Schiller - Lot 9 Auction-ID: A7-46763-182
Serial Number: 00826Voltage: 400 VMax. Power: 230 kVA Auction-ID: A7-46287-5
This machine was completely overhauled 4 years ago and is fully functional. The machine has already been disassembled excluding robot! Auction-ID: A3-43528-5138
Serial number: 1061Electrode force: from 15 to 110 kP Auction-ID: A7-46287-2
Consisting of 6 panels and 2 doors now U-shaped, Up to size 400 x 200 x 230cm Auction-ID: A1-46604-88
Approx. 240 x 120 x 93cm, Includes 6 different welding table clamps Auction-ID: A1-46604-74
incl. welding hose and earthingReference: Schiller - Lot 7 Auction-ID: A7-46763-181
Model Number: ME-6010FSASerial Number: 14120193Temperature Range: 80 - 250°CPower: 280WFrequency: 50HzVoltage: 230 - 240V Auction-ID: A7-46287-47
COMMERCY 426 XP welding machineComplete MIG/MAG station with torches, hoses and cables. Gas bottle with regulator included. 400 V three-phase power supply. Dimensions 800 × 600 × 1500 mm. Weight approx. 120 kg. Auction-ID: A1-46801-67
incl. welding hose and earthingwith accessories for the welding gun as shown in the picturesReference: Schiller - Lot 12 Auction-ID: A7-46763-184
Electrode force: from 15 to 110 kPConnected load: 19 kVAon base Auction-ID: A7-46287-8
incl. welding hose and earthingReference: Schiller - Lot 4 Auction-ID: A7-46763-179
Complete with Denaliweld feeder Auction-ID: A1-46604-72
Serial Number: 0110-36643 Operating Voltage: 230 - 240 V Frequency: 50 HzRated Current: 2.4 AConnection: 550 WSpeed: 2850 rpmReference: Beeper - Lot 12 Auction-ID: A7-46763-6
10 pcs quick-release clamping bolts for 28mm system Clamping range from 5 to 50mm Quantity: 10 pcs. Clamping range 15 - 50 mm Hole diameter 28 mm Weight 10 kg Dimensions L x W x H 0.3 x 0.3 x 0.2 m Condition: never used / new (5) Auction-ID: A7-46642-97
Welding table / hole table: Hole diameter: 28mm The table is made of 15mm thick, high-alloy steel S355 JR T=15 The surface is untreated. Sidewalls 165mm Height adjustable from approx. 880 - 980mm Ribbed underside for reinforcement. incl. floor storage Accessories optional Surface flatness 0.2 - 0.4mm to 1000mm. Very stable base, so the table with pallet truck. The accessories shown are optional Table length 2000 mm Table width 1000 mm Table height 850 - 900 mm Machine weight approx. 0.45 t Condition: never used / new (5) Auction-ID: A7-46642-88
XXL starter package, consisting of: - 15x – Standard clamping pliers - 5x – Multi-clamping pliers - 10x – Side clamp with eccentric - 15x – Loose Cam H30 - 10x – Loose Cam H100 - 2x – Pipe Insertion Knock Series - 10x – quick-release bolts - 10x – Stop block 15mm - 4x – Right Angle XL - 6x – Right angle - 6x – Angle of attack - 1x – Box - 1x – Insert holder - 1x – Allen key - Tool trolleys Number of 100 Lots Hole diameter 28 mm Condition new Weight 280 kg Dimensions L x W x H 1.2 x 0.5 x 1.3 m Condition: never used / new (5) Auction-ID: A7-46642-116
Siegmund workbench incl. accessories - Consisting of screw clamps, hand clamping bolts, surface clamping bolts and brackets. - Frame made of aluminium profiles - Working height 900 mm - Surface made of aluminium table profiles - Bore Ø 16 mm - Bore spacing 50 mm - Hexagon Nut HX8 - Hexagon groove spacing 50 mm - When clamping aluminium parts, the bolts must only be tightened by hand. Table length 1200 mm Table width 700 mm Table height 900 mm Table load 250 kg Machine weight approx. 36 kg Dimensions L x W x H 1.2 x 0.8 x 0.9 m Condition: never used / new (5) Auction-ID: A7-46642-121
Siegmund Set 2, 57-piece, 28mm system, consisting of: 18x quick-release bolts with twist lock short, without O-rings 6x Universal Stop 150 L - Nitrided 6x Universal Stop 225 L - Nitrided 4x Stop and clamping angle 175 L - Nitrided 2x Stop and clamping bracket 300 G left - Nitrided 2x Stop and clamping angle 500 G left - Nitrided 4x Prism Ø60-135° burnished - with collar Complete with shovel and countersunk head 6x Professional Screw Clamp - Nitrided 4x Professional Screw Clamp 45°/90° - Nitrided 4x Magnetic Bolts Aluminium 1x accessory set (283999) consisting of: Eccentric, Allen Wrench, Brush, Whetstone, Sample CleanBasic, Sample non-stick and burner holder. Condition: never used / new (5) Auction-ID: A7-46642-144
Welding turntable with - Footswitch - Tilting/swivelling motorized - Speed infinitely adjustable - 250 amp welding current transmission - Hole in face plate 40mm. Table diameter 550 mm Table load 500 kg Swivel range 135 degrees Tilt adjustment: manual/mechanical motorized Speed max. 5 rpm infinitely variable Table load 50 kg. vertical Total power requirement 0.8 kW Machine weight approx. 245 kg Space requirements approx. 820 x 730 x 710 m Condition: never used / new (5) Auction-ID: A7-46642-127
Mobile Welding Lift Table/Perforation Table: Hole diameter: 28mm Hole spacing 100mm The table is made of 15mm thick, high-alloy steel S355 JR T=15 The surface is untreated. Ribbed underside for reinforcement. Table length 1200 mm Table width 800 mm Hole diameter 28 mm Table height 450 - 800 mm Load capacity 500 kg Machine weight approx. 0.8 t Condition: never used / new (5) Auction-ID: A7-46642-72
100 €
