start page > wood working machines > all window production machines > results

134 offers order by
post used machinery: registration
No. Photo Manufacturer | Model
Type of machinery
Year Price Country Contact
page 1 > 2 3 4 5 6
124913192
WEGOMA HW 1640
Window tools

Wegoma - reel car HW 1640 - as new -.
used machine

Wegoma - reel car HW 1640 - as new -.
1999
500 €
    request
124982412
SCM Method K
Window production centre

Tenoning spindle: 1 St.Number of milling agregates: 5 St.Spindle diameter: 50 mm In order to sell still in useSCM METHOD K Machining center for windows and doorsTechnical specificationsMax. Working length: 2800 mm(using ...


Tenoning spindle: 1 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
In order to sell still in use

SCM METHOD K Machining center for windows and doors

Technical specifications
Max. Working length: 2800 mm
(using the stops)
minute Workpiece length: 200 mm
(clear pin dimension)
minute Workpiece height: 30 mm
Max. Workpiece height: 140 mm
Tenoning speed: 4/16 m / min
Feed rate: 3-15 m / min

Crosscut saw 4 kW with motor horizontal positioning over free
programmable axis control
Speed 3000 rpm
Saw blade diameter 400 mm, bore 80 mm
Extraction nozzle diameter 120 mm
automatic engine brake

Slotted spindle 7.5 kW with

Spindle diameter 50 mm
Spindle clamping length 620 mm
Spindle stroke under table 575 mm
Speed 3500 rpm
Max. Tool diameter 320 mm
upper bearings
Motorized vertical positioning via freely programmable axis control
automatic counter-timber beam
automatic engine brake
automatic star delta connection
Suction nozzle diameter 2 x 160 mm

1st profile spindle 5.5 kW clockwise and counterclockwise
(Synchronization) with
Spindle diameter 50 mm
Spindle clamping length 320 mm
Spindle stroke under table 265 mm
Horizontal adjustment 60 mm
Spindle speed 6500 rpm.
Tool diameter min./max. 100/220 mm
Motorized vertical positioning via freely programmable axis control
automatic engine brake
Extraction nozzle diameter 150 mm

2. Profile spindle 5.5 kW clockwise with
Spindle diameter 50 mm
Spindle clamping length 320 mm
Spindle stroke under table 265 mm
Horizontal adjustment 60 mm
Spindle speed 6500 rpm.
Tool diameter min./max. 100/220 mm
Motorized vertical positioning via freely programmable axis control
Extraction nozzle diameter 150 mm
automatic engine brake

Gear milling unit 5.5 kW with
Spindle diameter 50 mm
Spindle clamping length 160 mm
Spindle stroke 100 mm
Horizontal adjustment 60 mm
Speed 6500 rpm.
Tool diameter min./max. 100/200 mm
pneumatic single stroke programmable via control
Timed horizontal feed-in for insert milling for the execution of
non-continuous grooves via CNC control
Extraction nozzle diameter 150 mm
automatic engine brake

Glass saw 2,2 kW with
Saw shaft diameter 25 mm
Saw blade diameter max. 220 mm
Saw shaft clamping length max. 22 mm
Speed 5000 rpm.
Extraction nozzle diameter 50 mm
automatic engine brake

Motorized, height-adjustable roller feed with
closest roll spacing
Motor power 1.1 kW

complete with
-CE Compliance
- Crosscut saw, tenon cutting and slot part horizontally infinitely programmable
- Slot part 620 mm spindle length, anti-clockwise
- Programmable vertical movement via ball screws
- motor-driven tapping table movement
- automatically trailing splitter wood for all slot tool positions
- Workpiece clamping for single / double wood operation with
automatic pressure drop protection
- precise swiveling tap table +/- 0 - 60 °
- Extendable telescopic length stop with automatic
Differential control, working length 2800 mm
- Programmable vertical movement via ball screw
in position 2, 3 and 4
- Horizontal positioning on manually programmable
4-fold revolver to operate from the front of the machine
for positions 3, 4 and 5
- Continuous roller feed, swiveling for light
Tool change, with additional feed roller for
Milling and motorized height adjustment according to scale
- Glass bead saw with pneumatic vertical positioning on manual
adjustable 4-fold revolver,
Forced guidance of the glass retaining strip with non-return valve, use of the
Glass bead saw automatically controlled via cycle
- automatic synchronization - immersion function of the first
Profile spindle for tear-free milling of sash frames,
Horizontal positioning on manually programmable
4-speed turret to be operated from the front of the machine
- extendable support rail for large format sash frames
- Gear milling unit with pneumatic horizontal positioning,
Use of the glass bead cutting saw via automatic cycle of the
machine program
Vertical positioning on manually programmable 4-fold turret
- CNC machine control via programmable logic controllers
electronics (PLC) type CONTROL 20
- Motor protection switches for all motors
- Operating tools, operating instructions
- Weight 3600 Kg

special accessories

Motor amplification 11 kW in Pos. 2, 3, 4

(Technical information according to the manufacturer - without guarantee!)



This ad was created with MODUL MWS - the software solution of LogoTech.

5,000 €
    request
124830382
HARBS K3V
Angular systems for window production

Umfälzautomat Harbs Type: K3V Year of construction: 1980 Clearance height: 120 mm Motor spindle 1: 5.5 kW Motor spindle 2: 7.5 kW Motor spindle 3: 7.5 kW Glass Strip saw motor: 1,5 kW Motor feed (adjustable):  ...


Umfälzautomat Harbs
Type: K3V
Year of construction: 1980

Clearance height: 120 mm
Motor spindle 1: 5.5 kW
Motor spindle 2: 7.5 kW
Motor spindle 3: 7.5 kW
Glass Strip saw motor: 1,5 kW
Motor feed (adjustable): 1,5 kW
Engine hydraulic power: 0.75 kW
Vertical spindles: 40 mm
Horizontal spindle: 30 mm
Feed: 8 rolls
Included tools

Price
    request

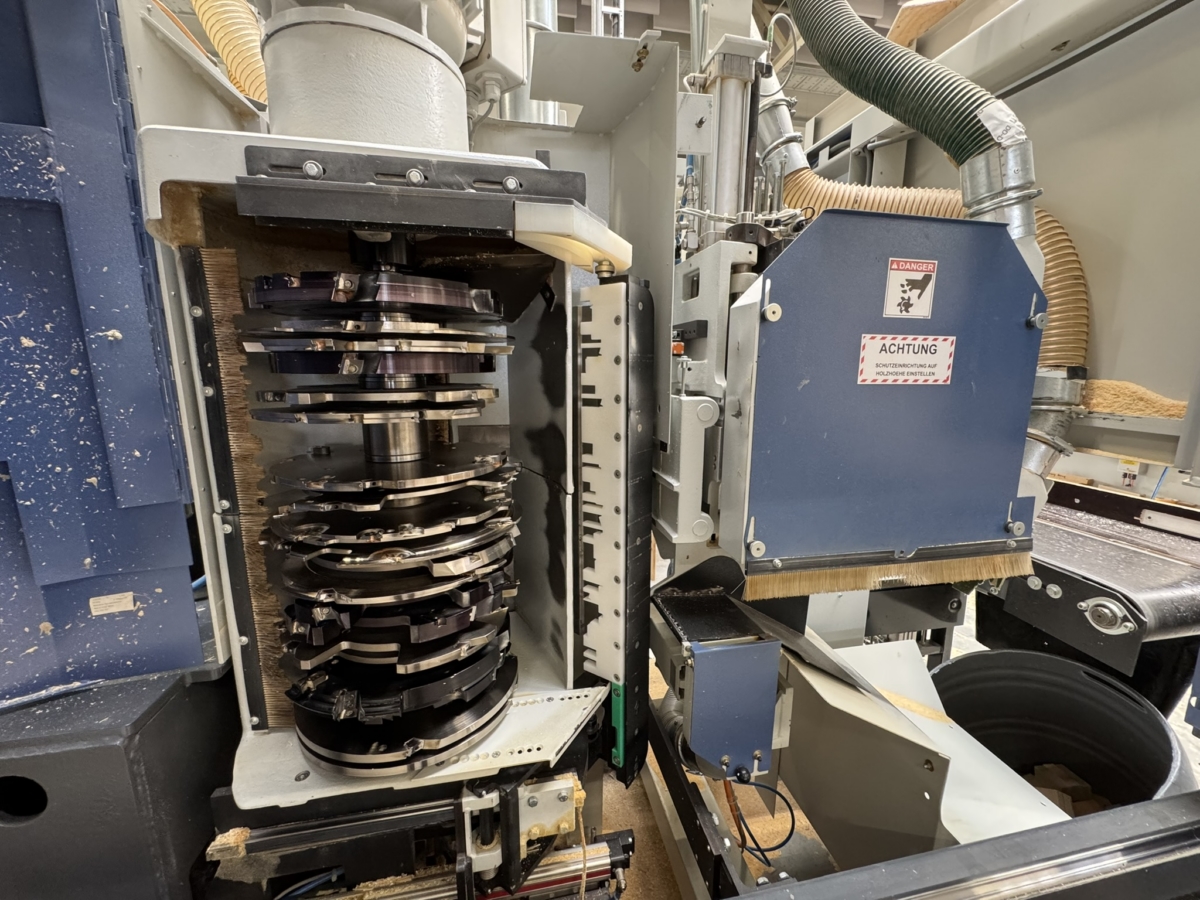

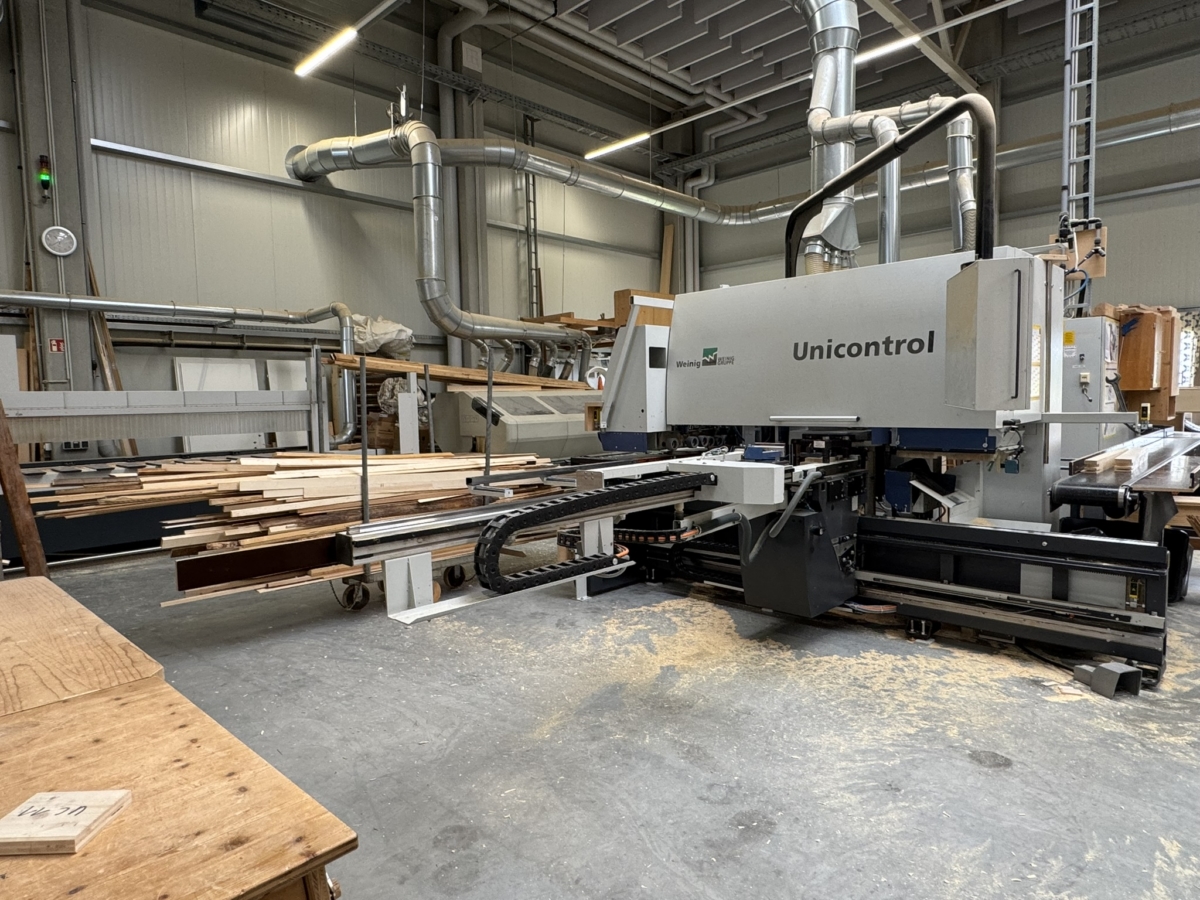

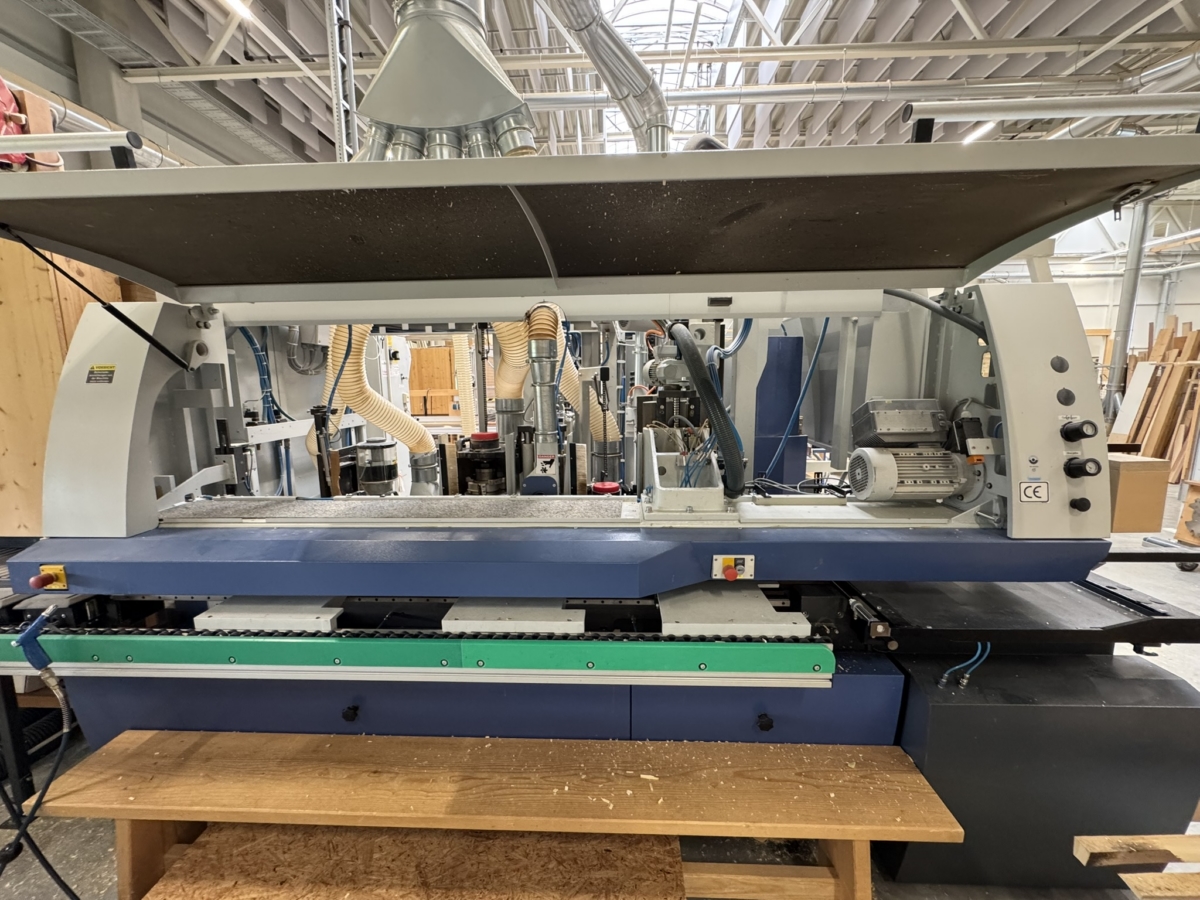

124965286
WEINIG Unicontrol 6 CNC Spindeln
Window production centre

Tenoning spindle: 1 St.Number of milling agregates: 5 St.Spindle diameter: 50 mmweight: 4300 kgWeinig Unicontrol 6 with CNC-spindle with full options/features!Cut-off saw-----------------motor: 3 KWspindle diameter 40 mm ...


Tenoning spindle: 1 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
weight: 4300 kg
Weinig Unicontrol 6 with CNC-spindle with full options/features!

Cut-off saw
-----------------
motor: 3 KW
spindle diameter 40 mm
spindle turnings: 2.800 Upm
tool diameter max.: 400 mm
horizontal adjsutment variable by control

length stop CNC controlled 3500 mm
------------------------------------------------------------

Tenoning spindle
---------------------------------
motor: 11 KW
spindle diameter 50 mm
spindle turnings: 3.500 Upm
tool diameter max.: 320 mm
Usable length of spindle 320 mm
Adjjustment by CNC-axis axial variable max. 240 mm for IV 68-92
adjustment speed approx. 50 mm/sek.
Number of tool postion variable because of CNC axis

1. profiling spindle (turning direction in both directions)
--------------------
Clockwise running for rip-off free stormproofing
Switsch for turning in normal direction for normal milling
motor: 11 KW
spindle diameter 50 mm
spindle turnings: 6.000 Upm
tool diameter max.: 232 mm
tool zero cycle 112 to 140 mm
Usable length of spindle 120 mm
Number of tool positions

2. Profilspindel
--------------------
motor: 11 KW
spindle diameter 50 mm
spindle turnings: 6.000 Upm
Max. tool diameter with zero cycle 112 mm: 210 mm
Max. tool diameter with zero cycle 140 mm: 232 mm
usable spindle length: 320 mm
Adjjustment by CNC-axis axial variable max. 240 mm for IV 68-92
adjustment speed approx. 50 mm/sek.
Number of tool postion variable because of CNC axis

3. spindle: grooving aggregate from top, horizonal and vertical clocked
------------------------------------------------------------------
motor: 3 KW
spindle diameter 40 mm
spindle turnings: 5850 Upm
adjustment way axial: 30 mm
adjustment way radial: 125 mm

Radial clocked on 8 positions by pneumatc revolver
Axial clocked on 8 positions by pneumatc revolver

4. profiling spindle
--------------------
profiling spindle vertical right
motor: 3 KW
spindle diameter 40 mm
spindle turnings: 5850 Upm
tool diameter : 210 mm
usable length 160 mm, 3 tools
adjustment way radial: 100 mm
adjustment way axial: 115 mm

Radial clocked on 8 positions by pneumatc revolver
Axial clocked on 8 positions by pneumatc revolver

5. spindle: groowing aggregate from bottom side
--------------------

Radial clocked on 8 positions by pneumatc revolver
Axial clocked on 8 positions by pneumatc revolver

More features:

- equipment for stormproofing of presses sashes
- Automatic turnng of the work pieces with lammella conveyour
- PC-control / NEXUS:
- laser lighter for cut-off saw
- studio window equipment (not straight windows)
- double piece package
- bars support in profiling unit
- carriage for profiling small sashes smaller 500 mm

Option:
LEITZ IV 78/90 Holz und Holz-Alu

(techncial details according to manufacturer - without guarantee!)



This ad was created with MODUL MWS - the software solution of LogoTech.

Price
    request
124830377
STRIFFLER 2733
Glass border saws

Glass Strip saw / miter saw make of Striffler type: 2733 Built in 1985 Cutting height up to 50 mm cutting width 75 mm maximum miter angle 45 ° Saw blade diameter 250 mm Motor power approx. 0.75 kW / 380V


Glass Strip saw / miter saw make of Striffler type: 2733
Built in 1985

Cutting height up to 50 mm cutting width 75 mm maximum miter angle 45 °
Saw blade diameter 250 mm
Motor power approx. 0.75 kW / 380V

Price
    request
124856565
HABERKORN FZS 2 mit CNC-Spindeln
Tenoning machine

cut-off saw: 3 KWSpindle diameter: 40 mmSpindle length: 252 mmSaw blade diameter: 400 mmMotor output: 2 x 9 kWDimensions (L/W/H): 2500x1700x2100 mmweight: 1700 kgThis ad was created with MODUL MWS - the software solution ...


cut-off saw: 3 KW
Spindle diameter: 40 mm
Spindle length: 252 mm
Saw blade diameter: 400 mm
Motor output: 2 x 9 kW
Dimensions (L/W/H): 2500x1700x2100 mm
weight: 1700 kg



This ad was created with MODUL MWS - the software solution of LogoTech.

Price
    request
124830375
OKOMA UF2SL2N
Angular systems for window production

Okoma angle window plant Type: UF2SL2N Built in 1985 Crosscut saw: Saw blade diameter up to 400 mm blade swivel Cutting height up to 140 mm motor power approx. 3 kW Slotted spindle Spindle stroke approx. 6 x 1 ...


Okoma angle window plant
Type: UF2SL2N
Built in 1985

Crosscut saw:
Saw blade diameter up to 400 mm blade swivel
Cutting height up to 140 mm motor power approx. 3 kW

Slotted spindle
Spindle stroke approx. 6 x 100 mm spindle diameter 50 mm tool diameter of 320 mm
Power of the engine about 15 kW

1.Profilierspindel number tools 2 piece spindle diameter 40 mm length of tool clamping tool diameter 252 mm 230 mm motor power approx. 11 kW

2. profiling spindle number tools 2 piece spindle diameter 40 mm length of tool clamping tool diameter 252 mm 230 mm motor power approx. 11 kW

Glass Strip saw with milling and slot tools

Price
    request
124840426
OKOMA UF 2
Outside profiling machine

Number of spindles: 3 St.Number of tools: 7 St.Spindle diameter: 40 mm For sale on behalf of the customer Machine is still in use to visit Umfälzmaschine Okoma UF 2Profile spindle 1:Spindle arrangement: rightPower 11 k ...


Number of spindles: 3 St.
Number of tools: 7 St.
Spindle diameter: 40 mm
For sale on behalf of the customer

Machine is still in use to visit


Umfälzmaschine Okoma UF 2

Profile spindle 1:

Spindle arrangement: right
Power 11 kW
Speed 7000 rpm
Direction of rotation: Gleich- u. mating
Spindle diameter 50 mm
Useful length 272 mm
Tool diameter max. 230 mm
U-movement of the profile spindle
Positioning vertically
Drive: pneumatic cylinder 90 mm stroke
for 3 tool positions
Position transmitter: limit switch

Positioning horizontally
Drive: pneumatic cylinder forwards and backwards
Position transmitter: limit switch

Immersion automatic: Immersion speed adjustable for tear-free
outer profiling

Protection u. Extraction hood m. Connecting piece 140 mm diam.

Profile spindle 2:

Spindle arrangement: right
Power 11 kW
Speed 7000 rpm
Direction of rotation: mating
Spindle diameter 50 mm
Useful length 272 mm
Tool diameter max. 230 mm
U-movement of the profile spindle
Positioning vertically
Drive: pneumatic cylinder 90 mm stroke
for 3 tool positions
Position transmitter: limit switch

Positioning horizontally
Drive: pneumatic cylinder forwards and backwards
Position transmitter: limit switch
Protection u. Extraction hood with connecting piece 140 mm Druchm.

Fitting device EG:

Spindle arrangement on the right
Drive: Three-phase motor 3 kW
Speed 6000 rpm
Spindle diameter 30 mm
Useful length 47 mm

Vertical positioning: none
Positioning horizontally
Drive: pneumatic cylinder forwards and backwards

Position transmitter: limit switch (rear only)

Protective and suction hood with connecting piece
80 mm diameter


Feed:

Roller distance from axis to axis 130 mm
Roll diameter 110 mm
Roll width 50 mm
Advance swing away
with pneumatic travel control

Support rail for milling:

Rail length: approx. 3000 mm
Adjustment range forward: approx. 100 - 600 mm

Electric control:

Programmable Logic Controller: Siemens Electronics
PC control, 30 programs, 380 V., 50 Hz.
Power unit: Siemens S 5
Non-contact limit switches

Energy data:

Operating voltage: 3 phases, 380 V, 50 Hz.
Compressed air:
Air requirement: 13 NL / min.
Operating pressure: 8 bar
concent. Air: to Pneurop 6611

(technical data according to manufacturer - without guarantee!)





This ad was created with MODUL MWS - the software solution of LogoTech.

3,000 €
    request
124830280
STETON MBO T1
Chisel Mortising Machine

Mortiser brand Steton MBO model T1, 1995, 2.2 Kw power built. Used.
used machine

Mortiser brand Steton MBO model T1, 1995, 2.2 Kw power built. Used.
1995
Price
  IT   request
124840428
SCM Windor 40 mit Bohren
Window production centre

Tenoning spindle: 2 St.Number of milling agregates: 6 St.Spindle diameter: 50 mmControl: CNC This ad was created with MODUL MWS - the software solution of LogoTech.


Tenoning spindle: 2 St.
Number of milling agregates: 6 St.
Spindle diameter: 50 mm
Control: CNC



This ad was created with MODUL MWS - the software solution of LogoTech.

Price
    request
124798593
URBAN SV 480
Machines for windows

URBAN - corner cleaning machine for plastic window, 3 editing tools below, profile plate, very good condition, made plaster the outside corner of a CNC controlled milling disc, internal machining CNC/koventionell, 3 edit ...
used machine

URBAN - corner cleaning machine for plastic window, 3 editing tools below, profile plate, very good condition, made plaster the outside corner of a CNC controlled milling disc, internal machining CNC/koventionell, 3 editing tools from above, in Germany
1993
3,900 €
    request
124824453
WEINIG Unicontrol 12 CNC
Window production centre

Tenoning spindle: 2 St.Number of milling agregates: 5 St.Spindle diameter: 50 mmweight: 11500 kgLoading meters, approx.: 1360 m Machine is currently being checked # 2428 Weinig Unicontrol 12 CNC, with 2 tenoning spindles ...


Tenoning spindle: 2 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
weight: 11500 kg
Loading meters, approx.: 1360 m
Machine is currently being checked


# 2428 Weinig Unicontrol 12 CNC, with 2 tenoning spindles and Vario-Table
--------------------------------

Technical Data Summary
--------------------------------
(Possibly additional accessories please inquire)

Total weight: approx. 13000 kg
Slotted part: 5500 kg
Profil part: 5000 kg


Cutting edge saw
--------------------------------
> Cross-cut saw electronically, horizontally infinitely adjustable: NC axis
> Number of tools: 1 pcs.
> Spindle speed: frequency controlled 3000-6000 rpm
> Spindle diameter: 40 mm
> Tool diameter max .: 400 mm
> Motor power: 3 kW
> Laser beam for detecting the saw section:
> Adjustment travel axial: NC axis integrated in the control
> Radial travel range: 150 mm
> Radial clocked to 8 positions for edge rounding from above

Unit for edge rounding from below
--------------------------------
> Axial adjustment together with crosscut saw

CNC controlled length stop
--------------------------------
> Length 4500 mm
> Incl. Positioned crosscut saw integrated into the control


1. Spigot and slotted spindle
--------------------------------
> Number of tools: variable, CNC axis
> Tool clamping length: 640 mm
> Spindle stroke vertical: variable, CNC axis
> Spindle speed: 2925 rpm
> Spindle diameter: 50 mm
> Tool diameter: 380 - 400 mm
> Motor power: 15 kW
> With follow-on counter


2. Spigot and slotted spindle
--------------------------------
> Number of tools: variable, CNC axis
> Tool clamping length: 640 mm
> Spindle stroke vertical: variable, CNC axis
> Spindle speed: 2925 rpm
> Spindle diameter: 50 mm
> Tool diameter: 380 - 400 mm
> Motor power: 15 kW
> With follow-on counter

> VARIOPLUS package
Tapping and slotting table with horizontal CNC axis travel 200 mm


1. Profileing spindle
--------------------------------
> Position: right
> Number of tools: variable, CNC axis
> Tool clamping length: 400 mm with counter bearing
> Spindle stroke vertical: variable, CNC axis
> Spindle stroke horizontal: variable, CNC axis
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tooling circle max .: 232 mm
> Engine power: 11 kW
> Radial adjustment: CNC axis
> Axial adjustment: CNC axis


2. Profileing spindle
--------------------------------
> Position: right
> Number of tools: variable, CNC axis
> Tool clamping length: 400 mm with counter bearing
> Spindle stroke vertical: variable, CNC axis
> Spindle stroke horizontal: variable, CNC axis
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tooling circle max .: 232 mm
> Engine power: 11 kW
> Radial adjustment: CNC axis
> Axial adjustment: CNC axis


Groove tool from above - before the last profile spindle
--------------------------------
> Position: horizontal above
> Spindle speed: 9000 rpm
> Spindle diameter: 40 mm
> Tool clamping length: 40 mm
> Motor power: 3 kW
> Adjustment travel axial: 30 mm
> Radial adjustment: 125 mm
> Radial stroke on 8 positions by pneumatic turret
> Axial stroke on 8 positions by pneumatic turret


Profile spindle - Fitting spindle - at the end of the machine
--------------------------------
> Position: vertical right top
> Tool clamping length: 160 mm
> Spindle speed: 5850 rpm
> Spindle diameter: 40 mm
> Tooling circle max .: 210 mm
> Motor power: 3 kW
> Adjustment travel axial: 115 mm
> Adjustment travel radial: 100 mm
> Radial stroke on 8 positions by pneumatic turret
> Axial stroke on 8 positions by pneumatic turret


Groove tool from below- in the additional stand
--------------------------------
> Position: horizontally down
> Tool clamping length: 125 mm
> Spindle speed: 5850 rpm
> Spindle diameter: 40 mm
> Tooling circle max .: 200 mm
> Motor power: 3 kW
> Adjustment travel axial: 100 mm
> Adjustment travel radial: 100 mm
> Axial and radial adjustment infinitely variable NC axis


Other features
--------------------------------
> Online-capable
> Reverberation device for uneven re-folding
> Double pack
> Return conveyor for 1-man operation: slat conveyor
> Angular window arrangement: swivel angle 75 degrees
> Electronic angle display for inclined windows
> Control: PC Nexus
> NC axis for feed height adjustment
> 1 axially clocked feed roller opposite profile milling units, for production
Of narrow, short parts (e.g., glass-dividing rungs)
> 2 axially clocked feed rollers opposite the profile spindle to 8 positions
By means of a pneumatic turret
> Table top to tool diameter clocked (2 positions)
> Sprout guide consisting of:
Automatically timed guide bar at the stop.
Sprout support strip from above in the area of profile milling unit / fitting
spindle
> Sprout support ledge after the last profiling spindle vertically clocked
> Split pressure plate left for wood widths from 40 to 140 mm
> Automatic central lubrication
> Variot: horizontal CNC axis for slit table with adjustment travel 200 mm

Option:
--------------------------------
Used tools in different systems
(Technical data according to manufacturer - without guarantee!)



This ad was created with MODUL MWS - the software solution of LogoTech.

Price
    request
124666642
LEITZ IV 68
Window tools

Window milling tool wood-aluminum IV 68 mm
used machine

Window milling tool wood-aluminum IV 68 mm
2002
1,700 €
    request
124729866
PV TECNIC
PV TECNIC glazing saw

Saw for beading PVC with stop until 3m long. 2004 machine, in perfect working order.
used machine



Saw for beading PVC with stop until 3m long.

2004 machine, in perfect working order.


2004
used machinery auction RESALE 900 €
  BE   request
124630663
SIGMAR
angle joining machine

Winkelfügmasschine Warrior for window wood Built in 1963 Weight 1600 kg L x W x H: 300 x 100 x 120 cm The machine is in good condition, ready to use. Subject to changes, errors, prior sale! Service/spare parts by MA ...
used machine

Winkelfügmasschine Warrior

for window wood
Built in 1963
Weight 1600 kg
L x W x H: 300 x 100 x 120 cm

The machine is in good condition, ready to use.

Subject to changes, errors, prior sale!

Service/spare parts by MATEC CH-4952 Eriswil/DE-79618 Rheinfelden MATEC systems + technology GmbH
Mechanical engineering
Mill mat 4
CH-4952 Eriswil/Switzerland

Tel. 0041 62 966 18 32
Fax 0041 62 966 21 12
1963
490 €
    request
124723401
OKOMA UF 3 S
Window production centre

Tenoning spindle: 1 St.Number of milling agregates: 4 St.Spindle diameter: 50/40 mm In order to sell Is still in use # 6447 Okoma UF 3 S 6 .. .. Number of units to be produced in 8 hours, approx. 50 pcs. Techni ...


Tenoning spindle: 1 St.
Number of milling agregates: 4 St.
Spindle diameter: 50/40 mm
In order to sell

Is still in use


# 6447 Okoma UF 3 S 6
.. ..
Number of units to be produced in 8 hours, approx. 50 pcs.


Technical data summary
(possibly additionally included accessories please inquire)
.. ..

Ablängsäge
..
> Crosscut saw pneumatically clocked: yes
> Number of tools: 1 pcs.
> Spindle speed: 2710 rpm
> Spindle diameter: 30 mm
> Tool diameter max .: 400 mm
> Engine power: 3 kW

Length stop with positioning control

Tap and slot spindle
.. ...
> Number of tools: 6 pcs.
> Spindle stroke: 6 x 100 mm
> Spindle speed: 4000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 600 mm
> Tool diameter max .: 320 mm
> Engine power: 15 kW

1. profiling spindle
.. .

> Number of tools: 2 pcs.
> Spindle stroke vertical: 2x 100 mm
> Spindle stroke horizontal: 70 mm
> Spindle speed: 7000 rpm
> Spindle diameter: 40 mm
> Tool clamping length: 252 mm
> Tool diameter max .: 230 mm
> Engine power: 11 kW

2. profiling spindle
..

> Number of tools: 2 pcs.
> Spindle stroke vertical: 2x90 mm
> Spindle stroke horizontal: 70 mm
> Spindle speed: 7000 rpm
> Spindle diameter: 40 mm
> Tool clamping length: 252 mm
> Tool diameter max .: 230 mm
> Engine power: 11 kW


3. profiling spindle
.. ...

> Number of tools: 2 pcs.
> Spindle stroke vertical: 2x90 mm
> Spindle stroke horizontal: 70 mm
> Spindle speed: 7000 rpm
> Spindle diameter: 40 mm
> Tool clamping length: 252 mm
> Tool diameter max .: 230 mm
> Engine power: 7.5 kW

Additional aggregates
.. ...

> Glass strip removal: yes

Other features
.. .

> Umfälzeinrichung for tear-free refolding: yes
> Return conveyor for one-man operation: yes


Tech. Information according to manufacturer - without guarantee!



This ad was created with MODUL MWS - the software solution of LogoTech.

3,000 €
    request
124630524
VERTONGEN
PIN slot machine

PIN slot machine scoring gene for window manufacturing Built in 1975 Weight 800 kg L x W x H: 180 x 180 x 170 cm (without stop) The machine is in good condition, ready to use. Subject to changes, errors, prio ...
used machine

PIN slot machine scoring gene

for window manufacturing
Built in 1975
Weight 800 kg
L x W x H: 180 x 180 x 170 cm (without stop)

The machine is in good condition, ready to use.

Subject to changes, errors, prior sale!

Service/spare parts by MATEC CH-4952 Eriswil/DE-79618 Rheinfelden MATEC systems + technology GmbH
Mechanical engineering
Mill mat 4
CH-4952 Eriswil/Switzerland

Tel. 0041 62 966 18 32
Fax 0041 62 966 21 12


1975
780 €
    request
124723403
WEINIG Unicontrol 10
Window production centre

Tenoning spindle: 1 St.Number of milling agregates: 5 St.Spindle diameter: 50 mmControl: ja In order to sell # 6414 Weinig Unicontrol 10/5.. .Number of units to be produced in 8 hours, approx. 70 pcs.Technical data summ ...


Tenoning spindle: 1 St.
Number of milling agregates: 5 St.
Spindle diameter: 50 mm
Control: ja
In order to sell

# 6414 Weinig Unicontrol 10/5
.. .

Number of units to be produced in 8 hours, approx. 70 pcs.


Technical data summary
(possibly additionally included accessories please inquire)
.. ..

Ablängsäge
.. ..

> Slitting saw pneumatically timed: yes
> Number of tools: 1 pcs.
> Spindle speed: 2800 rpm
> Spindle diameter: 40 mm
> Tool diameter max .: 350 mm
> Engine power: 3 kW


length stop
.. ..

> electronic length stop: yes


Tap and slot spindle
.. ...

> Number of tools: 6 pcs.
> Spindle stroke: 6 x 100 mm
> Spindle speed: 3000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 600 mm
> Tool diameter max .: 320 mm
> Engine power: 11 kW


1. profiling spindle
.. ...

> Number of tools: 3 pcs.
> Spindle stroke vertical: 3 x 95 mm
> Spindle stroke horizontal: 80 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 285 mm
> Tool diameter max .: 232 mm
> Engine power: 11 kW

2. profiling spindle
.. .

> Number of tools: 3 pcs.
> Spindle stroke vertical: 3 x 95 mm
> Spindle stroke horizontal: 80 mm
> Spindle speed: 6000 rpm
> Spindle diameter: 50 mm
> Tool clamping length: 285 mm
> Tool diameter max .: 232 mm
> Engine power: 11 kW

Additional aggregates
.. ...

> Facing unit: 1 pc., 2 pcs.

> Glass saw: 1 pc.


Other features
.. ..

> Umfälzeinrichung for tear-free refolding: yes
> Double parts package: yes
> Return conveyor for one-man operation: yes
> Screen control: yes

Option:
1 used window tool set Leitz IV 68 Dufix

techn. Information according to manufacturer - without guarantee!



This ad was created with MODUL MWS - the software solution of LogoTech.

5,000 €
    request
124328253
URBAN SV 400

Corner cleaning machine window cleaning machine Manufacturer: Urban Type: SV 400 Machine is fully funktionsfäghig. Contact person Mr. Mueller see also our over 200 more deals at. (Changes and errors in the ...
used machine

Corner cleaning machine window cleaning machine

Manufacturer: Urban
Type: SV 400

Machine is fully funktionsfäghig.

Contact person Mr. Mueller see also our over 200 more deals at.

(Changes and errors in the technical data, information
and prices and subject to prior sale!)

Price
    request
124723409

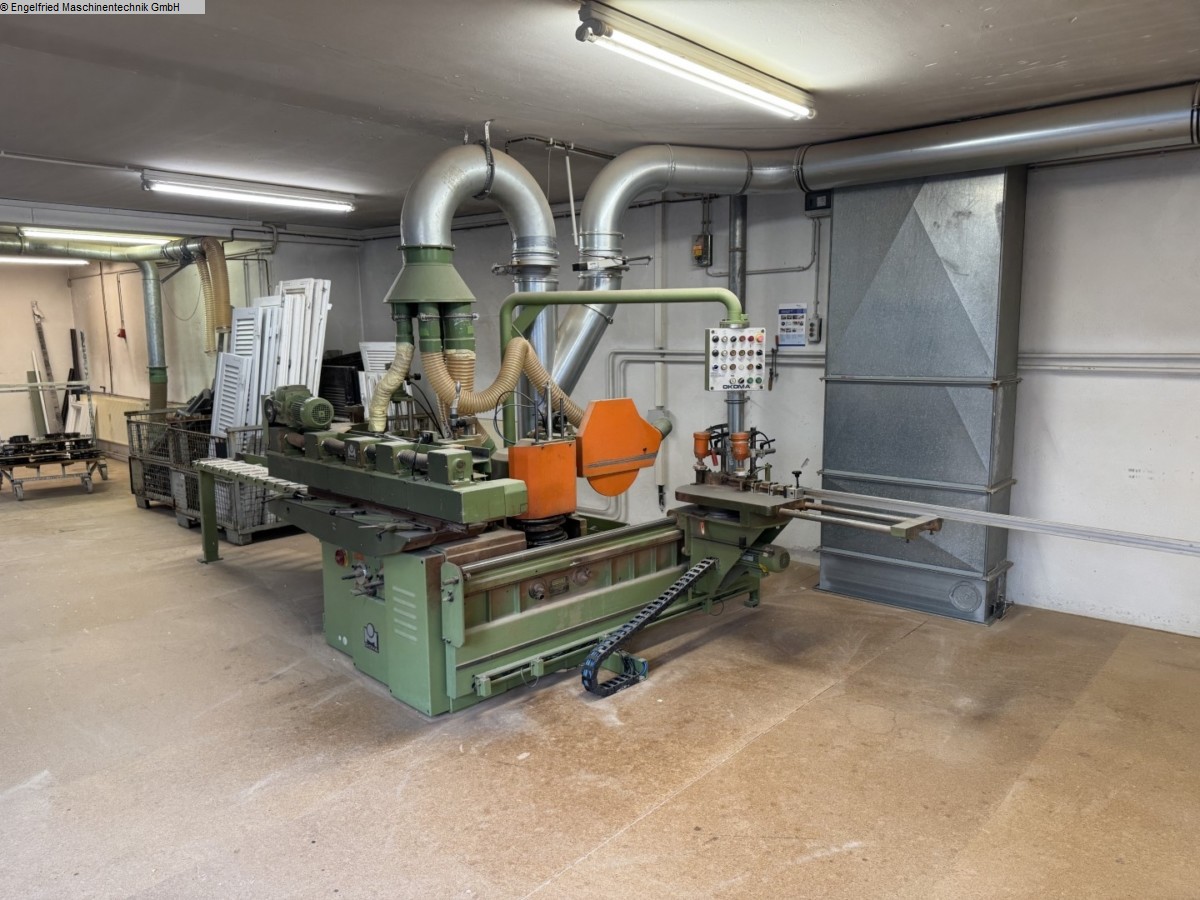

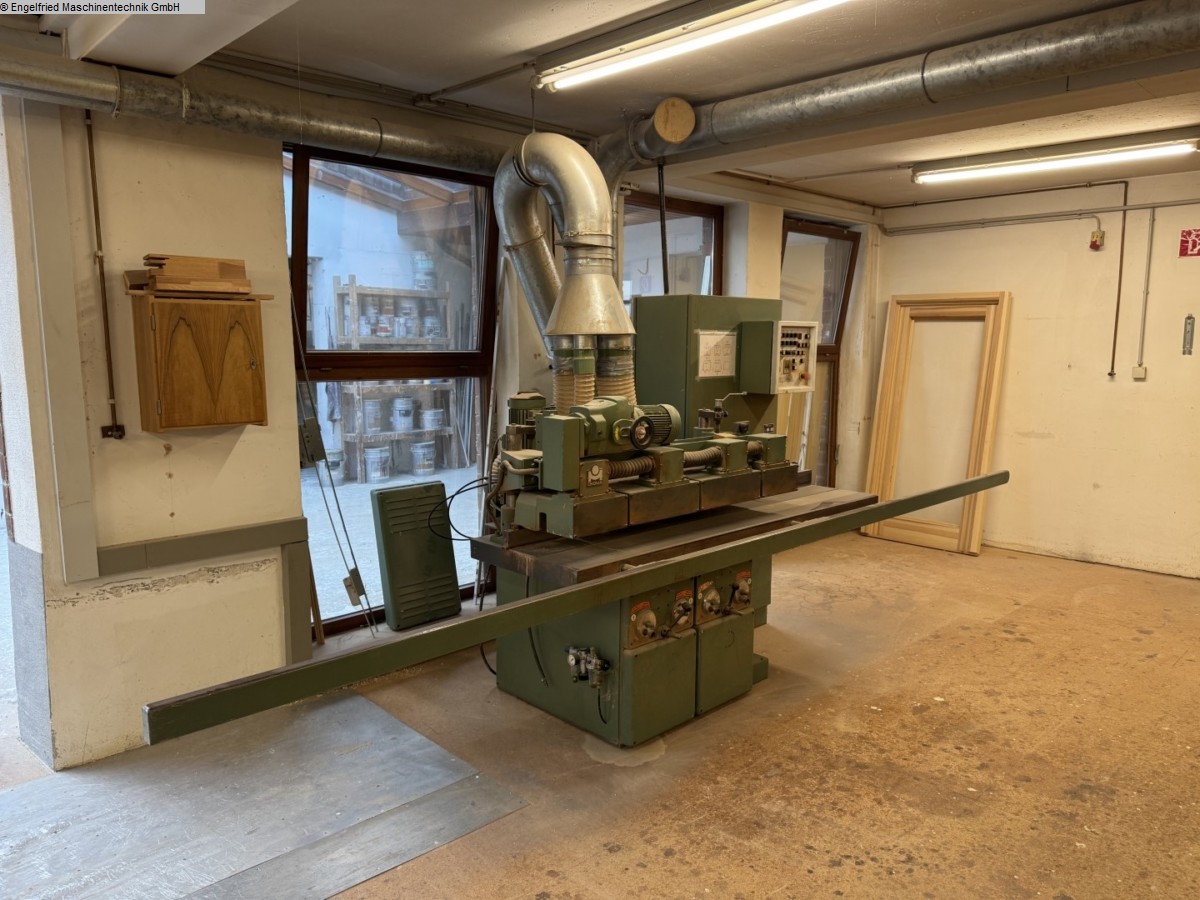

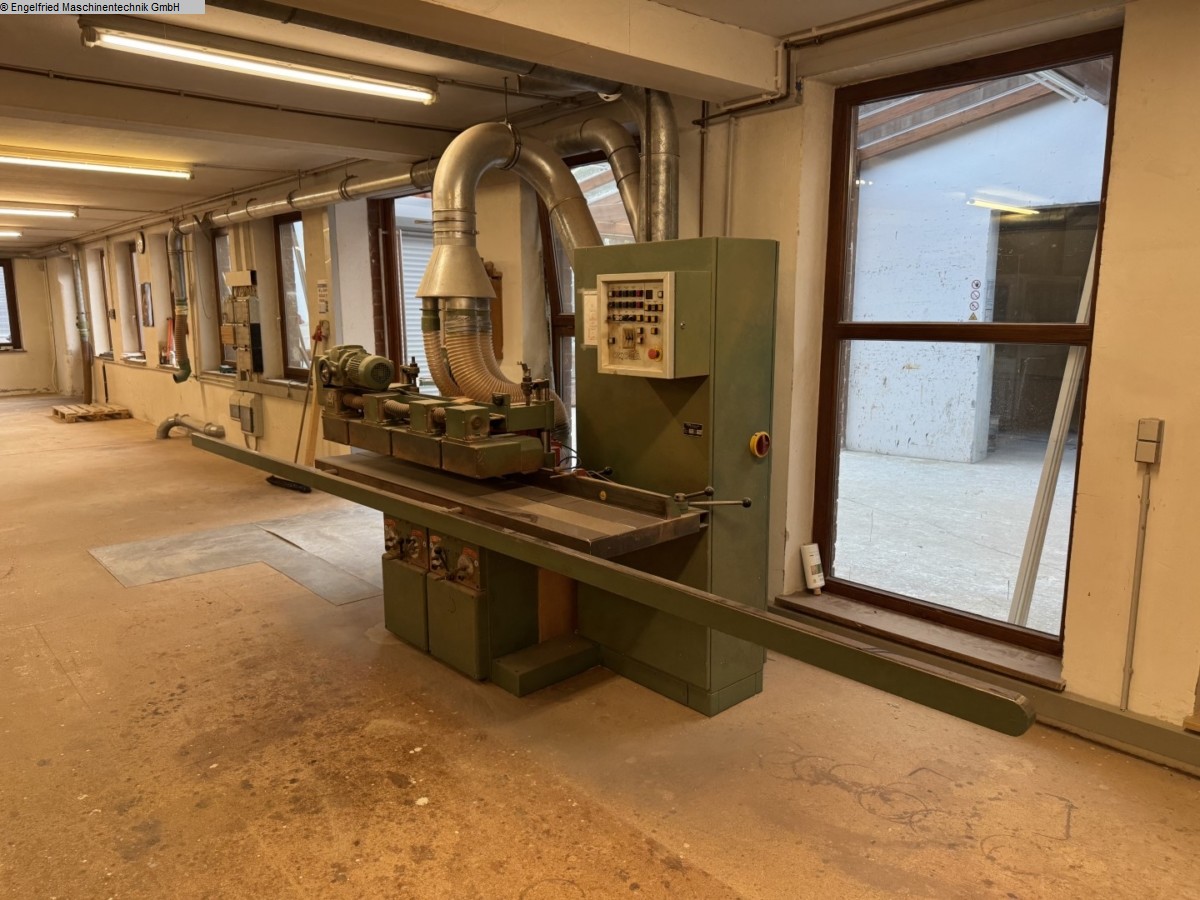

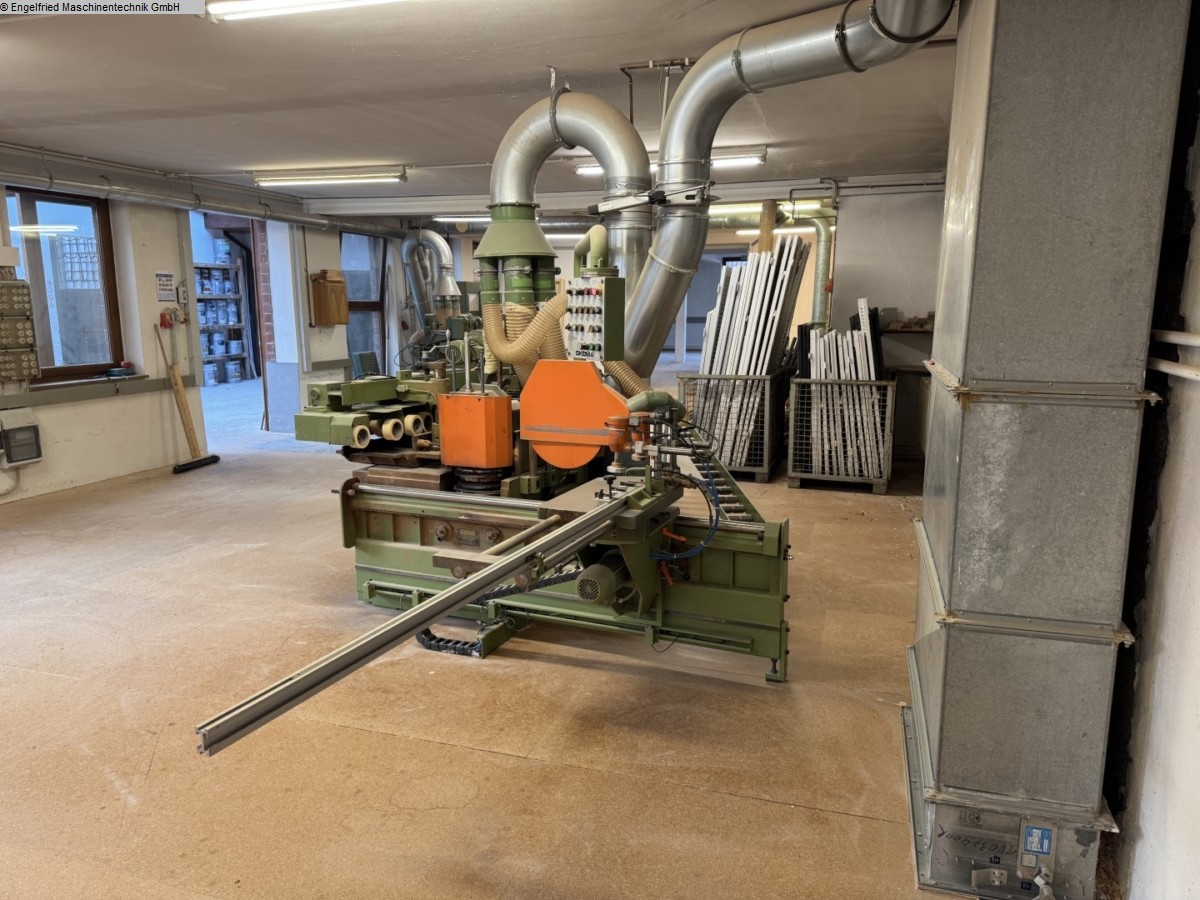

WEINIG Unicontrol 10/2
Window production centre

Tenoning spindle: 1 St.Number of milling agregates: 4 St.Spindle diameter: 50 mm In order to sell Window system Weinig Unicontrol 10/2technical descriptionFor the production of individual parts, elements and small series ...


Tenoning spindle: 1 St.
Number of milling agregates: 4 St.
Spindle diameter: 50 mm
In order to sell

Window system Weinig Unicontrol 10/2

technical description

For the production of individual parts, elements and small series.

Performance: approx. 75 - 80 parts per hour with average
Workpiece length 1.2 m.

SPINDLE ARRANGEMENT:

A cross-cut saw, horizontally clocked against 4-fold revolver,
a single-sided tap and slot spindle, a right profiling
spindle, tap and slot spindle and profiling spindle for
Recording of several tools arranged one above the other.,
with hydraulic spindle movement and central lubrication
the guides.

Movement of profiling spindle in U-shape with fine adjustment
the individual tool positions (radius).

Umfräseinrichtung for tear-free milling of window sashes,
Frames and doors. For this purpose, the slot spindle on the same
Height to profiling spindle hydraulically through. Incl. electronic
Brake for reversing the direction of rotation as a synchronous spindle. Each
the last 100 mm of a frame end plunges this spindle
the synchronizing tool in the frame.
Time required per frame of 1.2 x 1.2 m - approx. 2.5 min.

Control of tool positions (longitudinal and transverse machining)
via selector switch from the control panel.


TECHNICAL SPECIFICATIONS:

Ablängsäge

Number of tools: 1
Spindle speed 2,800 rpm
Spindle diameter 40 mm
Tool diameter max. 350 mm
Motor power spindle: 3 KW
Working width min. 30 mm, max. 220 mm
Working height min. 30 mm, max. 100 mm

Tap and slot spindle

Number of tools: 3
Spindle stroke vertical: 2 x 100 mm
Spindle stroke vertical Re-milling: 1 x 100 mm
Spindle speed 3,500 rpm
Spindle diameter: 50 mm
Tool clamping length: 300 mm
Tool diameter max. 320 mm
Tool zero circle 300 - 320 mm
Basic position below table 10 mm
Engine power: 11 KW
Feed slot table feed 6 m / min.
Return 18 m / min.
Scale of length stop min. 380 mm

profiling

Number of tools: 3
Spindle stroke vertical: 2 x 95 mm
Spindle stroke horizontal 80 mm
Spindle speed: 6,000 rpm
Spindle speed Umfäsen: 6,000 rpm
Spindle diameter: 50 mm
Tool clamping length: 285 mm
Tool diameter max. 232 mm
Tool zero circle: 112 - 140 mm
Tool zero circle - Re-milling: 112 - 140 mm
Basic position below table: 10 mm
Motor power spindle 7.5 KW
Feed 1.1 KW


SPECIAL EQUIPMENT:

1 saw and groove spindle right:

As a glazing bead saw or groove spindle of
working up. Arranged according to the milling spindle,
pneumatic vertical movement with selector switch
in the control panel and 4-fold revolver. Included
Glazing strip drain with hold-down springs for
Glazing bead 18 mm wide and special stop.
Engine power 2.2 KW
Speed: 6,000 rpm
Spindle diameter 40 mm, with key 10 x 4 mm
Clamping length 13 mm
For saw blade diameter 180 mm or groove cutter diameter 140 mm.
Horizontally adjustable up to 40 mm

1 fitting unit right:

For milling the fitting grooves in the milling process or
for grooving in the longitudinal profile.
Pneumatic horizontal movement with selector switch in the control panel.
Engine power 2.2 KW
Speed 6,000 rpm
Spindle diameter 40 mm
Clamping height 125 mm
Tool circle min. 140 mm, max. 180 mm
Basic position below table 10 mm

Double piece package

Length stop swiveling +/- 60 degrees in both directions
for the production of studio windows. Max. Wood width 200 mm.

4 mechanical spindle brakes

Return to the operator

Option: 1 Oertli window tool set

(technical data according to manufacturer - without guarantee!)



This ad was created with MODUL MWS - the software solution of LogoTech.

3,000 €
    request
page 1 >
You didn't find your wanted machine? to all dealers(no registration necessary)
sell machinery
Sell your machinery
to the price starting with only € 0.09 monthly per machine!
machinery sold
Get the latest machine offers by email: order newsletter
