Manufacturer:
(Category: 308)
Used plasticizing system, diameter 120 mm. Technical parameters: - screw diameter 120 mm - barrel diameter 120 mm L/D 33 mm - 6 heating sections/heaters with a power output of 4300 W - complete set of fans with housings - double degassing section - complete power supply for heaters and fans. The plasticizing system is in good condition, with a capacity of approximately 400 kg/h.
An Arburg plastic granulate dryer with integrated material conveying is available. Hopper volume: 100l, max. drying temperature: 150°C, heating capacity: 4.5kW, air capacity: 90m³/h, conveying height: approx. 3000mm, machine dimensions X/Y/Z: approx. 950mm/600mm/2000mm, weight: approx. 150kg. An on-site inspection is possible.
A complete Respecta epoxy resin metering and casting system is available. 1) Big bag station for supplying fillers, max. particle size: 0.7mm, max. bulk density: 0.5g/cm³. 2) Two IBC connections for liquid components A and B with diaphragm pumps. 3) Two buffer tanks for A and B, volume: approx. 230l. Including level sensors and automatic IBC filling. 4) Volumetric metering to the mixing screw with flow meter and pressure monitoring. 5) Degassing unit. 6) Continuous epoxy resin inline heater with process monitoring of the resin temperature and the epoxy hardener, viscosity range: approx. 350-450mPas, max. epoxy resin temperature: 20°C. 7) Semi-automatic flushing and cleaning unit for the casting unit, volume: approx. 50l. Overall system control: Siemens Simatic S7, additional controls: control cabinets/frequency converters/industrial PC, overall system casting capacity: approx. 30l/min. ...
A Westema cutting table for precise cutting of soft, flexible materials is available. Table dimensions X/Y: 2250mm/1500mm, max. cutting height: 230mm, cutting speed: 16m/s, motor power: 1.1kW. Including quick clamping and grinding device. Documentation available. An on site inspection is possible.

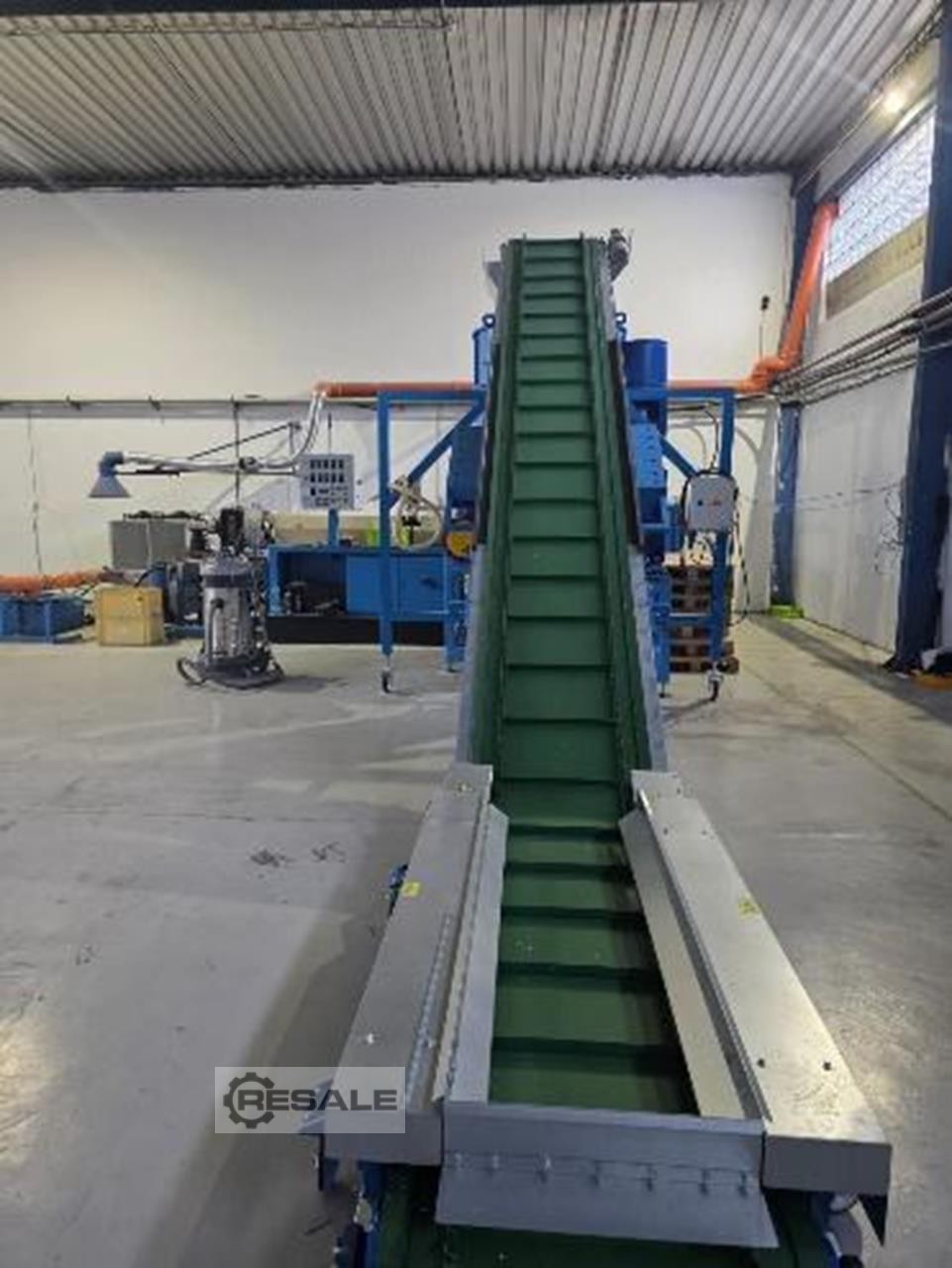

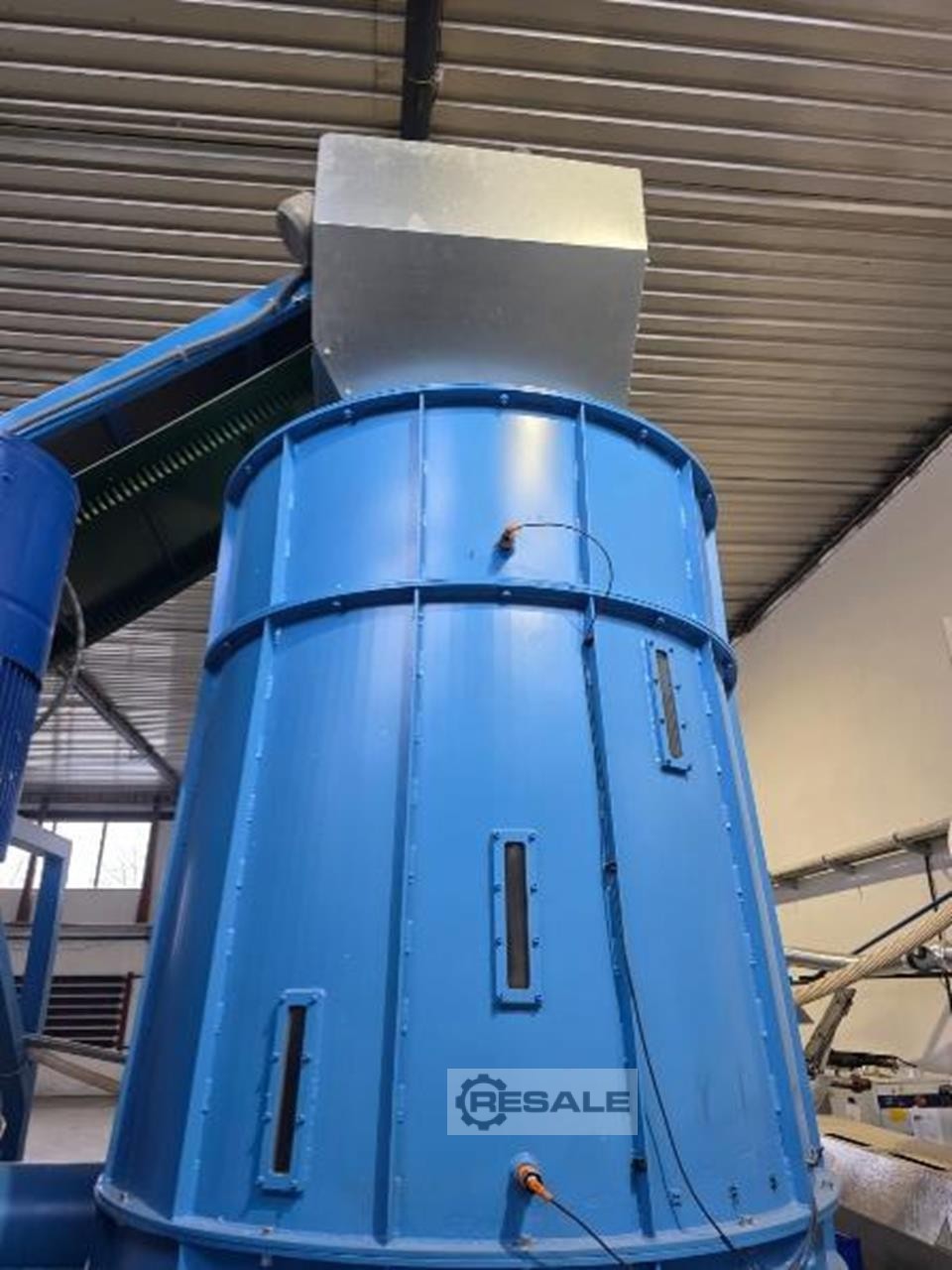

Costarelli D1300 fully automatic agglomerator, 315 kW drive, was processing LDPE, can be used for film, fibers, fluff, light abd voluminous plastic materials to massive volume reduction., throughput rate around 1 Ton per hour, depending on moisture and material, including : loading conveyor belt, feeding belt, barrel diam.1.300 mm., extraction hopper, screw conveyor, roto-classifier, electric cabinet, 400 V 50/60 Hz, CE compliance certificate, electrical drawings, Users manual, Machine in very good conditions, -------------------------------------------------, watch some videos of similar agglomerators in the attached videos, capacity: 1.200 kg/h, conditions: very good, type: 1.300 mm , Totale power needed for this line: around 500 KVA, including belts, classifier, screws., Including: loading conveyor belt
A horizontal dual-head corner cleaning machine Stürtz for the simultaneous machining of two 90° internal and external corners on welded plastic windows is available. Tool stations top/bottom: 8/8, min. product dimensions X/Y without mullion machining: 320mm/370mm, min. product dimensions X/Y with mullion machining: 640mm/370mm, min. frame internal dimension X/Y: 180mm/180mm, max. frame dimensions X/Y: 4000mm/3000mm, installation depth range: 30mm-135mm, profile visible width range: 25mm-120mm, equipment: 4 gasket groove drilling units/4 internal corner measuring devices/4 shadow groove cutters/2 external contour units. Including various accessories and tools. Documentation available. An inspection on site is possible.
A Ferrarini & Benelli corona pre-treatment system for surface activation of non-conductive materials in continuous production processes is available. Generator type: C15/4N, output frequency: 15kHz, electrode design: multi-cylinder roller electrodes, max. treatment width: 200mm. An on-site inspection is possible.
For sale is a Styrofoam block press manufacturer Wemhöhner, the press is in good condition and can be viewed by appointment. I will be happy to answer any further questions you may have.
For sale is an EPS block mold, manufacturer Erlenbach, year of construction 2008, 5000 mm x1300 mm x1000 mm, vacuum system, The system ran very well until the end. The facility can be visited by prior appointment
M. No.: 43954 Equipment / Additional information: Vacuum: 20 mbar Motor Oil: Type SAE 30 Qt.: 6 Ltr.
M. No.: 070068681 Equipment / Additional information: Hz: 50/60 V250/300 m3/h P 100 hPa (0.1 bar)
A maintenance-requiring Dremel 3D plastic printer is available. Filament diameter: 1.75mm, materials: PLA/ECO-ABS/PETG/Nylon, build dimensions X/Y/Z: 255mm/155mm/170mm, min. layer thickness: 0.05mm, max. extruder temperature: 280°C, device dimensions X/Y/Z: approx. 550mm/400mm/400mm, weight: approx. 20kg. On-site inspection is possible.
Technical features: heated knives, weld bead limitation 0.2mm, optimization of the welding result through the parallel sliding welding process, individual adjustment of the welding parameters, quick changing of the outer contour allowances by means of holding magnets. Air consumption at 6bar: 15l/Takt, angle adjustment range: 30-180°, profile height: 30-105mm, max. profile width at 90°: 157mm, compressed air connection: 8.7bar, power: 2.7kW, supply voltage: 220V, 50/60Hz, length: 770mm, width: 880mm, height: 1560mm, weight: 320kg. An inspection on site is possible.
Farsoon SS403P-H (2023) – SLS-Produktionssystem mit Peripherie Zum Verkauf steht eine Farsoon SS403P-H aus 2023 mit unter 11.000 Betriebsstunden. Die Anlage wurde regelmäßig gewartet (letzte Wartungen 2024 und 2025) und befindet sich in funktionsfähigem Zustand. Technische Daten Technologie: SLS (Laser Powder Bed Fusion) Bauvolumen: 2× 400 × 400 × 520 mm (Doppelzylindersystem) Laser: CO₂-Laser, 100 W Kammertemperatur: max. 190 °C Schichtdicke: 20–60 µm (materialabhängig) Schutzgas: Stickstoff Aktuelles Material: Infinam PA6002P (Evonik) Lieferumfang Farsoon SS403P-H Drucksystem Ausbrechstation Industriekühler Stickstoffgenerator Zubehör nach Absprache Das System ist sofort einsatzbereit und eignet sich für Serien- und Kleinserienfertigung in Luft- und Raumfahrt, Automotive, Maschinen- und Anlagenbau sowie Medizintechnik. Offene Prozessparameter ermöglichen flexible Mat ...
STRAND PELLETIZER 250 mm., Fixed pitch, 4 kW motor, 4 poles, IE3 motor drive, Transmission belts, Speed variation via inverter, Electrical panel compliant with CE standards - 400 V, 50 Hz with, 2 x 16 Amp sockets, width 250 mm, Rotor with 12 micrometrically adjustable rotating blades, Counter-blade made in widia, Hardened pressure roller, diameter 60 mm, straignt knurling, Hardened drive roller, diameter 40 mm, straight knurling, Pneumatic piston for presser roller adjustment, Chrome plated parts in contact with the material, Stainless steel discharge, Limit switch with safety lock, Mounted on anti-vibration support with sound proof panels, installed power - used power in work: about 60-65% : 4,0 kw, availability: 70 working days ca, working width: 250 mm, conditions: new machine, type: strand pelletizer for extruders
EOS EOSINT M280 mit Developer-Lizenz, Baujahr 2012 DMLS-Anlage für das direkte Metall-Lasersintern in gutem Gesamtzustand. Der Laser wurde gewechselt und erreicht aktuell 367,6 W bei 100 % Output (gemessen Januar 2026 mit Primes Laserleistungsmessgerät). Aufgrund der Laserleistung nur bedingt für Aluminium- und Kupferwerkstoffe geeignet. Technische Daten: Laserstunden: ca. 34.000 h (Februar 2026) Maschinenstunden: ca. 45.700 h (Februar 2026) PSW Version 3.7 200°-Heizung verbaut Keine Undichtigkeiten, geringer Gasverbrauch, O₂-Gehalt
# Stratasys J750 mit DAP-Upgrade – PolyJet-System für anatomische Simulation Baujahr 2016 | Standort: Österreich Stratasys J750 mit nachträglich integriertem Digital Anatomy Package (DAP). Die Maschine arbeitet mit PolyJet-Technologie (PJP) und ermöglicht Multi-Material-Druck mit bis zu 6 Materialien simultan. Bauvolumen: 490 × 390 × 200 mm, Schichtstärke bis 14 µm. Das DAP-Upgrade erweitert die Standard-J750 um biomechanische Materialien zur Simulation von Gewebestrukturen. Einsatzgebiete: präoperative Planung, chirurgisches Training, Validierung medizintechnischer Produkte (Katheter, Implantate, Instrumente), anatomische Forschungsmodelle. Technische Ausstattung: Vollfarbdruck (über 500.000 Farbnuancen) Materialspektrum: Rigid, Elastomer, Transparent, Digital Anatomy Materials Datenformate: STL, OBJ, VRML Reproduzierbare Gewebehaptik für realitätsnahe Testszenarien Wirtsc ...
A Sahm precision cross winder 260E is offered. Traverse width stroke: 300mm, winding speed max.: 500m/min, bobbin diameter: up to 320mm, bobbin volume max.: approx. 22.4dm³, titer range: tapes: approx. 150dtex - 3500dtex, monofilaments diameter: 0.15mm - 0.60mm. Inspection by appointment possible.
2 SAHM precision cross winders type 260 are offered. Year of manufacture 1985 and 1998. Each machine has 2x 96 positions 192 positions total, plus 10 additional reserve heads, total 202 positions. Traverse stroke: 13inch approx. 330mm. Mandrel diameter for sleeves: 3 1/4inch approx. 82.5mm. Inspection by appointment possible. The machines are not located in Europe.
The weber ultrasonic saphir digital station is used for ultrasonic welding. The system is sold with a machine table and workpiece holder as shown in the pictures. Frequency 35kHz, Power 1000W, 230V AC (Schuko plug), Sonotrode TR35Ti, Min force 30N, Max force 380N The touch panel has a small defect, but the use is not affected.
The weber ultrasonic saphir digital is used for automated inline ultrasonic welding. This device is sold without the automation line. Frequency 35kHz, Power 1000W, 230V AC, Sonotrode TR35Ti The machine was used for the production of about 90000 units.
We offer this used Weber Ultrasonics Saphir Digital Manual Station Ultrasonic Welding Machine, built in 2023. About 92500 units were produced with this machine. Sonotrode TR35Ti Frequency: 35kHz Power: 1000W 230V AC Displacement measuring system: 26.88 mm Minimum force: 34 N Maximum force: 500 N Low Level: 0 N Low Offset: 0 N If you have any questions or need more information, please feel free to send us a message or give us a call.
STRAND PELLETIZER 250 mm., Variable pitch, with synchronized pull off unit, 4 kW motor, 4 poles, IE3 motor drive, 1.1 kW motor on pull off unit, Transmission belts, Speed variation via inverter, Electrical panel compliant with CE standards - 400 V, 50 Hz with, 2 x 16 Amp sockets, width 250 mm, Rotor with 12 micrometrically adjustable rotating blades, Counter-blade made in widia, Hardened pressure roller, diameter 60 mm, straignt knurling, Hardened drive roller, diameter 40 mm, straight knurling, Pneumatic piston for presser roller adjustment, Chrome plated parts in contact with the material, Stainless steel discharge, Limit switch with safety lock, Mounted on anti-vibration support with sound proof panels, installed power - used power in work: about 60-65% : 5,1 kw, availability: 70 working days ca, working width: 250mm, conditions: new machine, type: strand pelletizer for extruders
MEGAPLOT XTR PRO 1200 CNC foam cutting machine was built in 2020 in Poland by Megaplot J.Wójcicki M.Jagła SJ. The machine enables precise cutting of any shape in a wide range of rigid foams, soft foams and rockwool. Cutting is performed fully automatically by means of an endless wire, which accelerates to a speed of 280 km/h. Project files, including shapes and their layout, can be prepared in any graphics program (CorelDraw, AutoCAD etc.). This is because the advanced FastWire software supports all major file formats. The MEGAPLOT XTR PRO upholstery foam cutting machine is also equipped with a controller which enables simulation of the cutting process and setting of the machining parameters with their change during the cutting. All this makes the offered machine an excellent choice for businesses producing, among others, insulation elements, packaging and upholstered furniture. Tec ...
Meccanica model Italian 92-liter Banbury and Meccanica model Italian 80-liter Banbury.
750 X 750 2 units of brand-new 400-ton machines with 800 strokes, PLC-controlled, with screen and scale
Two Polymaster sample display machines for the film industry are available. Working width: 1900mm/2100mm, roll weight: 100kg, machine dimensions X/Y/Z: approx. 2550mm/1050mm/2000mm. Documentation available. An on site inspection is possible.
Operating hours: 39521 h Equipment / Additional information: The compressor is water-cooled and has heat recovery. Rated power: 110.0 kW Motor speed: 1485 rpm Max. operating pressure: 8.5 bar Ambient temperature: 3°C/45°C
