Vertical Processing Centers used for sale (172)

CNC Vertical - Machining Center HERMLE B 300 V With track control Heidenhain iTNC 530 Year of manufacture: 12/2010 Travel : X 800 Y 600 Z 500 Speed range : 20 – 15,000 rpm infinitely variable With the following accessories: Rigid angle table 1000 mm x 560 mm clamping surface Vertical tool changer with 30 magazine positions ( SK 40 ) IKZ 40 bar Scraper belt conveyor Coolant Setup Manual Cab Door , Manual Cab Roof Polycarbonate Safety Lenses Electronic Heat Compensation iTNC 530 Electr. Manual control module HR 410 3D Probe Renishaw Control cabinet cooling unit ( RITTAL) Spindle Oil Cooler 4 Pieces Height Adjustable Machine Shoes Operating Instructions

Excluding tools Auction-ID: A1-47352-112

Key data: 800 mm, 600 mm, 500 mm

CNC Vertical - Machining Center HERMLE B 300 V With track control Heidenhain iTNC 530 Year of Make: 2014 Travel : X 800 Y 600 Z 500 Speed range : 20 – 18,000 rpm infinitely variable With the following accessories: Rigid angle table 1000 mm x 560 mm clamping surface Vertical tool changer with 30 magazine positions ( HSK 63 ) Blowing air through the centre of the spindle IKZ 40 bar Scraper belt conveyor Tool measurement in the work area ( BLUM Laser ) Coolant Setup Manual Cab Door , Manual Cab Roof Polycarbonate Safety Lenses Electronic Heat Compensation iTNC 530 Electr. Manual control module HR 410 3 D Probe Control cabinet cooling unit ( RITTAL) Spindle Oil Cooler Swarf Spray Gun 4 Pieces Height Adjustable Machine Shoes Operating Instructions

Travel A-axis: 360° Travel B-axis: -20/+110° Auction-ID: A1-48232-1

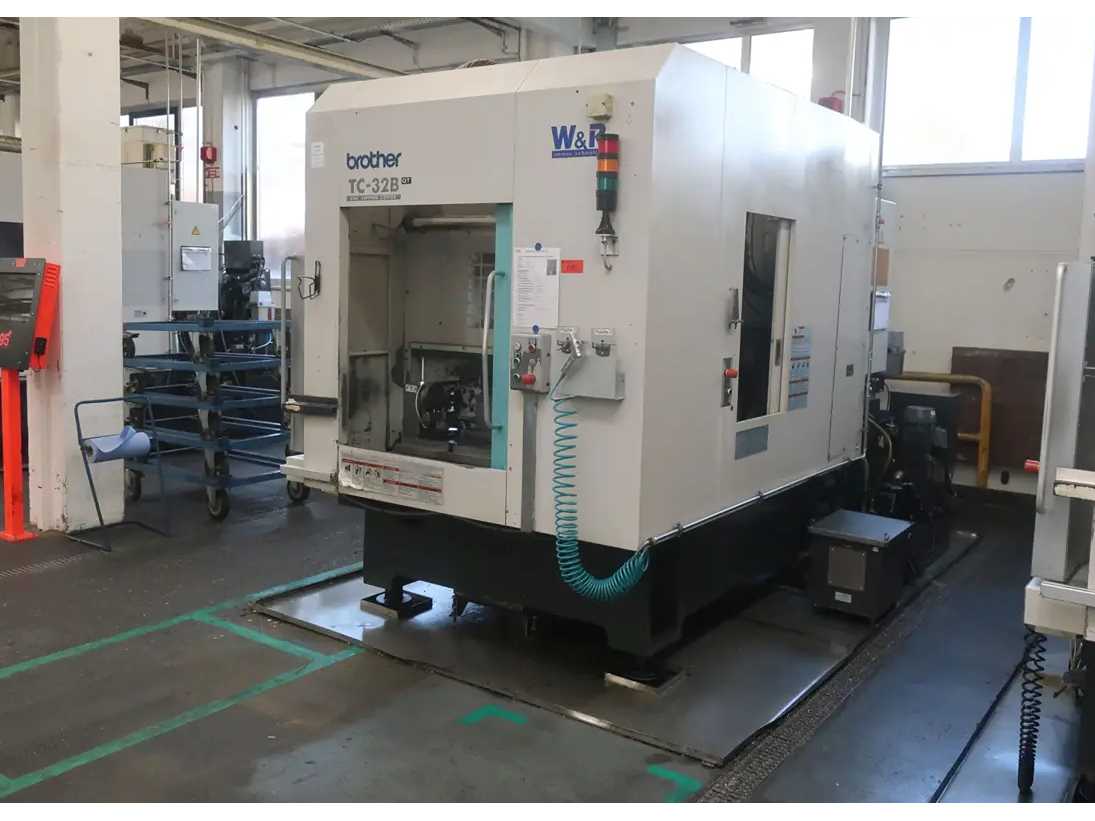

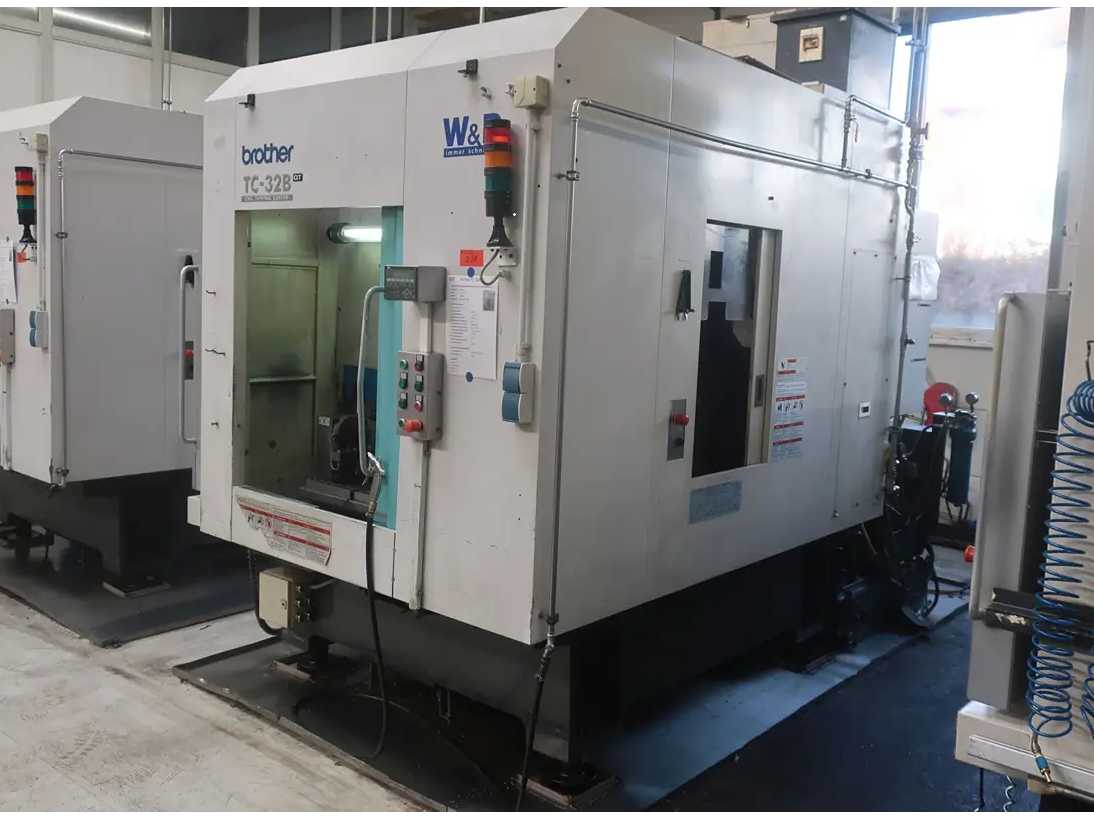

Control Brother B-00 Travel X/Y/Z: 700 x 400 x 300 mm Spindle speed: 10,000 min-1 Tool magazine for 21 Wkz., BT 30 4. Axis W&R 3D Probes OP 40 Manual handwheel Chip conveyor Chip wagon Vacuum unit Various clamping devices and tool holders

Bench dimensions 4000x2300 mm. Including spare parts Auction-ID: A7-48410-872

Key data: 750 mm, 500 mm, 500 mm

Inv. Num. : 9301 Type: MCV 750 SPEED Producer: MAS Created: 2009 Parameters: Control system: Heidenhain TNC 530 Work table length: 1000 mm Work table width: 640 mm Maximum table load (uniform): 650 kg Tool magazine: 20 pieces Maximum vertical spindle speed: 12000 1/min X-axis travel: 750 mm Y-axis travel: 500 mm Travel Z axis: 500 mm Machine height: 2700 mm Machine length: 3700 mm Machine width: 2200 mm Machine weight: 5350 kg Equipment: 4. Axis Workpiece Probe Tool probe 2024: Replacement of the X and Y axes (including new screws)

Note - All toolholders will be supplied with machine. Collection by Appointment Only. This item is sold ex-foundation and consequently, all the logistical arrangements, including dismantling, packing loading the goods, transport, customs, and delivery to the final destination, are the responsibility of the Buyer. Auction-ID: A7-48194-1

Key data: 1300 mm, 635 mm, 610 mm

Inv. Num. : 9296 Type: MCV-1300iS Producer: Leadwell Created: 2015 Parameters: Control System: FANUC Series Oi-MD Hours: 7088 h Work table length: 1420 mm Work table width: 610 mm Maximum table load (even): 1000 kg Maximum vertical spindle speed: 8000 1/min X-axis travel: 1300 mm Y-axis travel: 635 mm Travel travel Z-axis: 610 mm Cone: ISO 50 Number of all tools: 24 pieces Machine height: 2721 mm Machine length: 3840 mm Machine width: 2200 mm Machine weight: 7000 kg Equipment: 4. Axis Workpiece probes

Travels X 2,000 mm, Y 1,150 mm, Z 510 mm. Distance between columns 1,245 mm. Spindle-table distance 431–940 mm. Table 2,240 x 1,000 mm. Maximum load 4,000 kg. BT50/CAT50 cone. 35 HP spindle. Maximum speed 3,150 rpm. Maximum tool length 426 mm. Demonstration videos available. Jaws not included. Weight 17,000 kg. Auction-ID: A7-48162-3

Control Heidenhain iTNC 530 Travel X/Y/Z: 2200 x 560 x 720 mm Spindle speed 18,000 min-1 Clamping area 2600 x 600 mm Max. table load 2200 kg Swivel head IKZ 25 bar Tool magazine for 30 Wkz, SK 40 Choice of C- or A-axis Measuring Probe Heidenhain TS 640 Chip conveyor Paper Belt Filter

Travels X 800 mm, Y 410 mm, Z 510 mm. Table 1,100 x 450 mm. Maximum load 700 kg. BT40/CAT40 cone. Spindle 8,000 rpm. Power 7.5 kW. Twin Arm changing table. Storage: 20–30 tools. Approximate weight 6,000 kg. Demonstration video available. Auction-ID: A7-48162-4

Key data: 762 mm, 508 mm, 508 mm

Inv. Num. : 9268 Type: VF-2SSYT Producer: HAAS Created: 2021 Parameters: Switch-on hours: 13517 h Operating hours: 6225 h Work table length: 914 mm Work table width: 457 mm Maximum table load (uniform): 680 kg Maximum vertical spindle speed: 12000 1/min X-axis travel: 762 mm Y-axis travel: 508 mm Travel Z-axis: 508 mm Spindle power: 22.4 kW Cone: SK 40 Number of Stacking Positions: 31 pieces Machine weight: 3450 kg Equipment: Chip conveyor Renishaw tool probe Renishaw workpiece probe High-pressure tool cooling through the spindle center Extraction system from the machine cover

table: 1270 x 510 mm,traverses: 1000 x 510 x 520 mm,spindle speed: 25 - 4000 rpm,spindle motor power: 11/7.5 kW,tool magazine: ATC20, Auction-ID: A7-48036-9

Control Fanuc OM Travel distances X/Y/Z: 450 x 300 x 400 mm Table size 600 x 300 mm Spindle speed 8,000 min-1 Tool magazine for 16 Wkzg. SK 30

Heidenhein TN 410 control,table working area 475x4600 mm,travels:X 3900 mm,Y 400 mm,Z 425 mm,distance between spindle nose and table surface 190 - 615 mm,tool magazine capacity 56,maximum table load - 900 kg,spindle taper ISO 40,maximum spindle speed 10500 rpm,main drive motor power 9.2 kW,maximum spindle torque 60 Nmmachine dimensions - 7000x3000x3400mm,control cabinet - 3700x900x1900mm,hudraulic unit - 3500x2000x1500mm Auction-ID: A7-48036-23

Key data: 1000 mm, 800 mm, 600 mm

Inv. Num. : 9265 Type: MCV 1210 Producer: TAJMAC-ZPS Created: 2014 Parameters: Control system: Heidenhain iTNC 530 Switch-on hours: 22746 h Operating hours: 21850 h Work table length: 1200 mm Work table width: 1000 mm Maximum table load (uniform): 3000 kg Number of stacking positions: 30 Maximum spindle speed: 15000 1/min X-axis travel: 1000 mm Y-axis travel: 800 mm Z-axis travel: 600 mm Cone: SK 40 Machine weight: 11500 kg Equipment: Technical documentation Chip conveyor Blum Mini NT F800 Tool Probe Renishaw Radio Receiver High Pressure Cooling ChipBlaster D30-70

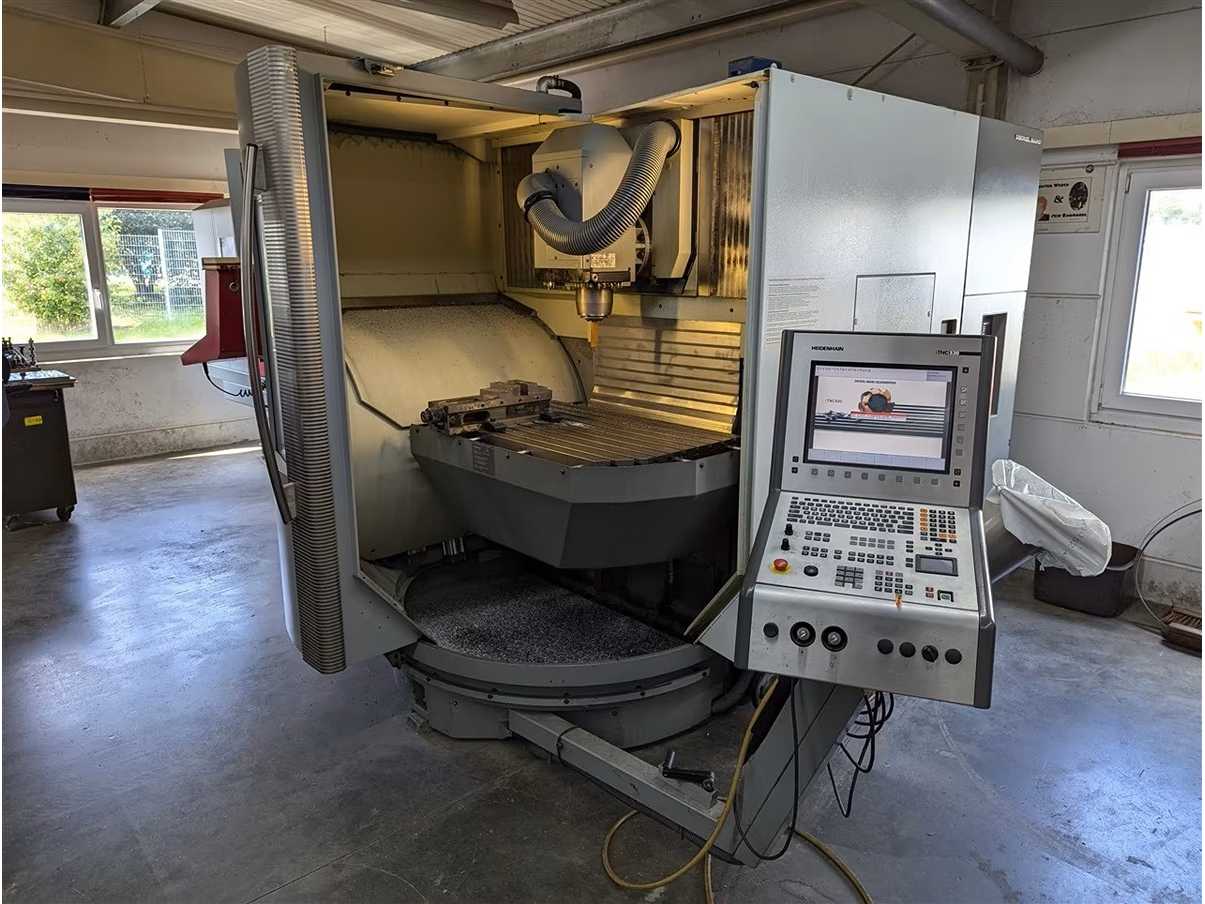

DECKEL MAHO DMU 50T CNC Vertical Machining Center (2002) Serial Number: 11035533644 Operating hours: Machine On (read): approx. 16456 hrs Spindle running time (read): approx. 3402 hours Control: SIEMENS Sinumerik 840D Travels: X-axis: 500 mm Y-axis: 420 mm Z-axis: 380 mm Rapid traverse: 24 m/min. Feed: 10000 mm/min Table dimensions: approx. 700 x 500 mm Max. table load: 200 kg Max. spindle speed: 18000 rpm Spindle power: 15 kW Tool holder: SK40 Number of tool positions: 16 No tools required Feel free to take a look at the video about this machine Auction-ID: A7-47533-120

Key data: 800 mm, 540 mm, 560 mm

Inv. Num. : 9243 Type: CFV 800 Producer: Cincinnati Generated: Parameters: Control system: Heidenhain iTNC 530 Work table length: 950 mm Work table width: 520 mm Maximum table load (uniform): 400 kg Maximum vertical spindle speed: 8000 1/min X-axis travel: 800 mm Y-axis travel: 540 mm Travel Z-axis: 560 mm

HAAS MiniMill CNC Vertical Machining Center (2011) Serial number:1082948 Operating hours (read): approx. 1315 hours Technical data: Travels: X-axis: 406 mm Y-axis: 305 mm Z-axis: 254 mm Table dimensions: 914 x 305 mm max. table load: approx. 227 kg max. spindle speed: 6000 rpm Tool holder: SK40 Tool Changer Positions: 10 Tool not included. Further operating hours may be added. Feel free to take a look at the video about this machine. Auction-ID: A7-47533-7

Key data: 2600 mm, 1200 mm, 1000 mm

Inv. Num. : 9211 Type: DMF 260 Producer: DMG Created: 2010 Parameters: Control system: Heidenhain iTNC 530 Switch-on hours: 63822 h Hours: 29578 h Maximum vertical spindle speed: 8000 1/min X-axis travel: 2600 mm Y-axis travel: 1200 mm Travel Z axis: 1000 mm Number of axles: 5 pieces Machine weight: 25000 kg

HAAS MiniMill CNC Vertical Machining Center (2013) Serial number: 1103446 Operating hours (read): approx. 4340 hours Technical data: Travels: X-axis: 406 mm Y-axis: 305 mm Z-axis: 254 mm Table dimensions: 914 x 305 mm max. table load: approx. 227 kg max. spindle speed: 6000 rpm Tool holder: SK40 Tool Changer Positions: 10 Tool not included. Further operating hours may be added. Feel free to take a look at the video about this machine. Auction-ID: A7-47533-37

Key data: 750 mm, 890 mm, 600 mm

Inv. Num. : 9210 Type: Variaxis i-800 NEO Producer: MAZAK Created: 2023 Parameters: Control System: Mazatrol Smooth Ai Work table length: 800 mm Work table width: 630 mm Maximum table load (even): 1000 kg Maximum vertical spindle speed: 10000 1/min X-axis travel: 750 mm Y-axis travel: 890 mm Z-axis travel: 600 mm Number of axles: 5 pieces Number of stacking positions: 30 pieces Machine height: 3497 mm Machine length: 2695 mm Machine width: 4890 mm Machine weight: 18080 kg

HERMLE C 400 V 4-Axis CNC Vertical Machining Center (2016) Serial Number: 24925 Operating hours (read): approx. 11712 hours Spindle hours (read): approx. 3641 hours Control: HEIDENHAIN TNC 640 Travels: X-axis: 850 mm Y-axis: 700 mm Z-axis: 500 mm Rapid traverse: 35 m/min. Feed rate: 7000 N Table dimensions: approx. 1070 x 700 mm Max. table load: approx. 600 kg Max. spindle speed: 15000 rpm Tool holder: SK40 Tool Changer Positions: 38 Without clamping plate, tools and machine vice. Further operating hours may be added. Feel free to take a look at the video about this machine. Auction-ID: A7-47533-100

The machine is in good technical condition, testing is possible by prior arrangement. Chip screw conveyor Programmable coolant nozzle Power failure detection module Remote control via rotary knob with color LCD display Direct thread cutting Spindle 15,000 rpm, ISO 40 taper, 30 hp (22.4 kW) vector drive, direct "inline" drive Renishaw intuitive wireless probe system 2x clamping vice 30x tool holder

CONTROLS  CNC controls HEIDENHAIN I TNC 530 WORKING RANGE -CUBIC-  X-axis travel: 1500 mm  Y-axis travel: 700 mm  Z-axis travel: 610 mmSPINDLE / HEAD  spindle revolutions (max): 10000 /minTOOL MAGAZINE  number of positions: 24 DIMENSIONS / WEIGHTS  total weight approx.: 10100 kg

The machine is in good technical condition, after prior agreement it is possible to test it. 25 micron filter, chip conveyor belt, cooling through the spindle center, pressure 300 psi, wireless probe for tools and workpieces, side tool changer, ISO 40 taper, 30+1 tools, synchronized thread cutting, rotary gauge, 1x clamping vice, 20x tool holders

CONTROLS  CNC controls HEIDENHAIN I TNC 530 WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 4   X-axis travel: 540 mm  Y-axis travel: 540 mm  Z-axis travel: 560 mmTABLE  table surface (left-right): 700 mm  table surface (front-back): 520 mmSPINDLE / HEAD  spindle revolutions (max): 8000 /min  tool fixture: ISO SK 40 AXIS DRIVES  feed velocity (max): 20000 mm/min  rapid traverse: 30000 mm/minTOOL MAGAZINE  number of positions: 21   tool diameter max.: 80 mm  - with free neighbour positions: 160 mm  tool length max.: 385 mm  tool weight max.: 6.8 kgELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  space requirements -left/right-: 3000 mm  space requirements -front/back-: 2600 mm  total height: 2700 mm  total weight approx.: 4200 kgExtras:- 4th axis- Chip conveyor- Internal coolant  ...

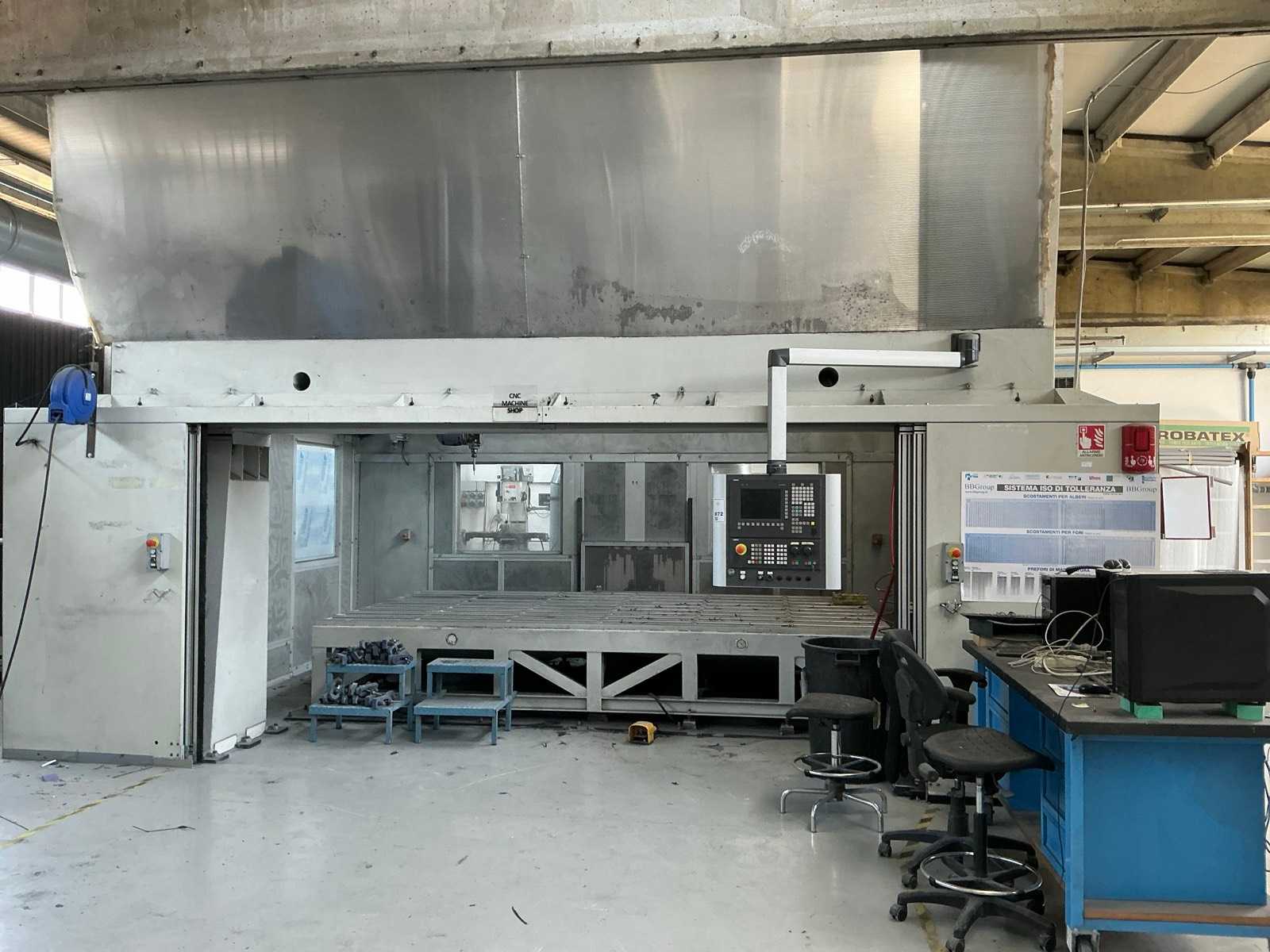

The machine is in good technical condition, testing is possible after prior agreement. 5-axis HSC machining center designed mainly for the production of molds, models, aircraft parts and large precision parts. Travels X/Y/Z 2700 × 1100 × 1400 mm Table 2000 × 2000 mm Table load capacity 12,000–15,000 kg Spindle speed up to 24,000 rpm Spindle power 34–45 kW Control FIDIA C20 Tool magazine 42–84 positions Clamping HSK 63A (some configurations HSK 100) Rapid traverses X 50 m/min, Y 40 m/min, Z 30 m/min Machine weight approx. 38–38.5 t Positioning accuracy X 0.006 mm, Y 0.005 mm, Z 0.004 mm

CONTROLS  CNC controls WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 3   X-axis travel: 1040 mm  Y-axis travel: 510 mm  Z-axis travel: 640 mmTABLE  table surface (left-right): 1460 mmSPINDLE / HEAD  spindle revolutions (max): 7000 /minTOOL MAGAZINE  number of positions: 24 ELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 Hz

Key data: 1270 mm, 610 mm, 720 mm

Inv. Num. : 9177 Type: VCI-D 1270 Producer: MAS Created: 2002, GO 2022 Parameters: Control system: HEIDENHAIN Work table length: 1500 mm Work table width: 600 mm Maximum vertical spindle speed: 12000 1/min X-axis travel: 1270 mm Y-axis travel: 610 mm Travel distances Z-axis: 720 mm Machine weight: 10500 kg Equipment: Accessories

Vertical machining centre HYUNDAI SPT-V550D - corse 570x410x580 mm, CNC SIEMENS 810D - rotopallet, Information about technical data are not binding., Machine available subject to prior sale., Working table size: 650x410 mm (2), Longitudinal travel x axis: 570 mm, Cross travel y axis: 410 mm, Vertical travel z axis: 580 mm, Working feed x-y-z axes: 0 - 36.000 mm/1, Rapid feed x-y-z axes: 36 mt/1, Spindle taper type: 40 DIN-BT, Automatic tools change nr.: 24, Spindle speed: 0- 10.000 rpm, Spindle motor power: 18,5 Kw, Cnc: SIEMENS 810D, Approx net weight: 6.000 Kg, accessories: coolant thrugh spindle

Key data: 1000 mm, 600 mm, 650 mm

Inv. Num. : 9176 Type: VCI-Q 1000 Producer: MAS Created: 2002, GO 2022 Parameters: Control system: HEIDENHAIN Maximum spindle speed: 8000 1/min X-axis travel: 1000 mm Y-axis travel: 600 mm Travel travel Z-axis: 650 mm Machine weight: 5500 kg Equipment: Accessories

Control: Manufacture: HEIDENHAIN iTNC 530 x-travel: 860 mmy-travel: 560 mmz-travel: 600 mmtable-size: 1000x560 mmspindle turning speed range: 10000 U/mintool magazin:: 24 weight of the machine ca.: 6.5 tHEIDENHAIN TNC-426Prepared for the 4th axis www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 800 mm, 590 mm, 480 mm

Inv. Num. : 9175 Type: MCV 1000 5AX Producer: MAS Created: 2012 Parameters: Switch-on hours: 35507 h Hours: 20417 h Table diameter: 520 mm Number of synchronized axes: 5 Maximum table load (uniform): 400 kg X-axis travel: 800 mm Y-axis travel: 590 mm Z-axis travel: 480 mm Equipment: Accessories

CONTROLS  CNC controls. 3D MILLPLUS IT V600 WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 3   X-axis travel: 500 mm  Y-axis travel: 450 mm  Z-axis travel: 400 mmTABLE  table surface (left-right): 700 mm  table surface (front-back): 500 mm  workpiece load (max): 500 kgSPINDLE / HEAD  spindle revolutions (min): 20 /min  spindle revolutions (max): 10000 /min  tool fixture: ISO SK 40   drive power: 13 kWAXIS DRIVES  traverse velocity X (max): 24000 mm/min  traverse velocity Y (max): 24000 mm/min  traverse velocity Z (max): 24000 mm/minTOOL MAGAZINE  number of positions: 30   tool diameter max.: 80 mm  - with free neighbour positions: 130 mm  tool length max.: 300 mm  tool weight max.: 6 kg  tool changing time: 8 sATTACHMENTS  European CE standards: yes No cooling system; the machine is connected to a central cooling system. ...

Inv. Num. : 9165 Type: VF-8/40 Producer: HAAS Created: 2016 Parameters: Operating hours: 4500 h Work table length: 1626 mm Work table width: 914 mm Maximum table load (uniform): 1814 kg Maximum vertical spindle speed: 8100 1/min X-axis travel: 1626 mm Y-axis travel: 1016 mm Travel Z axis: 762 mm Machine weight: 11250 kg

CONTROLS  CNC controls MORI SEIKI MSC 500 WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 3   X-axis travel: 560 mm  Y-axis travel: 410 mm  Z-axis travel: 460 mmTABLE  table surface (left-right): 900 mm  table surface (front-back): 450 mm  workpiece load (max): 300 kgSPINDLE / HEAD  spindle revolutions (min): 80 /min  spindle revolutions (max): 8000 /min  tool fixture: ISO BT 40 TOOL MAGAZINE  number of positions: 20 ELECTRICAL SPECIFICATIONS  mains power supply: 15.5 kVADIMENSIONS / WEIGHTS  space requirements -left/right-: 2210 mm  space requirements -front/back-: 2242 mm  total height: 2723 mm  total weight approx.: 4200 kg

The machine is in good technical condition, after prior agreement it is possible to test it. Number of controlled axes: 3 Cast iron structure, prismatic guide surfaces Spindle taper: ISO 40 Max. speed 8000 rpm Power (continuous/30min): 7.5/11kW 2 gears Table dimensions: 1050x600mm Max. workpiece weight: 850kg X/Y/Z axis strokes: 850/600/600mm Tool change: 24pcs.

x-travel: 835 mmy-travel: 510 mmz-travel: 510 mmCNC-control: iTNC530 HEIDENHAINtable-size: 1000 x 560 mmmax. table load: 800 kgspindle taper: SK 40 spindle turning speed range: 20 - 14.000 U/minfeed stepless: 1 - 20.000 mm/minrapid traverse: 20 m/mindrive capacity - spindle motor: 13 / 9 kWtool change unit: 32 Poscoolant: IKZ 25 barvoltage: 400 Vtotal power requirement: 30 kVAweight of the machine ca.: 4,5 tdimensions of the machine ca.: 3,50 x 3,50 x 2,70 mchip conveyor: 3,55 x 0,90 x 1,55 mcoolant equipment: 1,60 x 1,35 x 1,80 mspindle oil cooler: 0,40 x 0,50 x 1,00 mTransformer: 0,75 x 0,45 x 0,65 m- Serial-No.: 15415041384- Machine ON: 72,882 h- Program Run: 25.267 h- Linear scales in all 3 axis- electr. handwheel- Tool changer 30 pos. with double gripper- Chip conveyor- TSC with belt filter system- Coolant unit- new ball screw incl. bearings (X-Axis)- motor spindel changed by previ ...

Key data: 4200 mm, 2425 mm, 1000 mm

Inv. Num. : 9140 Type: FVC 160/4 CNC Producer: TYC Created: 2014 Parameters: Work table length: 4000 mm Work table width: 1600 mm Maximum table load (uniform): 11000 kg X-axis travel: 4200 mm Y-axis travel: 2425 mm Travel Z axis: 1000 mm Machine weight: 50000 kg Equipment: Sempuco Head KFU-NC3/45/005X

CONTROLS  CNC controls SIEMENS 840 D SL WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 4   X-axis travel: 210 mm  Y-axis travel: 270 mm  Z-axis travel: 360 mmSPINDLE / HEAD  spindle revolutions (max): 40000 /min  tool fixture: HSK A40 TOOL MAGAZINE  number of positions: 64 AUTOMATIC WORKLOAD EQUIPMENT  workpiece manipulator: articulated robot   number of store positions: 32 ELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  total weight approx.: 9000 kgATTACHMENTS  chip conveyor: yes   coolant unit: yes   band filtration unit: yes   closed cabin: yes Operating hours: Spindle 1: 4050 h, Spindle 2: 11,114 hInternal cooling 70 barFanuc Automation Robot M-10IAIntegrated workpiece changing deviceKnoll coolant tank Knol KF 400/900

Key data: 762 mm, 630 mm, 610 mm

Inv. Num. : 9118 Type: XT 630 5AX Producer: Bridgeport Created: 2018 Parameters: Control system: Heidenhain TNC 640 Switch-on hours: 26283 h Hours: 13817 h Table diameter: 630 mm Number of axles: 5 pieces Maximum vertical spindle speed: 15000 1/min X-axis travel: 762 mm Y-axis travel: 630 mm Travel travel Z-axis: 610 mm Cone: BT40 Machine weight: 14600 kg

CONTROLS  CNC controls SIEMENS 840D SL 4.8 WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 4   X-axis travel: 210 mm  Y-axis travel: 270 mm  Z-axis travel: 360 mmSPINDLE / HEAD  spindle revolutions (max): 40000 /min  tool fixture: HSK A40 TOOL MAGAZINE  number of positions: 72 AUTOMATIC WORKLOAD EQUIPMENT  workpiece manipulator: articulated robot   number of store positions: 36 ELECTRICAL SPECIFICATIONS  mains voltage: 400 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  space requirements -left/right-: 8500 mm  space requirements -front/back-: 2500 mm  total weight approx.: 6000 kgATTACHMENTS  central lubrication system: yes   chip conveyor: yes   coolant unit: yes   through spindle coolant attachment: yes   European CE standards: yes -Siemens tool management with retooling-Fanuc Automation Robot M-10IA-Operating hours: 7,200  ...

Control Mitsubishi 64S Travel Distances X/Y/Z 600 x 400 x 460 mm Table size 700 x 410 mm Table load 250 kg Spindle speed 12,000 min-1 Tool magazine for 24 Wkz. BT 40 IKZ 20 bar Suction Chip conveyor

Control: Manufacture: FANUC 21-M x-travel: 1020 mmy-travel: 510 mmz-travel: 575 mmtable-size: 1200 x 500 mmspindle turning speed range: 60-8000 U/mintool magazin:: 24 weight of the machine ca.: 7.5 tHEIDENHAIN TNC-426Prepared for the 4th axis www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine is in good technical condition, after prior agreement it is possible to test it. 0 Baumuller ball screws, spindle diameter 60 mm, SK 40, power 5.5kw/11 kW, torque 100Nm. Rotary tool changer 12. 3 axes and 4th axis only control board without 4th axis table..

CONTROLS  CNC controls HEIDENHAIN ITNC 620 WORKING RANGE -CUBIC-  number of processing axes (excl parallel axes): 3   .. among of them simultaneous CNC axes: 3   X-axis travel: 1000 mm  Y-axis travel: 550 mm  Z-axis travel: 550 mmTABLE  table surface (left-right): 1100 mm  table surface (front-back): 550 mm  workpiece load (max): 800 kgSPINDLE / HEAD  spindle type: vertical   spindle revolutions (max): 10000 /min  tool fixture: ISO SK 40   drive power: 13.5 kWAXIS DRIVES  feed velocity (max): 10000 mm/min  rapid traverse X: 36000 mm/min  rapid traverse Y: 36000 mm/min  rapid traverse Z: 36000 mm/minTOOL MAGAZINE  magazin type: disc magazine   number of positions: 30   tool diameter max.: 76 mm  tool length max.: 250 mm  tool weight max.: 6 kgELECTRICAL SPECIFICATIONS  mains power supply: 15 kVADIMENSIONS / WEIGHTS  space requirements -left/ ...

The machine is in good technical condition, after prior agreement it is possible to test it. CONTROL SYSTEM Control language - completely in Czech 3D simulation - yes Programming type - Dialogue and NC TABLE Table dimensions - 1,270 x 610 mm T-slots - 5 x 18 mm Max. table load - 1,350 kg Distance between the spindle face and the table - 150 - 760 mm TRAVELS X-axis - 1,070 mm Y-axis - 610 mm Z-axis - 610 mm SPINDLE Max. spindle speed - 12,000 rpm Spindle taper - SK40 TOOL MAGAZINE Number of tools - 24 Max. tool diameter - 80 mm Max. tool weight - 7 kg

x-travel: 2134 mmy-travel: 1016 mmz-travel: 762 mmCNC-control: HAAS CNC Table dimensions: 2134 x 914 mmmax. table load: 1814 kgspindle taper: SK 50 spindle turning speed range: 7500 U/minspindle motor: 22,4 kWfeed range: 1270 mm/minrapid traverse: 15,2 m/mintool change unit: 30 Pos.coolant: IKZ voltage: 400 Vtotal power requirement: kWweight of the machine ca.: 13,2 tdimensions of the machine ca.: 4,70 x 2,95 x 2,99 mchip conveyor: - Serial No.:1099476- Year of manufacture 11/2012- Through spindle coolant TSC- 5-Axis pivotable rotary table HAAS TR310 (as new condition)PRICE FOR MACHINE WITHOUT ROTARY TABLE TR310: 82.000,- EURThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
