Key data: 3040 mm, 1 mm
used Schechtl manual bending machine, with foot lever Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is being carried out Working length: 3040 mm Sheet thickness steel: 1.25 mm Sheet thickness aluminium: 1.75 mm without backgauge Colour: green Dimensions: 3800 x 800 x 1400 mm Machine weight: 1700 kg Upper beam stroke: 140 mm without roller scissors/ Opening width: 140 mm Bending angle (max.): 160 degrees Underbeam adjustment: 25 mm Machine number: 20592
Key data: 4040 mm, 1 mm
used Schechtl swivel bending machine, with roller shears on the upper beam, Two foot switches, attachment rail 10 and 20m m Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is being carried out Working length: 4040 mm Sheet thickness steel: 1.5 mm Sheet thickness aluminum: 2.0 mm Sheet thickness front: 1.0 mm without backgauge Colour: grey/blue Total power requirement: 16 A Dimensions: 4965 x 720 x 1220 mm Machine weight: 3950 kg Upper beam stroke: 140 mm with roller scissors/ Opening width: 140 mm Bending angle (max.): 160 degrees Underbeam adjustment yes Machine number: MA7675
Key data: 2540 mm, 1 mm, 500 mm
used Schechtl hand-held guillotine shears Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is being carried out Working length: 2540 mm Sheet thickness steel: 1.0 mm Sheet thickness aluminium: 1.5 mm Sheet thickness front: 0.6 mm Colour: green Machine weight: 860 kg Dimensions: 2942 x 1330 x 1500 mm Automatic hold-down Back gauge max. 500 mm Machine Number: 5360
Key data: 3100 mm, 1 mm
used Schechtl swivel bending machine, with hand roller shears, foot pedal, Sheet metal support rack, attachment rail 10 + 20mm, Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is being carried out Working length 3100 mm Blechstärke Stahl/sheet thickness steel 1.0 mm Blechdicke Alu/sheet thickness Aluminium 1.5 mm Blechdicke VA/sheet thickness Stainless 0.6 mm Backgauge (max.)/Backgage without Farbe/Colour grau/blau Space requirement approx. 3850 x 900 mm Machine Weight: 1300 kg Oberbolenhub/upper beam stroke 130 mm Roller shear/roller shear yes Öffnungsweite/opening width 130 mm Bending angle (max.)/bending angle 160 degrees Underbeam adjustment yes Back gauge (min,) no Machine number HB26495
Key data: 3140 mm, 1 mm
used Schechtl motorized guillotine shears, handle stop 500mm, foot switch, pull-out sheet metal support at the front, Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried out. Working length 3140 mm Blechdicke Stahl/Sheet thickness steel 1,50 mm Blechdicke Alu/Sheet thickness Alu 2.25 mm Blechdicke VA/Sheet thickness stainless 1.00 mm 50 Maschinennummer/Machine number 5743 Farbe/Colour grün Total power requirement/Electric power 32 A Machine Weight: 1480 kg Dimensions/Space requirment 3492 x 1800 x 1200 mm Cutting gap adjustment without Connection voltage 400 V Automatic hold-down Fixed cutting angle Backgauge min. 0 mm Back gauge max. 500 mm
Key data: 3100 mm, 2 mm
Schechtl MAN 310 CNC folding machine with touchscreen. You will receive a proper invoice with VAT.
Key data: 2040 mm, 1 mm
with manual depth stop 5 - 500mm, can be operated from the rear, with extendable sheet metal support, Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is carried out. Working length 2040 mm Blechstärke Stahl/Sheet thickness steel 1,25 mm Sheet thickness Alu 1.75 mm Blechdicke VA/Sheet thickness stainless 0.80 mm Farbe/Colour grün Machine Weight: 650 kg Dimensions/Space requirment 2442 x 756 x 1056 mm Cutting gap adjustment without Automatic hold-down Backgauge min. 5 Back gauge max. 500 mm Machine Number: 3540
Key data: 2040 mm, 1 mm
used Schechtl hand-held guillotine shears, with hand back gauge, extendable from the front Sheet metal support, automatic. Hold-down Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is carried out. Working length 2040 mm Blechstärke Stahl/Sheet thickness steel 1,25 mm Sheet thickness Alu 1.75 mm Blechdicke VA/Sheet thickness stainless 0.80 mm Farbe/Colour grün Machine Weight: 650 kg Dimensions/Space requirment 2442 x 756 x 1056 mm Cutting gap adjustment without Automatic hold-down Fixed cutting angle Backgauge min. 5 mm Back gauge max. 500 mm Maschinennummer/Machine number 8604
Offer 26114 Technical data: - Bending process is carried out by hand, supported by counterweight - Clamping of the upper beam via eccentric lever + foot pedal - Max. working width 2040 mm - Max. material thickness St 40 1.00 mm - Bending angle adjustment via end stop 10 - 180 ° - max. stroke upper beam approx. 70 mm - Max. adjustability bending beam 10 mm - Space requirement approx. W 2800 x H 1200 x D 900 mm - Weight approx. 520 kg - various bending rails as shown
Key data: 2500 mm, 1 mm
with segmented tools on the upper beam, Machine is repaired, checked, cleaned by a specialist and is then fully functional. Test run is carried out. Working length: 2500 mm Sheet thickness steel: 1.5 mm Sheet thickness aluminum: 2.0 mm Sheet thickness front: 1.0 mm without backgauge (max.) Colour: green Total power requirement: 400 V Machine weight: 2200 kg Dimensions: 3500 x 1800 x 1600 mm Machine Number: 1808
Key data: 3140 mm, 1 mm
new Schechtl motorized guillotine shears, with the following equipment: - within the EU: 32 amp connection plug with 5 m cable - 1 pair of steel scissor knives (single-edged) - Manual depth stop 0-750 mm with pneumatically operated tilting table, Laying down to the front - Support plates with 10 mm graduation and tape measure - Footswitch - Three-sided safety cage around the depth stop - Compressed air must be available: min. 6 bar, max. 10 bar - approx. 50 l/min - Cut-gap illumination - Electronic position display - Contact stroke counter tico 731.3 - Sheet metal stacking trolley light max, load capacity 300 kg Working length 3140 mm 20 Sheet thickness steel 1.5 mm 30 Sheet thickness Alu 2.25 mm 40 Blechdicke VA/Sheet thickness stainless 1,0 mm 50 Maschinennummer/Machine number MT 13952 Working length: 3140 mm Sheet thickness steel: 1.5 mm Sheet thickness alumi ...
Key data: 1250 mm, 1 mm
with the following equipment: segmented with quick-clamping system Segment height: 100 mm Division of the segments: 8 x 100 mm 1 x 30/40/50/60/70 mm 1 x right corner 100 mm 1 x corner left 100 mm with engraved measurement numbers in upper and bending beam segments incl. wheels Extras: with window sill insert for the production of head edges, segment height 100mm with depth stop with T-slot rail Working length: 1250 mm Sheet thickness steel: 1.25 mm Sheet thickness aluminium: 2.00 mm Sheet thickness front: 0.80 mm Colour: blue Dimensions: 1730 x 740 x 1180 mm Machine weight: 290 kg without roller scissors Opening width: 90 mm Bending angle (max.: 150 mm Machine number: UK 20361
Long bending machine, with the following equipment: - 1 sharper rail 20°, offset, radius 1 mm for the upper beam - 1 insert rail 10/100 mm and 14/100 mm each for the bending beam - 2 foot switches for 2-man operation - S-Touch control with graphical profile display - 21.5" LCD touch color monitor with high-resolution graphics - Motorized depth stop 8-1000 mm - F-Geometry - within the EU with 32 amp plug with 5 m cable Machine has been repaired, checked, cleaned by a professional and is fully functional. Test run was carried out. Working length: 4040 mm Sheet thickness max. steel: 1.5 mm Sheet thickness max. aluminium: 2.0 mm Sheet thickness max. VA: 1.0 mm Back gauge (min.): 8 mm Back gauge (max.): 1000 mm Colour: blue/grey Total power requirement: 400 V Dimensions: 5325 x 2232 x 1924 mm Weight: 5000 kg Upper beam stroke (opening width): 140 mm Plate thickness ...
Brand new Schechtl segment bending machine Sheet width: 1250 mm Sheet thickness steel: 1.25 mm Sheet thickness aluminium: 2.00 mm Sheet thickness front: 0.8 mm Colour: blue Dimensions: 1730 x 740 x 1180 mm Machine weight: 290 kg without roller scissors Opening width: 90 mm Bending angle: 150 mm
used
Key data: 200 mm, 1 mm, 200 mm
Sell here an electric Schechtll bending bench with 6-way control and a matching 2m hand-held guillotine shears. Price net, you will receive an invoice with VAT.
used
Key data: 2000 mm, 1 mm, 2000 mm
Electric bending machine Schechtl 2000x1.25mm with 6-way control, in good condition. The machine can be loaded with a forklift. You will receive a proper invoice with VAT, price net 6900.-. Shipping possible throughout Europe. Please call us or send us a wading app.
Key data: 4040 mm, 2 mm
Motorized guillotine shears, with front-adjustable handle, sheet metal depositing to the front Sheet width: 4040 mm Sheet thickness steel: 2.5 mm Sheet thickness aluminum: 4.0 mm Sheet thickness stainless steel 1.5 mm Colour :grey/blue: Total power requirement :32 A Machine weight :3350 kg Dimensions: 4585 x 2592 x 14300 Cutting gap adjustment: manual Automatic hold-down Angle stop :1000 mm Cutting angle: > 1.11 degrees Adjustable back gauge: 0 - 750 mm
large working width: 2040 mm for iron sheets up to approx.: 1 mm Dimensions: 2650 x 650 x 1180 mm Weight: approx. 680 kg
sheet width: 2520 mm plate thickness: 2.0 mm ST plate thickness: 3.0 mm ALU distance between columns: 2600 mm cutting angle: 2.0 ° no. of strokes: ca. 32 Hub/min weight: 1480 kg range L-W-H: 2892 x 1865 x 1430 mm Machine from a sheet metal shop Good condition () Features: - Robust, electric-motor-driven panel shear - Shatterproof, torsion-resistant welded steel construction - Compact and well-organized machine design - Electric-motor-driven backgauge With analog position display Manual fine adjustment from the front - 1x holding-down bar (continuous) - 1x freely movable foot switch - Operating instructions (PDF) Special accessories included: - Sheet metal holding device for thin sheet metal blanks The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

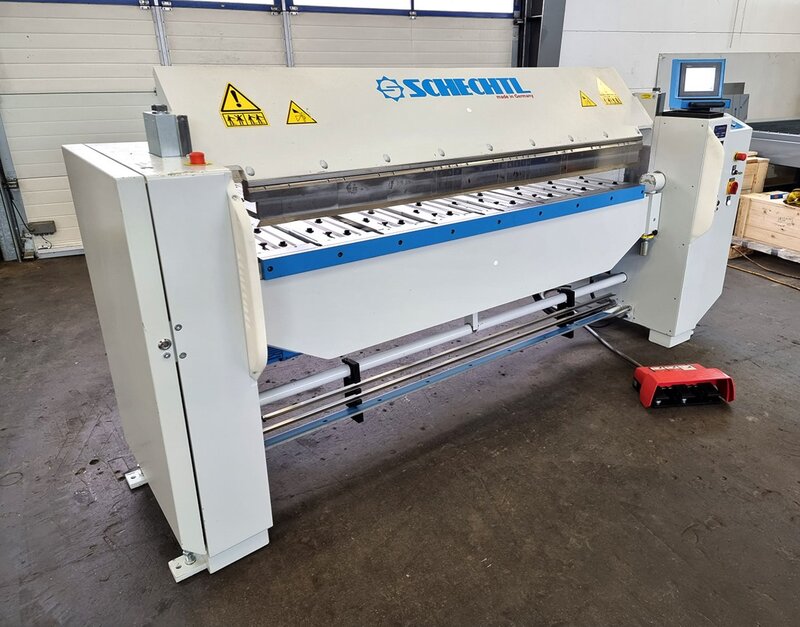

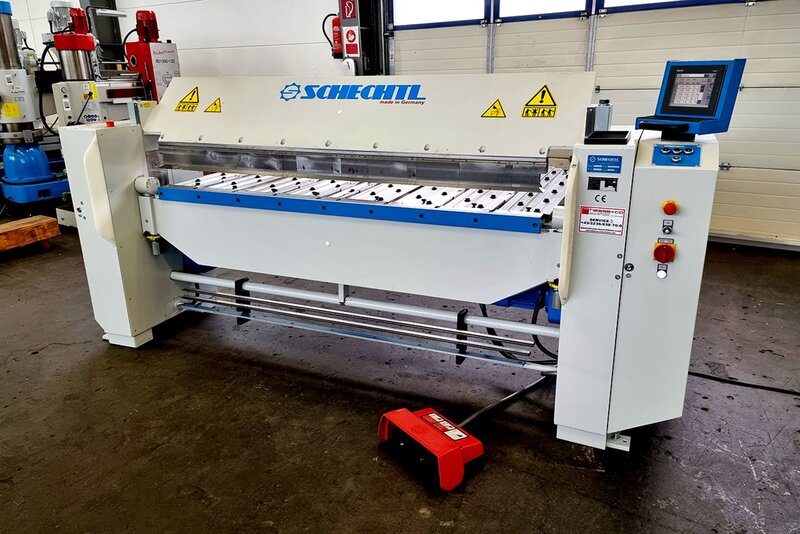

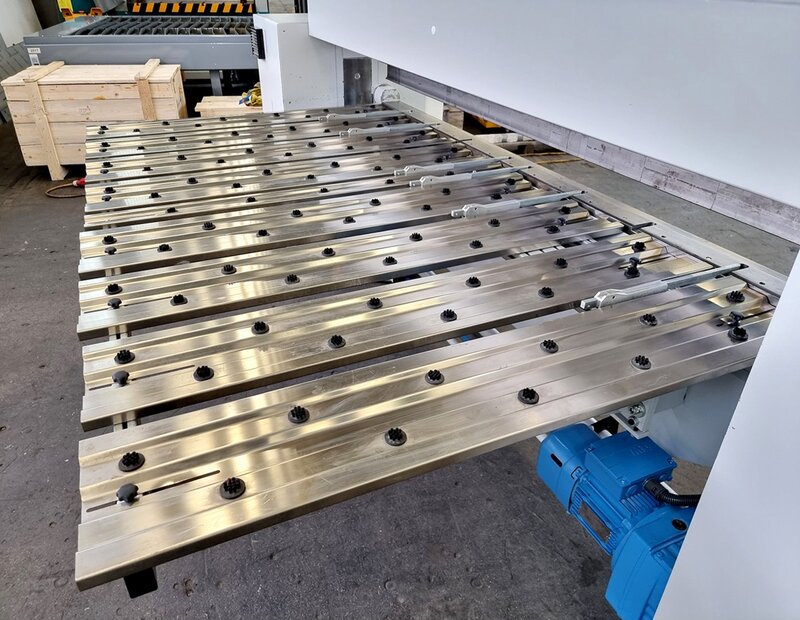

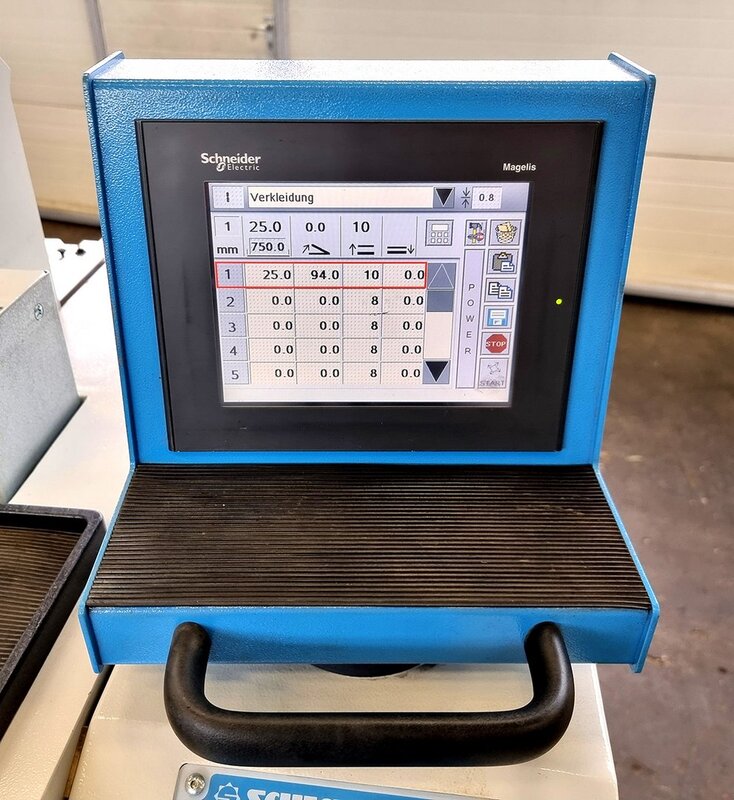

: gebraucht : 2010 : 080065 : prompt, Zwischenverkauf v : Deutschland : 29800 € : 1 : 2040 mm : 3 mm : 2 mm : 4.5 mm : Motorisch : 1.5 kW : 1.1 kW : 3060 mm : 1650 mm : 1500 mm : 2730 kg : 750 mm : 140 mm : 50 °/sek CNC control ECT (Schneider Magelis) - Input of bending angle, depth stop dimension, lifting height, folding, precut - max. 36 bending angles can be saved per set - max. 510 sets can be saved - comfortable 7.5", color touch TFT monitor - Power mode for material-friendly operation - Soft start of the bending beam and the depth stop - Visual user guidance in the event of faults (diagnosis center) - Selection of different languages such as German, English ... CNC back gauge - Back gauge range 6 - 750 mm - Drive via belt - 6 stop fingers - support plates with brushes Sectioned goose neck rail height 75 mm Additional 10 mm rail on the bening beam Flat rail R 1 mm Flat rail R ...
