Offer 26028 Technical data: - Max. working width 3040 mm - Max. material thickness ST 37 4 mm - Bending process as fully automatic, or - Semi-automatic workflow can be pre-selected - Bending angle adjustment electronically pre-selectable 0 - 135 ° - Max. lifting height of the upper beam 350 mm - Lifting height of the upper beam can be electronically preselected - Adjustability - bending beam 125 mm - The lower beam 125 mm - Upper bolster drive 400 V / 4.0 kW - Bending beam drive 400 V / 5.5 kW - E. footswitch - Space requirement approx. W 3950 x H 1600 x D 1200 mm - Weight approx. 4800 kg
Max. cutting length: 3100 mm Max. sheet thickness: 6 mm at 490 N/mm² Motorized backgauge with digital display Manual cutting gap adjustment Cutting length variably adjustable Cut edge lighting New knives
Description Guillotine Shears Hera HSS-5 Details Machine no. 511 Year of construction 1982 Cutting capacity 10 mm to 2m width with spare blade
Stick electrodes 2.0 x 250 -Type: Hera yellow -Weight per package: 3.1 kg

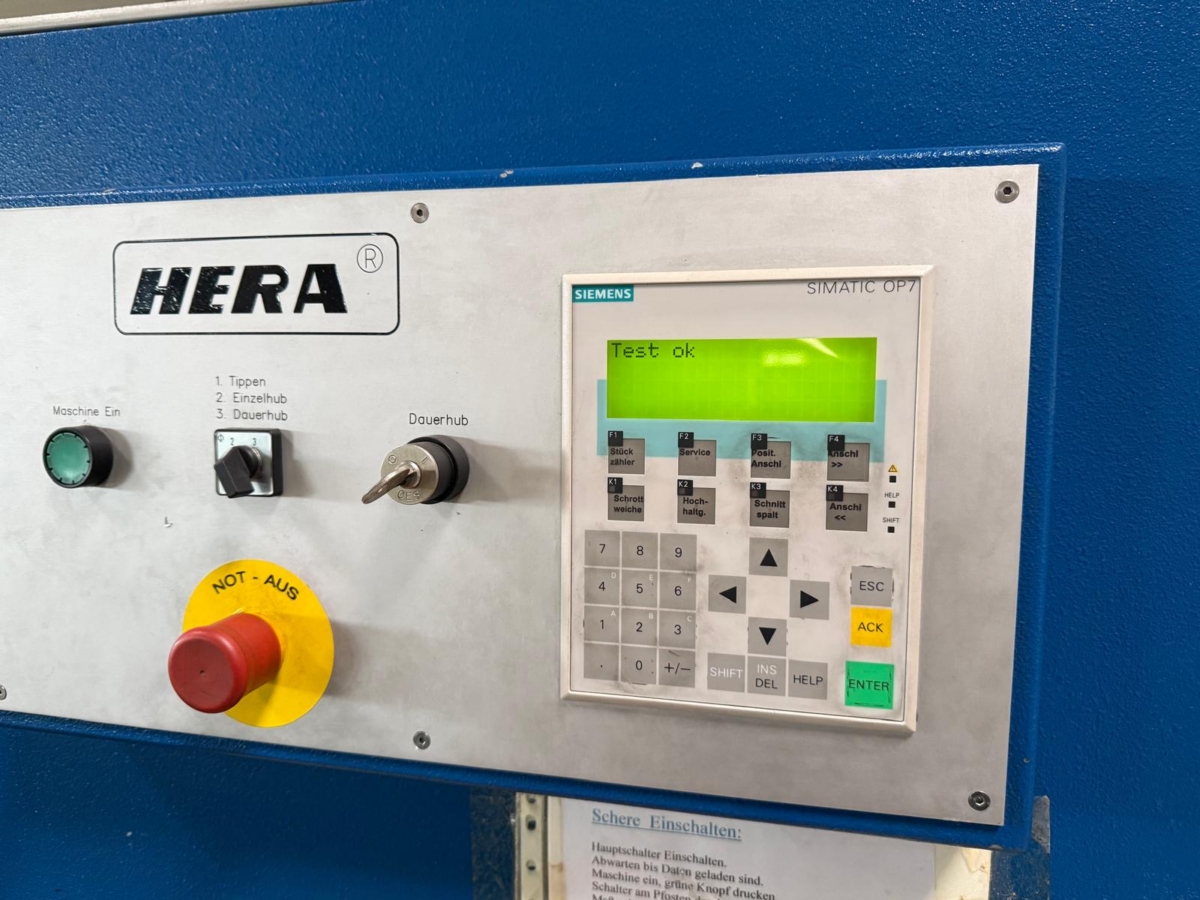

sheet width: 3020 mm plate thickness: 5 mm distance between columns: 3020 mm Control: Simatec OP7 stroke: 450 mm back stop - adjustable: 1000 mm work height max.: 900 mm total power requirement: 22 kW weight of the machine ca.: 9000 kg dimensions of the machine ca.: 4200 x 1600/2900 x 2000 mm Features: - Motorized backstop, 1000 mm - Motorized upper crossbar adjustment - Motorized lower crossbar adjustment - Side protection - Foot switch - Operating instructions The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 3000 mm plate thickness: 4 mm work height max.: 900 mm : 450 mm total power requirement: 5,5 kW weight of the machine ca.: 4800 kg dimensions of the machine ca.: 4250 x 1500 x 1850 mm Equipment: - electric bending angle adjustment - electric upper beam adjustment - foot switch - operating instructions The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 110 t chamfer lenght: 4100 mm distance between columns: 3100 mm dayligth: 425 mm throat: 300 mm stroke: 225 mm working feed: 10 mm/sec return speed: 100 mm/sec table height: 900 mm oil volume: 260 l total power requirement: 11 kW weight of the machine ca.: 12000 kg dimensions of the machine ca.: 4400 x 1750 x 2500 mm Equipment: - Cybelec DNC 34 PC control system - Controlled backgauge 700 mm (X-axis) - Hydraulic tool clamping at the top - 2 support arms with sliding system - Upper tool - Lower tool - Side + rear safety device - 2 manual foot switches The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 2600 mm plate thickness: 5 mm rear stop: 1000 mm cutting angle: 1°06 ° no. of strokes: 45 Hub/min voltage: 380 V / 50 Hz total power requirement: 5,5 kW weight: 4500 kg dimensions of the machine ca.: 3600 x 2200 x 1600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 3100 mm plate thickness: 2 mm rear stop: 1000 mm cutting angle: 1°06 ° no. of strokes: 45 Hub/min total power requirement: 3,0 kW dimensions of the machine ca.: 3600 x 2200 x 1600 mm weight: 4500 kg Equipment: - Electric motorized backgauge - With digital ELGO position display - Manual cutting gap adjustment - 1x side stop with mm scale - 2x support arms - 1x freely movable double foot switch - Front finger guard Special accessories included: - Pneumatic sheet metal holding device for thin sheet metal cuts The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 3100 mm plate thickness: 6,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Motorized backgauge with digital display Manual kerf adjustment Variable cutting length Cutting edge illumination New blades The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
sheet width: . mm plate thickness: 10 Festigkeitvon N/mm²400 mm distance between columns: . mm stroke: 300 mm bending angle max.: 130 ° 0: 3000 mm pointed rail: 45 Grad : auswechselbar Control panel: Digitalanzeige, Tastatur inside radius min.: 3 x Blechdicke mm Shortest leg length: 10 x Blechdicke mm drive: hydraulisch total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are ...
Hydr. Swing cut guillotine shears HERA type HSS IIIFabr. No. 598 Year of manufacture 1986Cutting length 3100 mmCutting thickness 3 mmStand projection 200 mmKnife strokes 25 strokes/min. Mains connection 380 Volt, 50 HzMotor power 3 kW- motorized adjustable back gauge 1070 mm- actual digital display for the back gauge- cutting gap adjustment- cutting length adjustment- front side stop left 1000 mm- 4 pieces sheet metal support arms 1000 mm- el. Foot switchSpace requirement without sheet metal support arms L x W x H 3630 x
sheet width: 1500 mm plate thickness: 3 mm weight of the machine ca.: 4 t dimensions of the machine ca.: BxTxH 2000x1500x1800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
