dmg 300 used for sale

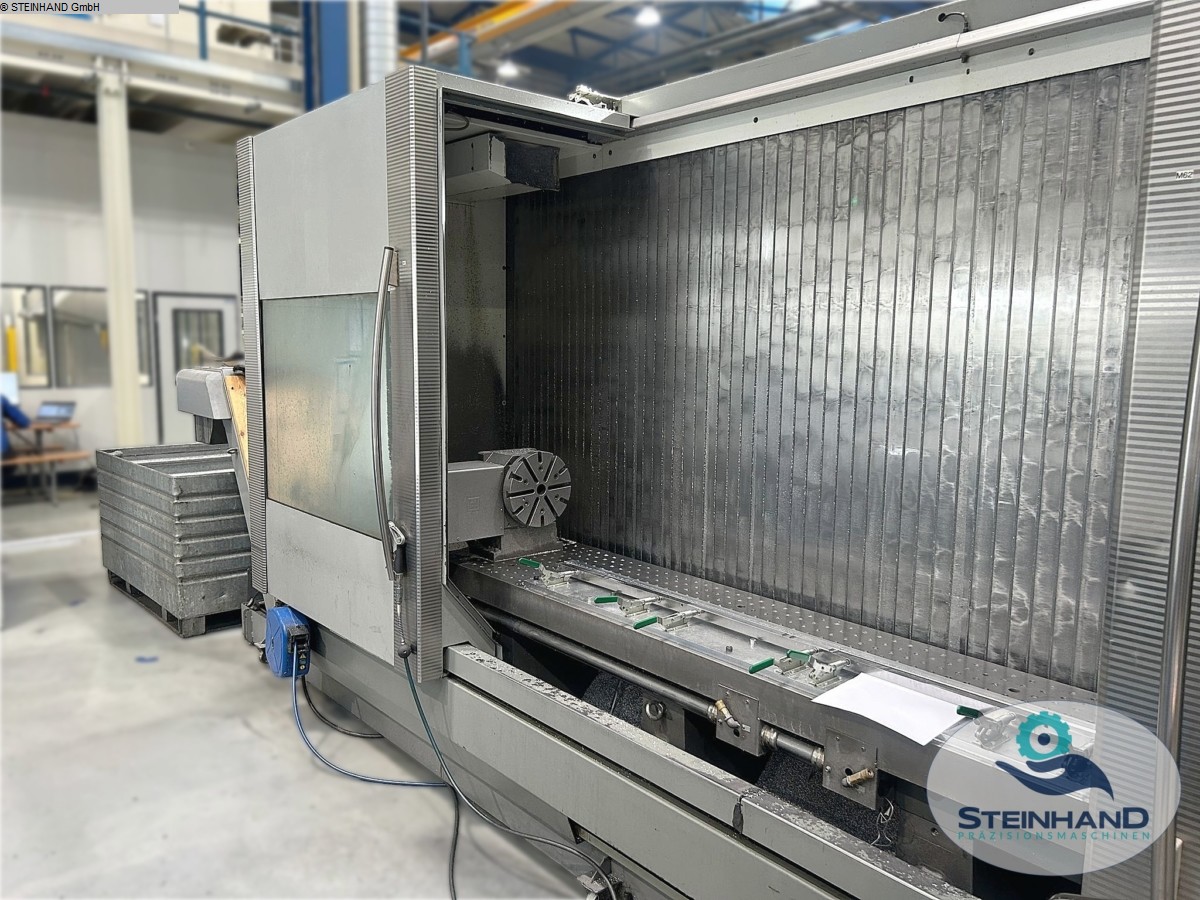

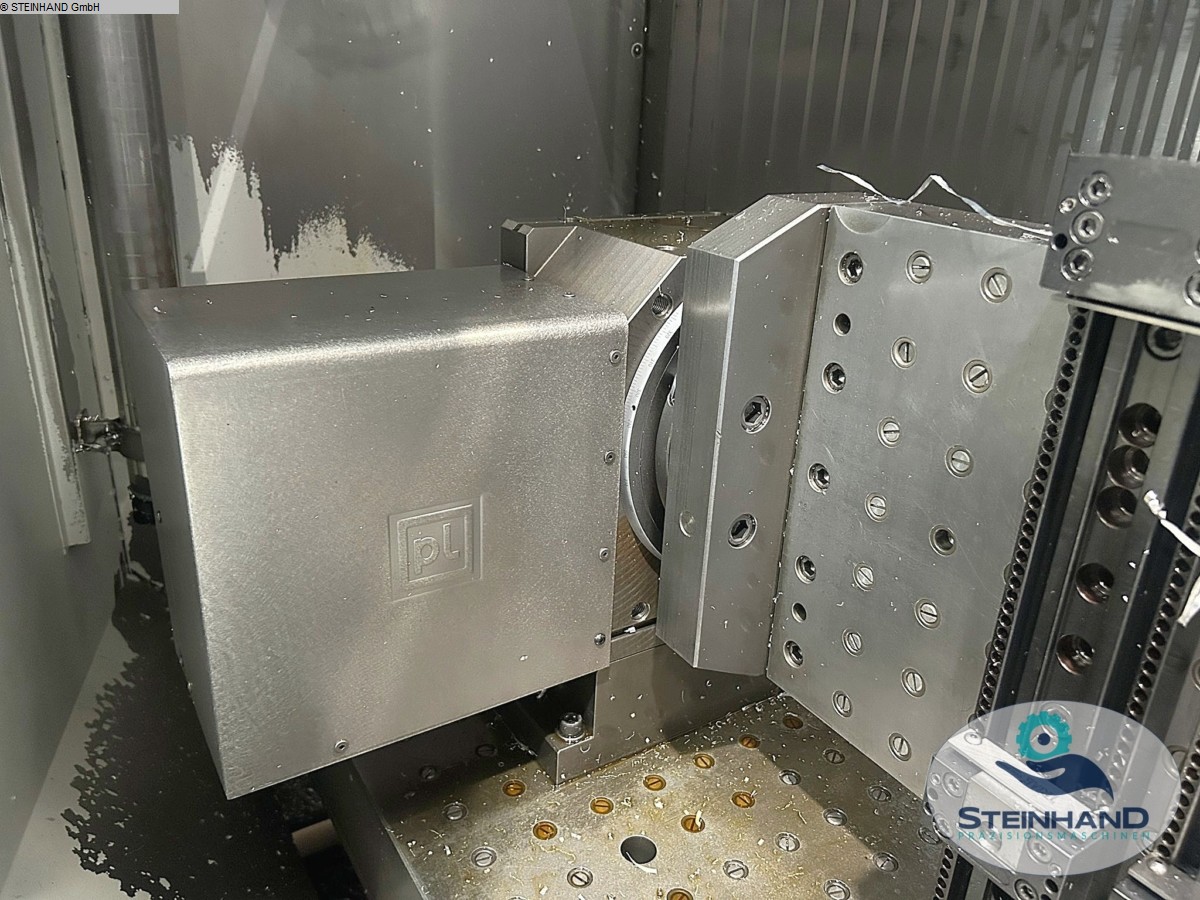

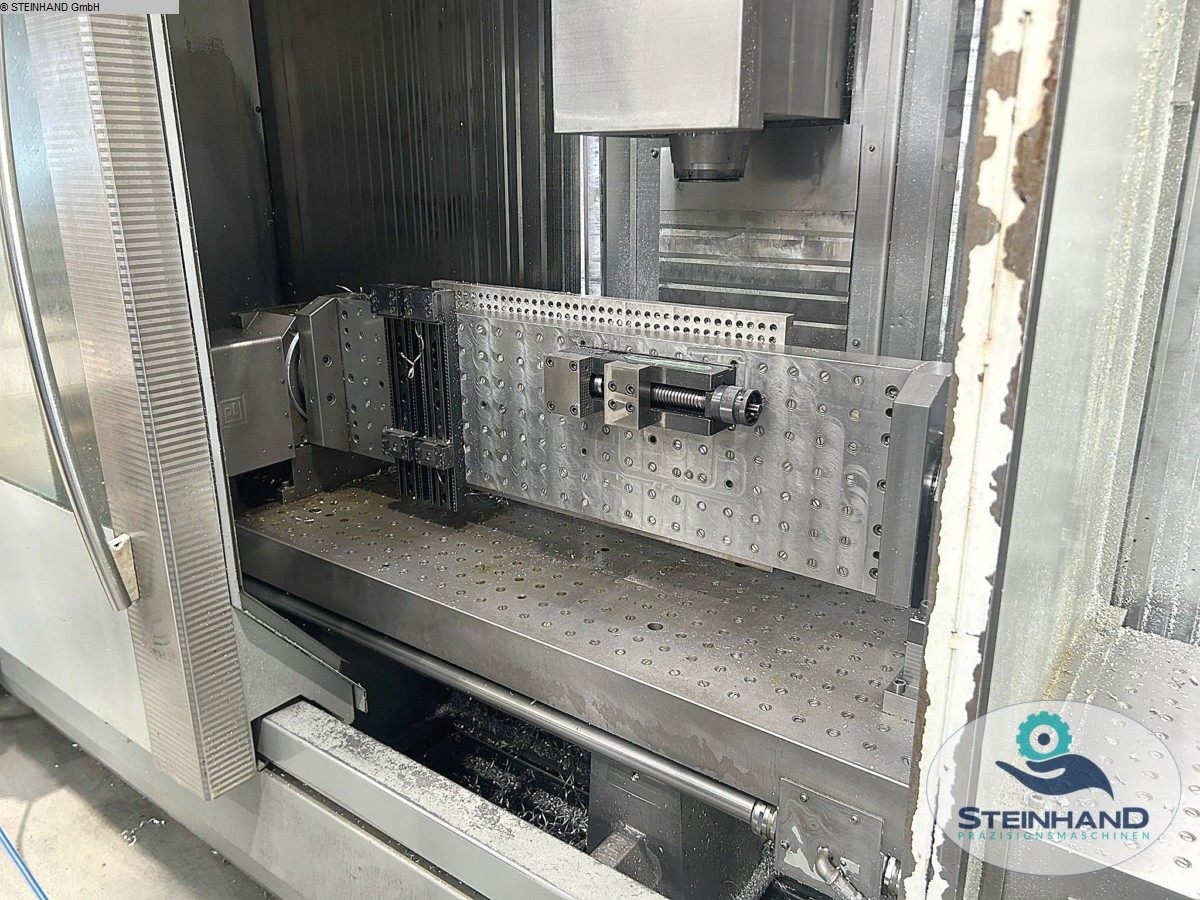

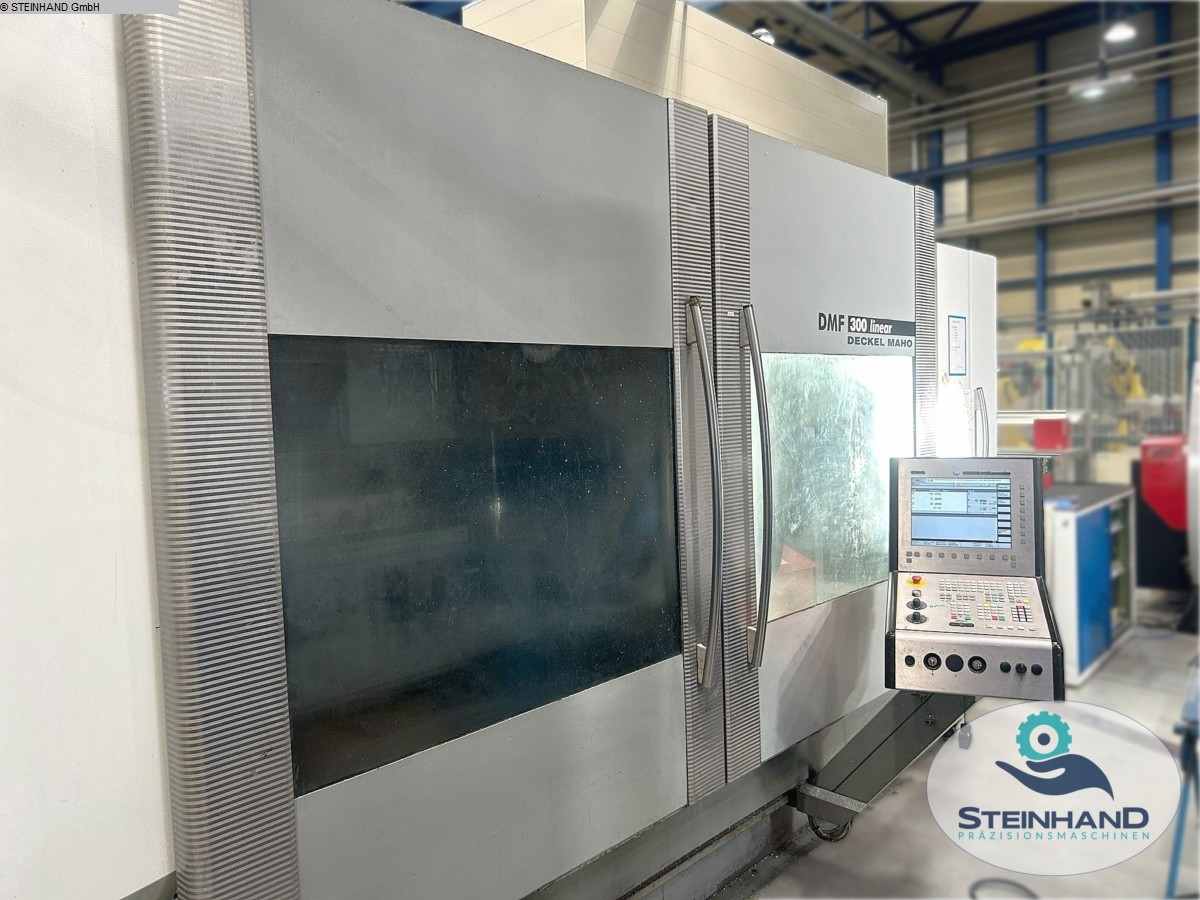

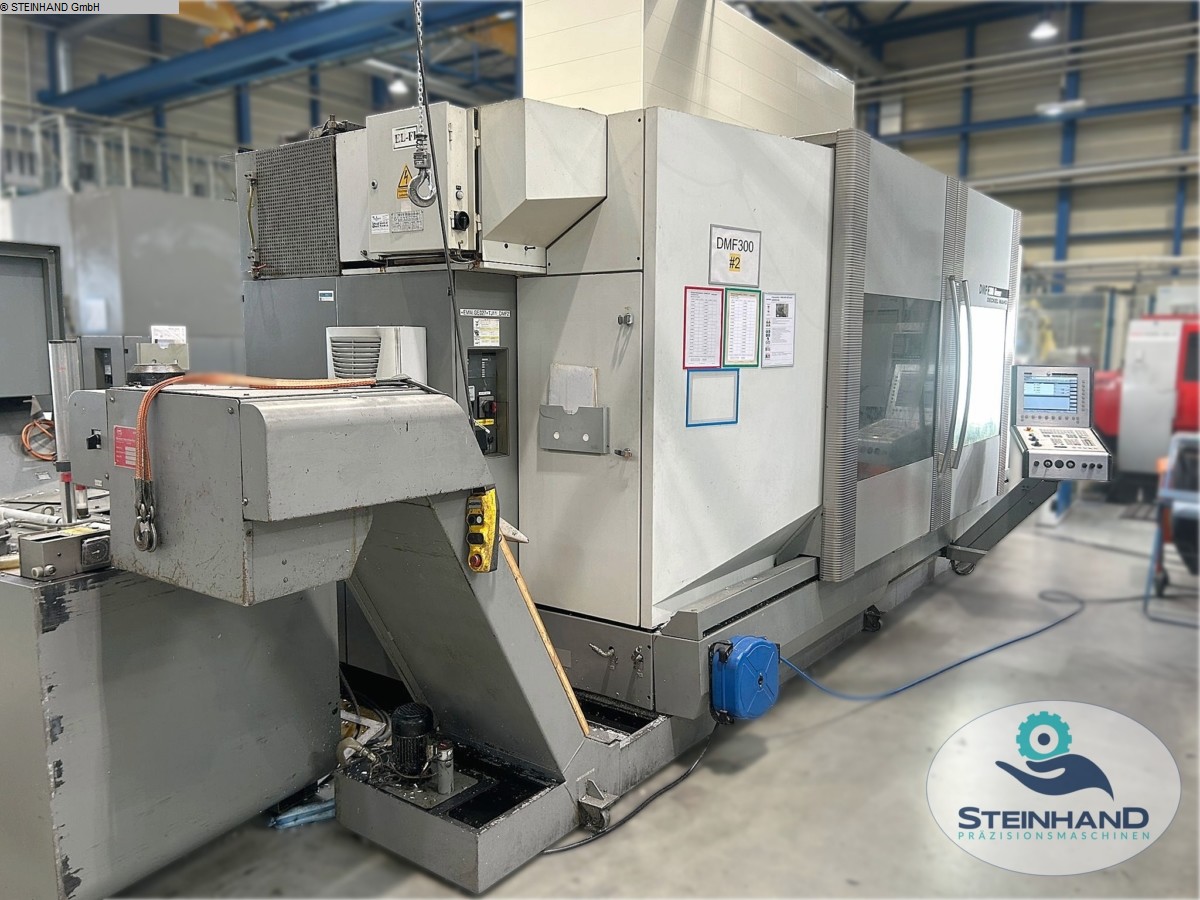

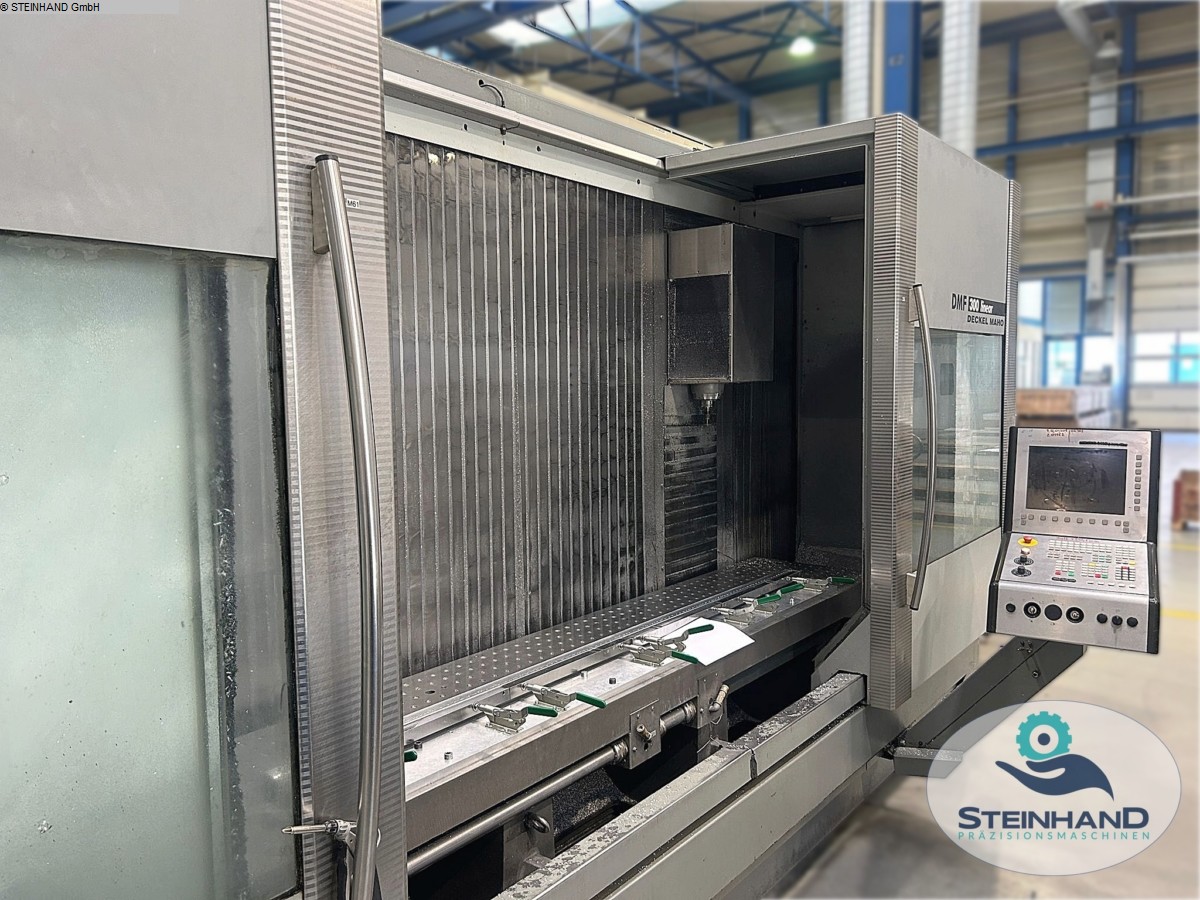

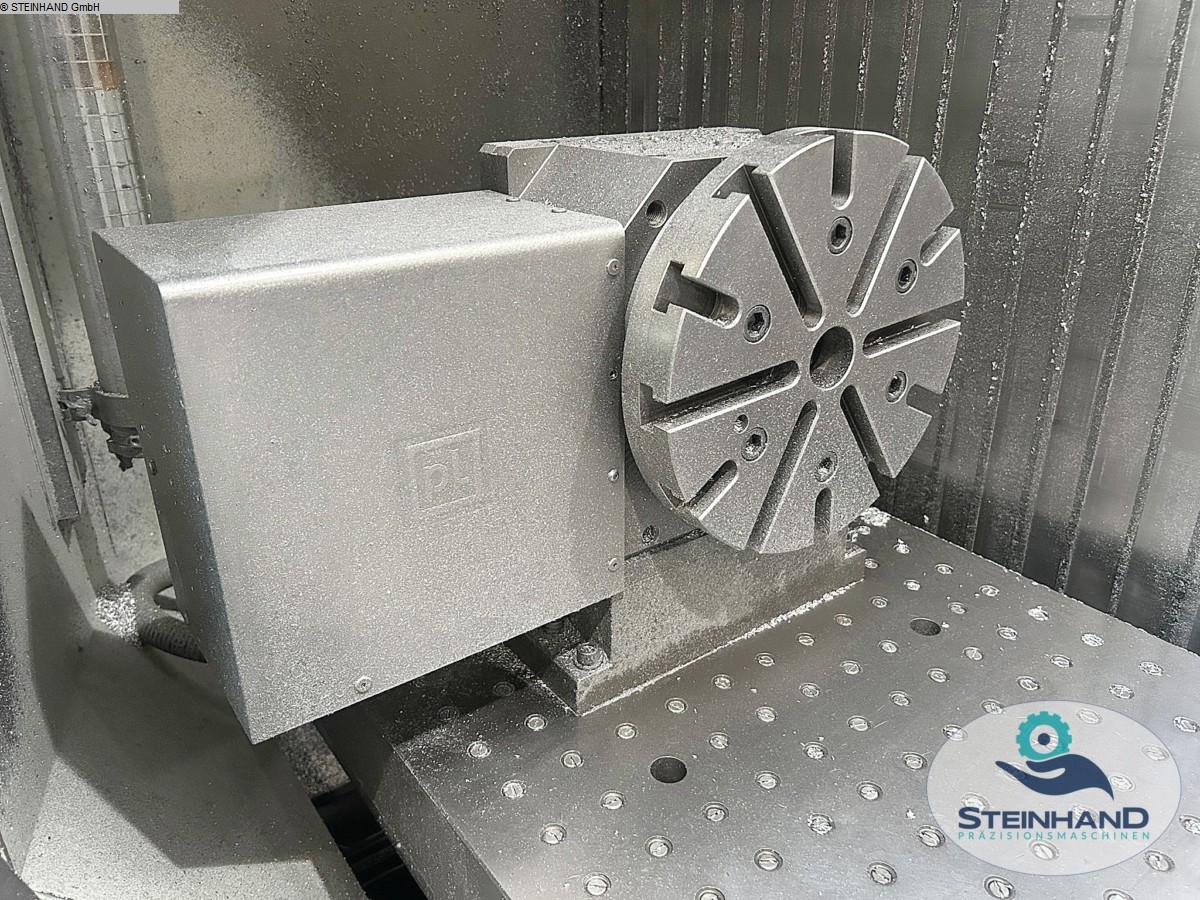

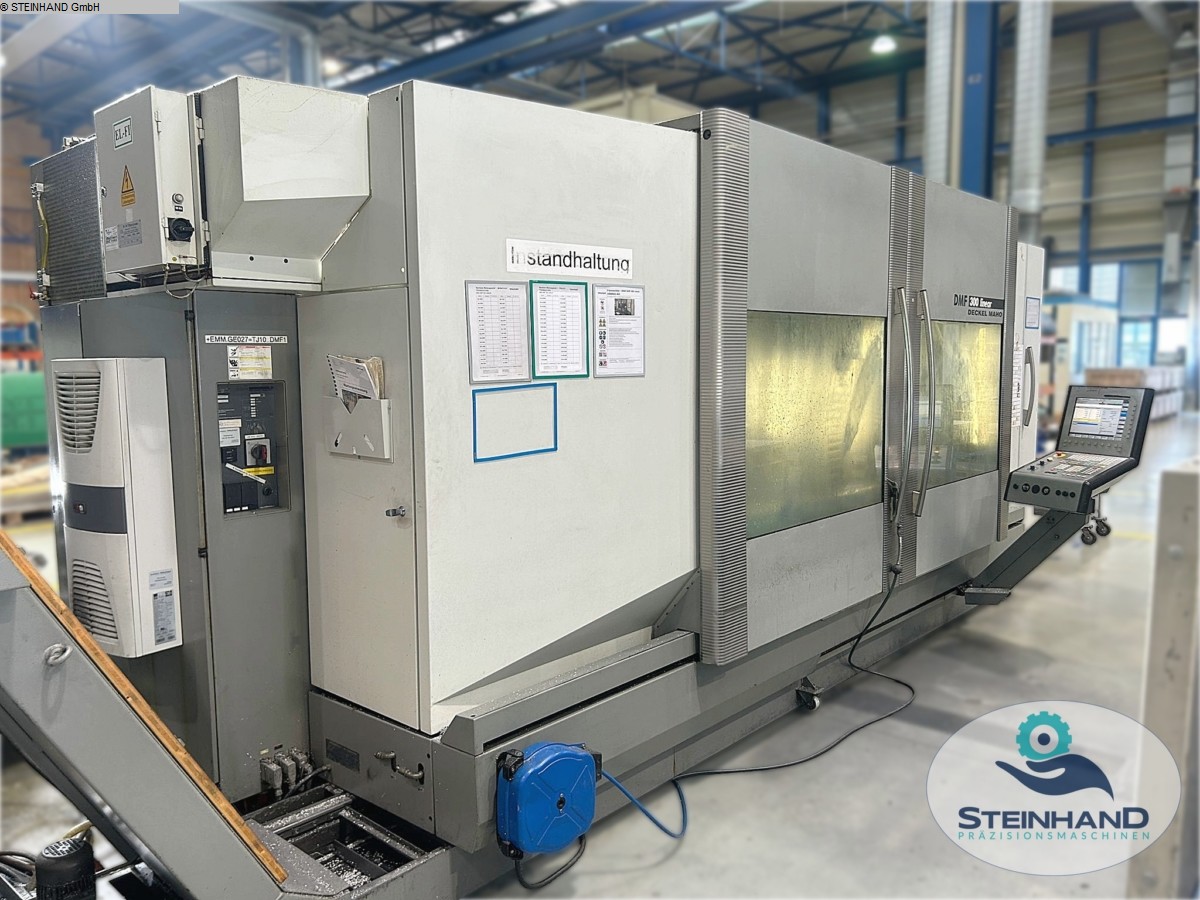

Deckel Maho DMF 300 Linear, built in 2002 TECHNICAL INFO: CONTROLS: CNC SIEMENS Sinumerik 840 D power line, TRAVELS: X: 3,000 mm Y: 560 mm Z: 720 mm Spindle mount SK40 Spindle speed: max 12,000 rpm (limited to 6,000 by gearbox) Tool magazine for 40 tools Operating hours: 21,865 Spindle hours: only 9,320 Very reliable, stable and good machine! No maintenance backlog! - In recent years, small items such as belt pulleys, hydraulic accumulators, scrapers, linkages have been added, regardless of the maintenance positions - In 2018 a new Z-axis ball screw came in. The engine gearbox was also overhauled - Rotary table 560mm (4th axis) for assembly also available and part of the sale The orientation of the Hirth toothing when swiveling would have to be readjusted. However, we only use the machine as  ...

Year of manufacture: 2013 CNC Controller: FAGOR 8055TCO Capacity Distance between centers (mm): 3000 Height between centers (mm): 300 Height between centers from the ground (mm): 1200 Grinding diameter (mm): ø 595 Max. workpiece weight between centers (kg): 2000 Max. Workpiece weight with tool (kg): 200 Table (Z-axis) Maximum travel (mm): 3350 Rotating table plate ±5° Feed rate (mm/min): 0.01 ÷ 6000 Minimum programmable increment (mm): 0.001° Grinding carriage (X-axis) Maximum travel (mm): 500 Feed rate (mm/min): 0.01 ÷ 6000 Minimum programmable increment (mm): 0.001° Resolution (mm): 0.0005° Grinding head Left grinding wheel diameter (mm): 600 Peripheral speed (m/s): 45 Workpiece head Spindle speed (rpm): 9 ÷ 250 CM taper: 5 Spindle type: 8" Tailstock Type: Manual handwheel Spindle taper (cm): 6 Maximum spindle travel (mm): 60 Quill diameter (mm):  ...

DMG GILDEMEISTER CTX ALPHA 300 CNC turning center was built in 2008. The machine, designed for machining workpieces with a maximum diameter of 500 mm, is equipped with state-of-the-art technical solutions that guarantee extraordinary accuracy and precision. Machining is performed inside a large, fully illuminated workspace by a reliable spindle and high-quality cutting tools taken from a 12-position turret. In turn, the operator is provided with a state-of-the-art touchscreen control panel with a perfectly optimised FANUC CNC controller. High reliability, precision and structural stability make the GILDEMEISTER CTX ALPHA 300 CNC lathe the perfect choice for even the most intensive production work. The total weight of the machine is approximately 4350 kg. Technical data of the DMG GILDEMEISTER CTX ALPHA 300 lathe - maximum turning diameter: 500 mm - maximum cutting diameter: 200 mm  ...

control: SIEMENS 840D SL ShopTurn turning diameter: 700 mm swing over bed: 900 mm turning length: 3065 mm c-axis: indexing: 0.001 ° turning speeds: -2500 U/min tool taper: VDI 50 Top turret tool hodler:: 12 tailstock quill taper MT: 5 y-travel: 160 mm rapid traverse X-axis: 40 m/min rapid traverse Z-axis: 30 m/min Overall size: 4450x2100x2350 mm rapid traverse Z-axis: m/min weight of the machine ca.: 7200 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This lathe was manufactured in 2017. The DMG MORI WASINO G 100 | 300 features a maximum turning diameter of 285 mm and a standard diameter of 60 mm. It supports bar work up to 38.1 mm and offers rapid traverse rates of 12000 mm/min on the X-axis and 20000 mm/min on the Z-axis. With a spindle speed up to 6000 min⁻¹, this machine is ideal for efficient operations. For more information about this lathe, please reach out to us.

Key data: 560 mm, 560 mm, 660 mm

Horizontal BAZ DMG MORI NHX-4000 with 2-fold pallet changer Year of Make: 2017 Control: Celos with Sinumerik 840Dsl Operate Program running hours: 21,000h Technical data: Spindle speed: 10 - 20,000 min-1 (motor spindle speedMASTER)® Drive power: 35/25 KW Torque: 130/85 Nm Tool holder: HSK 63 Number of magazine slots: 60 - Ring magazine Travels: X-axis: 560mm Y-axis: 560mm Z-axis: 660mm C-axis: 0.001° Pallet size: 400x400mm Accessories: 2-fold pallet changer Coolant system for IKZ 70bar - 900 litre tank - paper belt filter Chip conveyor Preparation Renishaw 3D - Probe

Used machine Machine Type: CNC Turning Center Model No.: NLX3000Y/3000 Manufacturer: DMGMORI Control: Celos Year of Make: 2020 #001355 Turning diameter max. approx. 420 mm Turning diameter standard approx. 310 mm Chuck size approx. 300 mm Turning length approx. 3,123 mm Rod diameter max. approx. 90 mm Turret stations approx. 12 X-axis approx. 280 mm Z-axis approx. 3,170 mm Y-axis approx. 120 (±60) mm Tailstock approx. 3,164 mm Spindle speed max. approx. 3,000 rpm Speed AGW max. approx. 6,000 rpm Rapid traverse X/Z approx. 30 m/min Rapid traverse Y approx. 10 m/min Rapid traverse C approx. 300 rpm Power consumption approx. 54 kVA Compressed air bar,L/min approx. 5, 100 bar,L/min Footprint L x W x H approx. 8.30 x 3.50 x 2.41 m (without chip conveyor) Machine weight approx. 14,200 kg Main spindle 22/18,5KW • 3jaw chuck set • rpm 3000 • 12 station turre ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

travel -x axis: 3.000 mm travel -y axis: 560 mm travel -z axis: 720 mm control: Siemens - 840D number of spindle speeds: 18.000 U/min numbers of positions in the tool changer: 100 tool taper: HSK 63 Milling machining centers - vertical | DMG - DMF 300 Linear The machine has exclusively processed aluminum is in a well-maintained condition and can be inspected at any time under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DMF300Linear | DMF300 | DMF-300 Linear | DMF-300Linear The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

travel -x axis: 3.000 mm travel -y axis: 560 mm travel -z axis: 720 mm control: Siemens - 840D number of spindle speeds: 18.000 U/min numbers of positions in the tool changer: 100 tool taper: HSK 63 Milling machining centers - vertical | DMG - DMF 300 Linear The machine has exclusively processed aluminum is in a well-maintained condition and can be inspected at any time under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DMF300Linear | DMF300 | DMF-300 Linear | DMF-300Linear The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 600 mm, 1250 mm, 3000 1/min

Machine Details Stock-No. 1105-03939 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm control SIEMENS 840 D greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information Acc. 3-Jaw Chuck 315 mm, tailstok turret 8 P ,chip conveyor, coolant CNC Siemens 840 D

For DMG HSC 75

Key data: 500 , 520 , 380

Bearing number 1105-02750 Machine Type Machining Center - Universal Make DMG DECKEL-MAHO Type DMU 50 eV / 5 axes Built in 2001 Control type CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight base EX WORK Technical details x-way 500 mm y-way 420 mm z-way 380 mm Control HEIDENHAIN TNC 430 Spindle cone SK 40 Speeds 18,000 rpm Spindle motor 15 kW Rapid speed 50 m/min Table clamping area 500 per m. x 380 mm Feed range up to 20 000 mm/min Tool change device 32 fold Total power requirement 38 kVA Machine weight approx. 5.9 t Information - CNC - CONTROL of the display of HEIDENHAIN TNC 430 - 5-axis machine with B + C axis - Spindle on: 22 800 h - Current on: 38 000 h - Machine documents spaenefoerderer

-X-Way-700mm -Y-way-700mm -Z-way-700mm -Control-ITNC 530 -Spindle holder HSK A63 -Spindle speed-12000rpm -Plate changer with 7 pallets -Tool magasin with 120 -Internal cooling feeder-40bar -Spindle motor-20kW -Pallet size 500x500mm -Machine weight approx.16t -Top condition,to be visited under electricity

Key data: 600 mm, 1250 mm, 3500 1/min

Machine Details Stock-No. 1105-03997 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER DMG Type NEF 600 Year of manufacture 2007 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 600 mm turning length 1250 mm greates pass round over bed 600 mm centre height 350 mm Spindle Bore 92 mm turning speed range 3500 rpm Rapid Travel - Longitudinal/Face 20 m/min face stroke 400 mm tailstock quill diameter 100 mm Tailstock Quill Stroke 1150 mm tailstock taper MT 5 Turret (X-Stations) 12 turning diameter over slide 410 mm Additional information acc.: hydr. 3-Jaw Chuck 400 mm, Chip Conveyor, Coolant CNC FANUC 210 IS

Machine-Details Stock-No. 1105-04006 Type of machine Machining Center - Vertical Make DMG MORI Type M 1 Year of manufacture 2022 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Germany Delivery time IMMEDIATELY Freight basis EX WORK Price Technical details X-Travel 550 mm Y-Travel 550 mm Z-Travel 510 mm table-size 790 x 560 mm spindle taper ISO SK 40 turning speed range 10000 1/min Feeds longditudinal/cross/vertical 1 - 30000 mm/min Rapid Motion -Longitudinal/Cross/Vertical 30 m/min No. of tools in magazin 20 Workpiece diameter at full load 80 mm Wotkpiece diameter with 2 vacant positions 140 mm Workpiece length 300 mm Weight of tools max. 7 kg Table Load 600 kg spindle drive 9 / 11 kW control SIEMENS 828D total power requirement 30 kVA Additional information cnc SIEMENS 828 D ONLY 1400 SPINDEL HOURS VERY NICE El. handwheel, CH ...

Key data: 290 , 400

Machine-Details Stock-No. 1105-04007 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 210 Year of manufacture 2005 Type of control CNC Storage location FRANKREICH Country of origin Germany Delivery time IMMIDIATELY Freight basis EX WORKS Technical details Turning diameter 290 mm turning length 365 mm control SIEMENS 840 D SIEMENS 840 D Greates Pass round over bed 380 mm X-Travel 160 mm Z-Travel 365 mm spindle head 120 H 5 mm Boron spindle 56 mm bar material dia. 42 mm Spindle diameter in front bearing 90 mm turning speed range 20 - 6000 U/min spindle drive 10 kW No. of tools in turret 1 12 x VDI 30 total power requirement 22 kW Weight of the machine ca. 4,2 t Dimensions of the machine ca. 2.8 x 1.7 x 1.8 m Additional information NICE MACHINE CNC SIEMENS 840 D SOMME TOOLS VDI 30 TOOL MESURING Arm TAILSTOCK CHIP CONVEYER

Machine details Location 1105-02917 Machine type Machining Center - Vertical Make DECKEL-MAHO DMG Type DMC 63 V Built 2001 Control type Cnc Location France Origin Germany Delivery JULY 2020 Freight base from stock, freely loaded Price On request Technical details x-Way 630 mm y-way 500 mm z-way 500 mm Table size 800 x 500 mm Spindle mount ISO 40 Range 0 - 8000 rpm Feeds - longitudinal/transverse/vertical 1 - 30000 mm/min Rapids - longitudinal/transverse/vertical 30 m/min Number of tool magazine slots 24 Tool diameter at full assembly 80 mm Tool diameter at 2 free spaces 140 mm Tool length max. 300 mm Tool weight max. 7 kg Table load 500 kg Spindle motor 9 / 13 kW Control Siemens 810 D Total performance requirements 30 kVA Machine weight approx. 4.2 t Information Tested machine ready for demonstration under current YEAR OF ...

Milling machine 4-axis (15995740874) DMG Milltap 700 (2015) Spindle 24,000 1/min NC parts apparatus Lehmann EA-510. L Tool magazine 25 places Renishaw Measurement Kit Rinsing gun Milling machine 5-axis (15995747284) DMG Milltap 700 (2015) Spindle 24,000 1/min Swivel rotary tables 5-axis simultaneous operation Clamping pneumatics 1-circuit Tool magazine 25 places 40 bar IKZ Conveyor Rinsing gun Renishaw Measurement Kit Milling machine 5-axis (15995765944) DMG Milltap 700 (2018) Spindle 10,000 1/min Swivel rotary tables 5-axis simultaneous operation Clamping pneumatics 1-circuit Tool magazine 25 places 40 bar IKZ Conveyor Renishaw Measurement Kit Automatic front door Automation interface including automation door on the right Milling machine 5-axis (15995734744) + WH3 (770200062R) DMG Milltap 700 (2014) Spindle 10,000 1/min Swivel rotary  ...

Key data: 350 mm, 700 mm, 4000 1/min

Machine Details Stock number 1105-04023 Machine Type: CNC Lathe - Inclined Bed Machine Make GILDEMEISTER Type NEF400 / 840D Shopturn Year of construction 2006 Condition Control type: CNC Control Siemens 840D Shopturn Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from Dreieich warehouse Price Technical details Turning diameter 350/270 mm Turning length 700 mm Control Siemens 840D Shopturn Circumferential diameter max. over bed cover 400 mm Travel - z 700 mm Spindle bore 65 mm Spindle speeds max. 4000 rpm Tool holder VDI 30 Turret head 12 pos. Three-jaw chuck diameter 200 mm Spindle holder A6 DIN55026 Pick-up cone in the tailstock quill MK 3 Drive power 15/12 kW Operating voltage 400 V Machine weight approx. 3.0 t Information - Control: Siemens 840D Shopturn - Tool holder VDI 30 APPROX. 12 PIECES - Coolant de ...

Machine details 1105-02953 Machine type Machining Center - Vertical Make DECKEL-MAHO (DMG) Type DMC 64V Built 2002 Control type Cnc Location Haguenau Origin Germany Delivery Right away Freight base from stock Price On request Technical details x-Way 640 mm y-way 600 mm z-way 500 mm Control HEIDENHAIN TNC 530 Machine weight approx. 8 t Information 1 gebr. CNC vertical BAZ Fabr. DECKEL-MAHO Type DMC 64V linear, Y.O.M. 2002 1 used CNC Vertical Milling Center DECKEL-MAHO type DMC 64V linear, built 2002 WITH 2 AXIS PART APPARAT INCLU CNC Control HEIDENHAIN TNC 530 30-fah tool changer Conveyor 30-fold ATC chip conveyor Technical data / technical details: X-Way / X-travel 640 mm Y-way / Y-travel 600 mm Z-way / Z-travel 500 mm Spindle holder / spindle taper SK40 Speed range / spindle speed 0-12000 rpm Feed range X , Y , Z / feed range X , ...

Deckel Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Hersteller [manufacturer]: DMG Deckel Maho Type [ type]: 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel Baujahr[construction year]: 12/2006 - Renewed/renewed spindle - IKZ integrated cooling system for water 40bar and air (both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10.000kg Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. 017621834834Price, from stock here plus VAT Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted.  ...

Technical details x-travel 600 mm y-travel 560 mm z-travel 510 mm Steuerung Siemens Slim Line Multi Touch Control Main spindle: Max. speed 15,000 rpm/-1 Drive power - main spindle 20 / 14.5 kW Max. torque 121 / 84 Nm Tool holder SK 40 Distance between spindle nose and table 120 - 630 mm Workbench: Table clamping area 900 x 560 mm max. table load 600 kg T-slots 5 Working height 850 mm Tool magazine: Number of tool positions 60 pos. Tool holder SK 40 max. tool diameter 80 mm max. tool diameter. with a free neighboring box. 130 mm max. tool length 300 mm max. tool weight 8.0 kg Tool-tool changeover time 2.4 sec Changeover time chip - chip 6.7 sec Feeds: Rapid traverse 30 m/min Feed force 5 kN Feed speed max. 30,000 mm/min Total power requirement 32 kVA Machine weight approx. 5.0 t Space requirements approx. 4.0 x 5.0 x 3.0 m

With Indumatik Automation x-travel 500mm Y travel 450mm z-travel 400mm Control Siemens 810 D Shopmill Main spindle: Speed Range - Main Spindle ((( 20 - 8,000 )))min/-1 Drive power - main spindle 13 / 9kW Tool holder SK 40 Max. torque 83Nm NC rotary table: Table clamping area 630 x 500mm Max. table load 200kg Swivel range -5 / +110° Rotation range 0.001° T-slots 7x 14 x 63mm Tool magazine: Number of tool locations 16pos. max. tool weight 6kg max. tool diameter 80mm max. tool diameter. with a free neighboring box. 130mm max. workpiece length 300mm Feeds: Rapid traverse 12m/min Feed force 4.5kN Feed speed 1 - 12,000mm/min Total power requirement 18kW Machine weight approx. 5.0t Space requirements approx. 4.5 x 3.5 x 2.3m

CONTROL .. CNC Control HEIDENHAIN TNC426 WORKSPACE -CUBIC- .. Number of machining axes (without parallel axes): 3 .. X-axis travel: 500 mm .. Y-axis travel: 400 mm .. Travel Z-axis: 400 mm TABLE .. Clamping surface (left-right): 700 mm .. Clamping surface (front-rear): 500 mm SPINDLE / HEAD .. Speed range up to: 9000 rpm .. Tool holder: ISO SK 40 TOOL MAGAZINE .. Number of tool positions: 16 ELECTRICAL CONNECTION DATA .. Connection voltage: 400 V .. Mains frequency: 50 Hz DIMENSIONS / WEIGHTS Bsicvzmv7Vm .. Space requirement -left/right-: 5000 mm .. Space requirement -front/rear-: 3700 mm .. Total height: 2500 mm .. Total weight approx.: 4500 kg

Machine details Bearing number 1105-03132 Machine type CNC lathe - slantbed machine Made GILDEMEISTER Type CTX 400 Built in 2000 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time SOFORT Freight base from location, free loading truck Technical details Turning diameter 570 mm Turning length 635 mm Control Heidenhain CNC Pilot 4290 Turning diameter over bed slide 420 mm Spindle speeds - infinitely 25-5000 rpm Number of driven tools 6 mm Drive 5 kW Information CNC Heidenhain Pilot 4290 C-axis with 5 FESTE vdi holders 1 3 BAKE FOOD 1 X SPAENEFOERDERER WITH REITSTOCK + LNS STANGEN VORCHUB

Machine details Bearing number 1105-03199 Machine type Milling machine - Universal Make DECKEL MAHO DMG Type DMU 70eVolution Built in 2001 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time by arrangement Freight base from location Price Technical details x-path 750 mm y-path 600 mm z-way 520 mm Control HEIDENHAIN iTNC 530 Information Milling machine - Universal DECKEL MAHO DMG DMU 70eVolution NC Swivel Round Table (700X500) Spindle -------------------- Spindle speed: 18,000rpm Tool holder: SK40 Tool changer -------------------- Magazine places: 32 Pick up Facilities -------------------- Measuring probe Conveyor 2. Processor card electronic handwheel HR410 Blowing air M25 Rinsing gun

Machine details Bearing number 1105-02750 Machine type Machining center - Universal Made DMG DECKEL-MAHO Type DMU 50 eV / 5 axes Built in 1998 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time immediately Freight base EX WORK Technical details x-path 500 mm y-path 420 mm z-way 380 mm Control HEIDENHAIN TNC 430 Spindle cone HSK 63 Speeds 18,000 rpm Spindle motor 15 kW Rapid response 50 m/min Table clamping area 500 throughs. x 380 mm Feed range up to 20 000 mm/min Tool change device 32 fold Total power requirement 38 kVA Machine weight approx. 5.9 t Information - CNC - Screen web control HEIDENHAIN TNC 430 5-axis machine with B +C axis SIMULTAN - Machine documents spaenefoerderer

Control: Siemens 840D Country of origin: Germany Spindle speed n-1: 12,000 Spindle motor kW: 9 Z - Path mm: 510 Y - Path mm: 510 X - Path mm: 835 Speed m/min: 30 Tool holder: HSK 40 Table load: 800 kg Clamping area mm: 1,000 x 560 Machine footprint mm: 2,100 x 2,700 Machine weight approx. kg: 4,200

Machine Details Stock-No. 1105-03325 Type of machine Machining Center - Universal Make DMG Type DMU 70 V Year of manufacture (2000) Type of control CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Technical details x-travel 750 mm y-travel 600 mm z-travel 520 mm table-size ø 700 x 500 mm spindle taper SK 40 spindle turning speed - stepless 20 - 12,000 rpm feeds longditudinal/cross/vertical 20,000 mm/min rapid traverse 50 m/min ATC 24x workpiece length 315 mm weight of tools max. 6 kg table load max. 0.35 t weight of the machine approx. 7 t Additional information , chip conveyor CNC CONTROL HEIDENHAIN I TNC 430 12000 RPM SK 40

Machine details Stock number 1105-03328 Machine type tool milling machine - Universal Make MAHO Type MH 800 E Year of construction 2000 Control type CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight base from stock price Technical details x-path 700 mm y-way 550 mm z-path 500 mm Speed 20 - 5000 rpm Tool holder SK 40 Quibola stroke vertical 80 mm Feed 1 - 5000 mm/min Rapid speed 6000 mm/min Table size 900 x 550 mm Total power requirement 16 KVA Weight of the machine ca. 7 t Space requirement approx. 2.4 x 2.85 x 2.1 m Information - with web control CNC 532 - with FIXED ANGLE TABLE WITH TOOL CHANGER - Enclosure Machine under power Ready for demonstration.

x-travel: 600 mm y-travel: 525 mm z-travel: 500 mm weight of the machine ca.: 6,5 t CNC Steuerung Heidenhain TNC 426 Kühlmitteleinrichtung Spänewanne CNC control Heidenhain TNC 426 coolant device chip tank Technische Daten / technical details: X-Weg / X-travel 600 mm Y-Weg / Y-travel 525 mm Z-Weg / Z-travel 500 mm Spindeldrehzahlen / spindle speed 6300 UpM /rpm Werkzeugaufnahme / spindle taper SK40 Vorschubbereich X/Y/Z / feed range 10000 mm/min. Universaltisch / clamping area of universal table 750x530 mm Gewicht der Maschine ca. / weight 6500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 560 mm z-travel: 560 mm table surface area: 500x400 mm control: Siemens type: 840 D spindle taper ISO: 40 spindle turning speed range: 8000 U/min : type of pallet-changer: 2 Rotary table: 360 ° Cooling through the spindle: bar Tool changer: 40 chip conveyor: total power requirement: kW weight of the machine ca.: 11,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 560 mm z-travel: 560 mm Control: Siemens type: type of pallet-changer: size of pallet: 400x500 mm Table load: 300 kg feed: 40.000 m/min spindle speed:: 20-8000 U/min spindle taper ISO: 40 Spindle capacity: 13/20 KW Torque: 191 Nm Tool changer: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Cross650 mmLongitudinal735 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.12400 KgNC swivel rotary table integrated in rigid tableType of Measuring system Direct measuring systemTable surface 800 x 650 (Ø 650) mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 9Rotation Speed 5. Axis 20 rpm5. Axes (swivelling range) +120/-120 x 0,001 degree4. Axes (swivelling range) 360 x 0,001 degreeRot ...

GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50h6 mmMaximum load (table centre) 600 KgDirect measuring systemDir ...

GeneralUniversal machining centre; Control: Siemens 840D-Powerline ShopMill Classic Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Cross1000 mmLongitudinal1250 mmVertical1000 mmMiscellaneousClamping SystemHSK-A 100 Tool changerApplicationUniversal Type of magazineChain Tool changer planehorizontal Type of gripperDouble gripper Automatic swivel milling headUniversal head: automatic changeover from vertical to horizontal machiningProd. package 40 bar/23 l/minCoolant through spindle centre form AD 40 bar/23 l/min / 580 psi/6 gallon/min (theoretical pump performance) clear-view rotating window Multi-jet unit at universal head, switchable from coolant to air (max. 6 bar / 90 psi) (6 water jets, 4 air jets) pumpNC rotary table with pallet changerType of Measuring system Direct measuring  ...

GeneralUniversal machining centre New DMG MORI Design; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal400 mmCross400 mmVertical375 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,21 x 6,58 x 2,69 (6,21 x 7,38 x 2,69) mWeight approx.7200 KgDie and Mold Package linearDie and Mold Package linear Dynamic package V-type Eagle timing belt for Z axisPackage Mill / TurnPackage Mill / Turn (only available for Siemens 840D solutionline) NC-Mill-turn table 450x450 mm / 17.7x17.7 in rounded down to d460 mm / 18.1 in C ...

GeneralHorizontal universal machining center; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal650 mmCross700 mmVertical950 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDriveNC swivel rotary table direct drive Table plate: d 650 mm / 25.6 in 1 x T-slot 14 H7 / 0.55 H7 (alignment groove, table centre) 8 x T-slot 14 H12 / 0.55 H7 (clamping grooves) Permissible load: 600 kg / 1,323 lbs Rotary-axis: 80 min-1 direct drive Swivel-aKinematics a ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmDimensions (L x W x H)2,72 x 4,22 x 2,52 mSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z560/560/660 mmPalett changer with2 PalletMaximum load (table centre)400 KgSwivelling range360 x 0,001 degreeTable size400x400 mmDrive power (100% DC)18,5 kWWeight approx.7600 Kg(For Europe) European Edition(For Europe) European Edition (NHC4000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signalInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mountin ...

GeneralHorizontal machining center; Control: Control M730BM CharacteristicsSpeed max.15000 rpmWeight approx.11100 KgSpindle taperBT 40 Tool Magazine with40 PositionsRapid feed X / Y / Z60/6060 m/minMovement X / Y / Z730/730/880 mmPalett changer with2 PalletMaximum load (table centre)500 KgSwivelling range360 x 0,001 degreeTable size500x500 mmDrive power (100% DC)18,5 kWDimensions (L x W x H)3,1 x 4,86 x 2,84 m(For Europe) European(For Europe) European Edition (NHC5000) Full 4th axis rotary table Interface for Through-spindle coolant system (7.0 MPa, Variable Pressure Steps) (KNOLL) Coolant gun for setup station side In-machine measuring system (spindle) optical signal transmissioInterface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit)Interface for Through-spindle Coolant System (7.0 MPa, Variable Pressure Steps) (KNOLL/ Interlit) Interface for mou ...

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralHorizontal 5-axis universal machining centre; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal850 mmCross900 mmVertical1150 mmCabineFull protection cabinMotor spindle 20,000 rpmMotor spindle speedMASTER® HSK-A 63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Taper cleaning brushesTaper cleaning unit with rotating brushes for spindle taper HSKNC swivel rotary table DirectDrive CNC swivel rotary table direct drive C-axis with pallet carrier Permissible load: 800 kg / 1,760 lbs C-axis: 80 min-1 direct drive A-axis: 15 min-1 single drive Rotation C axis: endlessly turning Swivel range A axis: +120°/-120° (replacement of base machKi ...

Milling machine DECKEL MAHO DMG 125

GeneralCNC Turning Centre; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways620 mmTransverse stroke260 mmLongitudinal stroke795 mmClamping chuck diameter max.315 mmWork spindle (left)Spindle bore91 mmSpindle diametre on front bearing140 mmMain drive 1Drive power (100% DC)22 kWSpeed range- 4000 rpmMax. torque (40% DC)525 NmTorque (100% DC)410 NmAccuracy at point stopping0,001 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-6000 rpmPower max. (100% DC)10 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,03 x 2,2 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the application of an alternating speed for vibration sensitive set-ups (Only in conjunction with Siemens control)Y-Axis PartingTechnology cycle to parting off the workpiece by the Y-axis to ac ...

GeneralMilling Specification; Control: Control M730UM with CELOS CharacteristicsMax machining diameter278 mmDimensions (L x W x H)2,82 x 2,09 x 2,15 mDrive power tool spindle5,5/5,5/3,7 kWDrive power main spindle11/15/15 kWRapid feed X / Z30/30 m/minInput precision of C-axis on Mainspindle0,001 degreeRotary tool spindle speed10000 rpmMovements X / Z260/590 mmNumber of tool stations12 Speed max.6000 rpmBar diameter max.52 mmSwing- Ø, max.755 mmMax. Turning Length192 mmWeight approx.4900 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and pHigh-output spindle (Left Spindle) 15/ 11 kW, 6,000 min-1(Left Spindle) High-Output Spindle 15/11 kW (20/15 HP), 6,000 min-1 The NLX ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmLongitudinal stroke850 mmTransverse stroke300 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle diametre on front bearing130 mmSpindle bore87 mmMain drive 1Drive power (100% DC)33 kWSpeed range20 - 4000 rpmTorque (100% DC)580 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)3,99 x 2,69 x 1,99 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

GeneralCNC Turning Centre with C axis and tool drive; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways700 mmTurning diameter410 mmTransverse stroke300 mmLongitudinal stroke850 mmMax. Turning Length800 mmClamping chuck diameter max.315 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWSpeed range25 - 5000 rpmTorque (100% DC)280 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)4,46 x 1,88 x 2,30 mWeight approx.6500 KgTechnologie cycle alternating speedTechnology cycle for the  ...

GeneralTwo spindle turning/milling centre with - Main and counter spindle; Control: CELOS with Siemens 840D sl Operate Tool holder 2Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.4000 rpmPower max. (40% DC)10 kWTool magazineNumber of tools24 Max. tool length230 mmMax. tool diameter80 mmMax. tool weight7 KgTurning-milling spindleSpindle taperHSK-A 63 Spindle speed-12000 rpmDrive power (100% DC)19 kWDrive power (40% DC)22,5 kWTorque (100% DC)85 NmTorque (40% DC)120 Nmlocking moment1000 NmSwivelling range+/-110 degreeSlide 3Longitudinal stroke1200 mmSlide 2Longitudinal stroke1200 mmTransverse stroke195 mmSlide 1Transverse stroke490 mmLongitudinal stroke1200 mmY axis, vertical+/- 100 mmHeadstock, rightClamping chuck Ø315 mmSpindle nose diameter170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmDrive power (100% DC)25 kWDri ...

General- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Working areaSwing diameter over guide ways500 mmMax. Turning Length1200 mmTurning diameter500 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...

Working areaSwing diameter over guide ways500 mmTurning diameter500 mmMax. Turning Length1200 mmBar diameter max.65 mmGeneral- Compound slides with turning/milling spindle as integrated spindle motor, with hydr. locking at turning acceptance HSK-63A DIN 69893 - Y-axis ± 125 mm - B-axis ±120° with pneumatic locking - Tools magazin disc with 1x24 positions - Absolute direct gauging system in the X, Y, Z linear axes - Coolant pump 12 bar; 23l/min - Cooling system for spindle motor, turning/milling spindle, B-axis torque motor; Control: CELOS with Siemens 840D sl Operate Work spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWDrive power (40% DC)32 kWSpeed range- 5000 rpmTorque (100% DC)280 NmMax. torque (40% DC)360 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 ...
