Used machine

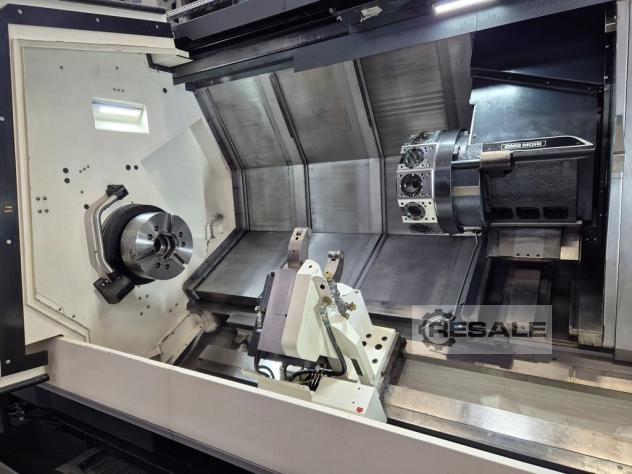

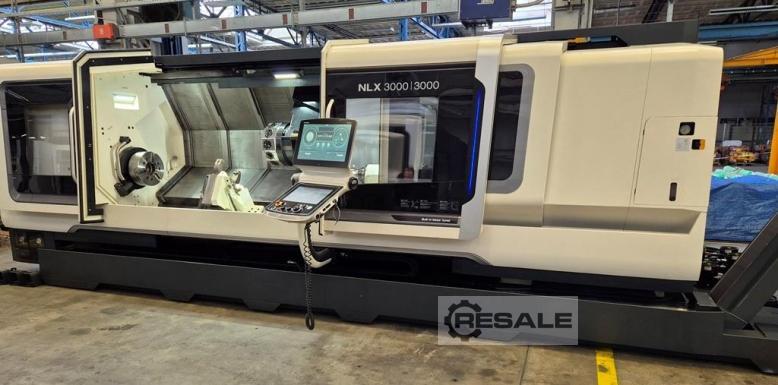

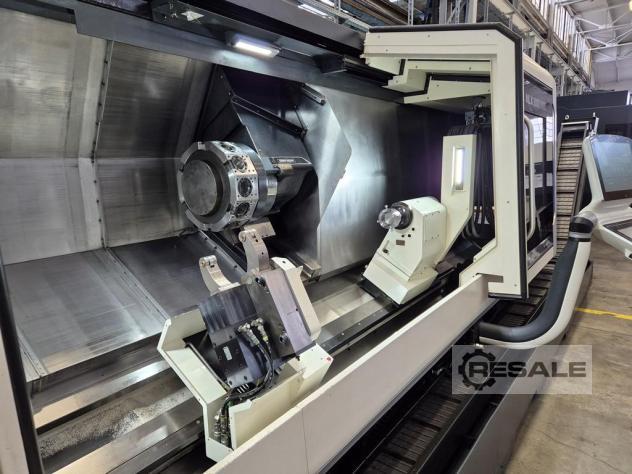

Machine Type: CNC Turning Center
Model No.: NLX3000Y/3000
Manufacturer: DMGMORI
Control: Celos
Year of Make: 2020
#001355
Turning diameter max. approx. 420 mm
Turning diameter standard approx. 310 mm
Chuck size approx. 300 mm
Turning length approx. 3,123 mm
Rod diameter max. approx. 90 mm
Turret stations approx. 12
X-axis approx. 280 mm
Z-axis approx. 3,170 mm
Y-axis approx. 120 (±60) mm
Tailstock approx. 3,164 mm
Spindle speed max. approx. 3,000 rpm
Speed AGW max. approx. 6,000 rpm
Rapid traverse X/Z approx. 30 m/min
Rapid traverse Y approx. 10 m/min
Rapid traverse C approx. 300 rpm
Power consumption approx. 54 kVA
Compressed air bar,L/min approx. 5, 100 bar,L/min
Footprint L x W x H approx. 8.30 x 3.50 x 2.41 m
(without chip conveyor)
Machine weight approx. 14,200 kg
Main spindle 22/18,5KW • 3jaw chuck set • rpm 3000 • 12 station
turret •
Tool drive for everyone
Stations rpm10.000 • Y-axis • Chip conveyor • Coolant pump 5bar
• Coolant gun •
Footswitch for

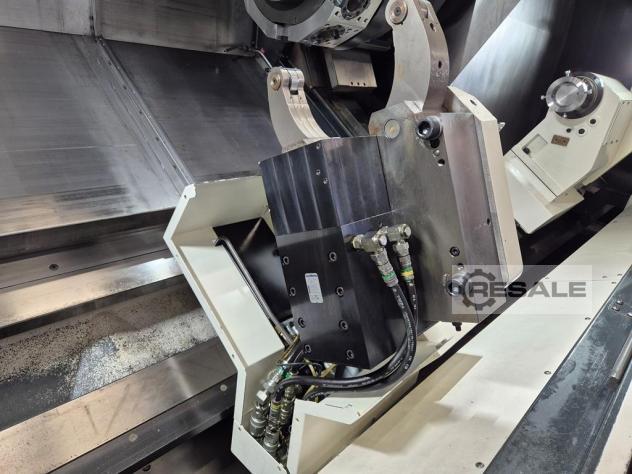

Reistock • Preparation for Lünnete • Bezel • 4-fold indicator
light • Automatic door •
Alternating Speed •
Islands, Open Pockets • High-Speed Canned Cycle
This offer is subject to change and non-binding. Changes, errors and
prior sale expressly reserved.
