used CNC Punching Machines for sale

Amada EM2510NT electric punch, 45 Station Turret with 4 Auto indexing units Year 2011/11 S/N 173 FANUC 18Oi-PB Frame Construction Bridge Type Press Capacity 200 kN Sheet Size with Auto Positioning 1270 x 5000mm Max. Material Thickness 3.2mm mild steel Max. Material Weight 150Kg No. of Stations 45 Stations 4 indexing stations: 2G and 2H Total hit count - 148.487.879 , Operating time -14.272h , Power on - 29.580 h New in boxes tooling Inspected by AMADA on April 18, 2023 Fully functional, all exes perform actions as they should. Machine completely passed the test program with different coordinates and tools. Turret is in very good condition, no unusual damages has been noticed. Unusual noise from electrical cabinet’s fan has been noticed for a short time ( few minutes) during startup, after it disappeared. It requires some cleaning. Overall machine is in good con ...

1250 x 1250 with reposition 27 station with 3 index - Very good condition

Inv. Num. : 6351 Type: Pega 30507 Producer: AMADA Produced: 1997 Parameters: Compressive force: 294 kN

AMADA VIPROS 358 KING punching machine was manufactured in Japan in 1999. The machine is designed for precise punching of holes in workpieces having a maximum length of 1250 mm, 3000 mm width and 50 kg weight, made of mild steel, stainless steel or aluminium. Low noise level and protection of the sheet metal surface from scratches and scrapes caused by the punching process are guaranteed by a machine brush table equipped with two hydraulic clamps to hold the workpiece during the machining process. The punching machine is able to perform up to 1200 punches per minute with a press force of 30 tonnes. The machine is equipped with a FANUC AC Servo X and Y axis drive, 58 tool stations (including four auto index stations) and a control panel with a installed FANUC Series 18-P CNC controller for full control of the punching machine operation. The AMADA VIPROS 358K punching machine has been r ...

Inv. Num. : 6509 Type: VIPROS 367 Producer: AMADA Produced: 1995 Parameters: Control System: Fanuc Amadan 04PC Compressive force: 294 kN Maximum length of sheet metal: 4000 mm Maximum blade width: 1525 mm sheet thickness: 6.4 mm workpiece weight: 120 kg Total power requirement: 30 kVA Feed length X-axis: 1820 mm Feed length Y-axis: 1520 mm Stroke: 40 mm Maximum punching speed: 350 1/min Tool magazine capacity: 45pcs Accuracy: 0.1 mm Feed speed: 50 m/min Machine height: 2450 mm Machine length: 3800 mm Machine width: 5200 mm Machine weight: 14000 kg Equipment: Tool holder Used and new tools

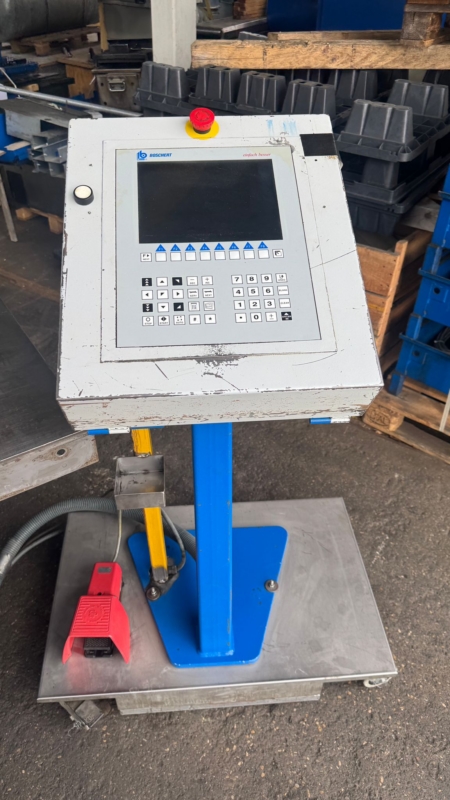

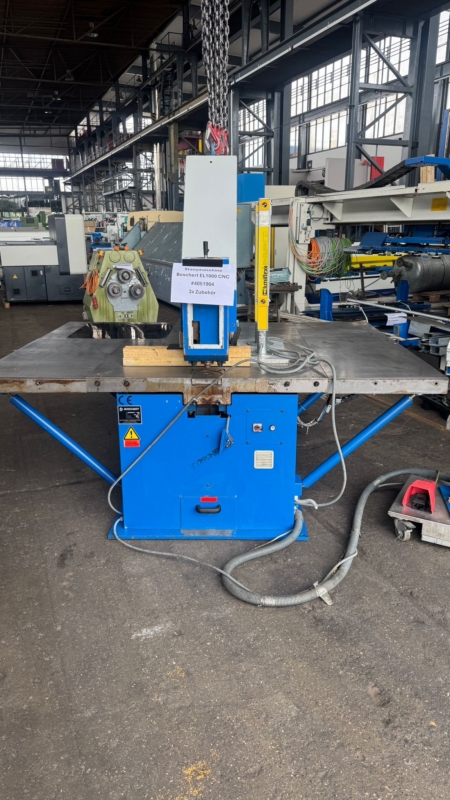

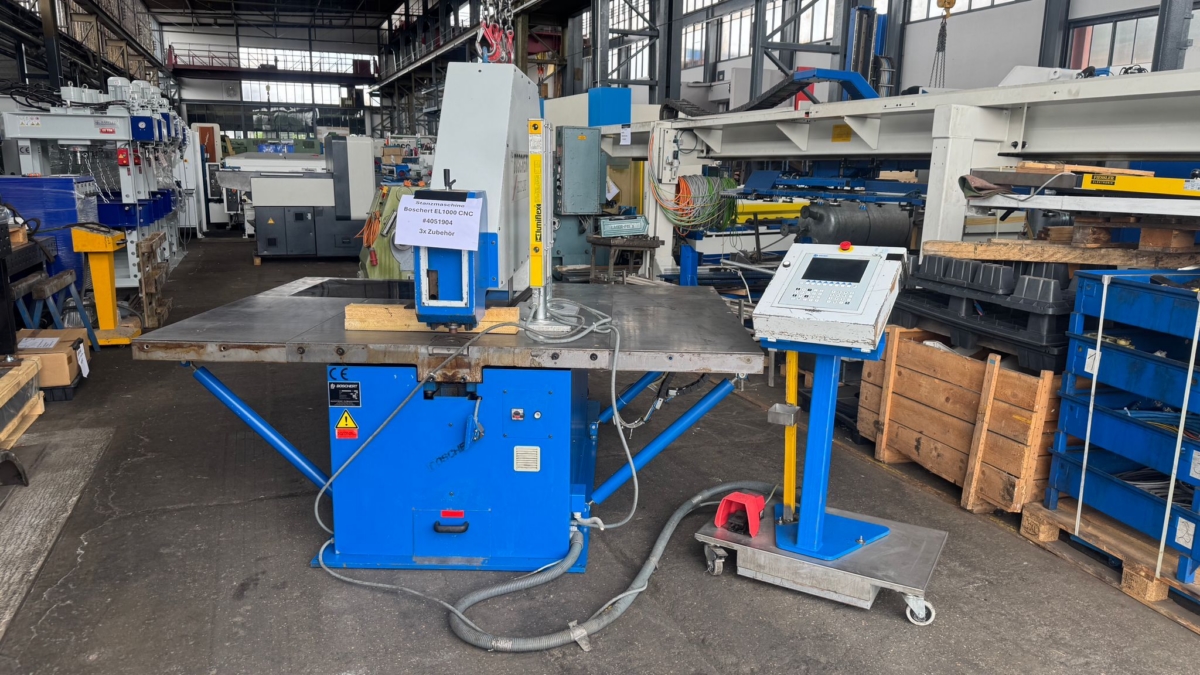

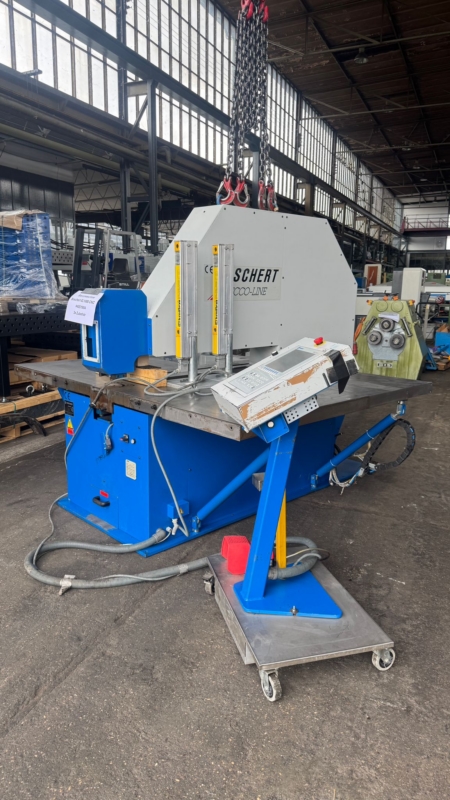

BOSCHERT COMPACT 750 ROTATION punching machine was built in Germany in 2015. A machine with compact dimensions and design is used for precise nibbling, punching and stamping of sheet metal up to 6 mm thick with a force of 28 tonnes. High stability and rigidity are maintained even during demanding series machining. The BOSCHERT COMPACT 750 X 2000 CNC punching machine is controlled by a modern LABOD CNC control, which allows machining of workpieces with larger dimensions than the basic working range of the X and Y axes in the most optimal way. The possibility of rotating the sheet in relation to the Y axis is determined by a special function used in the control, which then performs automatic repositioning of the workpiece along the X axis. To guarantee high accuracy during repositioning, the sheet is immobilised on the machine table by two hold-downs that prevent the workpiece from movi ...

Magazzino DANOBAT 3 mt. 15 postazioni Circa 15 aanni

Inv. Num. : 6449 Type: CX 125030 Producer: EUROMAC Generated: 2001 Parameters: Control system: AMADA Compressive force: 250 kN Table dimensions: 4000x2220 mm Total power requirement: 4 kVA Feed length X-axis: 2000 mm Feed length Y-axis: 1250 mm Machine height: 1800 mm Machine length: 4000 mm Machine width: 3200 mm Machine weight: 6400 kg Equipment: Automatic oil lubrication Programming FABRIWIN 32S Flaps Multitool XMT6 Tool holder Grinding machine for tools

Inv. Num. : 6435 Type: MTX Flex 6 Producer: Euromac Generated: 2014 Parameters: Software: RADAN Operating hours: 19932 h Switch-on hours: 12452 h Compressive force: 30 t Machine height: 1900 mm Machine length: 4840 mm Machine width: 3630 mm Equipment: Multitool Flaps

EUROMAC MTX INDEX hydraulic punching machine was manufactured in 2005 in Italy. The punching machine works with a force of 30 tonnes and is designed to perform very precise and accurate punching in sheets made of e.g. black steel, up to a maximum thickness of 10 mm. The hydraulic punching machine is equipped with a tool magazine capable of storing up to 60 tools and a brush table with a large working area to prevent scratches and nicks on the workpiece surface. The total weight of the machine is 8400 kg. Technical parameters of the EUROMAC MTX INDEX punching machine - maximum press force: 30 t - feed rates in the X/Y axis: 2250/1250 mm - automatic repositioning in X axis: up to 10000 mm - punching speed (nibbling mode): 780 1/min - punching speed (marking mode): 2000 1/min - punching speed (20 mm stroke): 300 1/min - number of D stations: 6 (including 3 auto indexed stations)  ...

FINN POWER C5 punching machine built in 2008 in Finland, is used for processing of sheet metal with a maximum thickness of 8 mm. Punching of holes is performed with a press force of 30 tonnes using an extremely precise slider with servo-hydraulic stroke. An extensive range of equipment is offered with the machine, including two MultiTool heads with 10 and 24 stations, a FANUC 18i-PB CNC control for programming e.g. the slider stroke depth and a waste conveyor. The FINN POWER C5 F 12.44 punching machine weighs 13000 kg. Technical specifications of the FINN POWER C5 punching machine - maximum press force: 30 t (300 kN) - feed rates in the X/Y axis: 2584/1317 mm - speed of feeds in the X/Y axis: 90/60 m/min - maximum transverse speed: 108 m/min - maximum sheet thickness: 8 mm - maximum sheet weight: 200 kg - maximum workpiece dimensions (L x W): 2530 x 1270 mm - minimum workpiece ...

30 ton 1250 x 2500mm

Large Format 3000 x 1500mm With Automation Siemens 840

FINN-POWER A5-25 FB punching machine built in 1999 in Finland is designed for precision machining of workpieces with a maximum thickness of 8 mm. The holes that are punched with a maximum force of 23 tonnes are free of scratches and nicks on the workpiece surface, thanks to the brush table with a large surface area. The reliable hydraulic punching machine is also equipped with a FANUC CNC control with all the necessary functions to maximise machining productivity. The total weight of the FINN-POWER A5-25FB punching machine press is 12000 kg. Technical data of the FINN-POWER A5-25 FB punching machine - CNC control: FANUC - maximum press force: 23 t (230 kN) - maximum sheet thickness: 8 mm - feed rates in the X/Y axis: 2500/1250 mm - brush table - maximum hydraulic pressure: 300 bar - power supply: 3x 400 V; 50 Hz - dimensions (L x W x H): 6000 x 6000 x 2000 mm - A5-25 FB machi ...

HACO OMATIC 130 DTRH punching machine was built in 2014 in Belgium. The machine is used to punch various size shapes and holes in workpieces weighing up to 150 kg and having a maximum thickness of 6.5, a width of 1500 mm and a length of 4000 mm. The machine operator manually operates the punching machine by loading the workpiece on the working table and changing the punching tools using a special device offered in the price of the machine. The punching process takes place on the brush table of the punching machine, which significantly reduces noise levels and adequately protects the sheet metal surfaces against various types of scratches and nicks. Depending on the selected mode, the machine performs between 1,000 and 1,500 punches per minute with a press force of 30 tonnes. The equipment includes amongst others a TPC 69C Graphics CNC controller for graphical programming of the desire ...

RASKIN RT 64-2 punching machine manufactured in Switzerland in 1981, is designed for precise punching of holes in workpieces made of e.g. stainless steel, with a force of 30 tonnes. Technical parameters of the RASKIN RT 64-2 punching machine - maximum press force: 30 t - CNC control - number of strokes: 400/min - power supply of machine RT 64: 3x 380 V; 50 Hz

Complete with automatic sheet storage tower

Machine has full function and for age in good overall condition. Integrated in complete automation. Working area: 2620x1650 (processing large format possible sheet thickness: 8mm steel, aluminum 3mm, VA 4mm part size for rejection: 500x500mm Control: Siemens Sinumerik 840D Cof2b38k stroke: 600m-1 punching force: 220kN punching diameter: 76mm Tools: 18 (with 3 claws workpiece weight: 200kg Laser type: TLF 1500t Cutting head: 5" Distance control: DIAS Other: Liftmaster for table support, Parts separation and residual grid disposal Machine is mainly used in laser cutting and punching operation steel sheet 1-4mm in Mass production. Since 2012 mainly used single-shift and only as Capacity expansion / redundancy of a TC6000. As part of the modernisation Machine park will be available for sale from February. Known defects: Display monitor on machine failed. Display is disp ...

TRUMPF TRUMATIC 500 ROTATION punching machine was manufactured in Germany in 1993. The machine with a stable and rigid construction guarantees high productivity and precision when processing sheet metal with a maximum thickness of 6 mm. Hole punching is performed with a force of 22 tonnes with tools that can be smoothly rotated in a range of 360° by equipping the tool station with a ROTATION drive. The TRUMPF TRUMATIC 500 R punching machine is offered with a comprehensive range of equipment including, among others, a set of approx. 150 punching tools (punches, dies, adapters and peelers), CAD/CAM software with NESTING function for creating machining programmes, and a BOSCH TRUMAGRAPH CNC control. The total weight of the machine is 11050 kg. Technical specifications of the TRUMPF TRUMATIC 500 ROTATION punching machine - maximum press force: 22 t (220 kN) - maximum sheet thickness ...

Servo Electric punching head Large format 3000 x 1500mm With Sheet Master & Duplex carts Year: 2015 Just under 19,000 hours! With tooling

1250 x 2500mm with SheetMaster loading/unloading - Lots of tooling
