FINN-POWER LP6 punch laser machine was manufactured in 2008 in Finland
by FINN-POWER OY. The machine was used for machining AISI 304 and AISI
316 stainless steel sheet metal. Since its purchase, it has been
regularly serviced by the manufacturer and has undergone annual
technical inspections.
The FINN-POWER LP6 is a high-performance sheet metal machining center
that combines punching and laser cutting technologies. It enables
comprehensive machining of workpieces with a maximum thickness of 8
mm, eliminating the need for additional operations on other machines.
The use of both these technologies in a single system reduces task
completion times and increases overall production efficiency.
Punching is performed by means of a hydraulic cylinder, whose stroke
and speed are fully numerically controlled. The ability to programme
the upper stroke limit enables the punch’s movement to be precisely
adjusted to the thickness of the workpiece. Adjustment of the
cylinder’s lower position, meanwhile, enables compensation of the
punch length without the need for additional adjustment shims. The
punching system is also equipped with an automatic overload protection
mechanism, which protects the machine’s components during operation
under heavy loads.

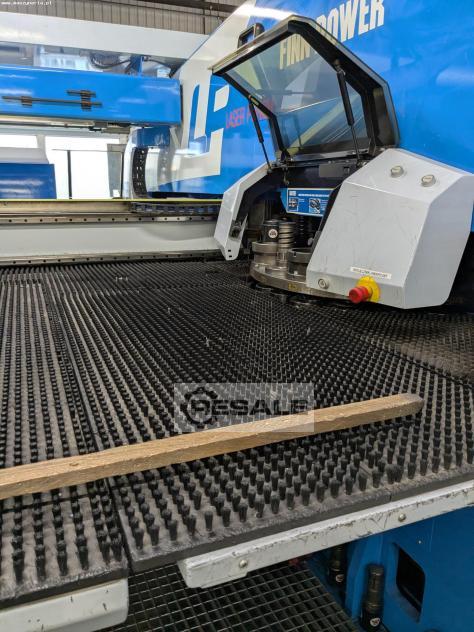

The hydraulic cylinder cooperates with a 20-station turret with
interchangeable tool holders. This solution allows the turret to be
configured according to the requirements of the production process.
Automatic tool exchange takes place in a matter of seconds by rotating
the turret along the shortest path to the programmed position. During
punching, the head is mechanically locked in place by pneumatic
conical positioning pins. The machine is also equipped with the CNC
Index Tool system, which enables tools to be rotated automatically to
any programmed angle. The indexing mechanism operates simultaneously
with the movement of the X and Y axes, meaning that punching, stamping
and nibbling at various angles can be performed without the need for
manual tool change.
The FINN POWER LP6 punch laser combination machine is equipped with a
ROFIN DC025 laser resonator with a power of 2.5 kW. The laser source
generates a high-quality beam, which is delivered to the cutting head
via a closed, water-cooled optical system with overpressure. This
solution protects the beam from dust and other contaminants, ensuring
the highest cutting quality. The cutting head is equipped with a
quick-change system for 5″ and 7.5″ lenses. Its vertical movement
is controlled by a servo drive, whilst the autofocus function
automatically adjusts the focal position according to the thickness of
the workpiece. All cutting process parameters, such as laser power,
nozzle height and gas pressure, are selected automatically by the CNC
controller according to the material code selected in the ControlLink
database. Beneath the cutting head are two independent chutes designed
for small and larger parts, through which the finished parts are fed
onto the conveyor.
The sheet metal is positioned on a coordinate table, which enables
precise movement of the material along the X and Y axis. The
programmable speed and acceleration of the axes enable the adjustment
of movement parameters to suit the performed operation, whilst the
automatic repositioning function of the sheet along the X axis enables
the machining of larger workpieces. The workpiece is clamped to the
table along the X axis by four clamps with a central locking system.
The patented PCS system automatically adjusts the position of the
clamps in accordance with the prepared programme and monitors their
position during operation. It also defines safety zones to prevent
collisions with tool holders.
The FINN-POWER LP6 punch-laser machine has been designed with simple
and intuitive operation in mind. The machine operator has at his
disposal an advanced SIEMENS SINUMERIK 840D CNC controller with a
user-friendly interface and a range of functions to support day-to-day
work. The rigid ‘O’-type design ensures high stability of the
entire machine, even during intensive use. The total weight of the
machine is 18000 kg.
Technical specifications of the FINN-POWER LP6 punching machine
LP6 punching machine
- punching force: 30 t (300 kN)
- punching method: servo-hydraulic
- feed in the X/Y axis: 3144/1615 mm
- maximum feed rate in the X/Y axis: 120/90 m/min
- maximum positioning speed: 150 m/min
- maximum workpiece thickness (punching – steel): 8 mm
- maximum workpiece thickness (punching – stainless steel): 8 mm
- maximum workpiece thickness (punching – aluminium): 8 mm
- maximum workpiece thickness (laser cutting – steel): 8 mm
- maximum workpiece thickness (laser cutting – stainless steel): 6
mm
- maximum workpiece thickness (laser cutting – aluminium): 6 mm
- minimum workpiece thickness: 0,5 mm
- maximum workpiece dimensions (L x W): 3074 x 1565 mm
- maximum workpiece weight: 200 kg
- number of tool stations: 20, including 9 index stations
- MultiTool head (2 pcs.)
- tool type: Thick Turret
- maximum punch diameter: 89 mm
- number of punch strokes (1-3 mm nibbling): 1000/min
- number of punch strokes (25 mm hole spacing): 400/min
- number of punch strokes (250 mm hole spacing): 150/min
- maximum tool rotational speed: 166 rpm
- tool change time: 1-3 s
- turret rotation speed: 30 rpm
- work chute – maximum dimensions of laser-cut parts: 300 x 400 mm;
500 x 500 mm
- work chute – maximum dimensions of punched parts: 500 x 500 mm
- pneumatic material clamps (4 pcs.)
- maximum deviation of hole position in the X and Y axis: 0,1 mm
- maximum deviation of distance between holes in the X and Y axis: ±
0.05 mm
- maximum angular deviation of the CNC-indexed tool: ± 0,1°
- Pa positional deviation in the X and Y axis in accordance with
VDI/DGQ 3441: 0,08 mm (± 0,04 mm)
- Ps spread deviation in the X and Y axis in accordance with VDI/DGQ
3441: 0,04 mm (± 0,02 mm)
- oil tank capacity: 200 l
- weight of the hydraulic unit without oil: 600 kg
- maximum working pressure: 300 bar
- minimum compressed air pressure: 6 bar
- maximum compressed air consumption: 8 Nl/s
- average compressed air consumption: 5,5 Nl/s
- fuses (for 3x 400 V power supply): 3x 100 A
- average power consumption: 20 kVA / 17 kW
- connection power requirement: 80 kVA
- ambient temperature: +10°C/+35°C
- relative humidity: 20-75%
- weight of the machine: 18000 kg
ROFIN DC025 laser source
- type: CO2
- operating hours: 19699 h
- maximum laser power: 2500 W
- laser beam output power range: 250-2500 W
- laser beam output power stability: ± 2%
- laser beam wavelength: 10,6 µm
- laser beam diameter: < 22 mm
- laser beam quality (mod): K > 0,9
- laser beam positioning stability (divergence): ≤ 0.15 mrad (EN ISO
11145)
- polarisation: linear, 45°
- minimum pulse duration: 26 µsec – CW
- fuses (for 3x 400V power supply): 3x 80 A
- average power consumption: + 13 kVA / + 11 kW
- connected load requirement: 60 kVA
- unit dimensions (L x W x H): 1700 x 800 x 853 mm
- control cabinet dimensions (L x W x H): 800 x 600 x 1900 mm
- unit weight: approx. 500 kg
- control cabinet weight: approx. 570 kg
Cutting head
- type: AF 1.5″ with interchangeable lens mount
- focal length: 5″ or 7,5″
- focal length adjustment: programmable
- material detection distance: programmable, capacitive
(non-contact)
- cutting gas pressure control: CNC or manual
- maximum cutting gas pressure: 25 bar
LUMIKKO oil cooler
- cooling capacity: 45 kW
- maximum cooling power: 0.64 kW/°C
- closed cooling circuit
- water temperature (main circuit): 20°C ± 1°, resonator
- water temperature (auxiliary circuit): 24°C ± 1°, optics
- tank capacity: 325 l
- air flow rate: 2.1 m3/s
- noise level: 65 dB(A)
- dimensions (L x W x H): 1420 x 1200 x 1950 mm
- unit weight (without water): approx. 550 kg
HERDING DELTA 750-4/9 SB filtration unit
- filters: 4x DELTA 750/9 3K
- filter area: 7,3 m2
- air flow: 500 m3/h
- average penetration rate: 0,01%
- noise level: 74 dB(A)
- dimensions (L x W x H): 1200 x 835 x 2120 mm
- unit weight: 580 kg

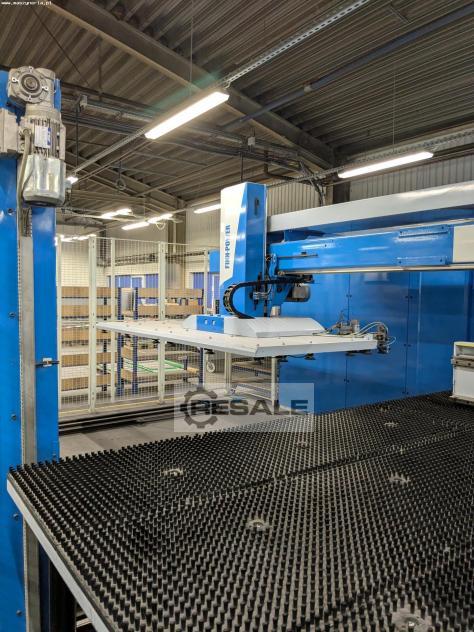

Equipment for the FINN POWER LP6 12 43 CNC punching machine

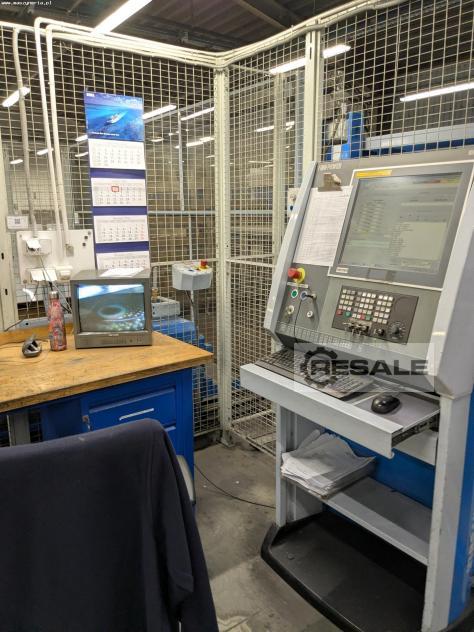

- touchscreen operator panel with SIEMENS SINUMERIK 840D CNC
controller
- 20-station turret head, including 9 index stations
- MultiTool head (2 pcs.)
- servo-hydraulic punching head
- cutting head with autofocus

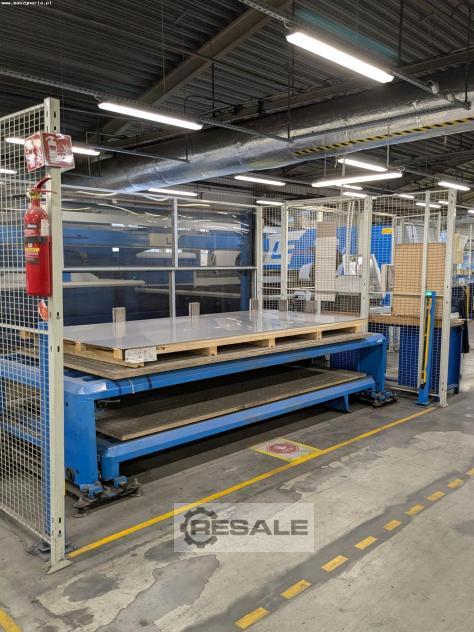

- automatic loading tables operating alternately (2 pcs.)
- table for unloading cut parts
- a chute enabling the punching of smaller parts without micro-joints
and their automatic transport to containers beneath the machine
table
- laser source: ROFIN DC 025
- rotary (indexable) system for forming from below (2 pcs.)
- coordinate table
- brush tables
- pneumatic material clamps (4 pcs.)
- filtration unit: HERDING DELTA 750-4/9 SB
- oil cooler: LUMIKKO
- hydraulic unit
- electrical cabinet with cooling
Poland
