Model
(Manufacturer: SPINNER)
Key data: 500 mm, 700 mm, 3500 1/min
Make: Spinner Model : TC 110 SMCY Control Siemens 840 D ShopTurn Year of construction 2006 Specifications: Turning diameter 500 mm Circulation diameter 690 mm Turning length 900 mm Y-axis -55/+65 mmmm C-axis 0.001° Spindle passage main spindle 110 mm Spindle passage counter spindle 66 mm Main spindle motor 28 kw High-speed main spindle 3200 rpm. Counter spindle speed 5000 rpm. Rapid traverse x/y/z 24 m/min. Sauter Star Revolver VDI 50 Number of stations 12-fold Driven tools 12 Speed driven tools 4000 rpm. Machine weight approx. 7800 kg Dimensions set-up (L x W x H) with chip conveyor 5500 x 2200 x 1800 mm Accessories: automatic pick-up device Measuring arm Bar feeder preparation Conveyor 3D Renishaw Probe Coolant gun Increased coolant pump Hainbuch Collet Chuck for Main Spindle 3 Jaw chuck counter spindle Various tool holders Documentation
Table size 900x400 mm X Travel 750 mm Y, Travel 450 mm Z Travel 450 mm Spindle speed 12.000 rpm Controller Siemens 840D Sl Spindle taper SK40 Number of tools in magazine 24 Can be tested under power
SPINNER TTC 300- 52 SMMCY CNC Lathe YOM 2012 Twin-opposed-spindle, twin-turret lathe Control FANUC 31iT Swing diameter 400 mm Max. turning dia ~200-250 mm Max. turning length 400 mm Travels: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm Rapid traverse: X1 15 m/min, X2 15 m/min, Z 24 m/min, Y 15 m/min With C-axis Main Spindle 1: Motor spindle with water cooling With hollow shaft measuring system for C-axis drive mounted directly on the spindle shaft Spindle bore 52 mm Spindle speed 0-5000 rpm/ 19 kW Performance Pmax 23,5 kW Torque 150 Nm Spindle nose A6/DIN Sub-Spindle 2: Motor spindle with water cooling With hollow shaft measuring system for C-axis drive mounted directly on the spindle shaft Can be moved on a slide to take over spindle 1 Spindle speed 0-7000 rpm/ 8 kW Performance Pmax 13,8 kW Torque 189 Nm Spindle nose 100 mm Turret 1: At the top of the ...
Control SIEMENS Swing diameter over bed 350 mm Turning diameter 180 mm Distance between centers 500 mm Spindle speed 4000 min-1 Tailstock Multifix Accessories
CNC lathe, brand Spinner, TypeTC67H-MC, YEAR 1999 with chip conveyor, underlays, various tools. The price is net.
X Travel 1100 mm Y Travel 610 mm Z Travel 610 mm Spindle speed 10.000 Rpm Controller Siemens 840 Dsl
Table clamping area: 600 x 1300 mm Travel x/y/z: 810/580/560 mm Spindle holder: SK 40 ISA Spindle speeds: 8000 rpm Number of toolslots: 40 pieces Feeds: 24000 mm/min Spindle drive: 25 kW electr. Connection: 380/400 V kW Space requirement: 3200 x 2500 x 2900 mm Weight: 9000 kg Control: SIEMENS 810 EN
Turning Diameter 400 mm Turning Lenght 650 mm With C ,Y axes and subspindle Control Unit Fanuc 31i Can be inspected under power
turning length:140 mm dimensions of the machine ca.:4 x 2 x 1,9 m
This 3-axis SPINNER TC 800 110 MC was manufactured in 2009. It features a collet chuck for clamping and includes a dust extraction system. Optional equipment includes a bar feeder, parts catcher, turret with driven tool, chip conveyor, and tailstock. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 800 110 MC horizontal turning machine we have for sale. Contact us for further details.
This 3-axis SPINNER TC 52 MC was manufactured in 2007. It features a robust design with optional equipment including a bar feeder, parts catcher, and a turret with driven tools. The machine is equipped with a collet chuck for clamping and a dust extraction system for efficient operation. If you are looking to get high-quality turning capabilities, consider the SPINNER TC 52 MC horizontal turning machine we have for sale. Contact us for further details.
This 3-axis SPINNER VC810 was manufactured in 2004. It features an X-axis travel of 810 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine is equipped with a maximum spindle speed of 8,000 rpm and an automatic pick-up tool changer with a capacity of 24 tools. If you are looking to get high-quality machining capabilities, consider the SPINNER VC810 vertical machining centre we have for sale. Contact us for further details.
A CNC horizontal machining center by Spinner is offered, equipped with a twin spindle and two dual tool changers. Travel X/Y/Z: 1000mm/850mm/850mm, distance from spindle center to pallet front face: 100-950mm, distance from spindle nose to table surface: 150-1100mm, rapid traverse X/Y/Z: 32m/min, pallet size: 2×630×630mm, max. pallet load: 1000kg, distance to table: 360mm, table top height above floor: 993mm, door opening: 1200mm, table threads: M16, spindle A: tool interface 1/2: SK40/SK50, max. speed 1/2: 10000rpm/6000rpm, power S1 1/2: 22kW/22kW, power S3 1/2: 26kW/26kW, max. torque S1 1/2: 139Nm/556Nm, max. torque S3 1/2: 164Nm/656Nm, tool stations 1/2: 60/40, max. tool diameter 1/2: 80mm/115mm, max. tool weight 1/2: 8kg/20kg, control: Fanuc 0i. Machine dimensions X/Y/Z: 5970mm/3470mm/3362mm, weight: approx. 23000kg. Documentation available. Inspection by appointment possible.
A CNC vertical machining center is offered. Travel X/Y/Z: 1000mm/500mm/570mm, table dimensions X/Y: 1200mm/500mm, max. workpiece weight: 800kg, distance from spindle nose to table: approx. 120-690mm, tool holder: SK40, max. spindle speed: 10000rpm, tool magazine: 24, max. tool diameter: approx. 80mm, max. tool length: approx. 300mm, max. tool weight: approx. 7kg, rapid traverse X/Y: 24m/min, rapid traverse Z: 20m/min, positioning accuracy: approx. 8-12µm, control: Heidenhain TNC 620. Machine dimensions X/Y/Z: approx. 2700mm/2550mm/2770mm, machine weight: approx. 5100kg. Inspection possible by appointment.
A CNC vertical machining center is offered. Travel X/Y/Z: 1000mm/500mm/570mm, table dimensions X/Y: 1200mm/500mm, max. workpiece weight: 800kg, distance from spindle nose to table: approx. 120-690mm, tool holder: SK40, max. spindle speed: 10000rpm, tool magazine: 24, max. tool diameter: approx. 80mm, max. tool length: approx. 300mm, max. tool weight: approx. 7kg, rapid traverse X/Y: 24m/min, rapid traverse Z: 20m/min, positioning accuracy: approx. 8-12µm, control: Heidenhain TNC 620. Machine dimensions X/Y/Z: approx. 2700mm/2550mm/2770mm, machine weight: approx. 5100kg. Inspection possible by appointment.
x-travel: 760 mm y-travel: 460 mm z-travel: 460 mm control: TNC 620 Heidenhain Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 14 / 10 kW Torque: 89 / 63,7 Nm tool taper: SK 40 work table:: table surface area: 900 x 410 mm max. table load: 350 kg T-slots: 4x Tool-Presetter:: number of toolpositions: 24 pos. max. tool diameter: 130 mm max. tool length: 200 mm max. tool weight: 8,0 kg feeds:: rapid traverse ( X / Y / Z ): 36 m/min total power requirement: 20 kVA weight of the machine ca.: 3,3 t dimensions of the machine ca.: 3,0 x 2,5 x 2,9 m Documents: digital Chip-Tray: Automatic Tool Changer: Coolantsystem: interface 4. axis: work light: test probe: Blum TC 50 elektr. hand wheel: integriert / integrated Tailstock: TTS-125 indexing attachment: CNC Machiningcenter Vertical SPINNER - VC 750 The data for this ad was created wi ...
This 5-axis SPINNER U1530 was manufactured in 2020. It features an impressive X-axis travel of 1,530 mm, Y-axis travel of 530 mm, and Z-axis travel of 465 mm. The machine is equipped with a Heidenhain iTNC 530 control unit and has a tool capacity of 110 stations. If you are looking to get high-quality machining capabilities, consider the SPINNER U1530 vertical machining centre we have for sale. Contact us for further details.
This 5-axis SPINNER U5-1530 was manufactured in 2021. It features an impressive X-axis travel of 1530 mm, Y-axis travel of 530 mm, and Z-axis travel of 465 mm. The machine includes a fixed rigid table combined with a 2-axis rotary/tilt table, enhancing its versatility. If you are looking to get high-quality machining capabilities, consider the SPINNER U5-1530 vertical machining centre we have for sale. Contact us for further details.
This 4-axis SPINNER TC800 was manufactured in 2009. It features a radial turret and is equipped with Siemens control, ensuring reliable operation. With approximately 1,000 operating hours, this machine has been barely used. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800 horizontal turning machine we have for sale. Contact us for further details.
A CNC vertical machining center Spinner is available. Travel X/Y/Z: 650mm/450mm/460mm, table dimensions X/Y: 710mm/450mm, max. table load: 500kg, speed: 8000rpm, tool holder: SK40, tool positions: 24, rapid traverse: 24m/min, feed: 10m/min, positioning accuracy: +/-0.01mm, repeatability: +/-0.005mm. Machine dimensions X/Y/Z: approx. 2400mm/2100mm/2600mm, weight: approx. 9500kg, control: Fanuc. Without vise and dividing head. The spindle was recently renewed and the hydraulic pump is currently being renewed. The rotary table is leaking oil. Documentation available. An on-site inspection is possible.
This 4-axis SPINNER TC800 110 SMCY was manufactured in 2016. It features a maximum X-axis travel of 360 mm and Z-axis travel of 900 mm, along with a sub spindle and live tool capabilities. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800 110 SMCY horizontal turning machine we have for sale. Contact us for further details.
This 5-axis SPINNER U5-2520 was manufactured in 2016. It features an impressive X-axis travel of 2660 mm, Y-axis travel of 520 mm, and Z-axis travel of 460 mm. The machine is equipped with a spindle speed of 10,000 rpm and an automatic tool changer with 2x52 positions. If you are looking to get high-quality machining capabilities, consider the SPINNER U5-2520 vertical machining centre we have for sale. Contact us for further details.
This 3-axis SPINNER TC800L 110 was manufactured in 2023. The machine is fully functional and includes a steady rest, tailstock, chip conveyor, and oil mist extraction system. It operates on a 3-phase power supply at 400 V. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800L 110 horizontal turning machine we have for sale. Contact us for further details.
This 3-axis SPINNER MT 500/1000 AT was manufactured in 2000. It features an X-axis travel of 210 mm, and Z-axis travel of 930 mm. The machine includes a robust table size of 520 x 900 mm with a load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MT 500/1000 AT machine we have for sale. Contact us for further details.
turning diameter: 250 mm turning length: 600 mm control: FANUC Series 31i-Model A total power requirement: 23 kW weight of the machine ca.: 7,7 t dimensions of the machine ca.: 2.880 x 2.130 x 1.990 mm m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

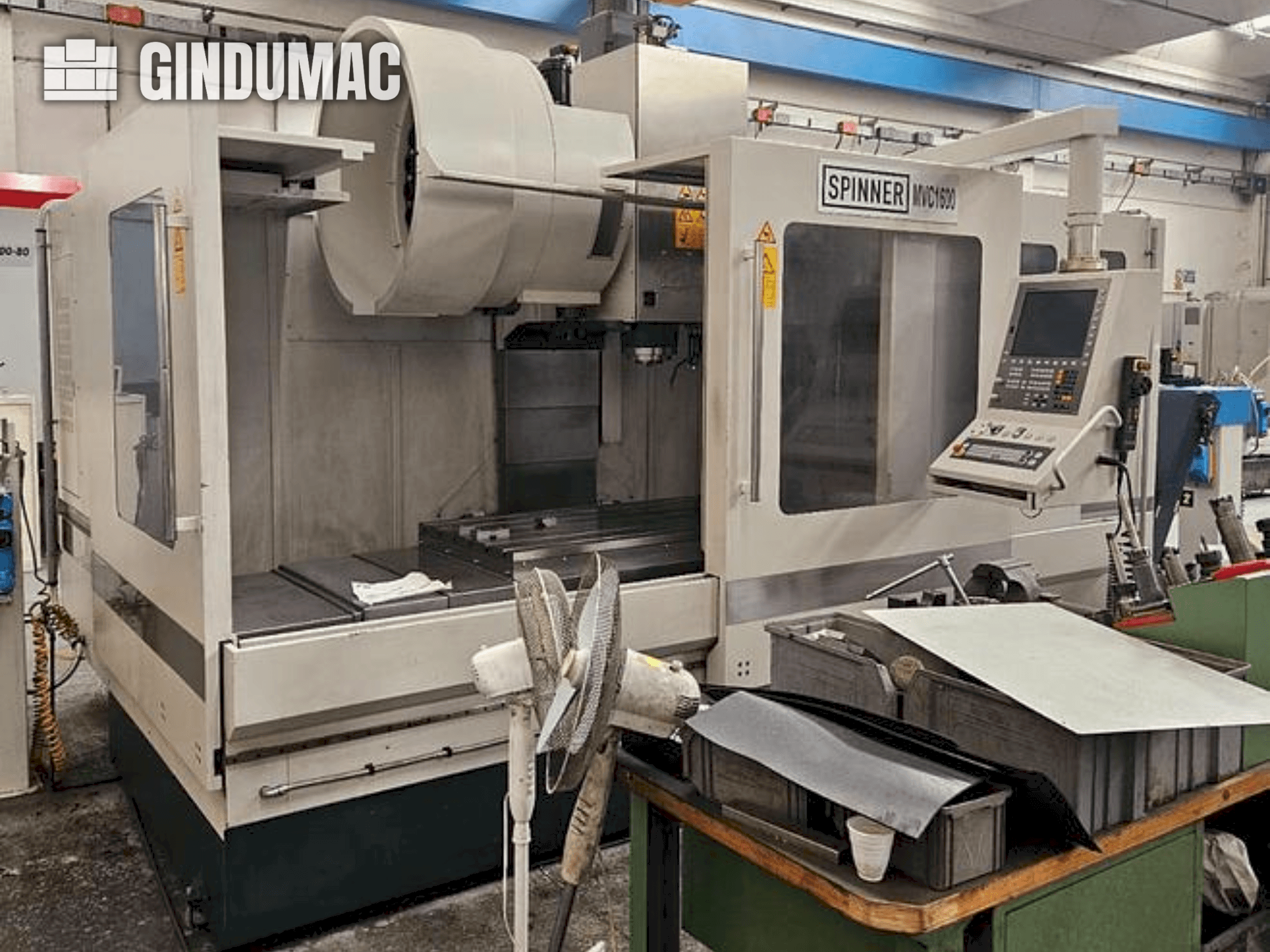

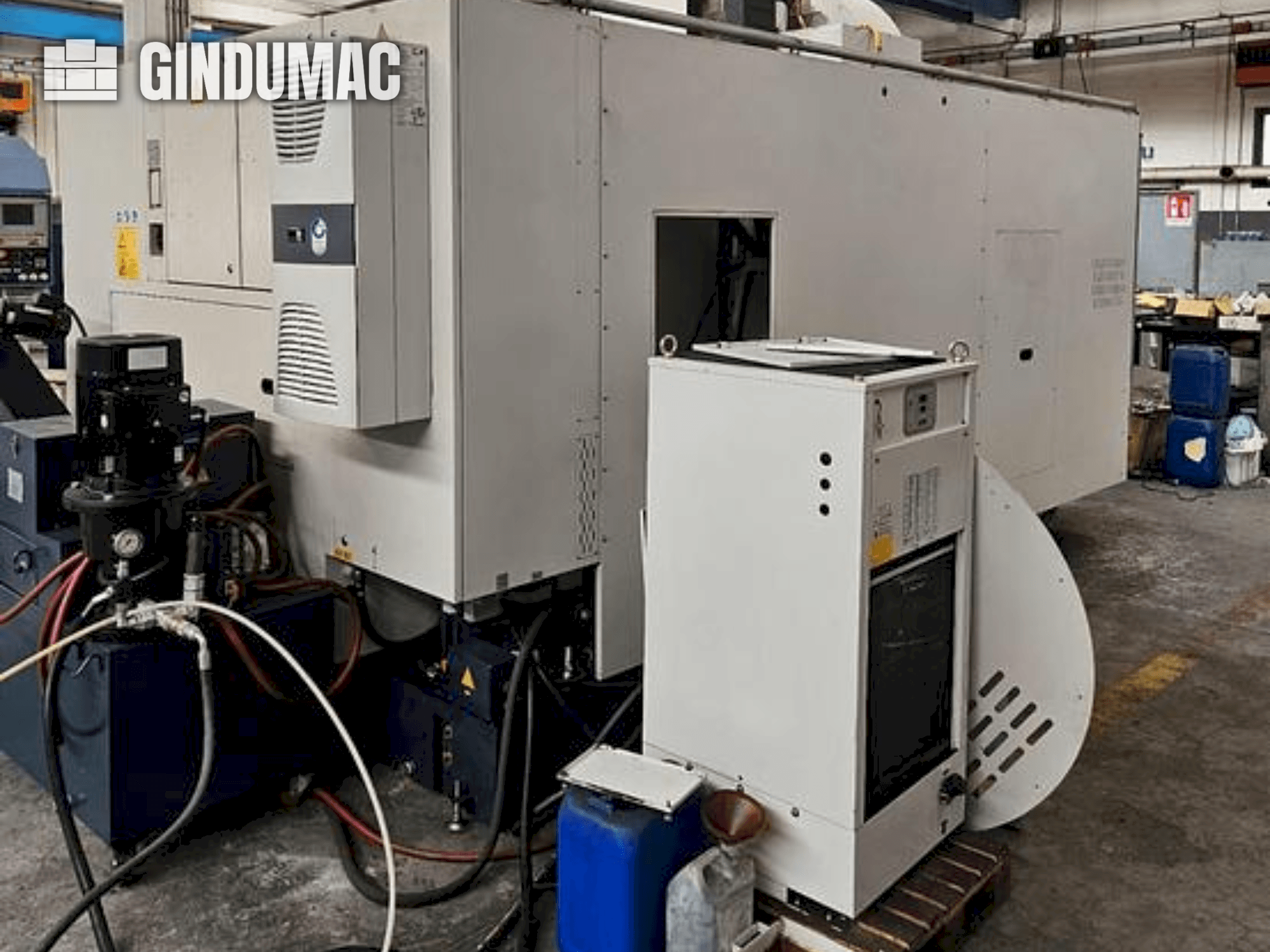

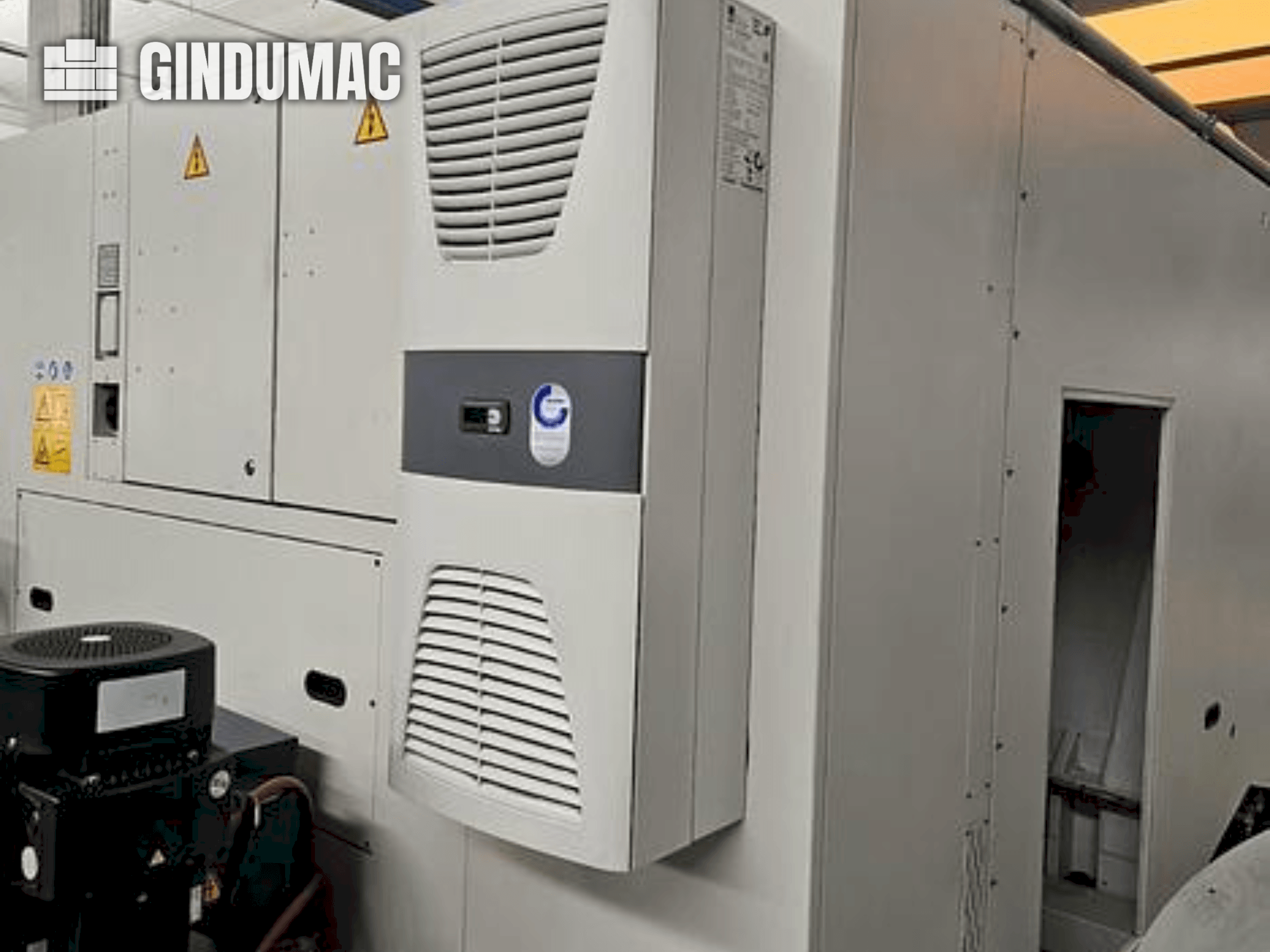

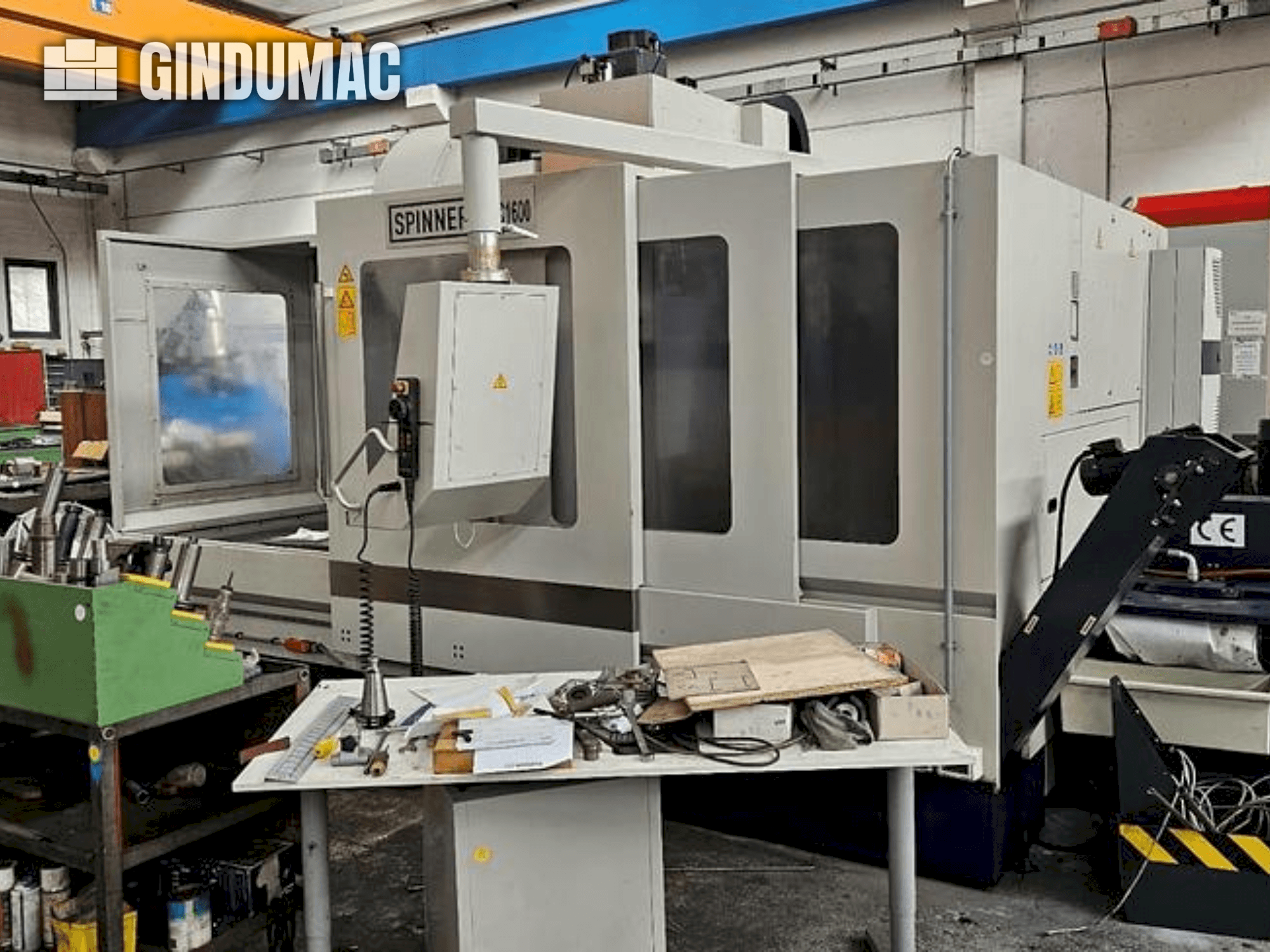

This 3-axis SPINNER MVC 1600 was manufactured in 2013. It features an impressive X-axis travel of 1600 mm, Y-axis travel of 810 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1800 x 810 mm and a maximum workpiece weight of 2000 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MVC 1600 vertical machining centre we have for sale. Contact us for further details.
This 3s SPINNER VC 560s was manufactured in 2007. It is a CNC Milling Machine featuring a 3-axis configuration, prepared for a 4th axis (included but not installed). The machine is operational and comes complete with all tooling and a tool cabinet. With a maximum spindle speed of 12,000 rpm and rapid traverse of 48 m/min, consider the opportunity to buy this SPINNER VC 560 vertical machining centre. Contact us for further details.
This SPINNER TC 82 -MC was manufactured in 1998. A robust horizontal turning machine featuring a Siemens Sinumerik control system, it offers a max turning diameter of 400-520 mm and length up to 1100 mm. With a spindle speed of 3750 rpm and a 12-position VDI 40 turret with live tooling, its ideal for precise turning tasks. Dimensions are 4200 × 2000 × 2100 mm. Contact us for more information about this machine.
This SPINNER PD-CNC was manufactured in 2006. A reliable horizontal turning machine, it offers solid performance for your machining needs. Consider the opportunity to buy this SPINNER PD-CNC horizontal turning machine. Contact us for more information.
