used HYDRAP hps

pressure: 100 t throat: 260 mm stroke: 300 mm table-size: 500 x 500 mm ram head dimension: 650 x 500 mm dayligth: 700 mm oil volume: 600 l capacity of ejector in table: 40 t return capacity: 13 t total power requirement: 22 kW weight of the machine ca.: 7 t dimensions of the machine ca.: 2.07 x 2.48 x 3.3 m - Ejector in the table, pressure 40 t, stroke 100 mm - Laterally movable work area protection with ESPE (light barrier) this with cycle operation - Cooling, behind the machine, backwater boiler (beige) air cooler (grey- blue), along with complete piping and control etc. - Press safe for unrestricted manual insertion operation - Documentation in german available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Effective stroke: 200 mm Drive type: Hydraulic Voltage: 380 V Rated current: 40 A Power: 20 KW Oil viscosity: HLP 48 Oil quantity: 320 l Approx. Onsite Dimension. (l x w x h): 1,900 x 2,400 x 2,750 mm, weight approx.: 7,000 kg

pressure: 400 t stroke: 300 mm table surface area: 1200 x 700 mm ram surface: 1200 x 700 mm dayligth: 500 mm adjustment of stroke: 300 mm return capacity: 348 kN capacity of ejector: 100 kN ejector stroke: 100 mm total power requirement: 65 kW weight of the machine ca.: 28 t dimensions of machine L x W x H: 4,4 x 2,75 x 4,0 m = Frame press Accessories: tool changing table - next safety inspection according to stamp 05/2021 - - with cutting shock absorption damping force 4000 kN damping stroke 5 mm spindle adjustment 200 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 500 t passage width: 750 mm stroke: 120 mm total power requirement: 57 kW weight of the machine ca.: 16 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 63 t passage width: 1350 mm stroke: 300 mm total power requirement: 16 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 2,0 x 1,8 x 3,4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 500 t passage width: 750 mm stroke: 120 mm total power requirement: 57 kW weight of the machine ca.: 16 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 250 t distance between columns: 1100 mm stroke: 400 mm dayligth: 600 mm table surface area: 1000x800 mm ram surface: 1000x800 mm table height: 950 mm total power requirement: 65 kW weight of the machine ca.: 25 t dimensions of the machine ca.: BxTxH 0000x0000x3900mm m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 250 t distance between columns: 1100 mm stroke: 400 mm dayligth: 600 mm table surface area: 1000x800 mm ram surface: 1000x800 mm table height: 950 mm total power requirement: 65 kW weight of the machine ca.: 25 t dimensions of the machine ca.: BxTxH 0000x0000x3900mm m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 000 Dimensions (HxWxD): 800x800x1200 mm weight: 150 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Condition: very good Control system: Siemens Technical details : Machine type: SH-200-2.7 x 1.7 Fabrication No.: P/100010 Year: 2005 TOTAL PRESS WEIGHT: 37300 kg Nominal force: 2000 kN Stroke length max.: 900 mm Installation height: 1400 mm Closing speed: 400 mm/s Working speed max.: 84 mm/s Working speed at nominal force: 30 mm/s Tool footprint max.: 2700 x 1500 mm Tool footprint min.: At nominal force: 1600 x 1100 mm Tool height min.: 500 mm Total tool weight max.: 15 000 kg Tool upper part weight max. : 7500 kg Permitted External load : left-right 30 kNm Permitted Except Load : front-rear 15kNm Installed capacity: 87 kW Rated current: 155 A Tension: 400 V Frequency: 50 Hz Hydraulic operating pressure: 289 bar Total amount of oil: 1500 l Type of oil: HLP 46, DIN 51524

YOM: 5.1987 / 2003 - the press was generally renovated by the manufacturer Schuler, along with the replacement of electrics, cables and controls for Siemens Condition: Very good Technical details: Pressing force: 5000 kN, 500 tone Table dimensions: 1500 x 1400 mm Distance from Clamping surface to ram: 1250 mm Distance from the clamping table to the hold-down device min.405 mm, max.605 mm Clamping surface thickness: 335 mm Number of flutes, dimensions: H12 DIN 650, 36 mm Ram size Stroke:: 500 mm Hold-down size Stroke: 200 mm Press height / weight: 5800 mm / 45 tone

Hydraulic power pack, hydraulic pump, hydraulic pump -double pump -Max. Pressure: 60/200 bar -Liter output: 6/24 l/min -Motor power: 5.5 kW -Speed: 1445 rpm -Hydraulic valves -Hydraulic tank -Hydraulic filter -Weight: 230 kg

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:125 t distance between columns:2100 mm stroke:1000 mm Distance table/ram, max. stroke up, adjustment up:1300 mm Table area:2230 x 1300 mm die cushion pressure in table:63 t die cushion stroke in table:60 mm surface of drawing cushion:1000 x 900 mm table height above floor:1050 mm side window:1000 mm ram surface:2100 x 1000 mm speed down:50 mm/s speed up:50 mm/s working speed:10 mm/s oil volume:410 l height above floor:5,95 mm power requirement:22,0 kW Weight:31,0 t Dimensions (WxDxH):3,1 x 1,7 x 5,95 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic foundation pit:not necessary

pressure:200 t distance between columns:1400 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:500 mm table surface area:1300 x 1100 mm pressure of drawing cushion in table:80 t stroke of drawing cushion in table:150 mm die cushion area:700 x 700 mm capacity of ejector in ram:10 t ejector stroke in ram:50 mm table height over floor:930 mm side window:770 mm ram surface:1300 x 1100 mm speed down:400 mm/s speed up:410 mm/s working speed:20 - 50 mm/s return capacity:30 t oil volume:1350 l power requirement:70,0 kW weight:23,0 t dimensions (WxDxH):4,5 x 3,0 x 3,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic ejector in ram:hydraulic foundation pit:not necessary

PRESS DESIGN   drive system: hydraulic   frame design: C-frame, single sided PRESS FORCES   total force (nominal): 12 to SLIDE   stroke: 200 mm ELECTRICAL SPECIFICATIONS   mains voltage: 380 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 1000 kg

Pressure total: 315 ton Stroke: 600 mm Daylight: 800 mm Table surface area : 2000 x 1200 mm Slide area: 2000 x 1200 mm Approach speed: 450 mm / sec Working speed: 14 - 40 mm / sec Return speed: 300 mm / sec Table height over floor: 900 mm Oil volume: 2000 l Required power: 75 kW Height over floor approx.: 5000 mm Dimensions L x W x H: 4900 x 3200 x 5000 mm Weight of machine approx.: 45 ton

Hydr. Glueing machine make JOOS type HPS 20 SMachine -No: 68/3576 built in 1969Table size: 1000 x 1000 mmInstallation height (height of the press room): 1000 mmPressure gauge: 630 barOperating pressure: 300 barPiston diameter: 65 mmNumber of cylinders: 2Stroke: 400 mmDrive power: 1.5 hpDimensions: 1700 x 1100 x 2400 mmWith- Timer- extendable table- Cylinder movement from below- Emergency stop switchused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools

30 Ton Metal Length : 2500 mm Metal width : 1500 mm Fanuc control unit Maximum steel thickness : 6 mm Machine is in very good condition and can be seen in working condition

Width: 1860mm, depth: 800mm, height: 1900mm, weight: approx. 2.3t Rectangular notchers: 57 x 100mm, triangular notchers: 5 x 5 x 7.5mm. Notching station width: 330mm, working height: 915mm

Used 903Kw POWER-CIAT LXH.M 3750 HPS aircooled chiller with integrated hydraulic module. Complete with 3x Bitzer CSH8561-125Y-40P hermetic screw compressor with economizers. Direct expansion shell and tube evaporator with a water capacity of 219 ltr. Aircooled condenser with 12 fans diameter 800 mm and airflow of 264.000 m3/h. Electric control with microprocessor Xtra connect. Capacity control from 17 to 100%. Hydraulic module with buffer tank 950 ltr, expansion vessel 80 ltr and twin centrifugal pump. Specifications: Our inventory stock No. 12831 Brand CIAT Type LXH.M 3750 HPS Product type Air Cooled Chiller Capacity kW 903 Capacity Tons 256,8 Refrigerant Freon Refrigerant Type R 407C Liquid buffer tank Pump Hydronic Module Weight in kg. 8.576 kg Sizes 9400x2500x2200 mm (LxWxH) Compressor(s) type & model 3x Bitzer CSH8561-125Y-40P Display Ciat xtraconnect cont ...

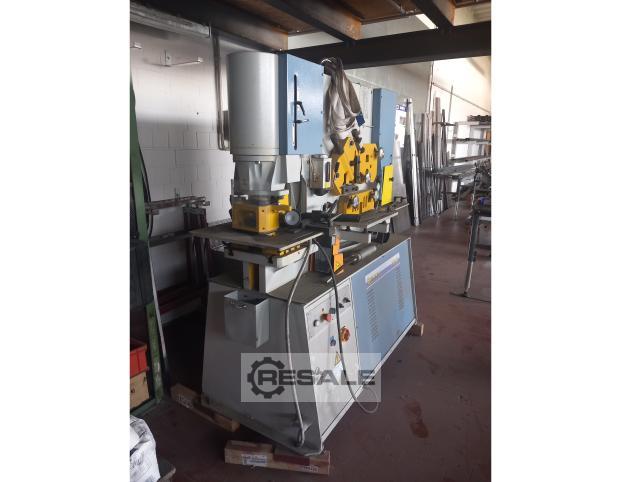

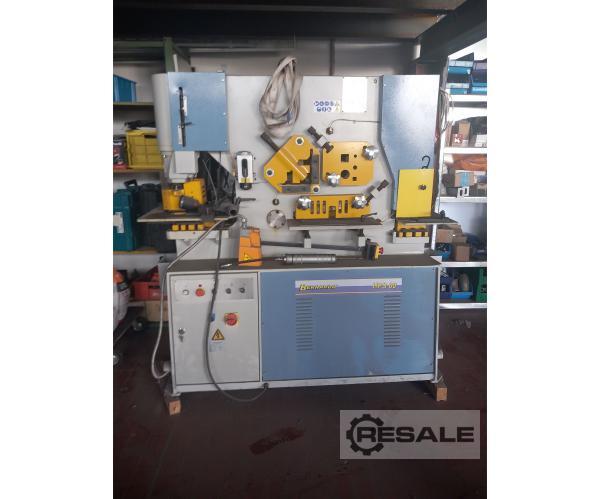

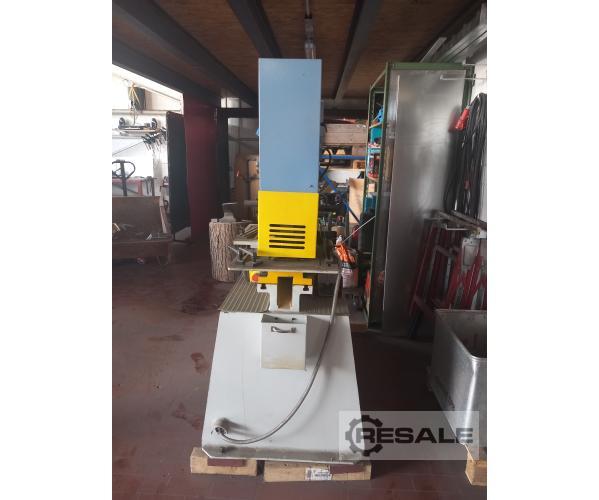

BRAND: BERNARDO YEAR: 2017 MODEL: HPS 60 APPLICATION TYPE: SHEARING LOCATION: GERMANY MACHINE TYPE: SHEARING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 7200 KG CONTROL UNIT BRAND: NC-89 Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MAX. SHEET THICKNESS: 6 MM - CUTTING ANGLE: 1º50"

Profile steel shears, profile shears, punch, punching machine, hole punch, hydraulic flat/profile and bar steel shears -Manufacturer: Mubea, hydraulic profile steel shears type HPSN 350 -Drive: hydraulic -Pressure force: 35 tons -Equipment: large support table with stops for punching -Punching -scissors -Cut -Notch -various punches and dies -Dimensions: 1460/1700/H1690 mm -Weight: 1080kg

Key data: 200 mm, 250 mm

Saw blade length 400 mm Power 0.53 / 0.78 kW Cutting speed approx. 15 / 30 m/min Vise opening width 190 mm Cutting area approx. approx. 200 mm approx. flat 240 x 190 mm
