ERMAK microbend used machines

welding line for galvanized and black pipes.

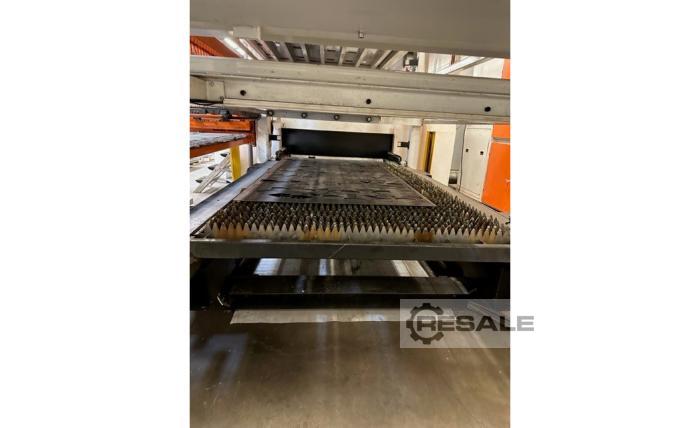

ERMAKSAN LASERMAK 6000 6X2 laser cutter was produced in 2014. Technical parameters: – laser source: 6000 W CO2-laser GE Fanuc C6000i-Model C – RF-excitation: 2 MHz – power stability: ± 2% (power monitor) – laser wave length: 10.6 μM – beam mode: Fanuc Low Order Mode – laser shutter: mechanical safety shutter – laser gas composition: CO2 / He / N2 – gas consumption by laser: 20 l / h – cooling water flow rate: 250 l / min – maximum cutting capacity: mild steel 25 mm (during tests the maximum achieved: 30 mm), stainless steel 15 mm, aluminum 12 mm - machine activation time: 22899 h - working time: 10122 h - cutting time: 8429 h – total energy requirement: 100-120 kW – cutting head focal length: 5 “-7” -10 “inch – maximum worksheet size: 6150 x 2000 mm – maximum burden capacity: 4000 kg – machine axes: 5 axes [X, Y, Z, U (X2), V] � ...

ERMAK CNC HVR 3100 x 13 hydraulic guillotine shears built in Turkey in 2008, are designed for cutting workpieces made of among others mild steel or stainless steel. The metal sheet with a maximum length of 3100 mm and a maximum thickness of 8 mm (plain steel) or 13 mm (stainless steel), is held during machining by 14 hydraulic clamps. The angle of the cutting blade can be freely adjusted in the range from 0.5° to 2.0°. Full control over the operation of the CNC HVR 3113 machine is guaranteed by the control panel located on the guillotine shears body with installed CYBELEC DNC 60 CNC controller, allowing programming of many different machining processes. The guillotine shears is equipped with among others new cutting blades and a foot control pedal, making the operator’s work much more comfortable and simple. The total weight of the machine is 13400 kg. The total weight of the mach ...

ERMAK HGS 2600 X 6 guillotine shears built in 2006 in Turkey are designed for cutting sheet metal with a maximum thickness of 6 mm. The machine performs this process using precise cutting knives with an option to adjust the gap between the blades. The simple design, with an efficient drive system, further ensures trouble-free operation throughout its lifetime, while maintaining the highest cutting quality. The ERMAKSAN HGS 2606 guillotine shears weighs 5000 kg. Technical specifications of the ERMAK HGS 2600 X 6 guillotine shears - maximum workpiece thickness: 6 mm - maximum workpiece length: 2600 mm - number of strokes: 20/min - oil tank capacity: 150 l - motor power: 11 kW - power supply: 380 V - dimensions (L x W x H): 3395 x 1880 x 1550 mm - weight of machine: 5000 kg

Machine almost unused Pressure: 60.0 t Square steel: 35.0 mm Technical specifications Pressure: 60.0 t Square steel: 35.0 mm Angle steel: 120x120x12 mm Round steel: 40.0 mm Punching cross-section in sqmm: Ø28 in 15 / Ø38 in 11 mm Projection: 220 mm Flat steel: 200x20 / 300x15 mm Y0798Jol Knife length: 317 mm Oil capacity: 45.0 ltr. Working height: 940 / 1140 mm Stroke rates per minute: max. 26 Working stroke: 55.0 mm Total power requirement: 4.0 kW Machine weight approx.: 1425 kg. Dimensions HxWxD: 1510 x 590 x 1570 mm

ERMAK GMR 2600 X 4 mechanical guillotine shears were built in 2007 in Turkey by ERMAKSAN MAKINA SANAYI TIC. LTD. ŞTI. The machine, designed for precision cutting of workpieces with a maximum thickness of 4 mm, offers high reliability, precision and efficiency. The machining process is performed by high alloy steel cutting knives with adjustable gap between blades. Automatic hold-down system, in turn, prevent the sheet metal from sliding during machining, ensuring uninterrupted production of repeatable parts. Moreover, the operator’s daily work is facilitated by the convenient foot switch control and the intuitive NC control, which allows the creation of machining programmes in just a few steps. The GMR 2600 X 4 guillotine shears weighs 3750 kg. Technical specifications of the ERMAK GMR 2600 X 4 guillotine shears - NC control - maximum workpiece length: 2600 mm - maximum workpiec ...

ERMAK RPP 1270X30 punching machine was built in 2013 in Turkey by ERMAKSAN MAKINA SANAYI VE TIC. AŞ. The machine, which is distinguished by its high productivity and precision, is used in the machining of thin sheet metal with a maximum thickness of 6.35 mm. All machining processes are performed on a large brush table by a reliable working head, which operates with a maximum force of 30 tonnes. The brush table prevents scratches and nicks on the sheet metal surface during material feed, and also significantly reduces noise level. All this is complemented by a FANUC CNC control with an intuitive interface that allows advanced machining programmes to be created in just a few steps. The ERMAK RPP 12730 CNC punching machine weighs 11000 kg. It is also possible to purchase Metalix CAD/CAM software at an additional cost of 10500 EUR net. Technical specifications of the ERMAK RPP 1270X30 ...

Key data: 3100 mm, 6 mm

Hinged backgauge, manual cutting gap adjustment, lighting, cutting length adjustment, Machine is repaired, checked, cleaned by a professional and is then fully functional. Test run is carried out. Sheet width: 3100 mm Sheet thickness steel: 6.0 mm Sheet thickness front: 4.0 mm Colour: grey/blue Total power requirement: 11 kW Machine weight: 900 kg Dimensions: 4000 x 2150 x 1640 mm Cutting gap adjustment: 0.05 -0.80 mm Hold-down: 14 Stroke rates per minute approx.: 19 stroke/min Cutting Angle: 1.2 Adjustable back gauge Back gauge: 1000 mm Machine number: SN20080583

sheet width: 3100 mm plate thickness: 6,0 mm thickness at Niro-steel: 4,0 mm distance between columns: 3100 mm down holder: 14 Stück oil volume: 150 ltr. cutting angle: 1,2 ° no. of strokes: 18 Hub/min control: CYBELEC CybTouch total power requirement: 11,0 kW weight: 6300 kg range L-W-H: 4.000 x 2.100 x 1.640 mm -------------------------------------------------- electr. / hydraulic CNC swing cut shears * with CYBELEC CNC touch screen control * with electr. / hydr. Kerf adjustment -------------------------------------------------- Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Quantity * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom.  ...

sheet width: 3100 mm plate thickness: 13.0 mm thickness at Niro-steel: 8.0 mm down holder: 14 Stück no. of strokes: 11 - 20 Hub/min oil volume: 310 ltr. cutting angle: 0.05 - 2.0 ° throat: 350 mm table height: 900 mm total power requirement: 22.0 kW weight of the machine ca.: 13400 kg range L-W-H: 5.110 x 2.570 x 2.400 mm ** Current new price approx. 80.000 Euro ** Special price upon request - in checked conditions - machinevideo - https://www.youtube.com/watch?v=K4ymYMIJ7_Y ----------------------------------------------------------- Robust electro-hydraulic CNC sheet metal shear with slide guides * Includes CYBELEC DNC 60 CUT control system * Includes CNC electro-hydraulic cutting gap adjustment * Includes CNC electro-hydraulic cutting angle adjustment ---------------------------------------------------------- Equipment: - CNC electro-hydraulic guillotine shear with slide guides - Inc ...

sheet width: 3100 mm plate thickness: 6,0 mm distance between columns: 3.100 mm down holder: 14 Stück no. of strokes: 16 - 24 Hub/min oil volume: 150 ltr. cutting angle: 0,5 - 1,5 ° thickness at Niro-steel: 4,0 mm column arm: 350 mm engine output: 11,0 kW weight of the machine ca.: 7.060 kg range L-W-H: 4100 x 2200 x 2190 mm -------------------------------------------------- electr. / hydraulic CNC guillotine shears - guided by a backdrop * with CYBELEC CNC touch screen control * with electr. / hydr. Cutting gap and cutting angle adjustment -------------------------------------------------- Furnishing: - CNC guiding guillotine shears - with electr. / hydr. Cutting gap and cutting angle adjustment - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation * Material preselection, incl ...

sheet width: 3100 mm plate thickness: 13,0 mm thickness at Niro-steel: 8,0 mm down holder: 14 Stück no. of strokes: 11 - 20 Hub/min oil volume: 310 ltr. cutting angle: 0,05 - 2,0 ° throat: 350 mm table height: 900 mm total power requirement: 22,0 kW weight of the machine ca.: 13.300 kg range L-W-H: 5.110 x 2.570 x 2.400 mm -------------------------------------------------- heavy electr. / hydraulic CNC guillotine shears - guided by a backdrop * with CYBELEC CNC touch screen control * with electr. / hydr. Cutting gap and cutting angle adjustment -------------------------------------------------- Furnishing: - CNC guillotine guiding shears - with electr. / hydr. Cutting gap and cutting angle adjustment - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation * Material preselection,  ...

pressure: 175 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 410 mm ram stroke speed: 180 mm/sec return speed: 135 mm/sec work speed: 10,0 mm/sec work stroke: 275 mm dayligth: 550 mm table height: 900 mm table width: 90,0 mm oil volume: 200 ltr. voltage: 400 Volt total power requirement: 15,0 kW weight: 11.950 kg range L-W-H: 5100 x 2150 x 2850 mm -------------------------------------------------- Press brake with special equipment * increased installation height * increased cylinder stroke * as well as increased bending beam speeds -------------------------------------------------- Furnishing: - DELEM CNC control model DA-58T graphics / touchscreen * 2D graphic programming * 15 high definition color TFT screen * Bending sequence calculation * Product programming and display in real size * USB interface - Motorized backgauge with R-axis, on recirculating ball sp ...

pressure: 200 t chamfer lenght: 3100 mm distance between columns: 2600 mm column arm: 250 mm ram stroke speed: 100 mm/sec return speed: 75,0 mm/sec work speed: 7,0 mm/min work stroke: 180 mm dayligth: 415 mm oil volume: 200 ltr. table height: 900 mm voltage: 400 Volt range L-W-H: 4450x2050x2650 mm Furnishing: - DELEM - CNC control model DA-58T - controlled axes: Y1 - Y2 and X - FIESSLER AKAS - laser protection in front of the machine - Deer foot upper tool - Universal die block - manual table crowning - Safety device: light barrier behind the machine - 2 front support arms - SIEMENS - electrical system - BOSCH / HOERBIGER hydraulic system - CE mark / declaration of conformity - Operating manual: machine and control - Safety manual: press brakes The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 400 t chamfer lenght: 4100 mm distance between columns: 3550 mm column arm: 510 mm ram stroke speed: 110 mm/sec work speed: 8.4 mm/sec return speed: 130 mm/sec work stroke: 375 mm dayligth: 650 mm table height: 1000 mm table width: 240 mm back stop - adjustable: max. 800 mm oil volume: 400 ltr. voltage: 400 Volt total power requirement: 30.0 kW weight: 26409 kg range L-W-H: 5450 x 2650 x 3470 mm -------------------------------------------------- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection -------------------------------------------------- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 ...

sheet width: 3100 mm plate thickness: 10,0 mm thickness at Niro-steel: 6,0 mm down holder: 14 Stück no. of strokes: 13 Hub/min oil volume: 260 ltr. cutting angle: 2,0 ° throat: 350 mm engine output: 22,0 kW back stop - adjustable: 1.000 mm weight: 10.575 kg. range L-W-H: 4,05 x 2,5 x 2,17 m -------------------------------------------------- heavy electr. / hydraulic CNC swing cut shears * with CYBELEC CNC touch screen control * with electr. / hydr. Kerf adjustment -------------------------------------------------- Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Quantity * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up a ...

pressure: 100 t chamfer lenght: 2600 mm distance between columns: 2200 mm column arm: 410 mm ram stroke speed: 200 mm/sec work speed: 9.5 mm/sec return speed: 155 mm/sec work stroke: 275 mm dayligth: 530 mm table height: 900 mm table width: 90.0 mm oil volume: 150 ltr. voltage: 400 Volt total power requirement: 7.5 kW weight: 6850 kg range L-W-H: 3750 x 1950 x 2800 mm -------------------------------------------------- Press brake with special equipment * increased installation height * increased cylinder stroke * as well as increased bending beam speeds -------------------------------------------------- Furnishing: - DELEM CNC control model DA 53T (touchscreen) - Motorized backgauge with R-axis, on recirculating ball spindles - X = 800 mm R = 250 mm with 2 stop fingers - controlled axes Y1 - Y2 - X - R - C (crowning) - electr. Crowning controlled by CNC - Upper deer foot tool with PS 13 ...

pressure: 220 t chamfer lenght: 3100 mm distance between columns: 2600 mm column arm: 410 mm ram stroke speed: 180 mm/sec work speed: 10.0 mm/sec return speed: 185 mm/sec work stroke: 275 mm dayligth: 550 mm table height: 930 mm table width: 200 mm oil volume: 300 ltr. voltage: 400 Volt total power requirement: 18.5 kW weight: 11286 kg Dimensions (HxWxD): 4550 x 2250 x 2850 mm -------------------------------------------------- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection -------------------------------------------------- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot ...

pressure: 175 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 410 mm ram stroke speed: 180 mm/sec work speed: 12.0 mm/sec return speed: 190 mm/sec work stroke: 275 mm dayligth: 550 mm oil volume: 300 ltr. table height: 900 mm table width: 90.0 mm voltage: 400 Volt total power requirement: 15.0 kW weight: 12100 kg range L-W-H: 5.100x2.150x2.850 mm -------------------------------------------------- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection -------------------------------------------------- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool R ...

pressure: 135 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 410 mm ram stroke speed: 200 mm/sec work speed: 12.0 mm/sec return speed: 190 mm/sec work stroke: 275 mm dayligth: 550 mm table height: 900 mm oil volume: 300 ltr. voltage: 400 Volt total power requirement: 15.0 kW weight: 10800 kg range L-W-H: 5100 x 2100 x 2850 mm -------------------------------------------------- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection -------------------------------------------------- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, Sy ...

pressure: 220 t chamfer lenght: 4100 mm distance between columns: 3600 mm column arm: 410 mm ram stroke speed: 180 mm/sec work speed: 10.0 mm/sec return speed: 185 mm/sec work stroke: 275 mm dayligth: 550 mm table height: 900 mm table width: 160 mm back stop - adjustable: max. 800 mm oil volume: 300 ltr. voltage: 400 Volt total power requirement: 18.5 kW weight: 14000 kg range L-W-H: 5150 x 2250 x 3000 mm -------------------------------------------------- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection -------------------------------------------------- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 ...

pressure: 320 t chamfer lenght: 3100 mm distance between columns: 2600 mm column arm: 410 mm ram stroke speed: 140 mm/sec work speed: 10.5 mm/sec return speed: 150 mm/sec work stroke: 375 mm dayligth: 650 mm table height: 900 mm table width: 240 mm oil volume: 400 ltr. voltage: 400 Volt total power requirement: 30.0 kW weight: 17082 kg Dimensions (HxWxD): 4550 x 2450 x 3200 mm -------------------------------------------------- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection -------------------------------------------------- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot ...

pressure: 160 t chamfer lenght: 3760 mm distance between columns: 3250 mm column arm: 250 mm ram stroke speed: 90.0 mm/sec work speed: 7.5 mm/min return speed: 80.0 mm/sec work stroke: 160 mm dayligth: 395 mm table height: 900 mm oil volume: 200 ltr. voltage: 400 Volt weight: 8514 kg range L-W-H: 4910 x 1900 x 2550 mm Furnishing: - DELEM - CNC control model DA-58T - controlled axes: Y1 - Y2 and X - SICK light barrier in front of the machine - Upper tool, deer foot - Lower tool, die block with 4Vs - manual table crowning - SICK light barrier behind the machine - 2 front support arms - SIEMENS - electrical system - BOSCH / HOERBIGER hydraulic system - CE mark / declaration of conformity - Operating manual: machine and control - Safety manual: press brakes The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 175 t chamfer lenght: 3100 mm distance between columns: 2600 mm column arm: 410 mm ram stroke speed: 180 mm/sec work speed: 10.0 mm/sec return speed: 135 mm/sec work stroke: 275 mm dayligth: 550 mm table height: 900 mm table width: 90.0 mm oil volume: 200 ltr. voltage: 400 Volt total power requirement: 15.0 kW weight: 9450 kg range L-W-H: 4250 x 2150 x 2800 mm -------------------------------------------------- Press brake with special equipment * increased installation height * increased cylinder stroke * as well as increased bending beam speeds -------------------------------------------------- Furnishing: - DELEM CNC control model DA-58T graphic/touch screen * 2D graphical programming * 15 TFT color screen with high resolution * Bending sequence calculation * Product programming and real size display * USB interface - Motorized backgauge with R-axis, on ball screws - X = 800 ...

pressure: 60,0 t square edge steel: 35,0 mm round bar steel: 40,0 mm L-beam: 120x120x12 mm punching cross-cut in cmm: Ø28 in 15 / Ø38 in 11 mm throat: 220 mm flat steel: 200x20 / 300x15 mm blade length: 317 mm oil volume: 45,0 ltr. work height max.: 940 / 1140 mm strokes per minute: max. 26 work stroke: 55,0 mm total power requirement: 4,0 kW weight of the machine ca.: 1425 kg. Dimensions (HxWxD): 1510 x 590 x 1570 mm Furnishing: - Support table at the hole punch - Support table on the square notcher - foot switch - Bed. Instructions - CE declaration + MUBEA - punch and die holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
