max. wheel diameter:275 mmgear width: mmmax. module: weight of the machine ca.:9,4 tdimensions of the machine ca.:3,7 x 3 x 2,82 mmin. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mmmax. gear width (internal machining):58 mmX-axis:325 mmy-axis:350 mmZ-axis:475 mmBevel gear milling machine Gleason Pfauter including Promot Automation

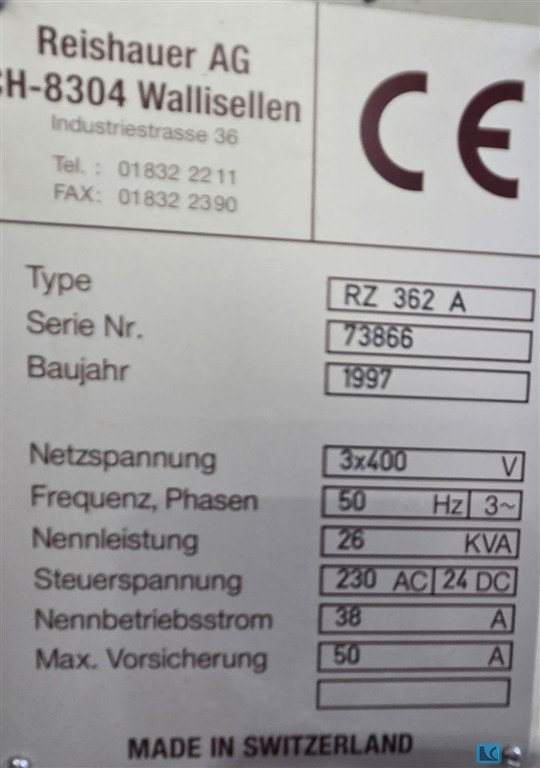

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwithout filter

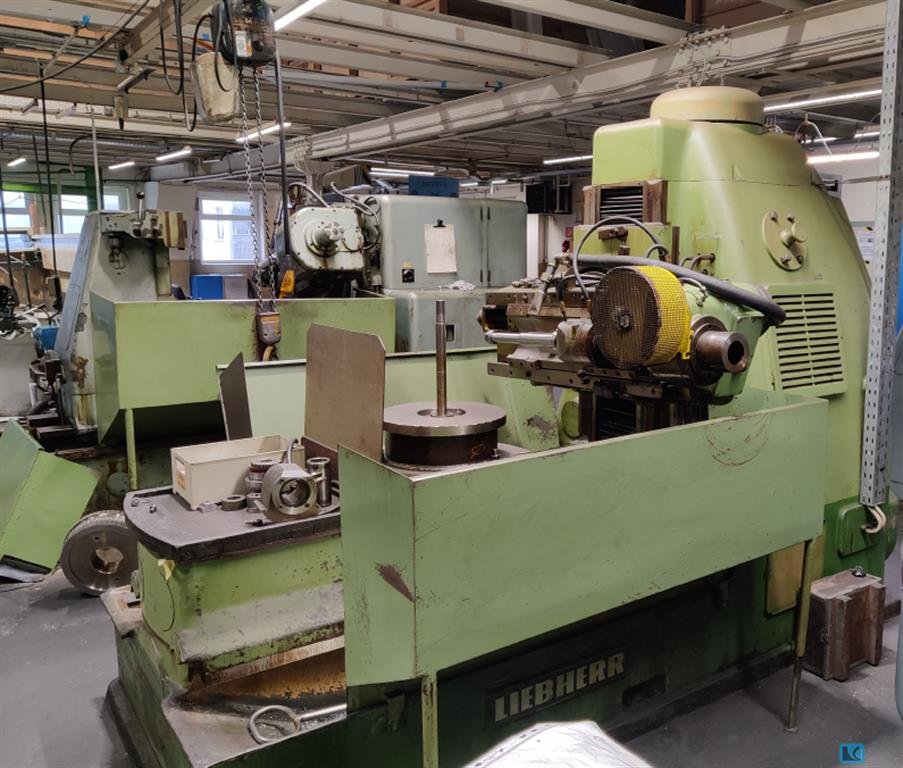

max. wheel diameter:780 mmgear width:130 mmmax. module:10 weight of the machine ca.:8,5 tno. of strokes:30 Hub/minHier fully functional machine, Little usedThere are some Tools and Change gearsLiebherr WSC501 CNC gear shaping machine, used, ready for useManufacturer: LiebherrType: WSC 501Mach.- No.: 4407/05Year of manufacture: 1985Details:Max. gear shaping module: 8mm(30°gears possible up to module 10°)Max. gear width: 130mmDiameter of the machine table: 500mmMaximum wheel diameter: 780mmShut height ? table: 650mmStroke rate min. 30DH/minContinuously adjustable max. 1500 DH/min.Operating voltage: 380VFrequency: 50HzControl voltage: 110VConnected load: 36 kVARated current: 55AWeight: 8500kgDimensions: approx. 4,85 x 3,655 x 3,78(width x depth x height in m)The machine has seen only very limited use in our company. It remains fully operational and can be demonstrated in function upon a ...

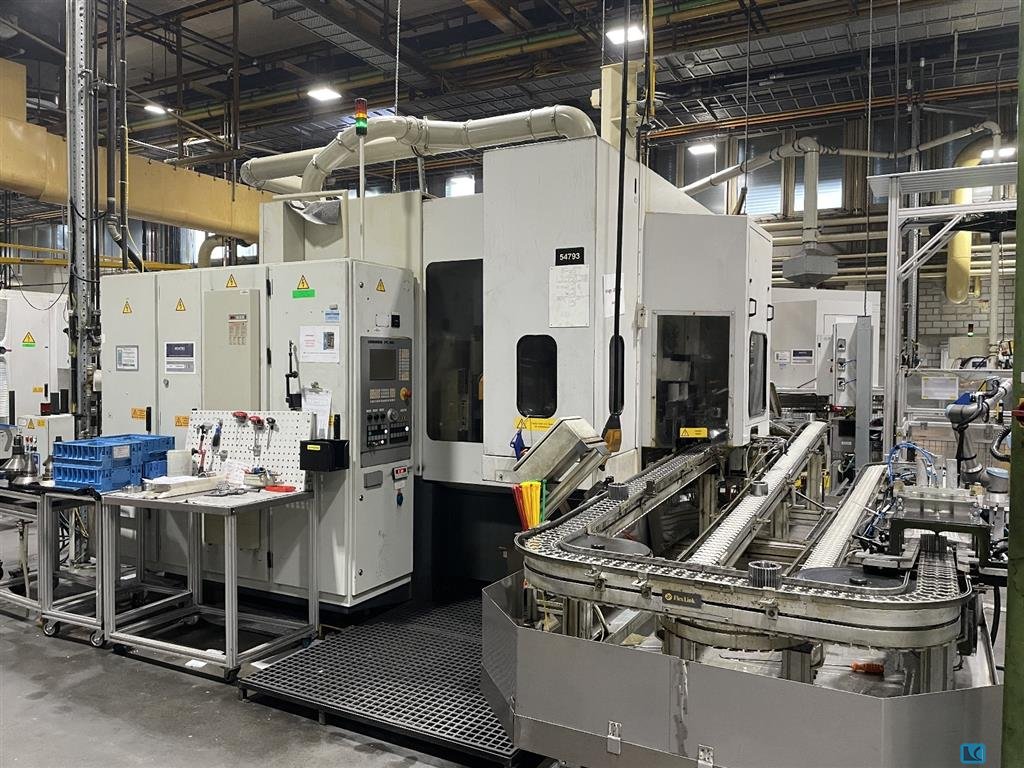

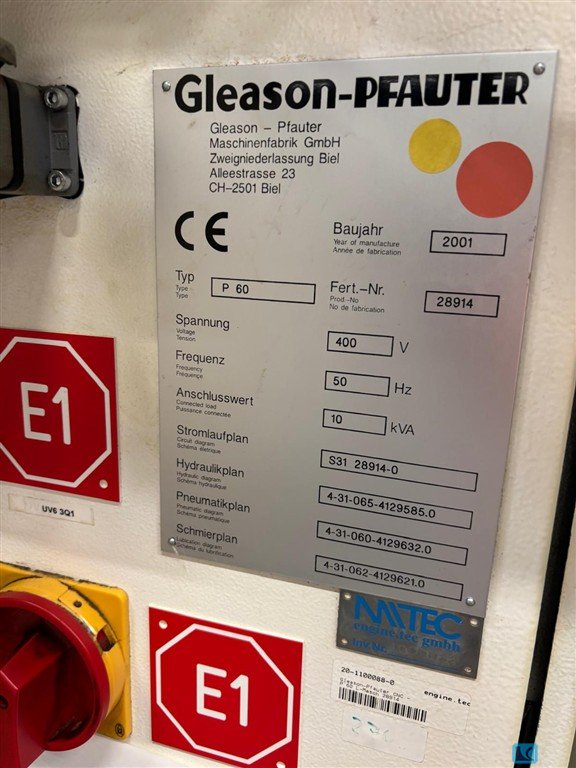

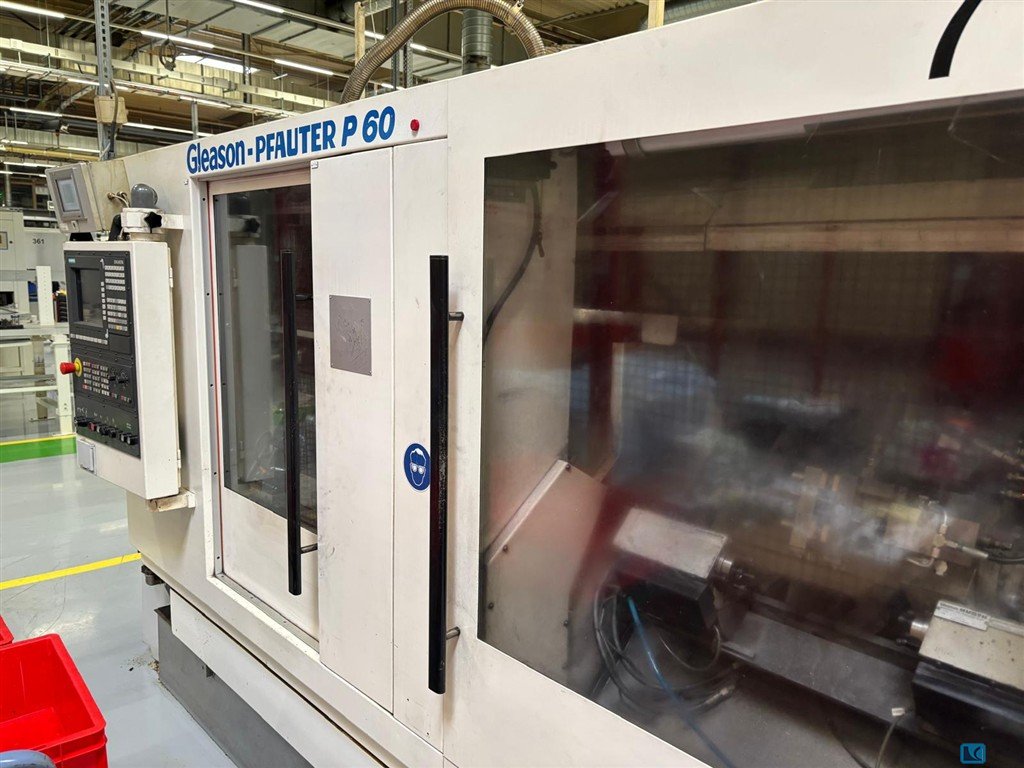

max. wheel diameter:80/120 mmmax. module:2,5 max. top circle diameter:65 mm:22 mm:140 mm:120 mmslide travel axial ( Z-axis ):320/400 mmDimensions (L/W/H):3270 x 3240 x 2020 mmweight of the machine ca.:6 tP60 - The compact all-rounder for wheels, shafts and wormsThe P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms.with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

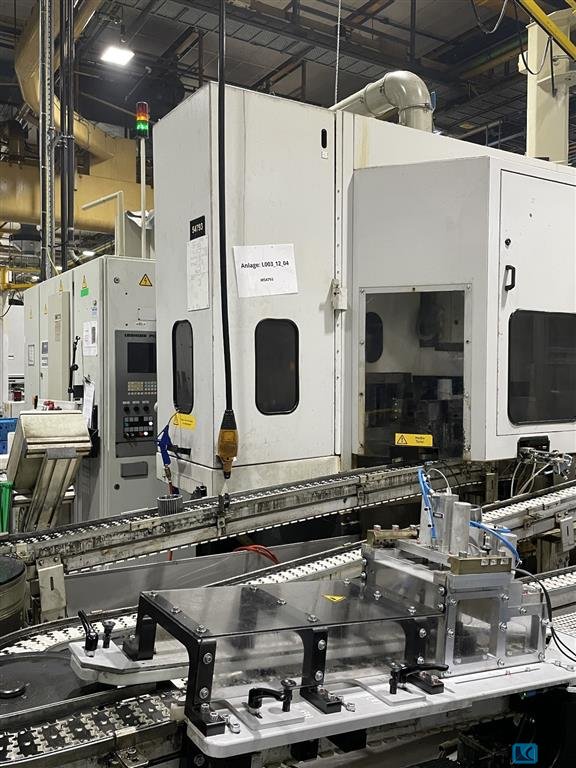

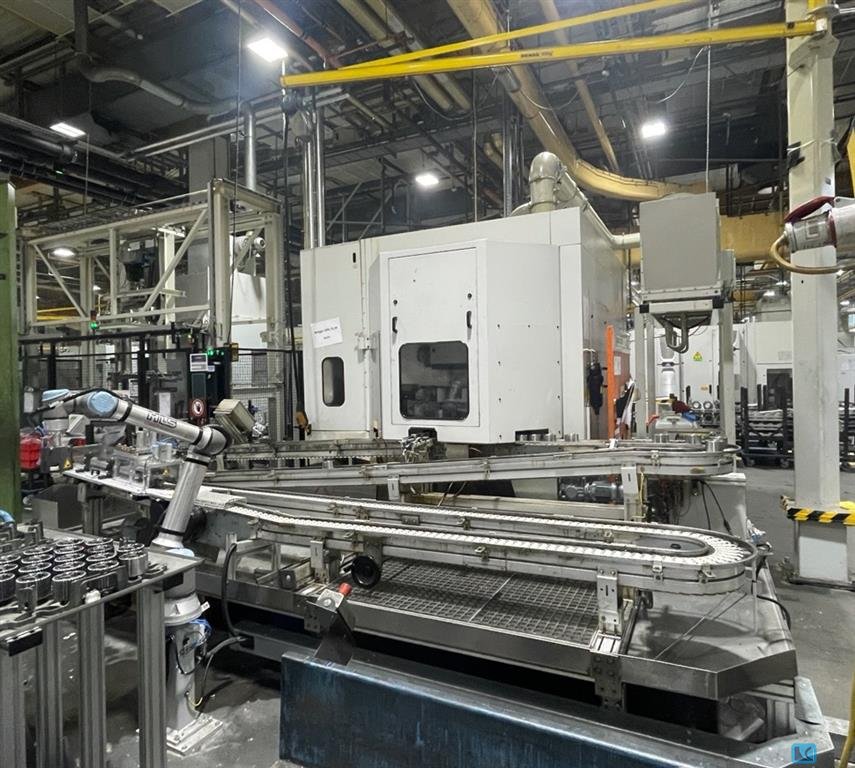

Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.
max. wheel diameter:600 mmmax. module:6 weight of the machine ca.:0,9 tdimensions of the machine ca.:1,52 x 0,91 x 1,45 m

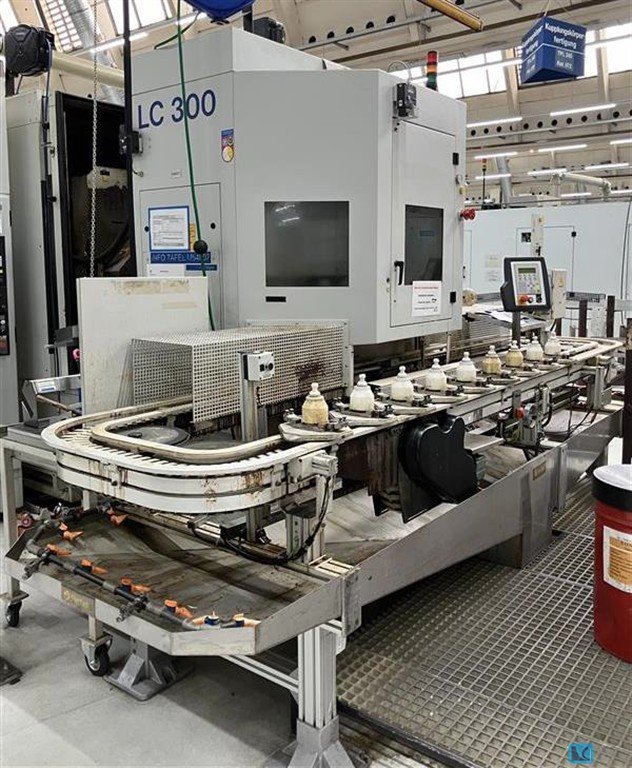

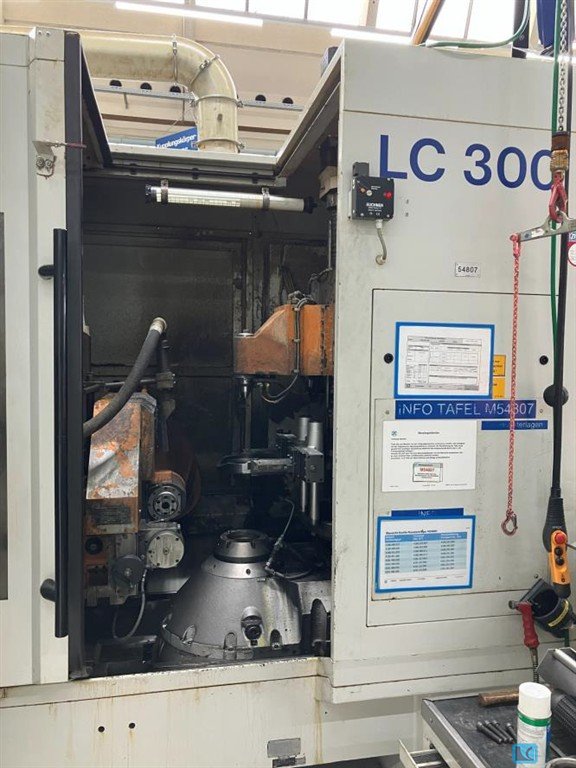

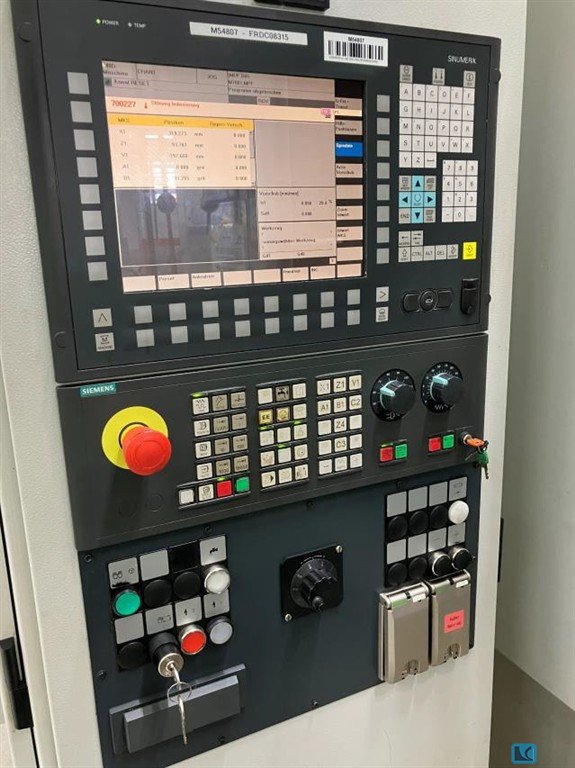

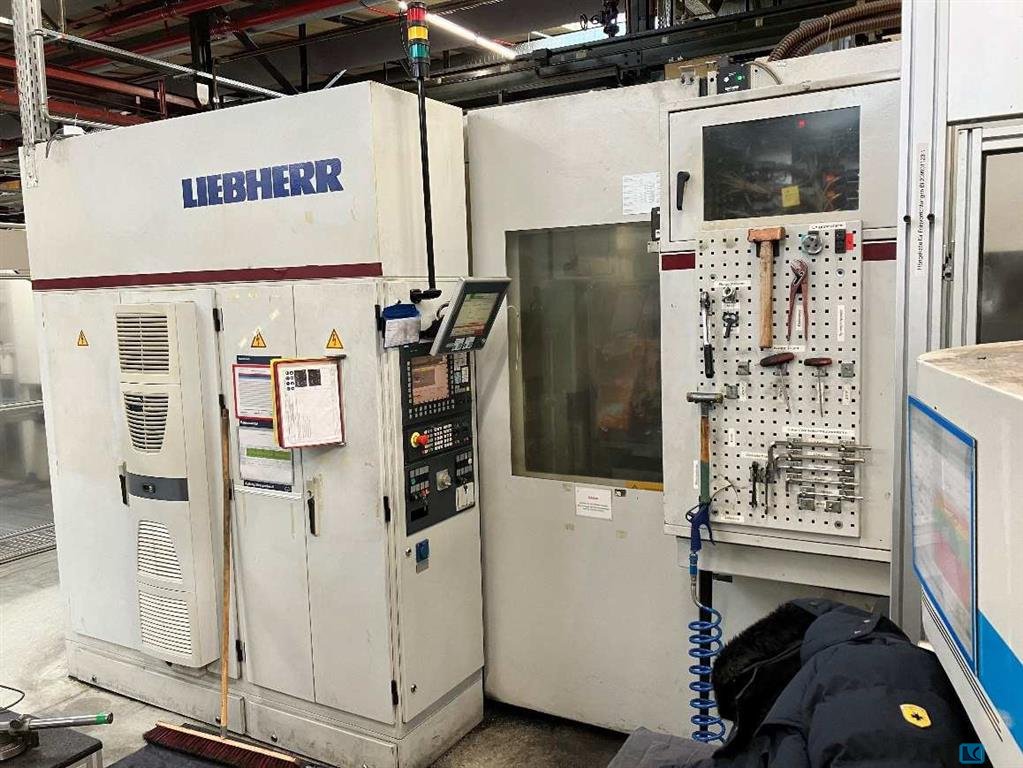

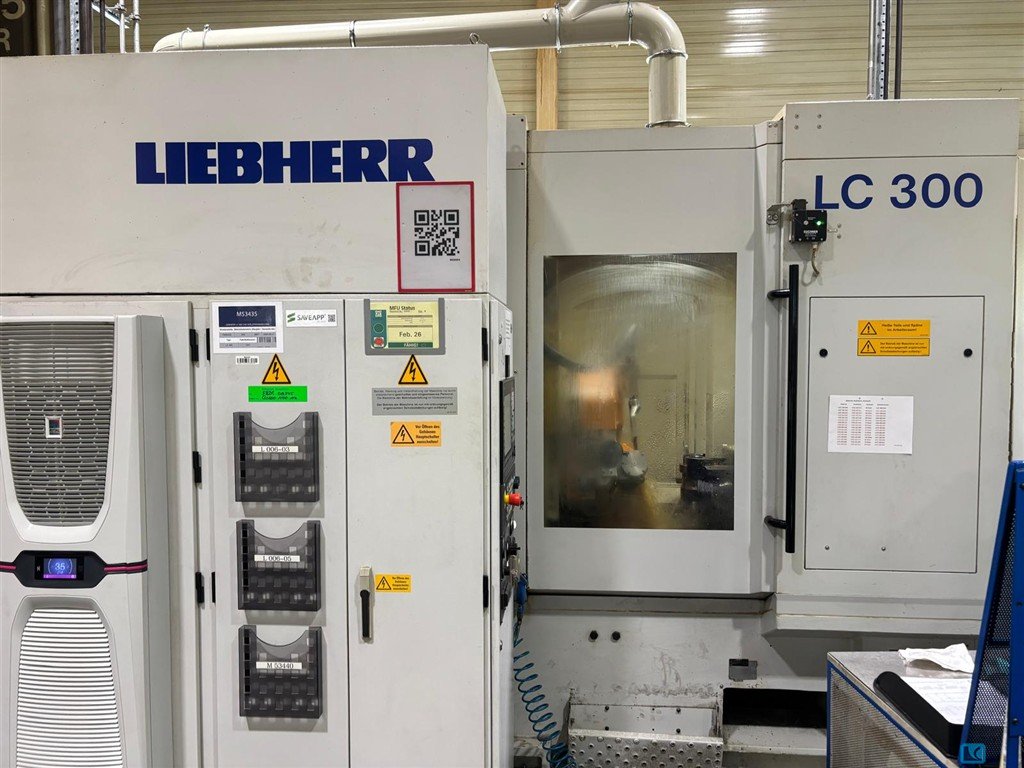

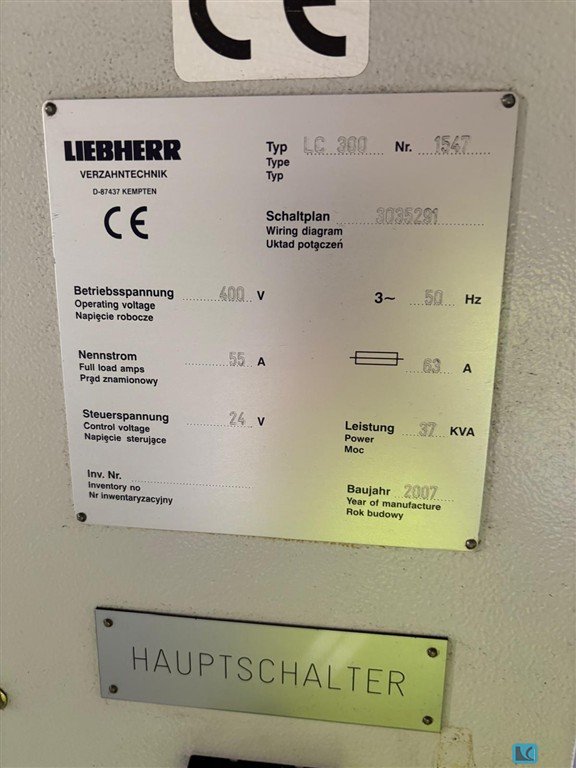

max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:300 cutter length max.:230 mmLiebherr LC300 with loading automation Machine including counter holderThe machine used to work with emulsion
max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:300 cutter length max.:230 mmLiebherr LC300 with loading automation Machine without counter holderUsed to work with oil

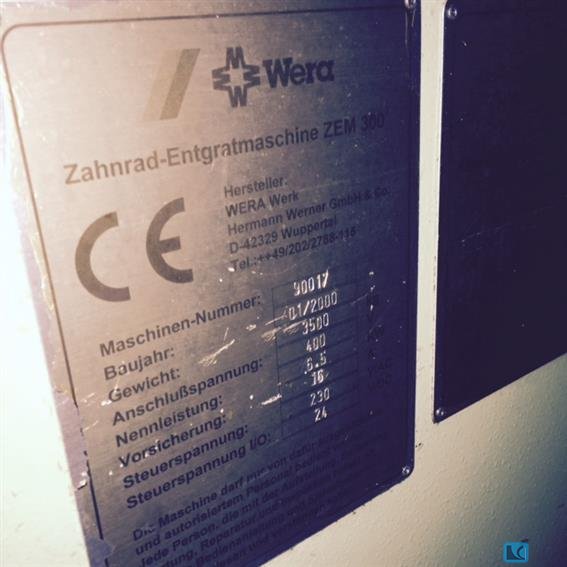

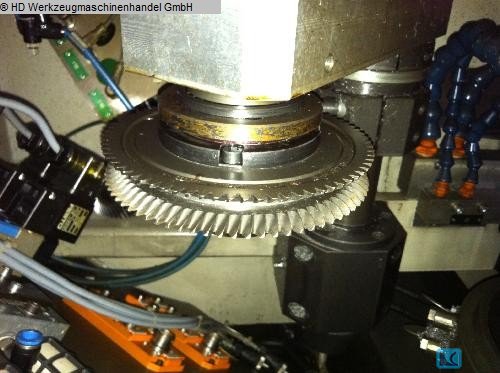

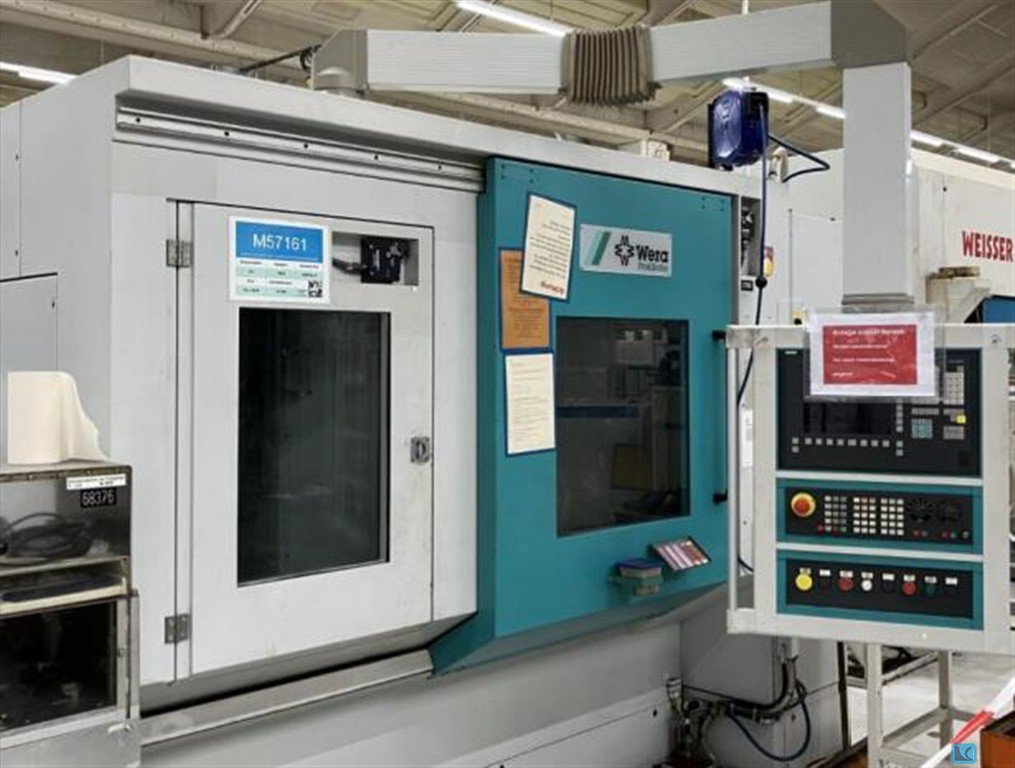

max. wheel diameter:300 mmmax. number of teeth:999 max. module:5 total power requirement:10 kWweight of the machine ca.:1.800 Kos.dimensions of the machine ca.:1300 x 1450 x 2250 mmThe Gear Tooth Deburring machine ? ZEM 300for deburring of splines gear wheels and shaftsThe advantages at a glance- Vertical workpiece spindle- Chamferring, debburing and smoothing - Simultaneous Processing of 2 Gears- Dry Processing- Repeat accuracy when adjusting the tools- Simple integrated Pick up swing arm or linear loader- Crane hook machineWorkspace Swing Diameter: 300 mmProcess Diameter: 300 mmWorkpiece Length: 450 mmMain Spindle Spindle Flange: Zylindrisch D=120 mmFront bearing spindle: 100 mmRPM max: 1500 U/minAC-Synchronmotor: 50 NmClamping cylinder : pneumaticClamping force (5 bar): 10 kNWorking axis swing arm for chamferring tool Feed force: 3 kNBall screw drive: 25x5Position meas ...

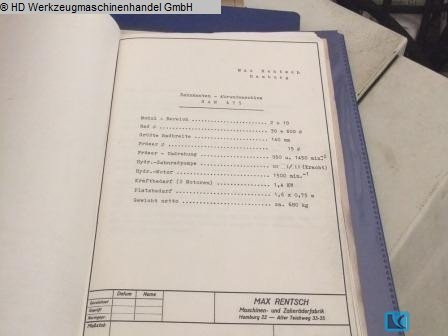

max. wheel diameter:600 mmmax. module:10 min. module:2 total power requirement:1,4 kWweight of the machine ca.:0,68 tdimensions of the machine ca.:1,6x0,75 mdiameter of hob:15 mmgear width:140 mm
hobbing length: 1750 mmmilling width: 260 mmmax. module: 10 mmtable size incl. water gutter: 460 x 2100 mmtable clamping surface:: 250 x 1850 mmcutter width - max.: 100 mmfeed of the milling slide, stepless: 0 - 500 mm/min.rapid traverse feeds: 3000 mm/minmilling head -swivable +/-: 30 °Rotation speed range of milling head, in 9 steps: 29 - 178 rpmMilling head swivable 2 sides helical gearcutting: 30 °total power requirement: kWweight of the machine ca.: 4 tdimensions of the machine ca.: 4 x 1,85 x 1,85 mEquipment/accessories- 7 vices- change wheels - Clamping devices- DocumentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

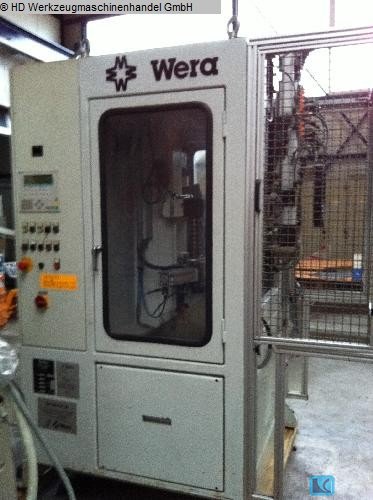

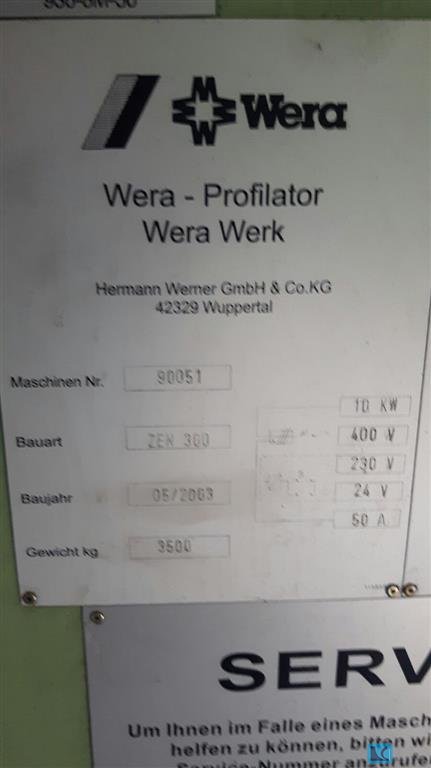

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

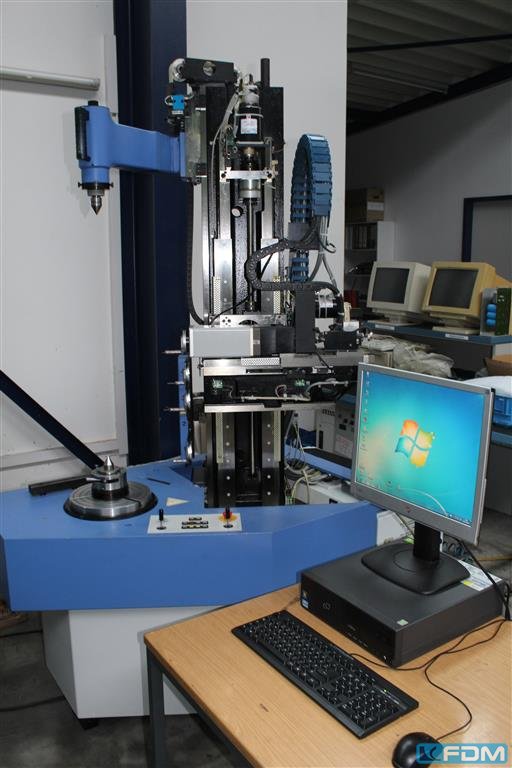

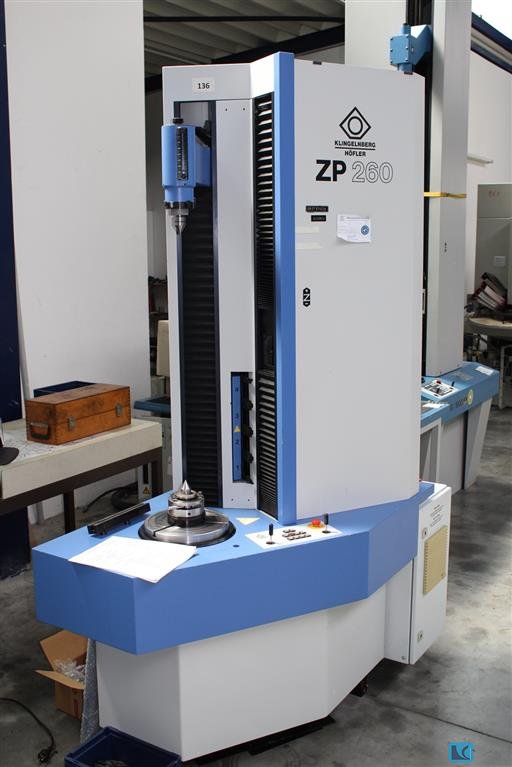

max. wheel diameter:5 - 260 mmgear width:400 mmmax. module:15 min. module:0,5 gear hobbing diameter - internal:30 mmmax. helix angle:> 85 ° Aussenverz.max. helix angle:> 45° Innenverz.Testing Range vertical:400 mmdist. between centers:5 - 600 mmtable diameter:260 mmmax. table load:100 kgspeeds:30 1/mintotal power requirement:1,6 kVAweight of the machine ca.:900 kgdimensions of the machine ca.:200 x 1300 x 2150 mmCNC Gear Tester in good condition, out of OEM Test Lab.For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)
max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

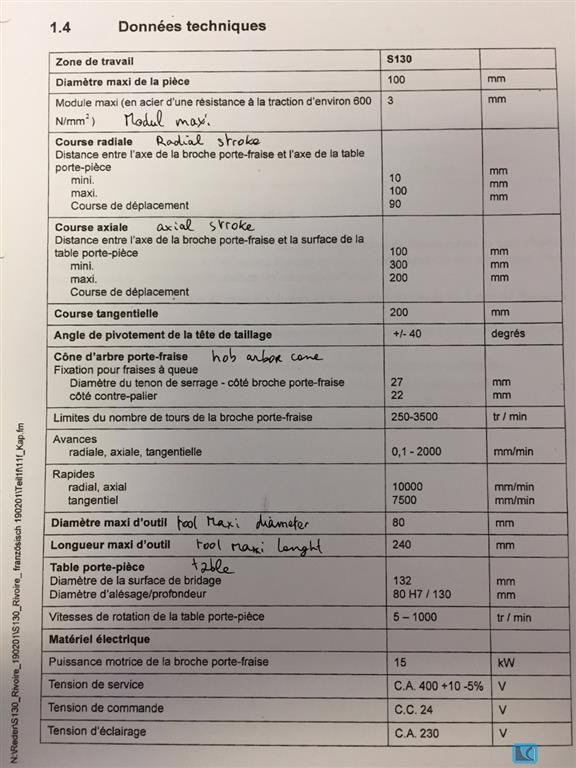

max. wheel diameter:130 mmmax. module:3 total power requirement:15 kWweight of the machine ca.:6 tdimensions of the machine ca.:2,3 x 2,5 x 2,17 mA well-preserved CNC hobbing machine Vertical for shafts and wheelsWith tailstockAlso suitable for hard milling (good for steering pinion)Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mmAccessories :Hydraulical workpiece clampingAutomatic ...

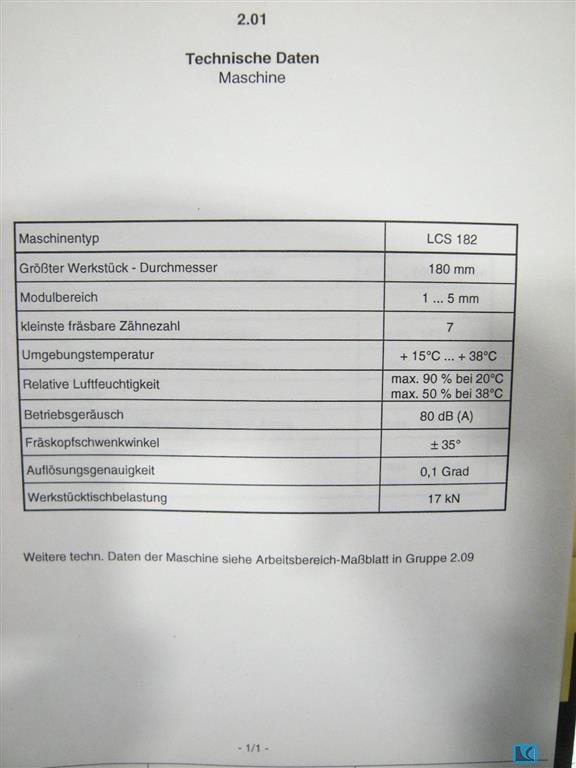

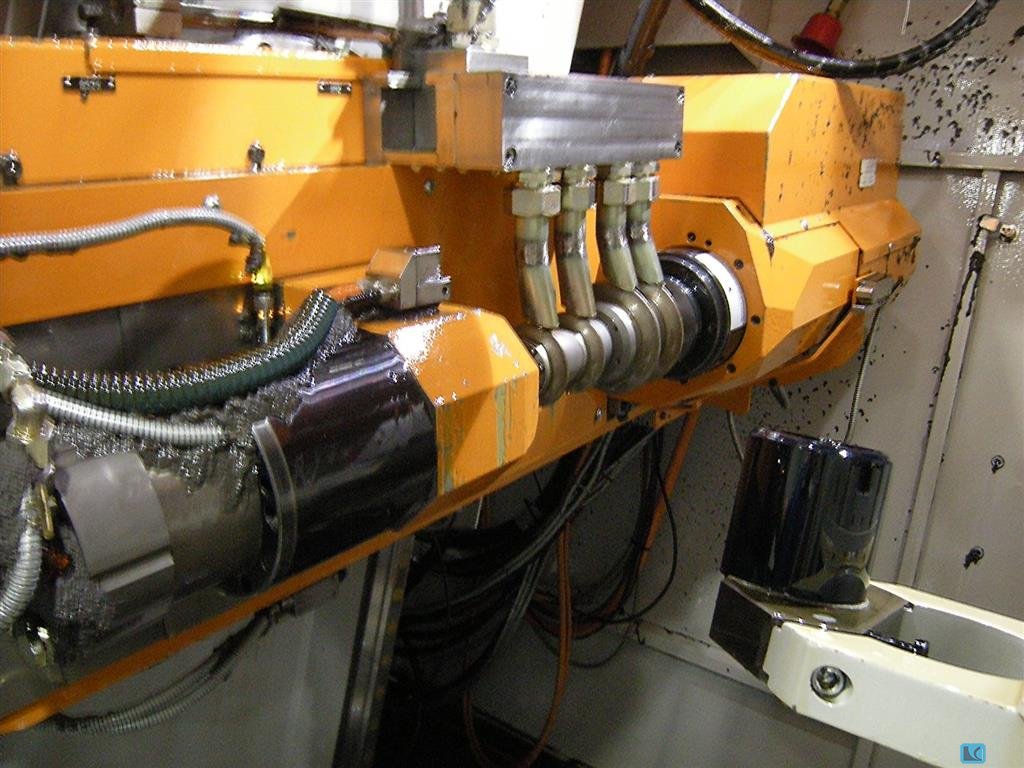

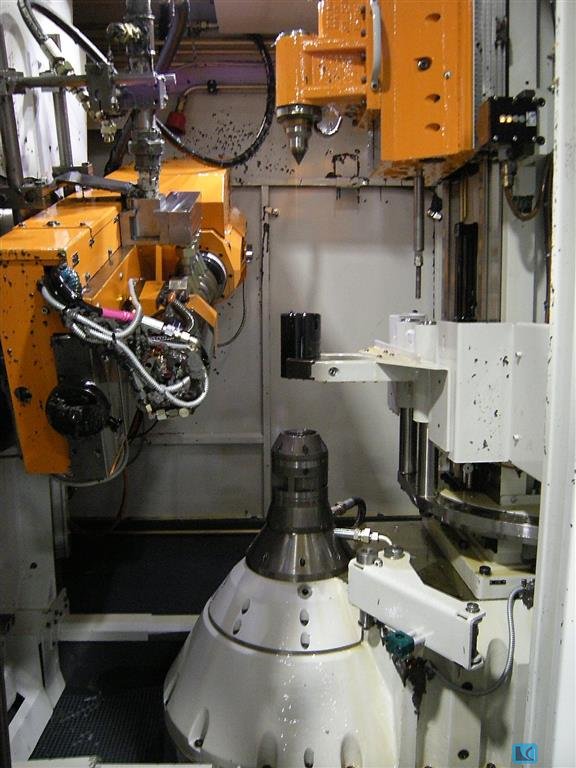

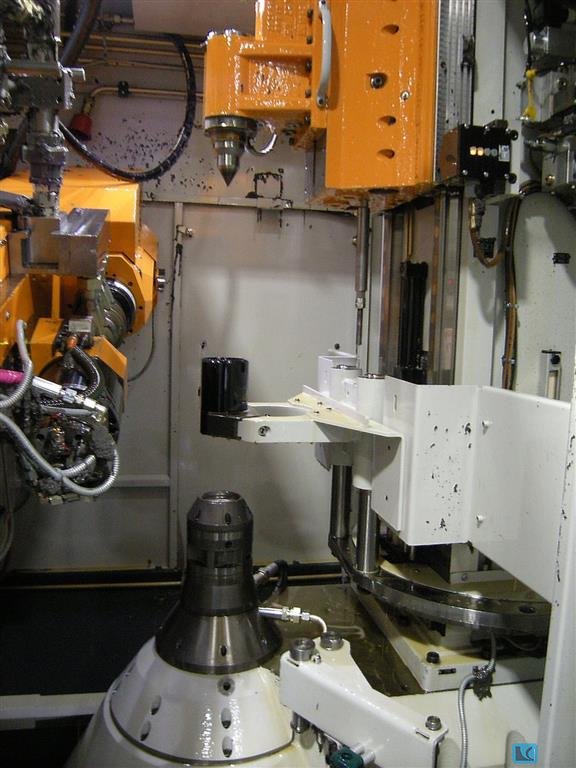

max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN
max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm
max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5

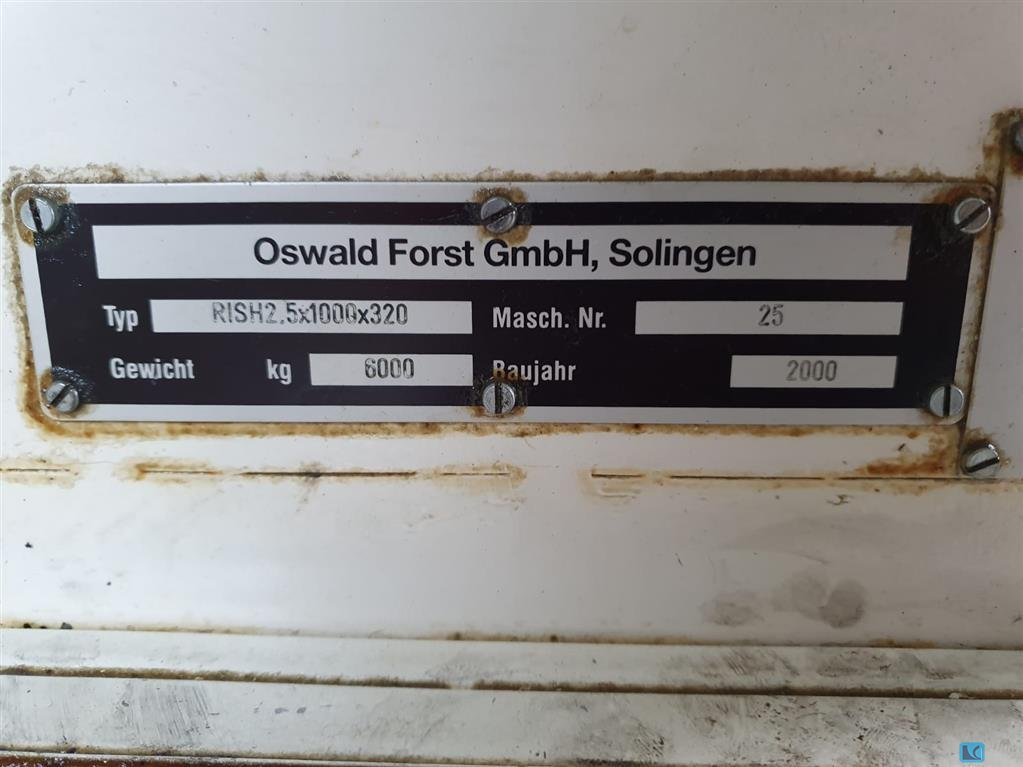

pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.
workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...
module: 10 diameter: 180 mmBore diameter: 40 mmwidth: 75 mm: 2 weight: 14 kgMilling cutter is as new, without signs of useOther used rack and piniongroup cutters up to module 10on requestThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
module: 4 diameter: 180 mmBore diameter: 40 mmwidth: 67 mm: 5 weight: 15 kgMilling cutter is as new, without signs of useOther used rack and piniongroup cutters up to module 10on requestThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
PFAUTER PE 150 Hobbing machine GENERAL Project No.: 906008 Quantity: 1 pcs. Manufacturer: PFAUTER Type: PE 150 Control: Siemens 840 D powerline Year of manufacture: 1991/2009 Condition: Used machine Engine Approx (hrs): 33500 DESCRIPTION GEAR CUTTING Max. head circle diameter 150 mm Carriage stroke Z'-axis 200 mm Travel in X 150 mm Module 1-3 mm Bevel angle +30 to/to -45 degrees Max. tooth width 150 mm Max. diameter hob 130 mm Max. length of hob 220 mm Tailstock OTHER EQUIPMENT Splash protection cladding with fully encapsulated working area Lighting in the work area Electrostatic oil/emulsion mist extraction system Chip conveyor Engine is/was operated with oil Coolant Setup Circumferential Parts Storage Belt GENERAL TECHNICAL DATA Mains fuse 100 A Total power requirement 49 kVA Machine dimensions (LxWxH) approx. 5820x4047x2810 m ...
Key data: 3500 mm
HÖFLER Porta 3500 CNC Gear Grinding Machine We are pleased to offer a rare opportunity to acquire a HÖFLER Porta 3500 CNC Spur/Helical, Internal/External Gear Grinding Machine, a large-capacity later-generation traveling gantry system with very low operating hours. Machine Overview Make/Model: HÖFLER Porta 3500 CNC Year of Manufacture: 2007 Installation Year: 2010 Total Operating Hours: approx. 6,800 hours Design: Later-generation traveling gantry system Condition: The machine is currently in still under power and requires reinstallation of a refurbished hydraulic drive motor (included) prior to recommissioning. Key Specifications (Maximum capacities as per OEM data) External Grinding Diameter: 3500 mm (137.8”) Internal Grinding Diameter: 800 mm (31.5”) Tooth Profile Height: 80 mm (3.15”) Helix Angle: ±45° Max Module: 20 (1.34 DP) Grindi ...
Key data: 3500 mm
HÖFLER Porta 3500 CNC Gear Grinding Machine We are pleased to offer a rare opportunity to acquire a HÖFLER Porta 3500 CNC Spur/Helical, Internal/External Gear Grinding Machine, a large-capacity later-generation traveling gantry system with very low operating hours. Machine Overview Make/Model: HÖFLER Porta 3500 CNC Year of Manufacture: 2007 Installation Year: 2010 Total Operating Hours: approx. 6,800 hours Design: Later-generation traveling gantry system Condition: The machine is currently in still under power and requires reinstallation of a refurbished hydraulic drive motor (included) prior to recommissioning. Key Specifications (Maximum capacities as per OEM data) External Grinding Diameter: 3500 mm (137.8”) Internal Grinding Diameter: 800 mm (31.5”) Tooth Profile Height: 80 mm (3.15”) Helix Angle: ±45° Max Module: 20 (1.34 DP) Grindi ...
Key data: 400 mm
S375G SAMPUTENSILI "CNC" Horizontal Gear Profile Grinding Machine, suitable for the precision grinding of external spur and helical gears and shafts, as well as internal spur and helical gears and splines. The machine has the added capability of grinding worms, rotors, and other screw-type workpieces of similar profile up to 14.76” (375mm) which was factory OEM standard - but delivered at 15.74" (400mm) diameter, and 34.25” (870mm) in length. The machine is also equipped with the optional” on-board CNC” dressing feature, and the on-board CNC” gear inspection system-feature. Serial No. 2376 (New in 2007) This is a first-class, highly versatile gear grinding machine, in superlative” condition throughout, which may be inspected, in running service, at our customer’s plant facility, by appointment. -The machine would require acquisition & adaptation of an appropria ...
Key data: 3500 mm
HÖFLER Porta 3500 CNC Gear Grinding Machine We are pleased to offer a rare opportunity to acquire a HÖFLER Porta 3500 CNC Spur/Helical, Internal/External Gear Grinding Machine, a large-capacity later-generation traveling gantry system with very low operating hours. Machine Overview Make/Model: HÖFLER Porta 3500 CNC Year of Manufacture: 2007 Installation Year: 2010 Total Operating Hours: approx. 6,800 hours Design: Later-generation traveling gantry system Condition: The machine is currently in still under power and requires reinstallation of a refurbished hydraulic drive motor (included) prior to recommissioning. Key Specifications (Maximum capacities as per OEM data) External Grinding Diameter: 3500 mm (137.8”) Internal Grinding Diameter: 800 mm (31.5”) Tooth Profile Height: 80 mm (3.15”) Helix Angle: ±45° Max Module: 20 (1.34 DP) Grindi ...
Qty. 1 Second-hand Slab Surface Scalper Mfc.: TBA Built: 1972 Scalped Slab Dimensions: 1000-3000 x 740-2000 x 180-350 mm – L x W x T Main Drive Electric Motor Power: 250 kW, 380 V, 735 RPM Scalping depth at once: 4-5 mm Capacity: Average 7 tons/h (For 1040 mm width slab)
max. wheel diameter: 600 mmmax. module: 6 range L-W-H: 2540 x 1500 x 1920 mmtable diameter: 160 mmweight of the machine ca.: 3,6 tHigh-performance gear hobbing machineTooth helix angle 15°Tooth width 270 mmWheel diameter 620 mmTooth helix angle 30°Tooth width 250 mmWheel diameter 610 mmTooth helix angle 45°Tooth width 200 mmWheel diameter 500 mmTooth angle 60°Tooth width 100 mmWheel diameter 450 mmMaximum cutter diameter 105 mmMaximum cutter width 115 mmClamping table diameter 420 mmBore of clamping table 75 mmDepth of bore below table surface — mmDiameter of workpiece clamping wheel 450 mmof clamping mandrel 30 mmof milling mandrels 22–27–32 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
