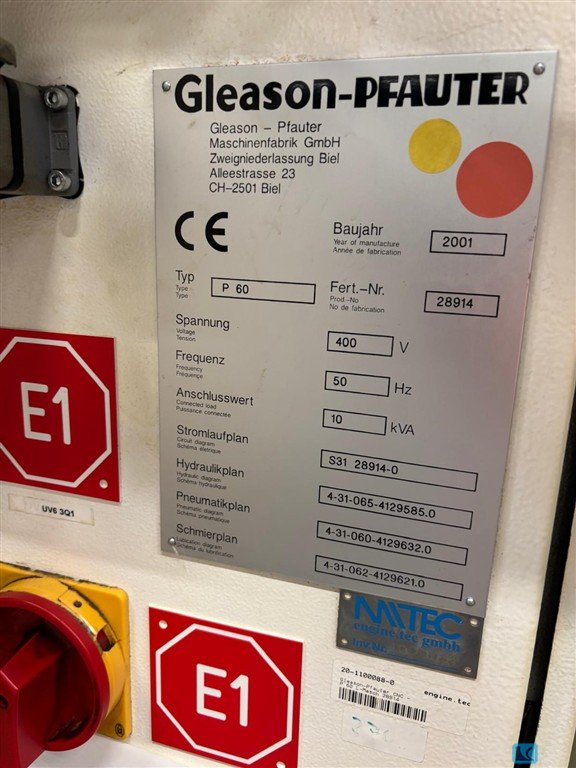

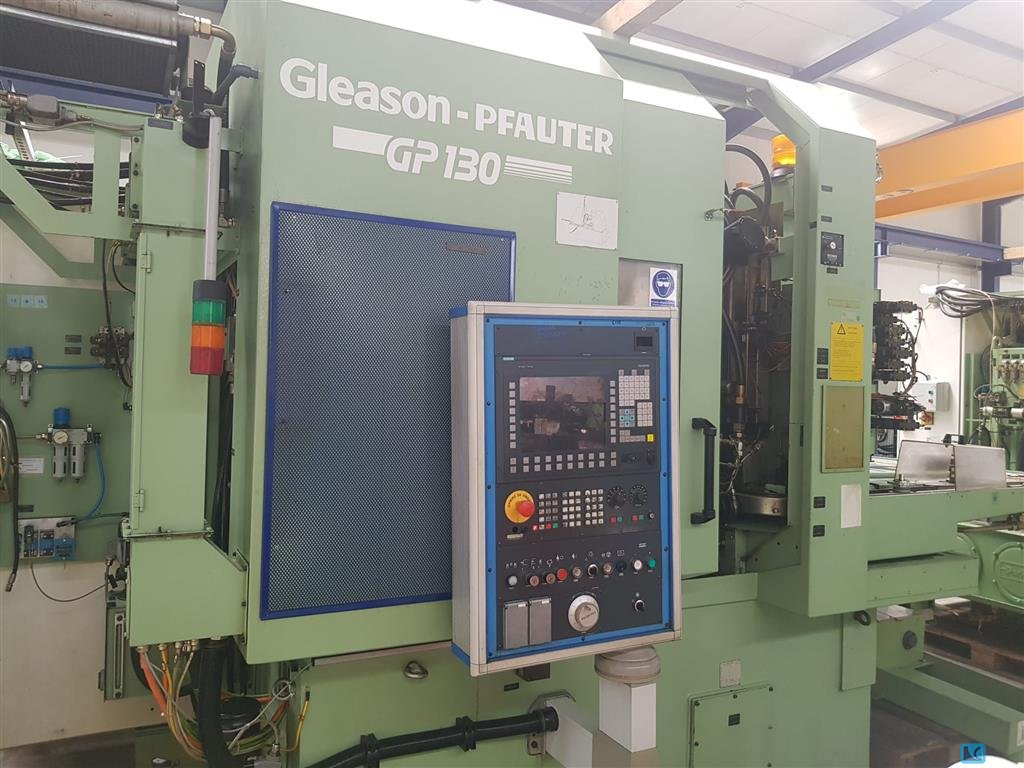

Ref. -No.: 10665Manufacturer: GLEASON - PFAUTERYear of construction: 2001Type of control: CNCControl: Siemens Numerik 840Storage location: HalberstadtCountry of origin: USAMachine length: 3700 mmMachine width: 2400 mmMachine Height: 2750 mmWorkpiece Weight Max.: 380 kgWeight Of The Machine Ca.: 11,5 tTravel -X Axis: 230 mmTravel -Y Axis: 135 mmTravel -Z Axis: 200 mmMax table speed: 240 1 / min
Gear hobs 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : M1 - M6, Set all sizes Additional: M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

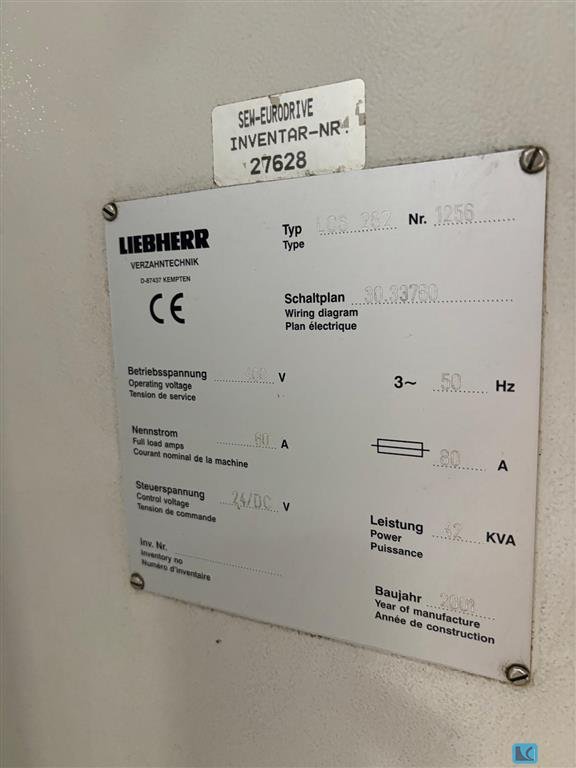

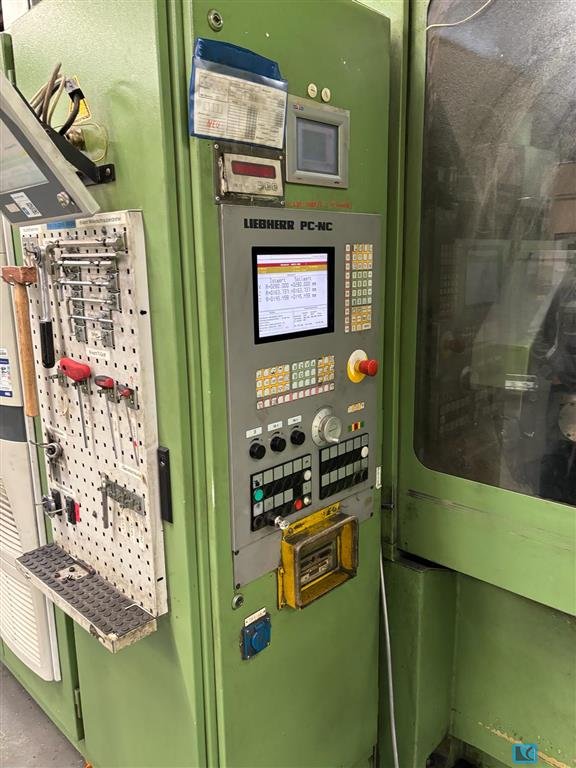

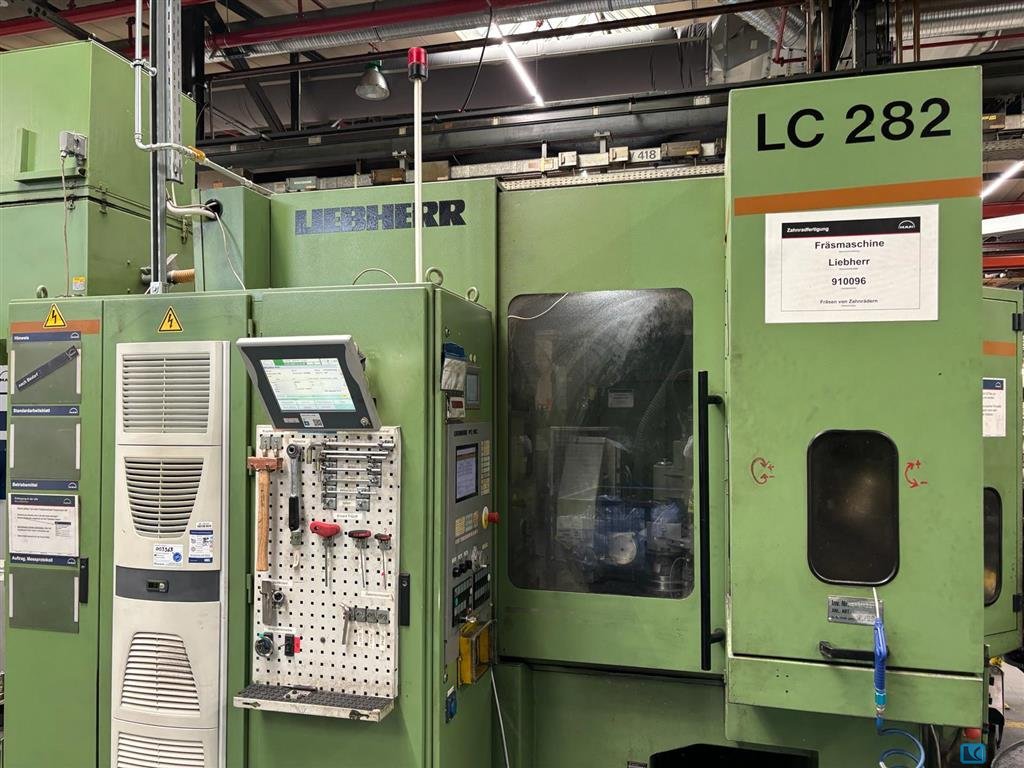

Ref. -No.: 10612Manufacturer: LIEBHERRYear of construction: 2004Type of control: CNC-SteuerungControl: LIEBHERRStorage location: HalberstadtCountry of origin: GermanySerial no.: 30XX Max. Module: 30 mmMin. Module: 4 mmMax. Workpiece Diameter: 3000 mmambient temperature: +15...+38 °cutting speed: 25 - 250 m / minMilling head swivel angle: 0,001 °Resolution accuracy: 0,1 DegreeWorkpiece table load: 300 kNOperating voltage: 400 Vcontrol voltage: 24 Vfrequency: 50 HzMax. rated current: 230 AFuse in the supply line: 250 AMax. milling diameter spur gears/helical gears: 3.000 mmFurther information:Suitable for internal and external gear cutting.The machine can be viewed by appointment.

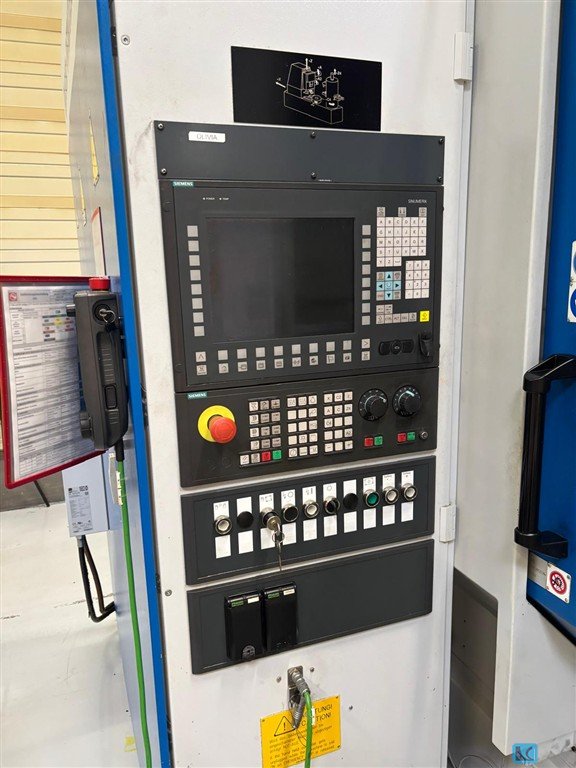

Ref. -No.: 10666Manufacturer: GLEASON - PFAUTERYear of construction: 2008Type of control: CNCControl: SIEMENS SINUMERIK 840DStorage location: HalberstadtCountry of origin: GermanyMachine length: 6900 mmMachine width: 8400 mmMachine Height: 3700 mmMax. Wheel Diameter: 2000 mmGear Width: 700 mmWeight Of The Machine Ca.: 35 tFurther information:The machine is currently in active production and can be inspected under power and in operation by prior arrangement
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

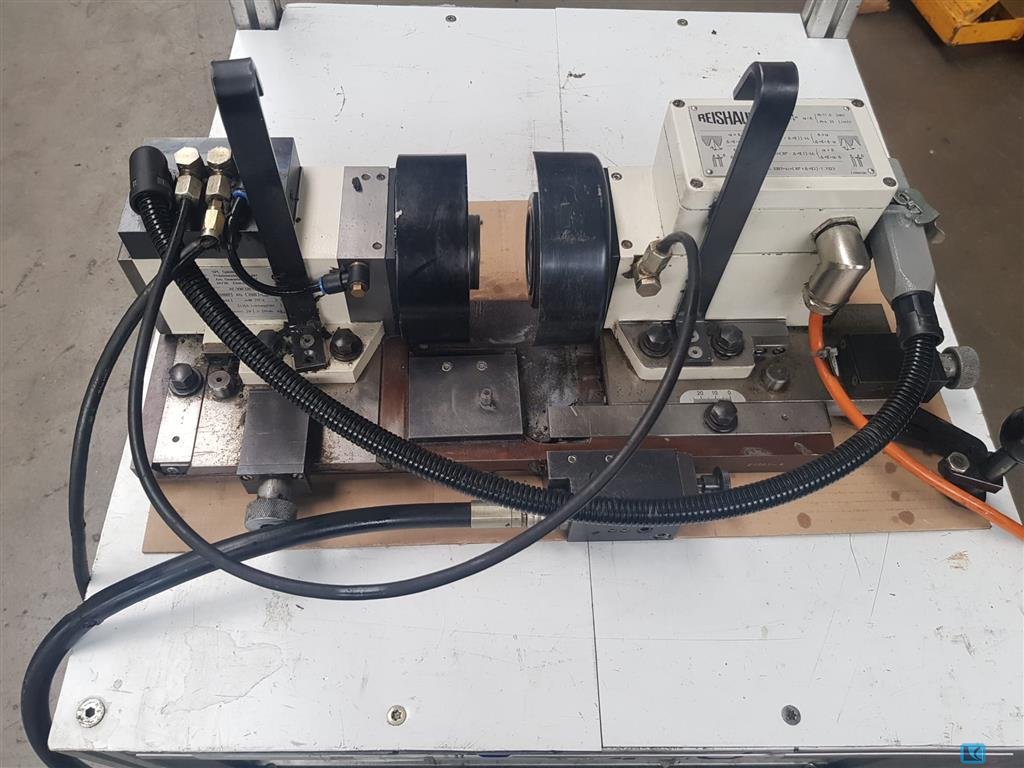

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm
weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation
control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden
max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

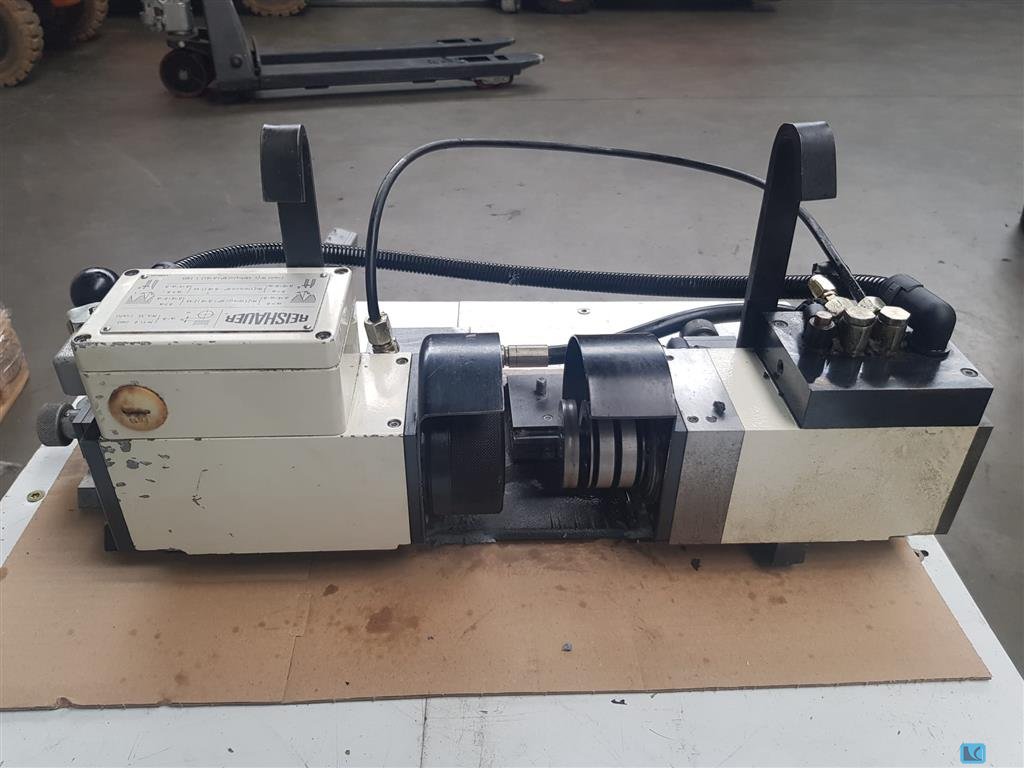

Dressing diameter: Planing width: min. module: for Reishauer RZ150
max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm

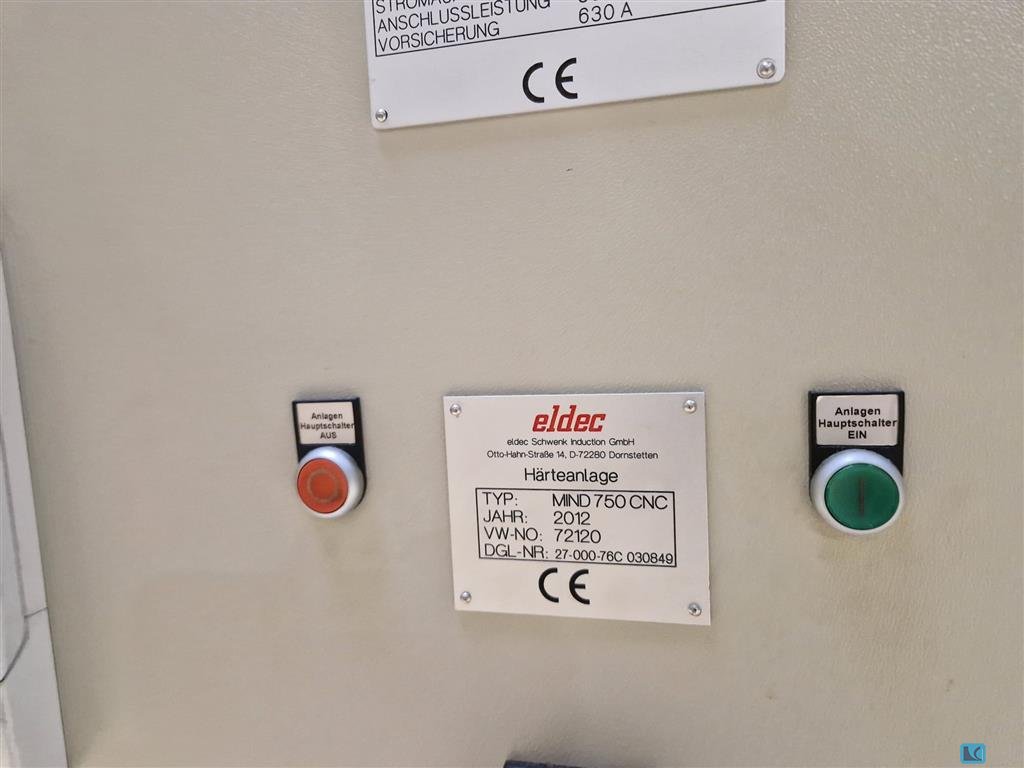

total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30
max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.
max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024
max. wheel diameter:200 mmgear width:60 mmmax. module:7 weight of the machine ca.:15 ttable diameter:180 mmtable turning speeds:100 U/minhob turning speeds:750 U/minMachine in good condition, without feed, without automationAvailable 24.08.2024
max. wheel diameter:900 mmmax. module:10 weight of the machine ca.:8200 kos.hob dia. - max.:190 mmcutter length max.:320 mmmilling spindle speeds (infinitely variable):13-80 U/minworkpiece length - max.:750 mmmax. workpiece diameter:150 mmCounter holder milling mandrel is missing
max. wheel diameter:280 mmmax. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/mintool length:210 mmCBN
max. wheel diameter:200 mmgear width:50 mmmax. module:6 table diameter:168,14 mmboring diameter:65,532 mmweight of the machine ca.:11 ttable turning speeds:0-1.000 U/minlength of stroke min./max.:0-70 mmno. of strokes:180-1.800 StückThis machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required.
max. wheel diameter:210 mmtotal power requirement:60 kWweight of the machine ca.:8 tdimensions of the machine ca.:2,85 x 2,60 x 1,80 mgrinding slide feed:700 mmgrinding slide feeds:1-15.000 m/minmax. workpiece weight:150 kgcentre height:260 mmgrinding wheel diameter:240 mm
rotor dia:30-500 mmhobbing length:500-1000 mmtotal power requirement:80 kWweight of the machine ca.:15 tdimensions of the machine ca.:3,6 x 2,5 x 3,0 mmax. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel
max. wheel diameter:180 mmmax. module:7 hob turning speeds:200-2000 U/minmin. number of teeth:4 excluding conveyor belt
