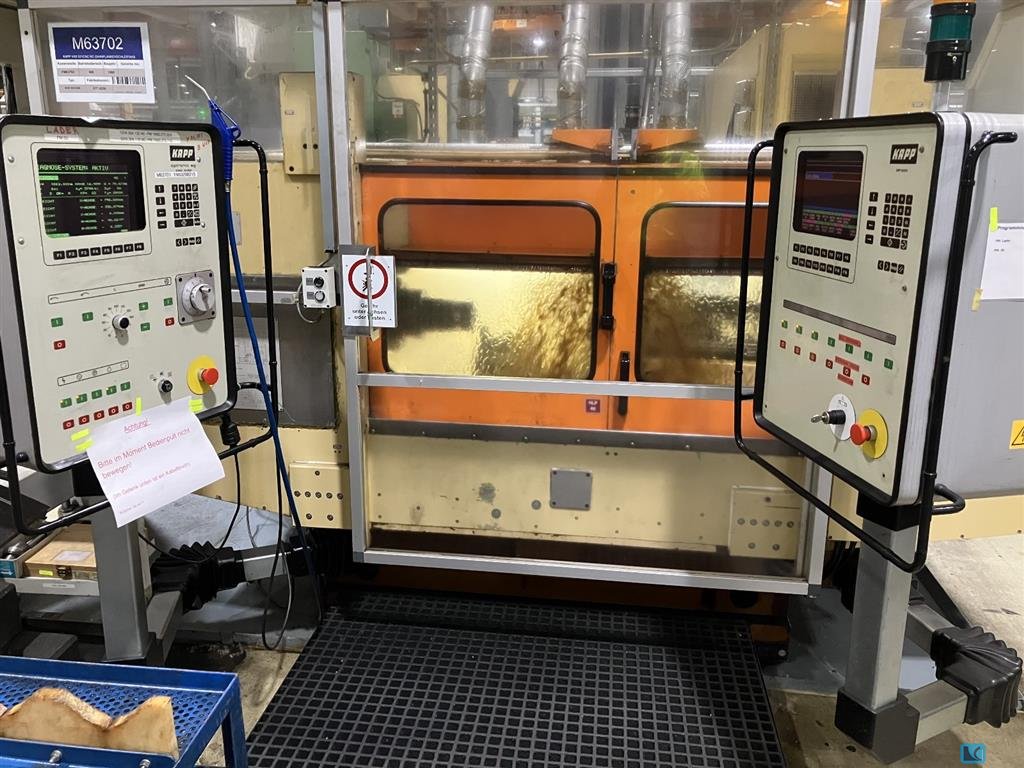

max. wheel diameter:260 mm gear width:320 mm max. module:5 weight of the machine ca.:21 t dimensions of the machine ca.:8,71 x 5,97 x 3,49 m no. of teeth:1...999 max. helix angle:+45/-45 ° pitch min.:0,1 mm pitch max.:1000 mm X-axis:345 mm y-axis:250 mm Z-axis:320 mm b-axis:360 ° c-axis:360 °
grinding diameter:200 mm grinding length:320 mm total power requirement:3,5 kW weight of the machine ca.:9 t space required L x W X H:5,28 x 4,5 x 2,4 m max. wheel dia.:200 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm
max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm
grinding diameter: mm grinding length: mm max. module: 0 min. module: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Milling axes, dividers, grinding wheels, High: 1765 mm, Tall: 1765 mm, Weight: 2500 Kg, Width: 1100 mm, Long: 2570 mm, Ø tool: 250 mm, Total power: 7.5 kva., Ø of the grinding wheel: 250 mm, Travel of table: 400 mm, Height of points: 125 mm, Height of centers: 125 mm, Max. Ø to be sharpened: 250 mm, Power wheel motor: 3 Kv., Manufacturing number: 1905.04, Ø max to sharpen: 250 mm, Grinding wheel motor power: 3 Kv., Distance between points: 635 mm, Table tour: 400 mm, Revolutions of the wheel: 1750/2150/2850 mm, Length between points: 635 mm, Maximum length to sharpen: 400 mm, Revolutions of the grinding wheel: 1750 / 2150 / 2850 mm, Radial travel axis wheelhead: +35 / -65 mm, Maximum length to be sharpened: 400 mm, Vertical travel of the wheel: 175 mm, Vertical travel of the grinding wheel: 175 mm, Radial travel of the grinding wheel shaft: +35 / -65 mm, Cone holder shaft clamping pi ...
