universal machine milling used for sale

Kellenberger, 57 U, Beautiful universal and tool grinder, under power Surface grinding, cylindrical and internal cylindrical grinding, tool grinding. X-600mm, Cross: 300, Vertical: 300 Swivel Range 360 Degree Table: 1030 x 214, rotatable, Workpiece Spindle: MK5, 50-420rpm, Center Height: 125/175mm Accessories : Grinding spindle holders, internal grinding spindle, rear grinding device, univ. vice, ... A lot of accessories: see pictures!

Kellenberger, 57 U, Beautiful universal and tool grinder, under power Surface grinding, cylindrical and internal cylindrical grinding, tool grinding. X-600mm, Cross: 300, Vertical: 300 Swivel Range 360 Degree Table: 1030 x 214, rotatable, Workpiece Spindle: MK5, 50-420rpm, Center Height: 125/175mm Accessories : Grinding spindle holders, internal grinding spindle, rear grinding device, univ. vice, ... A lot of accessories: see pictures!

CNC cylindrical grinding machine, (carousel) for internal, external and surface grinding. A lot of accessories, such as grinding wheels of different types and sizes. Retrofitted 2007 . Magnetic clamping plate dia 1500mm, Circumferential diameter 1800mm, Largest grinding diameter 1600mm Maximum grinding height 880mm Max. workpiece weight 5to Swivel angle of the grinding spindle: 90° left, 60° right

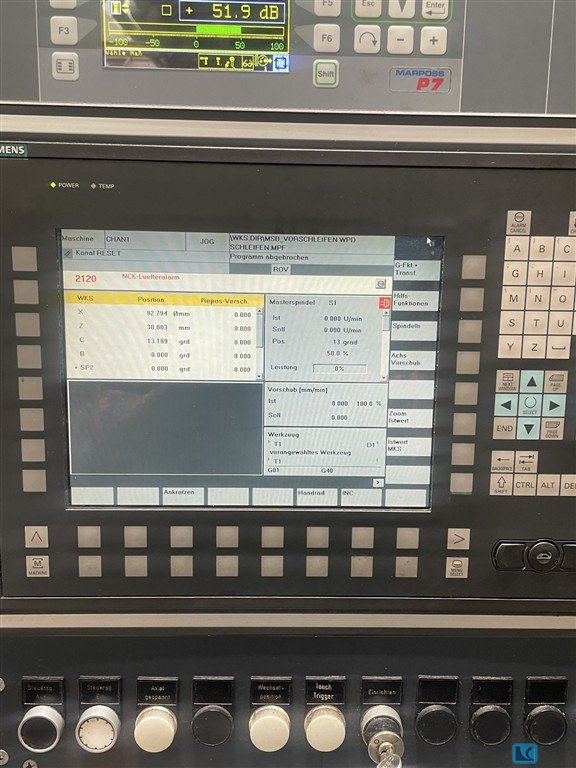

Manufacturing number: 160090 Operating voltage: 400 V Frequency: 50 Hz Rated current: 70 A Connection: 48 kVA Tip height: 260 mm Center width: 2000 mm Control: SIEMENS SINUMERIK Max. grinding length: 2000 mm Grinding wheel diameter: max. 520 mm Max. grinding length for plunge grinding: 125 mm Max. workpiece weight: 500 kg Tool holder: Taper 1:10 D=120 Drive power: 22 kW incl. belt filter system, extraction, various cones Auction-ID: A7-49089-356

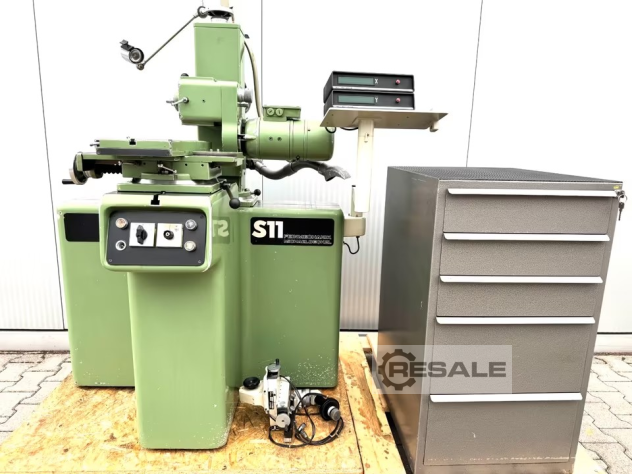

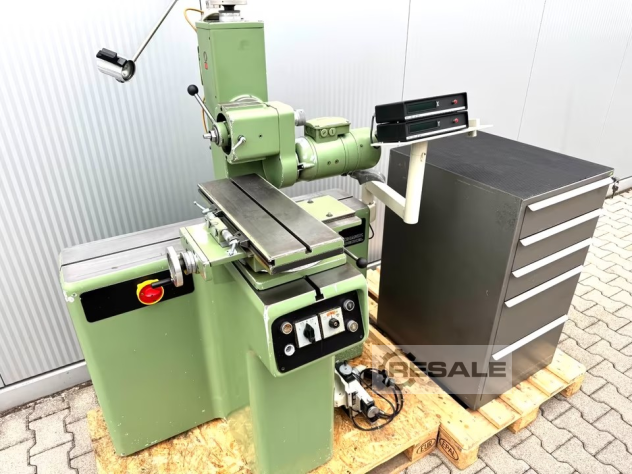

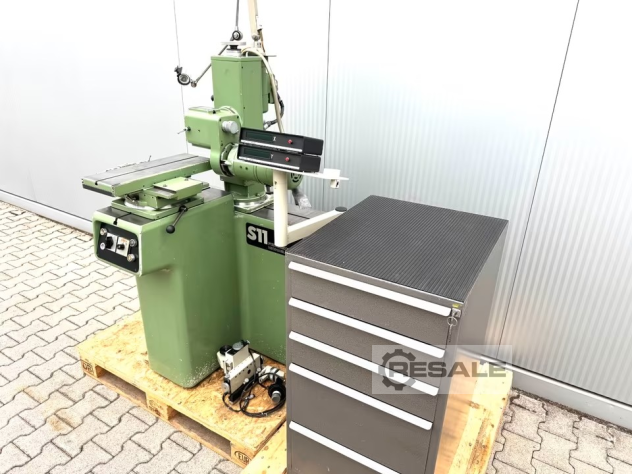

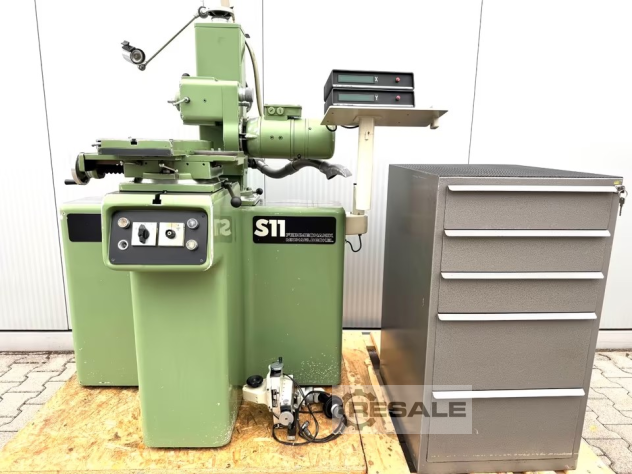

Universal tool grinder DECKEL S 11 with accessories & tool cabinet -Grinding stroke 190mm -Grinding stroke for twist grinding 190mm -Longitudinal adjustment grinding spindle approx. 5mm -Vertical adjustment grinding head approx. 320mm -Transverse adjustment tool carriage approx. 100mm -Adjustment ranges: -Grinding head carrier approx. 800mm -Tool carrier approx. 215mm -Universal / part head approx. 330mm -Swivel angle / grinding head carrier 360 degrees / grinding head 360 degrees / tool carrier 360 degrees -Clamping surface tool carriage approx. 500x180mm -Max workpiece diameter between the tips 130mm -Max. workpiece diameter / flying clamping (universal parting head) 620mm -Digital display -Measuring optics -Other accessories ( SEE PICTURES) -Documentation -Tool cabinet

Chip conveyor available Auction-ID: A7-50158-1

5-axis high-speed machining center with control SIEMENS SINUMERIK840D, high-frequency spindle RECKERTH, 8 carrier units, each with a pneumatically operated clamping device, arranged in the Y direction and in the X direction over one positioning axis can be programmatically adjusted. Tool measurement BLUM. Machine can be viewed under power. Auction-ID: A7-50158-11

Parallel Lathe COLCHESTER MASTER VS 3250 Year of construction: 1996 Between points: 1250 mm Max diameter in front of bench: Ø 340 mm Maxi Ø over saddle: Ø 160 mm Centre height: 170 mm Spindle diameter: Ø 42 mm Spindle speed: from 20 to 3250 RPM 3-jaws chuck Ø 200 mm Turret Mutifix B Metric Withworth threading 3-points steady Tailstock CM4 Scale WIZARD 150 PLUS Longitudinal + transversal auto feeds Spindle speed by electric drive Lubricant pump Voltage: 380 V Dimensions (L x W x H): 2600 x 1400 x 1700 mm Weight: approx 2 T

Key data: 350 , 650 , 175

STUDER S30-1 CE – High-precision cylindrical grinding machine | Complete retrofit We offer a STUDER S30-1 CE for high-precision external and internal cylindrical grinding work. The machine has undergone a comprehensive retrofit by MIRA Retrofit, including the revision and renovation of its main components, as well as a careful adjustment and tuning process. The result is a machine that is ready to work, with a high level of precision, reliability and stability, and performance comparable to that of a new machine. Main data: - Distance between points: 650 mm - Height between dots: 175 mm - Grinding: exterior and interior - Status: full retrofit – ready to work Revision and fine-tuning All elements have been carefully checked and adjusted to ensure high geometric accuracy and reliable, stable operation. Photographs of our finished machine. Availa ...

Parallel Lathe CAZENEUVE HB 500 Between points: 1000 mm Maxi Ø on bench: Ø 500 mm Maxi Ø over saddle: Ø 190 mm Spindle diameter: Ø 42 mm Spindle speed: from 20 to 1600 RPM Turret: MULTIFIX type B 3-jaws chuck Ø 215 mm Threadings: Metric + Whitworth Tailstock: CM5 Scale: 2 axes NEWALL Recent electrical panel Supplied with 1 tool holder + 1 set of jaws Lubricant pump Voltage: 380 V Dimensions (L x W x H): 2500 x 1400 x 1600 mm Weight: approx 2 T

Stephan double jacketed universal process machine with steam injection, type: UMM/SK80E, machine number: 23409, year of construction: 1974 (overhauled by Milking in 2011 including new control panel, Siemens S7-300 Simatic PLC, Siemens OP177B), 380 V, 3 Ph, 36/32 A, 18.5/15 kW, volume: 80 liter, heating capacity: 95°C, scraper agitator, pneumatic outlet valve, total dimensions: 2130 mm x 1400 mm x 1900 mm.

Stephan UMC5 Universal Machine used Stepless speed Bowl capacity: 5 litres Double coat Frequency Inverter 300-3000rpm Knife insert good condition with vacuum pump and temperature control unit Pointer of the pressure gauge is crooked, does not affect the function should be thoroughly cleaned before use. It is fully functional and runs neatly and smoothly. Video about test run available

Universal Thermal Blender, Heating / Cooling incl. 1 replacement container Auction-ID: A1-50564-14

incl. double-walled process vessel, accessories, WITHOUT trolley Auction-ID: A1-50564-17

Power consumption 500 W, power output 270 W Auction-ID: A1-50575-102

Technical data Article: Universal dividing head with machine vice Three-jaw chuck: Ø approx. 135 mm Vise jaw width: approx. 150 mm Vise version: swivelling Condition: used Configuration Partial head: available Three-jaw chuck: available Handwheel: available Machine vise: available Degree scale: available Scope Included are universal dividing head with three-jaw chuck and a swivelling precision machine vice with angle scale. Auction-ID: A1-50643-5

turning diameter over bed: 510 mm turning diameter over slide rest: 310 mm centre distance: 2000 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m turning length: mm 3-jaw chuck (diameter 250mm) tool holder device tail stock 3x steady rest Technische Daten / technical details: Spitzenweite / center to center 2000 mm Umlaufdurchmesser über Bett / rotary diameter over bed 510 mm Umlaufdurchmesser über Schlitten / rotary diameter over sledge 310 mm Spindelbohrung / spindle hole 52 mm Drehzahlbereich / spindle speed 44-2240 UpM /rpm Gewicht der Maschine ca. / weight ca. 2500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

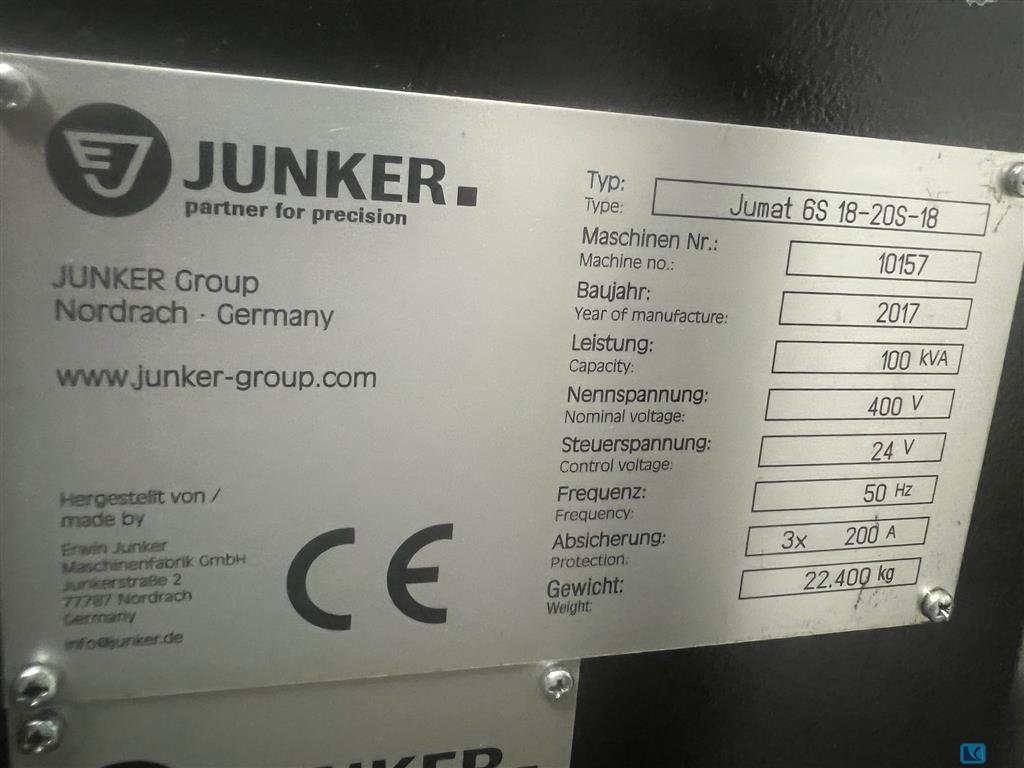

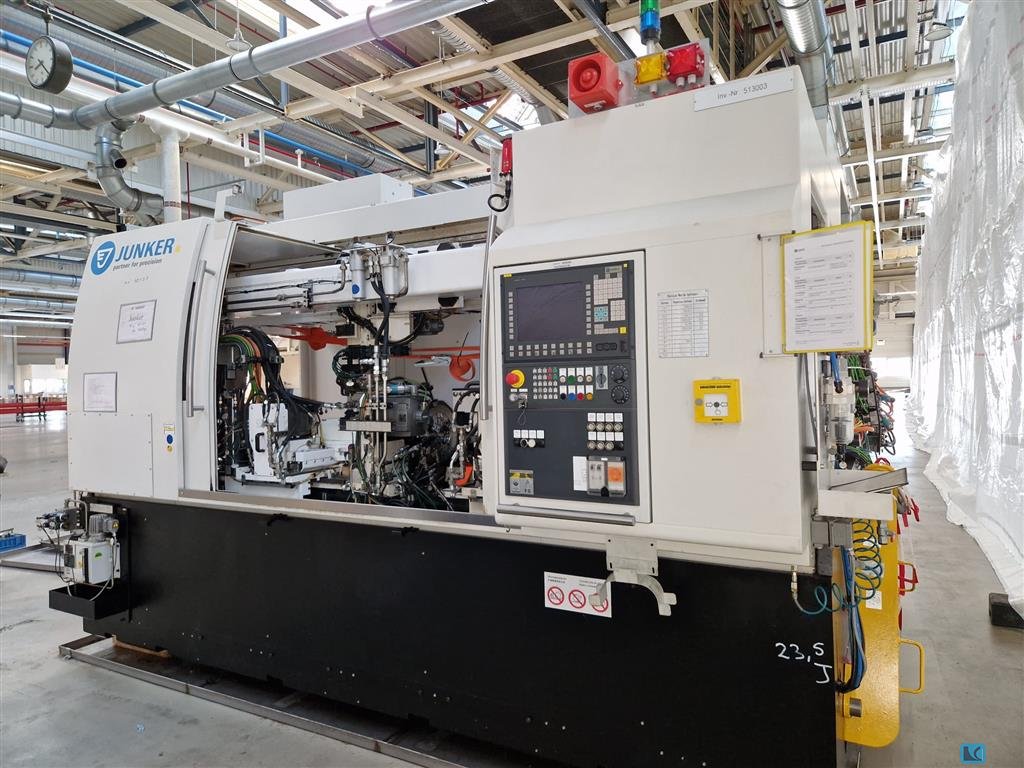

grinding diameter:280/320 mm grinding length:750 mm centre height:170 mm weight of the machine ca.:22,5 t dimensions of the machine ca.:4,7 x 3,65 x 3,0 m Junker Jumat 6S 18-20S-18 has 2 internal and 1 external spindle.

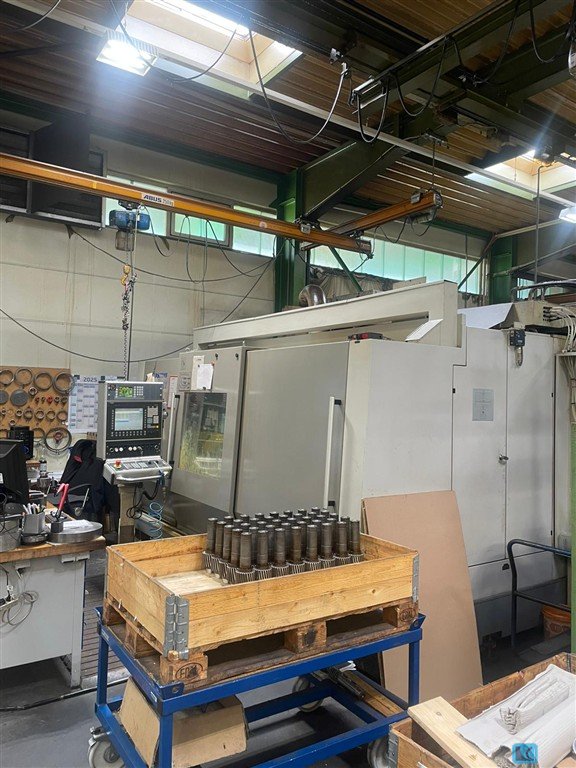

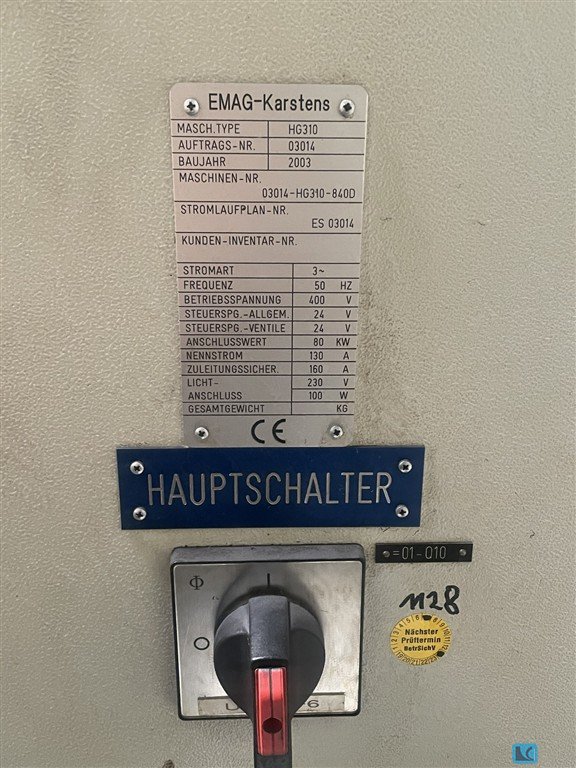

grinding length:1500 mm centre height:325 mm weight of the machine ca.:12 t Karstens EMAG H310 Universal Grinding Machine Year of manufacture: 2004 Center distance: 1500 mm Center height: 325 mm Reinforced workpiece spindle, load capacity up to 250 kg Driven C-axis for polygon, thread, and eccentric grinding. 3 individually mounted grinding spindles. Siemens 840D control system

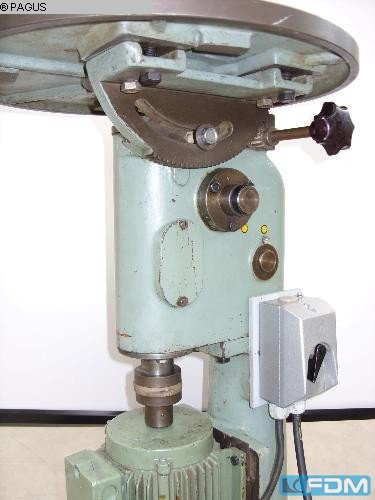

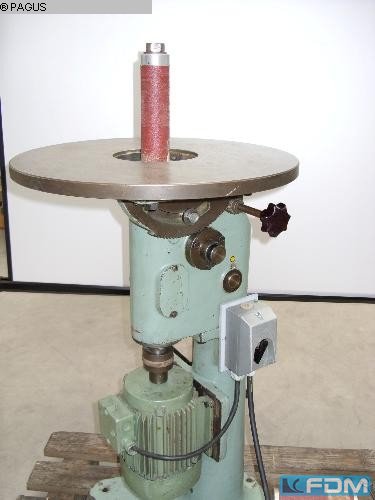

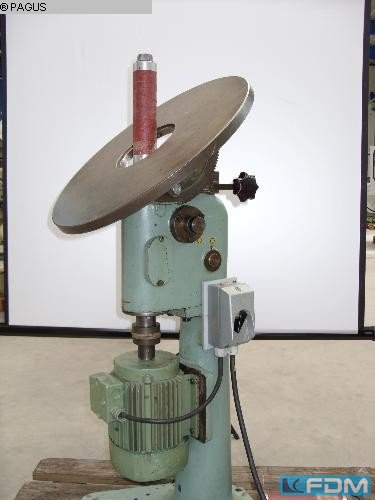

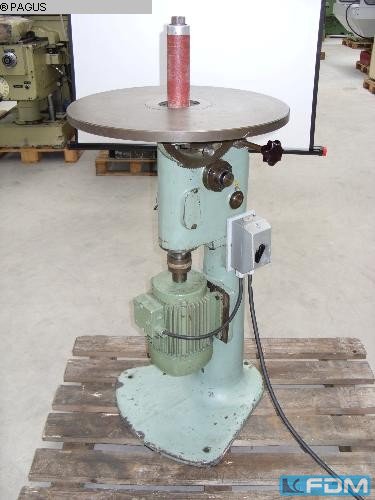

table diameter:520 x 22 mm table - swivable:45 Grad total power requirement:1,6 kW weight of the machine ca.:130 kg dimensions of the machine ca.:520 x 520 x 1200 mm mit Schleifzylinder Zubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von Schleifmitteln Ø 50, 70 , 90, 120 mm x 223 mm neuer Motor

grinding diameter:600 mm grinding length:3000 mm centre height:315 mm workpiece weight max.:3000 kg work piece spindle speed:8 - 120 U/min grinding wheel motor:25 kW grinding wheel speed:45 m/sec grinding wheel width x diameter:750 x 80 mm table speeds:30 - 4500 mm/min feeds of grinding head:0 - 5 mm/min table swivelabel +/-:7,5 ° total power requirement:55 kVA weight of the machine ca.:18 t dimensions of the machine ca.:11,5 x 4 x 2,2 m - Internal grinding device - taper grinding up to 10,1° based on diameter - automatic grinding cycle - grinding wheels and flanges - dressing device - coolant attachment - dust exhauster, various steady rests

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

Unaudited Auction-ID: A1-50540-219

Important and outstanding design features of the RaptorX-SL with steel substructure in gantry design RaptorX-SL1200/S15 The range of applications of a RaptorX-SL CNC Fraesmaschine is variable due to the adjustable working area (through-lasshoehe under Bruecke: 150mm, 300mm or 400mm ) and the traversing height of 300mm in the Z-axis (at no extra charge) extremely large. Special size up to 17,500 mm (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! This way you are able to process plate materials with the greatest stability of the Z-axis just as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or waterjet cutting system, appropriate extensions are available. In the middle range of the machine (between the foot tubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm h ...

Important and outstanding design features of the RaptorX-SL with steel substructure / The range of applications of a RaptorX-SL CNC Machine is variable due to the high-adjustable working area (read-through under bridge variable : 150mm, 300mm or 400mm ) and the 300mm travel height in the Z-axis (no extra charge) extremely large. special groesmes up to 17,500 mm (at one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-parts. Use the system as a plasma cutting system or water jet cutting system, corresponding extensions are available. In the middle range of the machine (between the foottubes ) you can even process parts up to a height of 850mm (beam shrare etc. ) or 3D body up to about 400mm height ( at 400mm long Fraeser ) ...

Complete system with all accessories required for installation and operation, see below! Travels x = 7000 y = 1600 z = 800 / quill stroke w = 600mm General overhaul in 2007, year of production 1991: New control system Siemens Sinumerik 840D, new drive motors, guideways refurbished, new control cabinets. ECOCUT 1 was only operated for a few months thereafter Feed rate 12000 mm / min // w axis 6000 mm / min Xua2eg8fx Rotary table TDV 2 max. Workpiece weight 6t / clamping surface 1000x1000 Rotary table TDV 3 max. Workpiece weight 12t / clamping surface 1250x1600 Accessories: 2 like new angular crankset / chain tool change system / plate field / complete housing / Knoll funnel feeder / extraction / coolant system with belt filter All BWF fixators for installation of machine bed and panel

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. echnische data: External dimensions LxWxH: 1650x1440x1950 mm Weight: approx. 650 kg Clamping surface XxY: 930x630 mm Travel XxYxZ: 900x600x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reverse play: appr ...

Work facilitation through basic equipment The basic equipment includes, for example, an ergonomic control panel, which contains the stepper motor control and an industrial PC with touch function. Software (CAD/CAM, control software, operating system Win 10 Pro) are already pre-installed. Thus, the CNC milling machine can be operated conveniently and conveniently. A multi-zone vacuum table ensures a comfortable, fast clamping of workpieces and a strong hold during milling. Furthermore, the machine is equipped with a manual central lubrication, which makes it easier for you to grease and increases the service life of the CNC milling machine. Various applications The most diverse materials can be processed on our T-Rex, whether plastic, wood, metal or stone, nothing is impossible. Whether engraving, milling, cutting, drilling, dosing, gluing, etc., no wishes remain unfulfille ...

Usable for the: Milling and engraving labeling, marking Drilling, cutting Dosing and much more. (Applications require optional accessories) inclusive: Design software ConstruCAM 3D Control software KinetiC-NC incl. CAM software Estlcam Multi-zone vacuum table with recessed T-nuts sliding Control panel including step control manual central lubrication The offer here is a CNC milling machine with the above-mentioned accessories (without further ado possibly shown on the photos accessories). For operation, a milling motor is also required, which can optionally be purchased from us. Technical specifications: External dimensions LxWxH: 1970x2150x1950 mm Weight: approx. 950 kg Clamping surface XxY: 1230x1320 mm Travel XxYxZ: 1200x1300x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reve ...

Spit F 40 slot milling machine including accessories and 3 milling machines, wall groove cutter Auction-ID: A1-50540-54

Mecanumeric Normaprofil T2515 CNC portal milling, year of construction 2009. Machine suitable for processing plastics, composites, wood, resins and non-ferrous metals such as aluminum. Equipped with a vacuum clamping table, automatic tool changer, CNC control and extraction connection. The machine has a gantry construction and is designed for processing large workpieces. The T2515 model has a working range of approximately 3,100 × 2,100 × 870 mm. The manual control and head changer on the right side are defective and need to be checked. ATTENTION The machine must be disassembled by the buyer himself. Auction-ID: A3-46133-34030

Rolling milling machine Koepfer 153 A/CNC Manufacturer Jos. Koepfer & Söhne GmbH Type 153 A/CNC Built in 1988 Machine No. 153199 Technical data Largest Module 2 Distance workpiece tool axis max. 4- 87 mm max. workpiece diameter - without magazine 142 mm - with magazine 80 (100) mm max. milling length 150 mm max. length workpiece - without magazine 300 mm - with magazine 220 mm min. number of teeth 3 min. screw gait number 1 Main spindle through- 33 mm Hole Mounting hole for 50 mm Jig max. cutter diameter 70 mm max. cutter width - Universal milling head 63 mm - Shifting milling head 71 mm max. axial cutter shift - Universal milling head 40 mm - Shifting milling head 44 mm 35 Longitudinal feeds 0.1 -5.0 mm /WU 10 cutter speeds 210-1680 /min Control (2 axes) CNC Drive power 2.2 kW Weight approx. 2400 kg Available immediately Location  ...

WJ-F102-1150 Mill: swivel 90-45 Spindle speeds (6 steps) 3000/4000/5000/6000/8000/10000 rpm Sliding table:1150mm (Optional 1600mm) M?o?t?o?r?l?i?i?t?u?n?g?: 400V 3 kW (4.0 hp) max. clamping height: 125 mm Table opening: 270 mm max. tool diameter retractable: 260 mm Options at extra cost: Telescope 900mm Eccentric tensioner Milling motor 4 KW (5.5hp), S1 100% Milling motor 5.5 KW (7.5 hp), S1 Milling spindle 40.50 or 60mm Integral safety rails 500mm Right and left-hand running milling cutter Table extension right/left

Important and outstanding design features of the RaptorX-SL with steel substructure / gantry design RaptorX-SL1200/S20 The range of applications of a RaptorX-SL CNC Fraesmaschine is variable due to the adjustable working area (through-lasshoehe under Bruecke: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge) extremely large. special size (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! To such a way that you are able to process plate materials with the greatest stability of the Z-axis exactly as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or water jet cutting system, are available In the middle range of the machine (between the foottubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm height ( at 400mm long F ...

Important and outstanding design features of the RaptorX-SL with steel substructure /RaptorX-SL3200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the high-adjustable working area (read-through he under bridge variable : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special coarseness up to 17,500 mm (on one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm hei ...

Specifications / Technical Data S-720 CNC-Fraesmaschine With the High-Z CNC-Fraes.- and Engraving Machine you acquire an all-round talent in TUeV-certified Quality (EMV). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equipment of all high- ...

Specifications / Technical Data S-720 CNC-Router / CNC-Engraver / Milling machine With the High-Z cnc router and engraving machine you purchase an allround talent in TÜV-certified quality. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc milling machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc routers / milling machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc milling machines are equipped with an emergency stop button. An additional emerge ...

Important and outstanding design features of the RaptorX-SL with steel substructure / RaptorX-SL2200/S20 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the adjustable working area (read-through shoe under bridge: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge) extremely large. special groesmes up to 17,500 mm (at one scale ) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-plates. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm height (at 400mm ...

Important and distinguishing design features of the RaptorX SL CNC Router steel base machine RaptorX-SL2200/S15 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction metho ...

Specifications / Technical data S-1400/T 3-axis CNC-portal-machine and engraving machine (Attention: Pictures show the High-Z S-1400 with trapezoidal thread spindles, this differs exclusively by the spindles . With the T-variant of the high-Z CNC fraes machine, you acquire old-fashioned technology with the certain I-meat in TUeV-certified quality (EMC). The High-Z/T is designed for even more accuracy (repeatability about 0.01mm ) and especially for higher travel speeds. Through the ball-circulation spindles used, the High-Z/T portalfraes machine achieves fantastic accuracy and an almost unmeasurable reverse play of about 0.01mm. At the same time, high travel speeds of up to approx. 108mm / second ( 6500 mm / minute ) can be achieved. This means engraving and fraes speeds of up to approx. 4500mm/min can be realized and urgent journeys up to approx. 7000mm/min. Here you can s ...

Specifications / Technical Data S-1400/T CNC-Router and CNC-Engraver / Engraving Machine (Attention: Pictures are showing the type with trapezium spindles, thats the only different to the t-series ) With the purchase of the T-variation of High-Z CNC-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T cnc-routers are conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T cnc-machines achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this 3D-cnc-machine you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on ...

Specifications / Technical data S-1000/T Portalfraesmaschine / Engraving machine With the T-variant of the High-Z CNC-Fraese you acquire old-fashioned technology with the certain i-tuepfelchen in TUeV-certified quality (Emc). The High-Z/T Fraese is designed for even more accuracy (repeatability about 0.01mm ) and especially for higher travel speeds. Through the ball-circuit spindles used, the High-Z/T achieves fantastic accuracy and an almost unmeasurable reverse play of about 0.01mm. At the same time, high travel speeds of up to approx. 108mm / second ( 6500 mm / minute ) can be achieved. This is how engraving and fraes speeds of up to approx. 4500mm/min can be realized and urgent journeys up to approx. 7000mm/min. Here you can see a video about empty runs with the new high-Z/T 3D CNC machine. This makes this machine series in the industrial sector just as applicable for work ...

Specifications / Technical Data S-1000/T CNC-Router / CNC-Engraver With the purchase of the T-variation of High-Z CNC-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T was conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T CNC-engraver achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this cnc-machine you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on a unloaded drive with the new High-Z / T. This cnc-router series is usable in the industrial field as well as for works like engraving, milling, dr ...

Specifications / Technical Data S-720/T CNC-Fraesmaschine und Graviermaschine / Fraese With the T-variant of the High-Z CNC Fraes.-and engraving machine you acquire old-fashioned technology with the certain i-Tpuelchen in TUeV-certified quality (EMC). The High-Z/T CNC-Fraese is designed for even more accuracy (repeatability about 0.01mm ) and especially for higher travel speeds. The high-Z/T CNC-Fraese achieves fantastic accuracy and an almost unmeasurable reverse play of about 0.01mm due to the ball's circulation spindles. At the same time, high travel speeds of up to 108mm/second ( 6500mm/ minute) can be achieved. This allows engraving and feeding speeds of up to approx. 4500mm/min and express ingesses up to approx. 7000mm/min. Here you can watch a video of empty journeys with the new High-Z/T. This series of mechanical engineering is just as applicable in the industrial sec ...

Specifications / Technical Data S-400/T CNC-Portal-Router / CNC-Engraving machine with TÜV certification With the purchase of the T-variation of High-Z cnc-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T cnc-routers was conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T 3D-cnc-engravers achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this cnc-machines you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on a unloaded drive with the new High-Z / T. This 3D-milling-machine series is usable in the ...

Specifications / Technical Data S-720 CNC-Router / CNC-Engraver / Milling machine With the High-Z cnc router and engraving machine you purchase an allround talent. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc milling machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc routers / milling machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc milling machines are equipped with an emergency stop button. An additional emergency stop you find ...

Equipment / Product data of the CNC-Fraesen Type High-Z/TRex series / Type 1224 Drive: 3 buerstenlose brand stepper motors with 4.5 amperes. Pushing through long and up to 120mm high materials possible, as no belt drive is in the way at the end of the X axis! linear guides on all axes of HIWIN / THK ! Multiple ball-bearing ball thread spindles on all axes, brand edging! speed speed max. 12,000 mm/min Working speed max. approx. 8,000 mm/min Technical platform X/Y: 0.005mm (1/10 step); Z: 0.0025mm reverse clearance maximum approx. +/- 10 microns (0.010 mm) Point repeatability: approx. 0.01 mm clamping area 2800 x 1340 mm travel distances: X=2400mm; Y=1200mm; Z= 130 mm contact sensors / reference switches / limit switches on all axes Double secured emergency trigger energy chains for clean cable flush Total mass with motors : LxWxH approx. 3070 x 1800 x 1420 mm Fraes ...

Specifications / Technical Data S-400 Fraes machine / engraving machine With the High-Z CNC-Fraes.- and engraving machine you acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equip ...

Specifications / Technical Data S-1000 CNC-Fraese and Engraving Machine The almost largest CNC machine of the high-Z series in TUeV-certified quality (EMC). With an external dimension of approx. 1350 x 800mm still handy enough and extremely powerful. With the high-z CNC unit, they acquire an all-round talent. Whether you want to clamp complex parts on a groove table or, or clamp the factory into a high vice (the machine stands on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be processed). Or just do engraving or drilling then they simply work on a flat surface, on which they then attach, for example, an MDF plate, which they once plan overfraes and are then able to work exactly in depth up to approx. +/- 0.02mm. All CNC portal fraes machines are supplied with coloured energy chains on all axes due to the improved cable ...

Specifications / Technical Data S-1000 CNC-Router and CNC-Engraver This is the biggest machine of our High-Z cnc-router series. With external dimensions of approx. 1350x800mm it is still very handy. With the High-Z 3D-cnc-routers you purchase an allround talent in TÜV-certified quality. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc-machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc-machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc-milli ...
