used

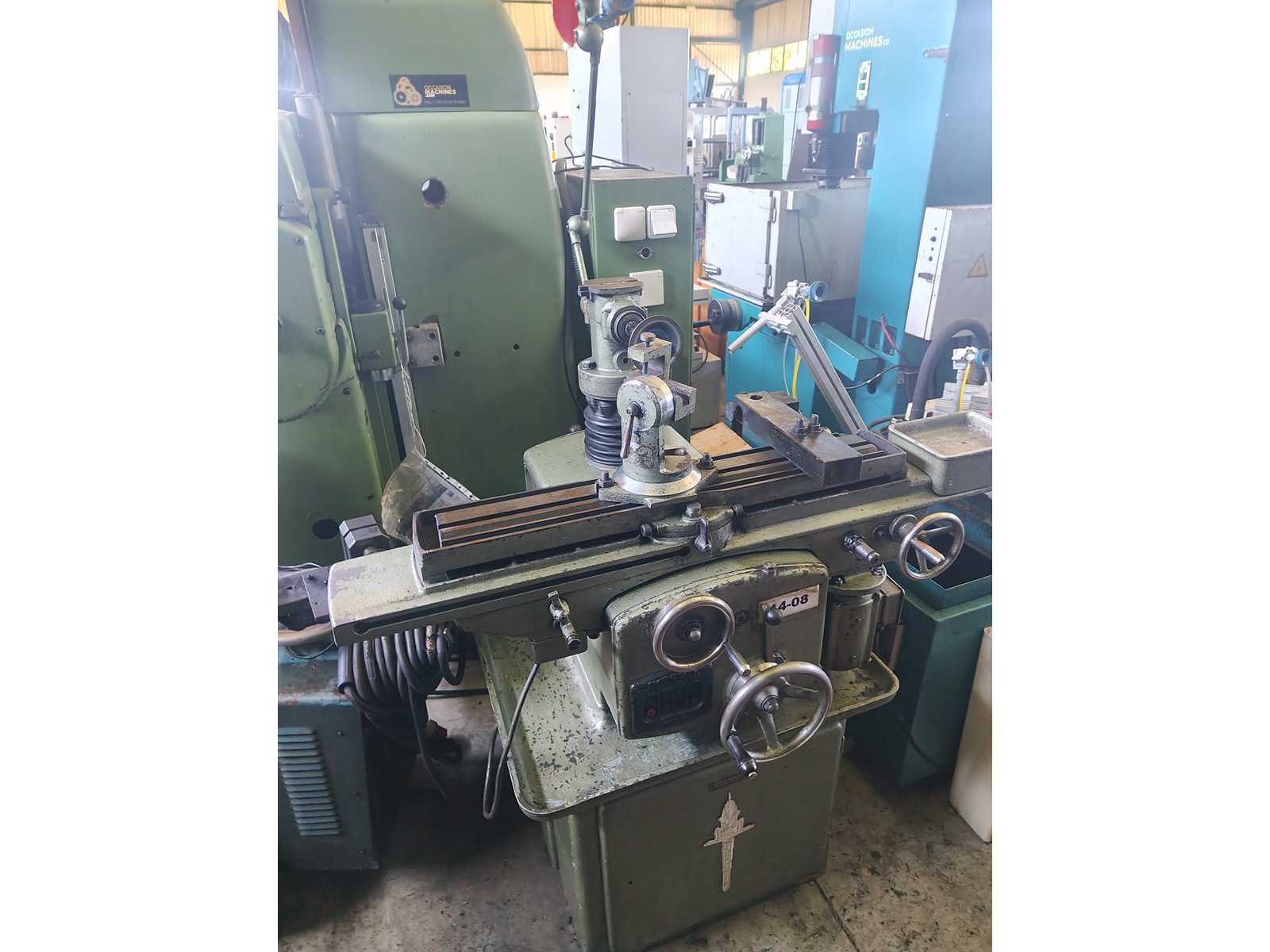

Description: Universal tool grinding machine Cylinder loose on one side, freely movable by handweight approx.: 650 kg, Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 1,600 mm
used
Catalog No. : 6752 Type: UWIE Producer: Saacke Made in: 2005 Characteristic: X-Axis travels: 340 mm Travels Y: 240 mm Z-Axis travels: 840 mm Max. tool lenght: 330 mm Max. tool diameter: 250 mm Maximum rotary speed of the spindle: 10000 1/min Center height: 152 mm Machine height: 2090 mm Machine length: 2450 mm Machine width: 2050 mm Machine weight: 3900 kg Equipment: Chuck Collets Mandrel
used
Saacke UWIA CNC 5 A CNC Tool Grinder machine
used
Description: Included - 3-axis digital display - Operation manual Spindle diameter 75 mm x-travel 850 mm y-travel 900 mm z-travel 950 mm Spindle holder ISO SK 40 Table size 1000 x 800 mm Total power requirement 16 kW Machine weight approx. 10.5 t Space requirement approx. 4.0 x 2.3 x 2.75 mweight approx.: 10,500 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 2,300 x 2,750 mm
used
Schneeberger Aries ENP4 CNC Precision Tool Grinding Machine Manufacturer [manufacturer]: Schneeberger Type [ type]: Aries ENP4 Control unit: Fanuc control, 2 CNC axes, simultaneous interpolation 10.4" LCD color touchscreen, RS232 Baujahr[construction year]: 10/2008 Tool and cutter grinder Note: Ideal for tooling and sharpening Optimal grinder for grooving, circumferential, flank, front, rear and flank surfaces Axes Longitudinal travel X mm 400 (CNC) Transverse travel Y mm 260 (CNC) Vertical travel Z mm 300 (CNC) Workpiece rotation A degree free (CNC) C-axis, manual, position indicator integrated in the control unit. Resolution of the measuring system: 0.001°, grinding head ±180° rotatable Center height mm 210 Landing cone ISO50 Spindle Drive power kW 2.2 / 7.5 Double spindle HSK 50 - (2 + 2 grinding wheels) Spindle speed 1/min 9000 Grinding wheel diameter ...
used
Suitable for regrinding and making new wood and metalworking tools of all kinds. Accessories: Pallet loader,, Quinto Software Version 4.3 b 10 for milling cutters, drills, step drills, profile tools, groove simulation, Kennametal Hertel,, hydraulic workpiece clamping,, automatic Renishaw measuring probe,, automatic fire extinguishing system,, automatic central lubrication,, Glass scales on the linear axes, 1 clamping claw, 1 automatic chuck, 1 collet D:32mm, 2 loader pallets,, 2 grinding wheel holders., X-axis longitudinal movement: 380mm, Y-axis transverse movement: 280 mm, Z-axis vertical movement: 280 mm, C-axis swivel range: 340°, A-axis rotation range: 360 °, Center height: 210 mm, Workpiece holder: ISO 50, Grinding wheel diameter: Max. 200 mm, Drive power grinding lockers: 7,5 kW, Grinding spindle speed: stepless 0 - 9000 rpm, Connected load: 29 kW (400 V / 50 Hz), Dimensions W ...
used
Tool grinding machine - steel grinding machine make SIMON type L 15Machine -No: 4924/4925 Year 19634 stationsEngine speed: 1400/2800 rpm.Number of stations: 4Power connection: 380 V / 50 HzDrive power: 0.55 / 0.9 kWOutside dimensions approx: 1120 x 510 x 1600 mmWeight approx: 300 kgWith- 2 lampsused and in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Steel grinding machine make SIMON Frankfurt type L 20Fabr. -No: 2190Number of stations: 2 piecesgr. disc diameter: 200 mmGrinding spindle speed: 2800 rpmDrive power: 0.6 kWExternal dimensions L x W x H: 1300 x 700 x 1200 mmWith:- 1 table support eachxa0xa0 right pendulum table 280 x 140 mmxa0xa0 left tilting pendulum table 280 x 140 mm- splash guardused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Item no. 5042: 1 gebr. Tool grinding machine Fabr. SIMON , Type VSR 3, Bauj. 1984 with digital display Drive power: 1.1 kW
used
4-point tool grinding machine make SOLID type DS 3 CDMachine -No: 146064 Year 1964Grinding wheel pre-sanding SC: 200 x 50 x 51 mmTable: 400 x 150 mmGrinding wheel regrind SC: 200 x 50 x 51 mmTable: 400 x 150 mmGrinding wheel lapping cut diamond: 125 x 12.5 x 51 mmTable: 400 x 150 mmChip breaker grinding wheel: 150 x 8 x 51 mm2 engine speeds: 1400/2800 rpm.Drive power: 0.5 / 0.8 hpDimensions L x W x H /: 1110 x 1000 x 1280 mmWeight approx: 300 kgWith- Cooling device- Underframeused, from a vocational school in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
General: Year of construction 1993 Speed 4,500 rpm Dimensions 500 mm x 530 mm x 1230 mm Weight approx. 150 kg Other equipment and included accessories: Machine light
used
Specifications Grinding diameter max.: 100 mm Longitudinal movement of the table: 55 mm Grinding head vertical adjustment: 160 mm Swivel range of the grinding head: Horizontal: 360° Speed of the grinding spindle: Number (levels): 2 from: 2800 rpm up to: 5100 rpm Connection 50 Hz 3x: 380 volts Grinding spindle motor: 0.50 hp Machine weight approx.: 400 kg Dimensions machine: Length: 1000 mm Width: 950 mm Height: 1550 mm
used
max. grinding diameter: x mmgrinding length: 120 mmworkpiece length: 270 mmtable-size: 270x80 mmweight of the machine ca.: 0.2 tdimensions of the machine ca.: 0.8x0.7x1.4 mDividing headCollet setCoolantMORE DETAILS ON www.marcels-maschinen.chThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Description: Fabrication number: 269 Center height above table: 105 mm Center width: 550 mm Largest sanding diameter: 200 mm Largest sanding length: 400 mm Largest clamping diameter: 200 mm Largest clamping length: 550 mm Table: Clamping surface: 800 x 112 mm Largest longitudinal movement: 400 mm Can be swiveled to 2 sides: 180° Adjustability of the grinding spindle slide: Transverse: 250 mm Vertical: 300 mm Can be swiveled: 360° Sanding spindle: Pivoting of the spindle head to 2 sides: +/- 30° Smallest/largest distance from the center of the grinding spindle to the top edge of the table: 75/375 mm Grinding wheel: Largest grinding wheel diameter: 150 mm Largest width: 20 mm Bore: 64 mm Flange diameter: 80 mm Cone diameter: 25 mm With machine accessories as shown in the pictures Machine dimensions: 1220 x 1100 x 1400 mmweight approx.: 900 kg, Approx. Onsite Dimension. (l x w x h): 1,60 ...
used
Description: sanding length: 615 mm sanding spindle speed: 250 rpm machine is in good technical condition, by prior agreement the possibility of testing grinding length: 615 mm, grinding spindle speed: 250 rpm, weight approx.: 1,000 kg, Approx. Onsite Dimension. (l x w x h): 2,200 x 1,500 x 1,550 mm
used
Description: serial number: 049242 sanding length: 615 mm sanding spindle speed: 250 rpm machine is in good technical condition, by prior agreement the possibility of testing grinding length: 615 mm, grinding spindle speed: 250 rpm, weight approx.: 1,000 kg, Approx. Onsite Dimension. (l x w x h): 2,200 x 1,500 x 1,550 mm
used
Description: serial number: 048578 sanding length: 615 mm sanding spindle speed: 250 rpm machine is in good technical condition, by prior agreement the possibility of testing grinding length: 615 mm, grinding spindle speed: 250 rpm, weight approx.: 1,000 kg, Approx. Onsite Dimension. (l x w x h): 2,200 x 1,500 x 1,550 mm
used
Description: Electric sharpener for chainsaw chainsweight approx.: 10 kg, Approx. Onsite Dimension. (l x w x h): 400 x 400 x 400 mm
used
Description: Electric sharpener for chainsaw chainsweight approx.: 10 kg, Approx. Onsite Dimension. (l x w x h): 400 x 400 x 400 mm
used
Description: For band saw bladesweight approx.: 80 kg, Approx. Onsite Dimension. (l x w x h): 300 x 400 x 800 mm
used
Description: .weight approx.: 250 kg, Approx. Onsite Dimension. (l x w x h): 1,100 x 1,200 x 1,500 mm
used
Motorized lapping machine make unknownTechnical specifications:Lapping disc size: 1000 mmLapping rings: 2 x 400 mmLapping rings: 3 x 150 mmDrive power: 5.5 kWWeight approx .: 1300 x 1300 x 1500 mmWith- control panel- lapping time- automatic- agitator- pump- Overload indicatorused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
weight approx.: 2 kg, Approx. Onsite Dimension. (l x w x h): 130 x 120 x 80 mm
used
Valve cone grinding machine make VEB Magdeburger Armaturenwerke type B 38/20Road no. 07/6461, machine -No: 31/67, built in 1967Technical specifications:Clamping range of the rotatable tool holder: 7 - 16 mmGrinding wheel size: 140 mmSpeed of the grinding wheel: 4500 rpm.V-spindle: 174 rpm.electr. Connection: 220/380 V.External dimensions: 800 x 450 x 1300 mm highused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Description: Sharpener for bits, chisels, knives and scissorsweight approx.: 2 kg, Approx. Onsite Dimension. (l x w x h): 300 x 300 x 100 mm
used
Gate Sharper Manufacturer Vollmer for Inclined and straight ground
used
max. grinding diameter: 240 mmgrinding length: 255 mmworkpiece length: 350 mmtotal power requirement: 20 kWweight of the machine ca.: 4,5 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Suitable for eroding PCD tools for the wood and metal industries as well as for regrinding and making new ones of all kinds of wood and metal working tools. Accessories: Total enclosure,, Stepless variable speed control,, Measuring probe,, Glass scales on the linear axes (X, Y, Z),, Software package Toolstudio Standard & Advanced Version 2.0, Software package 1 (cylindrical tools with sharp edges, corner and full radius),, Software package 2 (conical-spiral tools with sharp edges, corner and full radius),, Software package 3 (drill and step drill),, Software package 16 (warm-up program),, Software package 18 (dressing), Software package 51 and 52 (rotational erosion and PCD tools such as shank, circular, profile, step milling cutters etc.),, Software package P52 option High spiral tools>60,, Software package P58 (hogger), Electrostatic mist extractor,, Bandfilter with pump 400 L,, Automa ...
used
Controller FANUC Panel i Sowftware Tool Studio 3 Lisances : MCS, TS_Standard, Profile light, Drills, Calib touch probe, Boost, Steptools
used
Suitable for regrinding and making new wood and metal working tools of all kinds. Accessories: Lift - loader (automatic loading and unloading device), Software Tool Studio Standard & Advanced Version 1.9, Software package 1 (cylindrical tools with sharp edges, corner and full radius),, Software package 2 (conical spiral tools with sharp edges, corner and full radius),, Software package 3 (drills and step drills),, Software package 16 (warm-up program), Software package Heli-Flute + Cone (flute calculation program), automatic fire extinguishing system, Glass scales on all linear axes X, Y, Z, Electrostatic mist extractor,, Chiller for spindle cooling,, Probe,, Pneumatic workpiece clamping,, Oil collecting pan,, 2 grinding wheel flanges., Longitudinal movement (X-axis): 480 mm, Y axis vertical movement: 320 mm, Z-axis transverse movement: 700 mm, Rotary table swivel range C-axis: +/- 200 ...
used
Tool grinding machine Walter UWS30 CY - original condition - Width: 120cm - Height: 140cm - Depth: 100cm - with electric stroke adjustment - Sub-machine, 8 grinding shots - Grinding wheel pulling device - Electrical documentation + equipment Good condition fully functional can be visited and tried out on site. Shipping abroad. Visit: Basically, I would like to point out to you that in order to avoid misunderstandings, the article can be viewed before purchase and tested under electricity. Please ask questions before purchasing to avoid any ambiguity. If you have any general questions or make an appointment for a visit, I can be reached at any time, using the telephone number below or above. Errors in the description and intermediate sale reserved. The VAT is shown separately on my invoices. Shipping with forwarding.
used
Description: Grinding range 2 - 13 mm Point angle min./max. 90 - 140 degrees Connection value 230 V Machine weight approx. 10 kg Space requirement approx. 0.35 x 0.2 x 0.2 mweight approx.: 7,6 kg, Approx. Onsite Dimension. (l x w x h): 350 x 200 x 200 mm
used
Description: Grinding range 2 - 13 mm Point angle min./max. 90 - 140 degrees Connection value 230 V Machine weight approx. 10 kg Space requirement approx. 0.35 x 0.2 x 0.2 mweight approx.: 7,6 kg, Approx. Onsite Dimension. (l x w x h): 350 x 200 x 200 mm
used
Description: Drill grinding machine Grinding range 2 - 20 mm Min./max. 90 - 135 degrees Connected load 230 V Machine weight approx.8.6 kg Space requirements approx. 0.35 x 0.2 x 0.2 mweight approx.: 9,6 kg, Approx. Onsite Dimension. (l x w x h): 350 x 200 x 200 mm
used
Lapping machine make WOLTERS type FL 3Machine -No: 120Lapping disk diameter: 300 mmSpeed of the lapping disc: 220 rpm.Drive power: 0.4 kWOutside dimensions approx: 500 x 1000 x 970 mmWith- a lot of accessoriesused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
