lasco used for sale

CONTROLS   PLC SIEMENS S7-400 PRESS DESIGN   drive system: hydraulic   number of suspensions: 1   slide ejectors / cushion: no   table cushion: no   opening in table: no   feedstock transport direction: back-front PRESS FORCES   total force (nominal): 1000 to PRESS TABLE   table surface (left-right): 2066 mm   table surface (front-back): 2000 mm   height above floor level: 630 mm SLIDE   stroke: 900 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 600 mm/s   working velocity min.: 15 mm/s   working velocity max.: 40 mm/s   return velocity max.: 390 mm/s   return force: 100 to TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 1710 mm   distance table - slide max.: 1700 m ...

Key data: 5600 kg, 810 mm

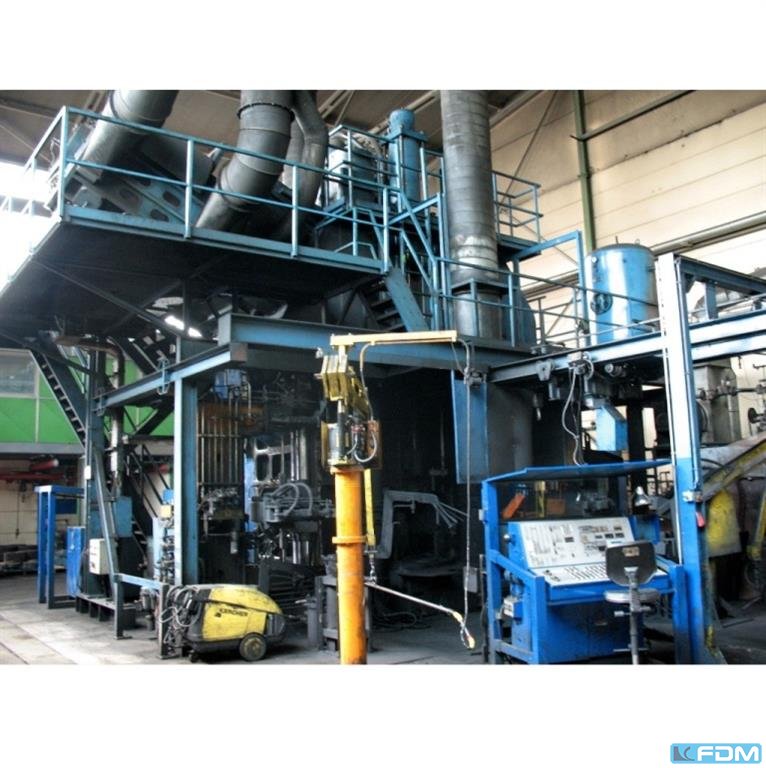

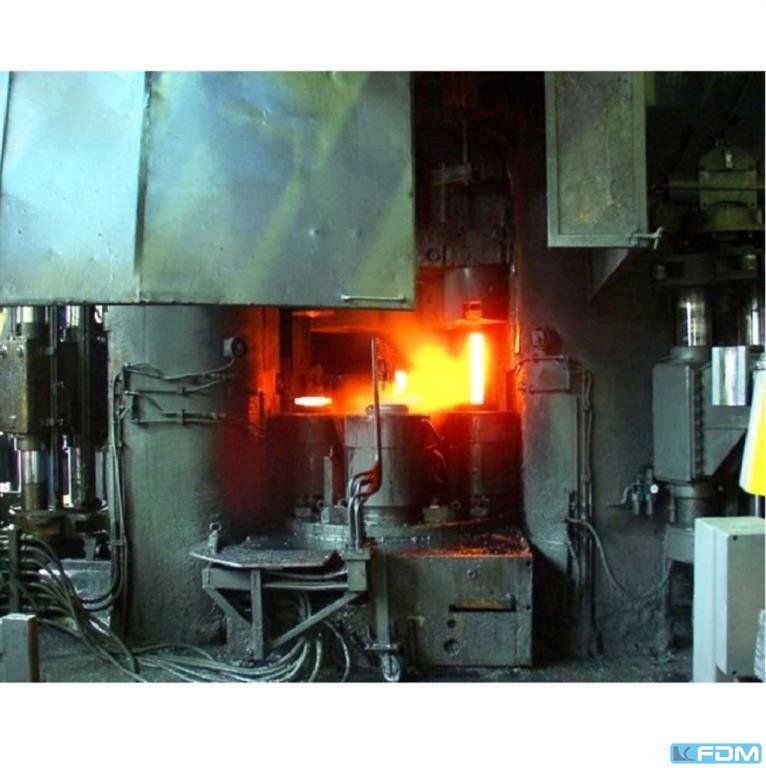

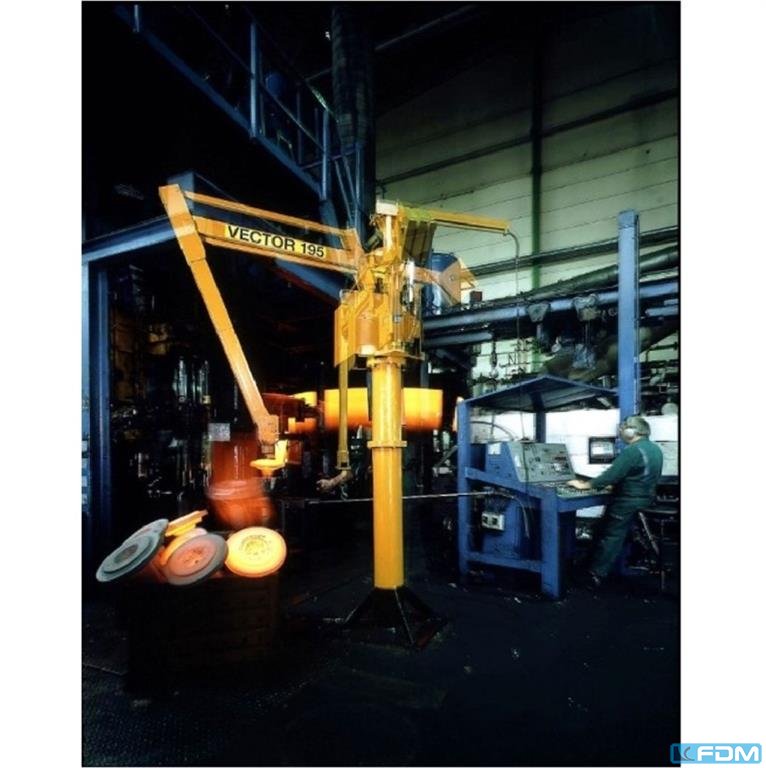

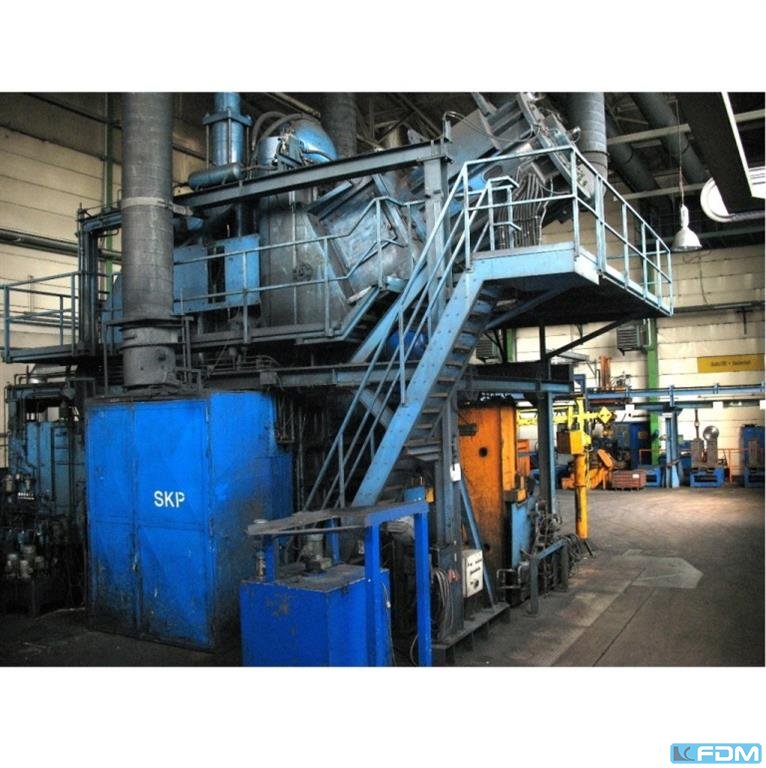

Fully Automated Forging Hammer Line (2009) LASCO HO-U 800 (80 KJ) The complete line consists of the following machines: ‍ Tilting device, Stahlmann Step conveyor, Stahlmann Induction heating unit, ABP, EBS 345-W, 2009 Quick-release conveyor Automation unit, Lasco, 2009 2 Forging robots, Kuka KR 30-3F, 2013 2 Bases, weight each: 336 kg Conveyor belt with lifting device, safety enclosure with doors Top pressure drop forging hammer, Lasco, HO-U 800, 2009 Picking robot, Kuka, KR 150/2, 1998 Dispensing station, consisting of: Discharge conveyor and blow-off control, Manufacturer Schramm ‍ ‍ Technical Details ‍ (2009) Short-Stroke Die Forging Hammer LASCO H-OU 800 ‍Machine identification data Name: Short-Stroke Die Forging Hammer Model: HO-U 800 Machine number: 00.08175 Year of manufacture: 2009 ‍ Operational parameters Working capacity max. 80  ...

LASCO FP 222 S hydraulic press was built in Germany by Lasco Umformtechnik GmbH. The machine has been continuously maintained and upgraded throughout its service life. In 2022, a major upgrade was carried out, which included replacing the electrical cabinet, installing light curtains and adding a SIEMENS SIMATIC HMI TOUCH touchscreen operator panel. The LASCO FP 222 S is an extremely versatile hydraulic press designed for the production of extremely precise, repeatable and yet complex components used in the broadly defined automotive or machinery industry. Its main application is hot and cold forging. The use of a die cushio in the lower work table and the large slider stroke means that the machine can also be used as a deep drawing press. All machining processes are performed with a high press force of up to 200 tonnes, which, combined with the highly dynamic slider, guarantees the b ...

LASCO TSP 160 S forging press was built in Germany by Langenstein & Schemann A.G. (Lasco Umformtechnik GmbH). The machine has been continuously maintained and upgraded throughout its service life. In 2019, a major upgrade was carried out, which included replacing the seals, upgrading the control system, installing light curtains and adding a SIEMENS SIMATIC HMI TOUCH touchscreen operator panel. The LASCO TSP 160 S is an extremely versatile hydraulic press designed for the production of extremely precise, repeatable and yet complex parts. It is ideal for forges and industrial plants that require high press forces and high repeatability of the manufactured parts. Its main purpose is die forging, metal stamping and metal forming, especially hot forming of steel or aluminium workpieces. It also enables punching, calibration of forgings, trimming and blanking of workpieces after the forgin ...

nominal force:2500 t stroke:600 mm cycle time:13 - 18 s distance between columns:1720 mm Distance table/ram, max. stroke up, adjustment up:2600 mm table surface area:1720 x 1800 mm allowed max. force:4000 t blow die to die:5000 t ram surface:2100 x 1320 mm capacity of ejector in table:40 t ejector stroke in table:250 mm ejector surface area in table:900 x 820 mm capacity of ejector in ram:6 t ejector stroke in ram:40 mm spindle diameter:425 mm power requirement:900,0 kW weight:335,0 t Dimensions (WxDxH):3,4 x 4,6 x 9,7 m height over floor:8,3 m fully-automated forging line:to produce axle shaft
