drilling and milling used for sale

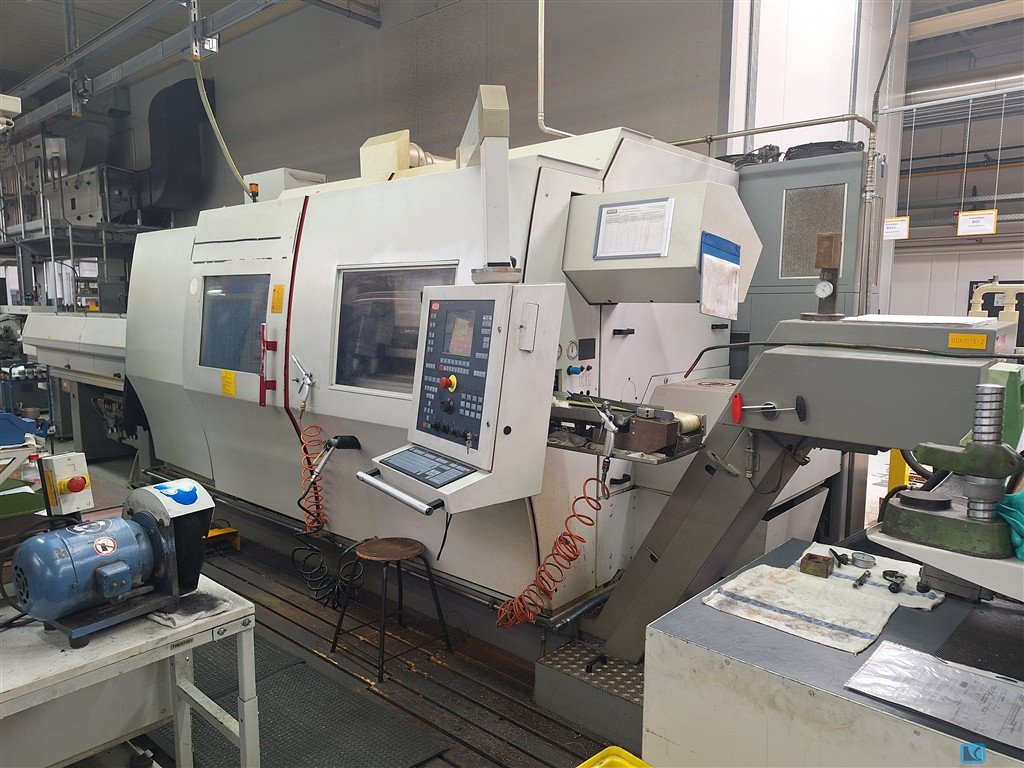

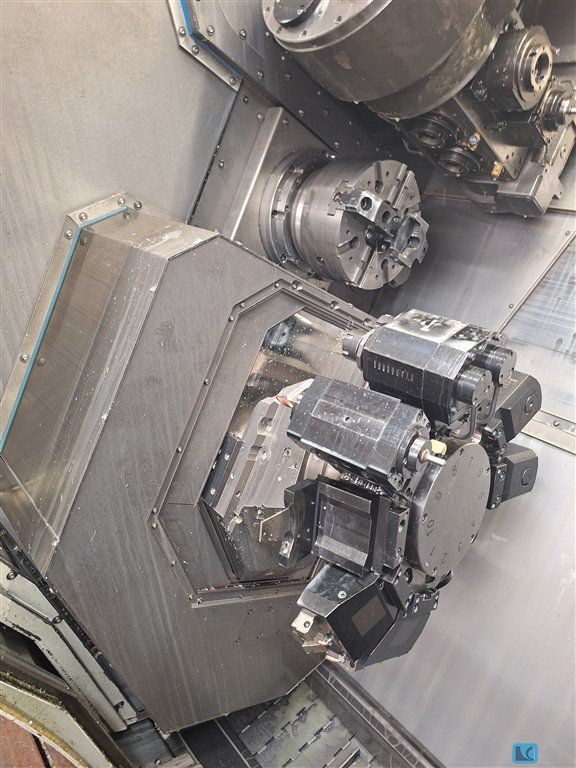

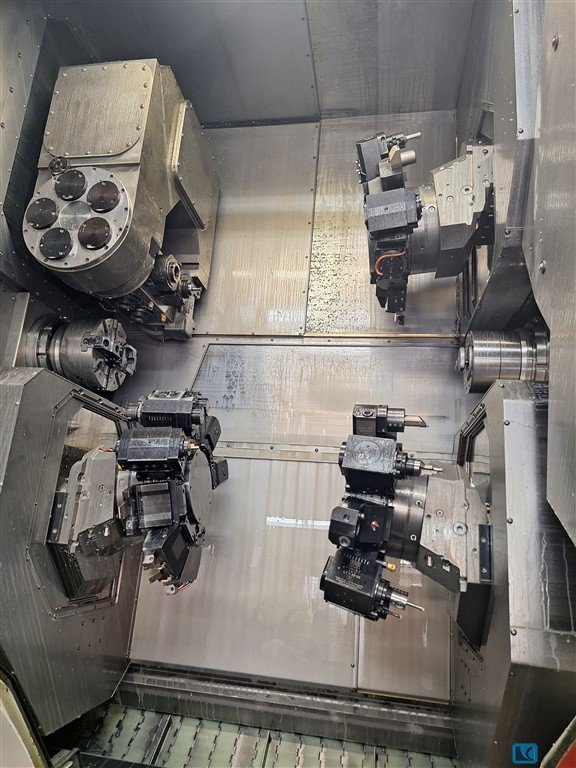

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW Machine Technical Data ·Machine weight: approx. 130 t including accessories ·Z travel (ram): 1250 mm ·W axis (spindle): 1000 mm ·Sleeve extension: 1250 mm ·Sleeve dimensions: 450 x 450 mm ·Boring spindle stroke: 1000 mm ·Boring spindle speed: 920 rpm Rotary Table: ·Motor driven rotary table ·IOS 40 ·CNC control ·2 axes B and V ·Rotary table size: 3000 x 3500 mm ·Rotary table CNC IOS 40 NC Indexing and Accuracy: ·Infinitely adjustable ·Diameter related ·Indexing: 4 x 90 degrees up to 360000 ·Angular resolution: 0.001 degrees Travel Ranges: ·Longitudinal cross travel: 1230 mm Load Capacity: ·Maximum rotary table load: 40 t Clamping Plate: ·Clamping plate: 3 x 8000 x 2000 mm

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

spindle diameter:130 mm x-travel:5000 mm y-travel:3000 mm z-travel:2000 mm The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries. With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes. The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various ma ...

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

Rolling milling machine Koepfer 153 A/CNC Manufacturer Jos. Koepfer & Söhne GmbH Type 153 A/CNC Built in 1988 Machine No. 153199 Technical data Largest Module 2 Distance workpiece tool axis max. 4- 87 mm max. workpiece diameter - without magazine 142 mm - with magazine 80 (100) mm max. milling length 150 mm max. length workpiece - without magazine 300 mm - with magazine 220 mm min. number of teeth 3 min. screw gait number 1 Main spindle through- 33 mm Hole Mounting hole for 50 mm Jig max. cutter diameter 70 mm max. cutter width - Universal milling head 63 mm - Shifting milling head 71 mm max. axial cutter shift - Universal milling head 40 mm - Shifting milling head 44 mm 35 Longitudinal feeds 0.1 -5.0 mm /WU 10 cutter speeds 210-1680 /min Control (2 axes) CNC Drive power 2.2 kW Weight approx. 2400 kg Available immediately Location  ...

Operating voltage: 380/400 volts with digital positioning display x,y, without feed in y direction, with angular table, work surface with 4 T-slots Mistakes reserved!

- with lateral Kappsaege

Milling / Beveling aggregate Serial No.: IMA -for double-sided edge banding machine (1 Unit left right side page / 1 units)

Type U-1000 1991 year - X/Y/Z 1000x480x380 3-axis digital display Heidenhain Positip

Important and outstanding design features of the RaptorX-SL with steel substructure / gantry design RaptorX-SL1200/S20 The range of applications of a RaptorX-SL CNC Fraesmaschine is variable due to the adjustable working area (through-lasshoehe under Bruecke: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge) extremely large. special size (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! To such a way that you are able to process plate materials with the greatest stability of the Z-axis exactly as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or water jet cutting system, are available In the middle range of the machine (between the foottubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm height ( at 400mm long F ...

Important and distinguishing design features of the RaptorX SL steel base machine / gantry RaptorX-SL1200/S20 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method t ...

WJ-F102-1150 Mill: swivel 90-45 Spindle speeds (6 steps) 3000/4000/5000/6000/8000/10000 rpm Sliding table:1150mm (Optional 1600mm) M?o?t?o?r?l?i?i?t?u?n?g?: 400V 3 kW (4.0 hp) max. clamping height: 125 mm Table opening: 270 mm max. tool diameter retractable: 260 mm Options at extra cost: Telescope 900mm Eccentric tensioner Milling motor 4 KW (5.5hp), S1 100% Milling motor 5.5 KW (7.5 hp), S1 Milling spindle 40.50 or 60mm Integral safety rails 500mm Right and left-hand running milling cutter Table extension right/left

Important and outstanding design features of the RaptorX-SL with steel substructure /RaptorX-SL3200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the high-adjustable working area (read-through he under bridge variable : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special coarseness up to 17,500 mm (on one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm hei ...

Important and distinguishing design features of the RaptorX SL steel base machine RaptorX-SL3200/S15 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method to produce large 3D objec ...

Specifications / Technical Data S-1000 CNC-Fraese and Engraving Machine The almost largest CNC machine in the High-Z series. With an external dimension of approx. 1350 x 800mm still handy enough and extremely powerful. With the High-Z CNC unit, they acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or to clamp factory tins into a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All CNC portal fraes machines are supplied with coloured energy chains on all axes due to the improved cable guid ...

Specifications / Technical Data S-1000 CNC-Router and CNC-Engraver This is the biggest machine of our High-Z cnc-router series. With external dimensions of approx. 1350x800mm it is still very handy. With the High-Z 3D-cnc-routers you purchase an allround talent in TÜV-certified quality. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc-machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc-machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc-milli ...

Specifications / Technical Data S-720 CNC-Fraesmaschine With the High-Z CNC-Fraes.- and Engraving Machine you acquire an all-round talent in TUeV-certified Quality (EMV). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equipment of all high- ...

Specifications / Technical Data S-720 CNC-Router / CNC-Engraver / Milling machine With the High-Z cnc router and engraving machine you purchase an allround talent in TÜV-certified quality. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc milling machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc routers / milling machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc milling machines are equipped with an emergency stop button. An additional emerge ...

Important and outstanding design features of the RaptorX-SL with steel substructure / RaptorX-SL2200/S20 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the adjustable working area (read-through shoe under bridge: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge) extremely large. special groesmes up to 17,500 mm (at one scale ) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-plates. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm height (at 400mm ...

Important and distinguishing design features of the RaptorX SL steel base machine RaptorX-SL2200/S20 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method to produce ...

Important and outstanding design features of the RaptorX-SL CNC Fraes machine / CNC-Fraese with steel substructure / RaptorX-SL2200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the adjustable working area (through-shoehe under bridge : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special larges up to 17 500 mm ( on one scale ) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to  ...

Important and distinguishing design features of the RaptorX SL CNC Router steel base machine RaptorX-SL2200/S15 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction metho ...

Specifications / Technical data S-1400/T 3-axis CNC-portal-machine and engraving machine (Attention: Pictures show the High-Z S-1400 with trapezoidal thread spindles, this differs exclusively by the spindles . With the T-variant of the high-Z CNC fraes machine, you acquire old-fashioned technology with the certain I-meat in TUeV-certified quality (EMC). The High-Z/T is designed for even more accuracy (repeatability about 0.01mm ) and especially for higher travel speeds. Through the ball-circulation spindles used, the High-Z/T portalfraes machine achieves fantastic accuracy and an almost unmeasurable reverse play of about 0.01mm. At the same time, high travel speeds of up to approx. 108mm / second ( 6500 mm / minute ) can be achieved. This means engraving and fraes speeds of up to approx. 4500mm/min can be realized and urgent journeys up to approx. 7000mm/min. Here you can s ...

Specifications / Technical Data S-1400/T CNC-Router and CNC-Engraver / Engraving Machine (Attention: Pictures are showing the type with trapezium spindles, thats the only different to the t-series ) With the purchase of the T-variation of High-Z CNC-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T cnc-routers are conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T cnc-machines achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this 3D-cnc-machine you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on ...

Specifications / Technical data S-1000/T Portalfraesmaschine / Engraving machine With the T-variant of the High-Z CNC-Fraese you acquire old-fashioned technology with the certain i-tuepfelchen in TUeV-certified quality (Emc). The High-Z/T Fraese is designed for even more accuracy (repeatability about 0.01mm ) and especially for higher travel speeds. Through the ball-circuit spindles used, the High-Z/T achieves fantastic accuracy and an almost unmeasurable reverse play of about 0.01mm. At the same time, high travel speeds of up to approx. 108mm / second ( 6500 mm / minute ) can be achieved. This is how engraving and fraes speeds of up to approx. 4500mm/min can be realized and urgent journeys up to approx. 7000mm/min. Here you can see a video about empty runs with the new high-Z/T 3D CNC machine. This makes this machine series in the industrial sector just as applicable for work ...

Specifications / Technical Data S-1000/T CNC-Router / CNC-Engraver With the purchase of the T-variation of High-Z CNC-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T was conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T CNC-engraver achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this cnc-machine you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on a unloaded drive with the new High-Z / T. This cnc-router series is usable in the industrial field as well as for works like engraving, milling, dr ...

Important and distinguishing design features of the RaptorX SL steel base machine The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method to produce large 3D objects.  ...

Specifications / Technical Data S-400/T CNC portal fraesmachine / engraving machine, TUeV certified Already more than 4500 CNC machines of type High-Z sold worldwide ! With the T-variant of the High-Z CNC-Fraesmaschine you acquire old-fashioned technology with the certain I-T-Tpfelchen The High-Z/T is designed for even more accuracy (repeatability about 0.01mm ) and especially for higher travel speeds. The high-Z/T CNC fraes machine achieves fantastic accuracy and an almost unmeasurable reversal of about 0.01mm due to the ball-circuit spindles used. At the same time, high travel speeds of up to 108mm/second ( 6500mm/ minute) can be achieved. Thus, engraving and fraes speeds of up to approx. 4500mm/min can be realized and fast-moving speeds up to approx. 7000mm/min. This is just as applicable in the industrial sector for work such as engraving, frause, drilling, measuring, cutti ...

Specifications / Technical Data S-400/T CNC-Portal-Router / CNC-Engraving machine with TÜV certification With the purchase of the T-variation of High-Z cnc-router you get a proven technology with a certain icing of the cake in TÜV-certified quality. High-Z/T cnc-routers was conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed. Because of the used ball screws the High-Z/T 3D-cnc-engravers achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible. With this cnc-machines you're able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min. Here's a video on a unloaded drive with the new High-Z / T. This 3D-milling-machine series is usable in the ...

Engine power: 400V 3 KW 4 HP, 2 engines Formatschiebetisch: 1500mm Cutting height: 103 mm Blade: swivel, max. 315 mm Milling cutter: starr 90° Blower rpm: Rpm: 1500/3500/6000/8000 RPM. WJ-400100 K NET 2990,-new

Specifications / Technical Data S-720 CNC-Router / CNC-Engraver / Milling machine With the High-Z cnc router and engraving machine you purchase an allround talent. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc milling machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc routers / milling machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc milling machines are equipped with an emergency stop button. An additional emergency stop you find ...

Equipment / Product data of the CNC-Fraesen Type High-Z/TRex series / Type 1224 Drive: 3 buerstenlose brand stepper motors with 4.5 amperes. Pushing through long and up to 120mm high materials possible, as no belt drive is in the way at the end of the X axis! linear guides on all axes of HIWIN / THK ! Multiple ball-bearing ball thread spindles on all axes, brand edging! speed speed max. 12,000 mm/min Working speed max. approx. 8,000 mm/min Technical platform X/Y: 0.005mm (1/10 step); Z: 0.0025mm reverse clearance maximum approx. +/- 10 microns (0.010 mm) Point repeatability: approx. 0.01 mm clamping area 2800 x 1340 mm travel distances: X=2400mm; Y=1200mm; Z= 130 mm contact sensors / reference switches / limit switches on all axes Double secured emergency trigger energy chains for clean cable flush Total mass with motors : LxWxH approx. 3070 x 1800 x 1420 mm Fraes ...

Weibert WJ-F30 Table milling machine 5.5 KW R + L barrel swiveling 3000 to 10000 U/1 Control Panel top Safety rulers WJ 600500

Specifications / Technical Data S-400 Fraes machine / engraving machine With the High-Z CNC-Fraes.- and engraving machine you acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equip ...

Specifications / Technical Data S-1000 CNC-Fraese and Engraving Machine The almost largest CNC machine of the high-Z series in TUeV-certified quality (EMC). With an external dimension of approx. 1350 x 800mm still handy enough and extremely powerful. With the high-z CNC unit, they acquire an all-round talent. Whether you want to clamp complex parts on a groove table or, or clamp the factory into a high vice (the machine stands on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be processed). Or just do engraving or drilling then they simply work on a flat surface, on which they then attach, for example, an MDF plate, which they once plan overfraes and are then able to work exactly in depth up to approx. +/- 0.02mm. All CNC portal fraes machines are supplied with coloured energy chains on all axes due to the improved cable ...
