KAAST Millex VPlus 7 CNC machining Centre way back in 2011 complete with Siemens Controller 802S
BRAND: AERRE YEAR: 2008 MODEL: CL60 100A PRODUCTION HOURS: 39437 APPLICATION TYPE: MILLING LOCATION: ITALY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: IT-MIL-AER-2008-00001 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: 530 MAIN DRIVE SPINDLE SPEED RANGE: 9000 1/MIN TOOL TAPER: ISO 40 NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 1000 MM Y-AXIS MOVEMENT: 600 MM Z-AXIS MOVEMENT: 600 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - CAPACITY FOR 32 TOOLS
Stock Nr : 13195 Location : ATHENS GREECE Condition: VERY GOOD Manufacturer Akira Seiki Model SR3 XP Year 02 / 2014 Power-on hours: 25.478 Cutting hours : 10.994 Serial Nr: V07141086 Made in Taiwan Control unit Akira Mi 745 X-Axis travel 762 mm Y-Axis travel 430 mm Z-Axis travel 460 mm Working area 910 x 380 mm Table load 792 kg Motor power 11 kW Spindle speed 11000 rpm Tool changer Disc Type 18 tools Spindle taper BT40 P ...
::TECHNICAL SPECIFICATIONS::: CNC Model: Selca CNC Version: 4045R Tool connection: HSK 63 Spindle power: 40Kw Number of spindle revolutions: 18000 Number of tools: 30 X Axis Travel: 1200mm Y Axis Travel: 1000mm Z Axis Travel: 600mm Rapid feed linear axes X Y Z: 60m/min Guides: roller Tilting rotary table: yes Tilting rotary table type: continuous Degrees tilting rotary table: - 30° +100° Table size: 860mm Permissible load on the board: 500Kg High refrigerant pressure: yes System with external tank with filter: yes Chip evacuator: carpet operated Other technical data: Drives: Simodrive 611 base with Selca adjustment boards The machine has been overhauled all axle roller guides, all ball screws and all bearings, axle geometry have been replaced
Overview BRAND: BRIDGEPORT YEAR: 2007 MODEL: XR-700 APC APPLICATION TYPE: MILLING LOCATION: ITALY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELLY CONTROL UNIT BRAND: HEIDENHAIN Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: TNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 12000 1/MIN SPINDLE MOTOR POWER: 21 KW TOOL TAPER: BT40 MOVEMENT X-AXIS MOVEMENT: 700 MM Y-AXIS MOVEMENT: 500 MM Z-AXIS MOVEMENT: 560 MM TURRET NUMBER OF TURRETS: 42 POSITIONS MEDIA CHIP CONVEYOR: YES Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - RAPID FEED X-Y-Z 40M/MIN - N. OF PALLETS 2 - PALLETS SIZE 800 X 500 MM QUALITATIVE MACHINE BENEFITS: - MACHINE IN PERFECT CONDITION
Specifications: Table size 550 x 350 mm Longitudinal travel 450 mm Cross travel 320 mm Vertical travel 410 mm Spindle speeds 12.000 rpm Rapid movement 50 m/min Tool change 26 pcs Spindle taper HSK Control CNC A 00 Equipped with: Internal cooling Hand wheel for axes travel Short arbors Pallets Interface RS-232 C Coolant Service tools etc.
Table size 1000 x 500 mm Longitudinal travel 850 mm Cross travel 510 mm Vertical travel 510 mm Max. load on table 500 Kg Spindle speeds 80 - 8.000 rpm Spindle taper ISA 40 Control Heidenhain 410 Timer, machine on 40.600 Timer Cycle hours 9.187 Timer
Stock number: 3759 PROCESSING Manufacturer: CHEVALIER, Type: 2040 Machine NO.: MC927B02, Year of construction: 2002 Specifications: Table size 1200 x 450 mm Size table load 600 kg Longitudinal movement (X) 1020 mm Transverse movement (Y) 510 mm Vertical movement (Z) 510 mm Size distance spindle/table 660 mm Spindle cone 40 ISO Infinitely variable spindle speeds 8000 rpm Spindle motor 7.5 Kw Total output 15 KVA Tool changer 20 slots Control Fanuc 0-MD Fabr. Accessories: Cooling water system. Operating instructions Length: 2500 mm, Height: 2645 mm, Width: 7770 mm, Weight: 5800 kg
Sinumerik 840D, two working chambers, two spidles, two toolig rooms for 36 pcs. tools, speed changing tools, chip conveyor,filtration station.
Storage number: 3505 Processing Manufacturer: Chiron , Type: FZ 18L Machines NR.: 428-48, Built: 2001 Specifications: Longitudinal movement (X) 2000 mm Cross movement (Y) 400 mm Vertical movement (Z) 425 mm Spindle cone 40 ISO Stepless spindle speeds 0-10,000 rpm Tool changer/number of stations 20 stations Control Siemens 840D Fabr. Length: 4000 mm, Height: 2973 mm, Width: 2500 mm, Weight: 6700 kg
5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters mi ...
5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters mi ...
BRAND: CINCINNATI YEAR: 2001 MODEL: Dart Plus VMC-500 APPLICATION TYPE: MILLING LOCATION: SPAIN MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: FANUC Technical Information GENERAL DATA MACHINE WEIGHT: 3500 KG CONTROL UNIT BRAND: FANUC MODEL: 21I-M MAIN DRIVE NUMBER OF SPINDLES: 1 SPINDLE SPEED RANGE: 8000 1/MIN NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 510 MM Y-AXIS MOVEMENT: 510 MM Z-AXIS MOVEMENT: 510 MM WORKPIECE WORKPIECE WEIGHT: 350 KG TABLE OUTER LENGTH: 700 MM OUTER WIDTH: 520 MM TOOLS SLOTS IN STORAGE: 21 TYPE OF TOOL HOLDER: BT-40
CINCINNATI MAG CFV 1050i CNC machining centre was manufactured in 2011. The milling centre used for precise machining of workpieces, is characterised by a robust steel structure of high quality and reliable components. The milling process is performed on a large work table with a length of 1120 mm and a width of 600 mm by a reliable spindle operating at a maximum speed of 10000 rpm, guaranteeing high precision and significantly reducing process times. The CINCINNATI CFV-1050i CNC milling centre is offered with a wide range of equipment, including a screw chip conveyor, a control panel with HEIDENHAIN iTNC530 numerical control with the possibility of connecting a fourth axis, and a magazine holding up to 30 tools. The MAG CFV 1050i CNC milling machine weighs 5200 kg. Technical data of the CINCINNATI MAG CFV 1050i milling centre - work table surface area (L x W): 1120 x 600 mm - ma ...
High speed 5 axes CNC machinning center CMS Concept 40/155/25 PX5 was built in Italy in 2020. The machine, characterised by outstanding robustness and reliability, is designed for precision milling, drilling and 3D machining of parts made of materials such as sand, epoxy and phenolic resin, carbon fibre, fibreglass and aluminium. Dimensioning of workpiece structures is performed by an advanced calculation programme based on the finite element method (FEM), ensuring high geometric accuracy and reliability, even under heavy workloads. Applicable to a variety of industries, the machining centre for composites and aluminium, features a mobile bridge with a PX5 5-axis workhead running on two electrically welded rigid guideways. All five interpolated axes of the head (X,Y,Z,C,A), are equipped with high-performance servomotors and pneumatic brakes. The high-speed electro-spindle, operating a ...
The COMAU 1GXL horizontal machining center, manufactured in Italy in 2003, processes the bottom head of cylinders. The milling machine is equipped with a SIEMENS Sinumerik 840D numerical control and a two-position pallet changing unit. The two-position pallet changing unit, mounted at the front of the casing, allows the workpiece to be loaded and unloaded on an external pallet during machining. The machining centre magazine holds 23 tools which can be 170 mm in diameter, 270 mm in length and 4 kg in weight. The machine spindle, rotating at a maximum speed of 16000 rpm, has an installed HSK 63 taper. The machining centre operates in three axes (X,Y,Z) with maximum feeds of 630 mm (in each axis). The COMAU 1GXL milling machine weighs 16700 kg. Characteristics of the COMAU 1GXL milling centre - CNC controller: SIEMENS Sinumerik 840D - feeds in axes X/Y/Z: 630/630/630 mm - accelerat ...
The COMAU 1GXL TWIN horizontal machining centre manufactured in 2003 by the Italian company Comau S.p.A. consists of two modules mounted opposite each other. The machine is used for machining the lower cylinder head. Each of the two modules of the milling centre has a rotary table with a device for clamping the workpiece during machining, a movable head for milling, drilling and smoothing the workpiece, and a variety of power supply installations. The magazine of the COMAU 1GXL TWIN machining centre, with automatic tool locking/unlocking system, holds 23 tools of 4 kg weight, 270 mm long and 170 mm in diameter. The machine spindle with HSK 63 tool holder rotates at a maximum speed of 16000 rpm. Feed rates in the X/Y/Z axes are 630 mm (in each axis). The milling machine is controlled by a SIEMENS Sinumerik 840D CNC control unit and has a portal for automatic loading/unloading of the ...
The COMAU 1GXL TWIN horizontal machining centre was manufactured by Comau S.p.A. in 2003 in Italy. The machine for machining the lower cylinder head consists of two machining centres arranged opposite each other. Each of the machine modules has a movable head for milling, drilling and honing and a series of supply installations such as: hydraulic installation, TRABON lubrication installation, air/oil lubrication installation, pneumatic installation and cooling installation. The whole is controlled by a SIEMENS Sinumerik 840D CNC control. The machine portal allows automatic loading and unloading of the workpiece to the milling machine. At the front of each module, there is a rotary table fitted with a device for clamping the workpiece during machining. The milling machine is equipped with a tool magazine with a capacity for 23 tools of 4 kg weight, 270 mm length and 170 mm diameter. The m ...
The horizontal milling centre COMAU 1GXL TWIN was built by the Italian company Comau S.p.A. in 2001. The machine, consisting of two modules, is used for machining the lower cylinder head. The modules are arranged in front of each other, each equipped with a rotary table and a movable head. The rotary table is mounted at the front of the module and it has a device for clamping the workpiece during machining. The movable head for milling, drilling and smoothing the workpiece is mounted on the module casing. The machining centre has an electro-spindle fixed to the headstock with an HSK 63 tool taper. The spindle has a tool locking/unlocking system and rotates at 16000 rpm. The tool magazine of the COMAU 1GXL TWIN milling centre holds 23 tools, with a maximum length of 270 mm, weight 4 kg and diameter 170 mm. Each module of the machine is equipped with a number of installations, such a ...
The horizontal milling centre COMAU 1GXL TWIN was built in 2003 by the Italian company Comau S.p.A. Equipped with a SIEMENS Sinumerik 840D CNC control, the machining centre consists of two modules and is designed for machining the bottom head of cylinders. These modules are arranged facing each other, each with a rotary table and a movable head. The rotary table with the workpiece clamping device for machining is fitted at the front of the module. The movable head for milling, drilling and smoothing the workpiece is located on the casing. The electro-spindle with HSK 63 tool taper is fixed to the headstock. The machine spindle rotates at 16000 rpm. The automatic tool blocking/unblocking system picks up and puts down the tools from the rotary magazine which holds 23 tools. Each tool in the magazine can have a maximum weight of 4 kg, diameter 170 mm and length 270 mm. The COMAU 1GXL ...
The COMAU 1GXL TWIN horizontal machining centre was built by the Italian company Comau S.p.A. in 2003. The machine is used to machine the bottom head of cylinders. The TWIN module consists of two machining centres facing each other with 3 numerically controlled axes. The installed portal allows automatic loading and unloading of the machine. Each machining centre has a movable head mounted on a case which is used for milling, drilling or honing. The spindle head is located in the horizontal axis, in which the electro-spindle rotating at 16000 rpm is fixed. It is equipped with an automatic tool locking/unlocking system and the tools are picked up/loaded from a rotary tool magazine with a capacity for 23 tools. Each tool can have a maximum weight of 4 kg, length 270 mm and diameter 170 mm. At the front of each module of the COMAU 1GXL TWIN milling machine there is a rotary table fitt ...
The COMAU 1GXL TWIN horizontal machining centre was manufactured in Italy in 2003 by Comau S.p.A.. The TWIN module consists of two machining centres used for the machining of the lower cylinder head. The workpiece loading and unloading process is carried out automatically by a portal. Each machine is equipped with a rotary table with workpiece clamping device during machining, fitted at the front of each module, and a movable head mounted on the case for milling, drilling or honing. The electro-spindle of the COMAU 1GXL TWIN machining centre with HSK 63 tool holder is fixed to a headstock which moves vertically along the column housing. This movement forms the Y axis of the machining centre. The spindle, rotating at 16000 rpm, has an automatic tool lock/unlock system. The tools are loaded/unloaded from a rotary magazine with 23 tools. Each tool can have a maximum weight of 4 kg, a ...
The horizontal milling centre COMAU 1GXL TWIN was manufactured in 2003 by the Italian company Comau S.p.A. in Italy. The machining centre for machining the lower cylinder head consists of two modules placed opposite each other. Each module has: a rotary table with a device for clamping the workpieces during machining, a movable head used for milling, drilling and honing and an electro-spindle with HSK 63 tool taper rotating at 16000 rpm. The electro-spindle of the machine is fixed to the headstock. It is equipped with an automatic tool locking/unlocking system, which picks up/put down tools from a rotary magazine with 23 tools. Each tool in the magazine can have a maximum weight of 4 kg, diameter 170 mm and length 270 mm. The machining centre is also equipped with power installations such as: hydraulic installation, pneumatic installation and cooling installation. The X/Y/Z axes ar ...
The horizontal milling centre COMAU 1GXL TWIN was manufactured by the Italian company Comau S.p.A. in 2003. The machining centre for lower cylinder head machining, with SIEMENS Sinumerik 840D CNC control, consists of two modules mounted opposite each other. Each module has a rotary table and a movable head. At the front of each module there is a rotary table with a device for clamping workpieces during machining. On the casing of the machine there is a movable head for milling, drilling and smoothing the workpiece. The milling machine operates in three axes (X,Y,Z) with maximum feeds of 630 mm (for each axis). The installed portal of the COMAU 1GXL TWIN machine allows for automatic loading and unloading. The spindle head is located in the horizontal axis, in which is fixed the electro-spindle with HSK 63 tool cone, rotating at 16000 rpm. The automatic tool locking/unlocking system ...
The COMAU 1GXL TWIN horizontal machining centre was manufactured in 2003 by Comau S.p.A. in Italy. The purpose of the machine is the machining of the bottom head of cylinders. The TWIN version of the machine consists of two machining centres facing each other. Each machining centre has 3 axes controlled by a SIEMENS Sinumerik 840D CNC control unit and a movable head mounted on the case for milling, drilling and honing. At the front of each module there is a rotary table fitted with a device for clamping the workpieces during machining. Both rotary tables are mounted on the same central case. Each module is provided with a series of supply installations such as: hydraulic installation, TRABON lubrication installation, air/oil lubrication installation, pneumatic installation and cooling installation. The machining centre has a tool magazine capable of holding 23 tools of diameter 170 mm, l ...
The COMAU 1GXL TWIN horizontal machining centre was built in 2003 by the Italian company Comau S.p.A. The machine consists of two machining centres for machining the lower cylinder head, arranged opposite each other. The milling machines are equipped with a series of power supply installations and a movable head used for milling, hole drilling and honing, all controlled by a SIEMENS Sinumerik 840D CNC control. The loading and unloading of the workpiece is carried out automatically by means of a portal. The rotary table is mounted on a central case and has a device for clamping the workpiece during machining. The tool magazine holds 23 tools with 270 mm length, 170 mm diameter and 4 kg weight. Feeds in the X/Y/Z axes are 630 mm and accelerated feeds are 10m/sec2 . The machining centre spindle operates at a speed of 16,000 rpm and has an HSK 63 toolholder. The COMAU 1GXL TWIN machine weigh ...
Stock Nr : 13193 Location : ATHENS GREECE Condition: GOOD Manufacturer CORTINI FIDIA Model HS 644 P Year 2003 Power-on hours: 110.000 Cutting hours : 46.000 Serial Nr: HS 644 P 172 Made in Italy Control unit Fidia X-Axis travel 1200 mm (2 partitions of 600 mm) Y-Axis travel 400 mm Z-Axis travel 400 mm Working area Table 600 nX 400 mm (2 pieces) in raw Rotary tilting table dia 170 mm ...
Overview BRAND: DECKEL YEAR: 2000 MODEL: DMC 60 U hi-dyn APPLICATION TYPE: MILLING LOCATION: SPAIN MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELLY CONTROL UNIT BRAND: HEIDENHAIN Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: TNC 430 MAIN DRIVE SPINDLE SPEED RANGE: 12000 1/MIN MOVEMENT X-AXIS MOVEMENT: 600 MM Y-AXIS MOVEMENT: 700 MM Z-AXIS MOVEMENT: 600 MM TABLE OUTER LENGTH: 650 MM OUTER WIDTH: 500 MM TOOLS SLOTS IN STORAGE: 60 TYPE OF TOOL HOLDER: ISO 40 MEDIA CHIP CONVEYOR: YES INTERNAL COOLING: YES Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - 2 PALLETS - RENISHAW TOOL SETTER - INTERNAL COOLING 40 BAR - 76 TOOL HOLDERS INCLUDED - GEOMETRY IN GOOD CONDITION
Model: DECKEL FP 4 CCT with CNC control dialog 11 Condition: Used Technical data: Total power requirement: 7.5 kW Vertical / Horizontal CNC - Machining Center with Tool changer and with angular table Working range: Table longitudinal stroke X-axis 600 mm Table Vertical stroke Z-axis 500 mm Milling head cross stroke Y-axis 500 mm Clamping surface of the angular table 530 x 900 mm Table load approx. 450 kg Distance table ? V-spindle min / max. 120-620 mm Distance table ? H-spindle min/max. 156-656 mm Tool holder SK 40 Spindle speeds 0 - 6,300 rpm Pre-pane X / Y / Z-axis max. 2 - 8,000 mm/min Rapid response Y / X / Z-axis 10,000 mm/min Spindle drive power 8 kW Total drive approx. 15 kW - 400 V - 50 Hz Weight approx. 5,500 kg
BRAND: DECKEL MAHO YEAR: 2003 MODEL: DMC 60 T APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: KR-MIL-DEC-2003-00002 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 12000 1/MIN TOOL TAPER: SK40 NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 780 MM Y-AXIS MOVEMENT: 560 MM Z-AXIS MOVEMENT: 560 MM B-AXIS MOVEMENT: +30/-120 MM C-AXIS MOVEMENT: 360° MM MEDIA CHIP CONVEYOR: YES Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 30 - COOLANT SYSTEM: YES - PALLET: 2
BRAND: DECKEL MAHO YEAR: 2006 MODEL: DMC 60 T RS3 PRODUCTION HOURS: 63996 APPLICATION TYPE: MILLING LOCATION: GERMANY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: 26 06 2023 CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: DE-MIL-DEC-2006-00004 Technical Information GENERAL DATA MEASUREMENTS WIDTH: 5700 MM MEASUREMENTS DEPTH: 6500 MM MEASUREMENTS HEIGHT: 2400 MM MACHINE WEIGHT: 9800 KG CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 0 - 18000 1/MIN NUMBER OF AXIS: 5 MOVEMENT X-AXIS MOVEMENT: 780 MM Y-AXIS MOVEMENT: 560 MM Z-AXIS MOVEMENT: 560 MM TOOLS TYPE OF TOOL HOLDER: HSK 63A - DIN69893 MEDIA POWER CONSUMPTION: 64,2 KW Additional Equipment - TOOL MAGAZINE WITH 180 TOOLS HSK63 - TOOL MONITORING EXTERNAL - IKZ SYSTEM 40 BAR - COOLANT TANK WITH 980 LITERS VOLUME Additional Information MACHINE BEN ...
X-travel: 600 mm Y-travel: 560 mm Z-travel: 560 mm NC rotary table: 360° Tool holder: HSK 63 Spindle speed: up to 15,000 rpm Compressed air connection: 6 bar Total power requirement, approx.: 80 kVA Weight, approx.: 10t Transport dimensions LxWxH, approx.: 4500 x 2400 x 2400 mm Equipment: - Control Siemens Sinumerik 840D Powerline - Horizontal spindle - NC rotary table 360° -Conveyor - Internal coolant supply - Pallet changers - Two chain magazines with 90 tool positions each (180 total) - Coolant system with paper filter - Rotoclear viewing window - Steel tub under the machine - Current service status -Documentation Machine is still in use. Available from April/May 2023
The machine is in excellent and ready for production condition and can be used immediately. The machine has almost no working hours, most of the time individual parts were made of plastic or aluminum. The machine can be dismantled and picked up at short notice. The location of the machine is a small heated hall and protected from weather and cold. Videos showing the perfect condition are also available and can be shipped on request. The machine can be demonstrated under Chip by prior appointment.
BRAND: DECKEL MAHO YEAR: 2013 MODEL: DMC 635V PW PRODUCTION HOURS: 33283 APPLICATION TYPE: MILLING LOCATION: HUNGARY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN Technical Information GENERAL DATA MACHINE WEIGHT: 5500 KG CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 14000 1/MIN NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 365 MM Y-AXIS MOVEMENT: 510 MM Z-AXIS MOVEMENT: 460 MM TOOLS SLOTS IN STORAGE: 30 TYPE OF TOOL HOLDER: ISO40 GENERAL DATA MACHINE WEIGHT: 5500 KG CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 14000 1/MIN NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 365 MM Y-AXIS MOVEMENT: 510 MM Z-AXIS MOVEMENT: 460 MM TOOLS SLOTS IN STORAGE: 30 TYPE OF TOOL HOLDER: ISO40 Additional Informatio ...
BRAND: DECKEL MAHO YEAR: 2002 MODEL: DMC 64 V APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: KR-MIL-DEC-2002-00001 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 12000 1/MIN TOOL TAPER: SK40 MOVEMENT X-AXIS MOVEMENT: 640 MM Y-AXIS MOVEMENT: 600 MM Z-AXIS MOVEMENT: 500 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 30 - TOOL SETTER: BLUM LASER - COOLANT SYSTEM: YES
BRAND: DECKEL MAHO YEAR: 2003 MODEL: DMC 64 V APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 12000 1/MIN TOOL TAPER: SK 40 MOVEMENT X-AXIS MOVEMENT: 640 MM Y-AXIS MOVEMENT: 600 MM Z-AXIS MOVEMENT: 500 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 30 - TOOL SETTER: YES - COOLANT SYSTEM: YES
BRAND: DECKEL MAHO YEAR: 2007 MODEL: DMC 75 LINEAR APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 18000 1/MIN TOOL TAPER: SK 40 MOVEMENT X-AXIS MOVEMENT: 750 MM Y-AXIS MOVEMENT: 600 MM Z-AXIS MOVEMENT: 600 MM MEDIA CHIP CONVEYOR: YES Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 30 - TOOL SETTER: BLUM LASER - COOLANT SYSTEM: YES
BRAND: DECKEL MAHO YEAR: 2006 MODEL: DMC 75 V linear PRODUCTION HOURS: 55043 APPLICATION TYPE: MILLING LOCATION: GERMANY MACHINE TYPE: MACHINING CENTERS (UNIVERSAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: SIEMENS GINDUMAC ID: DE-MIL-DEC-2006-00003 Technical Information GENERAL DATA MEASUREMENTS WIDTH: 4500 MM MEASUREMENTS DEPTH: 3300 MM MEASUREMENTS HEIGHT: 3180 MM MACHINE WEIGHT: 10000 KG CONTROL UNIT BRAND: SIEMENS MODEL: 840D POWERLINE MAIN DRIVE SPINDLE SPEED RANGE: 28000 1/MIN NUMBER OF AXIS: 5 AXIS SIMULTANEOUS MOVEMENT X-AXIS MOVEMENT: 750 MM X-AXIS RAPID TRAVERSE: 90 M/MIN Y-AXIS MOVEMENT: 600 MM Y-AXIS RAPID TRAVERSE: 90 M/MIN Z-AXIS MOVEMENT: 560 MM Z-AXIS RAPID TRAVERSE: 90 M/MIN B-AXIS MOVEMENT: CONTROLLED B-AXIS: -10° TO +110° CONTROLLED MM C-AXIS MOVEMENT: 360 ° MM Additional Information MACHINE BENEFITS TECHNICAL MA ...
BRAND: DECKEL MAHO YEAR: 2003 MODEL: DMF 220 LINEAR APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: KR-MIL-DEC-2003-00001 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 18000 1/MIN TOOL TAPER: SK40 MOVEMENT X-AXIS MOVEMENT: 2200 MM Y-AXIS MOVEMENT: 560 MM Z-AXIS MOVEMENT: 720 MM MEDIA CHIP CONVEYOR: YES Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 30 - TOOL SETTER: BLUM LASER - COOLANT SYSTEM: YES

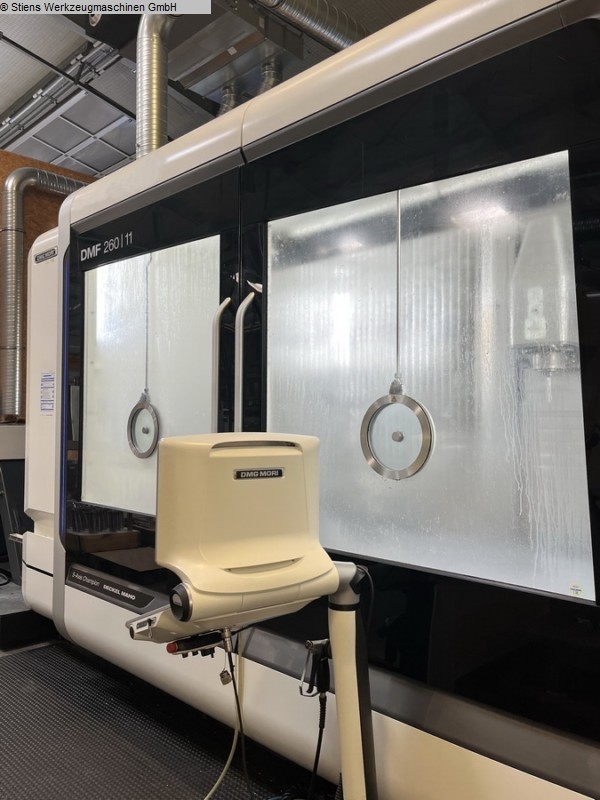

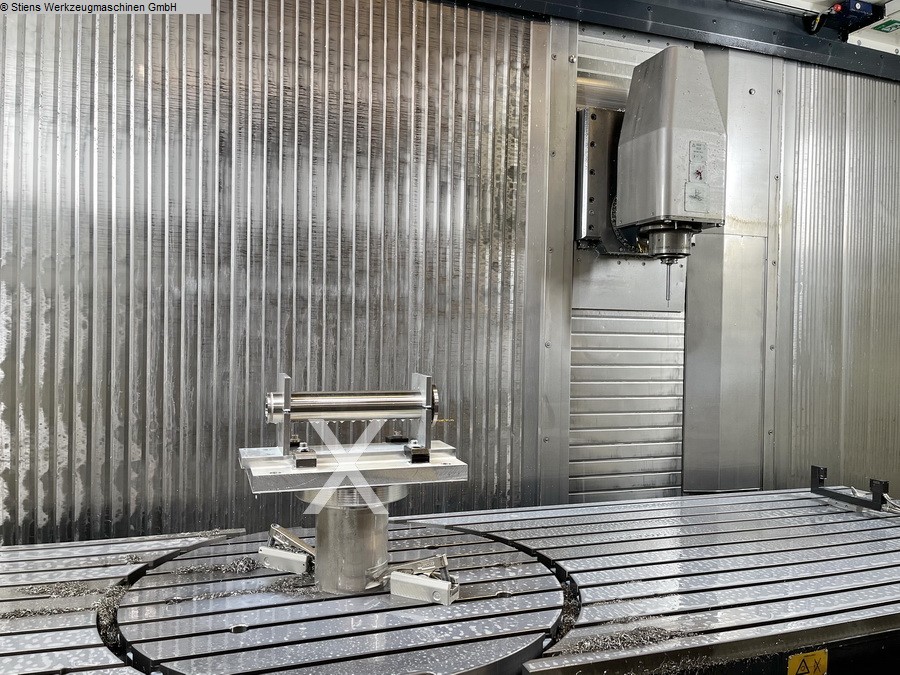

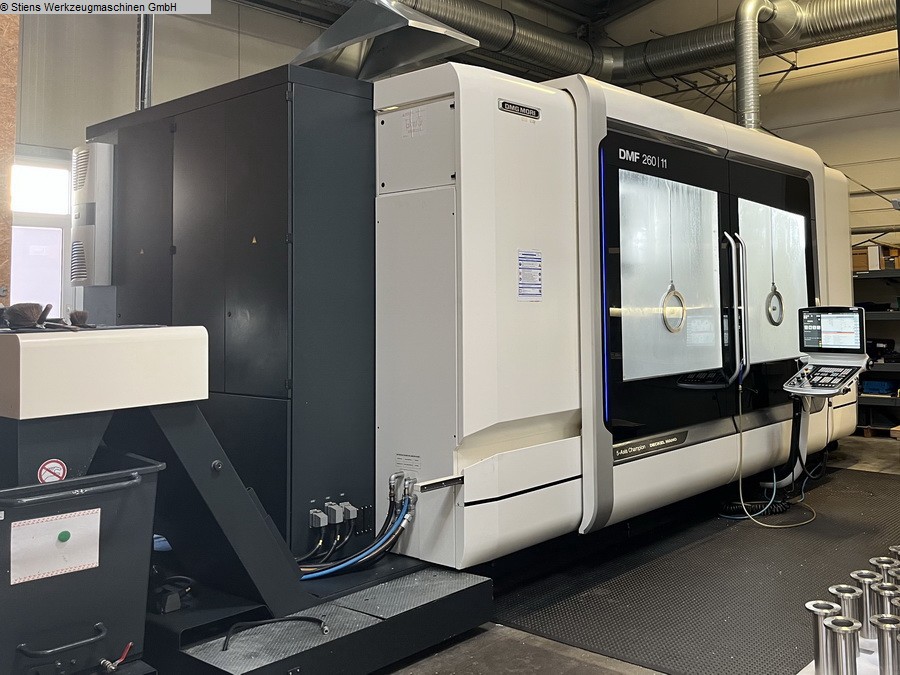

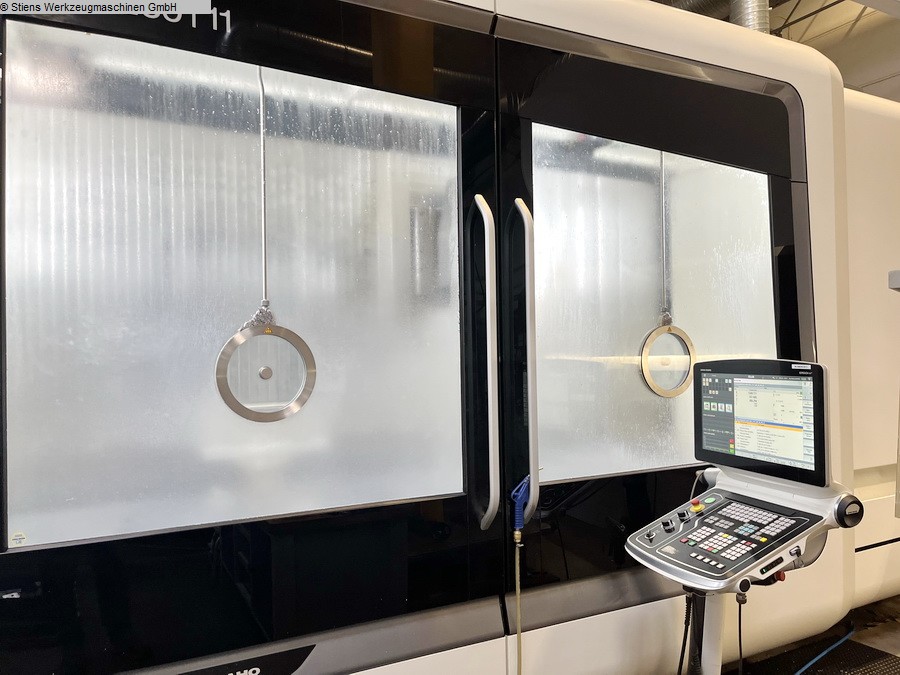

BRAND: DECKEL MAHO YEAR: 2010 MODEL: DMF 260 PRODUCTION HOURS: 29271 APPLICATION TYPE: MILLING LOCATION: GREECE MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: SIEMENS GINDUMAC ID: GR-MIL-DEC-2010-00001 Technical Information CONTROL UNIT BRAND: SIEMENS MODEL: 840D MAIN DRIVE SPINDLE SPEED RANGE: 20 - 8000 1/MIN SPINDLE MOTOR POWER: 23.5/13.5 KW TOOL TAPER: SK40 DIN 69871 MOVEMENT X-AXIS MOVEMENT: 2600 MM Y-AXIS MOVEMENT: 700 MM Z-AXIS MOVEMENT: 700 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - RAPID MOVE 40 M/MIN - ACCELERATION 4 M/S2 - TOOL CLAMPING ACCORDING TO DIN 69872 - MAGAZINE FOR 30 TOOLS (CHAIN WITH DOUBLE GRIPPER) - CHIP-TO-CHIP TIME 7,6 S - RIGID TABLE 2,900 X 700 MM - FULL-PROTECTIVE CABIN, COOLANT TANK - DIRECT MEASURING SYSTEMS - SWARF CONVEYOR (SCRAPER CONVEYO ...
X-travel: 700 mm Y-travel: 800 mm Z-travel: 800 mm Tool holder: HSK-A 63 Speed:18000 1/min Tool shelf magazine Omron: 240 seats Flushing gun: 1bar/40l/min Equipment: - Control Siemens 840D PL - Chip conveyor pallet storage RS4 - 6 pallets 500 x 500 mm - Mechanical tool breakage control - Coolant temperature control - Cooling device with blowing air through spindle center - Laminated glass safety pane - Documentation German - Infrared touch probe - Coolant system with paper belt filter 900l
BRAND: DECKEL MAHO YEAR: 2003 MODEL: DMU 125 T HI-DYN PRODUCTION HOURS: 6800 APPLICATION TYPE: MILLING LOCATION: CZECH REPUBLIC MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: CZ-MIL-DEC-2003-00002 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE NUMBER OF SPINDLES: 1 SPINDLE SPEED RANGE: 12000 1/MIN SPINDLE MOTOR POWER: 28 KW NUMBER OF AXIS: 3 MOVEMENT X-AXIS MOVEMENT: 1250 MM Y-AXIS MOVEMENT: 880 MM Z-AXIS MOVEMENT: 800 MM WORKPIECE WORKPIECE WEIGHT: 2500 KG TABLE OUTER LENGTH: 1500 MM OUTER WIDTH: 1000 MM TOOLS SLOTS IN STORAGE: 30 MAX WEIGHT: 10 KG TYPE OF TOOL HOLDER: SK 40 MEDIA POWER CONSUMPTION: 58 KVA Additional Equipment - INCLUDES 20 PCS OF TOOL HOLDERS Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - ...
BRAND: DECKEL MAHO YEAR: 2004 MODEL: DMU 50 APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: KR-MIL-DEC-2004-00001 Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 8000 1/MIN TOOL TAPER: SK 4 MOVEMENT X-AXIS MOVEMENT: 500 MM Y-AXIS MOVEMENT: 450 MM Z-AXIS MOVEMENT: 400 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 16 - MANUAL AXIS: 4 - MANUAL AXIS: 5
BRAND: DECKEL MAHO YEAR: 2005 MODEL: DMU 50 APPLICATION TYPE: MILLING LOCATION: EGYPT MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: EG-MIL-DEC-2005-00001 Technical Information GENERAL DATA MEASUREMENTS WIDTH: 3800 MM MEASUREMENTS DEPTH: 2300 MM MEASUREMENTS HEIGHT: 2300 MM MACHINE WEIGHT: 4500 KG CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 CNC MAIN LANGUAGE: ENGLISH MAIN DRIVE SPINDLE SPEED RANGE: 0 - 10000 1/MIN AXIS: 3 + 2 Axis Poisoning, not evolution WORKPIECE WORKPIECE X: 500 MM WORKPIECE Y: 450 MM WORKPIECE Z: 400 MM TABLE OUTER LENGTH: 500 MM OUTER WIDTH: 500 MM TOOLS SLOTS IN STORAGE: 30 MACHINE SPECIFIC DATA POWER MEAS. BY SOFTWARE: 380 V
BRAND: DECKEL MAHO YEAR: 2005 MODEL: DMU 50 PRODUCTION HOURS: 24381 APPLICATION TYPE: MILLING LOCATION: GERMANY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: 01/06/2023 CONTROL UNIT BRAND: SIEMENS GINDUMAC ID: DE-MIL-DEC-2005-00002 Technical Information CONTROL UNIT BRAND: SIEMENS MODEL: SINUMERIK 840 D POWERLINE MAIN DRIVE NUMBER OF AXIS: 3+2 MEDIA MAIN ELECTRONIC CONNECTION: 400 V POWER CONSUMPTION: 17 KVA CHIP CONVEYOR: YES
BRAND: DECKEL MAHO YEAR: 2004 MODEL: DMU 50 APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 10000 1/MIN TOOL TAPER: SK40 MOVEMENT X-AXIS MOVEMENT: 500 MM Y-AXIS MOVEMENT: 450 MM Z-AXIS MOVEMENT: 400 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 16 - MANUAL AXIS: 4 - MANUAL AXIS: 5
BRAND: DECKEL MAHO YEAR: 1999 MODEL: DMU 50 T APPLICATION TYPE: MILLING LOCATION: GERMANY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: DECKEL MAHO GINDUMAC ID: DE-MIL-DEC-1999-00006 Technical Information GENERAL DATA MEASUREMENTS WIDTH: 3000 MM MEASUREMENTS DEPTH: 2500 MM MEASUREMENTS HEIGHT: 2200 MM MACHINE WEIGHT: 3500 KG CONTROL UNIT BRAND: DECKEL MAHO MODEL: MILLPLUS MAIN DRIVE SPINDLE SPEED RANGE: 9000 1/MIN NUMBER OF AXIS: 3 + 2 MOVEMENT X-AXIS MOVEMENT: 500 MM X-AXIS WORKING FEED: 10.000 MM/MIN X-AXIS RAPID TRAVERSE: 12M/MIN Y-AXIS MOVEMENT: 400 MM Y-AXIS WORKING FEED: 10.000 MM/MIN Y-AXIS RAPID TRAVERSE: 12M/MIN Z-AXIS MOVEMENT: 400 MM Z-AXIS WORKING FEED: 10.000 MM/MIN Z-AXIS RAPID TRAVERSE: 12M/MIN TABLE OUTER LENGTH: 700 MM OUTER WIDTH: 500 MM NUMBER OF TSLOTS: 7 DISTANCE BETWEEN: 63 MM ...
BRAND: DECKEL MAHO YEAR: 2003 MODEL: DMU 50 T APPLICATION TYPE: MILLING LOCATION: SOUTH KOREA MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN Technical Information CONTROL UNIT BRAND: HEIDENHAIN MODEL: ITNC 530 MAIN DRIVE SPINDLE SPEED RANGE: 10000 1/MIN TOOL TAPER: SK 40 MOVEMENT X-AXIS MOVEMENT: 500 MM Y-AXIS MOVEMENT: 450 MM Z-AXIS MOVEMENT: 400 MM Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - TOOLS: 16 - MANUAL AXIS: 4 AXIS
DECKEL MAHO DMU 50V CNC machining centre built in Germany in 2000, is used for precision machining of metal workpieces. Workpieces with a maximum weight of 180 kg are machined in X/Y/Z axes with feed rates of 500 mm (X axis), 380 mm (Y axis) and 380 mm (Z axis). High precision and a significant reduction of the workpiece milling time are guaranteed by the installed spindle with a power of 15 kW, rotating at a maximum speed of 15000 rpm. The vertical machining centre is equipped among others the working table with a length of 800 mm and width of 480 mm, as well as a built-in magazine with changer, capable of storing 24 tools with a diameter of 80 mm. The operator’s high level of comfort and convenience is guaranteed by a control panel with an installed intuitive HEIDENHAIN TNC 426 numerical control, allowing all the machining parameters to be programmed. The total weight of the milli ...
BRAND: DECKEL MAHO YEAR: 1999 MODEL: DMU 60 E PRODUCTION HOURS: 21584 APPLICATION TYPE: MILLING LOCATION: GERMANY MACHINE TYPE: MACHINING CENTERS (VERTICAL) AVAILABILITY: IMMEDIATELY CONTROL UNIT BRAND: HEIDENHAIN GINDUMAC ID: DE-MIL-DEC-1999-00007 Technical Information GENERAL DATA MEASUREMENTS WIDTH: 3000 MM MEASUREMENTS DEPTH: 2200 MM MEASUREMENTS HEIGHT: 2400 MM MACHINE WEIGHT: 4500 KG CONTROL UNIT BRAND: HEIDENHAIN MODEL: MILLPLUS V410 MAIN DRIVE SPINDLE SPEED RANGE: 20 - 12000 1/MIN MOVEMENT X-AXIS MOVEMENT: 600 MM X-AXIS RAPID TRAVERSE: 18 M/MIN Y-AXIS MOVEMENT: 525 MM Y-AXIS RAPID TRAVERSE: 18 M/MIN Z-AXIS MOVEMENT: 500 MM Z-AXIS RAPID TRAVERSE: 15 M/MIN TABLE TABLE LOAD: 350 KG TOOLS TYPE OF TOOL HOLDER: SK 40 MEDIA POWER CONSUMPTION: 26 KVA Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - FEED RATE: ...
