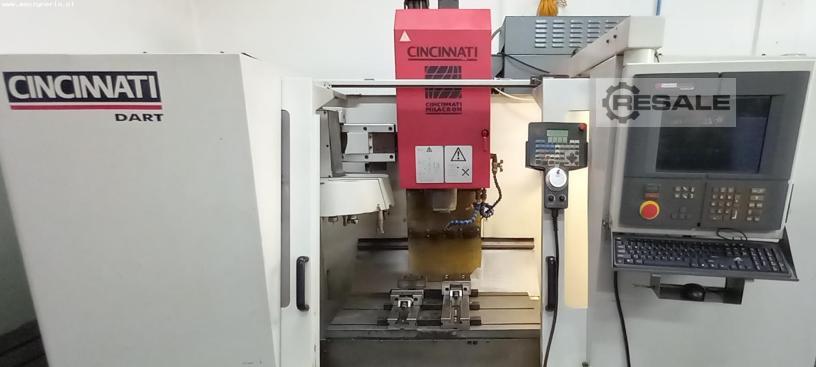

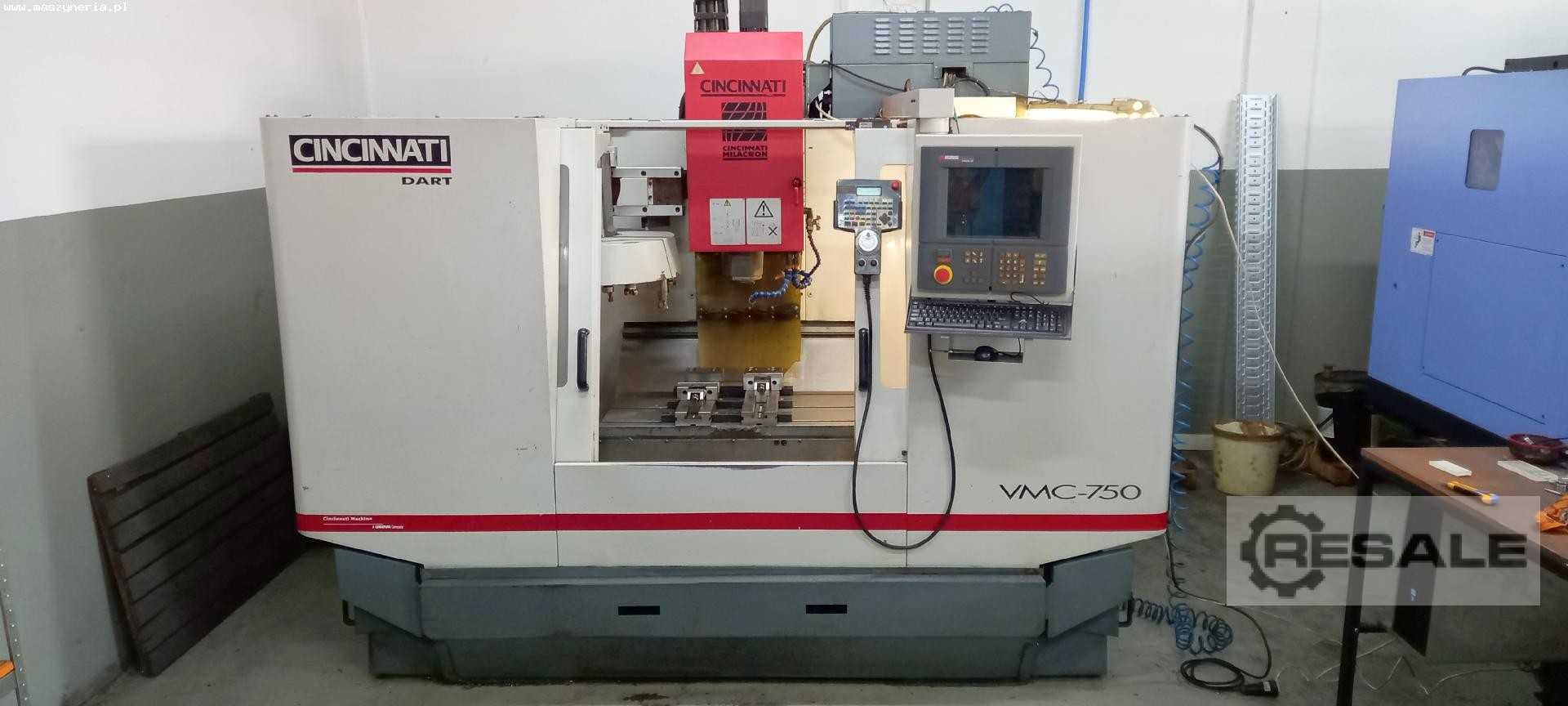

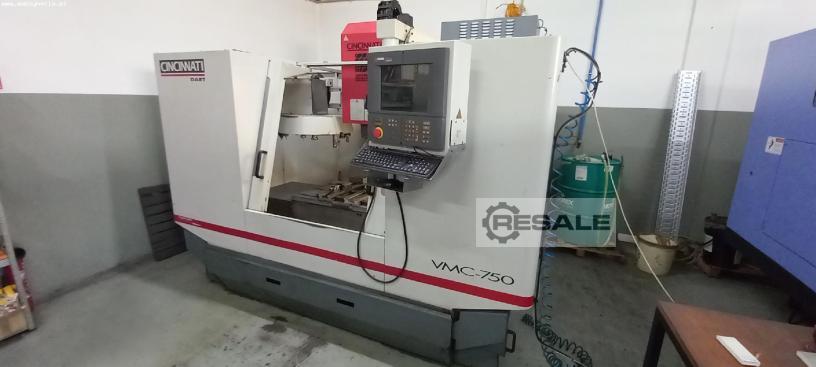

CINCINNATI MILACRON DART 750 CNC vertical machining center was built
in 1999 in the UK by Cincinnati Milacron U.K. Limited. The machine,
designed for machining workpieces with a maximum weight of 455 kg, is
distinguished by its outstanding precision, efficiency and

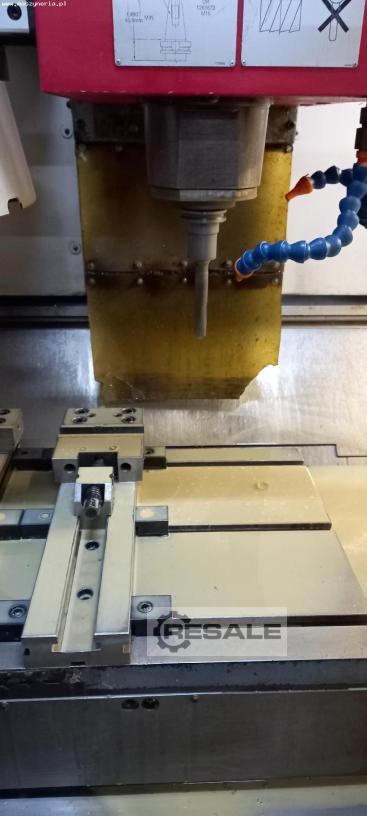

reliability. The machining process is performed on a large work table
with a length of 950 mm and a width of 520 mm, by means of a
high-speed spindle and cutting tools taken from a 21-position
magazine. High process stability, even during the most intensive
challenges, is in turn ensured by an extremely rigid design made of
top-quality steel. All this is completed by a CNC controller with
dialogue programming. The CINCINNATI MILACRON DART 750 CNC machining
center weighs approximately 3500 kg.
Technical specifications of the CINCINNATI MILACRON DART 750 CNC
milling machine

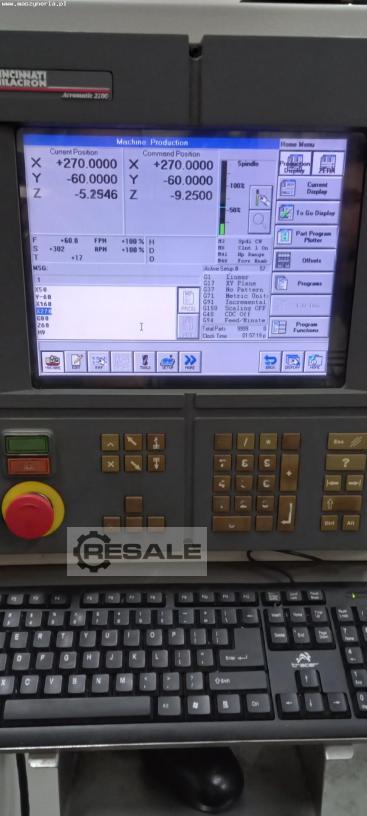

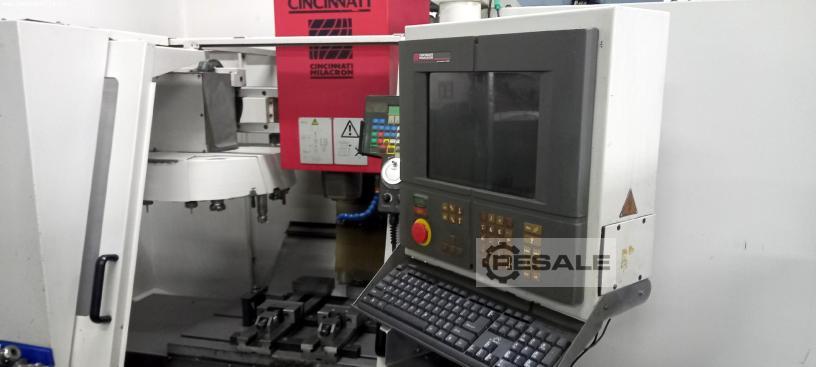

- CNC controller: ACRAMATIC 2100
- number of axes: 4
- feed in the X/Y/Z M51251405 axis: 750/510/510 mm
- rapid traverse in the X,Y,Z axis: 16 m/min
- work table dimensions (L x W): 950 x 520 mm
- maximum workpiece weight: 455 kg
- maximum spindle rotational speed: 6000 rpm
- spindle taper: ISO 40
- 21-position tool magazine
- tool change time: 8 s
- number of T-slots: 3

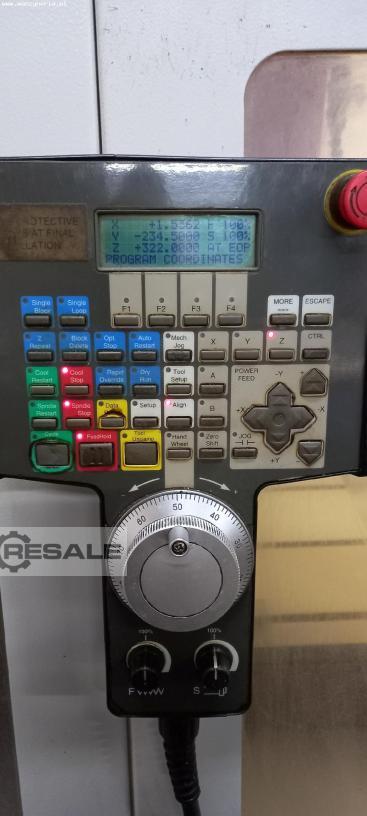

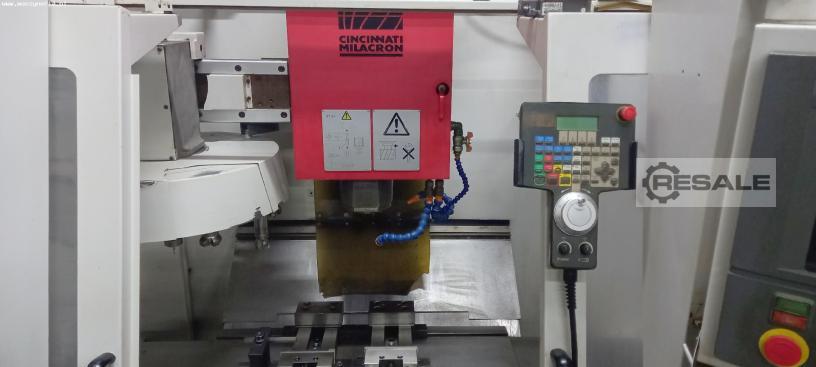

- portable control unit (pendant)
- weight of the CINCINNATI DART VMC-750 machine: approx. 3500 kg
