Model
(Manufacturer: DECKEL)

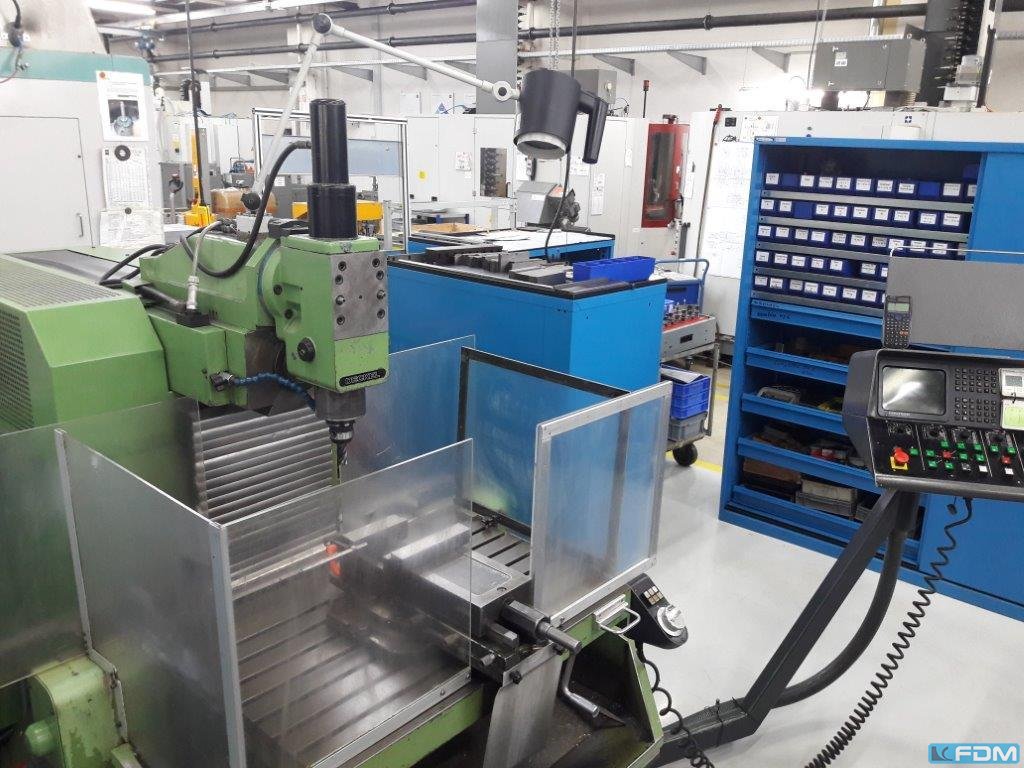

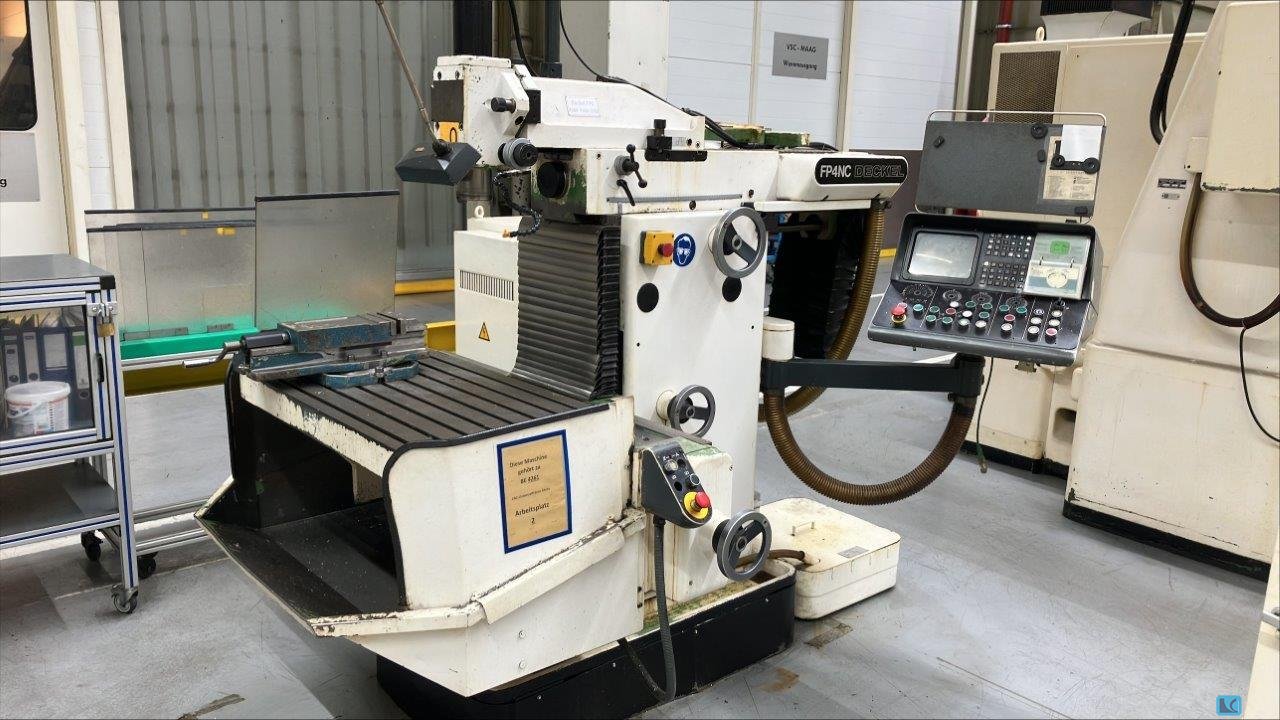

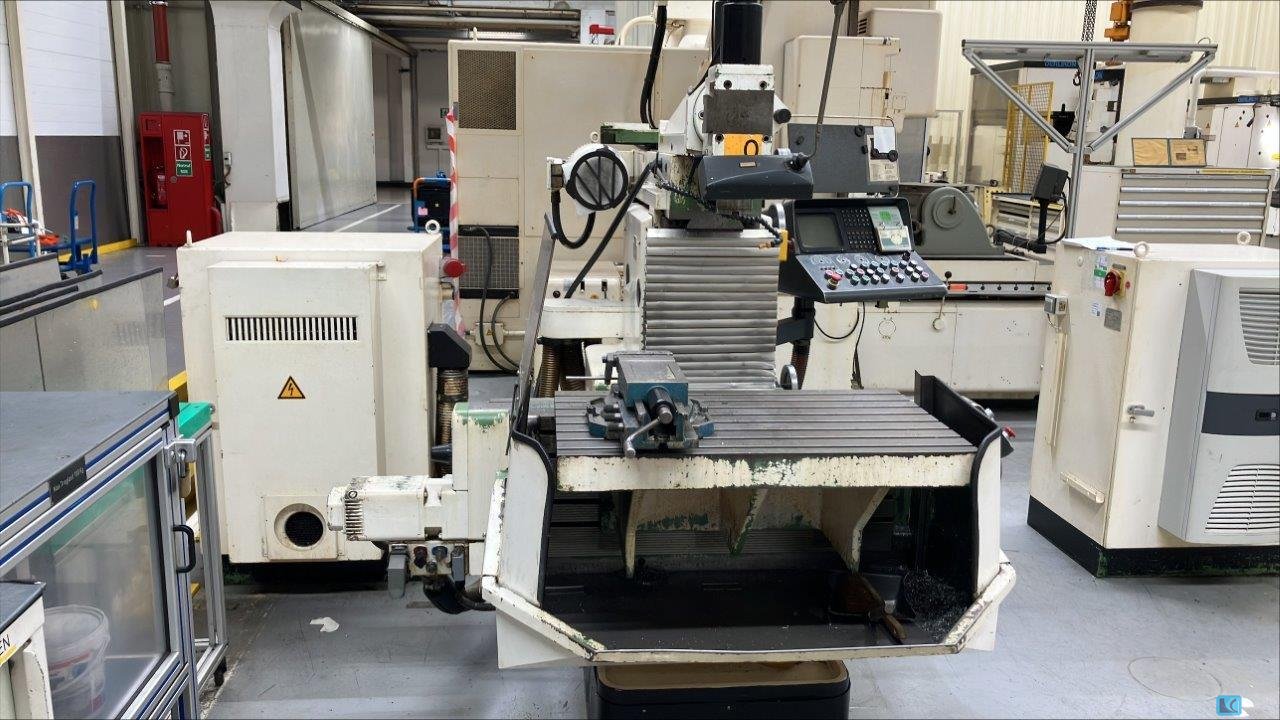

Description Universal tooling machine from Lid suitable for tooling, fixture construction, training as well as mold making Technical data Year of construction / YOM 1991 Speeds / Spindle 63 - 6300 rpm Steuerung Control CNC Grundig Dialog 11 Vorschübe / Feeds 2 - 3000mm/min Tisch / Table 910 x 530mm Recording / Taper ISO 40 Way / Travel (X,Y,Z) 600x500x500mm Weight /Weight ca 1830kg Changer / Tool changer No Dimensions / Dimension 2500x2000x2000mm Travel: 600x500x500mm Speed: 31.5 - 6300 rpm The machine comes from a tool making and has been regularly serviced.

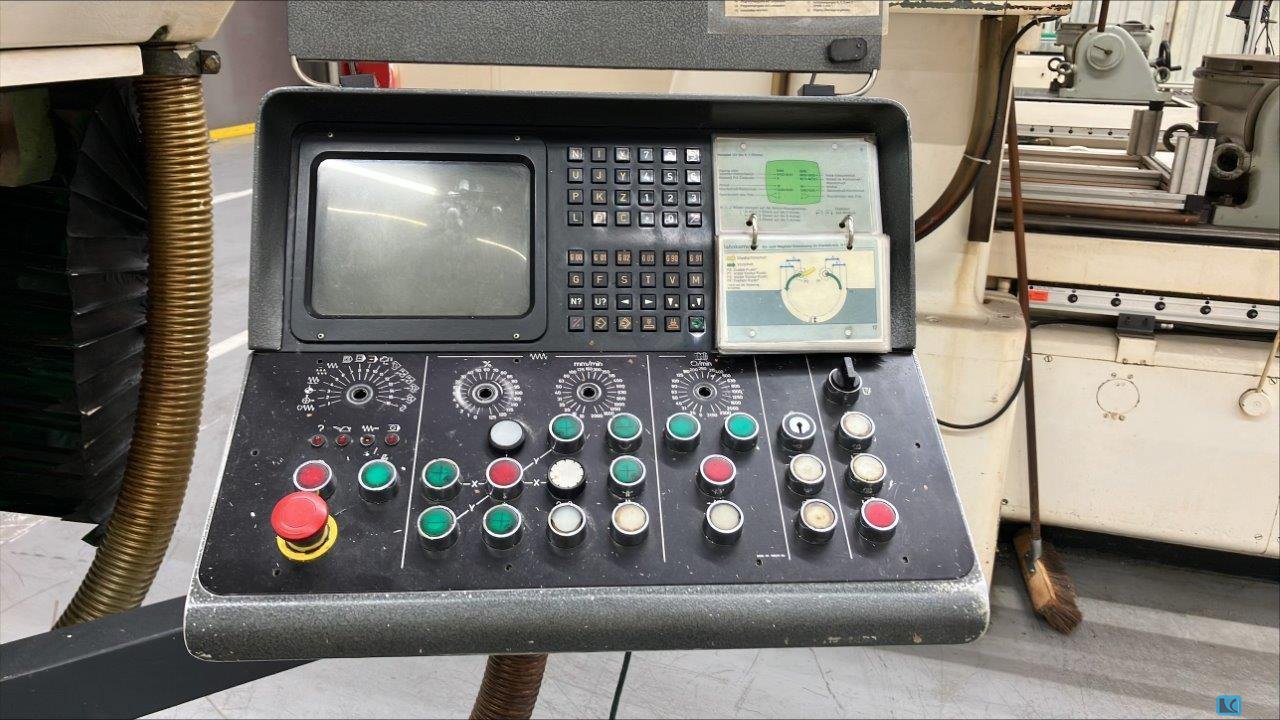

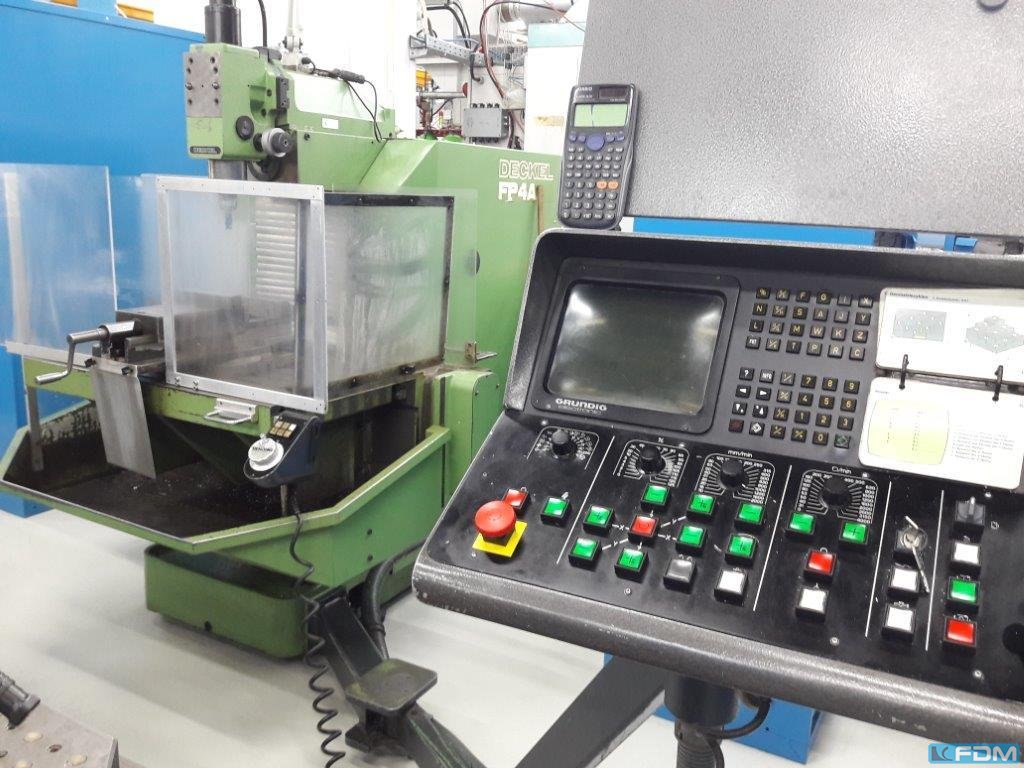

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm

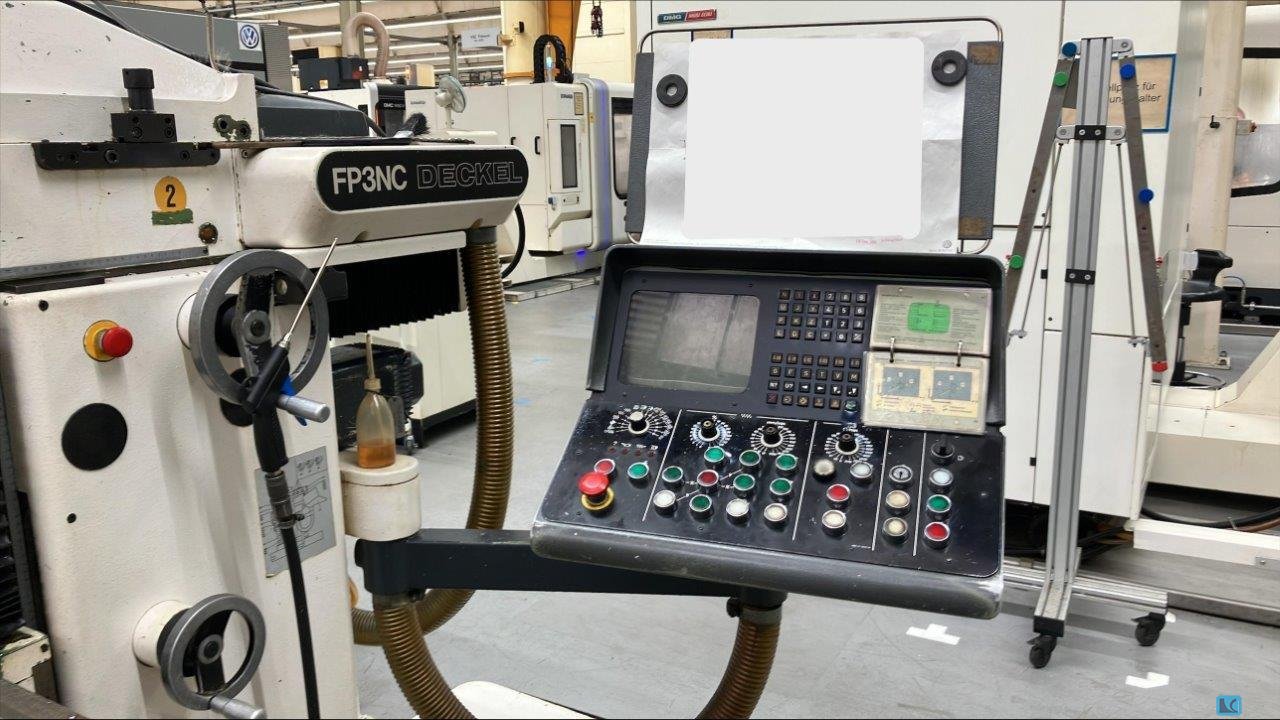

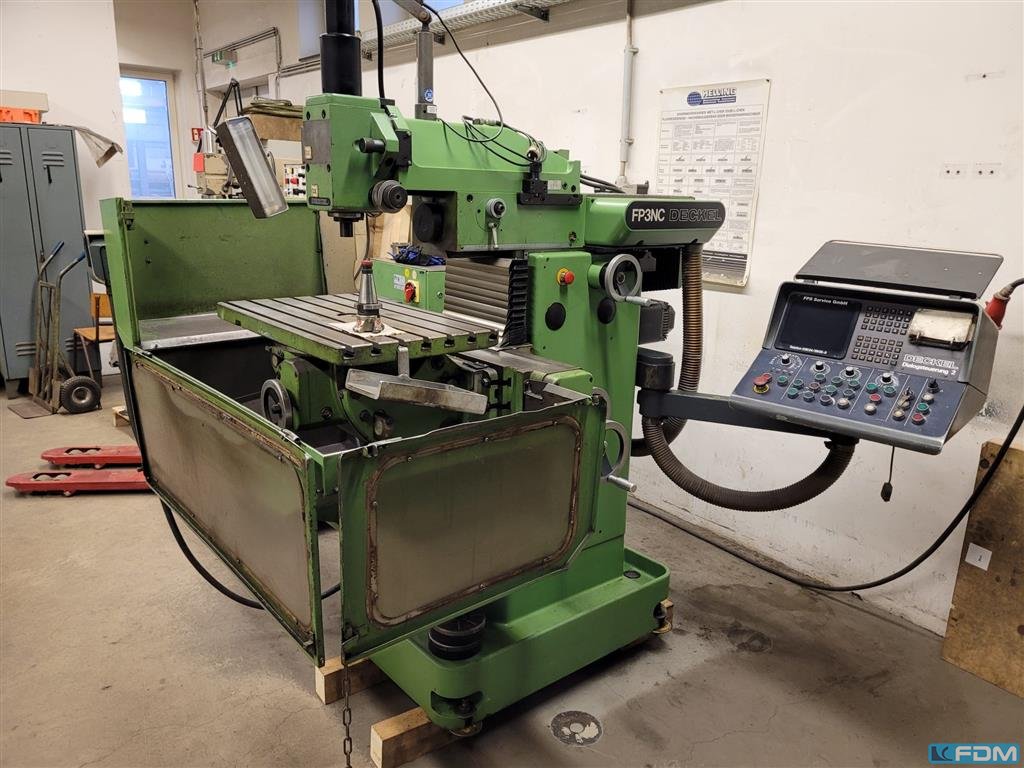

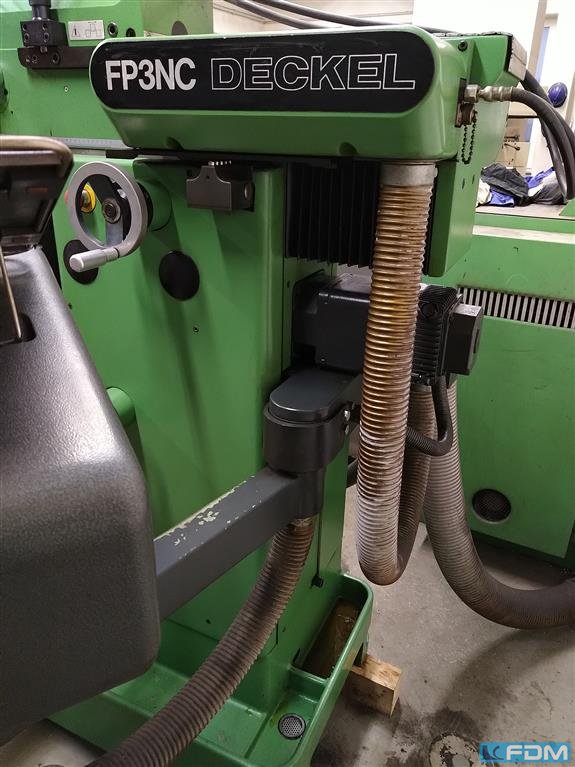

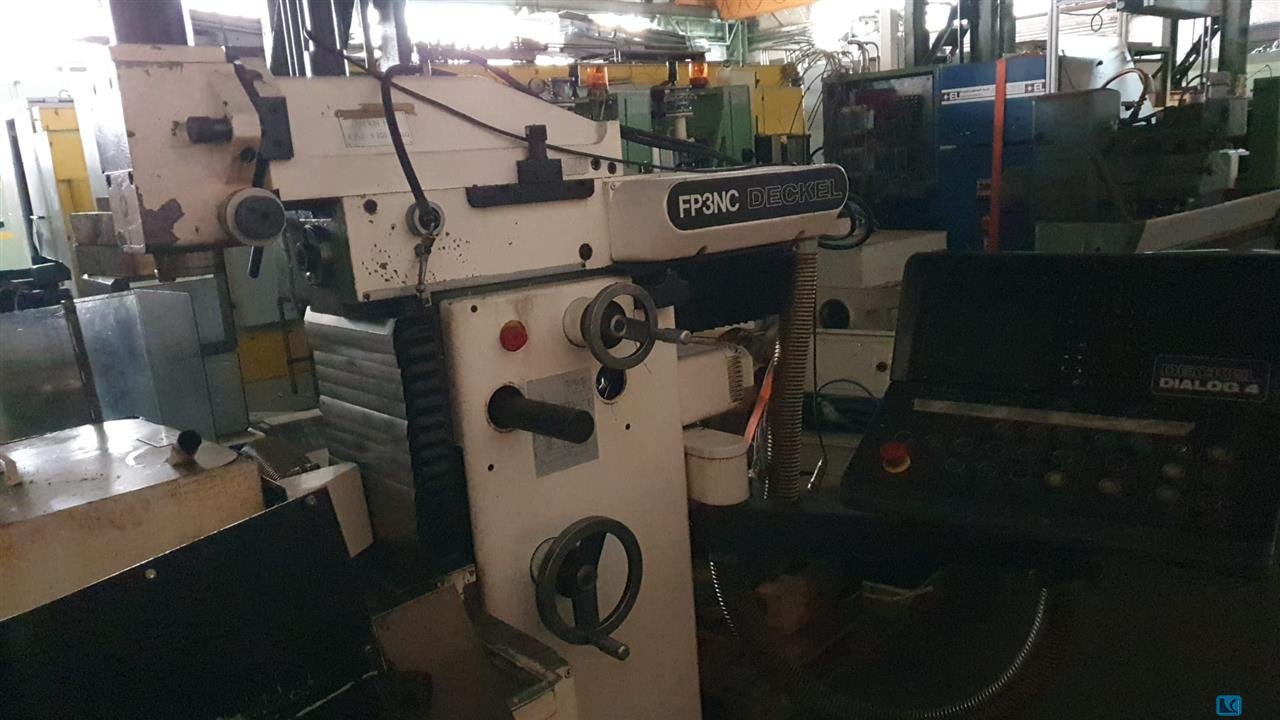

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW
- travel range: X= 485, Y= 385, Z= 380 mm - table size: 800 x 460 mm - tool holder: SK 40 - dimensions LxWxH: 2440 x 1800 x 2100 mm - weight: ca. 2.000 kg
Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active
1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...
Manufacturer: Lid Type: DE10C Year of construction: 1997 Following the technical data: Table dimensions L x b 390 x 280 mm traverse path: X - axis: 250 mm, Y - axis: 180 mm, Z - axis: 250 mm Table - Quill distance min./max.: 240 / 490 mm Table load: Max: 250 kg
DECKEL GK21 Engraving frause machine More: DECKEL G1L Engraving fraese
2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures
Three T-slot plates of a copy-fraes machine from Lid are offered. The T-slot plates can be mounted as a cross table. Scope of delivery only according to photos, without spindles. If you are interested, please request more photos. Further spare parts of lide e.g. towing table of a KF3 pre-wheels. Please ask. Special price Lid cabinet tool cabinet
Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg
Operating voltage: 380/400 volts with digital positioning display x,y, without feed in y direction, with angular table, work surface with 4 T-slots Mistakes reserved!
x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020

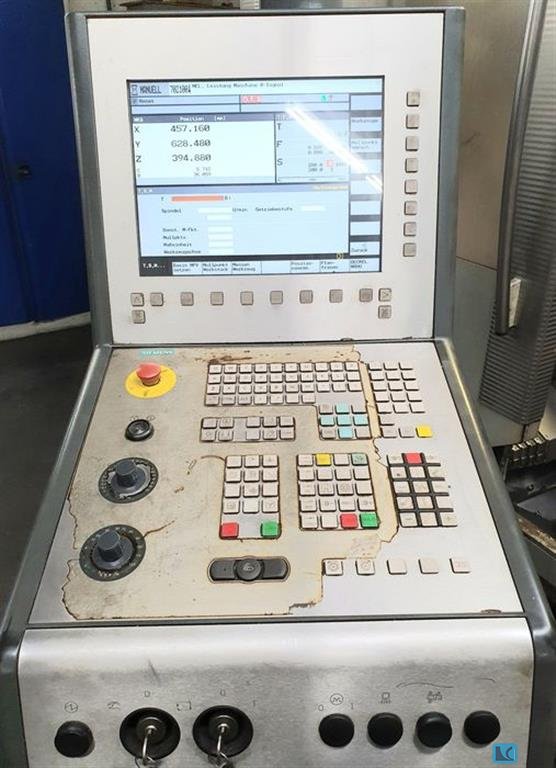

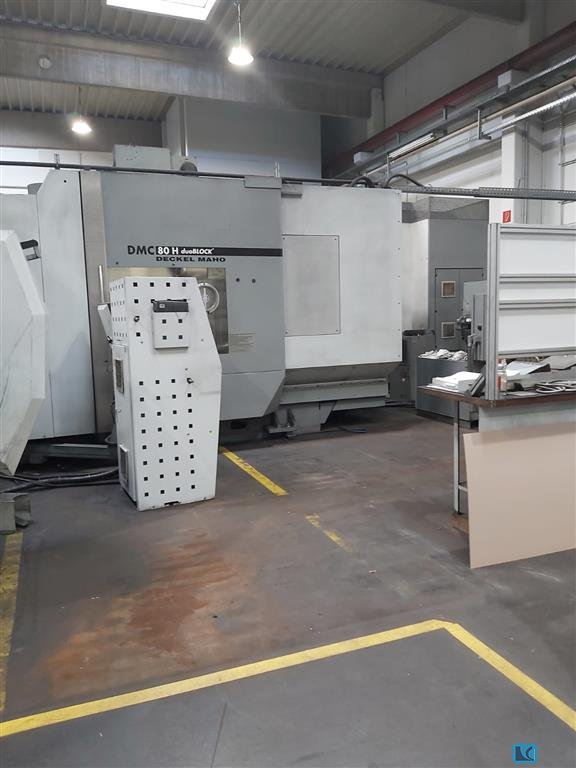

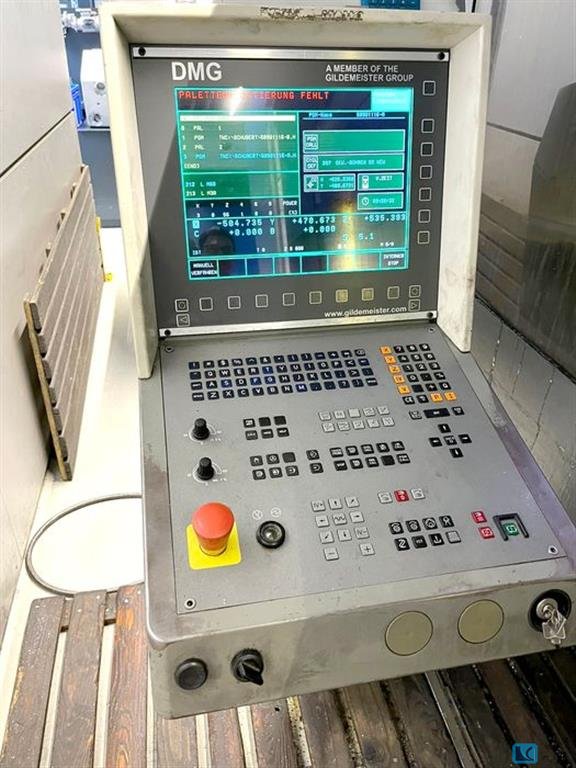

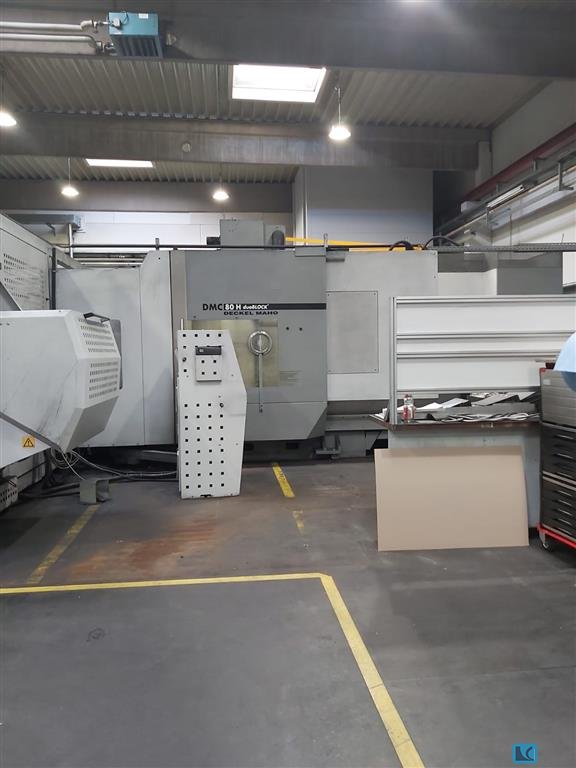

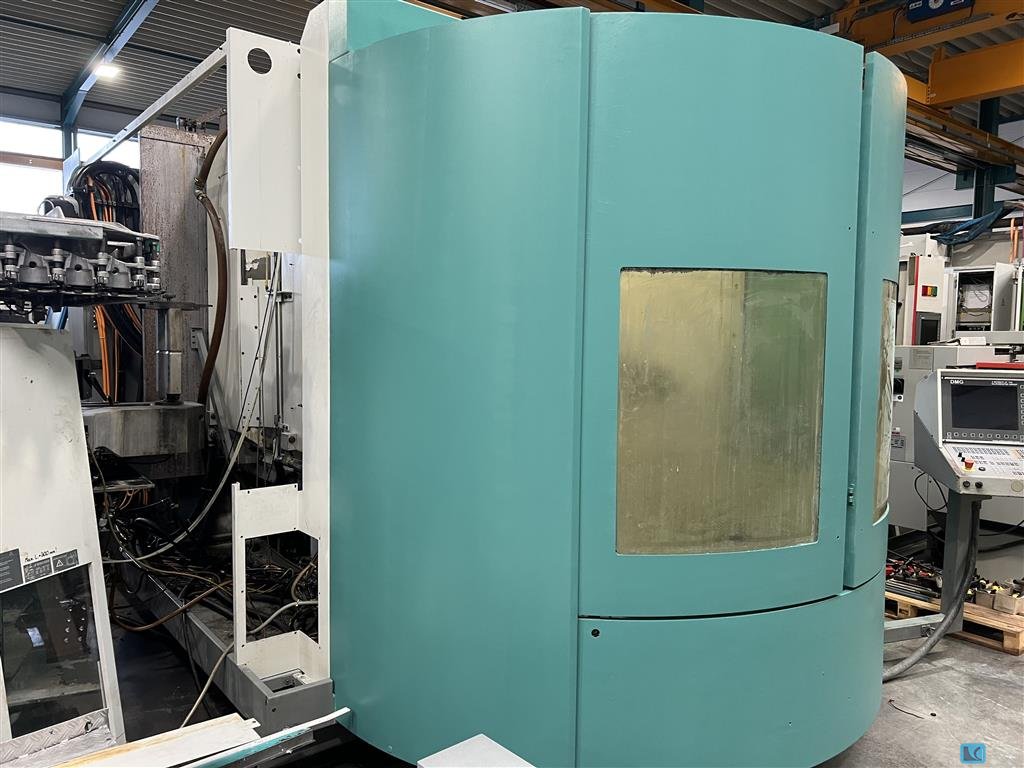

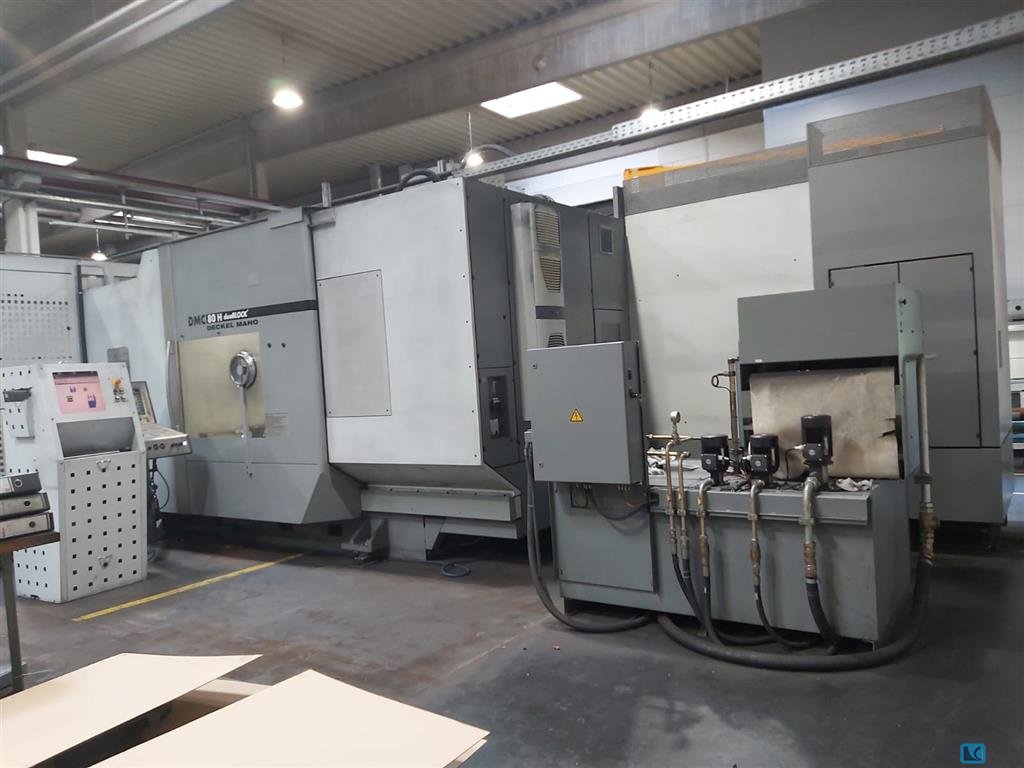

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:12.000 1/min tool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fach size of pallet:630 x 630mm mm spindle:52 kW / 430Nm total power requirement:87 kVA weight of the machine ca.:15 t dimensions for transport:4,6 x 2,95 x 2,7 m horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours
x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm

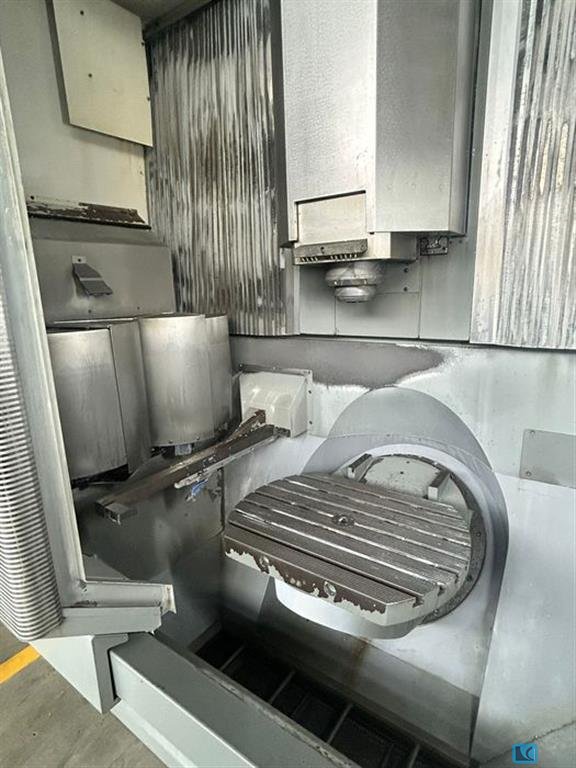

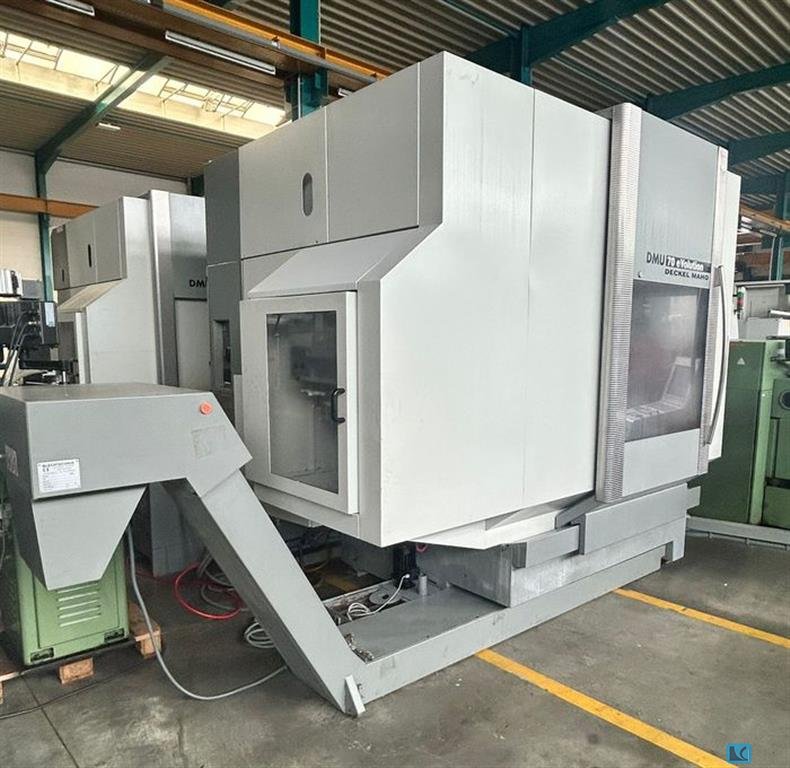

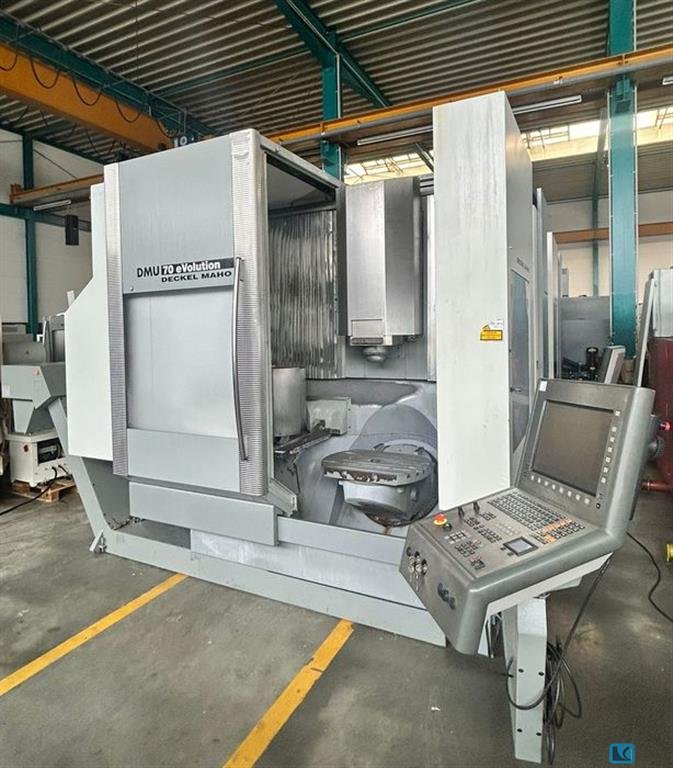

x-travel:750 mm y-travel:600 mm z-travel:520 mm table surface area:D 700 x 500 mm turning speeds:30000 1/min tool taper:HSK E50 control:HEIDENHAIN iTNC 530 tool change unit:60 pos. rapid traverse:50 m/min table load capacity - central/maximum:350 kg total power requirement:50 kVA weight of the machine ca.:9 t dimensions of the machine ca.:3,2 x 2,65 x 2,8 m 5-axis simultaneously HSC-machining center, NC-round-swivelling table B-axis 180°, C-axis 360°, chip conveyor, el. handwheel, laser, prepared for 3D touchprobe HEIDENHAIN TS 641 (without touchprobe), mode 4, oilmist suction, spindle chiller, no internal coolant supply, approx. 141.300 hours "machine on", approx. 64.500 hours "spindle on" in total machine in good condition (test report available)

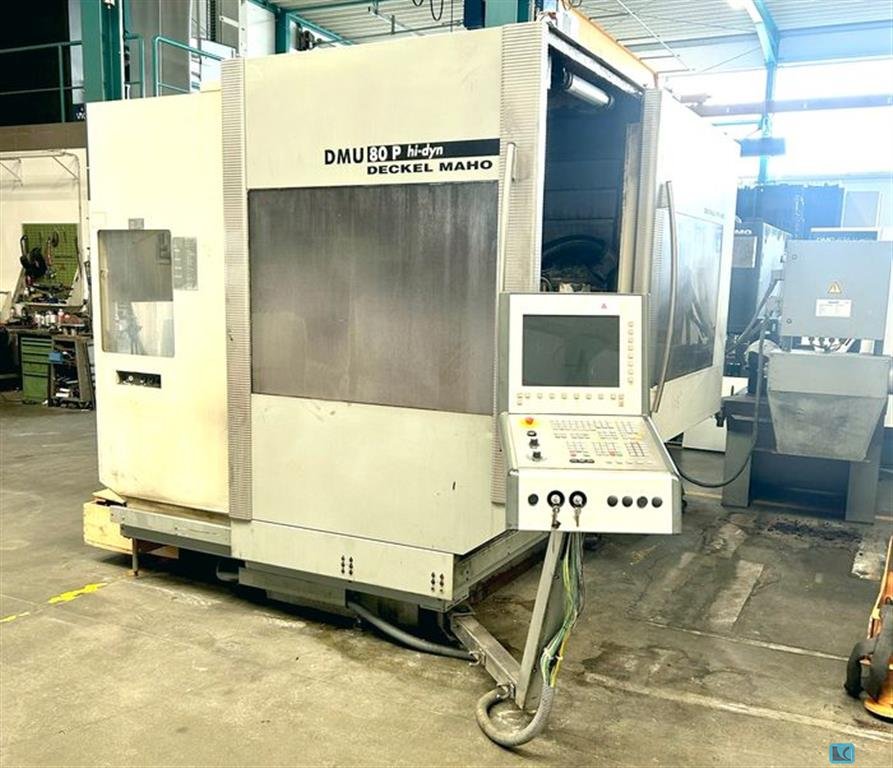

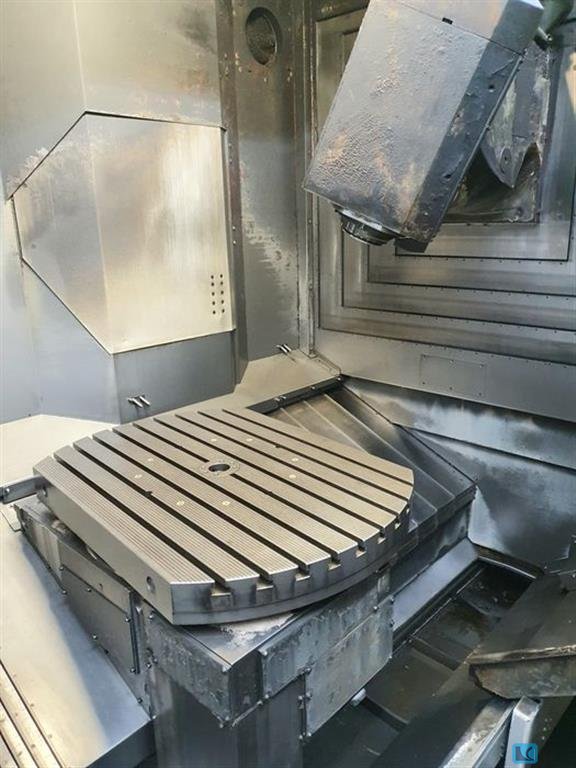

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)

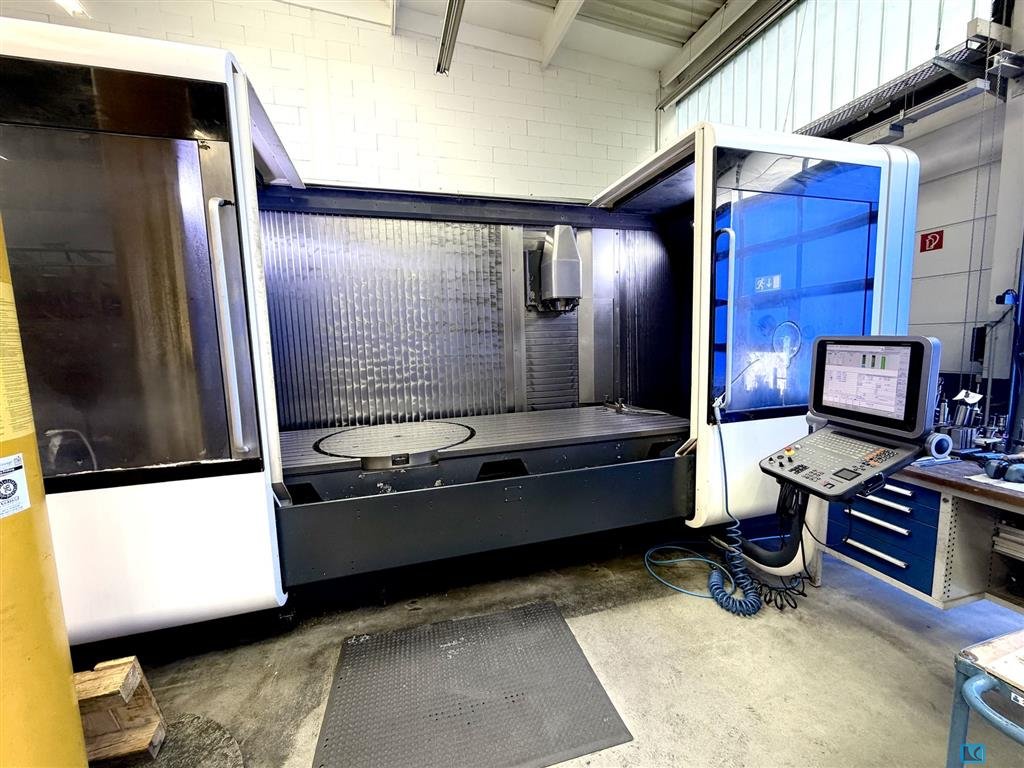

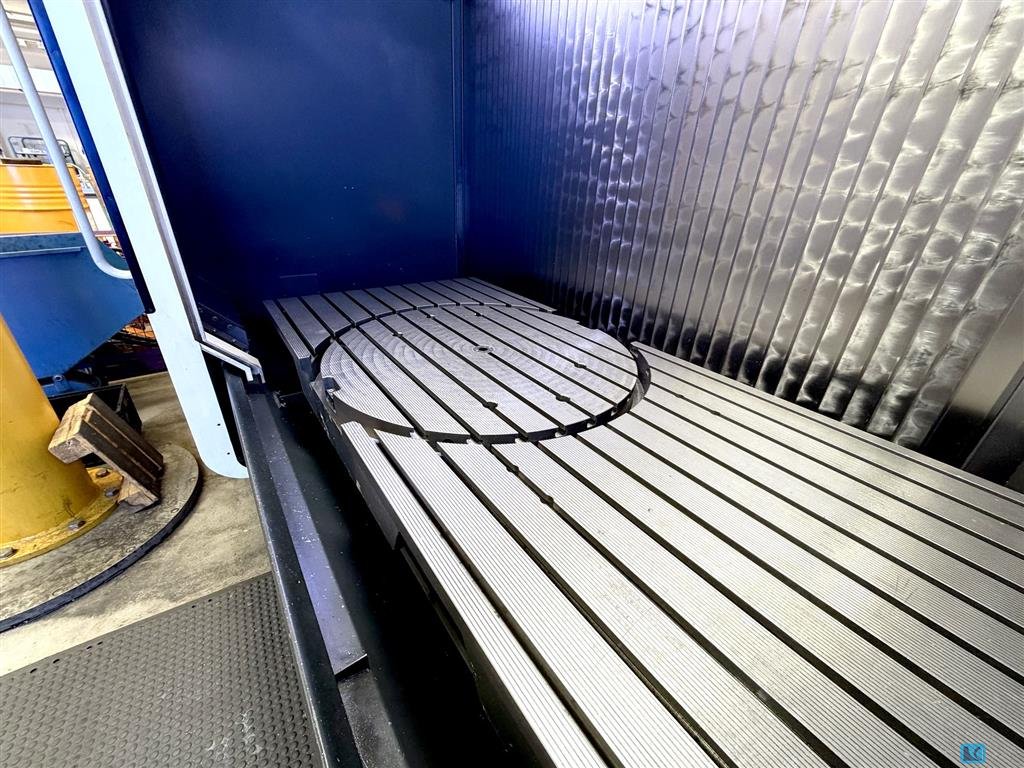

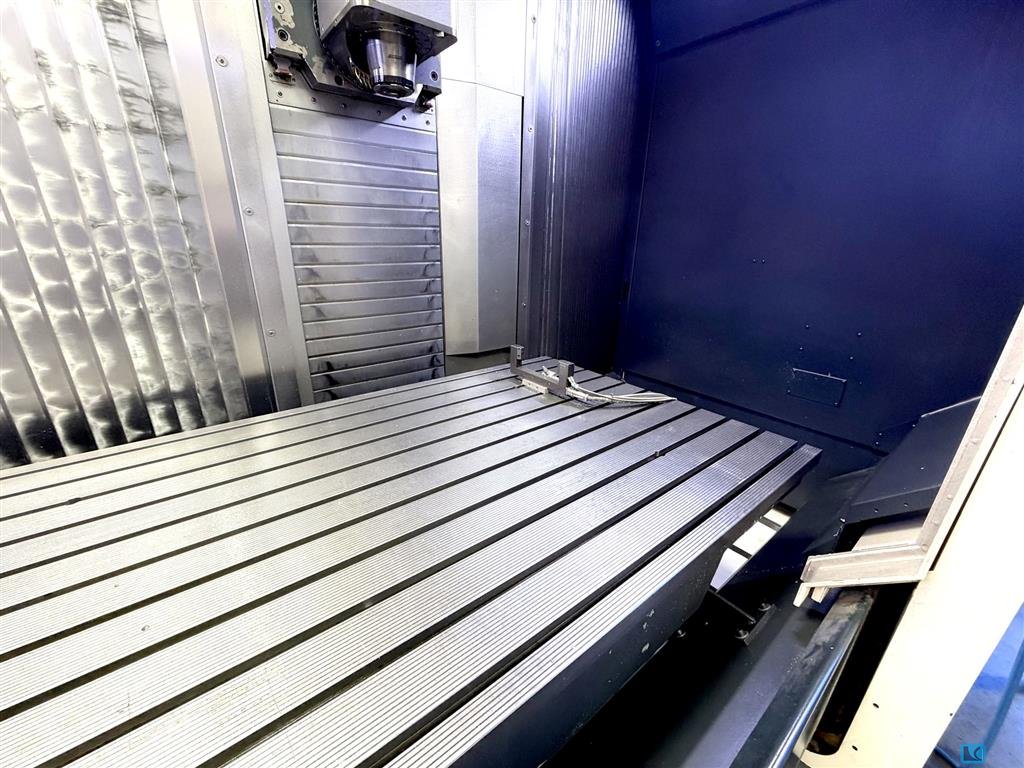

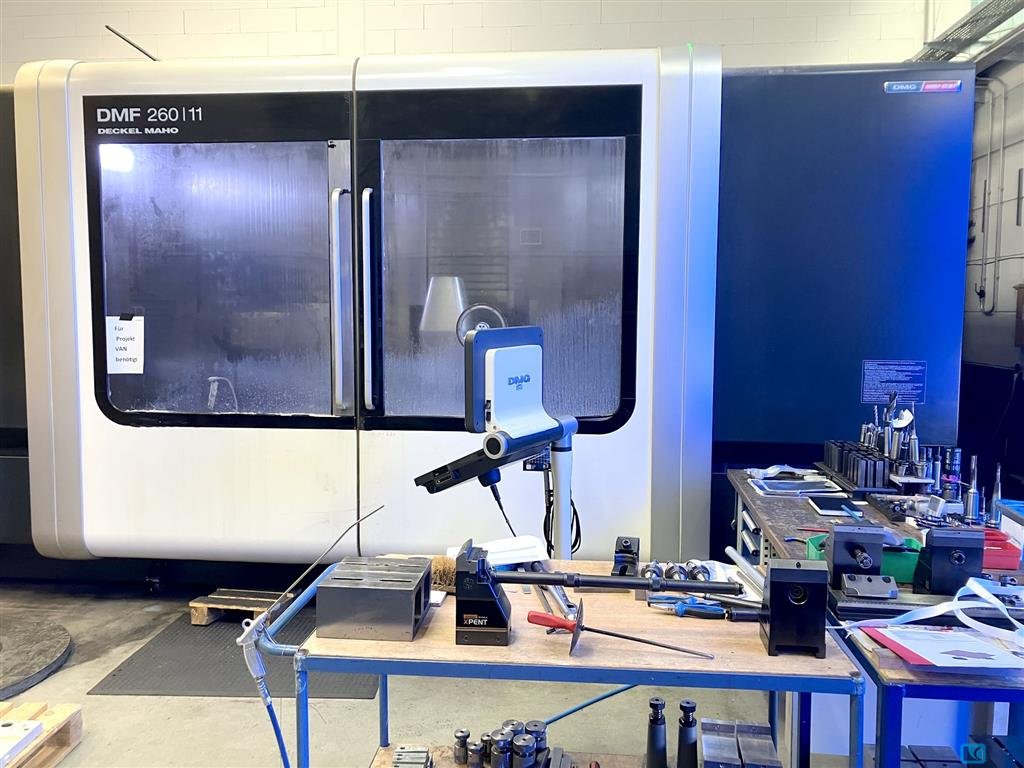

x-travel:2600 mm y-travel:1100 mm z-travel:900 mm table surface area:3200 x 1100 mm rotary table diameter:1050 mm table load:1,2 t control:Heidenhain iTNC 530 ergoline 19" turning speeds:20 - 10.000 1/min taper ISO:SK 50 max. torque on the spindle:288 / 187 Nm tool change unit:60 Pos. rapid traverse:40 m/min spindle:44 / 32 kW weight of the machine ca.:25 t dimensions of the machine ca.:6,70 x 3,40 x 2,95 m 5-axis universal machining center, rigid table with integrated NC-rotary table left side and B-axis in milling head, direct measuring system, internal Coolant 40 bar, coolant tank 600 l, Swarf Conveyer Rotoclear airblast through spindle, 3D Touch probe HEIDENHAIN TS 649, mode 4, prepared for 3D quick set (software yes, hardware no), new milling spindle in 2022 at 25.584h approx. 60.000 h machine ON, approx. 31.000 h Programm ON in total
x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts
x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

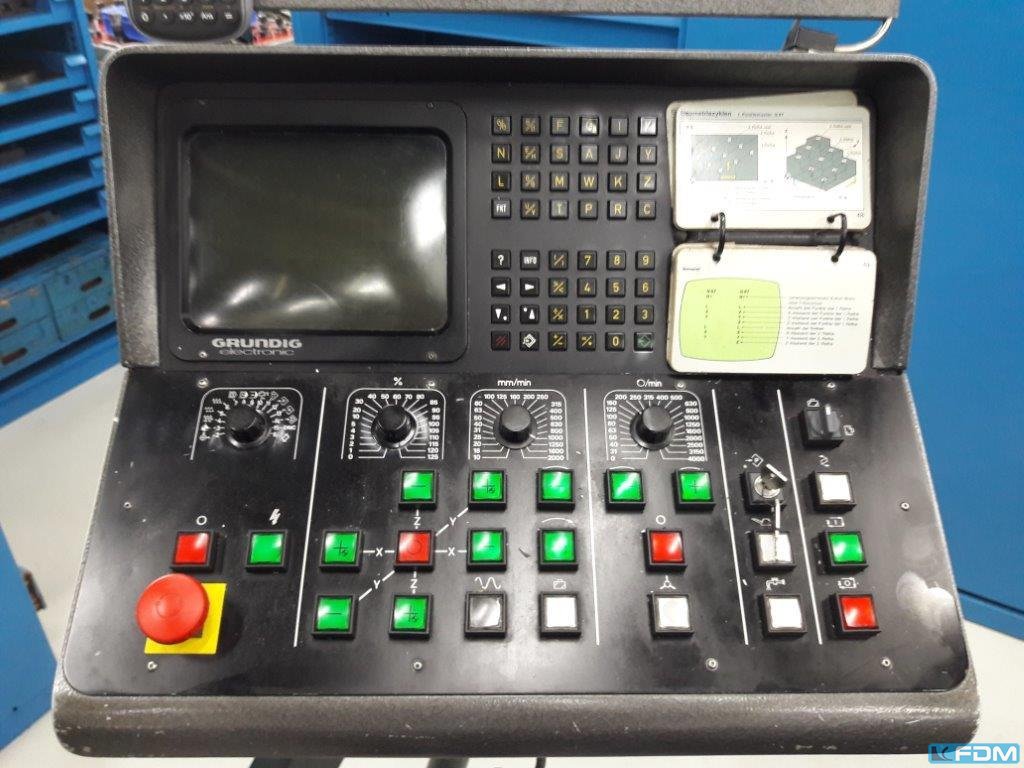

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden
x-travel: 1200 mm y-travel: 600 mm z-travel: 500 mm Control: Dialog 11 turning speed range: 0 - 6.300 U/min spindle taper ISO: 40 total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 4 x 3 x 2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Universal milling head, milling chuck, milling extension, angle milling head -Manufacturer: Deckel, milling head from milling machine FP4L -Mounting: SK40 -Milling head: swiveling -Tool clamp: electric motor -Individual components: see photos -Transport dimensions: 1690/360/H745 mm -Weight: 548 kg
