DECKEL fp3 used machines

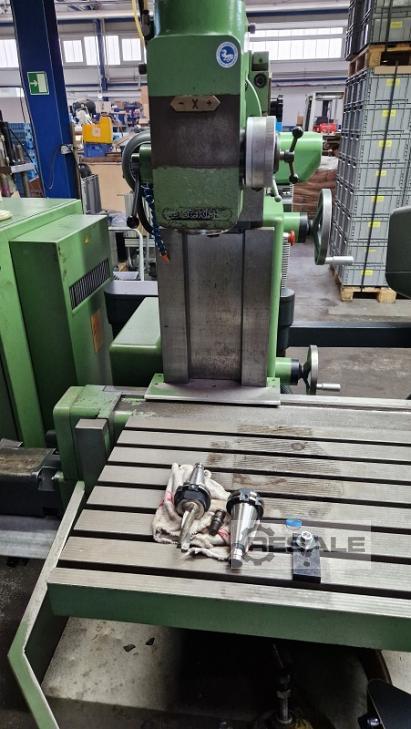

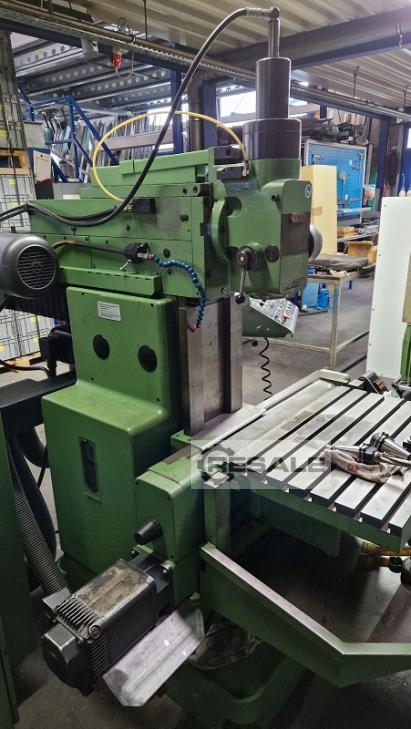

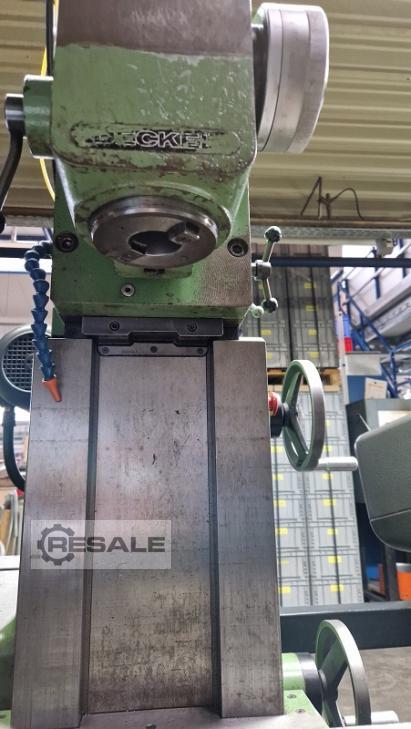

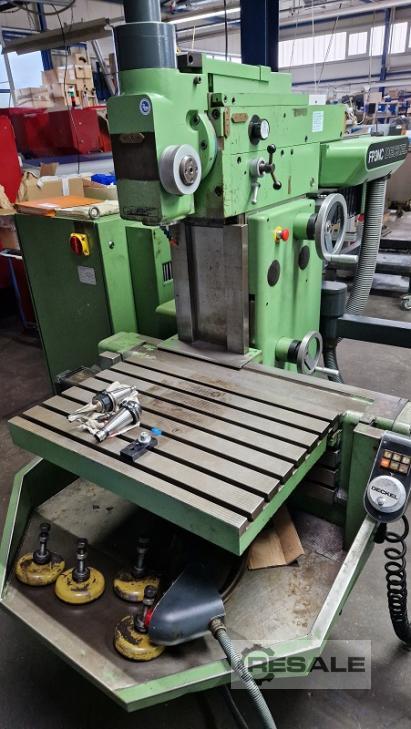

Milling machine DECKEL FP3 - 500x300x400 mm, DRO, Information about technical data are not binding., Machine available subject to prior sale, Working table size: 800x420 mm, Longitudinal travel x axis: 500 mm, Cross travel y axis: 300 mm, Vertical travel z axis: 400 mm, Spindle taper: 40 SK, Spindle speed: 40 - 2000 rpm, Number of spindle speeds: 18, Spindle motor power: 3 Kw, Quill spindle travel: 100 mm, Working feed x-z axes: 5 - 500 mm/1, Rapid feed x-z axes: 1.500 mm/1, Number of working feeds: 18, Weight: 1.200 Kg

Tool Milling Machine Cover FP3 2201 Travel XYZ: 500-300-380mm Spindle holder : ISO 40 S20x2 Spindle speeds: 40 to 2000 Universal table (or angle table) With active digital display on 3 axes Heidenhain TNC 113 Drill quill hor and vert Stepless feed and rapid traverse on all 3 axes Motor 3 Kw Built in 1979 220 Volt 3ph (with transformer 400-220V if necessary) The machine has been technically tested

Deckel FP3A 2820 - CNC Milling Machine - Deckel Contour 3 CNC control - Movable vertical milling head with extendable spindle - Counter bearings for long milling mandrels - Hydraulic tool clamp - Automatic speed manual transmission - Automatic clamping in X/Y/Z axes - Automatic central lubrication - Coolant device - Direct displacement measurement - Collision protection clutch in Z/Y axes - Built in 1987 Specifications Workspace: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke vertical: 80 mm Cpovd9Rv - Vertical milling head can be moved to the headrest: 150 mm Main Drive: - Motor: pole-switchable three-phase brake motor and manual transmission with clockwise/counterclockwise rotation - Power: 3.7 / 4.4 kW - 18 working spindle speeds: 50 - 2500 rpm - Level Jump: 1.25 - Tool holder: SK40 (M16) - Tool  ...

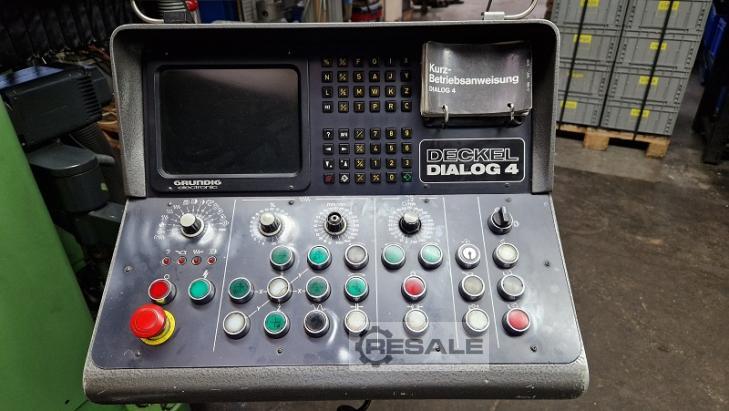

Travel X= 400, Y= 400; Z= 340 mm Table surface 700x460mm Speed range 40 - 4000 rpm Feed range 02 - 3600 mm/min Express feed rate 4.0 m/min Head can be swivelled by +/- 90° Quill stroke 80mm Spindle holder SK 40 Control Dialog 4 Total power requirement 5.5 kW Machine weight approx. 1,900 kg Space requirement approx. 2,000 x 1,400 x 1,800 mm

x-travel: 400 mm y-travel: 400 mm z-travel: 400 mm control: Grundig Contour tool taper: SK40 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tool diameter: mm sanding disc diameter: mm Motor output: 3 kW total power requirement: 3 kw Weight: 1.400 kg Overall size: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 990 mm, 390 mm, 590 mm

For sale is a robust and powerful universal milling machine of the brand DECKEL, type FP33. The machine impresses with its high stability, generous travel distances and SK50 tool holder – ideal for workshops, maintenance or manufacturing companies with high requirements. Technical data: Manufacturer: DECKEL Type: FP33 Tool holder: SK 50 Travels:  • X = 990 mm  • Y = 390 mm  • Z = 590 mm Table size (L x W): 1200 mm x 1000 mm Spindle speed: 31.5 – 1600 rpm Motor power: 5.5 kW Machine weight: approx. 4,500 kg Dimensions (L x W x H): 3300 x 2500 x 2000 mm ⚙️ Condition & Notes: Good general condition (more details on request) Delivery: Loading on truck possible Viewing possible by appointment

Key data: 600 mm, 200 mm

Machine : Rigid angle tables for milling machines Make : EMCO unused – slight traces of storage Clamping surface : 600x200mm, 4 T-slots 12mm, spacing 45mm Vertical: Hole spacing: 90mm/390mm, for T-slot 12mm Dimensions: Length :60cm ; Width : 20 ; Height : 18cm; Weight: 44 kg PRICE : € 480,- Even larger MAHO or lids, ... Mounting plates: A - Length : 240mm ; Width : 120mm ; Height : 35; 3 T-slots 11mm spacing 45mm, (1x) PRICE : € 100,- B - Length : 420mm ; Width : 125mm ; Height : 46; 2 T-slots 11mm spacing 90mm (4x) PRICE : € 100,- C - Length : 520mm ; Width : 180mm ; Height : 56; 3 T-slots 12mm spacing 45mm (1x) PRICE : € 150,- D - Length : 600mm (660); Width : 180mm ; Height : 75; 2 T-slots 12mm spacing 90mm (3x) PRICE : € 180,-

CNC milling machine, cover FP3A, spare parts machine, control defective / incomplete We sell parts. of this machine, SK40 milling head, with quill, tool changer, ... Control unit, table, spindles, motors, spindle nuts, ... Or total: Euro 2000,- ex works

A CNC universal milling machine Deckel is available. Travel X/Y/Z: 400mm/400mm/400mm, table dimensions X/Y: 700mm/460mm, max. table load: 350kg, tool holder: SK40, quill stroke: 80mm, speed: 4000rpm, feed rate: 3600mm/min, rapid traverse: 4m/min. Machine dimensions X/Y/Z: approx. 1800mm/1800mm/2200mm, weight: approx. 2500kg, control: Contour 3. The tool change magazine is no longer in operation. Documentation available. An on-site inspection is possible.

TOOL MILLING MACHINE - Cover FP 3 incl. Heidenhain 3-axis digital display -Machine with spindle brake motor -Travel X/Y/Z 500x300x400mm -Automatic feeds in all 3-axis -Rapid traverses in all 3-axes -Heidenhain 3-axis digital display -Speed range 40-2000 rpm -Vertical head swivel with drilling quill -Vertical - Horizontal milling device -Tool holder ISO 40 -Drive power 3 KW -Rotary tilt swivel table -Coolant device -Machine feet -Machine documentation Dimensions: LxWxH 1.6x1.2x1.8 meters / Weight : 1500Kg

Tool Milling Machine Cover FP3 SN 3641 Year ±1977 Travel X/Y/Z: 500/300/395 mm Spindle speed: 40–2000 rpm Spindle motor: 3 kW, 220/380 V, 50 Hz with brake Feed and rapid traverse in X-Y-Z Angle table Vertical milling head with quill ISO 40 S20x2 Horizontal quill Iso 40 S20x2 Weight approx. 1200 kg 3-axis digital display Heidenhein Cooling system Some tool holders S20x2 Collets Machines are tested and serviced Can be viewed under power 3 months warranty from stock

Flat belt pulley, toothed pulley, multi-belt pulley -Spare part comes: from a machining center cover type FP3A -Diameter: 80 mm -Recording: 28 mm -Dimensions: 80/80/H61 mm -Weight: 1.2 kg

Rotary encoder, tachometer, encoder -Spare part comes: from a machining center cover type FP3A -Number: 1x speedometer available -Price: per piece -Dimensions: 83/122/H95 mm -Weight: 1.1 kg

Cover Protective Cover for FP3 CNC - Splash guard booth for Deckel FP3 milling machines - Distance fastening screws: 910 mm - Dimensions WxHxD: 1270 x 1300 x 950 mm - Weight: approx. 80 kg

Machine : Vert. Milling head Make : DECKEL, MAHO, WMW, ... Are all swivel and with quill ! A - Universal milling head, DECKEL, of FP3, SK40, with quill stroke 80mm, tool clamping with hydraulics and control panel. swivelling, price: 1200,- B - Universal milling head, MAHO, SK40, with quill and autom. Tool clamping, swivelling, L-33cm, W-30, H-60, swivel device, flange φ approx. 250mm Price : 1200,- Would also have milling spindles - SK30 - SK40

Operating voltage: 380/400 volts with digital positioning display x,y, without feed in y direction, with angular table, work surface with 4 T-slots Mistakes reserved!

Fine drilling head for lid fraes machine, probably FP2, SK40, little used condition. Special price

Fine drilling head for lid fraes machine, probably FP2, SK40, little used condition. Special price

BRAND: DECKEL YEAR: 1989 MODEL: FP4AT APPLICATION TYPE: MILLING LOCATION: AUSTRIA MACHINE TYPE: MILLING MACHINE AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MACHINE WEIGHT: 2895 KG CONTROL UNIT BRAND: DECKEL MODEL: CONTOUR 3 MAIN DRIVE SPINDLE SPEED RANGE: 4000 1/MIN MOVEMENT X-AXIS MOVEMENT: 560 MM Y-AXIS MOVEMENT: 500 MM Z-AXIS MOVEMENT: 450 MM TABLE OUTER LENGTH: 900 MM OUTER WIDTH: 530 MM TOOLS SLOTS IN STORAGE: 20 TYPE OF TOOL HOLDER: SK 40

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

; very good

Three T-slot plates of a copy-fraes machine from Lid are offered. The T-slot plates can be mounted as a cross table. Scope of delivery only according to photos, without spindles. If you are interested, please request more photos. Further spare parts of lide e.g. towing table of a KF3 pre-wheels. Please ask. Special price Lid cabinet tool cabinet
