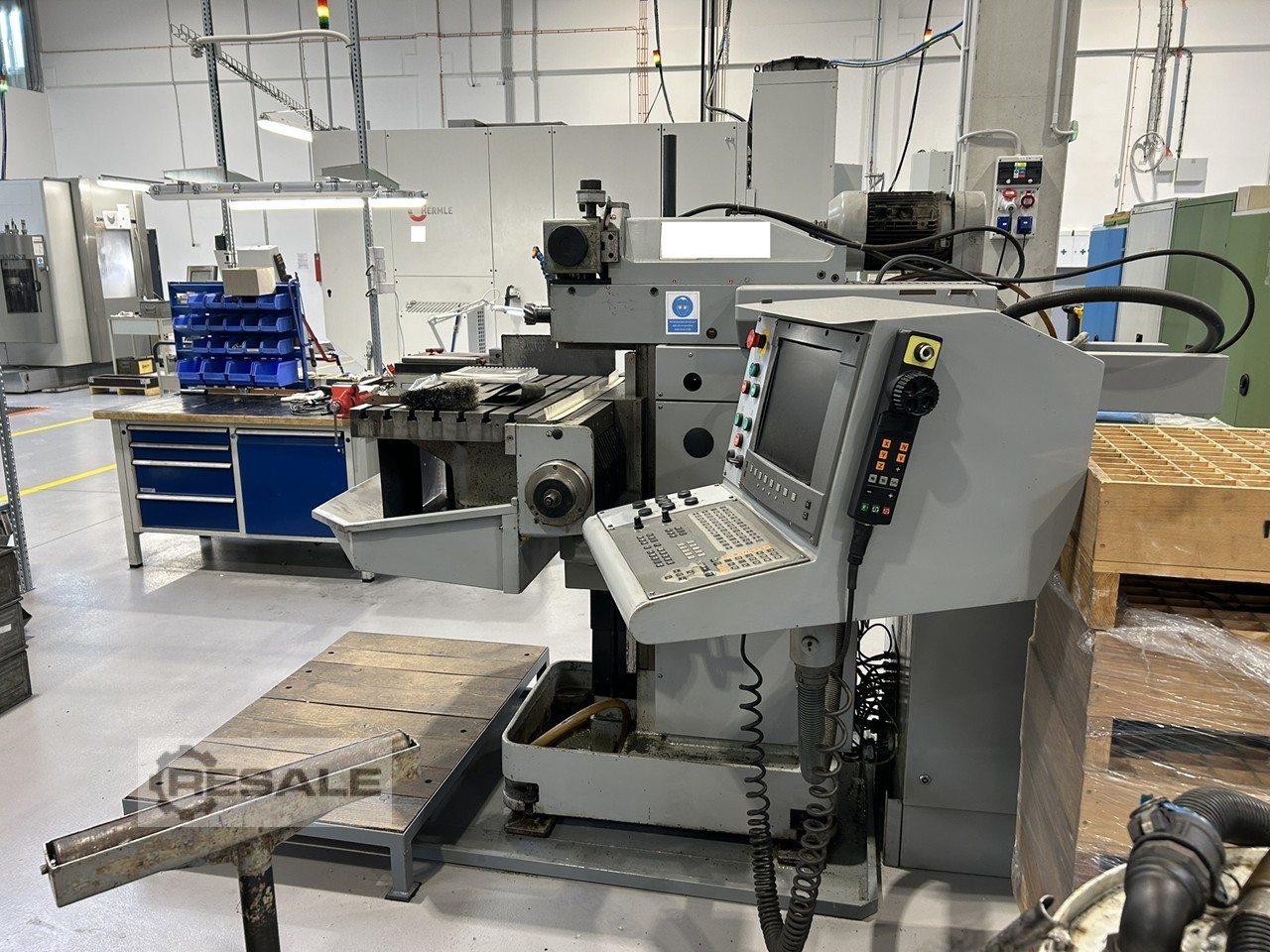

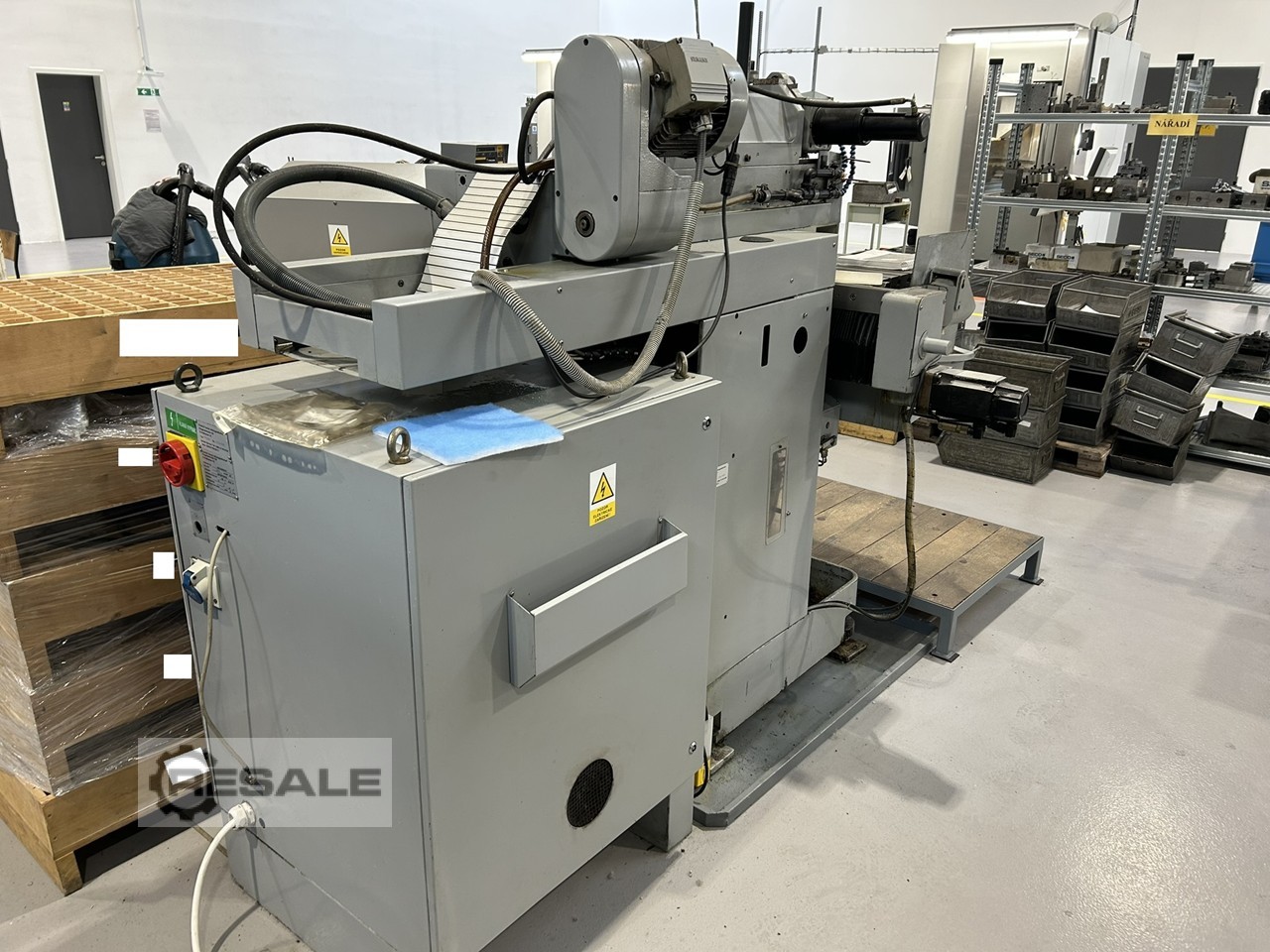

used DECKEL fp 4 ma

Manufacturer: Lid Type: FP 4 MA Year Built:1987 Control: Contour 2 control Working area: 485 x 385 x 380 mm Feed speed: 1-3000 mm/min Pinole stroke: 80 mm Main drive: 4 kW Number of rotating pins: 18 Spindle speeds: 63...3150 min Tool holder: SK 40 Table load: 600 kg Weight: approx. 1850 kg Dimensions without control panel: 2000 x 2400 x 2000 mm We will be happy to send you further information and pictures on request.

Code 0733 DESCRIPTION CNC Universal toolroom milling machine Make DECKEL Model FP 4 MA S/N 2204-1372 Year 1987 Control Grundig - Contour 2 Table 800 x 460 mm Longitude ( X – axis ) table 485 mm Vertical ( Y – axis ) table 380 mm Cross ( Z – axis ) spindle 385 mm Spindle quill 80 mm Spindle taper 40 ISO Speeds 63 - 3150 rpm Feeds X-Y-Z 2 - 3000 mm/min Rapides 3 m/min Spindle motor 3,7 / 4,4 kW – 380 Volts Accessories Table 800 x 460 mm Coolant Condition Machine is in good condition

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg
