TRUMPF trupunch used machines

TRUMPF TruPunch 3000-1300 (S11) punching machine was built in Germany in 2013. The reliable machine with extensive equipment and modern components offers its user unparalleled precision and accuracy in machining both thick and thin sheet metal. In addition to standard punching and marking, the punching machine also allows fast grooving, surface embossing, forming and chipless threading in stainless steel, structural steel and aluminium. On the machine’s sturdy and welded “C” shaped structure, sits a specially designed brush table with integrated balls, designed to facilitate the loading and unloading of workpieces. The use of this type of table prevents scratches and nicks from appearing on the surface of the sheet, which results in a significant increase in the quality of the machining. During the entire production process, the sheet is held rigidly by hydraulic clamps fixed to ...

This TRUMPF TRUPUNCH 3000 (S11) was manufactured in 2012. It features a Bosch Rexroth MTX CMP70 control, a maximum sheet format of 2,500 × 1,250 mm, and can handle sheet thicknesses up to 6.4 mm. The punching force reaches 180 kN, with a maximum workpiece weight of 160 kg. It includes a linear magazine with 20 stations and supports various roller tools. Consider the opportunity to buy this TRUMPF TRUPUNCH 3000 (S11) CNC punching machine. Contact us for more information.

This TRUMPF TruPunch 3000 S11 was manufactured in 2012. It features a Bosch MTX CMP70 control system, with X/Y-axis travels of 2500 / 1250 mm, and can handle sheet weights up to 160 kg. The machine includes a linear tool magazine with 18 stations and offers functions like MultiTool, MultiBend, and thread forming. Consider the opportunity to buy this TRUMPF TruPunch 3000 S11 CNC punching machine. Contact us for more information about this machine.

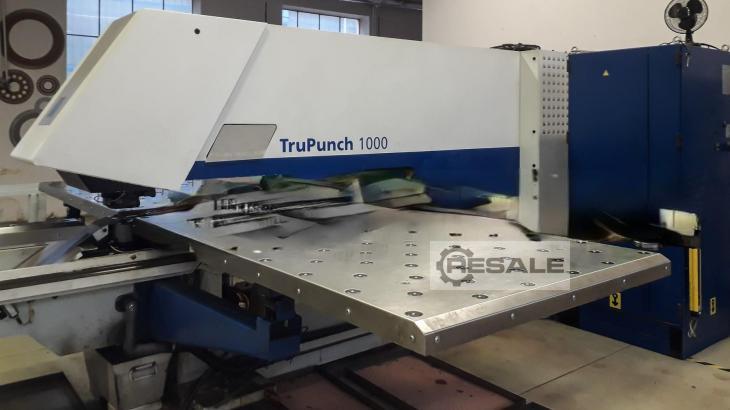

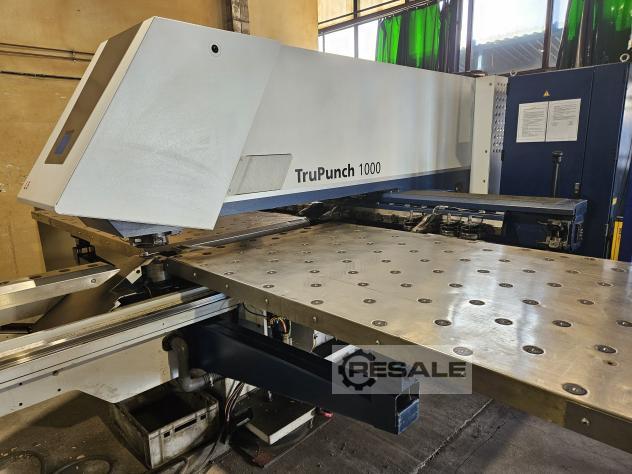

This TRUMPF TruPunch 1000 (S19) was manufactured in 2018. It features a closed machine frame, hybrid axis system, and a linear magazine with 20 spots for clamps and tools. Equipped with maintenance-free 3-phase servo motors and a TRUMPF control based on Bosch Rexroth IndraMotion MTX, it offers advanced punching capabilities and efficient operation with only 16,000 work hours. Contact us for more information about this machine.

This TRUMPF TRUPUNCH 5000 S10 was manufactured in 2013. It features a Siemens Sinumerik 840D control system, a working area of 3050x1550 mm, and a punching press of 220 kN. Capable of handling sheet weights up to 280 kg and thicknesses up to 8 mm, it includes a Linear ATC for 21 tools and additional options like MULTITOOL and ENGRAVING. Regularly maintained and in good condition. Contact us for more information about this machine.

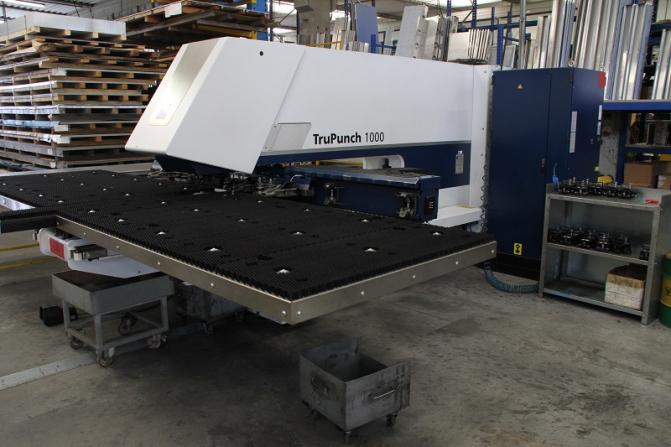

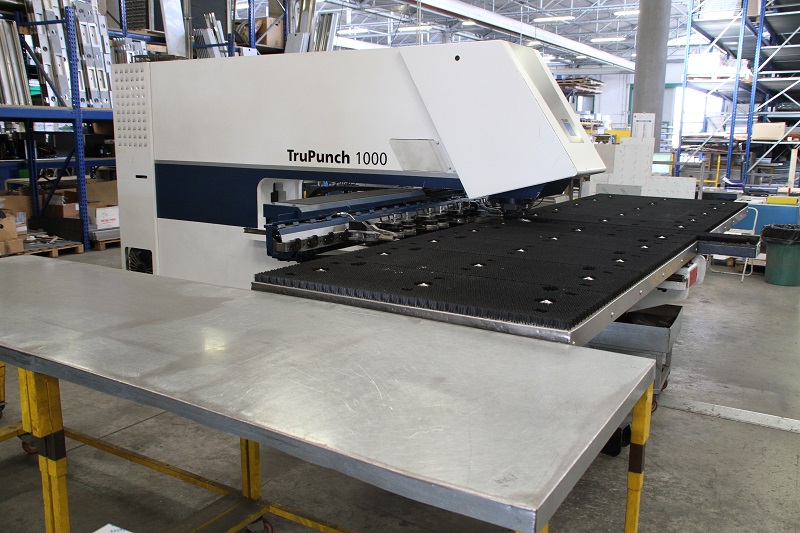

Punching Nipple Machine Trumpf TruPunch 1000 Year of manufacture 2007 with brush table Incl. stamping waste conveyor belt Tools are not included.

Manufacturer: Trumpf Model: TruPunch 1000 Year of Manufacture: 2007 Type of Machine : Punch Press Electrical: - Power Supply: 400V / 50 Hz - Connected Load: 14 kVA - Control Voltage: 24V - Required Fuse: 3 x 25 A - Compressed Air: 7 - 14 bar Included with Machine: - Brush table for scratch-free sheet processing - Scrap metal conveyor belt - Note: Tools are not included Find more here - / Contact us at -

TECHNICAL DATA: Work area: 2070 x 1280 mm Control: Bosch PNC-P Maximum punching force: 165 kN maximum sheet thickness: 6,4 mm maximum workpiece weight: 150 kg max cutting diameter: 76.2 mm advanced equipment: -Function multi tool -Sign -Function Multibend -Function Multishear TOP-Zustand! (Errors and omissions in the technical data, information and prices and subject to prior sale!)

TECHNICAL DATA: Work area: 2070 x 1280 mm Control: Bosch PNC-P Maximum punching force: 165 kN maximum sheet thickness: 6,4 mm maximum workpiece weight: 150 kg max cutting diameter: 76.2 mm advanced equipment: -Function multi tool -Sign -Function Multibend -Function Multishear TOP-Zustand! (Errors and omissions in the technical data, information and prices and subject to prior sale!)

Servo Electric punching head Large format 3000 x 1500mm With Sheet Master & Duplex carts Year: 2015 Just under 19,000 hours! With tooling

Standard configuration Machine ? Stable C-frame for easy access ? Coordinate guide for high-precision machining ? Linear magazine, 3 clamps ? Maintenance free drives ? Repositioning device with programmable presser foot ? Parts chute 500 x 500 mm ? Good parts container ? Swarf bucket Cutting head ? Hydraulic punching head ? Single tool adapter ? 360? rotation of all tools ? Programmable presser foot ? Tool length compensation ? Spray lubrication for punches ? Vacuum slug removal ? Forming Control ? Open control system based on BOSCH ? Control panel with TFT colour screen 12.0? ? Program management ? Online-help ? Integrated technology data ? Diagnostic functions ? Teleservice Programming ? Machine-oriented shopfloor programming Data transmission ? Disc drive and network connection Safety ? CE marking ? Light barriers ? Rapid hydraulic shutdown Additional equipment ? Function Mul ...

Standard configuration Machine ? Stable C-frame for easy access ? Coordinate guide for high-precision machining ? Linear magazine with 17 tool stations, 2 clamps ? Drives with maintenance free 3-phase servo motors ? Repositioning unit with programmable stripper ? Ball tables ? Parts chute 180 x 150 mm ? Swarf bucket ? Punching head ? Hydraulic punching head ? Rotatable single tool adapter ? 360? rotation of all tools ? Programmable presser foot ? Tool length compensation ? Spray lubrication for punches ? Vacuum slug removal ? Forming Control ? Controller based on Bosch PNC-P ? Control panel with 15 TFT color touch screen ? Easy to use ? Online-help ? Integrated USB interface ? RJ 45 network connection ? Diagnostic functions Safety ? CE marking ? Light barriers ? Rapid hydraulic shutdown Additional equipment ? Function Multitool ? Function MultiShear ? Function Roller Technology ?  ...

1250 x 2500mm with SheetMaster loading/unloading - Lots of tooling

BRAND: TRUMPF YEAR: 2013 MODEL: TRUPUNCH 1000 PRODUCTION HOURS: 16248 APPLICATION TYPE: PUNCHING LOCATION: POLAND MACHINE TYPE: PUNCHING MACHINE AVAILABILITY: IMMEDIATELY GENERAL DATA MEASUREMENTS WIDTH: 6550 MM MEASUREMENTS DEPTH: 7144 MM MEASUREMENTS HEIGHT: 2155 MM CONTROL UNIT BRAND: TRUMPF BOSCH MODEL: PNC-P MAIN DRIVE PUNCHING FORCE: 165 KN MOVEMENT X-AXIS MOVEMENT: 2000 MM Y-AXIS MOVEMENT: 1300 MM MEDIA MAIN ELECTRONIC CONNECTION: 400 V 50 HZ Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MAX SHEET THICKNESS: 6. 4 MM - NUMBER OF TOOL SLOTS: 15 PCS - MAX. MATERIAL WEIGHT: 150 KG - TOOL MAGAZINE WITH 15 TOOL STATIONS - MAINTENANCE-FREE SERVO DRIVES - REPOSITIONING VIA PROGRAMMABLE DOWNHOLDER - BALL TABLE - PART REMOVAL - AUTOMATIC SWITCH-OFF - CHIP CONTAINER QUALITATIVE MACHINE BENEFITS: - INCLUDED IN THE OFF ...

X-Axis : 2500 mm Y-Axis : 1250 mm Max. Billet Weight: 150 kg Multitool Tool Replacement Time: 2.4 s Part Size for the Cover for Removing Items at Cutting Down: 180 mm x 150 mm Part Size for Fixed Cutting Tray (with Movable Table): 460 mm x 500 mm Average Power Consumption with Active Shutdown Automation: 0.3 kW Average Power Consumption During Production: 4.3 kW

Large Format 3000x1500 Sort Master / ToolMaster SheetMaster No Grip or shearMaster - Max. workpiece weight: 220 kg - Punch diameter max: 76,2 mm - Axis speed [Y axis] max: 60 m/min - Control type: Siemens SINUMERIK 840 D - Simultaneous positioning speed (X / Y): 116 m/min - Operating hours: n/a - Axis speed [X axis] max: 100 m/min - Punching force: 220 kN - Working area max: 3.050 x 1.550 mm - Material thickness (punching) max: 8 mm - Power: installed max: 9,5 kW - Weight: 19.300 kg - Dimensions (long x wide x high): 7.600 x 8.171 x 2.072 mm

Used machine in good condition. Available for immediate delivery. - Simultaneous positioning speed (X / Y): 90 / 60 m/min - Number of turret stations (pcs): 19 - Control type: Siemens - Simultaneous positioning speed (X / Y): 108 m/min - Punching speed (Hit speed max.): 420 (25 mm) 1/min - Punching speed (Hit speed max.): 900 (1 mm) 1/min - Punch diameter max: 76 mm - Max. workpiece weight: 150 kg - Working area max: 2.540 x 1.270 mm - Punching force: 180 kN - Power: installed max: 9 kW - Dimensions (long x wide x high): 6.710 x 7.310 x 2.438 mm - Weight: 11.500 kg

Used machine in good condition. Available for immediate delivery. - Operating hours: 58.000 - Number of index tool stations, max: 21 - Max. workpiece weight: 230 kg - Punching force: 180 kN - Working area max: 3.000 x 1.550 mm - Material thickness (punching) max: 6,4 mm - Power: installed max: 3.3 kW - Dimensions (long x wide x high): 7.644 x 7.666 x 2.200 mm

Used machine in good condition. Available for immediate delivery. - Operating hours: 58.000 - Number of index tool stations, max: 21 - Max. workpiece weight: 230 kg - Punching force: 180 kN - Working area max: 3.000 x 1.550 mm - Material thickness (punching) max: 6,4 mm - Power: installed max: 3.3 kW - Dimensions (long x wide x high): 7.644 x 7.666 x 2.200 mm

Key data: 165 kN, 6 mm, 1250 mm

The machine was purchased directly from Trumpf in 2015. It was a demonstration machine from 2012, which had previously been used in the Trumpf training workshop (there only a few operating hours). Later, it was used in single-shift operation in the housing production of welding machines. Therefore, only 15700 operating hours. Exclusively in the sheet metal sector, especially sheet steel 1.25 and 2.0mm, occasionally 3mm. No stronger material. No known defects, machine is currently still in use, available from May 26. Reason for sale: Discontinuation of production. The "Compact Edition" of the TP1000 is optimized for a part size of 1250x1250. Larger formats can be done with the "Reset" function, additional tables are necessary. The outstanding advantage of the "Compact" machine is the small space requirement of only 4.13 x 5.84 m. The machine is equipped with almost all availab ...

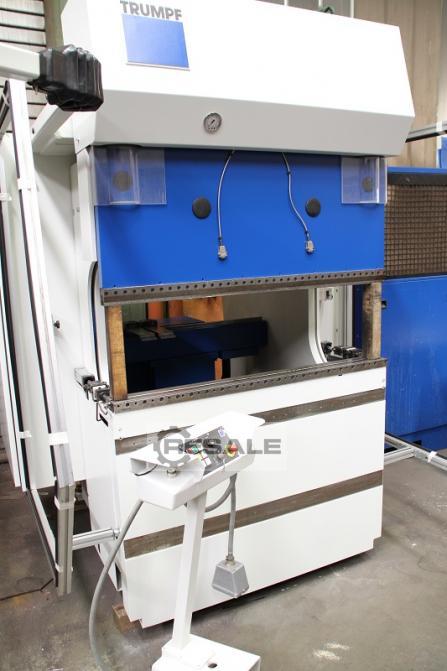

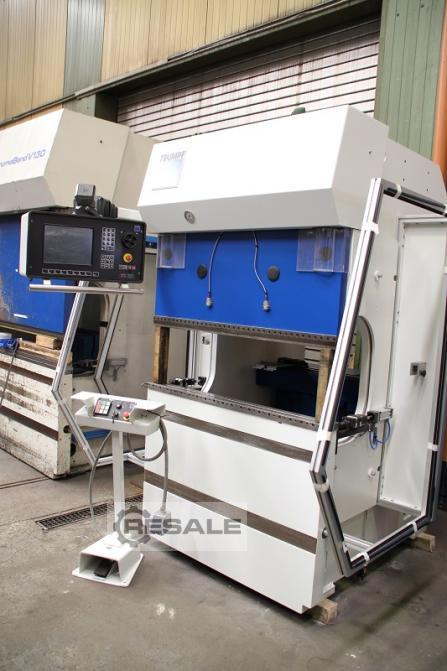

TECHNICAL DATA: Pressing force: 500 kN Bending length: 1,275 mm Free stand passage: 1,040 mm Stroke: 215 mm height: 385 mm Control: Delem DA-69 TS Velocity range in x 860 mm Table width: 100 mm ADVANCED FEATURES: Hydraulic top tool holder "Modufix" Substation stuff recording for single-V matrices with hydraulic clamping Preparation angle measuring system ACB Network card with BNC and RJ45 connector EoF6OROZg

TECHNICAL DATA: Work area: 3.000 x 1.500 x 115 mm control: Siemens Sinumerik 840 D laser power: 3,200 watts maximum sheet thickness structural steel: 20 mm maximum thickness stainless steel: 12 mm maximum thickness aluminium: 8 mm STANDARD equipment: -closed machine frame with integrated laser unit -Laser unit: CO2 laser TLF 2000 high-frequency reflector telescope, cooling unit, maintenance-free Turbo centrifugal blower, logbook function angeregt -Automatic pallet changer -Longitudinal conveyor for small parts/waste -Drives: maintenance-free three-phase servomotors -Cutting head quick change facility -Laser cutting head with 5 "lens and laser cutting head with 7.5" lens -Cutting gas pressure setting can be programmed -APC capacitive height control and process control -automatic focus position adjustment of AutoLas plus -Laser power control -Position laser diode -HI-LAS high p ...

TECHNICAL DATA: Work area 3.000 x 1.500 x 115 mm Control Siemens Sinumerik 840 D Laser power 4,000 watts Maximum sheet thickness mild steel 20 mm Maximum sheet thickness stainless steel 15 mm Maximum sheet thickness ALU 10 mm -maximum workpiece weight approx.: 900 kg -maximum speed simultaneously approx.: 140m / min - smallest programmable way mass approx.: 0.01 mm -Position deviation: +/-0.05 mm -Repeatability: +/-0.03 mm -Space requirement approx.: L 9,300 x B 4,600 x H 2200 mm -Approximate weight: 12,000 kg STANDARD EQUIPMENT: -Closed machine frame with integrated laser unit -Motion unit for high-precision machining Torque drive in combination with direct linear drives -Closed beam delivery -Cooling unit -Automatic pallet changer -Longitudinal conveyor for small parts / waste -Lighting of workroom -Position laser diode -Spraying device -PierceLine -Pla ...

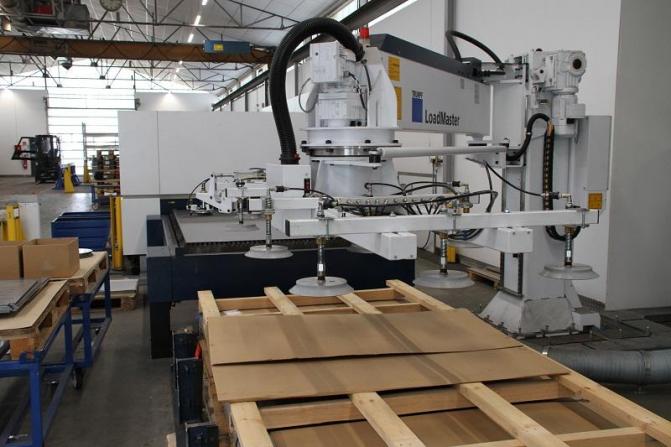

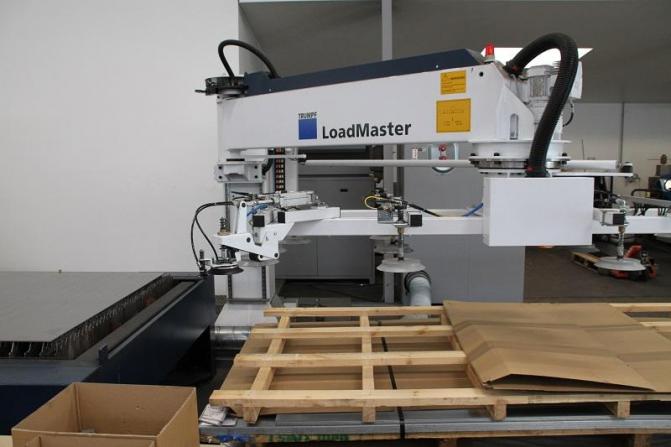

TECHNICAL DATA: -Format: 3.000 x 1.500 mm -Year of construction: 2015 -LoadMaster incl. loading station and cow magnets -Magnet device to the LoadMaster -Establishment of special machine -suitable for TRUMPF TruLaser 3030 / 5030 -Machine had in reducing NC a 7, 000 h (Errors and omissions in the technical data, information and prices and subject to prior sale!)

Control system: TRUMPF Power on: 35071 h Cutting time: 14638 h Laser power: 3 kW Table dimensions: 3000 x 1500 mm Travel distances: X: 3000 mm Y: 1500 mm Z: 115 mm Max. Thickness of material Mild steel: 20 mm Stainless steel: 12 mm Aluminum: 8 mm Machine dimensions: 9300 x 4600 x 2200 mm Machine weight: 12000 kg
