5 SPINNER cnc turning centers used machines

CNC turning center SPINNER TTS 65-Triplex Year of construction 2019 Fanuc Series 31i Model B Travel: X1/X3: 180 mm X2: 180 mm Y1/Y3: 90 mm Z1/Z2: 620 mm Rapid traverse X,Y,Z: 30 m/min Main spindle 22 kW Max. speed: 5,000 rpm Max. bar passage: 65 mm Sub-spindle 22 kW Max. speed: 7,000 rpm 3 x 12-cavity tool turret 3 x 12 powered tool stations Max. speed: 8,000 rpm Separate coolant system with coolant filtration and high-pressure pumps Hyfra coolant temperature control Top Automazioni X-files Bar Feeders, Bars up to 3,000 mm Conveyor CE mark

turning diameter: 310 mm turning length: 600 mm control: Sinumerik 810 D PL Siemens turning diameter over bed: 425 mm Main spindle: turning speed range - main spindle: 500 - 4.500 min/-1 max. Torque: 280 Nm power capacity - main spindel: 16,5 kW Spindle diameter: 100 mm C-Axis: 360 ° chucking diameter: 210-52 mm spindle bearing diameter: 120 mm clamping cylinder: 65 mm Bar feed: max. 65 / (52) mm spindle nose: A8 DIN 55026 axis stroke:: x-axis: 230 mm z-axis: 740 mm rapid traverse X-axis: 15 m/min rapid traverse Z-axis: 24 m/min turret:: tool positions turret: 12 pos. driven statition: 12 pos. tool taper: VDI 30 DIN 69880 Spindle speed driven tools: 6.000 min -1 power capacity - driven tools: 3,7 kW max. Torque: 9,5 Nm tail stock: dia. of quill: MK 4 80 mm quill stroke: 120 mm tailstock adjustment: 475 mm tension force: 500 daN total power requirement: - kW weight of the machine ca. ...

General Manufacturer: Spinner Type: TC800-110-MCY Year of Make: 2009 Control: Siemens 840D SolutionLine Travel: X 360 mm Z 900 mm Y -55/+65 mm Switch-on hours: 22,551 h Working spindle Speed: 3,200 rpm Power: 28/35 kW Torque: 175/875 Nm Tool/movement Tool holder: VDI40 Tool turret: 16-speed Condition Condition: Used Functional: tested and fully functional Other equipment and accessories included: C-axis for spindle incl. software option "Transmit" Hydraulic hollow clamping cylinder Electrical interface for connecting rod feeds 840D-SL Software Package "Turning with Shoturn" Tool monitoring 840D-SL 3D Simulation of the Precast Part Tailstock Chip conveyor High Pressure Pump Double filter Mahle Parts catcher V2 TC800 Clamping force control via differential pressure for main spindle

turning diameter: 250 mm turning length: 600 mm control: FANUC Series 31i-Model A total power requirement: 23 kW weight of the machine ca.: 7,7 t dimensions of the machine ca.: 2.880 x 2.130 x 1.990 mm m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 250 mm, 400 mm

Technical data: Manufacturer: Spinner Type: TC300-52 SMMCY Year of Make: 2012 Control: Siemens 840D SL Travel: X1 180 mm X2 110 mm Z 450 mm Y +40/-40 mm Turning length: 400 mm Turning diameter: 250/200 mm Swing diameter: 400 mm Switch-on hours: (Information to follow) Working Spindle 1 Speed: 5,000 rpm Torque: 96/121 Nm Power: 15/19 kW Bar Passage: 52 mm Working spindle 2 Speed: 7,000 rpm Torque: 38 Nm Power: 6 kW Tool turret 1 and 2 Number of stations: 12x Recording: VDI 25 Max. speed AGW: 6,000 rpm Power: 8/2.6 kW Dimensions and weight Dimensions: 2,200 x 2,000 x 2,000 mm Weight: approx. 4,600 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Parts Conveyor Belt High Pressure Pump Chip conveyor Interface for bar feeders 3-jaw chuck on sub-spindle and main spindle

Table clamping area: 600 x 1300 mm Travel x/y/z: 810/580/560 mm Spindle holder: SK 40 ISA Spindle speeds: 8000 rpm Number of toolslots: 40 pieces Feeds: 24000 mm/min Spindle drive: 25 kW electr. Connection: 380/400 V kW Space requirement: 3200 x 2500 x 2900 mm Weight: 9000 kg Control: SIEMENS 810 EN

Key data: 2 mm, 810 mm, 700 mm

General Manufacturer: Spinner Type: MVC1600-B Year of Make: 2006 Switch-on hours: 30,240 h Control: Siemens 810D ShopMill Travels: X 1,600 mm Y 810 mm Z 700 mm Spindle Speed: 6,000 rpm Power: 25 kW Tool holder: SK50 Tool Changer Number of stations: 24-fold with double arm Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Conveyor Blow-out device for spindle High-pressure system IKZ 26 bar Preparation 4th axis Preparation of workpiece probes

Inv. Num. : 8226 Type: VC 810 Producer: Spinner Created: 2005 Parameters: Control system: Siemens Work table length: 1000 mm Work table width: 600 mm Maximum vertical spindle speed: 8000 1/min X-axis travel: 800 mm Y-axis travel: 600 mm Travel Z-axis: 510 mm Machine height: 2600 mm Machine length: 2400 mm Machine width: 2200 mm Machine weight: 6000 kg

Inv. Num. : 8242 Type: VC 560 Producer: Spinner Created: 2007 Parameters: Control system: Siemens Work table length: 650 mm Work table width: 480 mm Maximum vertical spindle speed: 6000 1/min X-axis travel: 560 mm Y-axis travel: 400 mm Travel Z axis: 400 mm Cone: SK 40 Number of all tools: 16 pieces Equipment: Cooling

Control Heidenhain TNC 620 V2 Travel X/Y/Z 760/480/480 mm Speed 12000 rpm. Tool magazine for 24 tools SK40 Table size 900x410 mm Conveyor

x-travel: 1520 mm y-travel: 520 mm z-travel: 460 mm Control: Siemens 840D turning speeds: 12.000 U/min tool change unit: 32-fach tool taper: SK 40 0: 19 kW rapid traverse: 32 m/min B-axis (table): +110 / -90 ° total power requirement: kW weight of the machine ca.: 10,5 t dimensions of the machine ca.: 3,5x2,6x3,0 m 5 axes simultaneous machining - CNC control Siemens 840D - 32-position tool changer (SK 40) - Blast air through spindle - Internal coolant supply 80 bar - Automatic door - Rotary and tilting table: 650x540mm, 500kg - Fixed table: 920x540mm approx. 5000h running hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 1520 mm, 520 mm, 460 mm

The machine is currently still in Italy and will be available from the end of January 2026. Specifications: Manufacturer: Spinner Type: U5-1520 Year of Make: 2013 Control: Heidenhain TNC 640 Travels X/Y/Z axes: X 1,520 mm Y 520 mm Z 460 mm Travel C-axis| 360° B-axis travel: -5° (-90°)/+110° Milling spindle Speed: 20,000 rpm ("Built-In" direct drive) Tool Tool changer: for 54 tools HSK63 (double arm changer) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: The machine is closed at the top. Hydraulic brake in both rotary axes B/C TNC Software Option "Automatic Kinematics Measurement Using Test System Cycles" TNC software option "5-axis simultaneous interpolation and 3D machining" Laser probe U-series for non-contact tool measurement Preparation Interface for Blum Infrared Probe TC50/TC52/TC54-20/ ...

x-travel: 1520 mm y-travel: 520 mm z-travel: 420 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Sinumerik 840D NC-swivel-rotary table (B-axis and C-axis) automatic tool changer for 30 tools coolant device chip conveyor Technische Daten / technical details: X-Weg / X-travel 1520 mm Y-Weg / Y-travel 520 mm Z-Weg / Z-travel 420 mm B-Achse Schwenktisch / B-axis swivel table -90 - +110 ° C-Achse Rundtisch / C-axis rotary table 360 ° NC-Schwenk-Rundtischdurchmesser / NC swivel-rotary table diameter 500 mm Starrtischaufspannfläche / fixed table clamping area 920 x 540 mm Spindelaufnahme / spindle taper SK40 Drehzahl Spindel / spindle speed 12000 Upm /rpm Eilgang / rapid feed 32 m/min Antriebsleistung Spindel / drive capacity spindle 25 kW Gewicht der Maschine ca. / weight 10500 kg Technische Daten, Zubehör un ...

Key data: 850 mm, 510 mm, 510 mm

General Manufacturer: Spinner Type: VC 850 Year of Make: 2021 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of standard probes

Key data: 850 mm, 510 mm, 510 mm

General Manufacturer: Spinner Type: VC 850 Year of Make: 2022 Control: Siemens 840DE ShopMill Travel X/Y/Z: X 850 mm Y 510 mm Z 510 mm Working spindle Spindle speed: 18,000 rpm Tool holder: HSK63 Tool changer: 32-fold Voltage Operating voltage: 3x400V +/-10% Power frequency: 50Hz (+/-2%) Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Direct measuring systems in X/Y/Z Multifunction handheld operator Chip conveyor Preparation of standard probes

x-travel: 760 mm y-travel: 460 mm z-travel: 460 mm control: TNC 620 Heidenhain Main spindle:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 14 / 10 kW Torque: 89 / 63,7 Nm tool taper: SK 40 work table:: table surface area: 900 x 410 mm max. table load: 350 kg T-slots: 4x Tool-Presetter:: number of toolpositions: 24 pos. max. tool diameter: 130 mm max. tool length: 200 mm max. tool weight: 8,0 kg feeds:: rapid traverse ( X / Y / Z ): 36 m/min total power requirement: 20 kVA weight of the machine ca.: 3,3 t dimensions of the machine ca.: 3,0 x 2,5 x 2,9 m Documents: digital Chip-Tray: Automatic Tool Changer: Coolantsystem: interface 4. axis: work light: test probe: Blum TC 50 elektr. hand wheel: integriert / integrated Tailstock: TTS-125 indexing attachment: CNC Machiningcenter Vertical SPINNER - VC 750 The data for this ad was created wi ...

Turning Diameter 400 mm Turning Lenght 650 mm With C ,Y axes and subspindle Control Unit Fanuc 31i Can be inspected under power

CNC lathe, brand Spinner, TypeTC67H-MC, YEAR 1999 with chip conveyor, underlays, various tools. The price is net.

SPINNER TTC 300- 52 SMMCY CNC Lathe YOM 2012 Twin-opposed-spindle, twin-turret lathe Control FANUC 31iT Swing diameter 400 mm Max. turning dia ~200-250 mm Max. turning length 400 mm Travels: X1 180 mm, X2 110 mm, Z 450 mm, Y +40/-40 mm Rapid traverse: X1 15 m/min, X2 15 m/min, Z 24 m/min, Y 15 m/min With C-axis Main Spindle 1: Motor spindle with water cooling With hollow shaft measuring system for C-axis drive mounted directly on the spindle shaft Spindle bore 52 mm Spindle speed 0-5000 rpm/ 19 kW Performance Pmax 23,5 kW Torque 150 Nm Spindle nose A6/DIN Sub-Spindle 2: Motor spindle with water cooling With hollow shaft measuring system for C-axis drive mounted directly on the spindle shaft Can be moved on a slide to take over spindle 1 Spindle speed 0-7000 rpm/ 8 kW Performance Pmax 13,8 kW Torque 189 Nm Spindle nose 100 mm Turret 1: At the top of the ...

Key data: 500 mm, 700 mm, 3500 1/min

Make: Spinner Model : TC 110 SMCY Control Siemens 840 D ShopTurn Year of construction 2006 Specifications: Turning diameter 500 mm Circulation diameter 690 mm Turning length 900 mm Y-axis -55/+65 mmmm C-axis 0.001° Spindle passage main spindle 110 mm Spindle passage counter spindle 66 mm Main spindle motor 28 kw High-speed main spindle 3200 rpm. Counter spindle speed 5000 rpm. Rapid traverse x/y/z 24 m/min. Sauter Star Revolver VDI 50 Number of stations 12-fold Driven tools 12 Speed driven tools 4000 rpm. Machine weight approx. 7800 kg Dimensions set-up (L x W x H) with chip conveyor 5500 x 2200 x 1800 mm Accessories: automatic pick-up device Measuring arm Bar feeder preparation Conveyor 3D Renishaw Probe Coolant gun Increased coolant pump Hainbuch Collet Chuck for Main Spindle 3 Jaw chuck counter spindle Various tool holders Documentation

1 CNC lathe spinner type CNC TC82 Fanuc 1998 2 CNC machining machine (miling) Stama type CNC 014 Fanuc 2000 3 CNC BAZ milling machine AXA type VHC 2-M Haidenhain 1999 4 CNC lathe (lathe) Takisawa type TS 20 Fanuc 1985 5 CNC Drawing Machine (lathe) Unitec Type UT6 Siemens 2008 6 CNC lathe (lathe) spinner type TC 108 Fanuc 2003 Note: Machine parameters must be fed into item 1, but otherwise works perfectly. Pos. 2 also works single-wall, but a heat sensor must be replaced

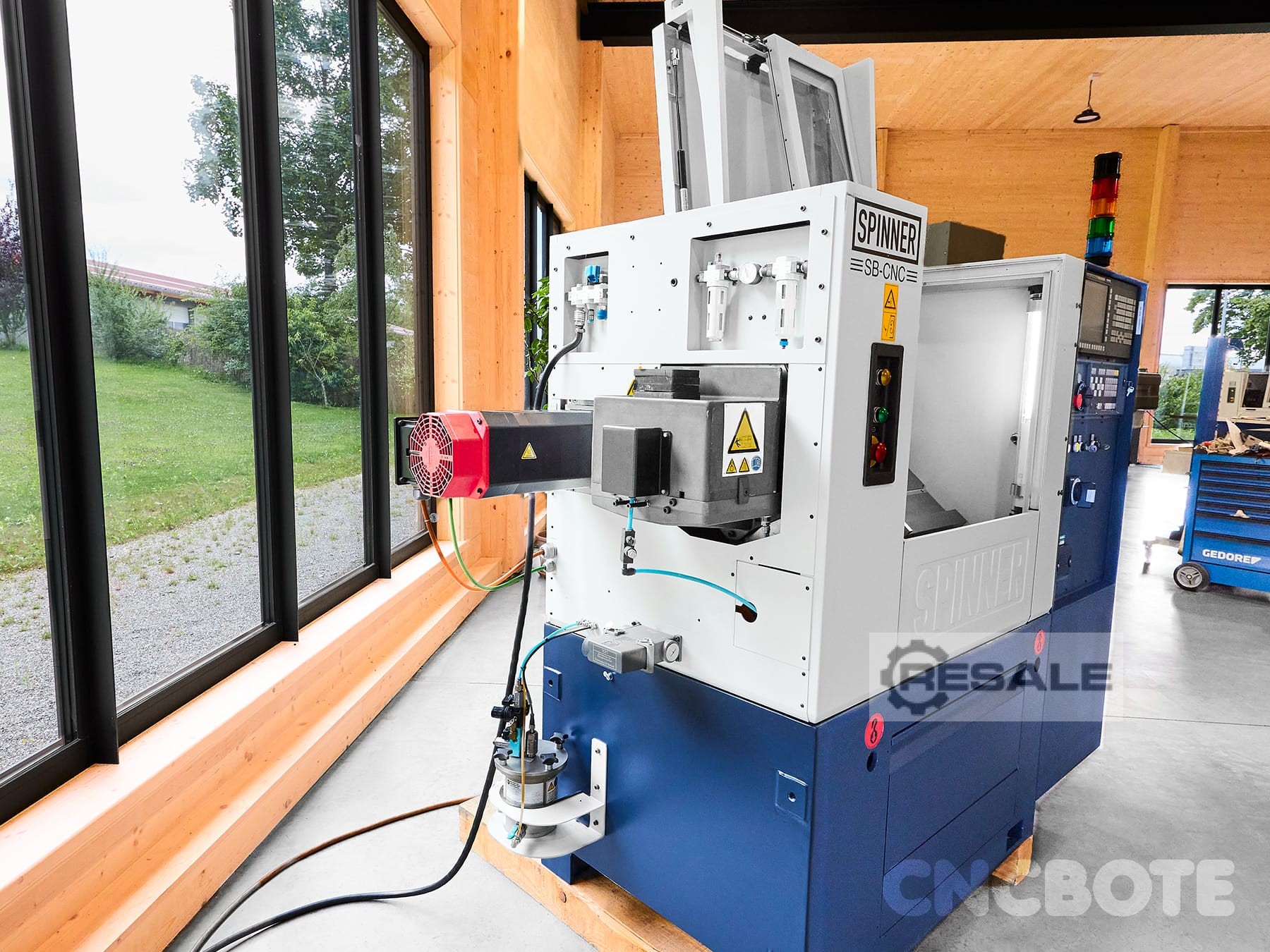

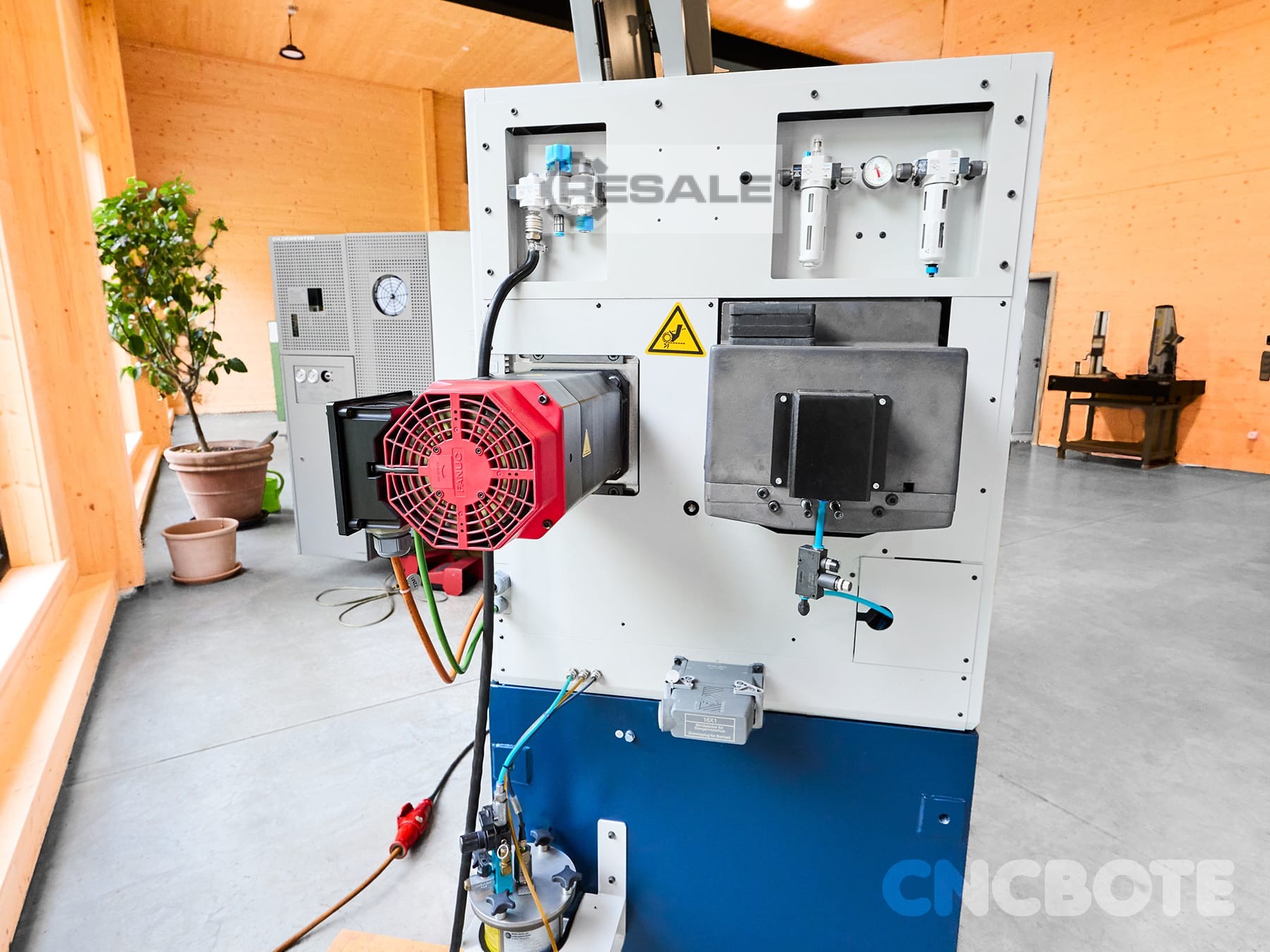

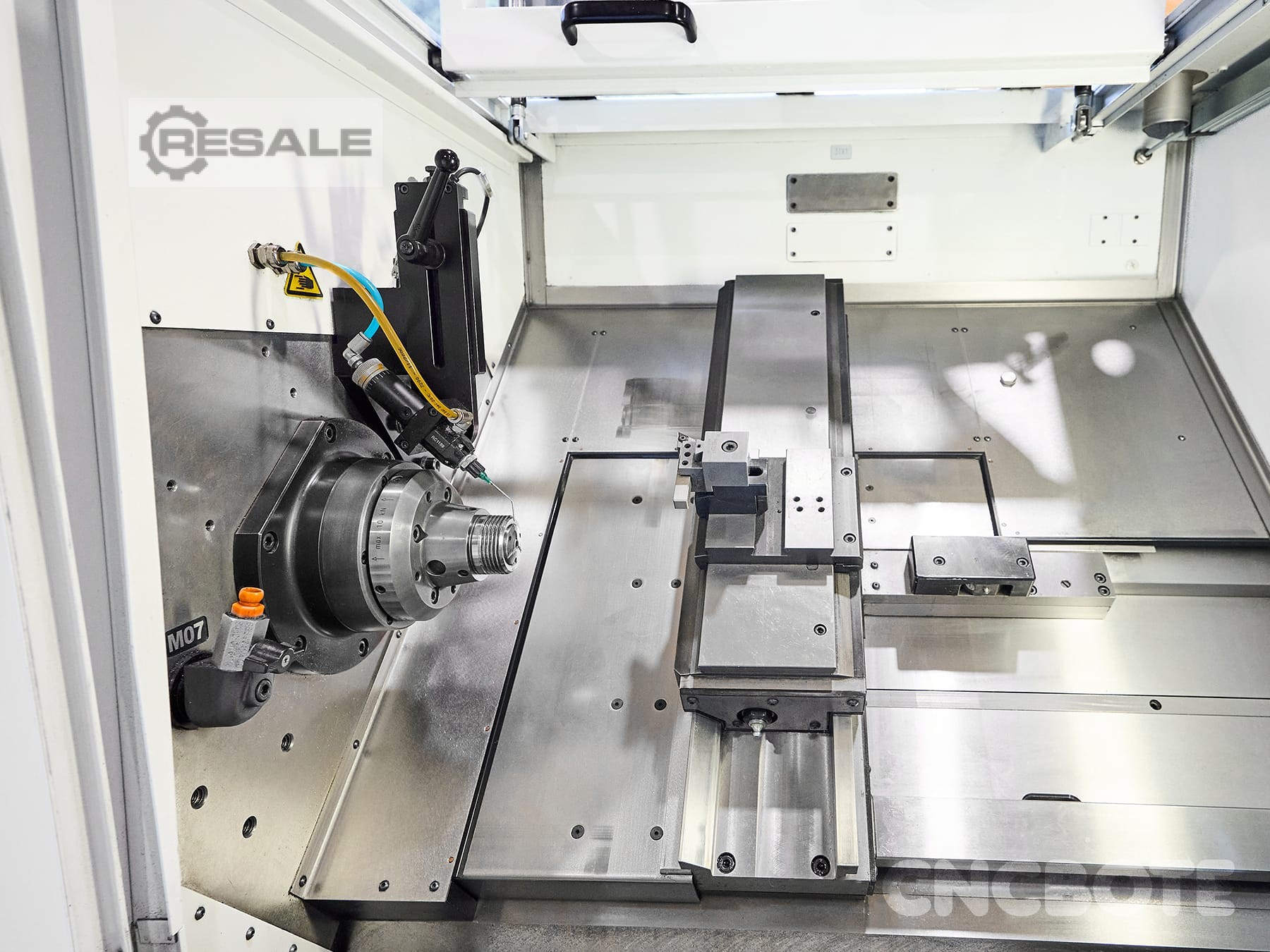

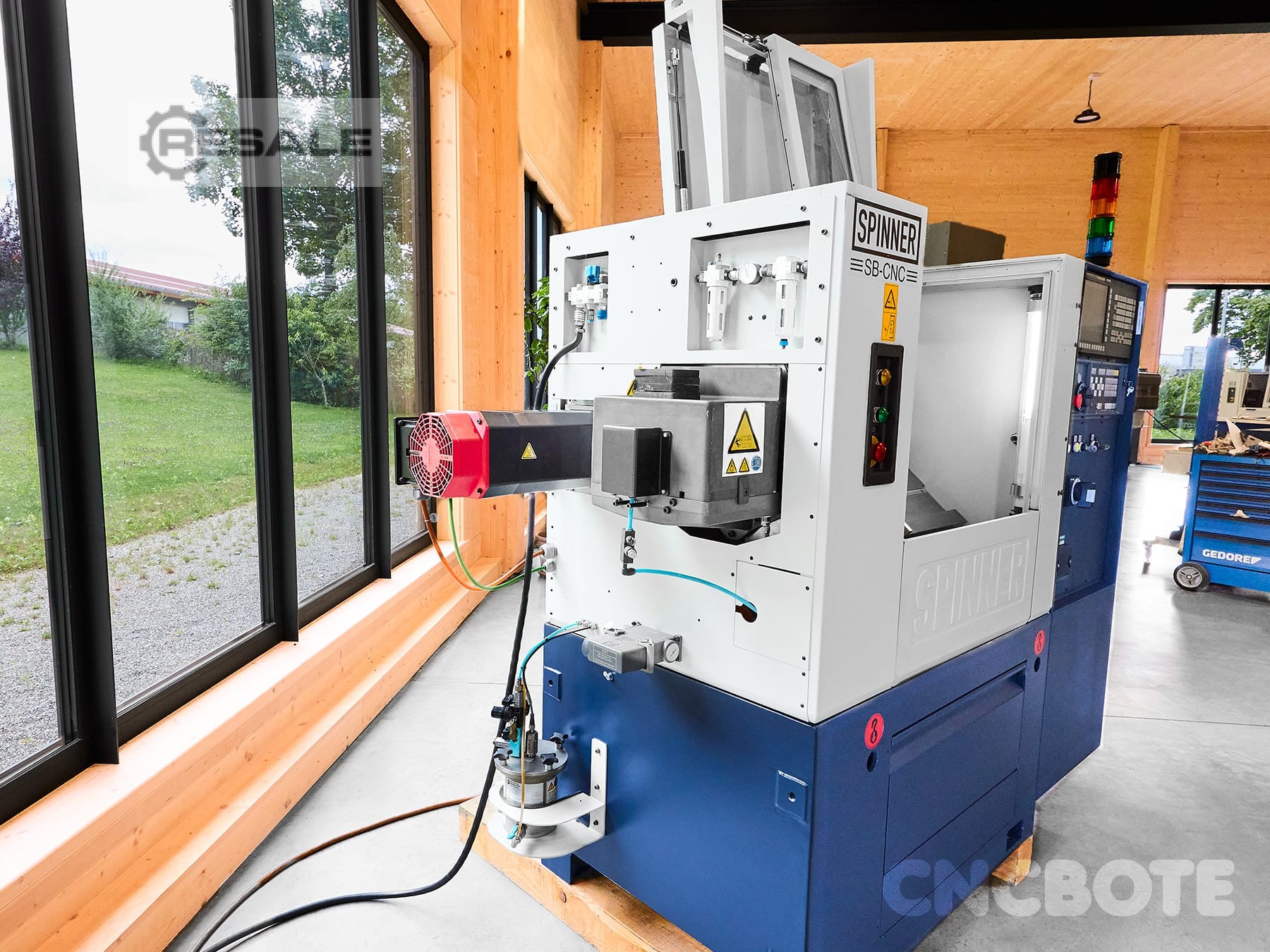

General Manufacturer: Spinner Type: SB 32-V4 Year of Make: 2016 Control: Fanuc Series 32i Model B Travels: X 250 mm Z 285 mm Switch-on hours: 46,318 h Spindle Spindle speed: 8,000 rpm Spindle Passage: 32 mmin Dimensions and weight Dimensions: 2,100 mm x 800 mm x 1,600 mm Weight: approx. 1,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: C-axis Preparation Interface Bar Feeder Linear Tool Carriers Collet chuck

turning diameter: 400 mm turning length: 730 mm control: FANUC 21i rapid traverse: 15/24 mm/min spindle turning speed range: 4000 U/min spindle motor: 19 kW x-axis: 240 mm z-axis: 640 mm rapid travel (x and z-axis): 18 /24 m/min spindle bore: 66 mm tailstock quill taper MT: 5 tailstock quill stroke: 120 mm total power requirement: 50 kVA weight of the machine ca.: 5,5 t dimensions of the machine ca.: 3 x 1,7 x 1,8 m - CNC control FANUC 21i-TB (with Manual Guide I) - hydraulic hollow clamping cylinder - 12-position tool turret, driven tools 4000 rpm, 2.8 kW - Tool monitoring - SMW Autoblok KNCS N225-65 chuck - C-axis (with disk brake for milling operation, Transmit software for end face machining and cylinder interpolation for shell machining) - B-axis - Tailstock (MK 5) - Chip conveyor - Coolant system with high-pressure pump - Parts catcher - Radial and axial milling heads Translated wi ...

turning diameter: 120 mm turning length: 380 mm control: Fanuc 18 iTB max. swing diameter: 300 mm : : 8000 min/-1 : 7,5 kW : 26 Nm spindle nose: 100 mm spindle passage: 32 mm A-Axis: : 8000 min/-1 : 5,5 kW : 23 Nm spindle nose: 100 mm spindle passage: 32 mm : : 12 pos. tool taper: VDI 16 Sub Spindle: x-axis: 400 mm z-axis: 400 mm feeds:: rapid traverse: 12 m/min total power requirement: 20 kW weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2,8 x 2 x 1,7 m 2022 New glass scale Heidenhain and replacement of smaller parts, new FANUC CNC Keyboard CNC - Ultra precision turning centre (X-, Z-, E-, C-Axe) - CNC control Fanuc 18iTB - Main and counter spindle - SAUTER tool turret 16-fold (0.5.480.510) VDI 16 - Linear tool slide - automatic doors - Chip tray - Coolant system with fine filter (high Pressure Pump) - 3 jaw chucks - Various clamping devices/pressure collets - Vari ...

Inv. Num. : 8228 Type: TC-42 Producer: Spinner Created: 2004 Parameters: Control system: Siemens Max. machining length: 500 mm Maximum turning diameter over bed: 400 mm Maximum main spindle power: 12 kW Maximum spindle speed: 4500 1/min Spindle bore: 42 mm Equipment: Powered tools
