Used scrollable radial drill Soraluce TR1-1600. Arm: 1600mm. Displacement: 1800mm. Drilling capacity in steel: 60mm. Drilling capacity in cast iron: 80mm. Boring capacity in steel: 100mm. Boring capacity in cast iron: 120mm. Thread capacity in steel: 50mm. Thread capacity in cast iron: 70mm. Spindle diameter: 90mm. Spindle travel: 350mm. Number of speeds: 12. Power: 7,5hp. CE: Optional.
Key data: 2000 mm, 1200 mm, 1200 mm
Soraluce bed milling machine with Heidenhain CNC 415, NC swivel head SK 50, chip conveyor, with drilling + milling tools + holders, approx. 50 parts. The machine was used for 1 layer for light machining and is now no longer needed. Please request further data.
CNC Model: Heidenhain CNC Version: iTNC 530 Head Type: Automatic Bi-Rotary Head Additional technical notes for the head: Indexed on the two joints at 0.001° Tool Mount: ISO 50 Spindle power: 28Kw Spindle speed: 5000 Number of tools: 40 X-axis travel: 8500mm Y-axis travel: 1000mm Z-axis travel: 1450mm Fast feeds for linear axes X Y Z: 35m/min Table dimensions: 9000 x 1100mm Table capacity: 12000Kg High refrigerant pressure: yes External tank system with filter: yes Cutter type: mobile column Chip conveyor: belt Other technical data: Pendulum machining prepared for mounting a turntable above the bench with wiring and hydraulic connections installed and related operation in the electrical cabinet Machine equipment: Electrospindle: 12 kW, 20,000 rpm, HSK40 with 7-position tool changer 2 control consoles, (one in the operator's cabi ...
CNC controller: Siemens Sinumerik 3.8 Axes X-axis travel mm: 6.000 Y-axis travel mm: 1.600 Z-axis travel mm: 1.000 B-axis degrees: Automatic head at 2,5º Feed rates m/min: 37 Rapid traverse m/min: 8 Worktable Number of pallets: 3 Table dimensions mm: 6.000 x 1.000 Max. workpiece weight kg: 3.000 Spindle Spindle speed rpm: 213 - 2.000 Spindle drive power kW: 22 Tool system Tool holder: SK-50 Tool magazine slots: 40 With free neighboring places mm: 350 With occupied neighboring places mm: 110 Max. Tool Length mm: 200 Max tool weight kg: 15 Tool-to-tool time s: 11 Cooling Tank capacity: 350 L; 3 to 8 bar Equipment Chip conveyor Mist collector Workarea light Blowing air and cooling outside the spindle Basic machine dimensions / weight Length mm: 10.200 Width mm: 4.700 Height mm: 3.887 Weight kg: 28.000
Key data: 8000 mm, 1300 mm, 2200 mm
1 new CNC travelling column milling machine Make: Soraluce Model: FL 8000 Year of manufacture: 2014/15 Spindle hours: 3242 Hours: 4261 Control: Siemens 840 D Solution Line Technical data: Travel distances X-Y-Z: 8000 x 1300 x 1800 mm Travel C-axis: 360 degrees Plate clamping area: 6000 x 2000 mm Tool holder: SK 50 Capto C8 Speed range up to: 4000 rpm. Main drive: 43 kw. Rapid traverse: 35 m/min. CNC rotary table: 1600 mm 250 rpm Weight approx.; 40 to. Equipment / Accessories: Tool magazine: Controlled universal milling head Conveyor Full enclosure Complete cooling water system electronic handwheel IKZ. Fibro Reversible Clamp Fibr ...
Control Siemens ... Sinumerik 840D Sl Table dimensions ... 1600mm Axis X ... 8000mm Axis Y ... 1300mm Axis Z ... 1800mm Spindle speed ... 20-4000 rpm ISO 50 cooling ... 30bar Rapid traverse ... 35m/min Machine weight ... 36500kg
Manufacturer SORALUCE Model TA-D-35A Year 2009 CNC HEIDENHAIN TNC-530 Table Table Surface 1250 x 1,250 mm. Max weight allowed on table 4.000 kg Travels and feeds Longitudinal Travel (X Axis) 3,500 mm. Transversal Travel (Y Axis) 1,200 mm. Vertical Travel (Z Axis) 1,250 mm. Rapid Traverse 25,000 mm/min Main Spindle Head Type Automatic 2.5º/2.5º Taper ISO 50 DIN 69871 AD Turning Speeds 4,000 rpm Head Power 24 kW Equipment Integral protecting guards INCLUDED Chip conveyor INCLUDED Chip conveyor INCLUDED Internal Coolant INCLUDED Deposit 500l with magnetic and paper filter INCLUDED Portable Handwheel Heidenhain HR-410 Others Total Power 46 kVA Machine Weight 18,000 kg Machine Dimension 7,800 x 4,850 x 3,530 mm.
Code 71112 Description Radial drilling machine Make SORALUCE Modell TRO - 1250 Serial No. 2754 10406 Year 1975 Capacity in Steel 60 40 mm Capacity in Cast Iron 50 mm Thread cutting in Steel 60 M 30 Thread cutting in Cast Iron M 40 Spindle taper 5 MC Spindle radius: max / min 1400 / 450 mm Spindle traverse 950 mm Min / Max height spindle / top of base plate 300 – 1300 mm Arm traverse 700 mm Quill stroke 300 mm Number of speeds 12 Spindle speed range 25 – 1440 rpm Number of spindle feeds 6 Spindle feed range 0,08 – 0,99 mm/rev Baseplate size 1900 x 750 mm Clampsurface base plate 1200 x 650 mm Main motor 3,0 kW - 380 Volts Dimension of machine 2000 x 750 x 2150 ( max.2650 ) mm ( L x W x H ) Weight 2500 kg Accessoiries Box 600 x 450 x 400 mm Coolant elect ...
A used S O R A L U C E CNC driving stand milling and drilling center FS 16000 Built in 2000 MAIN TECHNICAL DATA: Travel: Longitudinal (X): mm 16000 Senkr. (Z): mm 1600 Cross (Y): mm 1500 Milling and drilling spindle: Tool holder: ISO 50, DIN 69871 Auto. Tool tension: clamping force 15000 N Tightening bolt: DIN 69872 Form B (BT50) Spindle speeds: Special speeds: rpm 20-3000 Feeds: Feed range: mm/min 2-5000 Rapids: X-axis: mm/min 12000 Y- and Z-axis mm/min 15000 The machine is equipped with: - HEIDENHAIN control TNC 426 M. - Operator's platform in the X-direction with sliding door and Viewing windows against chip flight and splashing water. - Operator's console swivels mounted on the stage. - Automatic thermal expansion compensation of the Milling sliders. - Automatically indexing milling head. This milling head enables the fully automatic m ...
Radial drill Soraluce TR3-2500mm. 2500mm arm. Drilling in steel: 80mm. Drilling in cast iron: 100mm. Chuck spindle diameter: 110mm. Cone Morse 6. Speeds: 16 (20-1475rpm). Engine power: 10hp.
Radial drilling machine. Drlling capacity: 40-50mm. Arm of 1250mm. Taper Morse 5.

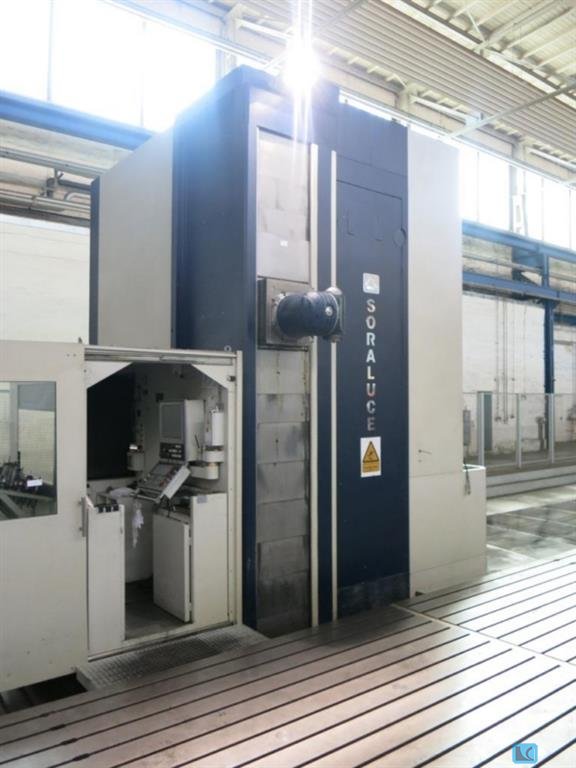

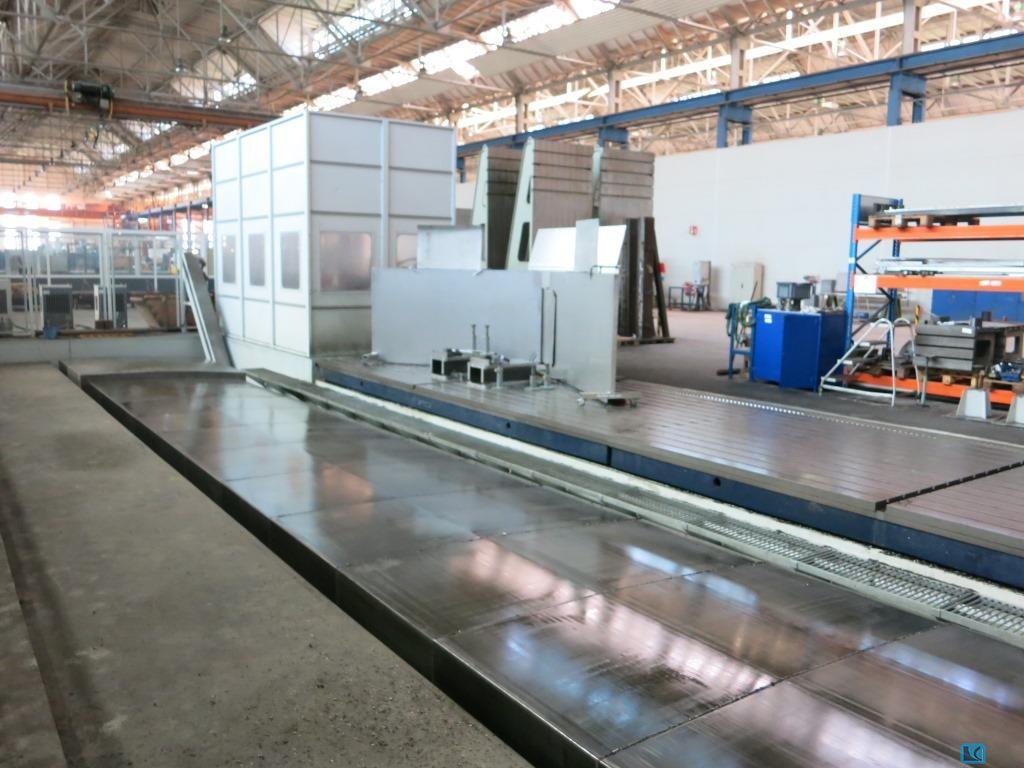

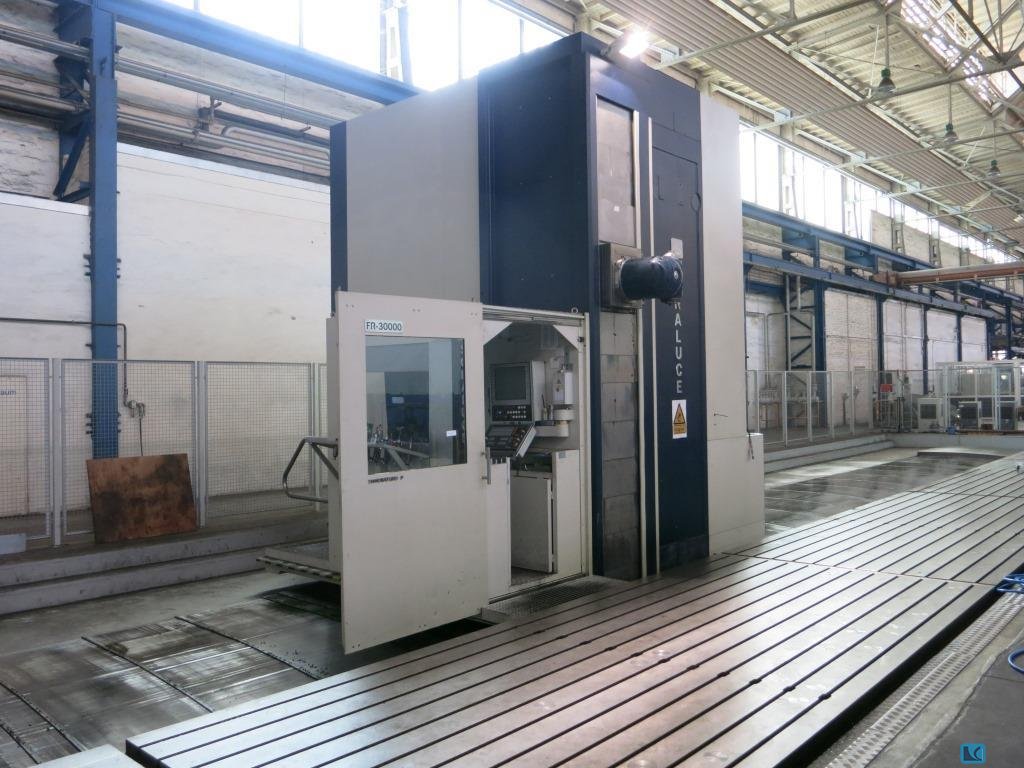

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment
automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze
x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm FLOOR PLATE:. - clamping surface (left-right):7000 mm - clamping surface (front-back):2000 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELE ...
x-travel:8500 mm y-travel:2000 mm z-travel:1500 mm rapid travel x/y/z:25 m/min table-size:10.000 x 1.350 mm table load:max. 5 t/qm universal head:orthogonal 1° x 1° tool taper:SK 50 milling head speed:4.000 1/min power capacity:37 kW max. torque on the spindle:900 Nm internal coolant system feed:15 bar control:HEIDENHAIN iTNC 530 Tool changer:60 Pos. total power requirement:75 KW dimensions of the machine ca.:12,7 x 5,2 x 4,6 m weight of the machine ca.:35 t universal travelling column - universal machining center, orthogonal milling head, water-cooled, with 1° indexing in 2 axis (360 pos. in rear layer, 270 pos. in front layer) 3D touch probe M&H 20.41, dividing wall for 2 table machining, internal air blast, 15bar high pressure pump, prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel, chipconveyor, handwheel HR 410, controlled security fence, miscella ...
travel -x axis: 8.000 mm travel -y axis: 1.500 mm travel -z axis: 2.600 mm control: HEIDENHAIN - TNC 530 CNC Milling machine | SORALUCE - FP-8000 equipped with and tool changer. The machine is in good condition and can be inspected under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: FP8000 | FP 8000 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
travel -x axis: 2.500 mm travel -y axis: 1.000 mm travel -z axis: 1.250 mm control: HEIDENHAIN - TNC 530 with NC rotary table: 1.000 x 1.000 CNC Bed Type Milling Machine | SORALUCE - TA-25-A equipped with NC swivel rotary table and tool changer. The machine is in good condition and can be inspected under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: A25A | TA-25 A | TA 25 A The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 6000 mm y-travel: 4750 mm z-travel: 1500 mm control: Siemens 840 D SL Table: Verschiebetisch table load: max. 20 t turning speeds: U/min coolant: Tool changer: 120 pos. tool taper: SK 50 size of pallet: 2200x1500 mm spindle power: 46 kW total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Aggregate (pick-up max. 5 positions): Ortho head 1x1 degree Short vertical milling attachment Heavy angle head Long angle head The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. ...
A CNC large-format rigid-bed milling and boring center Soraluce is available. Travel X/Y/Z: 4500mm/1600mm/1300mm, table dimensions X/Y: 6000mm/1100mm, max. table load: 5000kg/m², spindle bearing diameter: 90mm, tool holder: ISO 50, speed: 5000rpm, power: 43kW/32kW, rapid traverse: 35m/min, feed force: 16kN, coolant volume: 350l, delivery pressure: 5bar, tool positions: 40. Machine dimensions X/Y/Z: approx. 8700mm/5000mm/3850mm, weight: approx. 22000kg, control: Heidenhain. Including IKZ, chip conveyor, probe, tool probe and cooling unit. Documentation available. An on-site inspection is possible.
x-travel: 10500 mm y-travel: 1200 mm z-travel: 1600 mm control: Heidenhain TNC 426-CA taper ISO: 50 P.D.B. Table dimensions: 1100 x 12000 mm spindle speeds: 20 - 2000 mm voltage: 380 V total power requirement: 22 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 6.500 mm y-travel: 1.800 mm z-travel: 1.300 mm control: HEIDENHAIN TNC 640 clamping table: - surface area: 8.000 x 1.100 mm max. workpiece weight: 13.500 kg/m² Universal Milling Head: _ Swiveling area front/back level: automatsich Indexing: 2,5 x 2,5 ° Hirtverzahnung Constant Power at 100 % ED: 37 kW Speed range, stepless: 15 - 7.000 min-1 max. torque: 1.045 Nm tool taper: SK 50 – DIN 69871-AD internal coolant system feed: durch das Spindelzentrum automatic tool changer ATC: - Tool places: 60 Plätze diameter of tools max.: 125/250 mm workpiece length: 400 mm weight of tools max.: 20 kg internal coolant system feed: durch das Spindelzentrum changing positions: vertikal /horizontal feeds: - X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min rapid in X/Y/Z: 35.000 mm/min max. feed force X-Y-Z-axis: 16.000 N total power requirement: kW weight of the machine ca.: 34 t dimensions of ...
Number of machnines: 4 St Control: Siemens Tool changer: 1 Pos Plant Consists of 4 Machines Soraluce FR 9000I Soraluce RR 9000II Soraluce FP 8000 Soraluce PM 6000 Workpiece Setup Stations Replacement Pallets Automatic Tool Supply System (WBG) Automatic Pallet System Pallet Storage Rack The technical data is provided by the manufacturer or operator and is therefore non-binding. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About Us More than 400 of our own machines in stock Over 15,000 m² of warehouse space, 70-ton crane capacity More than 10,000 accessories for your workshop If you want to sell machines, production lines, or your business, please contact us. Further offers can be found on our website. Viewings are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ...
CONTROLS CNC controls HEIDENHAIN ITNC 530 BASIC DESIGN basic design: bed type WORKING RANGE -CUBIC- number of processing axes (excl parallel axes): 5 .. among of them simultaneous CNC axes: 3 X-axis travel: 3500 mm Y-axis travel: 1200 mm Z-axis travel: 1400 mm TABLE workpiece load (max): 4000 kg - mode of operation: automatic SPINDLE / HEAD - positioning/indexing: 2.5 ° - positioning/indexing: 2.5 ° spindle revolutions (max): 4000 /min tool fixture: ISO SK 50 AXIS DRIVES rapid traverse: 20000 mm/min TOOL MAGAZINE magazin type: chain magazine number of positions: 30 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS &nbs ...
x-travel: 3.500 mm y-travel: 1.200 mm z-travel: 1.250 mm Control: HEIDENHAIN TNC-530 table-size: 1.250 x 1.250 mm table weight: 4.000 Kg feeds: 12.000 mm/min Number of revolutions: 4.000 rpm power capacity: 24 kW taper ISO: 50 DIN 69871 AD spindle head: Automatisch 2,5 x 2,5 Grad handwheel: Heidenhain HR-410 internal coolant system feed: 20 bar total power requirement: 46 kW weight of the machine ca.: 18.000 kg dimensions of the machine ca.: 7.800 x 4.850 x 3.530 mm -Integralverkleidung -Doppelter Längsspäneabsauger -Querspanabsaugung -500-l-Tank mit Magnetabscheider-Papierfilter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
- Y Travel with head 180 = 3700 - Y from floorplate to spindle middle = 4200 mm - Chain ATC Tool changer 80 positions - Rotary table 1500 x 1500 with V-Axis 1500 mm - Table load 15.000 Kg - Optional Box table 3500 x 1000 x 1000 mm - Under power - Spindle hours 9300 H

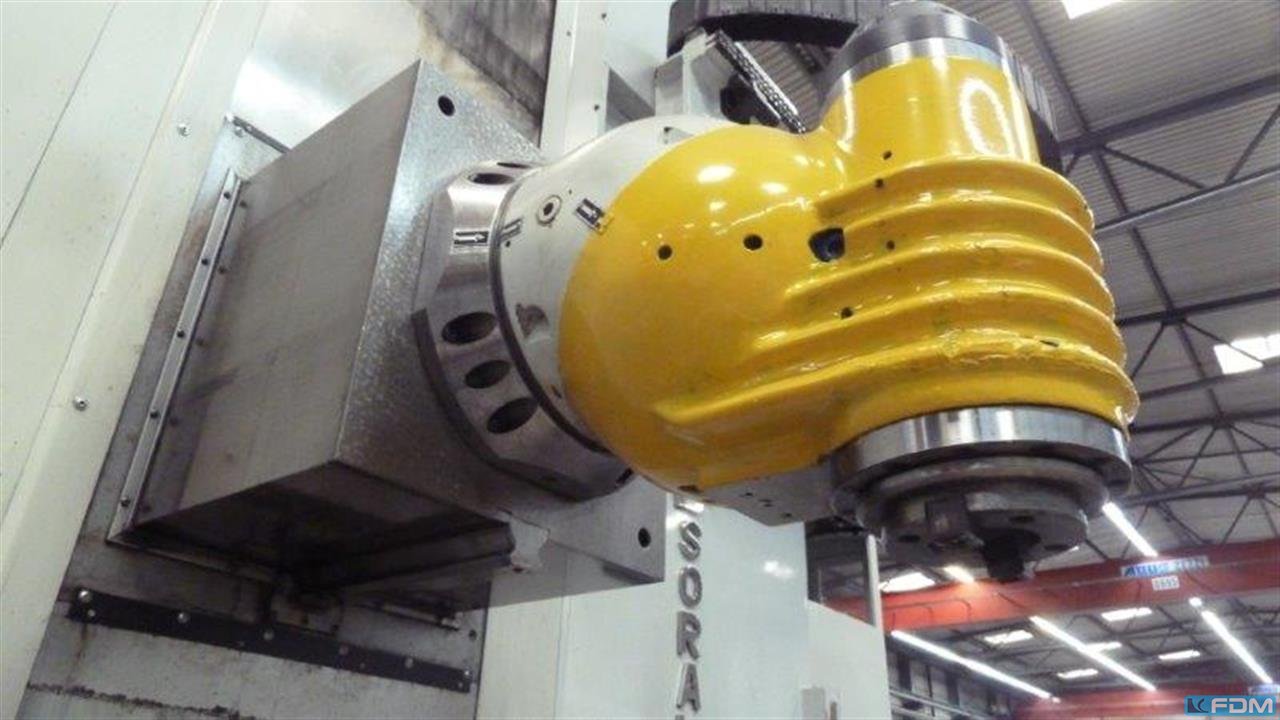

- FP Model ideal for variety of application Medium-Large size Components - Floor type milling boring machine - High dynamics with speeds of 35M/Min - INA linear guiding system - Hydro mechanical clamping slides - Orthogonal milling head for machining at any desired angle - Y Travel = 2600 + 500 head upright = 3100 mm stroke in Y Axis

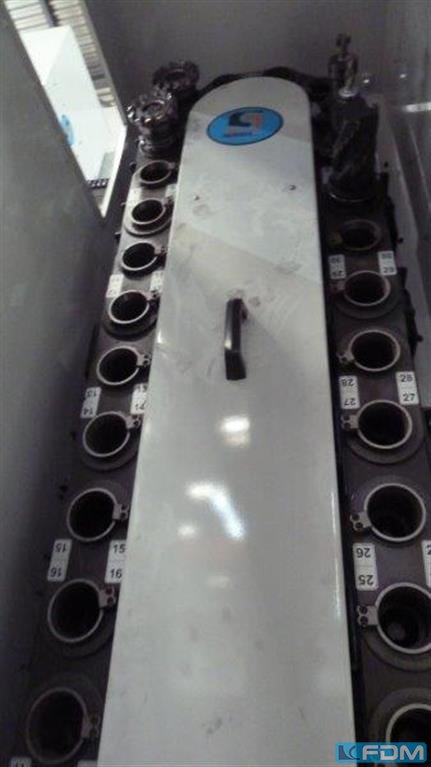

- Aiptek ATC 30 positions - Automatic head 2.5 x 2.5 Gr - Central lubrication - Machine housing with front doors - Large tool package
ATC Chain 40 positons Max. tool size Ø 125 x 400 mm Machine prepared for rotary table Chip conveyor Central lubrication Stroke with vertical head rotated 3300 mm
Travel X/Y/Z: 5500mm/1200mm/1800mm, milling head indexing: 2.5°, drive power: 28kW, spindle speed: 4000rpm, feed X/Y/Z: 25m/min, table diameter: 1600mm, table speed: 250rpm, max. workpiece weight: 8000kg, panel field dimensions X/Y/Z: 6000mm/2000mm/300mm, machine weight: approx. 16500kg, control: Heidenhain iTNC 530. Workpiece weight: 8000kg, panel field dimensions X/Y/Z: 6000mm/2000mm/300mm, machine weight: approx. 16500kg, control: Heidenhain iTNC 530. Including internal coolant supply and chip conveyor. Documentation available. On-site inspection is possible.
x-travel: 30000 mm y-travel: 3600 mm z-travel: 1900 mm Control: Heidenhain type: TNC 530 i milling head -swivable: CNC turning speeds: 4000 U/min conus taper: DIN 69871+AD mm spindle drive: 46 kW Feed: 10000 mm/min Rapid movement: 25000 mm/min chip conveyor: 2 St. coolant: filter unit: Plate area: 31000x2500 mm total power requirement: 85 kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About usMore than 400 of our own machines in the warehouseMore than 12,000 m² of storage space, crane capacity 70 tMore than 1000 items Accessories for your workshopYou want to sell machines, production lines or your company,then contact us. The data for this ad was created with ModulMWS - the software solution of Lo ...
