Travelling column milling machines SORALUCE SP-8000

Manufacturer SORALUCE
Model SP-8.000
Year of Manufacture 2008
CNC HEIDENHAIN iTNC 530

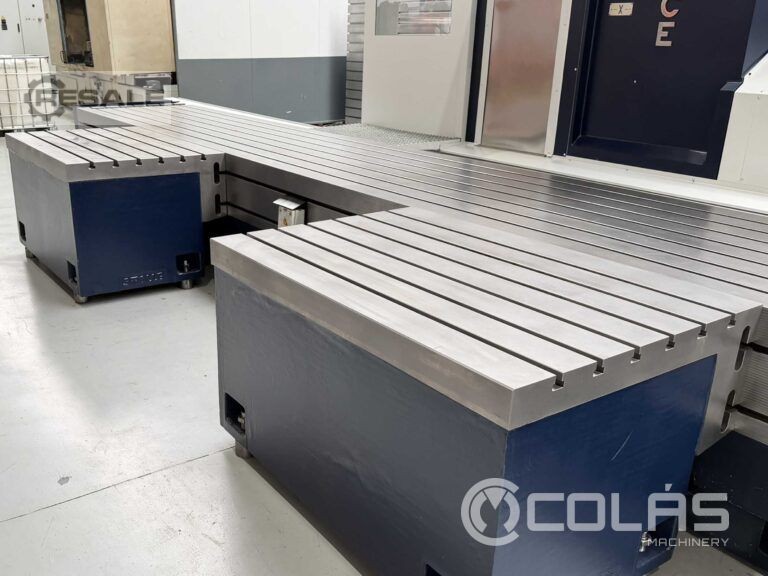

Table
Table surface 10,000 x 1,100 mm
Max. permissible weight on table 2,500 kg/m2
Tours
Longitudinal (X-axis) 6,500 mm
Transverse (Y-axis) 1,500 mm
Vertical (Z-axis) 2,000 mm
Fast Forward Axles 25,000 mm/min
Head
Automatic head 2. 5º / 2. 5º INCLUDED
ISO 50 Head Cone DIN 69871
Head speed 20 – 4,000 r.p.m.
No. of ranges 2
Main Motor Power 30 kW
Automatic tool loader.
Tool Loader Positions 60
Maximum diameter hta with adjacent positions occupied 125 mm.
Maximum diameter with adjacent free positions 250 mm.
Maximum tool length 400 mm.
Maximum tool weight 20 kg
Additional equipment
Internal cooling 20 BAR INCLUDED
Chip evacuator INCLUDED
Heidenhain HR-410 Electronic Steering Wheel
Additional tank with paper filter INCLUDED
User platform INCLUDED
SIEMENS DIGITAL motor drives
Others
Total installed power 63 kVA
Machine Weight 34,400 kg.
Dimensions (LengthxWidthxHeight) 11,275 x 4,840 x 4,130 mm.
seller offer No. resale 170319751
