4 MIYANO cnc turning machines used machines

12 stations main turret(6 are driven) - 6 stations sub turret - LNS sprint 552 barfeed new in 2010 - Fanuc 21TB Control.

Inv. Num. : 8314 Type: 42 BNA DHY Producer: Miyano Created: 2011 Parameters: Max. turning length: 235 mm Max. turning diameter: 80 mm Maximum spindle speed: 6000 1/min Max. rod diameter: 42 mm Weight: 3900 kg Equipment: IEMCA Bar Feeder

From a current recycling we offer you a well-maintained CNC lathe MIYANO BNE-65MYY incl. FMB bar feeder SL 80 V. Year of construction:2023 Condition: good Asking price: 180.000,00 VHB Original price: 284.000,00 Location: 78628 Rottweil Equipment / accessories / other information: See appendix Asset Manager: M. Vorkötter Phone: 0202-257273152 Mail: m.vorkoetterakf.de We will be happy to provide you with details upon request. The sale is without warranty Subject to prior sale

Excellent condition - Fully operational - Loading / Transport possible! CNC automatic lathe MIYANO ABX-51TH2 FANUC Series 16i-TB (2009) Cutting hours 5280 h Turning diameter 125mm Bar diameter 51 mm Chuck diameter 150 mm X-1 axis travel 190 mm Z-1 axis travels 257 mm Y-1 axis travels +/- 40 mm X-2 axis travels 190 mm Z-2 axis travels 500 mm X-3 axis travels 190 mm Y-3 axis travels +/- 40 mm Z-3 axis travels 650 mm Spindle speed 5000 rpm Bar pitch 52 mm Main spindle motor 15 kW Sub spindle motor 11 kW Number of toolholder stations 12+12 Tool holder speed 4000 rpm Automatic bar feeder LNS SPRINT 552-565 (2009)

12 position upper turret (6 are driven) -10 positionlower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control

Year of manufacture: 1999 Control system: FANUC Series 18-T (dual-channel control) Technical specifications Max. bar diameter: 51 mm Max. turning length: approx. 125 mm Travel ranges: * X1 / X2: 150 mm / 115 mm Z1 / Z2: 380 mm / 125 mm Y-axis: +/- 40 mm (upper turret) Spindles (main & counter spindle) Speed range: 135 – 5,000 rpm (both spindles) Drive power: 11 kW / 15 kW (main spindle) C-axis: 0.001° on both spindles for full contour machining Tool system (2 x turrets) Turrets 1 (top): 12 stations (all driven, incl. Y-axis) Turrets 2 (bottom): 12 stations (all driven) Spindle speed: max. 3,200 rpm Loading magazine: IEMCA BOSS 552-HD Diameter range: 5 mm to 51 mm Bar length: up to 3,200 mm Chip conveyor Batec fire suppression system The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

BAR LATHE MIYANO BNJ 42S :::SPECIFICATIONS::: CNC Model: Fanuc - CNC Version: 18iT - Main Spindle Power: 11Kw - Main Spindle Bar Clearance: 42mm Number of main spindle revolutions: 5000 - Number of tool holders: 2 - Number of first turret tool positions: 8 - Number of first turret motorized units: 8 First Turret X-Axis Travel: 142mm First Turret Z-Axis Travel: 250mm Number of second turret tool slots: 3 Number of fixed tool positions for the second turret: 3 Sub-spindle: yes Sub-spindle speed: 5000 Power against spindle: 5.5Kw Bar clearance: 42mm Z stroke counter spindle : 250mm Bar feeder model and brand: LNS Hydrobar Mini Sprint Chip conveyor: belt conveyor Number of live tool holders supplied: 2 :::D DIMENSIONS AND WEIGHT::: Length: 2700mm Width: 1450mm Height: 1720mm Weight: 4600Kg

This 6-axis Miyano BX-26S was manufactured in 2010, featuring a maximum blank diameter of Ø26 mm and a maximum working length of 330 mm. It includes a dual-spindle setup with rotation speeds up to 8000 rpm and a linear turret with 18 total tools. The machine is equipped with a FANUC 18i-TB control system, supporting 6 controlled axes and 4-axis simultaneous interpolation. If you are looking to get high-quality turning capabilities consider the Miyano BX-26S machine we have for sale. Contact us for more information.

This 8-axis Miyano ABX64 YY2 was manufactured in 2014. It features a maximum work length of 125 mm and a maximum work diameter of Ø 165 mm. The machine is equipped with two turrets, each having 12 positions, and rapid traverse rates of up to 30 m/min. If you are looking to get high-quality turning capabilities, consider the Miyano ABX64 YY2 horizontal turning machine we have for sale. Contact us for further details.

turning diameter:80 mm turning length:235 mm max. bar capacity:42 mm power capacity - driven tools:1 kW speeds spindle 1:6000 1/min speeds spindle 2:5000 1/min numbers of turret head positions:8 pos drive capacity - spindle motor:SP1 11 / SP2 5,5 kW Tools speed:60-6000 1/min weight of the machine ca.:ca. 3 t dimensions of the machine ca.:2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

This 7-axis Miyano BNA-42DHY turn-mill centre was manufactured in 2011. It features a main spindle with a maximum bar diameter of 42 mm and speeds up to 6000 rpm, complemented by a counter-spindle that handles up to 34 mm and 5000 rpm. Equipped with two turrets, upper with 8 positions and lower with 6, it offers versatile machining options. Includes a chips conveyor and an IEMCA BOSS 545 E bar loader. Contact us for more information about this machine.

This 4-axis MIYANO BNJ 42S lathe was manufactured in 2004, featuring dual turrets and a Fanuc 18iT control for precision turning operations. It has a bar passage capacity of 42 mm and spindle speeds up to 5000 rpm. Equipped with a LNS Hydrobar MiniSprint bar loader and both standard fixed and motorized tool holders, this machine optimizes productivity. Consider the MIYANO BNJ 42S machine we have for sale. For more information about this lathe, please reach out to us.

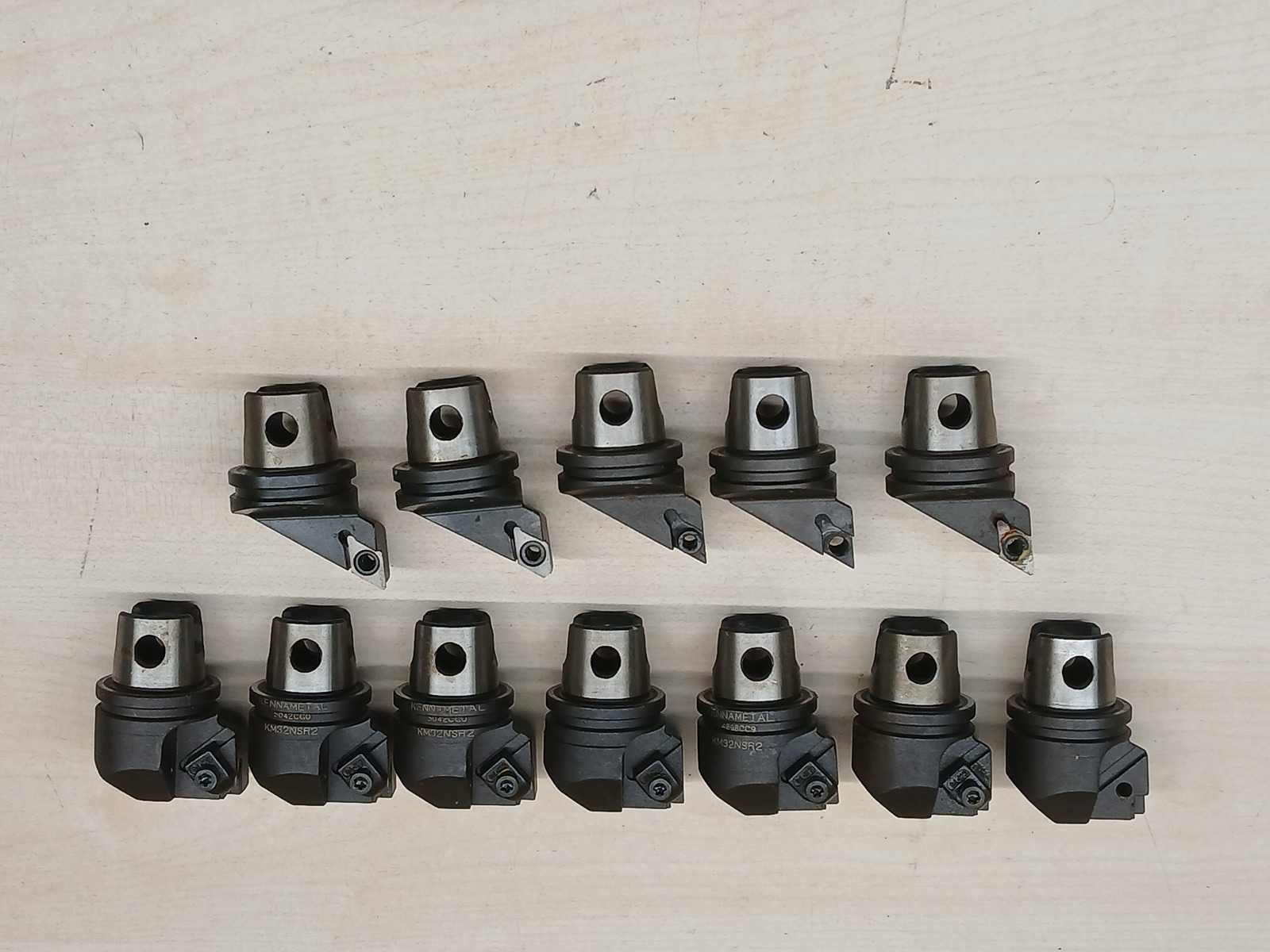

Lot of 12 Kennametal KM32 modular quick-change tool holders for CNC lathes.

Used industrial machine offered by IBEXTRA.

SMT Lathe 80001350 The machine was designed and manufactured to produce rotor shafts for power tools. The machine is designed and manufactured to perform the following operations automatically. - Load/unload parts automatically from/to tool carrier line with a pick-up & placement unit between the shaft ends. - Rotate ring seat + flat rotate commutator + rotate commutator. - Ring mounting - Commutator side - Ring mounting - Drive wheel side The machine has several production programs to produce different parts. Each program uniquely corresponds to a wave type Specifications Anchor wavelength from up to 92.5 - 163.1 mm Bearing pin diameter commutator side 8; 10; 12.5 mm Drive side 12; 8 mm Min. Available length bearing position 3.6 mm Package diameter 52; 55; 59 mm Ring dimensions Outer diameter 40 - 57.4 mm Inner diameter 37.4 - 56 mm Ring width 4 - 8 mm R ...

Automatic straightener, shaft straightener , MAE -25RH, 1996, used Manufacturer: Maschinen- & Apparatebau Götzen GmbH, Germany Connected load: 14.5kva , Dim.: 2.5 x 1.5 x 1.8m, Weight : 5000kg

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

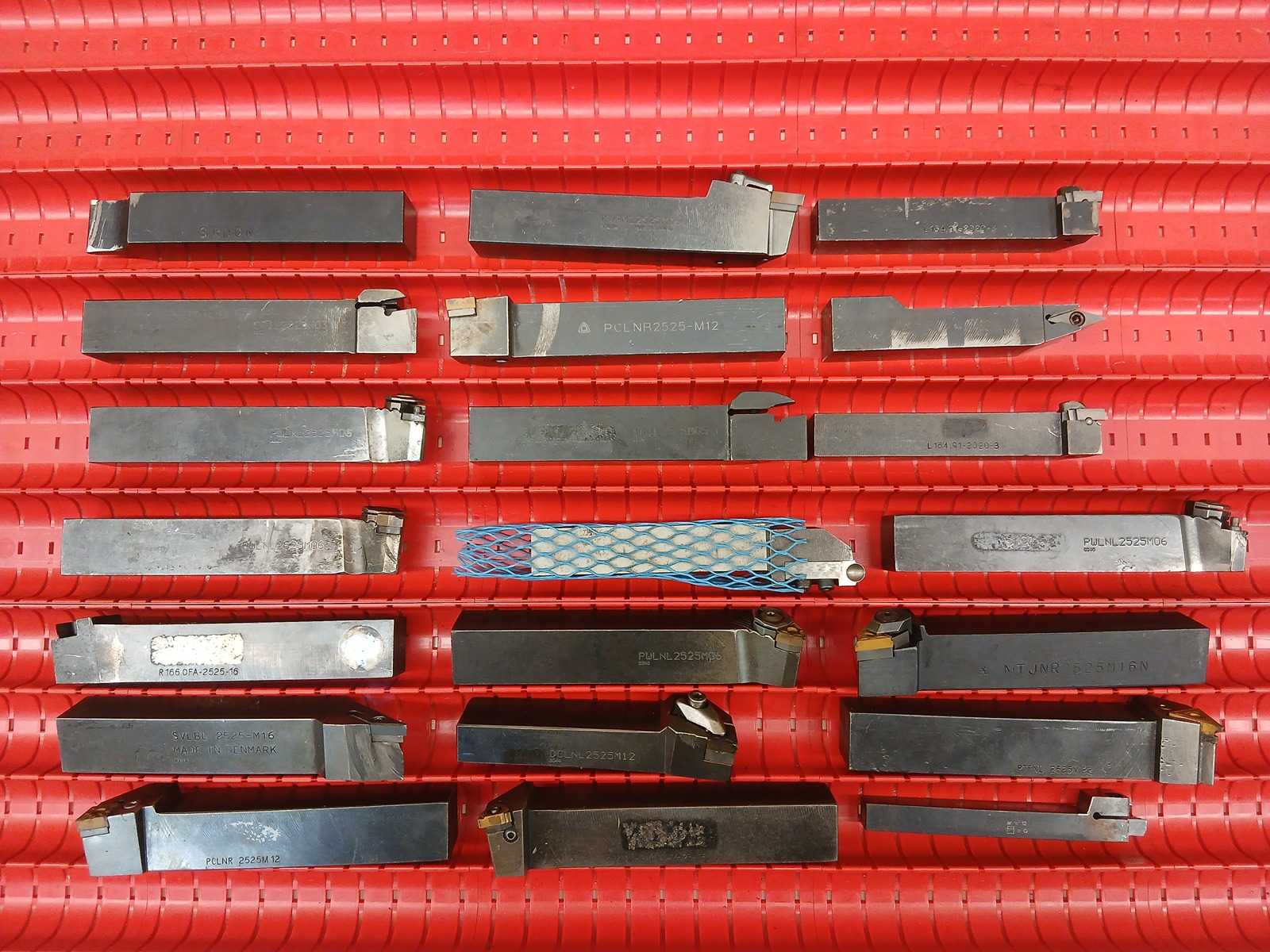

Mixed assortment of external lathe tool holders with ISO designations

Thickness: 16 x 16 mm number: 4 Stähle weight: 3 kg dimensions: 300m x 200 x 50 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical data: Double column vertical turret lathe CNC control Siemens 802 D Weight 66 to 63 kw Dimensions 13,600 x 9,800 x 6,750 mm Faceplate diameter 3,500 mm Maximum workpiece height 2000 mm Max support adjustment 30 ° Maximum workpiece diameter 4,000 mm Maximum workpiece diameter with page support 3,750 mm Number of support 2 Max turning height 1,400 mm Maximum workpiece weight 25 to Max speed 30/min Min. speed 1/min

Lathe - cycle VOJUS Turntec controlled 63 bearing no 1105-02244 make VOJUS type Turntec 63 built in 1999 State second-hand machine control CNC SIEMENS 840 D storage France origin SK delivery immediately cargo base EX WORK technical details turning diameter 630 mm turning length 3000 mm control SIEMENS 840 D spindle bore 110 mm spindle speeds infinitely 2500 revs/min rapid traverse - longitudinal/plan 10/5 m / min dimensions L W H 3000 x 1800 x 1790 mm turning diameter over support 420 mm overall power demand 26 kW machine weight approx. 4,5 t description * CNC - control SIEMENS 840 D SHOP TURN * MULTI FIXED HOLDER * 1 open, revolving bezel TURNING DIAMETER OVER SLIDE 420 MM BED 6300 TURNING LENGTH 3000 MM 2500 U/MIN

HORIZONTAL LATHE B1200 BIGLIA SWITCHABLE LENGTH 1200 MM TURNING DIAMETER 700 MM BAR STEP 80 MM SPINDLE POWER 30 KW NUMBER OF REVOLUTIONS/MIN 2800 Z-AXIS STROKE: 1200 MM Tailstock CHIP CONVEYOR HYDRAULIC BEZEL NUMBER OF TOOL POSTS 12 CONTROL: FANUC 21i-TB

MAXIMUM SWITCHABLE LENGTH: 1520 MM MAXIMUM TROLLEY DIAMETER: 600 MM MAXIMUM SWITCHABLE DIAMETER: 540 MM AXLE STROKE X1:555 MM X2 AXIS STROKE: 185 MM Z-AXIS STROKE: 1595 MM STROKE Z2:1640 MM Y-AXIS STROKE: 160 (+-80) MM AXLE STROKE A: 1565 MM C1-C2 AXIS STROKE: 360 º (0.001) B-AXIS STROKE: 15-240 º (+-120) SPINDLE SPEED: 2800 RPM SPINDLE NOSE: ASA A2 # 8 CONTROL: FANUC 18I-TB COMPLETE WITH BEZEL SMW-AUTOBLOK

MAXIMUM SWITCHABLE LENGTH: 1520 MM MAXIMUM TROLLEY DIAMETER: 600 MM MAXIMUM SWITCHABLE DIAMETER: 540 MM AXLE STROKE X1:555 MM X2 AXIS STROKE: 185 MM Z-AXIS STROKE: 1595 MM STROKE Z2:1640 MM Y-AXIS STROKE: 160 (+-80) MM AXLE STROKE A: 1565 MM C1-C2 AXIS STROKE: 360 º (0.001) B-AXIS STROKE: 15-240 º (+-120) SPINDLE SPEED: 2800 RPM SPINDLE NOSE: ASA A2 # 8 CONTROL: FANUC 18I-TB COMPLETE WITH BEZEL SMW-AUTOBLOK
