HERMLE uwf used machines

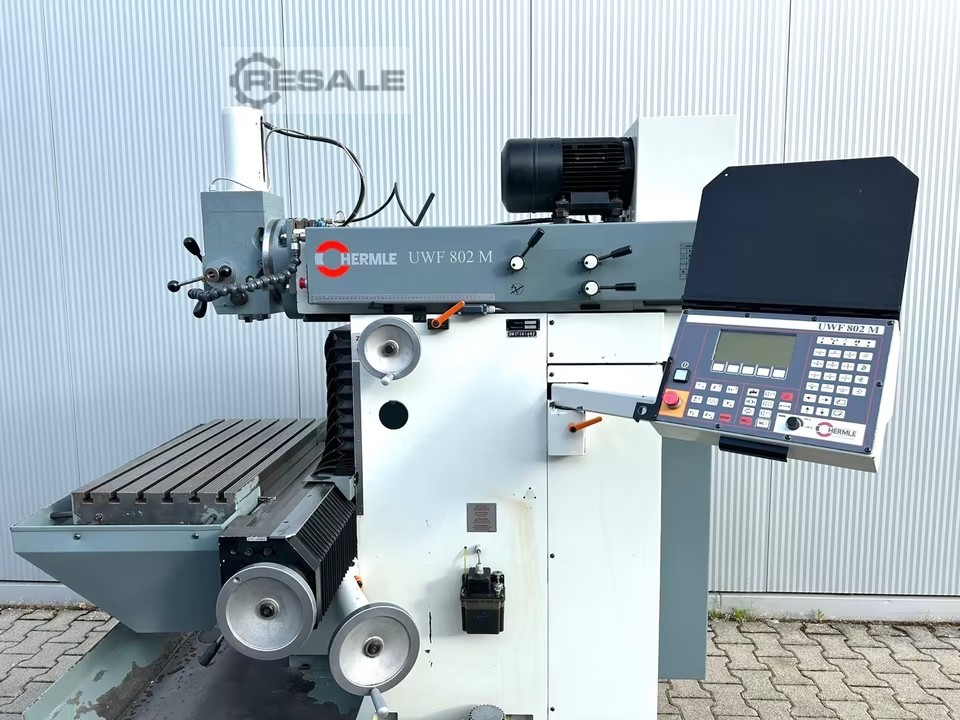

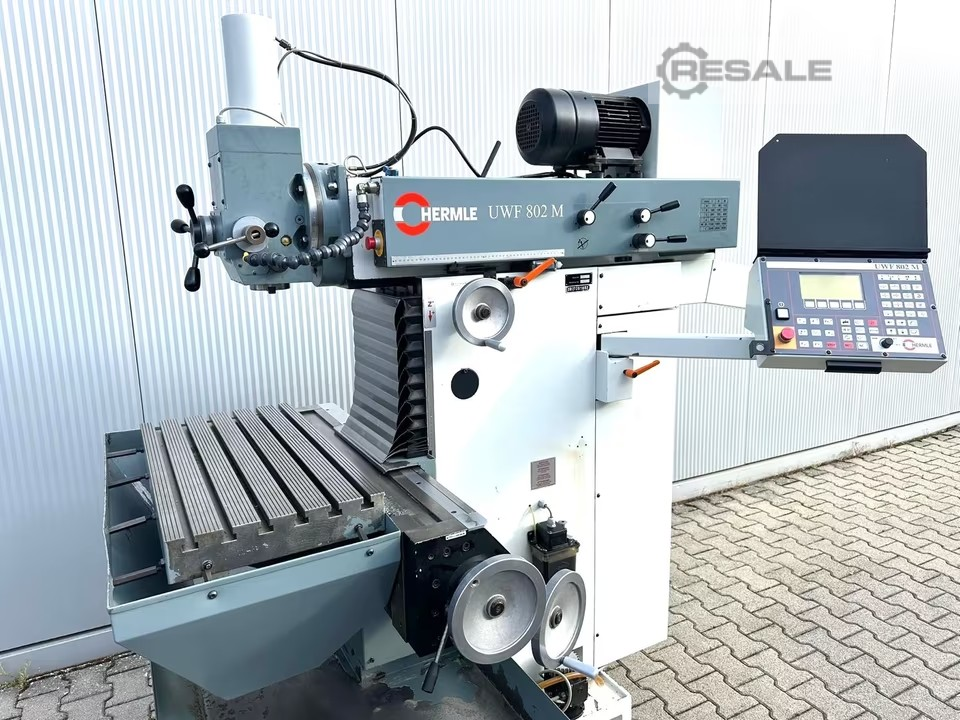

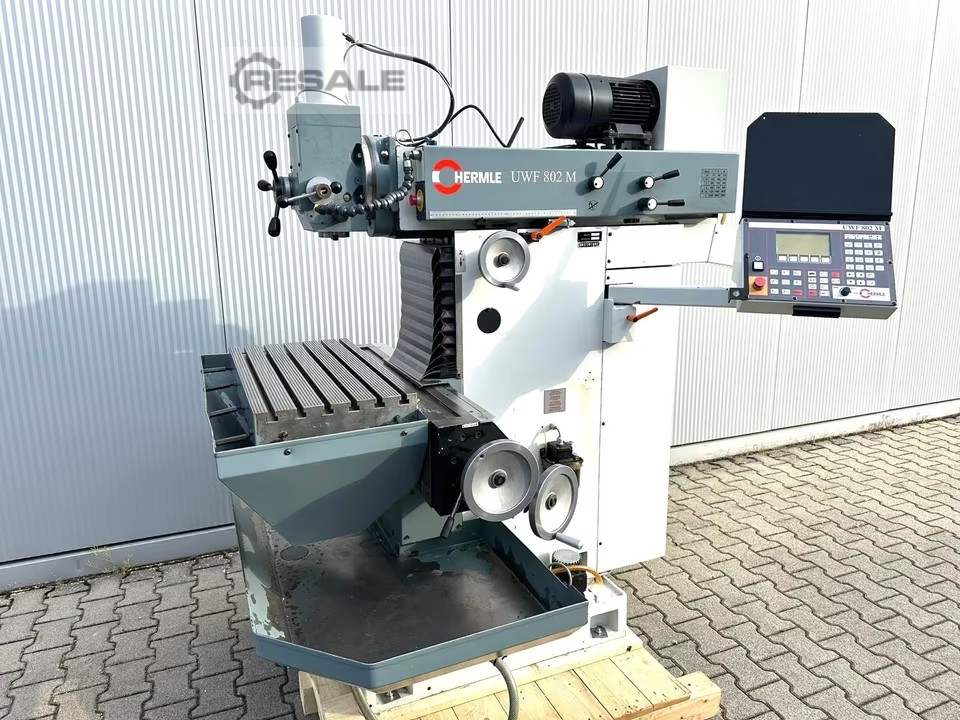

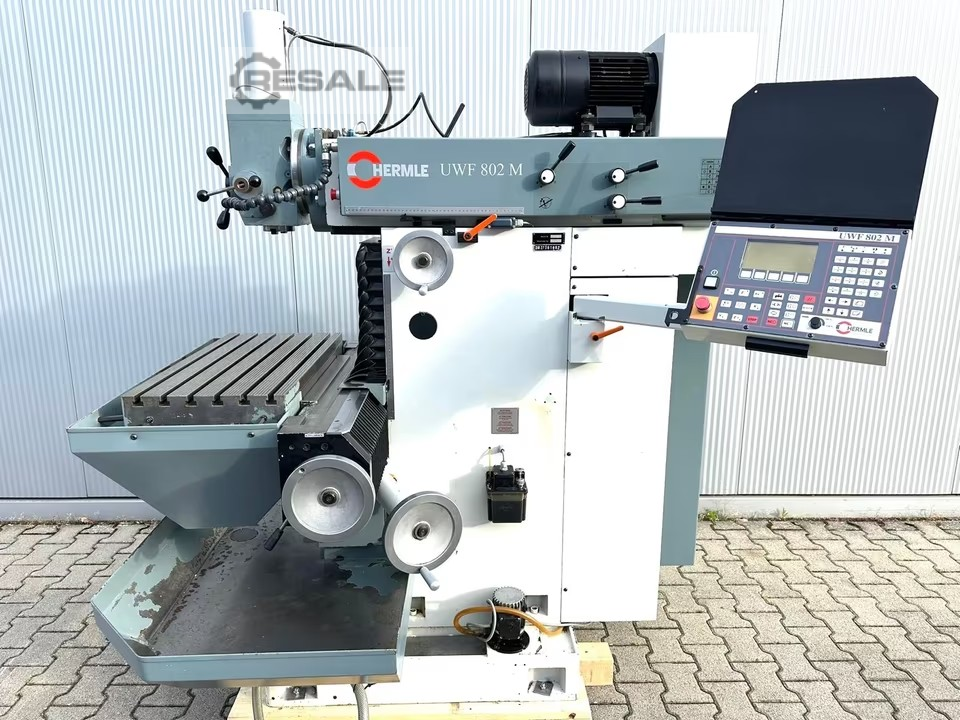

Universal milling machine Hermle UWF 802M with Heidenhain TNC124 track control in super CONDITION !! Specifications: Year of construction approx. 1996 Rigid angle table Speed: 17 to 3550 rpm Infinitely variable feed in 3 axes from 0 to 1600 mm/min Drive Power .:6 KW Travel X/Y/Z: 500/430/400 mm Vertical Quill and Horizontal Quill - SK40 Hydraulic tightening system Weight approx. 2000 Kg Dimensions Length 1.8 m , Width 1.8 m , Height 1.9 m Accessories and equipment: >> Heidenhain TNC124 Track Control >> Hydraulic clamping vertically and horizontally >> Automatic central lubrication >> spindle brake >> operating instructions About the machine : A Hermle UWF 802M tool milling machine with Heidenhain TNC 124 route control is offered. This universal milling machine is in very good condition. A very easy-to-use route control. Lengths and radius corrections are poss ...

Key data: 600 mm, 500 mm, 450 mm

Universal milling machine Hermle UWF 900 E Manufacturer: Hermle Model: UWF 900 E Year of Make: 1990 Factory No.: 1893 Specifications Travel: X-axis (longitudinal movement): 600 mm Y-axis (transverse movement): 500 mm Z-axis (vertical movement): 450 mm Quill: 100 mm, extendable Spindle head swivel range: ±90° Milling spindle front bearing: Ø 55 mm Tool holder: SK40 DIN 2080 or SK40 DIN 69871 or BT40 Table size (universal clamping table): 420 x 650 mm, expandable to 935 mm NC rotary table (4th axis): Ø 380 mm, swivelling ⚙️ Equipment / Accessories: Vertical milling head with quill and fine adjustment Universal face and angle milling head Heidenhain Control Particularly suitable for Individual and small series production Tool and mould making Precision and complex milling work Condition Well-maintained, fully funct ...

This 3-axis HERMLE UWF 1002 H was manufactured in 1995. It features an X-axis travel of 700 mm, Y-axis travel of 630 mm, and Z-axis travel of 500 mm. The machine has a table load capacity of 700 kg and a table surface area of 1000 x 490 mm. If you are looking to get high-quality machining capabilities, consider the HERMLE UWF 1002 H vertical machining centre we have for sale. Contact us for further details.

CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 S Year of Make: 1995 Hours: 65 071 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill Ø 100 mm extendable vertical: 75 mm M & H 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manual / program-controlled: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Table wei ...

CNC Milling Machine Universal Manufacturer: HERMLE Type: UWF 902 H Year of Make: 1995 Hours: 46,680 Control: HEIDENHAIN TNC 426 Working area X/Y/Z: 600 x 450 x 500 mm Range: Spindle speeds infinitely variable within 3 switching stages: 20 to 6,300 rpm Tool holder: SK40 Tool Changer Tool holder, horizontal and vertical: ISO 40 DIN 2079 Tool clamping hydromechanical, clamping force (vertical): 10 000 N Tool clamping hydromechanical, clamping force (horizontal): 12 000 N Spindle diameter on front bearing, horizontal / vertical: 75 / 55 mm Quill stroke vertical: 75 mm Renishaw 3D Probe Individual feed motors for each axis – three-phase current (brushless) Feed range in X, Y, Z manually / programmatically: 1 to 2000 / 10 000 mm/min. Feed force in all axes (at 80% DC): 6 000 N Rapid traverse in all axes: 10 m / min. Angle table: 900 x 458 mm Universal clamping  ...

Key data: 600 mm, 400 mm, 420 mm

Hermle UWF 900 Universal CNC Milling Machine BAZ Year of Make: 1996 Machine number: 11410 Machine weight: 2,900 kg Availability: By arrangement. Machine is still energized and in perfect condition.

CNC - Universal milling machine HERMLE UWF 902-S -Heidenhain 426 -Built in 1997 -Travel X/Y/Z 600-450-500mm -Speed range 20-6300 rpm -Tool holder SK40 -Vertical - Horizontal milling device -Drill quill -Coolant device -Angle table -Machine enclosure -Documentation Dimensions: LxWxH 3,9x2x2Meter / Weight 4000Kg Hobkn Au Sjv Iklus Tol

Ref.nr. 00937 Name of the tool milling machine Manufacturer: Hermle Model UWF 800 HS 57 Year of manufacture 1995 general overhauled (Investment of approx. 41,158 euros) Condition Functional Remark: Non-functional digital display of the setting values. The setting values can be read mechanically on the screw wheels. Accessory box: With clamping sets, shaft extensions, mounts, etc. The digital display for the setting parameters does not work. The machine can otherwise be used in full working order, the setting parameters can be read manually on the adjustment wheels. Extensive accessories including mounts, shaft extensions, etc. are attached according to photo. Customer writes: System is fully functional, except that the digital setting display no longer works. But all settings can be read analogously on the machine. Deadline CW 43/2026 [Oct. 19-23, 2 ...

x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm total power requirement: 3 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2 x 2 x 2 m No. 2392 Universal tool milling machine HERMLE UWF 801 Working area: 500 x 430 x 400 mm Drive: 3 kW Control: TNC 135 With manual control: Working area 520 x 450 x 410 mm, fixed table 800 x 400 mm Tool holder SK 40 18 spindle speeds from 40 - 2000 1/min Feed stepless x,y 4 - 1600 mm/min z 4 - 1000 mm/min Dimensions 2.3 x 2.3 x 1.7 m Weight 1350 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 430 mm z-travel: 400 mm total power requirement: 4 kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: 2 x 2 x 2 m No. 3999 Universal tool milling machine HERMLE UWF 801 Working area: 500 x 430 x 400 Drive: 3 Control: Heidenhain TNC 135 Fixed table 800 x 390 mm chip tray documentation Spindle SK 40 Speed range 50 - 2500 min-1 Space requirement approx. 3 x 3 x 2 m Weight approx. 1400 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 410 mm y-travel: 310 mm z-travel: 400 mm total power requirement: 2,2 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 2*2*2 m Universal tool milling machine HERMLE UWF 700 Spindle holder SK 40 Speed range 40-2000 min Space requirement approx. 2 x 2 x 2 m Weight approx. 1100 kg For further data see attached PDF Rigid table 700 x 285 Horizontal milling machine vertical - milling head enclosed - partially rep. conditioned Documentation Working area: approx. 410 x 310 x 400 Drive: 2,2 Heidenhain digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

x/y/z = 500/360/400 mm, max. 4000 rpm, 4 clamping corner, 1 pushbutton, various shots, cabinet Lista

With CNC control, HEIDENHAIN, Type: TNC 155, measuring taster Separate control cabinet: 1260 x 500 x 1700 mm Travel distances 700 x 550 x 550mm Table area 1000 x 490 mm Accessories: Treatment / Cooling system / tool shots The machine stored since 2013. At the time of storage, the machine was fully functional.; ready for use

x-400,y-330,z-350,angle table 630x335,SK 40, 40-6,000 rpm,measuring probe

x-travel: 600 mm y-travel: 400 mm z-travel: 420 mm Control: Heidenhain Tnc table-size: 900 x 460 mm turning speeds: 4000 U/min total power requirement: kW weight of the machine ca.: 2,9 t dimensions of the machine ca.: 3 x 2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 600 mm, 450 mm, 400 mm

x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm Table size: 850 x 440 mm Spindle holder: SK 40 Control: HEIDENHAIN TNC 355 Spindle speeds: 20 - 4000 rpm Spindle motor: 5.9 kW Quill stroke: 80 mm Feeds - longitudinal/transverse/vertical: 1 - 2000 mm/min Feed force x/y/z: 7200 N Rapid traverse longitudinal and transverse: 10 m/min Rapid traverse vertical: 10 m/min Total power requirement: 12 kW Machine weight approx.: 2.5 t Dimensions L x W x H: 2.7 x 2.5 x 2.0 m Handwheel, coolant device

x-travel: 390/410 mm y-travel: 290/310 mm z-travel: 380/400 mm total power requirement: 4 kW weight of the machine ca.: 1,25 t dimensions of the machine ca.: 2100x2100x1700 m technical data please see attachment! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC controller: HEIDENHAIN TNC 430 Axes X-axis travel mm: 600 Y-axis travel mm: 450 Z-axis travel mm: 500 Distance spindle nose - table surface mm: 573 Rapid traverse m/min: 10 Worktable Number of pallets: 1 Table dimensions mm: 800 x 465 Maximum workpiece size (D x H) mm: 900 x 528 Max. workpiece weight kg: 450 (500 in large workpieces) T-Slot version: 14 H7 Spindle Spindle speed rpm: 6.300 Spindle drive power kW: 8,6 Bearing Inner Diameter mm.: 70 Tool system Tool holder: SK 40 Tool magazine slots: 34 Max. Tool Diameter: 90 With free neighboring places mm: 125 Tool Magazine: UTC 34 Max. Tool Length mm: 250 Max tool weight kg: 8 Equipment Electronic Handwheel Rinsing gun Tool breakage probe Workarea light CE conformity Cooling Tank capacity: 170 L High-pressure bar: 40L / min Machine running times Rated power kVA: 16  ...

x-travel: 400 mm y-travel: 330 mm z-travel: 350 mm total power requirement: 6,3 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 736 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 330 mm z-travel: 350 mm total power requirement: 6,3 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 736 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 330 mm z-travel: 350 mm total power requirement: 6,3 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 736 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A CNC universal tool milling and drilling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, quill stroke: 95mm, spindle power: 12kW, spindle speed: 4200rpm, spindle swivel: +/-75°, tool holder: SK40, clamping force: 12kN, feed rate: 10m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 4400mm/4250mm/2300mm, weight: approx. 4500kg, control: Heidenhain TNC 425. Documentation available. An on-site inspection is possible.

Travel: X= 600, Y= 400, Z= 420 mm Speed range: 20 – 4000 rpm Gear Stages: 3 Mount: SK 40 Quill stroke: 75 mm Spindle motor: 5.9 kW Feed range: 1 – 5000/6000 mm/min (man./program.) Rapid traverse x, y: 7 m/min Rapid traverse z: 6 m/min Clamping area: 900 x 458 mm Weight: approx. 2300 kg Various tools (without cabinet)

Machine data: Control Heidenhain TNC 355 Year of manufacture 1989 Travel: X 600 mm travel Y 450 mm travel Z 400 mm travel Spindle speed 20 – 4000 min-1 Angle table size 850 x 440 mm Swivel table 650 x 395 mm Electronic handwheel The machine is still energized and in good condition.
