universal grinding machine used for sale

Weight: 6300 Kg, cnc brand: FANUC, Accessories: Refrigeration equipment with paper filter

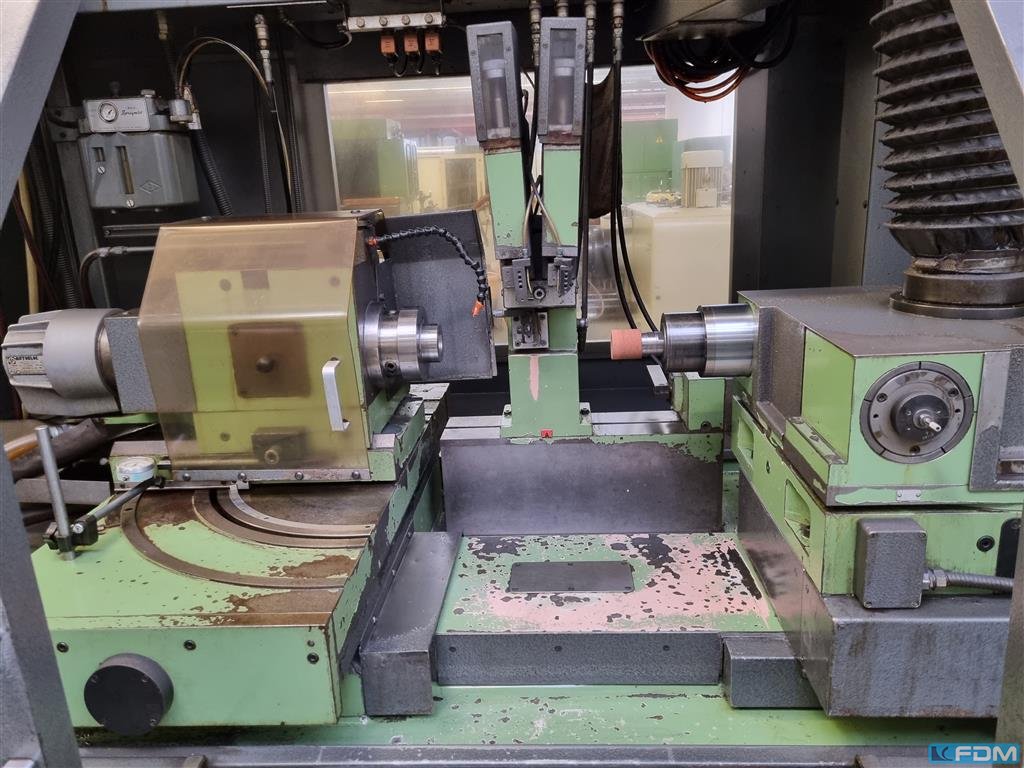

Walter Helitronic CNC Tool Grinding Machine - Grinding machine Hersteller [manufacturer]: Walter Type [ type]: Helitronic Control unit: Heidenhain TNC 360C Incl. handwheel Baujahr[construction year]: 10/2002 Travel path: X= 1500mm Y=500mm Z=450mm Workbench: L = 1800mm W=500mm Spindle [spindle]: swivel +-90° Feed speed [feed speed]: 10-4000mm/min Spindle rotation speed: 30-3000 rpm Feed force [feed force]: 10,000-15000N Tool holder: SK 50 after DIN2080 Weight: 7.000kg Approx. (W x D x H): 3.0m x 2.25m x 2.85m Incl. various accessories according to photos Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. +4917621834834 Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - u ...

Generating Grinding Machine Grinding Machine Gleason Pfauter G320 CNC + Promot Automation Hersteller [manufacturer]: Gleason Pfauter G320 + with Promot Automation handling unit Type [ type]: G 320 Control unit: Siemens 840 Incl. control panel Baujahr[construction year]: 10/2001 Module [ ]: 0.5-7.0 Min. workpiece diameter [ ]: 10 mm Max. workpiece diameter [ ]: 380 mm Number of teeth [ ]: 10-600 Vertical carriage stroke "Z" [ ]: 200mm Horizontal carriage stroke "X" [ ]: 230mm Tangential carriage stroke (SHIFTING) "Y" [ ]: 135mm Swivel angle clamping head "A" [ ]: +-45° Tailstock tip stroke [ ]: 125mm tangential slide stroke – dressing [ ]: "V" 180mm radial carriage stroke – dressing [ ]: "U" 110mm Rotation speed – grinding wheel in progress [ ]: 3000rpm max - infinitely variable Egg speed - linear axes [ ]: 10000 mm/min Max. table rotation speed [ ]: 240 RP ...

Key data: 1100 mm, 2

Wide belt grinding machine Manufacturer: Böttcher & Gessner Model: 780 Grinding width 1100mm Aggregates 1x calibration roller 1 x Finishing touches 1 x Cleaning Brush

Grinding machine (lower grinder) Heesemann type LSM 8 – U Specifications: • Cutting width (mm): 1300 • Workpiece thickness max. (mm): 3 -140 • Brushing device: brush roller diameter 150 mm • Drive for brushing device (kW): 1.5 • Transport bed: 3.0 kW FU 4.0 kW • Feed speed (m/min.): 5 - 25 • Workpiece conveyor belt suction clamping system (kW): 7.5 • Total weight (kg): approx. 7500 • Total electricity connection (kW): approx. 73

Distance between centers: 1000 mm, Height of points: 230 mm, Main engine power: 9.2 Kw, Working wheel dimensions (od x id x width): 500x80x203.2mm, Ø max to be rectified: 460 mm, Tailstock cone: MORSE 4, Workpiece head cone: MORSE 5, Max. Z axis travel : 1115 mm, Max. X axis travel: 260 mm, Approximate dimensions (length x width): 440x370 cm, Approximate Weight: 4700 Kg

calibrating sanding machine model LEVIGALTECNICA MIKRO SRTV/C mm.1000 second hand machine carpet in rubber max. working width mm.1000 machine composed by 1 belt combined : calibrating roller in rubber diam.mm.150 + pneumatic pad main motor power Kw 10 belt dimension mm. 2150 x 1030 feed speed of conveyor belt : n.02 speed m/min. 5 / 10 min. / max. working heigth mm. 3 / 165 volt. 380/50 weigth kgs. 800

Offer 24154 Specifications: - Brush diameter 250 mm - Brush width 60 mm - Disc speed 1500 / 3000 rpm - Drive 400 V / 1.0 / 1.4 kW - Working height 900 mm - Space requirement approx. W 650 x H 1150 x D 450 mm - Weight approx. 100 kg

From business liquidation: Grit GX 75 H Radius Grinder Year of construction 2016 Dpbnjr 380 volts 2KW power with 31.5--40--46mm inserts mobile

Up-down sander SAC 4R-300 Working width 300mm Working height 2.5-150mm 4 sanding units 2x Bottom unit 2×5.5kW 2x top chiller 2×5.5kW Sweeping brush top and bottom' 2×0.55kw Adjustable feed on the inverter 4-16m/min Electric grinding height adjustment Ability to work in-line with other machines CE Certified Year of production 2001

Surface Grinding Machine MONOPRECIS 1DR Travel X: 400 mm Travel Y: 150 mm Maxi grinding height (Z): 220 mm Year of construction: 1983 Manuel Magnetic chuck dimensions: 2500 x 130 mm Max Grinding wheel dimensions: Ø 170 mm Diamond system Manual movement Voltage: 380 V Dimensions (L x W x H): 1300 x 1200 x 1800 mm Weight: approx 800 kg

Surface Grinding Machine JONES and SHIPMAN 540 P Travel X: 483 mm Travel Y: 168 mm Maxi grinding height: Wheel chuck 190 mm / without chuck 240 mm Spindle rotation: 3200 RPM Year of construction: 1996 Magnetic chuck dimensions: 450 x 150 mm Grinding wheel: Ø 200 mm x thickness 25 mm Auto stepover X - Y Manual Z-axis rise Voltage: 380 V Equipped with: 1 Manual Magnetic Chuck BRAILLON PFF Equipped with: 1 Lubricant tank DARENTH type 1004/01 Tank dimensions: L 650 mm x Depth 700 mm x H 900 mm Dimensions (L x W x H): 1500 x 1100 x 1800 mm Weight: approx 1 T

SPECIFICATIONS: Sanding belt size: 1380 x 2620 mm Max. working height: 160 mm Diameter of the rollers: 250 mm 3 independent motors total KW 36.0 Electronic Band Oscillation Front and rear support rollers Speed variator Pneumatic Shoes Hardness of the rubber rollers Reel I: 90 sh Reel II: 75 sh III Reel: 55 sh

Distance between points: 1000 mm, Point height: 175 mm, grinding length: 500 mm, Ø max to be rectified: 300 mm, inner cone: Morse 5, Working wheel motor power: 7.5 Kw, Longitudinal travel of the carriage (X axis): 267 mm, Transverse travel of the carriage (Z axis): 650 mm, cnc brand: FANUC, cnc model: 16-T

Drills Grinding Machine DECKEL SOE Spindle speed: 4500 RPM Maxi bore of clamps: 17,5 mm Maxi sharpenable radius: 10 mm Maxi lateral displacement: 10 mm Angle adjustment: 45° Maxi displacement: 100 mm (see technical details) Delivred with 1 set of clamps + different diamond grinding wheels Voltage: 380 V Width: 600 mm Depth: 600 mm Total height: 1300 mm Weight: approx 150 kg

Surface Grinding ERNAULT SOMUA FU 660 Travel X: 660 mm Travel Y: 400 mm Travel Z: 400 mm Magnetic chuck BRAILLON 700 x 300 mm Grinding wheel: Ø 355 mm Motor power: 7,5 CV Swivel head Automatic diamond cutting Auto stepover X - Y - Z Lubricant tank Hydraulic Group Voltage: 220 V Tri Length: 2900 mm Depth: 2000 mm Total height: 2200 mm Weight: approx 4,5 T

Danobat RTM-2500 CNC X600 CNC Surface Grinder Grinding Length: 100" Grinding Width: 28" Table Length Dimension: 98.43" Table Width Dimension: 19.690" -Grinding Wheel- Grinding Wheel Diameter: 20" Grinding Wheel Width: 4" Grinding Wheel Bore: 8" -Wheel Head- Angle Adjustment: 0 DEG Wheel Head Motor: 20 HP Wheel Head Speed: 1,200 RPM -EQUIPPED WITH- Fagor 8055 CNC Control Magnetic Swarf Conveyor

We have stored an associated coolant system Knoll type VRF 450/2250 (built in 1997) at a freight forwarder, so it is not on the pictures. The machine is fully functional and is available immediately.

ABA Grinding Machine Starline CNC Profile Grinding Machine Surface Grinding Machine Hersteller [manufacturer]: ABA ELB Type [ type]: Starline Control unit: Siemens Sinumerik Incl. handwheel Baujahr[construction year]: 10/2004 Weight [weight]: 6000kg Approx. (W x D x H): 4.1m x 5.1m x 2.5m Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Phone +49 17621834834

Distance between points: 760 mm, Max travel Z axis: 650 mm, Maximum length to be rectified: 430 mm, Ø max to be rectified: 250 mm, Height of points: 125 mm, Ø max. molar: 500 mm, Max travel X axis: 320 mm, cnc brand: FANUC, cnc model: 18i-T, Ø max. wheel: 400 mm, main motor power: 7.5 Kw, Z and X axis resolution: 0.1µmm, Distance between centers: 430 mm, Workpiece head cone: MORSE 5, Ø of the workpiece head hole: 38 mm, tailstock cone: MORSE 4, Accessories: FELSOMAT gantry loader with SIEMENS CNC; Refrigeration equipment with paper filter; Forkardt automatic mooring plate; automatic tailstock; Cooled grinding wheel shaft; Spare ball screw; MARPOSS Automatic Grinding Wheel Balancer and Gauge , Dimensions (length x width): 2500x2000 mm, Weight: 4700 Kg

Offer 24315 Univ. Radii Metal Belt Grinding Machine Specifications: - Sanding belt dimensions 2000 x 100 mm - Surface grinding opening 400 x 100 mm - Support vise – angle adjustable 90° - 30° - Support fine adjustment via handwheels - Sanding belt speed 30 m/sec. - Contact disc / grinding roller Ø 42 mm - Drive 400 V / 2880 rpm / 3 kW - Space requirement approx. W 700 x H approx. 1200 x D 1200 mm - Weight approx. 225 kg - 10 contact - sanding rollers approx. Ø 10 + 18 + 22 + 24 mm - 28 + 33 + 36 + 48 + 60 + 68 mm

Offer 24339 Specifications: - Sanding belt dimensions 2000 x 100 mm - Surface grinding opening 400 x 100 mm - Support vise – angle adjustable 90° - 30° - Support fine adjustment by hand lever - Sanding belt speed 30 m/sec. - Contact disc / grinding roller for approx. Ø 42 mm - Drive 400 V / 2880 rpm / 3 kW - Space requirement approx. W 700 x H approx. 1200 x D 1200 mm - Weight approx. 225 kg - Contact rollers 33.7 , 42 , 48 mm

LIDKÖPNG CL 4B Centerless Grinding Machine Specifications Working range workpiece diameter: 1 - 150 mm Longest workpiece length in the grooving process 300 mm Abrasives: Largest outer diameter 508 mm Smallest outer diameter 365 mm Normal width of the abrasive media 254 mm Largest abrasive media width 305 mm Control body: Largest outer diameter 330 mm Smallest outer diameter 255 mm Normal width of the control body 254 mm Largest regulating body width 305 mm Normal speed (infinitely adjustable) 0-115 rpm Power: Main motor, maximum 37 KW Total requirement approx. 42 kW Weight approx. 7 t Space requirement: approx. 4 x 4.2 m The machine can be viewed by appointment in our factory in Krefeld. – Errors, changes and prior sale excepted –

LIDKÖPNG CL 4B Centerless Grinding Machine Specifications Working range workpiece diameter: 1 - 150 mm Longest workpiece length in the grooving process 300 mm Abrasives: Largest outer diameter 508 mm Smallest outer diameter 365 mm Normal width of the abrasive media 254 mm Largest abrasive media width 305 mm Control body: Largest outer diameter 330 mm Smallest outer diameter 255 mm Normal width of the control body 254 mm Largest regulating body width 305 mm Normal speed (infinitely adjustable) 0-115 rpm Power: Main motor, maximum 37 KW Total requirement approx. 42 kW Weight approx. 7 t Space requirement: approx. 4 x 4.2 m The machine can be viewed by appointment in our factory in Krefeld. – Errors, changes and prior sale excepted –

For sale is a used long belt sander (The machine is in the preliminary stage, photo is of a similar machine) Manufacturer: Kuhlmeyer Model: ZBS Year of Make: 2003 Working Area: 3,000x800mm Band size: 9,000x100mm Included: Grinding table height-adjustable, 5-axis workpiece handling device, swap shelf and a supply of belts If you have any further questions, please call or write to us!

Distance between points: 1000 mm, Ø max to be rectified: 350 mm, Max travel Z axis: 1.180 mm, Max travel X axis: 350 mm, Height of points: 180 mm, Ø max to be rectified with the left wheel: 350 mm, Left grinding wheel dimensions (od x id x width): Ø450xØ203x80 mm, Working wheel dimensions (od x id x width): 508x203.2x80mm, Right grinding wheel dimensions (od x id x width): Ø300xØ127x40 mm, cnc brand: FANUC, cnc model: 18TC, Main engine power: 7.5 Kw, Maximum weight between points: 120 Kg, Total installed power: 15 KW, Standard peripheral speed: 45 m/s, Automatic grinding head rotation with Hirt 2.5º: +5º_-180º, B axis control system: Incremental encoder + 2.5º Hirt ring, B axis motor: 2.5 Nm at 3000 rpm, X axis speed: 10,000 mm/min, X axis resolution: 0.0005 mm, Z axis speed: 10,000 mm/min, Z axis resolution: 0.005 mm, Z axis table rotation: 0º_9º, Workpiece head cone: MORSE  ...

CNC gear grinding machine/tooth flank grinding machine Höfler H4000 Built in 1990 CNC control is old + defective / needs to be replaced (needs retrofit) Wheel diameter - max. 4000 mm Wheel width 1560 mm Module - max. 32 Module - min. 3 Machine weight approx. 120 t Space requirements approx. m Year of Make: 1990 Wheel Ø max. 4,000 mm Module 3 - 32 Bevel angle max. 35 ° Wheel width with straight gearing 1,560 mm Stroke length approx. 1,600 mm Stroke rate 12 - 120 strokes/min. max. workpiece weight approx. 35,000 kg Max. number of teeth 12 - 768 Table size Ø x Bohrg. 1,900 x 750 mm Grinding wheel Ø approx. 500 mm Accessories / Special equipment: Hydrostatic guides in the grinding carriage, table and in all other Guideways Complete sanding chamber encapsulation with sliding doors automatic grinding sequence in several cycles as well as settings for ...

GENERAL Project No.: 905670 Quantity: 1 pcs. Manufacturer: TACCHELLA Type: Elektra 1018 MPC Control: MPC Year of Make: 1999 Condition: Used machine Layers approx.: less than 1 layer DESCRIPTION CYLINDRICAL GRINDING Max. grinding diameter 350 mm Max. grinding length 1000 mm Center height 180 mm Center width 1000 mm GRINDING SPINDLE UNIT Travel in X/Z 350/1180 mm Max. rapid traverse speed in X/Z 10/10 m/min Grinding headstock can be swivelled manually Belt-driven grinding spindle for external grinding wheel right with max. diameter x width x bore 400x50x127 mm left with max. diameter x width x bore 450x80x203 mm Max. circumferential speed 35 m/s2 Max. power at ED 10-40/100% 7.5 kW Mounting MK5/ASA4 TAILSTOCK Tailstock can be moved manually Tailstock quill holder MK4 Cylinder Fine Adjustment Tailstock Manual Dresser with dressing tile on tailstoc ...

Offer 14044 Specifications: - 2-fold side edge belt sanding device - Sanding belt dimensions approx. 620 x 20 mm - Grinding equipment adjustable by handwheel - Support belt motor-driven - Support band dimensions approx. 2050 x 350 mm - Tilt-adjustable support strap - Table height approx. 950 mm -Mot. Grinding dust extraction - Drive 400 V - Space requirement approx. W 1100 x H 1450 x D 950 mm - Weight approx. 200 kg

Long belt sanding machine Höfer Long belt sander Höfer approx. 1000 x 2500 mm Machine is FUNCTIONAL and ready for demonstration from PENSION/Handicraft business From the carpentry site, as seen NET € 1,500.00

Distance between points: 1100 mm, Center height: 175 mm, Maximum diameter to be rectified: 270 mm, Maximum piece weight: 135 Kg, Working wheel dimensions (od x id x width): Ø508xØ304.8x80 mm, Main engine power: 7.5 Kw, numerical control: Fanuc 21 Oi-T

Grinding wheel dimensions (od x id x width): 325 x 175 x 125 mm, Ø min/max to be rectified: 1.5 / 50 mm, Grinding wheel width: 125 mm, Control type (cnc/manual): Manual, Regulating wheel dimensions (od x id x width): 220 x 125 x 125 mm, No. of regulating wheel speeds: infinite, Regulating wheel width: 125 mm, Grinding wheel head motor power: 7,5 Kw, Long: 1520 mm, Width: 1020 mm, Tall: 1260 mm, Weight: 1600 Kg

Grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Ø min/max to be rectified: 1.5/100mm, Regulating wheel width: 200 mm, No. of regulating wheel speeds: infinite, Min/max speed of regulating wheel (r.p.m.): 0/450rpm, Regulating wheel dimensions (od x id x width): Ø 270 x Ø 140 x 200 mm, Grinding wheel width: 200 mm, Grinding wheel head motor power: 15 kW, Long: 2020 mm, Width: 1300 mm, Tall: 1420 mm, Weight: 4200 Kg

Key data: 920 mm, 2

SPECIFICATIONS: Machining width: 920 mm I Grinding roller: 11 kW II Grinding Shoe: 7.5 kW

Grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min/max to be rectified: 1.5 / 120 mm, Regulating wheel width: 254 mm, No. of regulating wheel speeds: infinite, Min/max speed of regulating wheel (r.p.m.): 10/250 rpm, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Hydraulic motor power: 0,55 kW, Total power: 27 kW, Voltage: 220/380 V, Long: 2.300 mm, Width: 1.885 mm, Tall: 1.900 mm, Weight: 6.420 kg

Workshop overhauled 2024, ready-to-use DISKUS Doppelplan grinding machine, Lower grinding spindle renewed 2024 Machine No. 7078 Specifications: Grinding spindle 2 pieces vertical Workpiece width 5 - 30 mm Max. workpiece height 10 mm Grinding wheel diameter 300 mm Dimensions of grinding tools Ø 300 x 50 x Ø 75 mm Rotational speed grinding wheel 18 m/s Speed 1150 rpm Lower grinding spindle frequency-controlled Machine weight approx. 2.3 t Accessories: IONIC process control, FAUDI water basin with magnetic separator Replacement flanges, transport washers The machine can be viewed by appointment in our factory in Krefeld. Price ACTUAL condition from stock: on request – Errors, changes and prior sale excepted –

Key data: 360 mm

Reishauer Model RZ362A CNC Gear Grinder Maximum Wheel Diameter: 14.17” Maximum Module: 0.275” Minimum Module: 0.0039” Slide Stroke: 6.88” Maximum Helix Angle: ± 45° Maximum Number of Teeth: 600 Minimum Number of Teeth: 6 Maximum Workpiece Weight: 132 lbs. Grinding Wheel Width: 4.09” Grinding Wheel Diameter: 11.02” – 13.77” Speed of Grinding Worm when Grinding: 1100 – 2330 U/min Speed of Grinding Worm when Profiling: 50 – 95 U/min Feed per Revolution of Workpiece: 0 – 0.133” Grinding Worm Infeed Speed: Up to 99.9mm/min / 3.93 IPM Approximate Weight: 14,553 lbs. EQUIPPED WITH: Reishauer CNC Controls. Dittel MBA2000 Balancing Controller. Elbaron R12D Mist Collector. Kato Motor Generator. Freestanding Hydraulic Unit. Hydraulic Oil Pump-Sump System. Free Standing Electrical Control Cabinet. Tailstock. (2) Wheel Hubs. Manuals and Drawin ...

Make: YOUNG Type: JF 520 Year of construction 1992 Machine weight : 2200Kg Total weight: 2600kg Location : Haiger Price: 24.000 € excl. VAT. Description: Digital display, Fabr. Heidenhain, microprocessor control, profiling device, Fabr. Diaform, Machine Lighting, Coolant System, Sine Magnetic Clamping Table, Fabr. Jung, type SM 50 Specifications: Clamping surface (L x W in mm) 600 x 200 Grindable surface (L x W in mm) 600 x 250 Magnet size max. mm 600 x 200 Grinding wheel dimensions max. mm 225 x 25 x 51 Distance table/spindle center mm 350 (+50) Table longitudinal feed pendulum m/min 1 – 20 Creep gear mm/min 0 – 500 Grinding spindle drive speed rpm 800 – 4200 Power kW (w/creep gear) 2.2 (3.5)

Key data: 1500 mm, 220 mm, 1700 mm

1 pc. used crankshafts & camshafts - cylindrical grinding machine Make BERCO Model LYNX 2000 Year of construction 2013 Specifications Max. grinding diameter for recirculating grinding 220 mm Max. grinding diameter for cylindrical grinding 300 mm Max. workpiece weight between the tips 150 kg Center height above table 270 mm Center width 1700 mm Max. sanding length 1300 mm Diameter of the chucks 180 mm Tailstock quill path 50 mm Max. grinding wheel diameter 660 mm Min./Max. Grinding Wheel Width 20/80 mm Max. circumferential speed 35/80 m/sec. Grinding spindle head (X-axis) Final drive with linear motor - travel 490 mm Measuring device optical scale resolution 0.0001 mm Workpiece head (C-axis) Workpiece spindle speed range 1 - 1000 rpm. Encoder Measurement Range - Resolution 0.0001 degrees Table (Z-axis) Final drive with linear motor Measuring device optica ...

Distance between points: 1000 mm, Ø max to be rectified: 400 mm, Maximum length to be rectified: 600 mm, Max travel Z axis: 1300 mm, Max travel X axis: 378 mm, Height of points: 205 mm, Ø of the grinding wheel: 600 mm, Grinding wheel width: 63 mm, Maximum width of grinding wheel: 125 mm, Grinding wheel hole Ø: 203 mm, cnc brand: SIEMENS, cnc model: 840D, Main engine power: 22 Kw, Grinding wheel speed: 45 m/s, tailstock cone: mk5, Counterpoint tour: 100 mm, Workpiece head cone: mk5, Workpiece head rotation: 90º, Maximum piece weight: 300 Kg, Working accuracy of the machine: IT4 ISO, Fine taper adjustment +/-: O, 1 mm/a, speed of the working feed of the table: from 0 to 7.5 m/min, Plan dimensions: 4500x3000x2500 mm, Weight approx.: 8000 Kg

Total power: 38 KVA, Max. length to be rectified: 800 mm, Height of points: 150 mm, Max. piece weight: 80 Kg, Working precision: IT4 ISO, Dimensions of the external grinding wheel: Ø400xØ127x63mm, Max width of grinding wheel: 63 mm, Power of outdoor grinding wheel: 7.5 Kw, Grinding wheel rotation speed: 45 m/s, Max travel X axis: 350 mm, Workpiece head cone: MORSE 5, Workhead spindle speed: 0-1000 rpm, Swivel angle of the working head: 90º, Tailstock cone: MORSE 4, Tailstock stroke: 90 mm, Max travel Z axis: 1000 mm, Table adjustment angle: +/- 8º 30, CNC control: SIEMENS, cnc model: 840 D

Max. grinding diameter 200 mm Max. sanding length 600 mm Max. workpiece weight 60 kg Device for internal grinding: no Machine dimensions L x W x H 2100x1800x1500 mm Machine weight 2300 kg Center width 600 mm

Workspace Workpiece, weight (max.) 270 kg Distance spindle nose - table surface 580 mm Table dimensions 635 mm x 305 mm Dimensions magnetic clamping plate 600 mm x 300 mm Scale ring pitch Y-axis 0.005 mm Scale ring pitch Z-axis 0.02 mm Auto. Transverse Feed Z-Axis 0.1 mm - 8 mm Speed 1450 1/min Auto. Vertical feed 0.005 mm - 0.05 mm Travel X-axis travel 765 mm Y-axis travel 340 mm Feed hydr. Feed X-axis 7 m/min - 23 m/min Rapid traverse Y-axis 480 mm/min Rapid traverse Z-axis 990 mm/min Drive power Motor power main drive 4 kW Dimensions and weights Grinding wheel dimensions 350 mm x 40 mm x 127 mm Dimensions (length x width x height): 2.9 m x 2.2 m x 1.9 m Weight 2800 kg

Workspace Workpiece, weight (max.) 500 kg Table dimensions 813 mm x 406 mm Distance spindle nose - table surface 580 mm Dimensions magnetic clamping plate 800 mm x 400 mm Scale ring pitch Y-axis 0.005 mm Scale ring pitch Z-axis 0.02 mm Auto. Transverse Feed Z-Axis 0.1 mm - 8 mm Speed 1450 1/min Auto. Vertical feed 0.005 mm - 0.05 mm Travel Travel X-axis 910 mm Y-axis travel 450 mm Feed hydr. Feed X-axis 7 m/min - 23 m/min Rapid traverse Y-axis 480 mm/min Rapid traverse Z-axis 990 mm/min Drive power Motor power main drive 4 kW Dimensions and weights Grinding wheel dimensions 350 mm x 40 mm x 127 mm Dimensions (length x width x height): 3.6 m x 2.4 m x 1.9 m Weight 3400 kg

Inv. Num. : 8043 Type: ML 100 3Z Producer: NS MAQUINAS Created: 2017 Parameters: Max. workpiece diameter: 10-114 mm Minimum length of the workpiece: 335 mm Number of sanding belts: 6 pieces Abrasive belt speed: 10-30 m/s Sanding belt dimensions: 50 x 940 mm Weight: 600 kg

Key data: 1350 mm, 3

electronic control - First roller D=250 mm made of grooved steel - Second roller D=320 mm made of rubber - third roller D=? mm made of steel with carpet with button - Pneumatic on/off of the 3 groups - Air purification fan on the 3 bands - Sanding belt 2620 mm - Electronic oscillation of the abrasive belts - Automatic layer positioner - Variable feed speed of the carpet with inverter KW 2.2 - Vacuum conveyor belt - ionization in the outlet

Key data: 1000 mm, 25

Hofler Rapid 900 CNC form wheel gear grinder Year: 2003 installed 2004 This universal CNC form wheel gear grinder is a great job shop machine it can be inspected in plant under power . Machine is equipped complete with all necessary items to run this machine in your facility Machine specifications Max tip diameter of workpiece 1000 mm Max root diameter 50 mm stroke length 650 mm max workpiece height under tailstock 1960 mm profile height 41 mm Module 1-25 mm Helix angle +/- 45 deg Max grinding wheel diameter 400 mm Min wheel diameter 200 mm grinding wheel width 60 mm grinding spindle motor 13.5 Kw Grinding spindle speed range 1- 4000 RPM Dressing roll diameter 160 mm dressing roll spindle speed range 1-540 ...

Technical details Grinding length max. 600 mm Grinding width max. 350 mm Control conv. Distance from spindle center to table max. 525 mm Magnetic clamping plate 600 x 350 mm max. table load 400 kg Table longitudinal movement 660 mm Table speed 2 - 28 m/min Transverse movement 360 mm Grinding wheel dimensions max. 300 x 50 x 76.2 mm Clamping width max. 30 mm Drive power - grinding spindle 3.7 kW Total power requirement 8 kW Machine weight approx. 2.1 t Space requirements approx. 4.5 x 3.0 x 2.4 m

Universal surface grinding machine of the Jung brand suitable for tooling, fixture construction, training and mould making Bssx7D8P Travel distances : 400 x 150mm Table size : 520x150mm Grinding length 400mm Grinding width 150mm Workpiece height 240mm Table size 520x200mm Connection 50Hz 380V Motor 4.5KW Machine weight approx. 2250kg Dimensions 2500x2100x1900mm

Specifications Center width mm 1000 Tip height mm 300 Grinding length mm 1000 Workpiece weight between tips kg 800 Load on the workpiece spindle during on-the-fly grinding Nm 200 X-axis - infeed movement Feed speed mm/min 0.01-8000 Linear measuring system, internal resolution mm 0.0001 Z-Axis - Table Movement Table speed mm/min 0.01-8000 C-axis - workpiece headstock Speed min-1 0-300 Drive power kW 5 Pick-up taper MK 5 / KK 6 Grinding spindles Power grinding spindle motor with water cooling kW 15 Grinding wheel circumferential speed m/s 35 (63) Grinding wheel, standard mm 600x80x203.2 Tailstock MK 5 pick-up taper Workpiece Tension Spring Hydraulic Retraction
