tsudakoma used for sale

TSUGAMI HS207 CNC automatic lathe was built in 2011 in Japan by TSUGAMI CORPORATION. The machine is designed for the mass production of small parts with complex geometries, used in various industries. It enables precise turning, drilling and threading of bar material with a maximum diameter of 20 mm. Machining is performed in 9 numerically controlled axes using the main spindle and a sub-spindle. This configuration enables operations to be performed on both sides of the workpiece without the need to re-clamp it. Once machining on one side is complete, the workpiece is transferred to the second spindle, which continues the operation from the opposite side. As a result, successive operations can be performed in a single cycle, which speeds up production and ensures high dimensional repeatability of the finished parts. The TSUGAMI HS207 is operated using a FANUC Series 31i-MODEL A CNC ...

This 9-axis TSUGAMI TMB 2E swiss type turning machine was manufactured in 2012. It features a main and counter spindle both with speeds up to 6,000 rpm and 11 kW power. The machine includes a 16-position turret and a milling spindle that reaches 10,000 rpm. It supports rapid traverse rates up to 50 m/min on X and Y axes, and 36 m/min on Z-axis. Consider the opportunity to buy this TSUGAMI TMB 2E swiss type turning machine. Contact us for more information.

This 7-axis TSUGAMI BS32CE-V was manufactured in 2008. It features a maximum turning diameter of 32 mm and a turning length of 250 mm. The machine is equipped with two spindles, offering main spindle speeds of 200 – 7000 rpm and sub-spindle speeds of 200 – 6000 rpm. If you are looking to get high-quality turning capabilities, consider the TSUGAMI BS32CE-V swiss type turning machine we have for sale. Contact us for further details.

TSUGAMI B0385L Swiss-Type CNC Sliding Headstock Lathe Year: 2014 Condition: Tooling included (as shown in photos) Specifications subject to buyer verification Machining Capacity • Max barstock diameter: 32 mm • Max machining length: 100 mm • Max main spindle drilling diameter: 13 mm • Max main spindle tapping: M12 • Max back spindle chucking diameter: 38 mm • Max back spindle drilling diameter: 12 mm • Max back spindle tapping: M12 • Max cross drilling diameter: 10 mm • Max cross tapping: M8 • Max tool spindle slotting cutter diameter: 45 mm Spindle Speeds • Main spindle speed: 200 – 6,000 RPM • Back spindle speed: 200 – 7,000 RPM • Tool spindle speed: 200 – 5,000 RPM Tooling & Axes • Total tool capacity (standard): 20 tools • Tool size: 20 × 20 × 125 mm • Controlled linear axes: 5-axis Ra ...

Key data: 32 mm, 32 mm, 320 mm

Stock number: 4010 CNC lathe SWISS TYPE Manufacturer: TSUGAMI, Type: BO326E-II - 2016 Machines NO.: 23031A, Year of manufacture: 2016 Specifications: Size capacity 32 mm Ø Ma. turning length (fixed guide bush) 320 mm Ma. Turning length (Rotary guide bush) 70 mm Max. threading force of the main spindle M 10 Max. speed drilling capacity 12 mm Main spindle effect 3.7/5.5 kw Sub-spindle Sub spindle speeds 8000 rpm Spindle bore 32 mm Driven tool transformer 6000 ( 4800) - 1 kW pr/min Subspindle effect 2.2/3.7 kw Control Fanuc 32i-B Fabr. Axis Controlled X1-X2-Z1-Z2-Y1-Y2 Opreation time 6575 hours Length: 2400 mm, Height: 2000 mm, Width: 1500 mm, Weight: 3500 kg

TSUGAMI MA 3 H - 10P Horizontal Machining Center 10 - Compartment Pallet Changer -Control FANUC 11-M -Travel X/Y/Z 340x260x400mm -10 - Compartment pallet change -B - Axis 360 DEGREES -Indexing 0.001mm -Speed range 36-5000 rpm -Feed range 1-6000 mm/min -Rapid traverses 12/meter-min -Tool holder BT 40 -Double-arm gripper -Tool magazine 62 stations -Drive power / spindle motor 7.5 KW -Electronic handwheel -Chip conveyor -Central lubrication -Coolant device -RS 232 data interface -Spindle oil cooler -Documentation Dimensions: LxWxH 4x2.4x2.4 meters / Weight 7000Kg

sliding headstock CNC lathe, year 2002, CNC Tsugami-Mori MSC-501. Used machine. More info & price on IndustrialBuyer.

sliding headstock CNC lathe, year 2001, CNC Tsugami-Mori MSC-501. Used machine. More info & price on IndustrialBuyer.

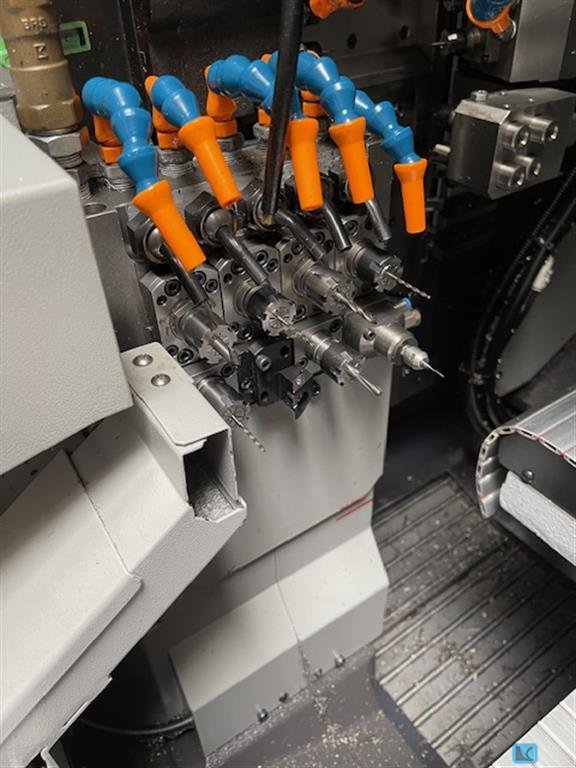

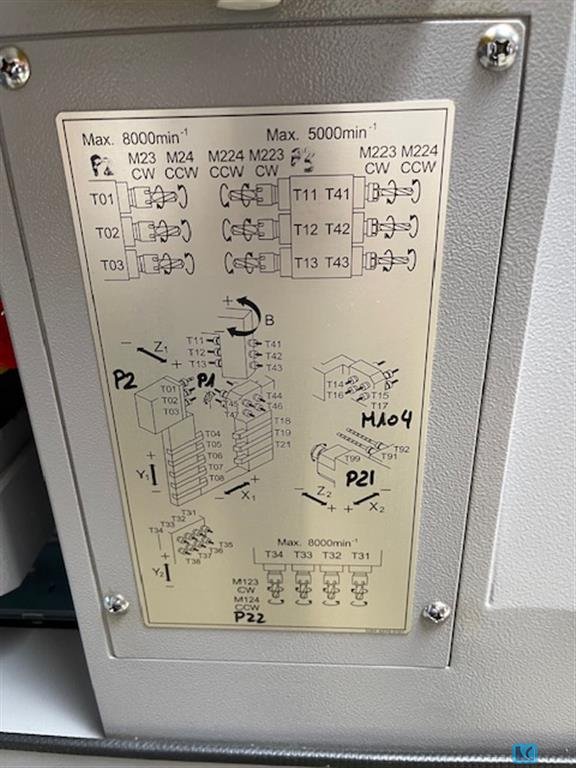

The positions of the rotating tools are: T01-02-03-04 / T22-23 / T34-35 - equipped with Iemca Boss 332E/32 new in 2006 - lot of collets / guide bushes - MSC-501 Control - the machine has always worked with oil.

equipped with Iemca Boss 338HD/32 barfeed new in 2017 - fixed and rotating bushing - evacuation of long pieces through the sub spindle + external apparatus - chip conveyor - some colllets+guide bushings - Fanuc 32i-B Control.

spindle passage: 12 mm Control: Fanuc type: LB 2 bar loader: FMB total power requirement: kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: 4000 mm grinding length: 6000 mm swing diameter: mm clamping length max.: 6000 mm grinding spindle speed: 420 - 1110 U/min grinding wheel peripheral speeds:: 1800 m/min grinding motor: 15 kW grinding wheel size: 760 x 90 x 304,8 mm faceplate turning speed range -stepless-: 3 - 30 U/min drive capacity - workpiece: 15 kW feed range - grinding spindle: - mm/min workpiece weight: 15 + t total power requirement: - kW weight of the machine ca.: ca 30 t dimensions of the machine ca.: ca 13 x 2,6 m Heavy-duty roll grinding machine - workpiece drive - tailstock - coolant system - various steady rests - polishing motor - crowning The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

TSUGAMI-MORI B012 AE ist ein CNC Langdrehautomat hoher Präzision mit ausgezeichneter Genauigkeit und Zuverlässigkeit. Fähigkeiten: Ø Bearbeitung max 12 mm, Drehlänge 140 mm, Stangen Ø 3–12 mm, Bohr-Ø max 7 mm, Gewinde bis 6 M. Daten: 3 Achsen, 1 Spindel, Drehzahl 200–12.000 t/min (stufenlos), 10 Stationen, Drehwerkzeuge 5, Bohrwerkzeuge 3, Querwerkzeuge 2, Eilgang 18 m/min, Spindelmotor 1,5/2,2 kW, Spannung 3x200 V 50 Hz, Druckluft 5 bar, Gesamtleistung 7 kVA, Gewicht ~1400 kg, Maße 1700×900×1660 mm. Zubehör: Teilefänger, Lampe, Kühlmitteleinrichtung. Für enge Toleranzen; Branchen: Automotive, Uhren, Maschinenbau, Luftfahrt, Medizin Technische Daten ohne Gewähr

TSUGAMI-MORI BS32CE(S)-V ist ein CNC-Langdrehautomat (Swiss-Typ) mit hoher Präzision, Genauigkeit und Zuverlässigkeit. Bearbeitungsdaten: 7 Achsen, 2 Spindeln; Drehdurchmesser 8–32 mm, Drehlänge 250 mm; Bohren bis 12 mm, Gewinde bis 10 M. Technische Daten: Hauptspindel 200–7000 t/min, Gegenspindel 200–6000 t/min; angetriebene Werkzeuge 200–5000 t/min; Spindelmotor 5,5 kW, Gegenspindel 2,2 kW; Vorschub 1–6000 mm/min, Eilgang 20 m/min; 4 Stationen, 20 Werkzeuge, 5 angetriebene Werkzeuge; Gewicht ~2800 kg, Abmessungen 2150×1500×1800 mm, Druckluft 5 bar. Zubehör: LNS Stangenlader Express 332 (bis 3000 mm, Ø 3–32 mm), Teilefänger, Lampe, Ölnebelabsaugung, Satz Spannzangen, RS232, Zustandsleuchte. Ermöglicht enge Toleranzen; geeignet für Automotive, Uhrenindustrie, Werkzeugmaschinen, Luft- und Raumfahrt und Medizintechnik. Technische Daten ohne Gewähr

TSUGAMI-MORI BS-12CE(S)-III ist ein CNC Langdrehautomat mit hoher Präzision, ausgelegt für hohe Genauigkeit und Zuverlässigkeit. Bearbeitungsfähigkeit: Drehdurchmesser 3–12 mm, Drehlänge max. 210 mm, Bohr-Ø max. 12 mm, Gewinde bis M6. Technische Daten: 6 Achsen, 2 Spindeln; Spindeldrehzahl 200–12.000 t/min, Gegenspindel 200–8.000 t/min; Werkzeugträger 5 Stationen, 13 Werkzeuge (7 Drehen, 3 Bohren, 3 Querbearbeitung); angetriebene Werkzeuge 0,9 kW, Werkzeiglänge 85 mm, Schaft 12 mm; Vorschübe 1–6.000 mm/min, Eilgang 18 m/min; Spindelmotor 1,5/2,2 kW, Leistung Gegenspindel 0,75/1,1 kW; Druckluft 4 bar; Gesamtleistung 9 kVA; Gewicht ~2200 kg; Abmessungen L1870×B1150×H1685 mm. Zubehör: Teilefänger, Lampe, Kühlmittel-/Nebelabsaugung, Satz Spannzangen, Zustandsleuchte. Erreicht enge Toleranzen; typische Einsatzbereiche: Automotive, Uhrmacherei, Werkzeugmaschinen, Luft- un ...

TSUGAMI S 206 E ist ein CNC Langdrehautomat (CNC Swiss type), konzipiert für Präzision, hohe Genauigkeit und Zuverlässigkeit. Leistungsdaten: Drehdurchmesser 6–20 mm, maximale Drehlänge 210 mm, Spindeldurchlass 20 mm; 6 Achsen, 2 Spindeln, 25 Werkzeuge. Technische Daten: Spindeldrehzahlen 200–10.000 rpm, Spindelleistung 3,7 kW, Eilgang 35 m/min, Anschluss 50 Hz 3x400 V, Gewicht ca. 3300 kg, Abmessungen L2110×B1200×H1885 mm. Zubehör: LNS Lademagazin EXPRESS 320. Ermöglicht enge Toleranzen; typische Einsatzbereiche: Automotive, Uhrmacherei, Maschinenbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

TSUGAMI HS 207-5AX ist ein CNC-Langdrehautomat (Swiss-Type) mit hoher Präzision, großer Genauigkeit und Zuverlässigkeit. 5 Achsen, 2 Spindeln; Drehdurchmesser 3–20 mm; Drehlänge max. 250 mm; Spindeldurchlass 20 mm. Drehzahlen 200–10.000 t/min; Spindelleistung 3,7 kW; Leistung Gegenspindel 2,2 kW; 35 Werkzeuge; Eilgang 32 m/min; Anschluss 50 Hz 3x400 V; Gesamtleistung 14,6 kVA; Gewicht ~3300 kg; Abmessungen 2110×1200×1885 mm. Lader LNS EXPRESS 320. Entwickelt für enge Toleranzen bei Präzisionsbauteilen. Technische Daten ohne Gewähr

sliding headstock CNC lathe, year 2006, CNC FS18i-TA. Used machine. More info & price on IndustrialBuyer.

sliding headstock CNC lathe, year 2014, 45000 operating hours, CNC 32-iB. Used machine. More info & price on IndustrialBuyer.

turning diameter: 8 till 38 mm turning length: 250 mm control: Fanuc total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: - mm turning length: 210 mm control: Fanuc total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

horizontal machining center, year 2003, CNC 18i-M. Used machine. More info & price on IndustrialBuyer.

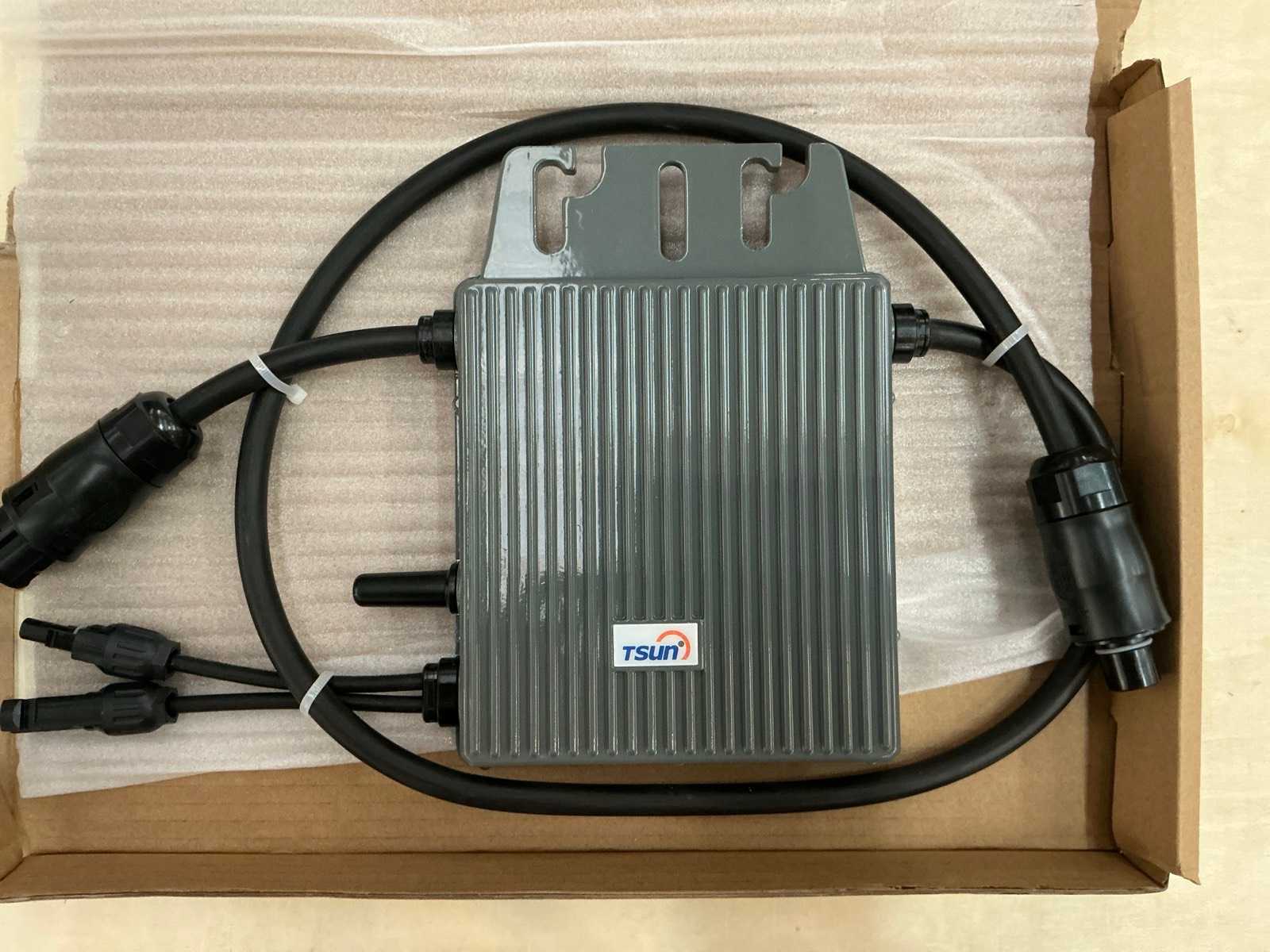

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Model: TSOL-M400 INPUT (DC) Recommended input power: 280 – 440 W MPPT voltage range: 33 – 48 V Operating voltage range: 16 – 60 V Maximum input voltage: 60 V Maximum input current: 11.5A Maximum input short-circuit current: 15 A OUTPUT (AC) Maximum continuous output power: 350 W Rated Output Current: 1.52A Maximum Output Current: 1.59A Rated voltage / output range: 230 V, L/N/PE – 207–253 V Rated frequency / range: 50 / 55 Hz – 45–55 Hz Power Factor: 0.8 early to 0.8 late Harmonic distortion of current: < 3 % Maximum number of units per branch: 16 EFFICIENCY Peak Conversion Efficiency: 96.6 % CEC weighted efficiency: 96.5 % Nominal MPPT Efficiency: 99.9 % European efficiency: 96.3 % Nighttime consumption: < 50 mW MECHANICAL DATA Dimensions (W × H × D): 178 × 153 × 28 mm Weight: 1.98 kg Enclosure Type: IP67 Cooling: Natural Convectio ...

Round End tenoner Manufacturer: Pade Model: TSU Tenon width: 4-100 mm / + pin thickness Tenon thickness: 4-30 mm Tenon depth: 10-50 mm Support tables 2 pieces for reciprocal work Support tables Tiltable

CHIRON MODEL FZ18W MAGNUM 4 axis Vertical machining center with rotopallet and double 4th axis 20 TOOLS ISO 40 Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kW X = 625 Y = 400 Z = 400 Rapids 40m/min Table area: 2 x 900 x 470 - TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos. - original HAWE hydraulic unit - FANUC 0M 1995 Can be inspected under power in our warehouse Mimu machine tools (Italy), X: 625, Y: 400, Z: 600, 4th axis: Yes, (2x) Tsudakoma 360 000 pos.

CHIRON MODEL FZ18W MAGNUM 4 axisVertical machining center with rotopallet and double 4th axis20 TOOLSISO 40Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kWX = 625Y = 400Z = 400Rapids 40m/minTable area: 2 x 900 x 470- TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos.- original HAWE hydraulic unit - FANUC 0m be inspected under power in our warehouse.Mimu Machine tools Italy

Fiber Showroom Machine - FIBERLASER Model Series HLF Power: 6kW Sheet size: 3000 x 1500mm Changing table Siemens touchscreen control with LAN/USB Siemens Drives Tsubaki conveyor belt for small parts automatic sheet metal layer measurement Precitec Auto Focus Procutter Cutting Head IPG Resonator YLS with 6kW Will include: Warranty CAD CAM Software Libellula[CUT] Commissioning Delivery within Germany Training offered Other sizes / power levels up to 15kW are available at short notice. We are trading house and service provider in Germany for YAWEI machines for more than 15 years. All training / services / spare parts deliveries are handled by us. In our showroom, YAWEI fiber lasers and press brakes can always be tested under power.

Now we have 2 spunlace lines, One manufactured by TSUSCHLER in 2013,ww: 3500mm,Another one manufactured by ANDRITZ in 2016 ww: 2750mm. If you interest in these lines, do not heisitate to contact us.Thanks.

LCD monitor with electronic for Cybelec DNC 800, 804, 806 control . only a few years in use. Supplier / Manufacturer : TSUBIS Germany , Art Nr: LCD10-0072

DMG MORI NRX 2000™ CNC Lathe TECHNICAL FEATURES: Year: 2017 NC Type: MITSUBISHI M730UM Maximum diameter Machinable: 150 [mm] X-axis travel: 100 [mm] Z-axis travel: 220 [mm] X1 Axis Fast Feed Speed: 30000 [mm/min] Fast feed speed X2 axis: 30000 [mm/min] Z1 axis fast feed speed: 30000 [mm/min] Z2 axis fast feed speed: 30000 [mm/min] Spindle Nose: JIS A2-5 Maximum length Machinable Spindle 1: 100 [mm] Maximum length Machinable Spindle 2: 100 [mm] Maximum speed Spindle 1: 6000 [rpm] Maximum speed Spindle 2: 6000 [RPM] Turret Turning Tool Power 1: 1.5 [kW] Turret 2 rotating tool power: 1.2 [kW] Number of posts - Turret 1 : 10 Maximum speed Rotating Tools - Turret 1: 10000 [RPM] Number of posts - Turret 2: 10 Maximum speed Rotating Tools - Turret 2: 10000 [RPM] Installed power: 38 [kVA] Supply voltage: 400 [V] Working time: 12270 [h] Weight: 5700 [Kg] EQUIPMEN ...

Inv. Num. : 8902 Type: Vesta 1000 12K Producer: Hwacheon Created: 2016 Parameters: Control System: FANUC Series Oi-MF Hours: 15976 h Work table length: 1100 mm Work table width: 502 mm Spindle drive power: 11 kW Maximum spindle speed: 12000 1/min X-axis travel: 1000 mm Y-axis travel: 550 mm Travel Z axis: 500 mm Cone: BT40 Max. tool length: 300 mm Max. tool weight: 8 kg Max. tool diameter: 80/150 mm Rapid traverse X/Y/Z: 36/36/30 m/min Machine height: 2670 mm Machine length: 3335 mm Machine width: 2200 mm Machine weight: 6500 kg Equipment: Tool probe Workpiece Probe 4th axis TSUDAKOMA

TRAUB TNC 42/65 CNC Lathe TECHNICAL FEATURES: Year: 2009 NC Type: TRAUB TX8i Number of axes: 8 Y-axis travel: +/- 35 [mm] Z1 axle stroke: 450 [mm] X1 axis stroke: 140 [mm] Z2 axis stroke: 520 [mm] X2 axle stroke: 140 [mm] E-axis stroke: 450 [mm] Spindle Bore: 42 [mm] Maximum speed Spindle: 5600 [rpm] C-axis indexing accuracy: 0.001 [°] Spindle power: 18.5 [kW] Counter-spindle bore diameter: 42 [mm] Maximum speed Spindle: 5600 [RPM] C-axis sub-spindle indexing accuracy: 0.001 [°] Spindle power: 11 [kW] Toolholder type: VDI 30 Number of positions - Turret 1 : 14 Number of motorized stations - Turret 1 : 14 Maximum speed Rotating Tools - Turret 1: 4000 [RPM] Number of positions - Turret 2: 14 Number of motorized stations - Turret 2: 14 Maximum speed Rotating Tools - Turret 2: 4000 [RPM] Installed power: 107 [kVA] Rated Current: 85 [A] Supply voltage: 400 [V ...

Key data: 80 mm, 2100 mm

Short bar loader, max length 2100 mm - min/max diameter 8-80 mm - two kits included : 46-66 mm guide channels / 45-65 mm bar pushers - it was fitted to Tsugami MO8SYE

Consisting of 1x Tsurumi submersible pump; 5-way coupling valve with pressure gauge; various hydraulic lines; various connectors; in art pallet box with lid Auction-ID: A1-50892-36
