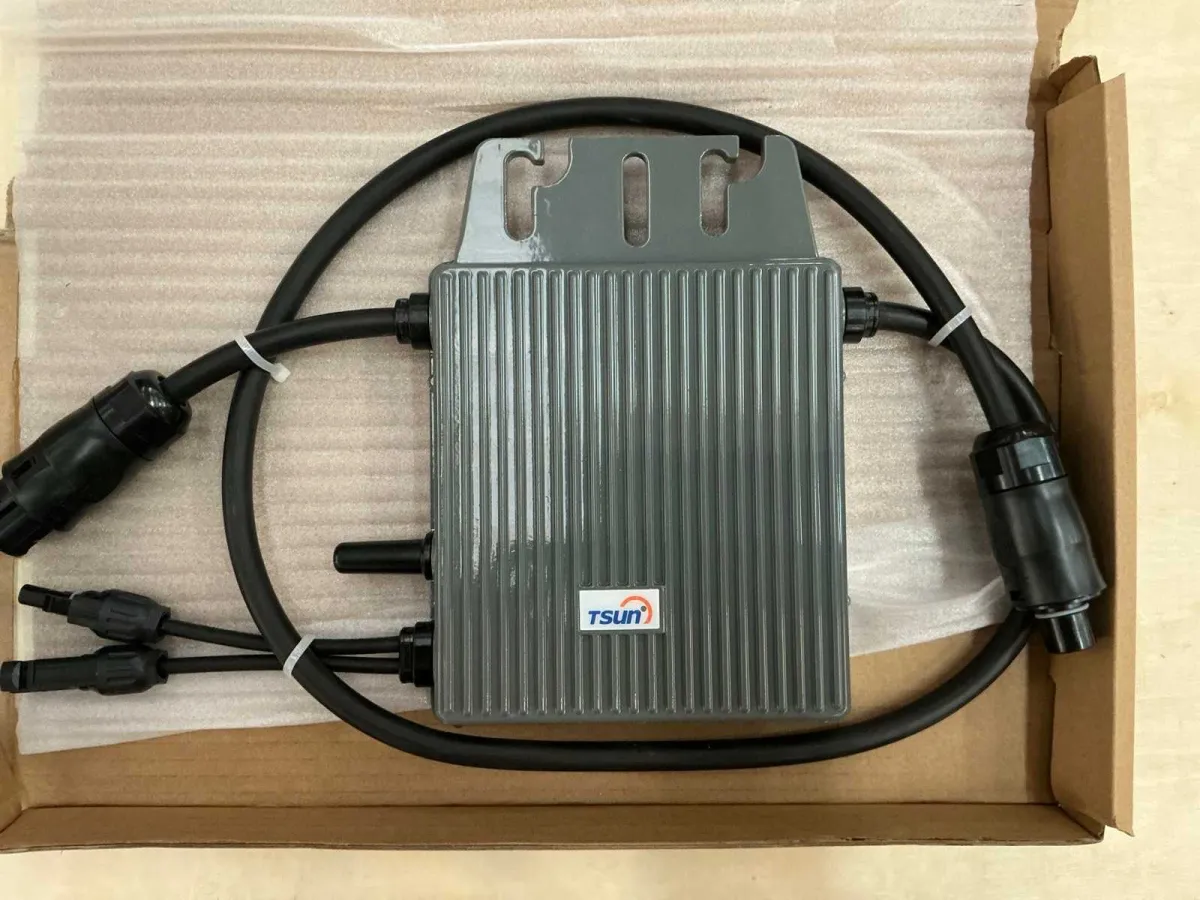

TSUNESS M400 Microinverter (REF: 4005592)
AuctionVerified seller
Bid¹ net
Directly to the seller
27 €
1 / 1
Technical data
· ID 170378187Used machinery
- Bid¹ net
- 27 € (netto)
- Starting price
- 27 € (net)
- Auction end
- The auction ends on 18.11.2026 – 15:37 CET.
- Location
- 00134 Roma - Santa Palomba
¹ Last reported status; the auction house’s information is authoritative.
Identifikation
Item number7cd06569-a765-4bd8-acb9-38771813441f
Technik
Quantity1
Description
Model: TSOL-M400
INPUT (DC)
Recommended input power: 280 – 440 W
MPPT voltage range: 33 – 48 V
Operating voltage range: 16 – 60 V
Maximum input voltage: 60 V
Maximum input current: 11.5A
Maximum input short-circuit current: 15 A
OUTPUT (AC)
Maximum continuous output power: 350 W
Rated Output Current: 1.52A
Maximum Output Current: 1.59A
Rated voltage / output range: 230 V, L/N/PE – 207–253 V
Rated frequency / range: 50 / 55 Hz – 45–55 Hz
Power Factor: 0.8 early to 0.8 late
Harmonic distortion of current: < 3 %
Maximum number of units per branch: 16
EFFICIENCY
Peak Conversion Efficiency: 96.6 %
CEC weighted efficiency: 96.5 %
Nominal MPPT Efficiency: 99.9 %
European efficiency: 96.3 %
Nighttime consumption: < 50 mW
MECHANICAL DATA
Dimensions (W × H × D): 178 × 153 × 28 mm
Weight: 1.98 kg
Enclosure Type: IP67
Cooling: Natural
Convection
ENVIRONMENTAL DATA
Ambient operating temperature: −40°C ~ +65°C
Internal operating temperature: −40°C ~ +85°C
Relative humidity: 0 – 100 %, non-condensing
Maximum altitude without derating: 2000 m
Monitoring: 2.4G RF
Single piece loading dimensions: 440 x 280 x 40 mm
