traub a 15 used for sale

Post driven tools from a Traub CNC lathe VDI 40 As well as some measuring geraete for Traub Rest according to photos Special price

TRAUB TNS 65 D / 5 - Axis CNC Lathe -For complete technical data, see data sheets -Control TX8 D -Built in 1994 -Rod passage 65 mm -Hydraulic bar loading magazine -Various driven tool holders -Tool holder -Three-jaw chuck -Complete documentation Hebkn Auovug Uls S Tel

Two drawer cabinets with roller drawers incl. accessories for CNC lathe Traub TNS30 are offered. Accessories e.g. Traub Adjusting Microscope Traub Adjustment Tool VDI30 Soft top jaws approx. 82 set (3 jaws each) approx. 5 driven tools (partially disassembled) approx. 80 tool holders Approx. 72 collets approx. 32 collets Lot of parting chisel Lot of turning chisels Post Milling Cutter Dial gauge Lot of centering drill bits Post of interchangeable tips for moving tips Lot of Inserts Lot of spare parts Traub Without the pictured 3-jaw chuck Cabinet Height 1m, Width 70cm Depth 70cm The photos do not show the complete scope of delivery. More photos on request or by visiting on site. Listing without guarantee! Sale price

CNC automatic lathe Traub TNL 32-7 • Version TNL32/TNL32K alternating mode • Control TX8i-s • Main spindle passage 32 mm, with C-axis • Counter spindle incl. partial hollow stress • Revolver top X/Y/Z/H axis: 10 shots dual drive • Revolver bottom X/Y/Z/H axis: 9 shots total drive; Counter spindle sep. Drive • RAPP 8-fold; Total drive 3 tools IK • Workpiece deflection unit with linear gripper • Coolant supply 3 bar • Coolant supply 8 bar • Hinge belt chip conveyor, discharge height 1000mm • Glass scale X-axis turret top/bottom • Compact belt filter for cooling lubricant: filter fineness approx. 30-40 μm • Bar loading magazine FMB LSK 38, for rods 3.2 m (original price at that time 340.000,- €uro)

TRAUB Sonim TND 200 CNC Lathe YOM 1994 CNC Lathe – Inclined Bed Type TRAUB TX8F CNC control Turning diameter 350 mm Turning length 200 mm Total power requirement 20 kW Turning diameter over bed slide 200 mm X-axis 180 mm Z-axis 300 mm Spindle bore 42 mm Spindle motor 12 kW Spindle turning speed range 10 – 5000 rpm Feed speed X:155, Z:250 mm/min Rapid Travel Speed X-Axis 15 m/min Rapid Travel Speed Z-Axis 25 m/min Weight of the machine ca. 4 t Dimensions of the machine ca. 6.5 × 1.5 × 1.75 m 12-fold revolving head Traub Bar loader 3-fold power chuck Chip conveyer

Inv. Num. : 8535 Type: TNL 18P Producer: TRAUB Created: 2013 Parameters: Control system: TRAUB SYSTEM TX 8i-p Max. rod diameter: 20 mm Maximum turning length: 180 mm Number of Spindles: 2 pieces Maximum spindle speed: 8000 1/min Length: 2500 mm Width: 1460 mm Height: 2250 mm Weight: 4000 kg Equipment: Bar Feeder

Z640 Mixed Lot (134 pieces) Feed Pliers Automatic Lathe Lathe Turning Center probably for Index Traub or Schütte or similar machines

turning diameter over bed: 254 mm spindle passage: 20 mm turning length: 120 mm Control: TX8i-s total power requirement: 40 kW weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1   live positions: yes WORKING RANGE TURNING   swing diameter (max): 560 mm   turning diameter (max): 275 mm   bar diameter (max): 42 mm   worpiece length max.: 450 mm MAIN SPINDLE   spindle revolutions (min): 5600 /min   drive power: 11 kW X/Z SLIDE   number of tool positions (total): 11   number of live positions: 11   - rotation speeds (max): 4500 /min TAILSTOCK   sleeve stroke: 60 mm   sleeve diameter: 70 mm   holding force (max.): 8600 kN ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1600 mm   total height: 1800 mm   total weight approx.: 3500 kg ATTACHMENTS (TURNING)   chip conveyor: yes   European CE standards: yes

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

CNC Control Traub System TX 8D C-axis/ Driven tools Bar feeder Stamag DN42 Collector of the finished parts Chip conveyor Internal liquid cooling Very good condition Max. bar diameter 42 mm Turning length 220 mm Hydraulic chuck Chuck- max. turning dia. 140 mm Max. turning diameter 140 mm Max. turning diameter over bed 390 mm Spindle boring 42 mm Number of turret heads- 3 -1st turret 12 tools -2nd turret 12 tools -3rd turret 4 tool Tool holders VDI 30 X axis travel 200 mm Z axis travel 300 mm Spindle speed 5600 rpm Max. bar length 4200 mm Max. working bars in dia. 42- 7 Total power requirement 34 kW Interlocking cover Total dimensions: 7400x1900x2400 mm Weight 4500 kg

Machine Details Stock number 1105-03756 Machine type CNC turning and milling center Brand TRAUB Type TNA 300 Year of construction 1996 Control type CNC Control Traub TX 8 H Storage location warehouse Country of origin Germany Delivery time by arrangement Freight base EXW Technical details Turning length 450 mm Control Traub TX 8F Turning diameter above the paddling carriage 275 mm Turning diameter over bed 400 mm Speed range 4000 rpm Number of tools 12 pcs. Sledge path plan 210 mm Sledge path lengthwise 450 mm Quill diameter 75 mm Quill stroke 125 mm Total power requirement 22 kW Machine weight ca. 3.2 t Space requirement approx. 3 x 2.00 x 2.10 m Information 3 AXIS MACHINE WITH LIVE TOOLS incl. chip conveyor 12-cavity tool turret SAUTER with 12-cavity tool turret VDI 30 MIT DRIVEN TOOL HOLDERS AND C AXIS Towing tailstock with quill Three-jaw power chuc ...

Machining diameter max: 36 mm Maximum spindle speed: 6300 rpm No. of Spindles: 2 Controller: Traub TX8i Toolchanger 1: No. of tools: 12 positions X-axis travel: 50 mm Z-axis travel: 50 mm Toolchanger fronside: No. of tools: 7 positions Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 370 mm Z-axis travel: 250 mm Toolchanger backside: No. of tools: 5 Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 73 mm Barfeeder: FMB Turbo 5-42 Barlength: 3200 mm Bardiameter: 5 - 42 mm Country of origin: Germany Machine LxWxH: 3400 x 1300 x 1700 mm Machine weight: 4000 kg

bar material dia.: max. 85 mm bar length: 3000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Fully functional Traub lathe built in 1972 Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.

turning diameter: mm turning length: mm control: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter:500 mm turning length:1000 mm weight of the machine ca.:7,3 t dimensions of the machine ca.:6,5 x 4,45 x 2,21 m

Article: Programme-controlled automatic lathe Manufacturer: Traub Type: TF60 / 140 Yob: 1978 Bar automat Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Traub TNL 12 K lathe for sale year of construction 2005 Removal and loading on truck at buyer´s expense Delivery ex works excl. transport insurance Find more here - / Contact us at -

Key data: 65 mm

CNC Turning and Milling Center CNC lathe used CNC universal lathe Manufacturer: Traub Type: TNA 300 Year of Make: 1996 Spindle ø 65mm Tailstock Powered tools Conveyor Control TX8H FlexIPS Collet chuck with collets from 5mm to 65mm Three-jaw chuck Various tool holders fixed, rotating and angle-rotating Etc... incl. bar loading magazine Traub DNH 61 3000, year of construction 1996 incl. many accessories! Location of the machine: Nahe 93047 Regensburg The machine can be viewed on site. It is still energized and works perfectly. We would love to hear from you.

Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 78825h. Documentation available. On-site inspection is possible.

A CNC double-spindle lathe Traub overhauled in 2025 is available. Turning length: 450mm, spindle clearance: 65mm, speed: 4000rpm, main spindle/counter spindle power: 18.5kW/11kW, tool positions: 10, driven tools: 10, hydraulic capacity: 150l, hydraulic pressure: 60bar, connected load: 39kW. Rapid traverse X1/X2: 15m/min, feed force: 5000N, feed path: 140mm. Rapid traverse Z1/Z2: 30m/min, feed force: 8000N, feed path: 450mm. Rapid traverse Y1: 6m/min, feed force: 8000N, feed path: +/-35mm. Machine dimensions X/Y/Z: approx. 4150mm/2000mm/1800mm, weight: approx. 4750kg, control: Traub System TX 8F, operating hours: 12938h. Including chip conveyor and bar loader LNS Quick Load. Documentation available. On-site inspection is possible.

Turning diameter over bed/face slide: 360mm/160mm, center distance: 800mm, travel X/Z: 205mm/810mm, speed: 3150rpm, spindle bore: 60mm, tool positions: 8, rapid traverse X/Z: 10m/min. Machine dimensions X/Y/Z: approx. 3300mm/1800mm/1800mm, weight: approx. 3300kg, control: Traub System TX-8. An on-site inspection is possible.

turning diameter: 250 mm turning length: 450 mm control: TX8D bore: 80 mm spindle speed:: 3150 U/min. CNC Lathe with Bar Feed and 3 Turrets Very large spindle bore, with bar loading device Please ask for further details. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC swiss type lathe Traub TNL 32-7, - Model TNL32/TNL32K, - Controller TX8i-s, - Main spindle max. diameter 32 mm, with C-axis, - Counter spindle including parts discharge, - Top revolver X/Y/Z/H-axis: 10 tools dual drive, - Bottom revolver X/Y/Z/H-axis: 9 tools same drive; counter spindle independent drive, - Conveyor belt for finished parts with gripper, - Coolant pump 3 bar, - Coolant pump 8 bar, - Swarf conveyor, hinged belt type H=1000 mm, - Linear encoder X-axis for revolver top/bottom, - Fabric filtration for coolant: grade of filtration ca. 30-40 µm, - High pressure coolant pump 20 bar, - CO2 fire fight system Kraft & Bauer, - Auto bar loader FMB LSK 38, max. bar length 3,2 m, Machine worked only with cutting oil, Country of origin: Germany, Control: TX8i-s, Operating hours: 55.000 | 36.000, Max bar dia. [mm]: 32, Spindle speed [rpm]: 8.000, Spindle stock stroke [mm]: 305, Weig ...

Turning diameter: 320mm, turning length: 1000mm, spindle clearance: 80mm, speed: 3150rpm, travel X/Z: 265mm/1000mm. Machine dimensions X/Y/Z: approx. 5500mm/2400mm/2400mm, weight: approx. 7000kg, control: Traub System TX-8. Including a tool set, three-jaw chuck and bar chuck with collets. Documentation available. On-site inspection is possible.

max. bar material dia.: 65 mm max. swing diameter: 175 mm max. bar length: 3.000 mm control: System TX 8F travel -x axis: 140 mm travel -z axis: 520 mm CNC lathe | TRAUB - TNC 42/65 DG equipped with bar loader. The machine is in a well-maintained condition and can be inspected at any time under power. The machine videos from the production plant will be shared on request. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65 |TNC 42-65 DG | TNC 42/65DG The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 32 mm, 32 mm, 305 mm

CNC Swiss Automatic Lathe Manufacturer : Traub Model : TNL 32 T-9 Control : TX8i-s Year of construction : 2013 Location : Sweden , still in production Delivery period : from January / February 2026 Operating hours : approx. 40 000 h Specifications Spindle Passage mm: 32 Speed max. min-1: 8,000 Power (100% / 25% ED) kW: 6.7 / 10.7 Torque (100% / 40% ED) Nm: 21 / 32 C-Axis Resolution Degree : 0.001 Z - slide travel mm : 305 / 127 (sliding head / short turn) Rapid traverse Z m/min : 20 Sub-spindle Spindle passage mm: 30 Speed max. min-1: 6,400 Power (100% / 25% ED)kW : 3.7 / 5.5 Torque (100% / 40% ED) Nm: 29.4 / 43.7 C-Axis Resolution Degree : 0.001 X - Carriage path , Rapid traverse mm / m/min : 140 / 20 Z-slide travel, rapid traverse mm / m/min : 300 / 20 Tool carrier 1 Can be equipped as a revolver Number of stations : 10 Speed max. min-1: 12,000 Pow ...

turning diameter: 275 mm turning length: 900 mm control: TRAUB TX8i Main- opposite spindle: spindle passage: 65 mm power capacity at 100 % load: 25,20 kW power capacity at 40 % load: 30,20 KW max. torque at 40% / 100% load: 180 / 135 Nm spindle turning speed - stepless: 1 - 5.000 U/min spindle diameter in front bearing: 110 mm C-axis: 1 - 500 U/min worktool support: No. 1 x-axis: 290 mm y-axis: 165 mm z-axis: 600/950 mm B - axis: 360 ° rapid traverse X/Y/Z: 18 / 18 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 kN number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8.000 / 2.000 U/min power capacity at 25 % load: 5,80 kW max. torque at 25% load: 4x18,6 / 4x74 Nm tool taper: TRAUB Ø60 worktool support: No.2 / No.3 / No.4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid traverse X/Y/Z: 18 / 15 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 k ...

Traub TNA500 SN 253 Year of manufacture 1997 Spindle 2800 1/min 12-Tool Turret It has powered tools Power 46kVA

Universal CNC lathe INDEX G 400 RATIO Line Hersteller [manufacturer]: INDEX Type [ type]: G 400 Control unit: Siemens C200-4D incl. milling of cylindrical tracks Incl. handwheel Baujahr[construction year]: 10/2004 Turning length 1250 Main spindle D102 with swing-in gear 1700 Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE TOOL CARRIER 1 COMPL. AXES X,Y,Z,B with turning/milling operation Disc turret VDI40 10 stations MILLING SPINDLE HSK A63 Tool carrier axles 2 XZ Disc turret VDI40 10 stations SUB-SPINDLE D102 DIRECT DRIVE 1300Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE DISC MAGAZINE ON THE LEFT OF THE HSK63 SINGLE-SWING GEARBOX WITH 32 TOOL HOLDERS DISC MAGAZINE RIGHT COMPL. M.32 TOOL HOLDERS HSK 63A Travel path: X= 320mm Z=1250mm Displacement measuring system X-axis glass mast. (abs) Fe ...

Spindle bore: 42mm, max. workpiece diameter: 115mm, speed: 3150rpm, power: 9kW, bar length: 5200mm. Machine dimensions X/Y: approx. 2100mm/1000mm, weight: approx. 1500kg. Including bar feeder Stamag D 5000 and various accessories such as collets and feed collets. Documentation available. An on site inspection is possible.

A slant bed lathe Traub Sonim is available. Turning diameter over bed/cross slide: 350mm/160mm, turning length: 200mm, speed: 5000rpm. Machine dimensions X/Y/Z: approx. 3200mm/1500mm/1700mm, weight: approx. 3500kg. An on-site inspection is possible.

turning diameter: 12,7 mm turning length: 50 mm control: Traub System TX 8i turning speeds: 12000 U/min c-axis: 0,001° c-axis: 0,001 ° gripping station: 12,7 mm speeds: 12000 U/min rapid traverse: 15 m/min turret (x-stations): 6 worktool system: 5+3 worktool system: 3 Werkzeugsysteme total power requirement: 2,5/4 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,4 x 1,1 x 1,7 m driven tools: 6+4+4 Rev+S7+S8 CNC turning machine Traub TNL 12K with barloader LNS Tryton 112 Motor drive S8 (rear working with driven tools possible) Motor drive S7 (front working with driven tools possible) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offered is a Traub TND 400. Center distance: 800mm, turning diameter approx. 250mm, travel X/Y approx. 220mm/850mm, spindle bore: 65mm, speed range: 40-4000rpm, 12-position disc turret, tool holder: VDI40 DIN69880, integrated coolant system, dimensions X/Y/Z approx. 3000mm/2000mm/2000mm, weight approx. 4300kg-4500kg. Inspection by appointment possible.

CNC Swiss Automatic Lathe TRAUB TNL 32 9P With control TX 8 i - p Year of Make: 2016 Spindle bore: 32 mm MAIN SPINDLE Speed range: Max. 6400 rpm C Axis SUB-SPINDLE Speed range: Max. 6000 rpm C Axis TOOL TURRET TOP: Speed range: Max. 12000 rpm 10 speed turret ( All driven ) TOOL TURRET ABOVE: Speed range: Max. 12000 rpm 9 speed turret ( All driven ) REAR UNIT Number of stations: 8 Of which powered: 3 ( T 12 , 13 and 14 ) Speed T12 + T 14 ( 12000 rpm ) Speed T 13 : ( 4000 rpm ) With the following accessories: Full protection cab with interior lighting Various powered tools Various tool holders IEMCA Boss 338 Bar Feeder - HD KSS Pump 20 bar Chip conveyor Operating Instructions

This 9-axis TRAUB TNL 32 swiss type turning machine was manufactured in 2014. It features a TX8i-s control with a 64-bit RISC CNC/PLC processor, color TFT display, and electronic handwheel. The main spindle supports a 32 mm bore, and the machine includes a sub-spindle with a C-axis. It offers a dual-driven upper tool turret and a lower turret with nine tool holders. Consider the opportunity to buy this TRAUB TNL 32 swiss type turning machine. Contact us for more information.

This 7-axis TRAUB TNL 32-7 horizontal turning machine was manufactured in 2013. Ideal for precision turning operations, it offers robust performance and reliability. Consider the opportunity to buy this TRAUB TNL 32-7 horizontal turning machine. Contact us for more information.

Traub TNL 20 – 9B Machine No. 11920182 Year of construction 2022 TX8i-s control (with Polyform / Helical / 19" multi-touch with gesture technology) Alternating operation: Use as a short or long-turning lathe Main spindle D20 (with 10,000 rpm) with C-axis Sub-spindle D20 with X/Z/C axis Tool carrier top X/Y/Z/H/B axis with 8 tool holders Tool carrier lower X/Y/Z/H axis with 8 tool holders Recirculating apparatus with 4 tool positions Cooling lubricant mist extraction and filter system Automatic CO2 extinguishing system Accuracy Package Tool breakage control device (Wkz beam above) Tool breakage control device (Wkz beam below) Hinge Belt Chip Conveyor Coolant system with 20 to 80 bar pump Charging magazine FMB Turbo 2-20 Sliding device for loading magazine Portal workpiece removal unit Workpiece conveyor belt

turning diameter: 480 mm turning length: 800 mm control: System TX8F turning diameter over slide: 240 mm spindle passage: 65 mm chuck diameter: 200 mm turning speeds: 4000 U/min power capacity: 30 kW total power requirement: kW weight of the machine ca.: 4,3 t dimensions of the machine ca.: m powered tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

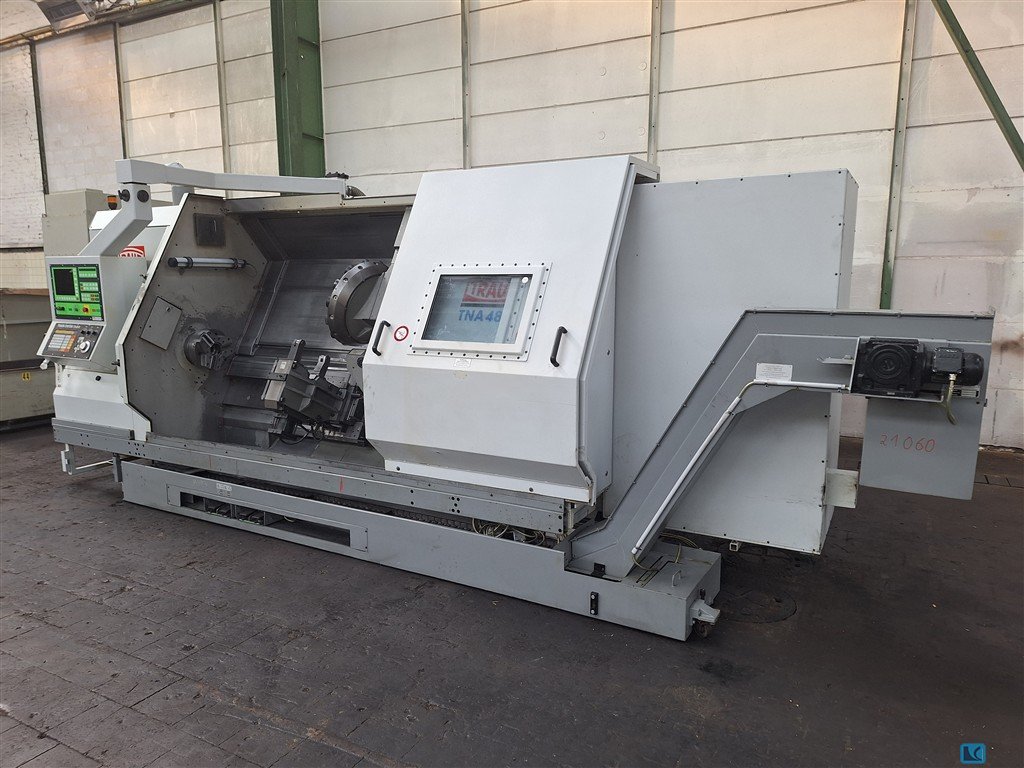

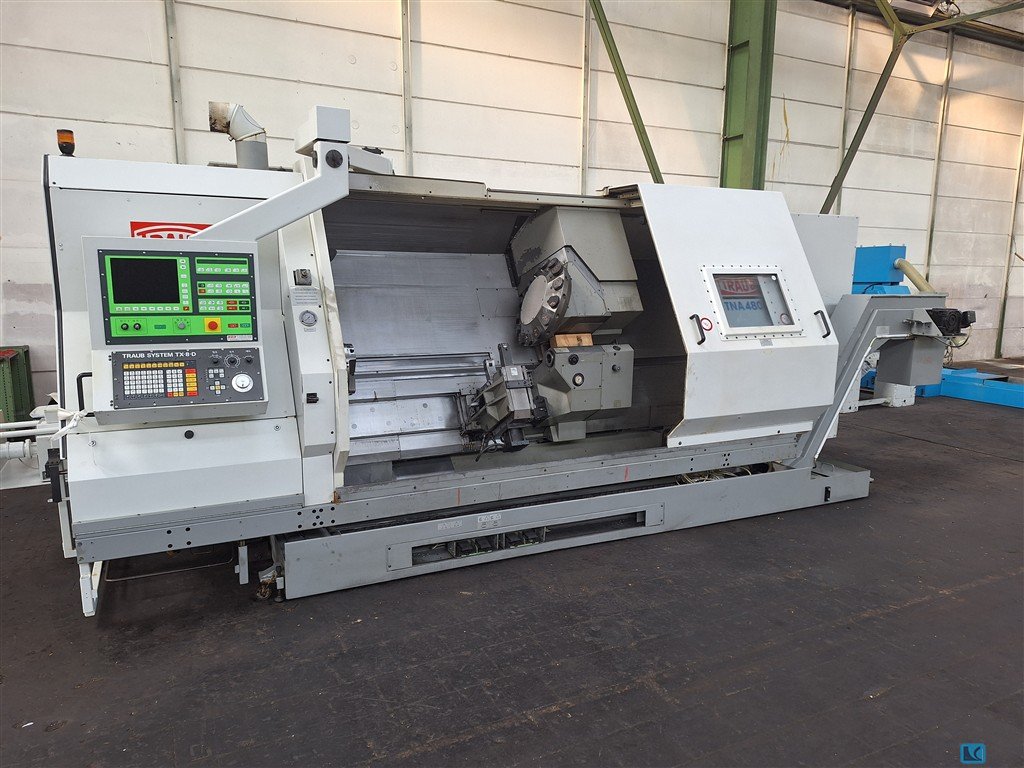

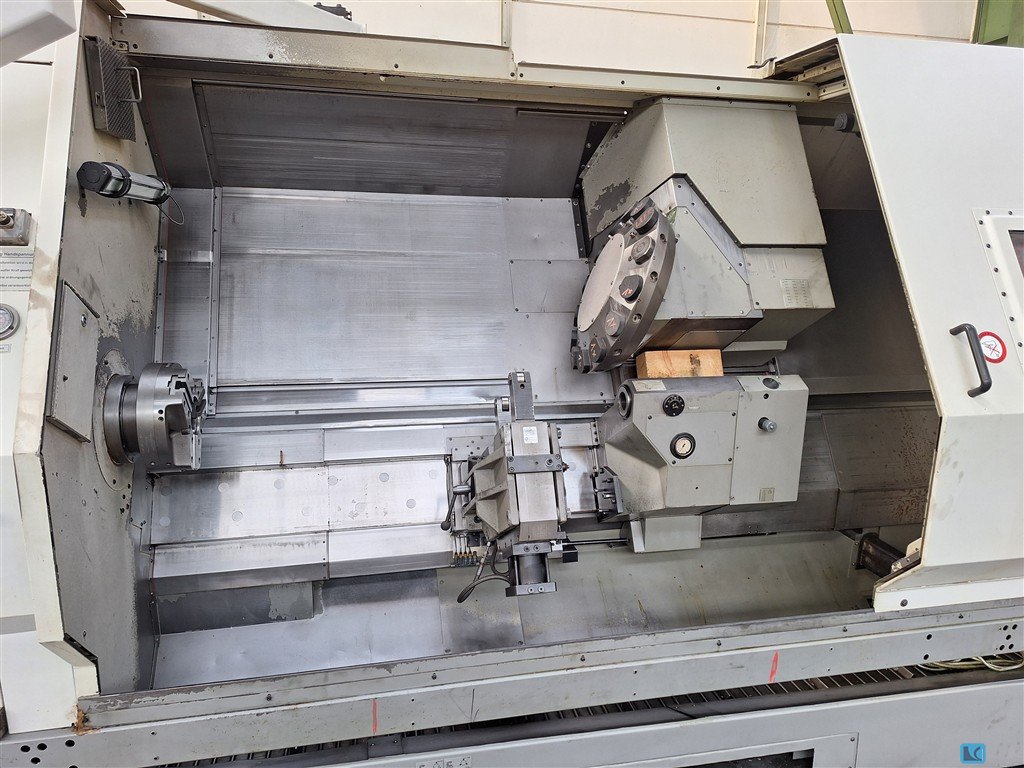

spindle passage: 80 mm max. turning diameter: 460 mm Max. Turning length: 1.000 mm control: System TX 8F max. Spindle speed: 2.800 U/min. CNC lathe | TRAUB - TNA 500 The machine is in a well-maintained condition. The machine videos from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA500 | TNA-500 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
