TX8i-s / WinFlexIPS
Bar diameter up to Ø 32 mm
Version convertible long/short turning
Controlled axes 9
Tool Carrier WRV Top X/Y/Z Dualdrive
Sub-spindle with lower WRV, separate drive
Rear unit with drive

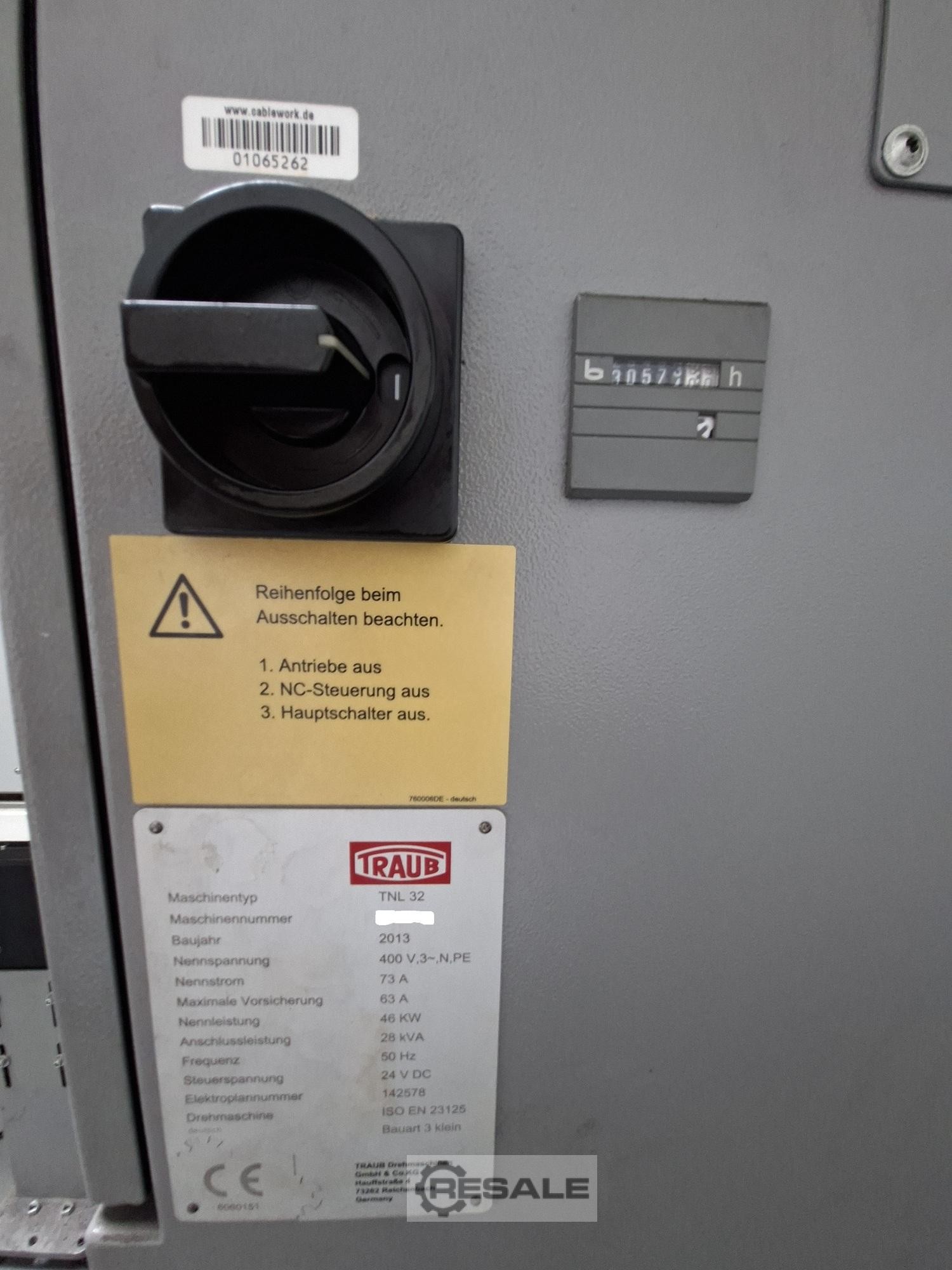

Nominal voltage 400 V, 3~, N, PE · 50 Hz
Connected load 28 kVA, pre-fuse 63 A
Supply cable recommended 16 mm² to 30 m, otherwise 25 mm²
Total drive power 46 kW · 73 A
Compressed air requirement approx. 300 Nl/min
Machine weight 6,850 kg
Dimensions L × W × H 3,870 × 1,670 × 2,500 mm
Safety standard EN ISO 23125, type 3 small
- Cooling lubrication with cutting oil — internal supply 30 bar,
medium pressure 20 bar, high-pressure internal cooling 80–120 bar
with its own pump
- Coolant treatment plant with belt filter (ELBARON)
- Mist extraction and smoke extractor

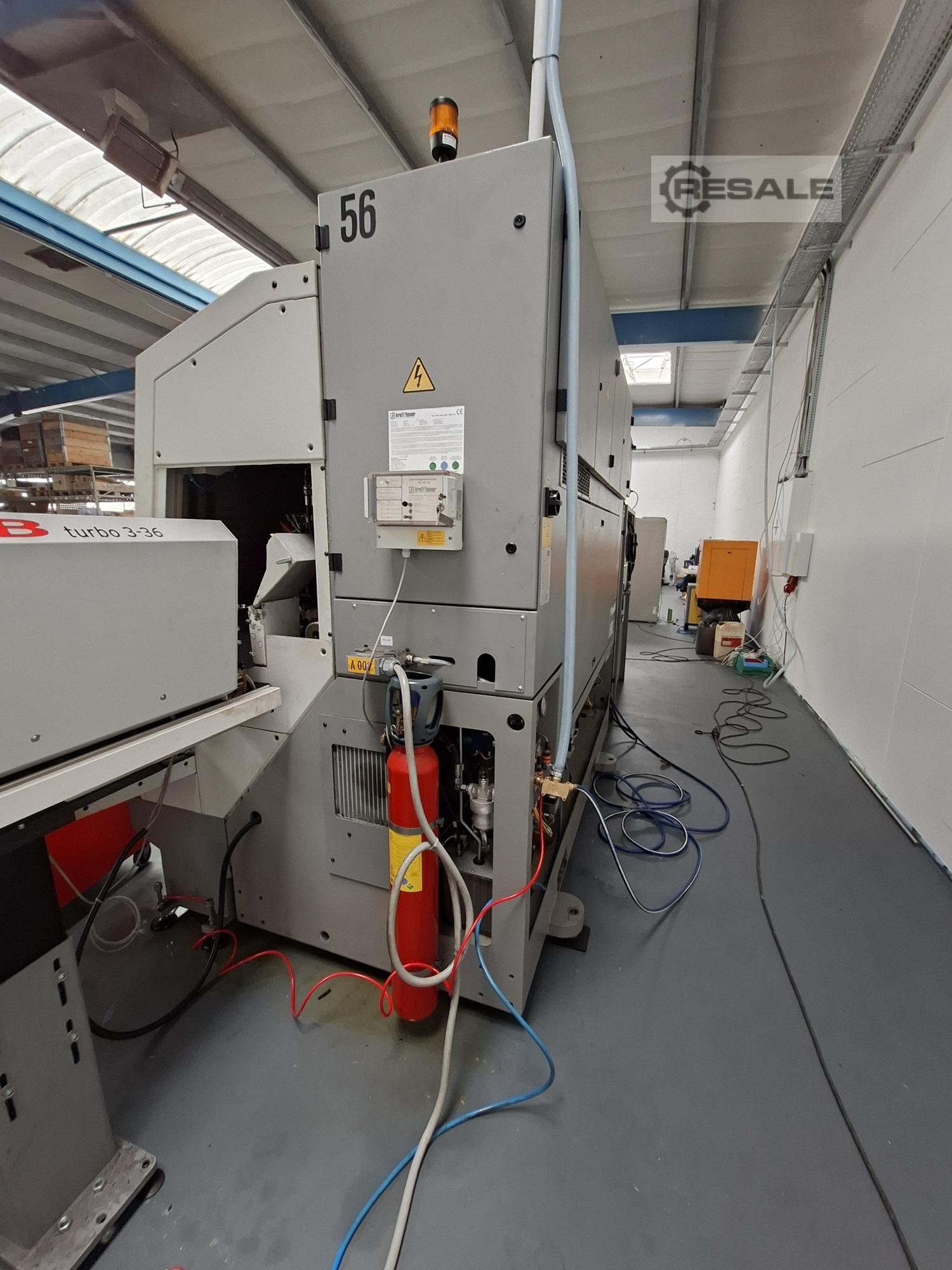

- Fire protection and extinguishing system — prerequisite for
unmanned shifts with oil
- Workpiece removal with linear unit (part gripper)
- Incl. various clamping jaws
- Linear measuring system in the X-axes
- TRAUB tool monitoring and WinFlexIPS programming

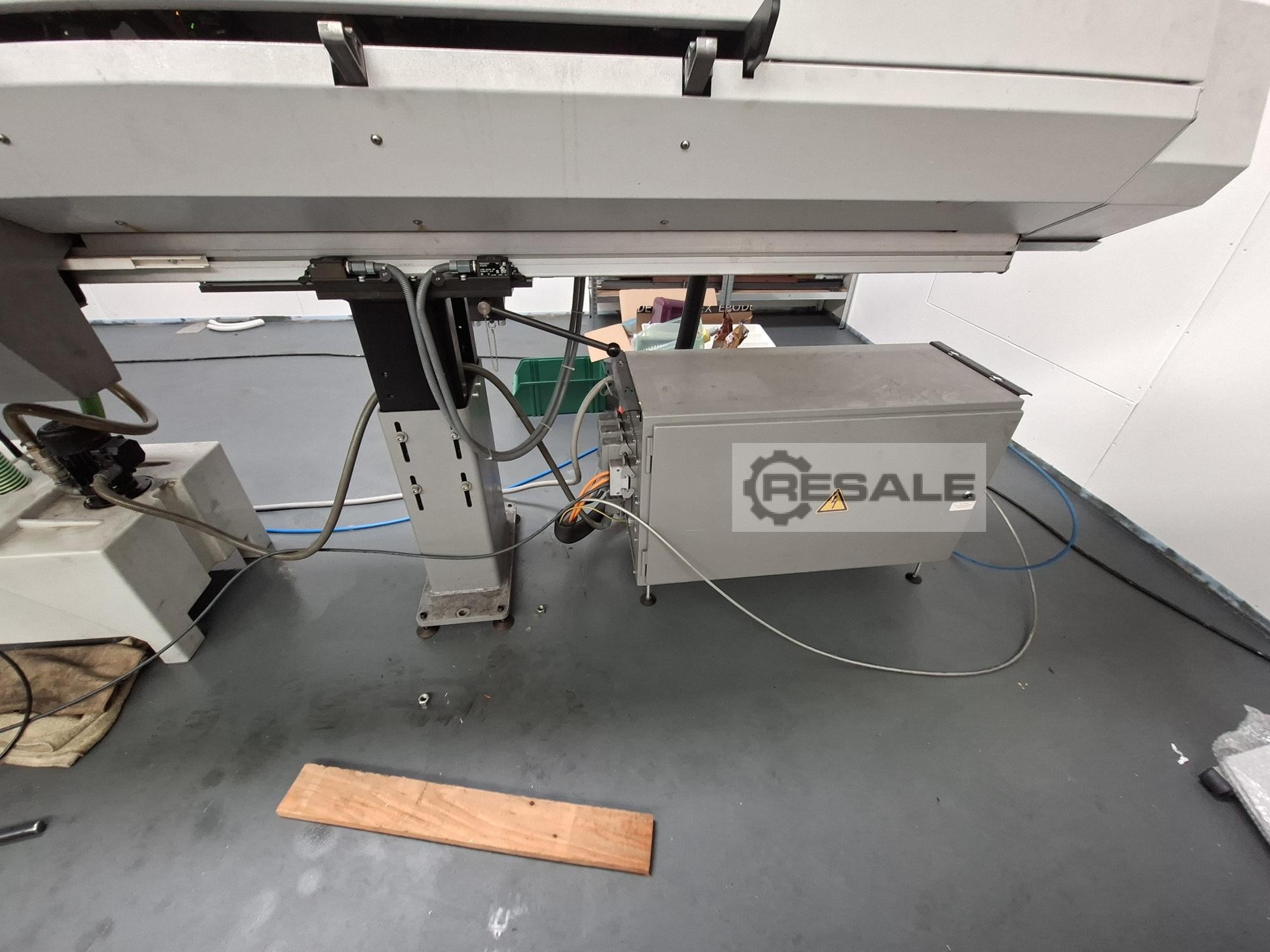

- Bar feeder FMB turbo 3-36 for bars up to 3,200 mm, with synchronous
and sliding device
- Chip conveyor hinge belt
- Colour Dust Grey RAL 7037
Machine running time approx. 30,600 hours
Machine price without accessories shown (rich accessories can be
purchased separately)
Errors and prior sale excepted.
The machine can be visited at short notice under power.
Germany
