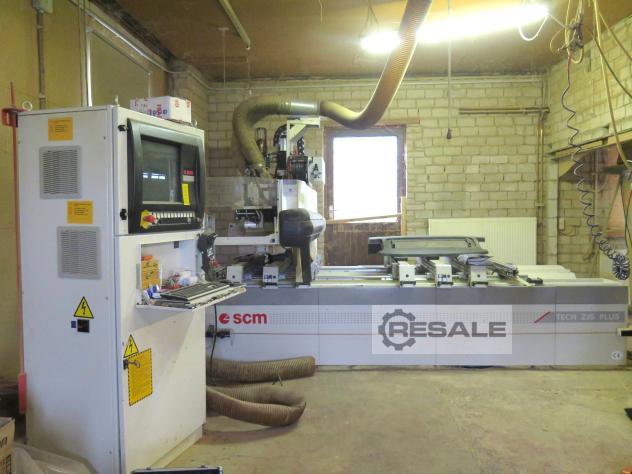

Processing Centers SCM Z 25 PLUS R4R4

X-travel: 2500 mm Y-travel: 1240 mm Z-travel: 200 mm CNC Machining Center SCM
Type Z 25 PLUS R4R4
Year of manufacture 2005

Working range X between stops 2500 mm
Vertical bores Y 1018 mm
Milling Y 1240 mm
Plate throughput maximum 180 mm
Maximum panel thickness Z = 100 mm
Stroke Z axis 200 mm
Central lubrication at the top and bottom

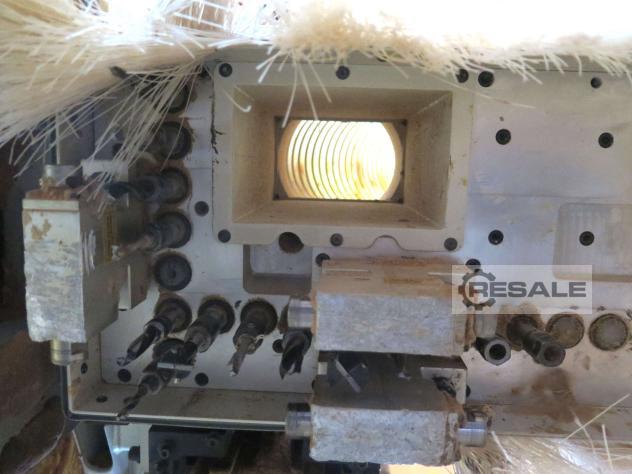

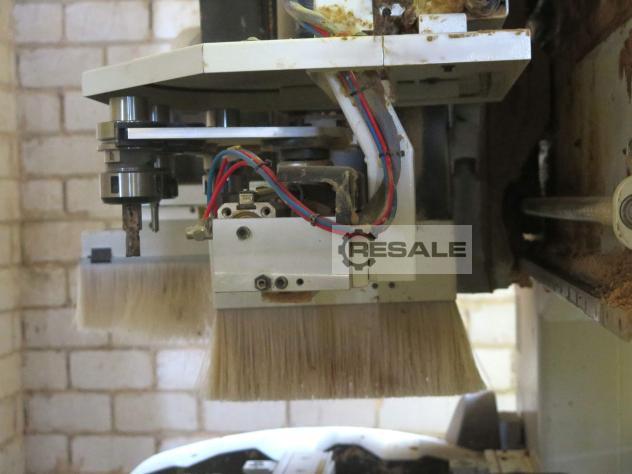

Drilling unit with 15 vertical spindles
6 horizontal spindles, 4 in the X direction and 2 in the Y direction
Spindle speed 4000 rpm.
Motor power spindle rotation 2.2 kW
Travel speed of the X-Y axes 42.4 m/min.
Travel speed Z axis 11.5 m/min.

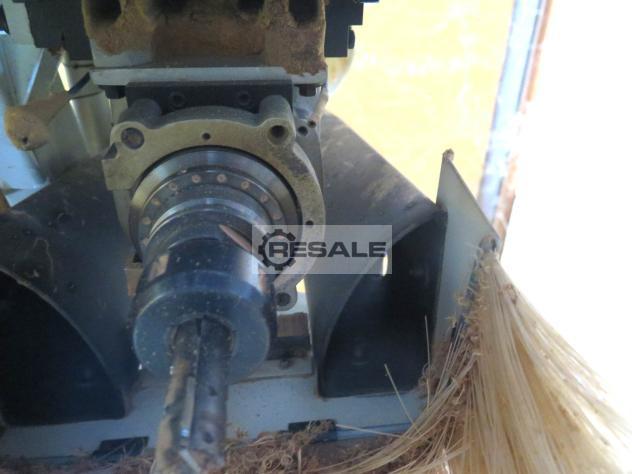

Main spindle approx. 6.6 kW
Maximum speed of the main spindle 24000 rpm.
Front tool changer with 4 tool holders
Rear tool changer with 4 tool holders
Rectangular Vacuum Cups 16 Pieces
Tool holder HSK 63
Compressed air 6/7 bar, compressed air consumption 150 l

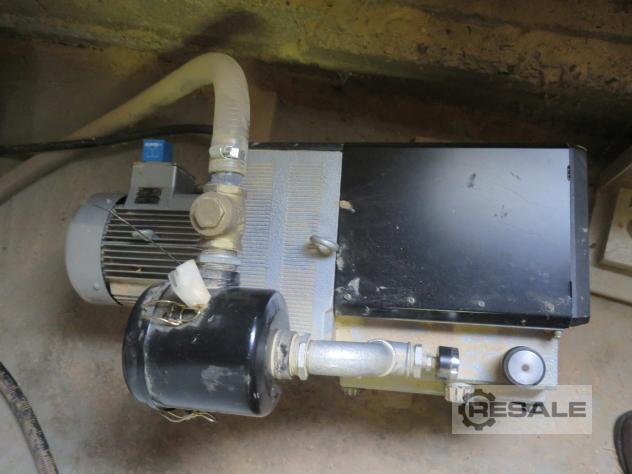

Vacuum pump 40 m³/h 3/3.6 kW
Air intake speed 30 m/h
Suction nozzle diameter 160 + 200 + 200 mm
With chip conveyor belt in the machine body
Protective f6213996 grille f6213996 available

Control program XILOG Plus
All the possibilities of Windows
The typical processing in craft and industrial companies, implemented,
into a simple and intuitive user software

Dimensions approx. 5780 mm x 2460 mm with protective grille
Without protective grille approx. 4780 mm x 2000 mm
Height 2560 mm
Total weight approx. 3,000 kg
Machine approx. 2,600 kg

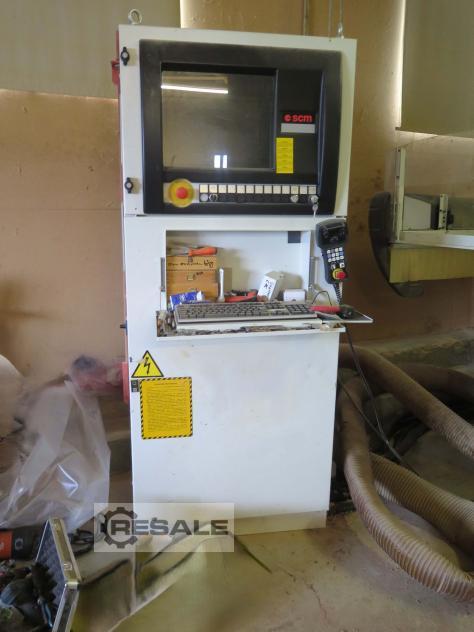

Control cabinet approx. 400 kg

seller offer No. resale 9757
