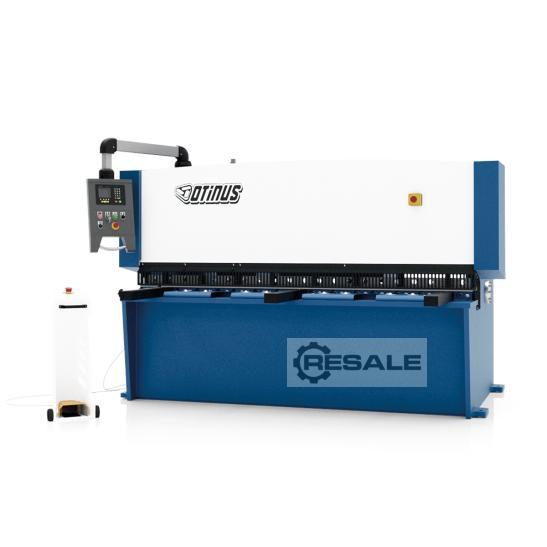

SMO-4008-N QC12Y 8x4000 Hydraulic Press Brake
Specifications
- Maximum thickness of mild steel (PN-EN S235): up to 8.0 mm
- Maximum working length: 4000 mm
- Cutting angle: 1.5
- Strokes/minute: 8
- Kickback distance: 600 mm
- Motor power: 11.0 kW
- Length: 4800 mm
- Width: 1800 mm
- Height: 1950 mm
- Total weight: 7300.0 kg
Equipment

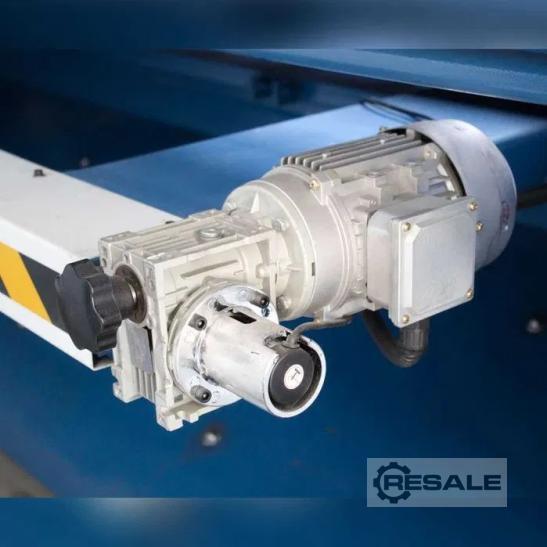

- Backgauge driven by an electric motor (on ball screws)
- Hydraulic sheet metal clamping over the entire working length
- Blade spacing adjustment
- Ball transfer units built into the table

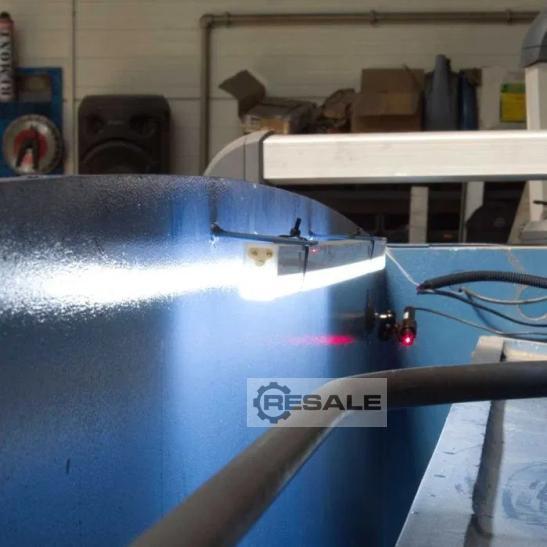

- Task lighting
- Front supports
- Mobile footswitch

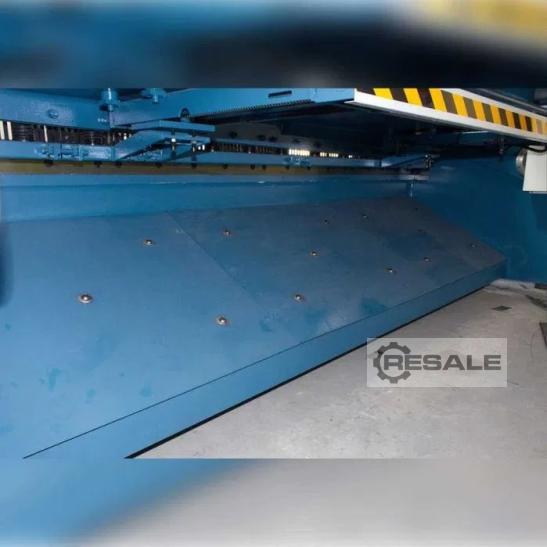

Rear ramps
The rear ramp has been equipped with ball transfer units, so that
shutdowns are never left on the machine.

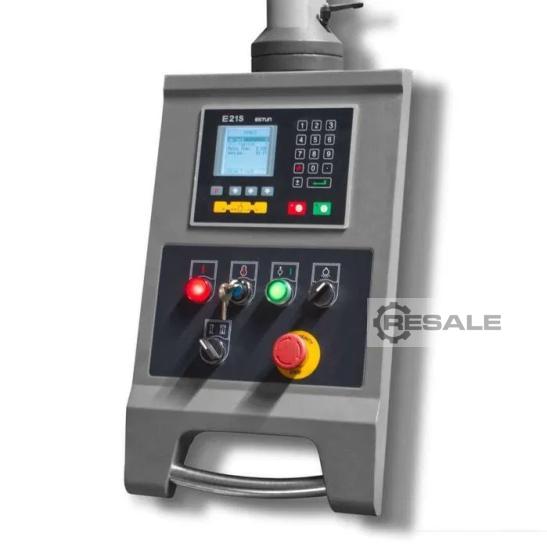

E21S Controller
(Located on a swivel arm on the left side of the machine)
- Backgauge control
- 40 programs can be saved - up to 25 different steps in each
program
- Retract function
- Save parameters at the touch of a button
- Parameter memory in case of power failure

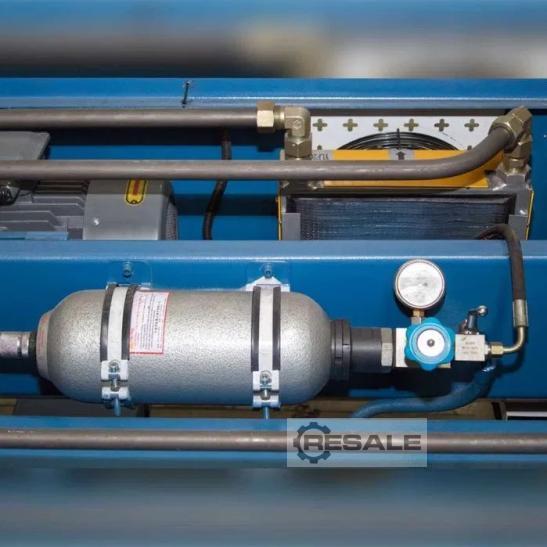

Steel hydraulic lines
Hydraulic lines made of steel instead of rubber reduce the likelihood
of future leaks.

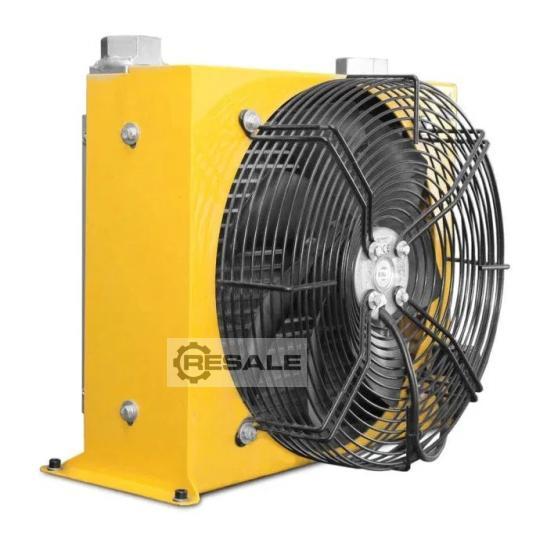

OCS - Oil Cooling System
Oil cooling system - guarantees the stability of the operating
parameters of the machine even after long, continuous operation.
PCS - Preassure Control System
The Preassure Control System ensures reliable operation of the blade
for many years.
Assistance from a specialist
We make sure to stay in constant contact with our customers. That's
why we add an hourly package of Otinus Professional Assistance to
every machine purchased.
Technical Advice
We have specialists who will determine the right machine and
accessories before buying - based on technical drawings of the parts
you want to make.
See and test the machine
Take part in a special demonstration where a qualified Otinus
technician will show you the full functionality of the O6256761
machine.
In addition, you can try out how the device suits your needs. You can
provide technical drawings and sample material.
Included in the price of the machine
One-day training with machine installation
- 1 day (up to 8 hours) - installation of the machine and learning how
to operate the controller.
Telephone consultation with a specialist
Free loan of transport rollers and two jacks for easier positioning of
the machine at the customer's site. The rollers and jack are supplied
on prior request (at least 7 days before delivery of the machine).
Terms of cooperation
- 24 months warranty.
- Delivery time: approx. 10 - 12 weeks.
- The machine is brand new.
- Seller's warranty and post-warranty service.
- The customer is responsible for the machine during unloading and
transport on their premises.
