milling center used for sale

Manufacturer NICOLAS CORREA Model RAPID50 Year of Manufacture 2.005 CNC HEIDENHAIN 530 HSCI Table Table surface 5,000 x 2,000 mm Number of slots T 11 Slot size T 22 mm Maximum weight on the table 30,000 kg. Routes and advances Longitudinal Course (X-Axis) 5,000 mm Transverse Course (Y-Axis) 3,100 mm Vertical Course (Z Axis) 1,200 mm Distance between columns 2,800 mm. Fast Forward Axles (X) 20,000 mm/min Fast Forward Axles (Y, Z) 30,000 mm/min Head UAD II automatic head included UAD II head positioning 0.1º / 0. 1st Speed 6,000 rpm No. of ranges 2 Power 32 kW ISO 50 head cone Hydraulic head clamping Head 2 – vertical chuck INCLUDED Accessories Automatic tool loader INCLUDED Loader positions 30 Automatic head changer INCLUDED 2 longitudinal chip evacuators INCLUDED 1 x Cross Chip Evacuator INCLUDED Internal cooling 20 bar INCLUDED Portable electronic  ...

Manufacturer: Perforex Model: BC 1007 HS Type of Machine : Milling Machining Center Find more here - / Contact us at -

MAZAK MTV 414 CNC vertical machining center was built in 1992 in the United Kingdom by YAMAZAKI MACHINERY UK LTD. The offered machine is an excellent choice for machining workpieces with a maximum weight of 500 kg. Thanks to its reliable components and extremely rigid design, the MAZAK MTV 414 guarantees the best machining results throughout its service life. The machining process is performed inside a large work area with a work table with a length of 900 mm and a width of 410 mm, a spindle and a capacious tool magazine. The spindle, driven by a powerful motor, rotates at a maximum speed of 7000 rpm and operates in three X,Y,Z axes with feeds of 560 mm, 410 mm and 460 mm respectively. All cutting tools are stored in a 24-position tool magazine with an automatic tool changing system (ATC). All this is complemented by the intelligent MAZATROL M32B CNC controller with its intuitive interfa ...

BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1   live positions: yes WORKING RANGE TURNING   swing diameter (max): 560 mm   turning diameter (max): 275 mm   bar diameter (max): 42 mm   worpiece length max.: 450 mm MAIN SPINDLE   spindle revolutions (min): 5600 /min   drive power: 11 kW X/Z SLIDE   number of tool positions (total): 11   number of live positions: 11   - rotation speeds (max): 4500 /min TAILSTOCK   sleeve stroke: 60 mm   sleeve diameter: 70 mm   holding force (max.): 8600 kN ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1600 mm   total height: 1800 mm   total weight approx.: 3500 kg ATTACHMENTS (TURNING)   chip conveyor: yes   European CE standards: yes

CONTROLS   CNC controls FANUC 31I MODEL A BASIC FUNCTIONS   number of spindles: 2   number of turrets: 3   live positions: yes   number of c-axes: 3   number of y-axes: 3 WORKING RANGE TURNING   turning diameter (max): 170 mm   bar diameter (max): 45 mm   worpiece length max.: 588 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min   spindle bore diameter: 42 mm   spindle positioning: 0.001 °   c-axis: yes COUNTER SPINDLE   spindle revolutions (max): 6000 /min   spindle positioning: 0.001 °   c-axis: yes ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3400 mm   space requirements -front/back-: 2000 mm   total height: 1900 mm   total weight approx.: 8000 kg

CONTROLS   CNC controls MITSUBISHI M720BM BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   live positions: yes   number of c-axes: 2 WORKING RANGE TURNING   swing diameter (max): 700 mm   turning diameter (max): 350 mm MAIN SPINDLE   spindle revolutions (max): 4000 /min   spindle bore diameter: 90 mm   c-axis: yes X/Z SLIDE   - rotation speeds (max): 6000 /min TOOL MAGAZINE   number of positions: 24 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7500 kg ATTACHMENTS (TURNING)   chip conveyor: yes   coolant unit: yes   hydraulic system: yes   European CE standards: yes Machine in a good condition The spindle guides need to be replaced. Machine equipment (1500.- CHF (below)): - 1x double face and longitudinal turning tool holder - 3x face and longitudinal turn ...

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 2   number of turrets: 2   live positions: yes   number of c-axes: 2   number of y-axes: 1   number of b-axes: 1 WORKING RANGE TURNING   bar diameter (max): 50 mm MAIN SPINDLE   spindle revolutions (max): 5000 /min   drive power: 11 kW   spindle bore diameter: 50 mm   c-axis: yes COUNTER SPINDLE   spindle revolutions (max): 5000 /min   drive power: 7.5 kW   c-axis: yes   Z-axis travel: 465 mm X/Z SLIDE   tool fixture: Turret   number of tool positions (total): 24   number of live positions: 24   - rotation speeds (max): 6000 /min ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4500 mm   space requirements -front/back-: 2200 mm   total height: 1900 mm   total weight approx.: 5500 k ...

Serial number: 07510001241 operating hours read: 72,899 Spindle hours read: 39,361 Control: SIEMENS SINUMERIK 840 D Rotation diameter: 640 mm Turning diameter: max. 640 mm Turning diameter Sub-spindle: 400 mm Spindle distance: 1500 mm Turning length: 1185 mm Max. workpiece weight: 150 kg Slide path X1: 550 mm Slide path Y1: 180 mm Slide path Z1: 1185 mm Slide path B1: 240 ° Slide path X2: 180 mm Slide path Z2: 1050 mm Slide path Z3: 1150 mm Spindle speed range: 3200/4000 rpm Rapid traverse speed of slide 1 (X/Y/Z): 40/24/70 m/min Rapid traverse speed of slide 2 (X/Z): 24/36 m/min Rapid traverse speed of slide 3 (Z): 36 m/min Tool holder: HSK 63 Spindle speed: 12,000 rpm incl. the tool holders on the turret incl. bar feeder, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, Year of manufacture: 2008, Serial number: CNCDB-08.306, Weight: 1500 kg Number of tool positions in the chain magazi ...

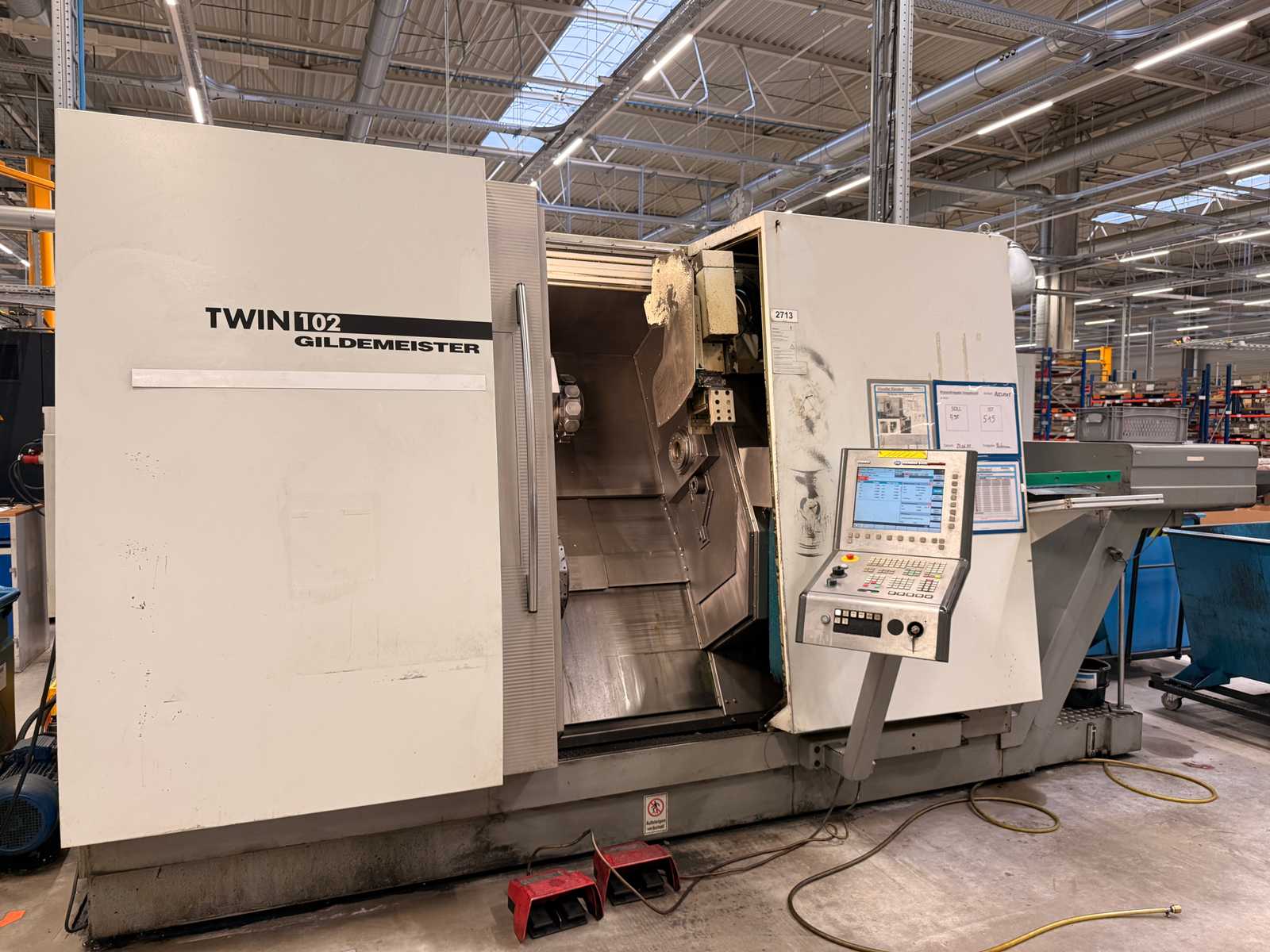

Serial number: 07400003691 operating hours read: 88,040 Spindle hours read: 43,558 Spindle speed range: 3200/5000 rpm Rotation diameter: 270 mm Turning diameter: 120 mm Spindle distance: 900 mm Travel X1: 290 mm Travel Z1: 650 mm Travel X2: 180 mm Travel Z2: 650 mm Travel Y1: +- 40 mm Travel Z3: 670 mm Travel X3: 175 mm Max. rod diameter: 100/104 mm Spindle bore diameter: 118 mm Rapid traverse speed X- and Z-axis: 30 m/min Rapid traverse speed Y-axis: 15 m/min Number of driven tools per tool carrier: 12 Control: SIEMENS SINUMERIK 840 D POWERLINE incl. chip conveyor with 2 tool turrets - each with 12 tool positions main and counter spindles, as well as foot switches Attention, the machine has the following defects: -the B-axis is defective (sits on turret 1) -the guides and drives are worn according to their age-X2 axle (guide rails) runs a bit crooked in the range of 0.03 mm (would have  ...

MIKRON VCP 800W Duro CNC vertical machining center was built in 2004 in Switzerland by Mikron Comp-Tec AG. The machine is designed for precise machining of steel, aluminium and the production of moulds and tools. The machining process is performed by means of a reliable spindle and precision cutting tools. The spindle, driven by a powerful motor, rotates at a maximum speed of as much as 20000 rpm, ensuring rapid machining while maintaining high efficiency at the same time. Inside the fully illuminated workspace, there is also a large work table with T-slots for easy workpiece and tooling mounting. All this is complemented by an advanced HEIDENHAIN iTNC 530 CNC control with an intuitive interface and an access to many advanced functions. The MIKRON VCP CNC machining center weighs 9120 kg. The MIKRON VCP 800W Duro is offered with an extensive range of equipment, including, among others, ...

CONTROLS   CNC controls SIEMENS BASIC FUNCTIONS   number of spindles: 4   number of turrets: 2   live positions: yes   number of c-axes: 4 WORKING RANGE TURNING   turning diameter (max): 100 mm   bar diameter (max): 20 mm MAIN SPINDLE   spindle revolutions (max): 5000 /min COUNTER SPINDLE   spindle revolutions (max): 5000 /min TOOL MAGAZINE   number of positions: 48 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 9600 mm   space requirements -front/back-: 1500 mm   total height: 2200 mm   total weight approx.: 2600 kg ATTACHMENTS (TURNING)   bar magazine: optional   - bar length (max): 3000 mm   chip conveyor: yes   coolant unit: yes   hydraulic system: yes Features: - various tool holders - various collets in every millimeter increment - bar feeder (dual chan ...

Includes selection of BT30 holders and Digital tool Setter and 3d Haimler. Great machine, little use and always on aluminium. Can be seen running. 16 Position Arm type ATC and LNC Control (I have fusion 360 post as well.) Great machine for small workshop or as we had for home use.Table Size: 700x300 mmT-Slots (Number x Size x Distance): 3x14x100 mmMax. Table Load: 150 kgX Travel: 400 mmY Travel: 300 mmZ Travel: 380 mmDistance between spindle end and tabletop: 150-530 mmDistance between spindle and column surface: 358 mmBT30 10,000 RPM spindle.

For sale is a high-quality CNC turning-milling center spinner TC77-SMCY with Siemens Sinumerik control. The machine is equipped with: Y-axis C-axis Sub-spindle powered tools Chip conveyor extensive tool package Technical data: Bar passage 77 mm 12-speed VDI50 turret Main spindle ASA 8 Sub-spindle ASA 6 Speed up to 4000 rpm Turning diameter approx. 500–690 mm Turning length approx. 800–900 mm Y-axis ±60 mm Main and sub-spindle Weight approx. 6000–7000 kg Nloc Egsy Uwmws S Rrgob

CNC Bar Machining Center for Aluminum, Machine No. 6100013187, control Beckhoff C6140 renewed in 2020, infeed of extrusion profile magazine length max. approx. 6000 mm, machining units (drilling / milling: vertical top 1 piece / vertical bottom 4 pieces / horizontal front 1 piece / horizontal rear 1 piece) and (sawing 3 pieces: 45 / 90 / 45 degrees), outfeed belt max. approx. 2700 mm, chip conveyor belt (The article is in condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! Mediation of dismantling and loading possible. Contact: Dejan Ducic / dejan.ducic@surplex.com Auction-ID: A7-47228-14

CNC turning and milling center Okuma Multus B400 1SC-1500 Control: OSP-P200L Year of manufacture: 11/2010 Internal machine no. 61 X-axis: 690 mm Y-axis: +115 / -115 = 230 mm Z-axis: 1,545 mm B-axis: up to 225°, positioning in 0.001° C-axis: 360° / 0.001° Turning length: 1,500 mm Turning diameter: 710 mm Spindle bore: 110 mm Tool holder: HSK 63 Tool magazine: 40-fold Equipment: - Chip conveyors - 3-jaw chuck SMW KNCS-N-340-117 - Paper belt filter system ISF 540/6670 - One Touch IGF - Tailstock - Touchsetter

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

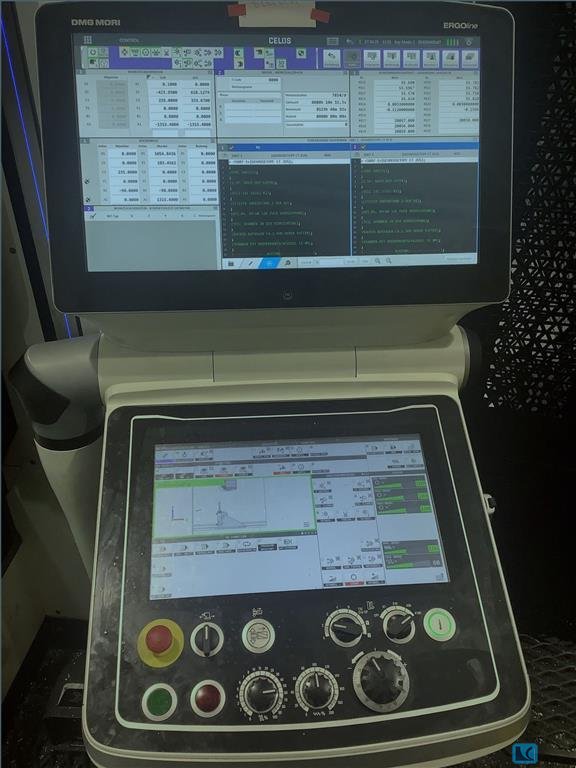

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

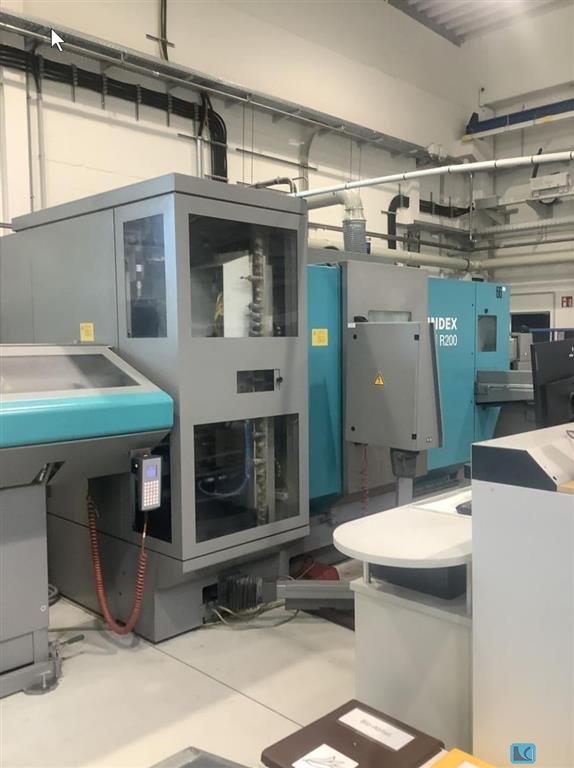

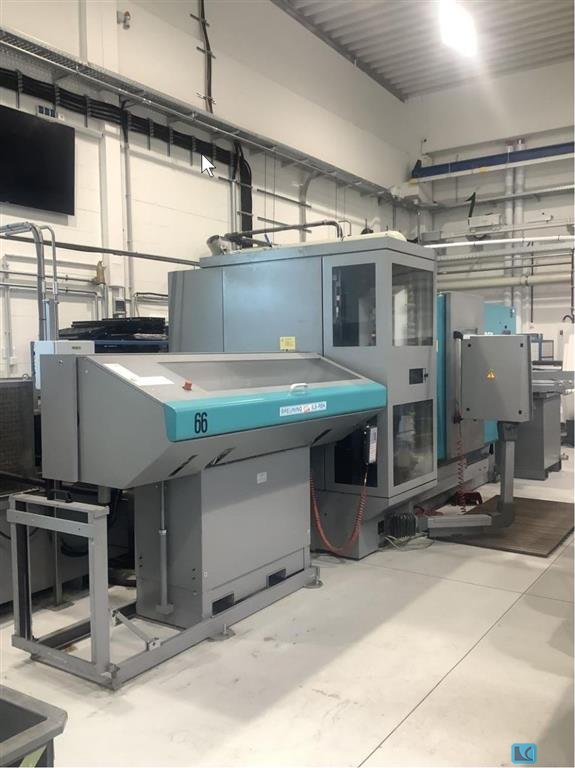

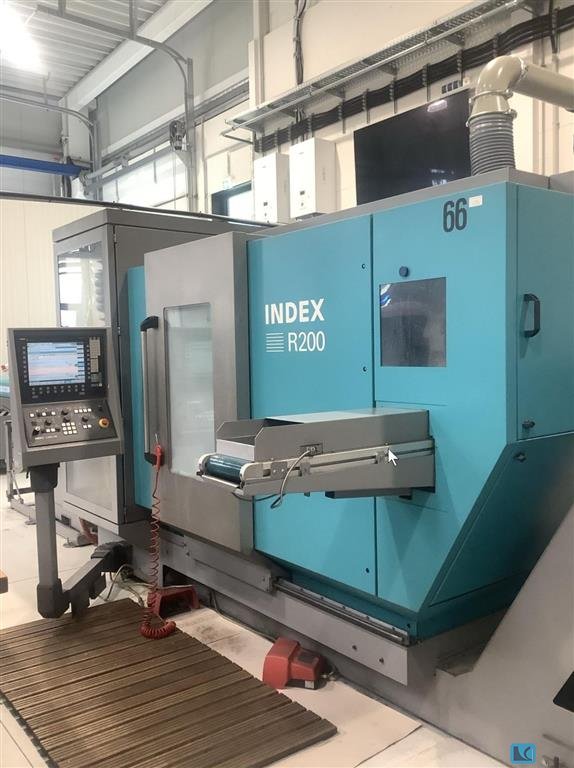

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

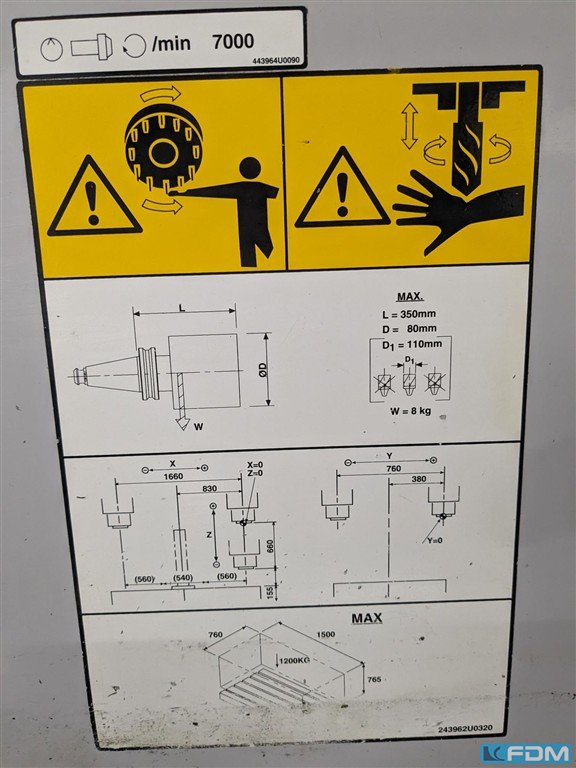

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Serial number: 07400003691 operating hours read: 88,040 Spindle hours read: 43,558 Spindle speed range: 3200/5000 rpm Rotation diameter: 270 mm Turning diameter: 120 mm Spindle distance: 900 mm Travel X1: 290 mm Travel Z1: 650 mm Travel X2: 180 mm Travel Z2: 650 mm Travel Y1: +- 40 mm Travel Z3: 670 mm Travel X3: 175 mm Max. rod diameter: 100/104 mm Spindle bore diameter: 118 mm Rapid traverse speed X- and Z-axis: 30 m/min Rapid traverse speed Y-axis: 15 m/min Number of driven tools per tool carrier: 12 Control: SIEMENS SINUMERIK 840 D POWERLINE incl. chip conveyor with 2 tool turrets - each with 12 tool positions main and counter spindles, as well as foot switches Attention, the machine has the following defects: -the B-axis is defective (sits on turret 1) -the guides and drives are worn according to their age-X2 axle (guide rails) runs a bit crooked in the range of 0.03 mm (would have  ...

Manufacturer Heckler & Koch Model AM 444 A Power consumption: 5.5 KW Voltage: 380/400 Volts Spindle holders for vertical and horizontal spindles: 40 Slide movement x = 410nn y = 350mm z = 400mm Vertical clamping table 850 x 255 mm Feed range 0-1500 mm/min Sliding gearbox 12-stage Speed: 63-2800 rpm Step jump 1.4 CNC control CNC 783/m Dimensions (HxWxD) 1.800x2.400x1.700mm Weight 1,500 kg Ref.Nr PLW18 Mistakes reserved!

Rolling milling machine Koepfer 153 A/CNC Manufacturer Jos. Koepfer & Söhne GmbH Type 153 A/CNC Built in 1988 Machine No. 153199 Technical data Largest Module 2 Distance workpiece tool axis max. 4- 87 mm max. workpiece diameter - without magazine 142 mm - with magazine 80 (100) mm max. milling length 150 mm max. length workpiece - without magazine 300 mm - with magazine 220 mm min. number of teeth 3 min. screw gait number 1 Main spindle through- 33 mm Hole Mounting hole for 50 mm Jig max. cutter diameter 70 mm max. cutter width - Universal milling head 63 mm - Shifting milling head 71 mm max. axial cutter shift - Universal milling head 40 mm - Shifting milling head 44 mm 35 Longitudinal feeds 0.1 -5.0 mm /WU 10 cutter speeds 210-1680 /min Control (2 axes) CNC Drive power 2.2 kW Weight approx. 2400 kg Available immediately Location  ...

Important and outstanding design features of the RaptorX-SL with steel substructure / gantry design RaptorX-SL1200/S20 The range of applications of a RaptorX-SL CNC Fraesmaschine is variable due to the adjustable working area (through-lasshoehe under Bruecke: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge) extremely large. special size (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! To such a way that you are able to process plate materials with the greatest stability of the Z-axis exactly as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or water jet cutting system, are available In the middle range of the machine (between the foottubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm height ( at 400mm long F ...

Operating voltage: 380/400 volts with digital positioning display x,y, without feed in y direction, with angular table, work surface with 4 T-slots Mistakes reserved!

- with lateral Kappsaege

Milling / Beveling aggregate Serial No.: IMA -for double-sided edge banding machine (1 Unit left right side page / 1 units)

Important and distinguishing design features of the RaptorX SL steel base machine / gantry RaptorX-SL1200/S20 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method t ...

Important and outstanding design features of the RaptorX-SL with steel substructure /RaptorX-SL3200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the high-adjustable working area (read-through he under bridge variable : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special coarseness up to 17,500 mm (on one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm hei ...

Important and distinguishing design features of the RaptorX SL steel base machine RaptorX-SL3200/S15 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method to produce large 3D objec ...

WJ-F102-1150 Mill: swivel 90-45 Spindle speeds (6 steps) 3000/4000/5000/6000/8000/10000 rpm Sliding table:1150mm (Optional 1600mm) M?o?t?o?r?l?i?i?t?u?n?g?: 400V 3 kW (4.0 hp) max. clamping height: 125 mm Table opening: 270 mm max. tool diameter retractable: 260 mm Options at extra cost: Telescope 900mm Eccentric tensioner Milling motor 4 KW (5.5hp), S1 100% Milling motor 5.5 KW (7.5 hp), S1 Milling spindle 40.50 or 60mm Integral safety rails 500mm Right and left-hand running milling cutter Table extension right/left

Specifications / Technical Data S-1000 CNC-Fraese and Engraving Machine The almost largest CNC machine in the High-Z series. With an external dimension of approx. 1350 x 800mm still handy enough and extremely powerful. With the High-Z CNC unit, they acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or to clamp factory tins into a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All CNC portal fraes machines are supplied with coloured energy chains on all axes due to the improved cable guid ...

Type U-1000 1991 year - X/Y/Z 1000x480x380 3-axis digital display Heidenhain Positip
