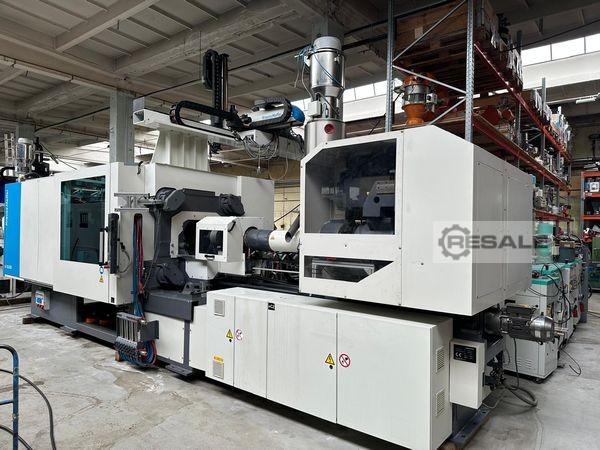

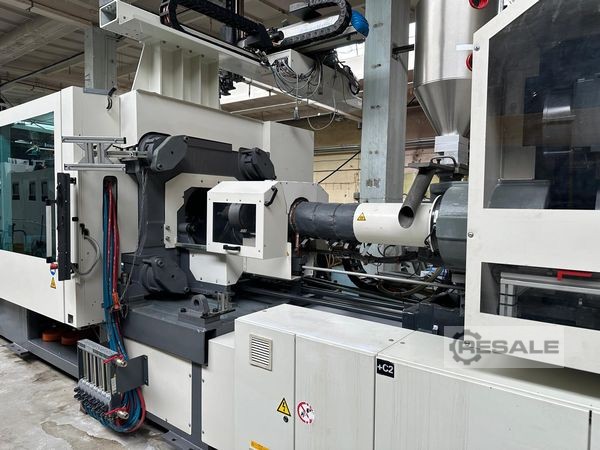

Krauss Maffei KM 350-2000 AX / Electric machine / Production line with
the Krauss Maffei LRX150-1018 robot
Year of Make: 2011
Injection unit:
Screw diameter: 60 mm
Injection weight: 720 g
Spray pressure: 2420 bar
Dosing volume: 792 ccm
Clamping unit:
Clamping force: 350 t
Spar spacing: 810x730 mm
Size of the clamping plates: 1110x1030 mm
Ejector: electric
Clamping unit: toggle lever

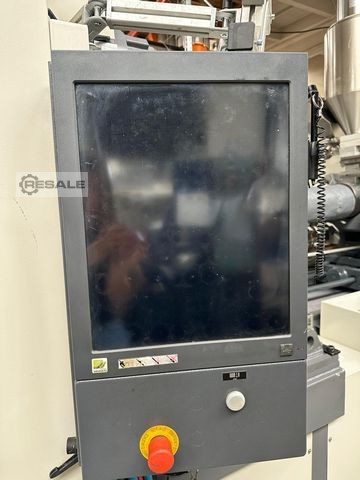

Control: MC6 - Touch Screen
Additional equipment:
Electric machine: energy-saving and very quiet
Euromap 67
Robot interface
Air core pull x 2 on the side of the fixed clamping plate
Hydraulic core pull x 3 on the side of the movable clamping plate
Control with hot runners x 10
Injection unit is wear-resistant and resistant to corrosion
Main motor of the machine - Servo motor driven by inverter - Energy
saving
Central lubrication
Parallel movements
Automatic tool height adjustment

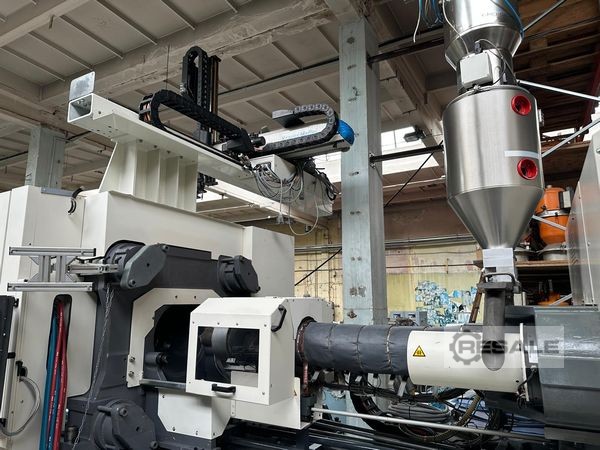

Krauss Maffei LRX150-1018 robot
Year of Make: 2011
5-axis robot: 4 axes are driven by servo motors (electric): X,
Y-telescopic, Z, B-rotation; Axis C – pneumatic
Strokes in axes: X-900, Y-1800, Z-2500
The safety package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost
Dimensions:
Weight: 22600 kg
Length/Width/Height: 8.00x2.35x2.30 m
All offered machines are started by our service technicians before
they are sold.
It is possible to receive a video of the technical tests of the
selected machine or to participate in live technical tests at our
company in Łódź.
Price: On request
